Vanco Evolution EVMX44VW User manual

4K 4x4 Seamless Audio
and Video Matrix with
Video Wall
Part Number:
EVMX44VW
www.vanco1.com • 800.626.6445
4K 4x4 Seamless
AUDIO AND VIDEO
MAT R I X
with Video Wall

www.vanco1.com 800.626.6445 2
1. Do not expose this unit to water, moisture, or
excessive humidity.
2. Do not install or place this unit in a built-in
cabinet, or other conned space without
adequate ventilation.
3. To prevent risk of electrical shock or re
hazard, due to overheating do not obstruct
unit’s ventilation openings.
4. Do not install near any source of heat,
including other units that may produce heat.
5. Do not place unit near ames.
6. Only clean unit with a dry cloth.
7. Unplug unit during lightening storms or when
not used for an extended period of time. A
surge protector is strongly recommended.
8. Protect the power cord from being walked on
or pinched, particularly at the plugs.
9. Use unit only with accessories specied by
the manufacturer.
10. Refer all servicing to qualied personnel.
CAUTION
HDMI is a very complex technology requiring continuous authentication of the signal and the same
video resolution and audio settings on all electronic equipment in the system. When there are multiple
sources and displays, the video resolution and audio setting on all connected units must be adjusted
to correspond with that of the display having the lowest video and audio capability.
WARNING
DEAR CUSTOMER
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
This product is 100% inspected and tested in the United States to verify
HDMI performance parameters.

www.vanco1.com 800.626.6445 3
INTRODUCTION
The Evolution by Vanco EVMX44VW 4K 4x4 Matrix Switcher with Video Wall capability, allows 4 HDMI sources to be
distributed up to 4 displays with full switching exibility. The EVMX44VW features the ability of passing 4K@60Hz resolution
and 4:4:4 Chroma Subsampling. Capable of 4 display video wall congurations, with ability for 180 degree screen rotation, as
well as bezel adjustments. The EVMX44VW also has a scaling function, to achieve a variety of different resolution formats.
Multiple audio options including the ability to connect up to four audio sources and distribute up to four zones, with both
analog and digital outputs. The audio sources can also be utilized to embed audio onto the HDMI outputs. With the ability to
control switching via front panel selections, IR, RS-232, and TCP/IP. Simply connect the matrix unit to the local network, and
the switching can be controlled with any computer, tablet, and/or mobile device on the same network. An easy and intuitive
user interface allows for full control. For a 2x2 video wall application, and the ability to switch to a matrix function where each
display shows a different source, plus audio options, the EVMX44VW is the perfect solution.
FEATURES
4K 4x4 Seamless Audio and Video Matrix with Video Wall
Part # EVMX44VW
• 4K 4x4 Matrix with Video Wall Modes
• Supports up to 4K@60Hz and 4:4:4 chroma subsampling
• Features resolution scaling with multiple formats available
• Supports up to a 4 display video wall
• Supports 180° screen rotation and bezel adjustments
• Includes built-in audio matrix to distribute up to four zones with analog and digital outputs
• Able to embed audio onto HDMI outputs
• IR pass-through to control sources from display locations
• Controllable via front panel, IR, RS-232 and TCP/IP
• Easy and intuitive User Interface to control switching and video wall functions via IP
• HDMI 2.0 and HDCP 2.2 compliant
• Rack mountable design
• Dimensions: 17” W x 8.7” D x 1.7” H (430mm × 220mm × 44mm)
• (1) EVMX44VW 4K 4x4 Matrix Switcher
• (1) IR Remote
• (4) IR Receivers
• (4) IR Emitters
• (5) 3-pin Phoenix Connectors
• (4) 5-pin Phoenix Connectors
• (1) VAD9113X Toslink (Female) to 3.5mm
Stereo (Male) Adapter
• (1) AC Power Cord
• (1) Product Manual
PACKAGE CONTENTS

www.vanco1.com 800.626.6445 4
SPECIFICATIONS
HDMI Compliance ...................................................... HDMI 2.0
HDCP Compliance...................................................... HDCP 2.2
Video Bandwidth ........................................................ 18 Gbps
Video Resolution........................................................ Up to 4K@60Hz, 4:4:4 Chroma Subsampling
Color Space .............................................................. RGB, YCbCr 4:4:4/4:2:2
HDMI Amplitude ........................................................ T.M.D.S +/- 0.4Vpp
Differntial Impedance.................................................. 100±15ohm
ESD Protection .......................................................... Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Baud Rate and Protocol.............................................. Baud rate: 9600, data bit: 8 Stop bit: 1, no parity
checking
Ethernet ................................................................... IE10.0+,HTML5
Housing .................................................................... Metal Enclosure
Color ........................................................................ Black
Dimensions ............................................................... 17” W x 8.7” D x 1.7” H (430mm×220mm×44mm)
Weight ..................................................................... 11 lbs
Power Supply ............................................................ AC 110-240V
Power Consumption ................................................... 60W (Max)
Operating Temperature............................................... 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature ................................................. -20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity....................................................... 10%~50% RH (non-condensing)

www.vanco1.com 800.626.6445 5
6
1
2
3
4
57
Front Panel
1. LCD Panel: Displays current status
2. COM: Illuminates when matrix switcher is powered on
3. IR: IR Sensor to control the unit via included IR remote
4. LOCK: Locks/Unlocks front panel buttons (hold for 3 seconds to activate)
5. OUTPUT: Outputs 1-4 for output display selection
6. INPUT: Inputs 1-4 for input source selection
7. ALL: Set all outputs to the same input by pressing ALL+ INPUT # + TAKE
8. RES: Set the output scaler resolution based on the table on page 6
Press RES + OUTPUT # + NEXT (to toggle through options) + TAKE
9. EDID: Set the EDID options for the input selected based on the table on page 6
Press EDID + INPUT + NEXT + TAKE, change the EDID mode of port INPUT
10. NEXT: Select the next available option within a menu
11. SAVE: Save the current matrix setting as a preset by pressing SAVE + Output #(s). Up to 8 presets can
be saved.
12. RECALL: Set the matrix to a previously saved preset by pressing: RECALL+OUTPUT #(s)
13. CLEAR: Cancel the current command function
14. ENTER: Set the displayed option or command function
PANEL DESCRIPTIONS
89
10
11 12 13 14

www.vanco1.com 800.626.6445 6
Number Output Resolution Setting Number Output Resolution Setting
1 3840x2160p 60Hz 9 1440x1050 60Hz
2 3840x2160p 50Hz 10 1366x768 60Hz
3 3840x2160p 30Hz 11 1360x768 60Hz
4 3840x2160p 25Hz 12 1280x1024 60Hz
5 1920x1200 60Hz 13 1280x768 60Hz
6 1920x1080p 60Hz 14 1280x720p 60Hz
7 1920x1080p 50Hz 15 1280x720p 50Hz
8 1600x1200 60Hz 16 1024x768 60Hz
Number Output Resolution Setting Number Output Resolution Setting
1 Manual 5 1920x1080 60Hz
2 3840x2160 60Hz 6 1280x1024 60Hz
3 3840x2160 30Hz 7 1280x720p 60Hz
4 1920x1200 60Hz 8 1024x768 60Hz
RESOLUTION
EDID
Set the output scaler resolution based on the below table
Set the EDID options for the input selected based on the below table

www.vanco1.com 800.626.6445 7
1. LAN: Connect to a local network such as a router or ethernet switch to give the matrix unit connectivity,
this will give the ability to control the matrix unit via IP with any device on the network such as a
computer, tablet, or mobile phone
2. RS232: Connect the included RS-232 cable to a computer or 3rd party control system for integration
3. IR OUT - 1-4: Connect the included IR Transmitters (TXs) to each port, the number on the IR output
corresponds to the HDMI inputs (Connect this if you would like to control the sources from each display
location)
4. IR IN - 1-4: Connect the included IR Receivers (RXs) to each port, the number on the IR input
corresponds to the HDMI outputs (Place each IR RX at the corresponding display locations)
5. AUD INPUT – Connect audio sources via analog audio inputs to be routed and/or embedded onto HDMI
Outputs
6. AUD OUTPUT: Connect up to four zones via analog and Toslink audio outputs to be extracted or routed to
external audio components
7. INPUT: Connect HDMI sources to each corresponding HDMI input
8. OUTPUT: Connect HDMI display(s)
9. POWER SWITCH: Master switch to turn on/off power
10. POWER CONNECTOR: Connect the included power cord for power
11. GROUND: (Optional) connect to ground
2
136
4 5
7 8
PANEL DESCRIPTIONS
9
10
11

www.vanco1.com 800.626.6445 8
1. Connect your sources such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver,
etc. to either the HDMI inputs on the unit. Insert and extract cables carefully with the power switched
off. Connecting and disconnecting while the unit is powered can result in damage to circuitry
2. Connect the HDMI outputs that go to the displays
3. OPTIONAL: Connect the provided IR RX and IR TX cables if you wish to use IR routing. See below for
additional detailed information
4. OPTIONAL: Connect an Ethernet cable from the TCP/IP port on the matrix to a local Area Network, or
the provided RS232 cable with 3-pin phoenix connector to the RS232 port on the matrix
5. OPTIONAL: Connect audio inputs or outputs using the provided phoenix connector to embed, de-embed,
and route audio. See instructions in the AUDIO MATRIX section of the manual for additional information
6. Connect the power cable to the power receptacle on the matrix
7. Connect power supply to an available electrical outlet and power on the device to test
CONNECT AND OPERATE
Amplifier
Source
Source
IR Receiver
HDTV HDTV
IR Receiver
IR Emitter
HDMI
HDMI

www.vanco1.com 800.626.6445 9
IR CONTROL
The EVMX44VW allows for IR pass-through to control the connected sources at the display locations. The IR
signals are routed, so the sources are only controllable at a display location if the source is switched to that
output.
IR Emitters:
Connect the IR Emitters (Blasters/TXs) to the “IR OUT” port on the back of the matrix unit, ensure that the IR
Emitter is placed on the corresponding source (For example, IR OUT port 1 = HDMI input 1)
IR Receivers:
Connect the IR Receivers (RXs) to the “IR IN” port on the back of the matrix unit, ensure that the IR Receiver
is routed to the corresponding display (For example, IR IN port 1 – HDMI output 1)
NOTE: Infrared receiving areas of source devices can be located by shining a ashlight onto the front of the
device – the sensor should be able to be seen through the plastic as a small, round object inside. Place the IR
Emitters around or near this area with the tip of the IR emitter near the IR sensor of the source. IR receivers
should be placed at the display and line of sight, so that an IR remote can be pointed at the pigtail to receive
IR signals.

www.vanco1.com 800.626.6445 10
The product also supports Network control. Connect the LAN port of the matrix to a PC via a UTP (Cat5e/6)
cable, as shown in the following gure:
In addition to an HDMI video distribution system, the EVMX44VW also includes a built-in audio matrix, where
audio sources can be connected and be sent up to four individual zones.
The 4 sets of Audio output (LR and Toslink) channels can be independent of video and switched by the User
Interface via TCP/IP. Audio Outputs utilize 5-pin Phoenix connectors to output balanced LR audio, and 4 mini
Toslink jacks to output analog LR audio and digital audio.
There are also 4 sets of analog audio inputs using 3-pin Phoenix connectors to input external analog LR audio,
this can also be used to embed audio onto the HDMI outputs.
AUDIO MATRIX
RS-232/LAN CONTROL
CONNECTION
Network Control Connection

www.vanco1.com 800.626.6445 11
EVMX44VW SOFTWARE
Before running the software which can be downloaded on the product page on www.vanco1.com, the password
is needed to log in.
Default password of Administrator (access to all features): 111111
Default password of User (access to all features, except OSD function): 000000
Connect with PC Tool
Select UART (with RS-232 cable) or Network to connect

www.vanco1.com 800.626.6445 12
Matrix Switch Page
To switch one input port to all output ports, use the All set dropdown menu. For example, to switch input 1 to
all outputs:
1. Recall mode: Recall a preset of inputs/outputs (maximum of 8 presets)
2. Save mode: Save the current input/output mapping to create a preset
Note: Save/Recall button here works the same with front panel save/recall control, and also the same
with Save/Load function on video wall page
3. System reset: Resets the matrix to factory settings
4. Audio Switch mode: Follow Video mode or Manual mode
- When selecting Manual mode, separately switch L/R (Phoenix interface) and Toslink output(s)
- Can also select to use HDMI embedded or corresponding external LR audio
5. EDID Control: Click the “EDID” button on Matrix Switch page, there will be a pop-up EDID control window.
The following operations are:
a. Read EDID of one output port
b. Open one existing EDID le
c. Write EDID to one input port

www.vanco1.com 800.626.6445 13

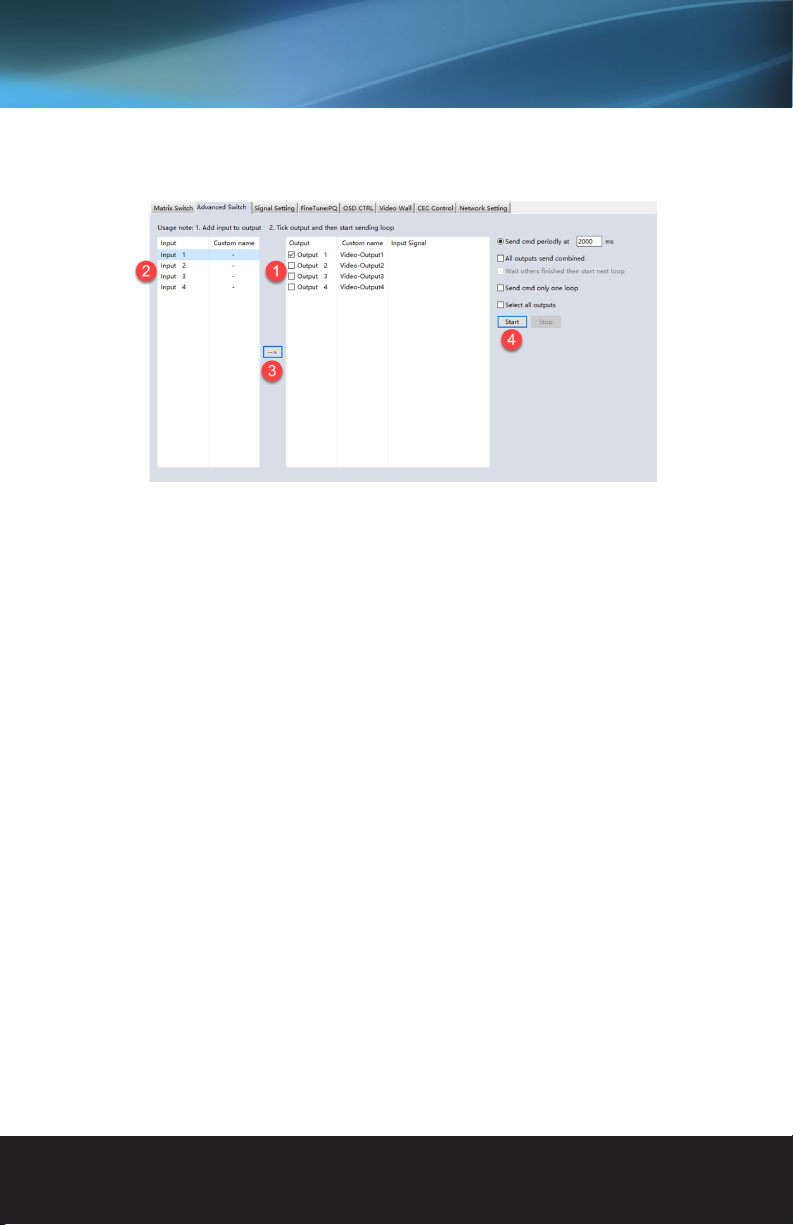

Advanced Switch Page
1. Select one or more outputs
2. Select one input
3. Use the arrow button “-->” to assign that input to the selected output or outputs
4. After completing all required selections, click the “Start” button to run the commands
The Advanced Switch page will repeatedly send a batch of matrix selection commands at the interval specied
in the Send cmd periodly at text.
The available options are:
All outputs send combined – Combine all outputs that have the same input number as a single command
Wait others nished the start next loop – Wait for all commands in the previous pass to complete
before sending the next batch of commands.
Send cmd only one loop – Only send a single batch of commands
Select all outputs – Select all outputs when the option is checked
Start – Begin the command cycles
Stop – Stop the command cycles

www.vanco1.com 800.626.6445 14
Signal Setting Page
1. Audio Select: there are two options for input Audio Select
a) Auto: If the input source is HDMI signal, system will get the embedded audio; if the input source is
DVI signal, the system will get the corresponding analog audio
b) External: System will get the corresponding analog audio
2. Output Type: there are four options for output type:
1. UHD-HDMI (HDCP OFF)
2. UHD-DVI
3. UHD-HDCP-1.4
4. UHD-HDCP-2.2
3. Output Format: Set the output scaler resolution based on the chart below
Number Output Resolution Setting Number Output Resolution Setting
1 3840x2160p 60Hz 9 1440x1050 60Hz
2 3840x2160p 50Hz 10 1366x768 60Hz
3 3840x2160p 30Hz 11 1360x768 60Hz
4 3840x2160p 25Hz 12 1280x1024 60Hz
5 1920x1200 60Hz 13 1280x768 60Hz
6 1920x1080p 60Hz 14 1280x720p 60Hz
7 1920x1080p 50Hz 15 1280x720p 50Hz
8 1600x1200 60Hz 16 1024x768 60Hz

www.vanco1.com 800.626.6445 15
FineTune Page
1. Choose the display by selecting the Output number corresponding to the display
2. Then click the “Read” button. Adjust Brightness, Contrast, Saturation, and/or Sharpness as desired.
3. If the video image looks incorrect after adjustments, reset to default settings by clicking on the “Reset
button”

www.vanco1.com 800.626.6445 16
Video Wall Page
The EVMX44VW can be utilized to setup a 2x2 (4 display) video wall with any source connected, and
furthermore can display multiple sources on the 2x2 video wall display.
1. Use the Video Wall Setting controls to change how the displays are arranged on the Video Wall page:
a. Adjust the Rows and Columns sliders to change the displayed screen arrangement to permit proper
Drag-and-Select of the desired screens for the video wall
b. Change the Available slider to set how many outputs will be used for the Video Wall
c. Click “Set” to change the Screen conguration
2. Use the left mouse button to drag-select the screens that will be set for video wall mode. The selected
screens will be shown as bright blue.
3. Use the right mouse button to open a menu.
4. Select “Screen Splicing” from the menu to program the video wall mode. The selected screens will now
be shown as bright green.
5. To change the displayed image: right-click to open the pop-up menu and select the desired input from the
“Input Select” menu option.
6. Repeating steps 2 ~ 5 above with a different set of outputs allows the creation of a second video wall.
However, changing the Rows, Columns and Available sliders will automatically delete the current video
wall set up when the “Set” button is clicked.

www.vanco1.com 800.626.6445 17
The following example shows a more video wall set-up of two video walls with two 2x1 congurations:
Video Wall Page
Video Wall Context Menu
Right clicking on any of the screen icons will display the following context menu:

www.vanco1.com 800.626.6445 18
Screen Splicing This option connects the selected screens into a video wall conguration
Cancel Splicing Return the Video Wall conguration to normal outputs
Screen x - Cancel Splicing 3840x2160p 30Hz
Input Select Use the sub-menu to select the input to display on the video wall or the secondary
input image shown in the above example
Output Select This option is only available for any screen that is not assigned to a video wall
mode
Output Type This option is only available for any screen that is not assigned to a video wall
mode
Output Format This option is only available for any screen that is not assigned to a video wall
mode. It allows setting of the output resolution for the selected screen output
Mirror Two sub options :
OFF ( default ), ON ( H+V Mirror)
When select “ON”, you can make 180º rotation with the selected screen
Test Pattern When Test Pattern is enabled, the output will display Color Bar pattern

www.vanco1.com 800.626.6445 19
The Bezel Setting section allows the entry of values to compensate for the display bezel thickness. These
values may be entered either as pixels (Type A) or as mm (Type B).
Type A Bezel Settings
The image size will be adjusted to allow for the number of pixels entered in each of the entry boxes. Click the
“Set” button to view the effect of the new values.
Type B Bezel Settings
The image size will be adjusted to allow for the Inner and Outer display dimensions as entered in each of the
entry boxes. Click the “Set” button to view the effect of the new values.
Bezel Setting
The following images demonstrate the effect of not having bezel compensation and what a correctly congured
bezel compensation settings should produce:
Bezel Compensation
No Bezel Compensation Correct Bezel Compensation
The Save Scene/Layout and Load Scene/Layout buttons allow a video wall conguration to be saved or recalled
at any time. Up to 10 congurations, each with their own name can be saved or recalled. When saving, each
Scene can optionally be given a name to identify that video wall scene setup.
Layout Save/Load

www.vanco1.com 800.626.6445 20
CEC Control Page
If Auto Power On is enabled, every time when the product is turned on, it will turn on all the sources and
displays which are connected to it.
The product supports CEC function, including Power on/off, Volume+/-, Mute/Unmute.
Control via Web
The built-in Web GUI interface provides basic control of the matrix switcher and access to the network
settings. The default IP Address of a unit is 192.168.0.247. The following will be displayed when the web
interface is accessed each time:
The default User Name is: admin
The default Password is: admin
After entering the User Name and Password, an interface similar to the following will be displayed:
