VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
Colorful LED Cyclorama Light
VG-LB1300C
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!
http://www.vangaa.com

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
INDEX
ⅠPRODUCT MAIN FEATURES ............................................. 01
ⅡOVERVIEW AND DIMENSIONS ......................................... 02
ⅢSAFETY INFORMATION ................................................... 02
ⅣPOWER CONNECTION...................................................... 03
ⅤCONTROL PANNEL .......................................................... 05
ⅥDMX PROTOCOL.............................................................. 08
ⅦTECHNICAL SPECIFICATION ........................................... 18
Thank you for using our product! Please read this manual carefully and completely. For
technical reference in future, please keep this user manual well. This user manual contains
all installation and operation information of this colorful LED Cyclorama Light, it’s very
useful for user to install and operate the light. Please strictly abide by the relevant
instruction for the installation and operation.
This LED cyclorama light adopts plate material shell made with beautiful shape, high
efficiency and energy saving, durability, it is suitable for indoor use. This product strictly
according to CE standard design and production, complete with international standard
DMX512 agreement, both single machine control, also can be controlled by connected with,
suitable for large art performance, theatres, studio, discos and other places of use. It’s
special designed for the stage curtain, wall wash and other using. It’s widely used for
touring performance, construction, lighting, theater, discos, bars and other entertainment
places.
This light meets the following criteria:
GB7000.1-2007/IEC60598-1:2003
GB7000.217-2008/IEC60598-2-17:1984+A2:1990
ⅠPRODUCT MAIN FEATURES
·7CH, 11CH, 14CH, 22CH, 5CH, 9CH DMX control channels, LCD display control panel;
·DMX512, Sound active, auto-run and master/slave four kinds control mode;
·IP20 protect rating;
·With strobe stage effect;
·Long lifespan high brightness LEDs can reach to 50,000hours;
·High-efficiency, power-saving, low heat.
01

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual

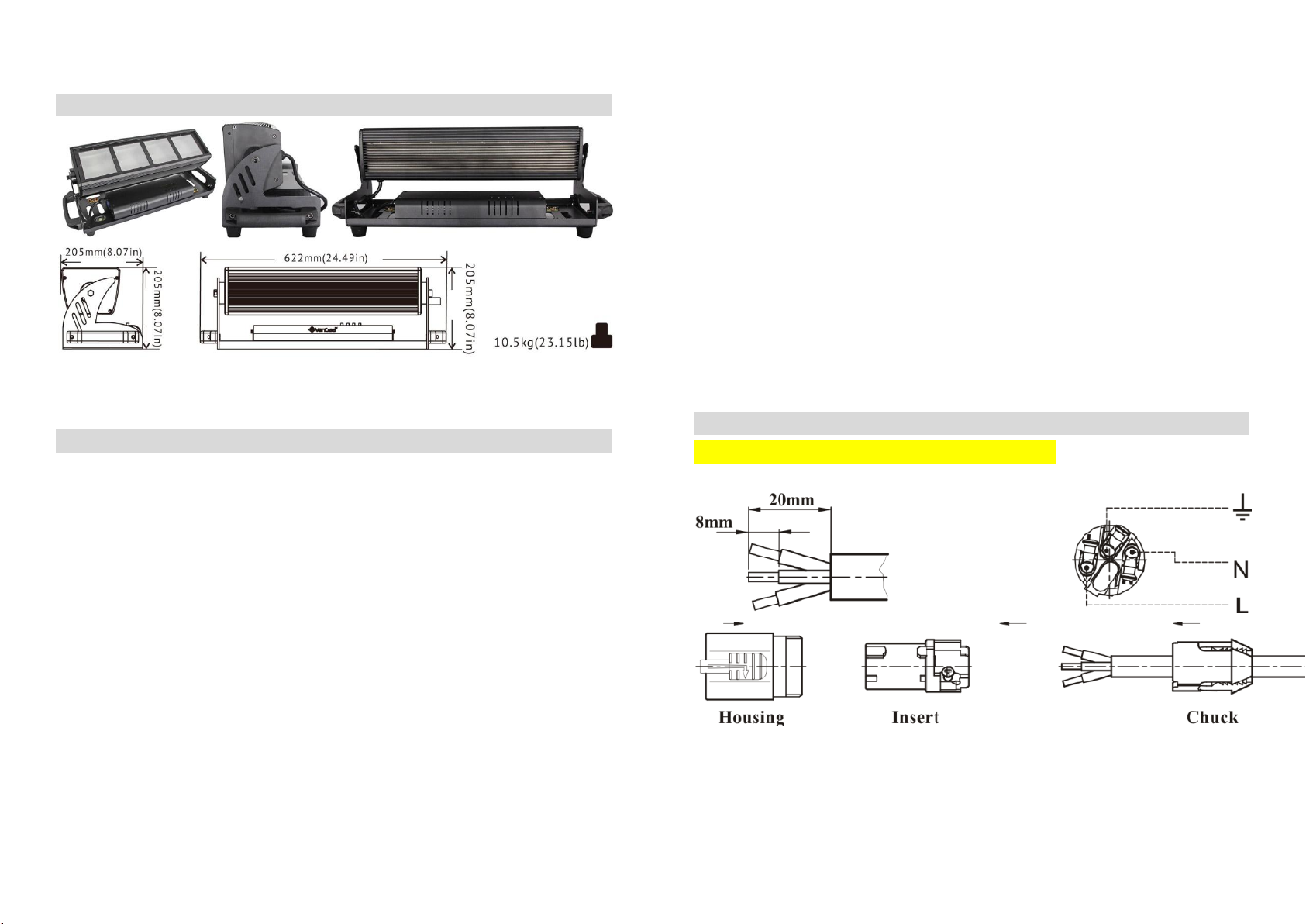

ⅡOVERVIEW AND DIMENSIONS
All dimensions are in millimeters
ⅢSAFETY INFORMATION
※Important
Every person involved with the installation, operation and maintenance of this device has to
be qualified and follow the instructions of this manual. Manufacturer will not with
responsibility for those operations which are not according to this Instruction.
Verify that the voltage matches the rated voltage.
When the voltage is 110V , Do not connect more than 10 lightings in total to AC mains
power in one interconnected daisy chain
When the voltage is 220V , Do not connect more than 20 lightings in total to AC mains
power in one interconnected daisy chain
Before using the fixture, check that all power distribution equipment and cables are in
perfect condition and rated for the current requirements of all connected devices.
Always ground (earth) the fixture electrically.
Avoiding hit the Light when you are move or install the light.
The minimum distance between light-output and the illuminated surface must be
more than 0.5 meters. Keep all combustible materials (for example fabric, wood,
paper) at least 0.2 meters away from the fixture.
Do not expose the fixture to rain or moisture.
Avoid looking directly into the light source (especially those who suffer from epileptic
fits)
Maximum ambient temperature (Ta) is 40°C. Do not operate fixture at temperatures
higher than this.
The Maximum surface temperature is 50°C
When suspending the fixture above ground level, verify that the structure can hold at
least 10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
ⅣPOWER CONNECTION
INSTALLING A NENUTRIK CONNECTOR ON A POWER CABLE
Put bushing and chuck onto the cable.
Prepare cable as shown above. The power cable must is a three-conductor 2.5mm2
cable.
03
02

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
Insert the wire into the terminals and fasten the clamping device by a flat screw driver.
Push insert and chuck into housing (pay attention to the guiding keyway).
Fasten bushing.
The color-coding schemes and some possible pin identification schemes; if pins are not
clearly identified, or if you have any doubts about proper installation, consult a qualified
electrician.
RELAYING POWER TO OTHER DEVICES
The lightings can be linked in a chain by power cables which installed a blue and a light-gray
connectors on the two ends. The light-gray connector connects to the power out socket of
the first lighting, and the blue connector connects to the power in socket of the subsequent
lighting, and so on.
The power cable must is a three-conductor 2.5mm2cable.
When the voltage is 110V, Do not connect more than 10 lightings in total to AC mains power
in one interconnected daisy chain.
When the voltage is 220V, Do not connect more than 20 lightings in total to AC mains power
in one interconnected daisy chain.
PHYSICAL INSTALLATION
This lighting can be placed on a horizontal surface such as a stage or clamped to a truss or
similar rigging structure in any orientation using a rigging clamp.
When suspending the fixture above ground level, verify that the structure can hold at least
10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.

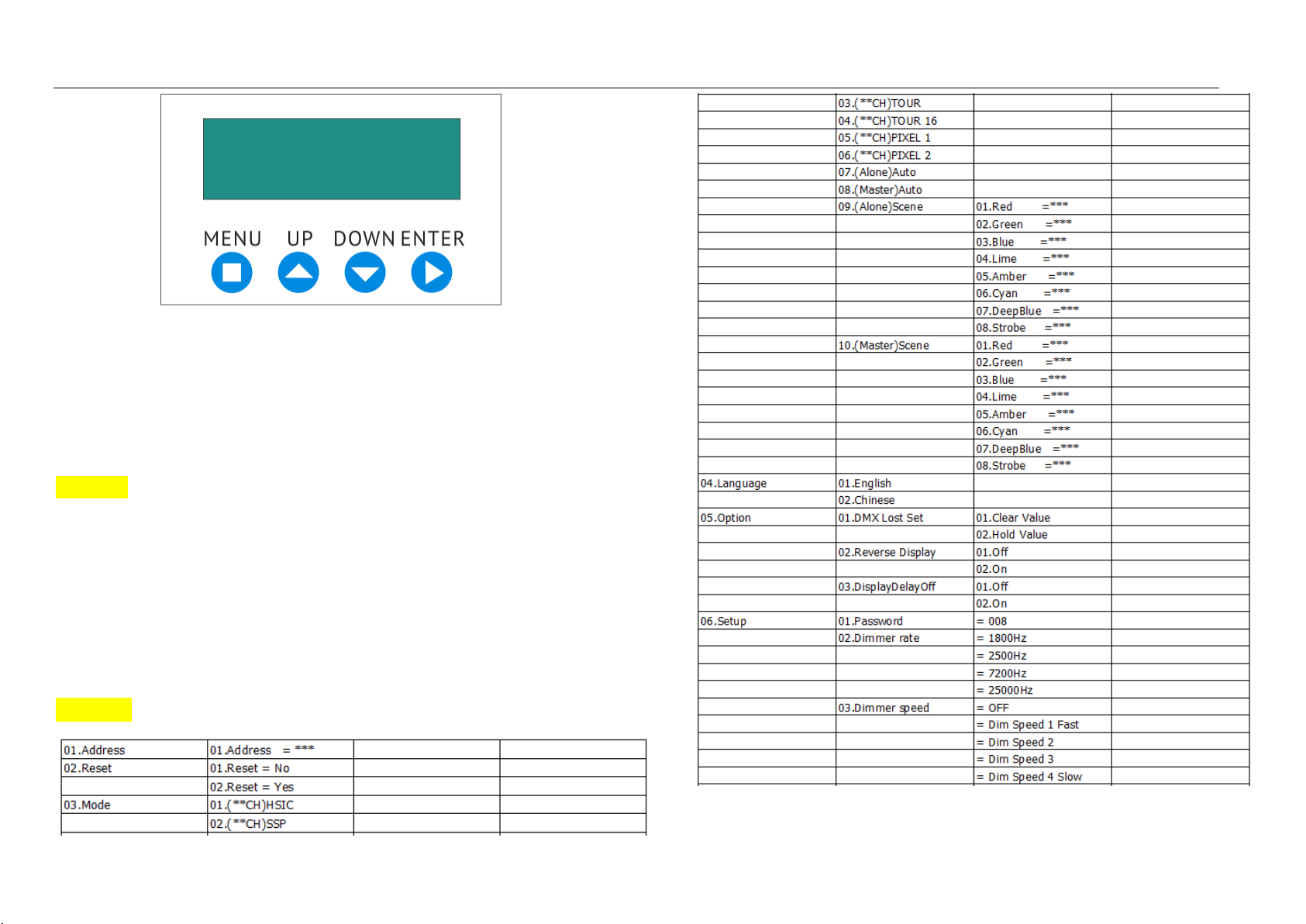

ⅤCONTROL PANNEL
BUTTON
Wire color
Conductor
Symbol
Brown
Live
L
Blue
Neutral
N
Yellow/green
ground
05
04

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
MENU
UP
DOWN
ENTER
Call the main menu, or escape the current menu, (i.e. return to the
upper menu and give up the selected item or parameter).
Browse the menu item forward or increase the parameter.
Browse the menu item backward or decrease the parameter.
Confirm the selected item or parameter, (i.e. enter into the next menu,
or escape the current menu and save the selected item or parameter).
MAIN MENU
The way into the menu as below:
1. Press ENTER when the display show the title information;
2. Press UP or DOWN button to choose the right menu which you need;
3. Press ENTER into the menu;
4. Press UP and DOWN button to set the parameter or setting;
5. Press ENTER to save the setting;
6. Press MENU/SET button to back.

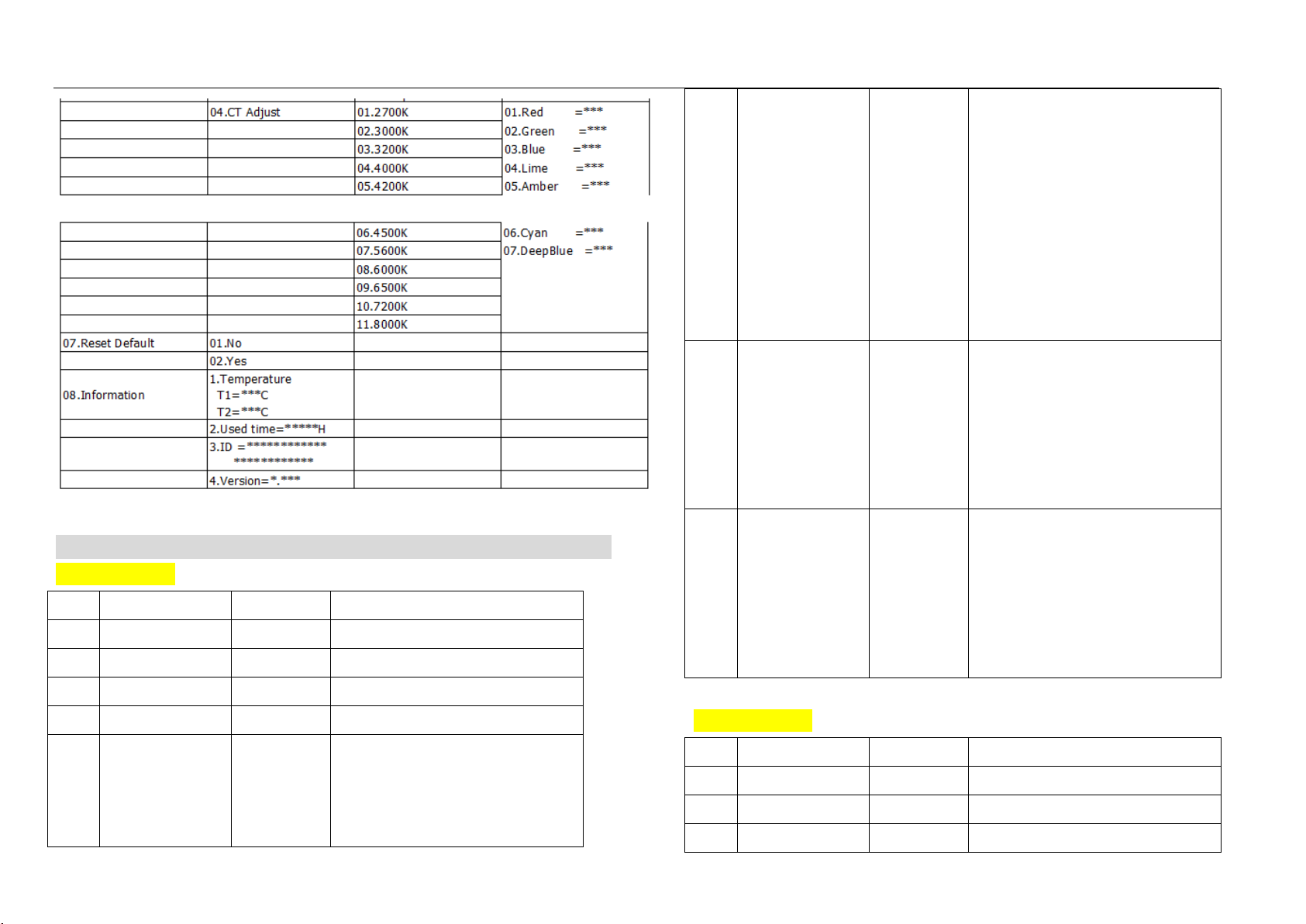

MENU MAP
06
07

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
ⅥDMX PROTOCOL
HSIC (7CH)MODE
CH
Name
Value
Function
CH1
Intensity
000←→255
Intensity
CH2
Hue
000←→255
Hue
CH3
Hue Fine
000←→255
Hue Fine
CH4
Saturation
000←→255
Saturation
CH5
Color Temperature
000←→010
011←→030
031←→050
051←→070
No Function
2700K
3000K
3200K
071←→090
091←→110
111←→130
131←→150
151←→170
171←→190
191←→210
211←→230
231←→255
3500K
4000K
4200K
4500K
5600K
6000K
6500K
7200K
8000K
CH6
Strobe
000←→009
010←→099
100←→109
110←→179
180←→189
190←→255
No Function
Strobe from slow to fast（0-25Hz）
No Function
Lightning strobe
No Function
Random strobe
CH7
Dimmer Speed
000←→009
010←→049
050←→099
100←→149
150←→199
200←→255
Preset dimmer speed from menu
Off
Dimmer speed 1 Fast
Dimmer speed 2
Dimmer speed 3
Dimmer speed 4 Slow
SSP (11CH)MODE
CH
Name
Value
Function
CH1
Dimmer
000←→255
General dimmer
CH2
Red
000←→255
Red
CH3
Green
000←→255
Green
08
09

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
CH4
Blue
000←→255
Blue
CH5
Lime
000←→255
Lime
CH6
Amber
000←→255
Amber
CH7
Cyan
000←→255
Cyan
CH8
Deep blue
000←→255
Deep blue
CH9
Preset color
000←→010
011←→020
021←→030
031←→040
041←→050
051←→060
061←→070
071←→080
081←→090
091←→100
101←→110
111←→120
121←→130
131←→140
141←→150
151←→160
161←→170
171←→255
No function
L106
R05
L194
R54
L019
R08
R89
R86
L213
R377
R80
L202
L328
R3314
L101
L768
No function
CH10
Strobe
000←→009
010←→099
100←→109
110←→179
No Function
Strobe from slow to fast（0-25Hz）
No Function
Lightning strobe
180←→189
190←→255
No Function
Random strobe
CH11
Dimmer Speed
000←→009
010←→049
050←→099
100←→149
150←→199
200←→255
Preset dimmer speed from menu
Off
Dimmer speed 1 Fast
Dimmer speed 2
Dimmer speed 3
Dimmer speed 4 Slow
TOUR (14CH)MODE
CH
Name
Value
Function
CH1
Dimmer
000←→255
General dimmer
CH2
Red
000←→255
Red
CH3
Green
000←→255
Green
CH4
Blue
000←→255
Blue
CH5
Lime
000←→255
Lime
CH6
Amber
000←→255
Amber
CH7
Cyan
000←→255
Cyan
CH8
Deep blue
000←→255
Deep blue
CH9
Preset color
000←→010
011←→020
021←→030
031←→040
041←→050
051←→060
061←→070
071←→080
No function
L106
R05
L194
R54
L019
R08
R89
10
11

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
081←→090
091←→100
101←→110
111←→120
121←→130
131←→140
141←→150
151←→160
161←→170
171←→255
R86
L213
R377
R80
L202
L328
R3314
L101
L768
No function
CH10
LED Macro
000←→010
011←→030
031←→050
051←→070
071←→090
091←→110
111←→130
131←→150
151←→170
171←→195
196←→200
201←→205
206←→210
211←→215
216←→220
221←→225
226←→230
No function
Macro 1 (R=255, G=0->255, B=0)
Macro 2 (R=255->0, G=255,B=0)
Macro 3 (R=0, G=255, B=0->255)
Macro 4 (R=0, G=255->0, B=255)
Macro 5 (R=0->255, G=0, B=255)
Macro 6 (R=255, G=0, B=255->0)
Macro 7 (R=255,G=0->255,B=0->255)
Macro 8 (R=255->0, G=255->0, B=0->255)
All led full output (R=255,G=255,B=255)
2700K
3000K
3200K
3500K
4000K
4200K
4500K
231←→235
236←→240
241←→245
246←→250
251←→255
5600K
6000K
6500K
7200K
8000K
CH11
Strobe
000←→009
010←→099
100←→109
110←→179
180←→189
190←→255
No Function
Strobe from slow to fast（0-25Hz）
No Function
Lightning strobe
No Function
Random strobe
CH12
Auto
000←→009
010←→127
128←→255
No Function
Auto slip run
Auto skip run
CH13
Auto speed
000←→255
Auto speed adjust
CH14
Dimmer Speed
000←→009
010←→049
050←→099
100←→149
150←→199
200←→255
Preset dimmer speed from menu
Off
Dimmer speed 1 Fast
Dimmer speed 2
Dimmer speed 3
Dimmer speed 4 Slow
TOUR 16 (22CH)MODE
CH
Name
Value
Function
CH1
Dimmer
000←→255
General dimmer
CH2
Dimmer fine
000←→255
General dimmer fine
CH3
Red
000←→255
Red
13
12

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
CH4
Red fine
000←→255
Red fine
CH5
Green
000←→255
Green
CH6
Green fine
000←→255
Green fine
CH7
Blue
000←→255
Blue
CH8
Blue fine
000←→255
Blue fine
CH9
Lime
000←→255
Lime
CH10
Lime fine
000←→255
Lime fine
CH11
Amber
000←→255
Amber
CH12
Amber fine
000←→255
Amber fine
CH13
Cyan
000←→255
Cyan
CH14
Cyan fine
000←→255
Cyan fine
CH15
Deep blue
000←→255
Deep blue
CH16
Deep blue fine
000←→255
Deep blue fine
CH17
Preset color
000←→010
011←→020
021←→030
031←→040
041←→050
051←→060
061←→070
071←→080
081←→090
091←→100
101←→110
111←→120
121←→130
131←→140
No function
L106
R05
L194
R54
L019
R08
R89
R86
L213
R377
R80
L202
L328
141←→150
151←→160
161←→170
171←→255
R3314
L101
L768
No function
CH18
LED Macro
000←→010
011←→030
031←→050
051←→070
071←→090
091←→110
111←→130
131←→150
151←→170
171←→195
196←→200
201←→205
206←→210
211←→215
216←→220
221←→225
226←→230
231←→235
236←→240
241←→245
246←→250
251←→255
No function
Macro 1 (R=255, G=0->255, B=0)
Macro 2 (R=255->0, G=255,B=0)
Macro 3 (R=0, G=255, B=0->255)
Macro 4 (R=0, G=255->0, B=255)
Macro 5 (R=0->255, G=0, B=255)
Macro 6 (R=255, G=0, B=255->0)
Macro 7 (R=255,G=0->255,B=0->255)
Macro 8 (R=255->0, G=255->0, B=0->255)
All led full output (R=255,G=255,B=255)
2700K
3000K
3200K
3500K
4000K
4200K
4500K
5600K
6000K
6500K
7200K
8000K
CH19
Strobe
000←→009
No Function
08
08
15
14

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
010←→099
100←→109
110←→179
180←→189
190←→255
Strobe from slow to fast（0-25Hz）
No Function
Lightning strobe
No Function
Random strobe
CH20
Auto
000←→009
010←→127
128←→255
No Function
Auto slip run
Auto skip run
CH21
Auto speed
000←→255
Auto speed adjust
CH22
Dimmer Speed
000←→009
010←→049
050←→099
100←→149
150←→199
200←→255
Preset dimmer speed from menu
Off
Dimmer speed 1 Fast
Dimmer speed 2
Dimmer speed 3
Dimmer speed 4 Slow
PIXEL 1(5CH)MODE
CH
Name
Value
Function
CH1
Dimmer
000←→255
General dimmer
CH2
Red
000←→255
Red
CH3
Green
000←→255
Green
CH4
Blue
000←→255
Blue
CH5
Preset color
000←→010
011←→020
021←→030
031←→040
041←→050
No function
L106
R05
L194
R54
051←→060
061←→070
071←→080
081←→090
091←→100
101←→110
111←→120
121←→130
131←→140
141←→150
151←→160
161←→170
171←→255
L019
R08
R89
R86
L213
R377
R80
L202
L328
R3314
L101
L768
No function
PIXEL 2(9CH)MODE
CH
Name
Value
Function
CH1
Dimmer
000←→255
General dimmer
CH2
Red
000←→255
Red
CH3
Green
000←→255
Green
CH4
Blue
000←→255
Blue
CH5
Lime
000←→255
Lime
CH6
Amber
000←→255
Amber
CH7
Cyan
000←→255
Cyan
CH8
Deep blue
000←→255
Deep blue
CH9
Preset color
000←→010
011←→020
021←→030
No function
L106
R05
08
16
17

VG-LB1300C Colorful LED Cyclorama Light User Manual VG-LB1300C Colorful LED Cyclorama Light User Manual
031←→040
041←→050
051←→060
061←→070
071←→080
081←→090
091←→100
101←→110
111←→120
121←→130
131←→140
141←→150
151←→160
161←→170
171←→255
L194
R54
L019
R08
R89
R86
L213
R377
R80
L202
L328
R3314
L101
L768
No function
ⅦTECHNICAL SPECIFICATION
Light Sources
·L ED: 3W high brightness LED Lamps
·Lifespan: 50000h
·Color: red, green, blue, lime, amber, cyan, deep blue 7 color mixing
Optics
·Beam angle: 30degree(10degree option)
·Dimmer: 0-100% linear dimmer
·Color system: HSIC(Intensity, Hue, Hue Fine, Saturation)
·Color temperature: 2700K-8000K
·Strobe: 1-25 times/second
·CRI: >90Ra(for white)
Light Output
·Optimal projection distance: 2-8m
Control
·Control mode: standard DMX-512; Master/slave; Demo
·DMX channel: 7CH/9CH/11CH/15CH/17CH/22CH
·Display of control panel: LCD display + 4 buttons LCD display
Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Related power: 210W
Construction
·Body dimension: D622*W205*H205mm
·Net weight: 10.5kg
·Shell color: black
·Shell material: aluminium alloy
Working Environment
·Working temperature: -25-40℃
·Cooling: aluminum radiator body
·Protection rating: IP20
Innovation, Quality, Performance, Achieving Users’Value!
19
18
