VanGaa VG-LFL350 User manual

VG-LFL350 350W LED Follow Light User Manual VG-LFL350 350W LED Follow Light User Manual
350W LED Follow Light
VG-LFL350
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!
http://www.vangaa.com

VG-LFL350 350W LED Follow Light User Manual VG-LFL350 350W LED Follow Light User Manual
INDEX
ⅠINTRODUCTION................................................................ 01
ⅡDESCRIPTION OF THE DEVICE ……...................................... 02
ⅢINSTALLATION............................................................... 04
ⅣOPERATION ................................................................. 07
ⅤAPPENDIX....................................................................... 08
Thank you for using our product! Please read this manual carefully and completely. For
technical reference in future, please keep this user manual well. This user manual contains
all installation and operation information of this LED Follow Light, it’s very useful for user to
install and operate the light. Please strictly abide by the relevant instruction for the
installation and operation.
This light has very beautiful appearance. This is a professional LED Follow Light. It uses
high power LED integrated lamp (COB lamp) as the light emitting element. So the light has
high light efficiency, good color effect, low glare value, long lifespan, energy conservation,
environmental protection and other advantages. The light has high brightness, uniform
light, which is very suitable for stage, TV station, and other performance places. Using DMX
signal to realize the linear dimmer, more convenience. This light is saving energy and
protecting environment, pure color temperature, it is a very suitable substitute of the
traditional 750 profile light.
This light meets the following criteria:
GB7000.1-2007/IEC60598-1:2003
GB7000.217-2008/IEC60598-2-17:1984+A2:1990
ⅠINTRODUCTION
Thank you for having chosen our 350w led follow light. You will see you have acquired a
powerful and versatile device.
Unpack your led 350w follow light
Delivery includes
Mounting holder 1pc
01

VG-LFL350 350W LED Follow Light User Manual VG-LFL350 350W LED Follow Light User Manual
Power cable 1pc
User manual 1pc
ⅡDESCRIPTION OF THE DEVICE
1. Profile
With the idea of energy saving and environment protection, the device use lower power
loss and extremely high efficiency led. The device housing cover is made of used the new
high strength heat resistance engineering plastics, with beautiful shape and smooth lines.
The designing and manufacturing is in compliance with IEC standard. The device is suitable
in the large-scale theatrical performance, the theater, the performance hall, the bar night
club and so on.

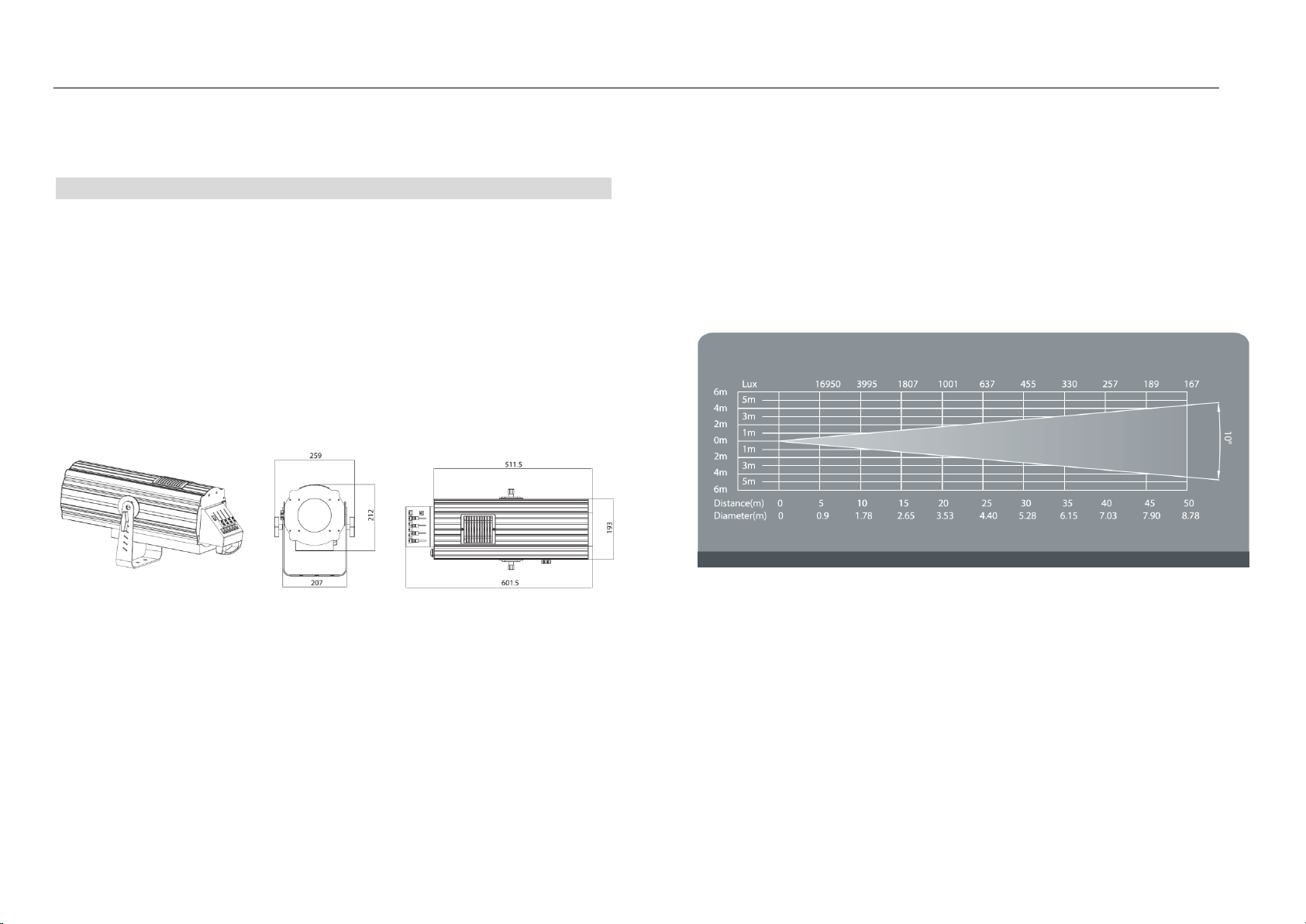

2. Overview
All dimensions are in millimeters
3. Specification
Light source: 350W LED, high brightness LED lamp, brightness is more than 1500W
discharge lamp
Color temperature: 8000-85000K
Lifespan of LED: more than 50000hours
Luminous flux: 20000lm-24000lm
Power supply: AC100V-240V, 50/60Hz
Power consumption: 450W
Color wheel: 5 colors + open white
CTO wheel: 3200K, 4500K, 5600K
Focus: manual focus
Strobe: 1-20 flash per second
Dimension: D660*W295*H270mm
Net weight: 9.9kgs
Gross weight: 11.5kgs
4. Photographic chart
5. Safety warning
1). Warning:
Every person involved with the installation, operation and maintenance of this device
has to be qualified
User must follow the instructions of this manual
Unqulified person cannot open the housing cover and operate the device, or the
dealer will not accept liability for any result defects or problems.
The device against rain and moisture
03
02

VG-LFL350 350W LED Follow Light User Manual VG-LFL350 350W LED Follow Light User Manual
2). Warning note
Power Supply AC100v-240v,50HZ/60HZ
Make sure the power switch is off, the power plug, outlet and the earth connection is
in well condition before connecting the device with the mains
Please use qualified power plug and outlet. Never connect the power cord of this
device with other electrical equipment.
During move and installation. make sure the device not crashed with metal parts and
other materials
Always disconnect from the mains, when the device is on installation and dismantled
The minimum distance between light-output and the illuminated surface must be
more than 50cm
The device must only be installed on a non-flammable surface. In order to safeguard
sufficient ventilation, leave 50 cm of free space around the device. Please note that
heat-sensitive objects may be deformed or damaged by the emitted heat.
During the operation the housing becomes very hot! Do not operate the device for 15
minutes after switching off.
The maximum ambient temperature Ta-45℃must never be exceeded. The maximum
housing temperature Tb-60℃must never be exceeded
For indoors use
Replace any visible cracked protective shield, filter and lens
The protective shield, filters and lens will require weekly cleaning as smoke “fluid
tends to building up to residues, reducing the light”Can put very quickly.
ⅢINSTALLATION
1. Installation
When installation, keep the device far away the heat sensitive objects and explosives
sensitive objects, leave at least 50cm of free space around the device.
When install devices, please first fix the mounting holder on the device, as shown in
the figure:
Then put the device on the stand, make sure that the stand must be placed on the
ground smoothly, and tighten all the fasteners.
05
04

VG-LFL350 350W LED Follow Light User Manual VG-LFL350 350W LED Follow Light User Manual
Please use qualified use qualified stand, and make sure the stand can withstand more
than ten times the weight of device.
2. Connection with mains
The person involved with the power connection must be qualified, and has the
electrical engineering certificate.
Connect the device to the mains with the power plug.
The earth has to be connected.
Power consumption 450W, input power supply AC100V-240V, 50/60Hz.
3. Replacing fuse
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the
housing (anti-clockwise).
Step 2: Remove the old fuse in the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step4: Replace the fuse holder in the housing and fix it.
4. Focus
The objective lens cylinder is usually shrinked before leaving factory after connect the
projector to the mains, user may loose the screws and pull out the lens cylinder, till the
white light output circular is clearly presented, locking tightly the two screws again.
When the projection distance is changed, user can follow previous operating steps
and focus the projector.
ⅣOPERATION
1. Description of the keys
07
06

VG-LFL350 350W LED Follow Light User Manual VG-LFL350 350W LED Follow Light User Manual
ⅤAPPENDIX
Problem and solution
Problem
Reason
Resolution
Device not work
No power
AC100-240V, 50/60Hz
Check the power connection, and
make sure device connect the mains
in well condition.
Check if the switch is on.
Check if the fuse is good.
LED Bulb is off
LED bulb damaged
Replacing LED bulb
LED drive board damaged
Replacing LED drive board
Temperature switch damaged
Replacing temperature switch
Fans not work
Fans damaged
Replacing fans
Caution
Unqualified person involved with installation, operation and maintenance of this
device is prohibited
If any above mentioned problem happened, or unknown problem happened, please
contact manufacturer or distributor for assistance.
Please keep this manual as a reference.
Thanks again for your business. We truly appreciate it!
