Vanguard SVYD18N Series Quick start guide

Save this manual for future reference.
AMITY(VENT-FREE)
NATURAL GAS STOVE HEATER
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;do
not use any phone in your building.
• Immediately call your gas supplier
fromaneighbor’sphone.Followthe
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
— Installation and service must be per-
formedbya qualifiedinstaller,service
agency, or the gas supplier.
WARNING:Improperinstallation,adjust-
ment,alteration,service,ormaintenance
can cause injury or property damage.
Referto this manual for correct installa-
tion and operational procedures. For
assistanceoradditionalinformationcon-
sultaqualifiedinstaller,serviceagency,
or the gas supplier.
WARNING: This is an unvented gas-
fired heater. It uses air (oxygen) from
the room in which it is installed. Provi-
sionsforadequatecombustionandven-
tilation air must be provided. Refer to
AirforCombustionandVentilation sec-
tion in this manual.
This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohib-
ited by state or local codes. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
®
Patent Pending
AMITYStove Model Chassis With SVYD18N Variable Manually-Controlled Gas
Log Heater (Burner System For Amity Stove).
SCIVFC - Charcoal
SCIVFB - Azure Blue
SCIVFG - Hunter Green
SCIVFR - Burgundy Red
®
OWNER’S OPERATION AND INSTALLATION MANUAL
WARNING: The SVYD18N
vent-free gas log heater is
onlyapprovedforuseinthe
AmitySCIVF(*) series
stove models.
(* Indicates Color Suffix Designation)

2
104024
CONTENTS SECTION PAGE
SAFETY
INFORMATION WARNINGICON G001 WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely before
trying to assemble, operate, or service this heater. Improper use of this
heater can cause serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
WARNINGICON G 001 DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble
the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not
be working properly. Get fresh air at once! Have heater serviced. Some people are more
affected by carbon monoxide than others. These include pregnant women, people with
heart or lung disease or anemia, those under the influence of alcohol, and those at high
altitudes.
NaturalGas:Naturalgasisodorless.Anodor-makingagentisaddedtothegas.Theodor
helpsyoudetectagasleak.However,theodoraddedtothegascanfade.Gasmaybepresent
even though no odor exists.
Make certain you read and understand all Warnings. Keep this manual for reference. It is
your guide to safe and proper operation of this heater.
Safety Information continues on next page
Safety Information................................................................................... 2
Product Identification .............................................................................. 4
Local Codes ............................................................................................. 4
Product Features ...................................................................................... 4
Air for Combustion and Ventilation........................................................ 5
Installing .................................................................................................. 8
Check Gas Type ............................................................................... 8
Clearances to Combustibles (Vent-Free Operation Only) ............... 8
Stove Cavity Assembly .................................................................... 9
Installing Gas Log Heater Into Stove ............................................... 13
Connecting to Gas Supply................................................................ 14
Checking Gas Connections .............................................................. 16
Operating Heater ..................................................................................... 18
Inspecting Burners................................................................................... 20
Cleaning and Maintenance ...................................................................... 21
Troubleshooting....................................................................................... 21
Technical Service .................................................................................... 25
Specifications .......................................................................................... 25
Service Hints ........................................................................................... 25
Replacement Parts ................................................................................... 25
Illustrated Parts Lists ............................................................................... 26-29
Accessory ................................................................................................ 30
Warranty Information .............................................................................. Back Cover

3
104024
SAFETY
INFORMATION
Continued
WARNING ICON G 001
WARNINGS Continued
WARNING: Any change to this heater or its controls can be dangerous.
1. This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
3. This heater shall not be installed in a bedroom or bathroom.
4. Never install the heater
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than
the minimum clearances to combustibles (see page 8)
• in high traffic areas
• in windy or drafty areas
5. Do not use this stove as a wood burning fireplace. Use only model SVYD18N
vent-free gas log heater.
6. Donotaddextralogsorornamentssuchaspinecones,vermiculite,orrockwool.
Using these added items can cause sooting.
7. Thislogheateris designed tobesmokeless. If logs everappearto smoke, turn off
heater and call a qualified service person. Note: During initial operation, slight
smoking could occur due to log curing and heater burning manufacturing
residues.
8. Donotallowfanstoblowdirectlyintothestove.Avoidanydraftsthatalterburner
flame patterns. Ceiling fans can create drafts that alter burner flame patterns.
Altered burner patterns can cause sooting.
9. Donotusea blower insert, heatexchangerinsertor other accessory notapproved
for use with this heater.
10.This heaterneeds fresh, outside air ventilation to runproperly. Thisheater hasan
oxygen depletion sensor (ODS) pilot light safety system. The ODS shuts down
the heater if not enough fresh air is available. See Air for Combustion and
Ventilation,pages 5 through 7. If heater keeps shutting off, see Troubleshooting,
pages 21 through 24.
11.Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
12.Do not use this stove to cook food or burn paper or other objects.
13.Never place any objects on the stove.
14.Stove becomes very hot when running heater. Keep children and adults away
from hot surface to avoid burns or clothing ignition. Heater will remain hot for
a time after shutdown. Allow surface to cool before touching.
15.Carefully supervise young children when they are in the room with heater.
16.Donotuseheaterifanyparthasbeenexposedtoorunderwater.Immediatelycall
a qualified service technician to inspect the room heater and to replace any part
of the control system and any gas control which has been under water.
17.Donotoperateheaterifanylogisbroken.Donotoperateheaterifalogischipped
(dime-sized or larger).
18.Turn heater off and let cool before servicing. Only a qualified service person
should service and repair heater.
19.Operating heater above elevations of 4,500 feet could cause pilot outage.

4
104024
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also
known as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT
IDENTIFICATION

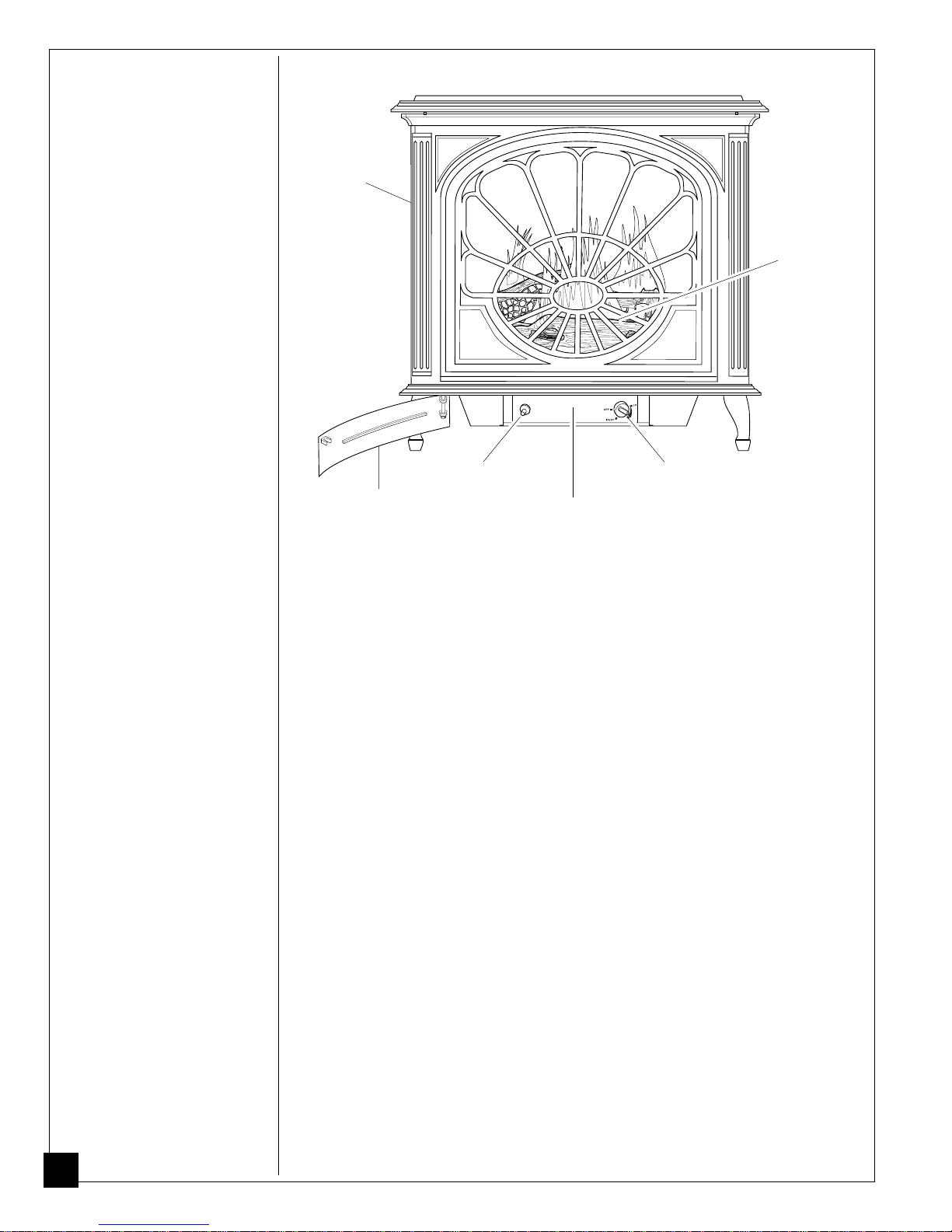

Figure 1 - Amity  Stove Cabinet Model SCIVF(*) with
Amity  Gas Log Heater Model SVYD18N
Operation
This heater is clean burning. It requires no outside venting. There is no heat loss out
a vent or up a chimney. Heat is generated by realistic, dancing yellow flames. This
heaterisdesignedforvent-freeoperation.Stateandlocalcodesinsomeareasprohibit
the use of vent-free heaters.
Safety Pilot
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot
shuts off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or
other sources to light heater.
PRODUCT
FEATURES
Stove Body
Stove Door
(Shown in the
open position)
Piezo Ignitor Control Knob
One Piece
Log Set
Inside Stove
Cavity
Gas Log Heater
Base Assembly
(* Indicates Color Suffix Designation)

5
104024
Continued
AIR FOR
COMBUSTION
AND
VENTILATION
WARNING ICON G 001
WARNING
This heater shall not be installed in a confined space unless
provisions are provided for adequate combustion and ventila-
tion air. Read the following instructions to insure proper fresh
air for this and other fuel-burning appliances in your home.
Today’s homes are built more energy efficient than ever. New materials, in-
creased insulation, and new construction methods help reduce heat loss in homes.
Home owners weather strip and caulk around windows and doors to keep the cold
air out and the warm air in. During heating months, home owners want their
homes as airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air
from the house to operate. You must provide adequate fresh air for these appli-
ances. This will insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following is excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction; 2. Unconfined Space; 3. Confined Space.
The information on pages 5 through 7 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construc-
tion, you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a con-
tinuous water vapor retarder with a rating of one perm (6x10-11 per
pa•sec•m2) or less with openings gasketed or sealed and
b. weather stripping has been added on openable windows and doors
and
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints,betweenwallpanels,atpenetrationsforplumbing,electrical,and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide addi-
tional fresh air. See Ventilation Air From Outdoors , page 7.
If your home does not meet all of the three criteria above, proceed to page 6.
Confined and Unconfined Space
TheNationalFuelGasCode(ANSIZ223.1,1992Section5.3)definesaconfinedspace
as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3per
kw) of the aggregate input rating of all appliances installed in that space and an
unconfinedspaceasaspacewhose volume is notlessthan50cubicfeet per 1,000 Btu
perhour(4.8 m3per kw) oftheaggregateinputratingofallappliancesinstalledin that
space. Rooms communicating directly with the space in which the appliances are
installed*, through openings not furnished with doors, are considered a part of the
unconfined space.
* Adjoining rooms are communicating only if there are doorless passageways or
ventilation grills between them.

6
104024
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space
can support.
____________ (volumeofspace)÷50cu.ft.=(maximumBtu/Hrthespacecansupport)
Example: 2560 cu. ft. (volume of space) ÷50 cu. ft. = 51.2 or 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater ___________________ Btu/Hr
Gas water heater* ___________________ Btu/Hr
Gas furnace ___________________ Btu/Hr
Vented gas heater ___________________ Btu/Hr
Gas fireplace logs ___________________ Btu/Hr
Other gas appliances* +___________________ Btu/Hr
Total =___________________ Btu/Hr
Example: Gas water heater 40,000 Btu/Hr
Vent-free heater +30,000 Btu/Hr
Total =70,000 Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr
used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
70,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can support. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.

7
104024
WARNING ICON G 001
WARNING
If the area in which the heater may be operated is smaller than
that defined as an unconfined space, provide adequate combus-
tion and ventilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3 or appli-
cable local codes.
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
Figure 3 - Ventilation Air from Outdoors
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these
items directly to the outdoors or spaces open to the outdoors. These spaces include attics
and crawl spaces.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated air entering the attic will activate the power
vent.
Figure 2 - Ventilation Air from Inside Building
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoiningunconfinedspace,youmust providetwopermanentopenings: onewithin12"ofthe
ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1
and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
WARNING ICON G 001
WARNING
Rework worksheet, adding the space of the adjoining unconfined
space. The combined spaces must have enough fresh air to supply all
appliances in both spaces.
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"

8
104024
WARNING ICON G 001
WARNING
Never install the heater
• in a bedroom or bathroom
• in a recreational vehicle
• wherecurtains,furniture,clothing,orotherflammableobjectsare
less than 36 inches from the front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
INSTALLING NOTICE
Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.
WARNING ICON G 001
CAUTION
This heater creates warm air currents. These currents move heat
to wall surfaces next to heater. Installing heater next to vinyl or
cloth wall coverings or operating heater where impurities in the air
(such as tobacco smoke) exist, may discolor walls.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural gas, do not install heater.
Call dealer where you bought heater for proper type heater.
IMPORTANT: Vent-free heaters add moisture to the air. Although this is benefi-
cial, installing heater in rooms without enough ventilation air may cause mildew
to form from too much moisture. See Air for Combustion and Ventilation, pages 5
through 7.
NOTICE
State or local codes may only allow operation of this appliance in a
vented configuration. Check your state or local codes.
CLEARANCES TO COMBUSTIBLES (Vent-Free Operation Only)
WARNING ICON G 001
WARNING
Maintain the minimum clearances. If you can, provide greater clear-
ances from floor, ceiling, and adjoining side and back walls.
Carefully follow the instructions below. This stove is a freestanding unit designed
to set directly on the floor. IMPORTANT: You must maintain minimum wall and
ceiling clearances during installation. The minimum clearances are shown in
Figure 4, page 9. Measure from outermost point of stove top.
Minimum Wall and Ceiling Clearances (see Figure 4)
A. Clearances from outermost point of stove top to any combustible side wall
should not be less than 12 inches.
B. Clearances from outermost point of stove top to any combustible back wall
should not be less than 6 inches (Includes Corner Installations).
C. Clearances from the stove top to the ceiling should not be less than 48 inches.

9
104024
INSTALLING
Continued
Figure 4 - Minimum Clearance to Walls and Ceiling
STOVE CAVITY ASSEMBLY
1. Lift off corrugated box enclosing stove body crating.
2. Remove all screws fastening the wood frame enclosure. Spread wood frame
open and lift away from plastic-bagged stove body. The bottom pieces of
pallet wood will remain bolted to the stove body.
3. Remove plastic bag from stove body.
4. Remove back panel from stove (see Figure 5). Use an adjustable wrench or a
10 mm socket. Remove six (6) bolts and washers. Keep bolts and washers to
reattach back panel later.
12"
Minimum 12" Minimum
48"
Minimum
Ceiling
Side Wall Side Wall
Front View
Top View
Side View
Back Wall
Side Wall Side Wall
12 "
Minimum 12
"
Minimum
6
"
Minimum
6"
Minimum
48"
Minimum
Ceiling
Floor
Back Wall
Front of
Stove Unit
Continued
Figure 5 - Removing Back Panel
Bolt
Product
Identification
Label
Back Stove Panel
Corner
Wall
Wall
6 "
Minimum
6
"
Minimum

10
104024
INSTALLING
Continued
Figure 6 - Laying Down Stove On Side
Front of
Stove Unit
Pallet Wood
Bolted to
Stove Body
Bottom
Top of
Stove Unit
Front of
Stove Unit Top of
Stove Unit
Drop Cloth/
Blanket
5. Remove all contents from inside stove cavity. Contents include:
(1) - Stove bottom
(4) - Legs with leg leveler bolts
(1) - Bottom door
(1) - Top grate
(1) - Hardware kit bag with fasteners
6. Carefully lay stove body on back to attach bottom components to stove body
(see Figure 6). Rest stove on drop cloth or blanket to avoid scratching stove
edges.
7. Remove remaining pallet wood attached to bottom of stove body (see Figure 7).
Use an adjustable wrench to remove bolts.
Figure 7 - Removing Pallet Wood From The Bottom of The Stove
Pallet
Wood
Bolt Pallet
Wood
Bottom Of
Stove Unit
Front
Figure 8 - Locating of Threaded Holes for Stove
Bottom, Legs, and Door Attachment
Leg
Hole
Leg
Hole
Leg
Hole
Leg
Hole
Door Hinge Step
Bolt Hole Door Catch Bolt
With Adjustable
Hex Nuts Hole
Stove
Bottom Hole
Front
Bottom Of
Stove Unit

11
104024
8. Fasten each leg to stove with four (4) M8 x 1.25 - 20mm bolts. Use a flat
washer and lock washer with each bolt. Tighten bolts into threaded holes on
stove body (see Figure 8 and 9). Use an adjustable wrench or a 12mm socket.
Figure 9 - Attaching Stove Legs
Bottom Of
Stove Unit
Leg
Bolt
Washers
INSTALLING
Continued
9. Fasten stove bottom to stove with four (4) M6 x 1 - 25mm bolts. Use a flat
washer and lock washer with each bolt. Tighten bolts into threaded holes on
stove body (see Figure 8 and 10). Use an adjustable wrench or a 10mm socket.
Figure 10 - Attaching Stove Bottom
Bottom Of
Stove Unit
Bolt
Washers
Stove
Bottom
Continued

12
104024
INSTALLING
Continued
10. Attach stove door by inserting step bolt through door hinge pivot hole and into
threaded hole in stove body (see Figure 8 and 11). Use an adjustable wrench or a
12mm socket to fasten step bolt. Tighten step bolt until snug. Make sure door
moves freely.
Figure 11 - Attaching Stove Door
Step
Bolt
Door
Hinge
Threaded
Hole
Stove
Door
Stove Bottom
Bolt
Shoulder
Door
Hinge
Step
Bolt
Bolt
Shoulder
11. Install door catch bolt (M8 x 1.25-55mm with two M8 hex nuts) into threaded
hole on stove body (see Figure 8, page 10). Use an adjustable wrench or a
12mm socket. The catch bolt has two hex nuts attached to it (see Figure 12).
The top nut is a bolt stop and the bottom nut is for door leveling adjustment.
12. Check general catch bolt alignment with door claw. Make final adjustment and
door leveling after stove is in normal standing position.
13. Carefully lift stove back up on its four attached legs.
14. Set top grate into stove top.
15. If available, install gas log heater inside stove cavity before installing the back
panel (see Installing Gas Log Heater Into Stove page 13).
16. Fasten back panel to stove with six (6) M6 x 1 - 20mm bolts and washers. Make
sure product identification label is located on the outside in lower left-hand
corner.
Adjusting Nut
Bolt Stop
Catch Bolt
Door Claw
Door

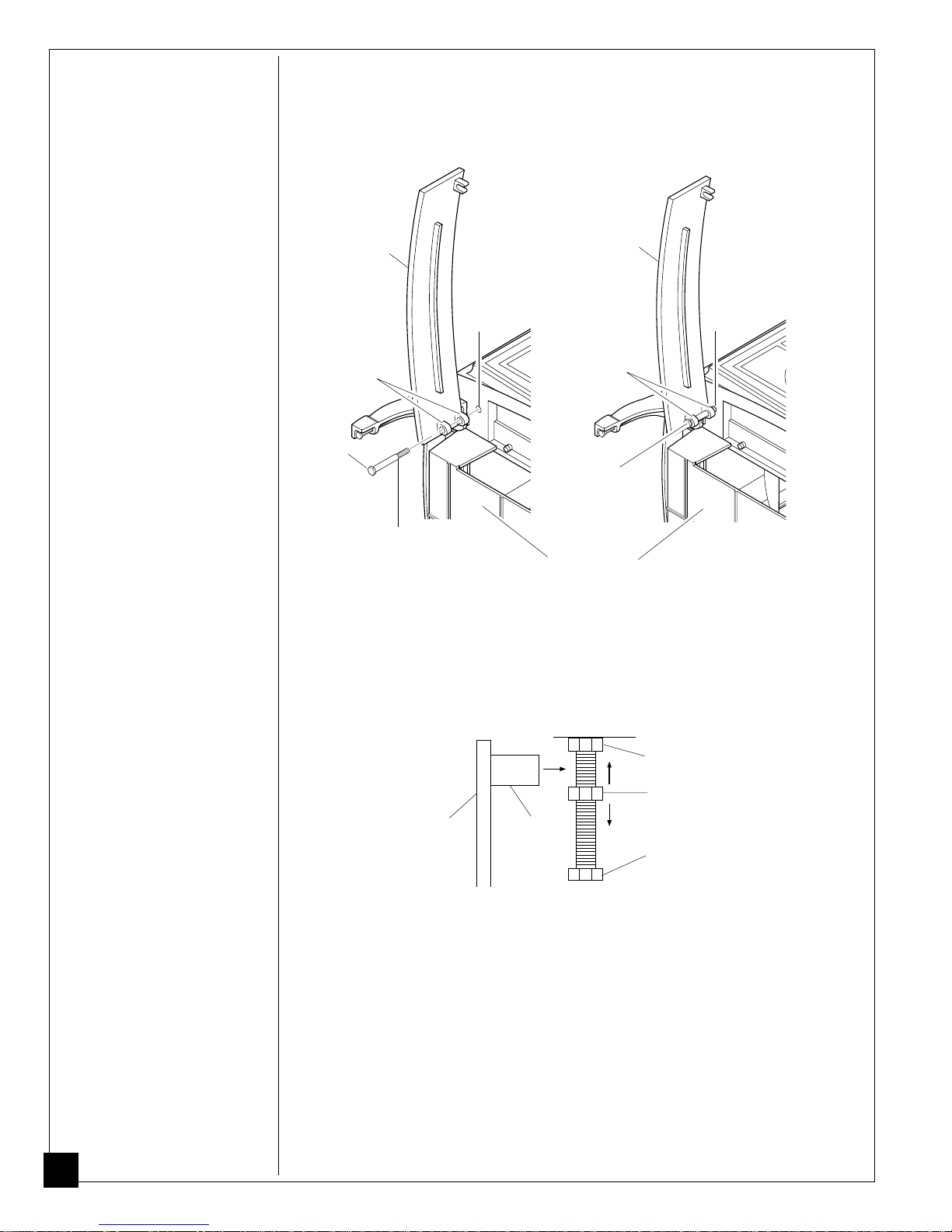

Figure 12 - Catch Bolt and Door Claw Orientation
Stove
Door

13
104024
INSTALLING GAS LOG HEATER INTO STOVE
1. Remove log and gas log heater from carton. Note: Do not pick up gas log
heater by the burner itself. This could damage heater. Always handle the gas
log heater by the heater base only.
2. Remove all protective packaging applied to log and gas log heater for shipment.
3. Check all items for any shipping damage. If damaged, promptly inform dealer
where you bought heater.
4. If not already removed, remove back panel from assembled stove body (see
Figure 5, page 9). Use an adjustable wrench or a 10 mm socket. Remove six
(6) bolts and washers. Keep bolts and washers to reattach back panel later.
5. Set gas log heater inside stove. Make sure control knob extension passes
through bottom front opening (see Figure 13).
INSTALLING
Continued
6. Align outside holes on heater base with four (4) mounting holes on the stove
bottom (see Figure 13).
7. Fasten heater base to stove bottom with #10-24 x .50 bolts and hex nuts
provided with gas log heater (see Figure 14). Attachment hardware is factory
packed inside plastic bag with installation manual and owner’s registration
card. Push bolt through heater base mounting hole and through stove bottom.
Connect hex nut to bolt on underside of stove bottom. The bolt hex head is for
a 5/16" socket and the hex nuts are for a 3/8" socket. If sockets are not avail-
able, use adjustable wrenches.
Figure 13 - Placing Heater Base In Stove Cavity
Bottom
Front
Opening
Stove
Bottom
Burner
Bolt
Figure 14 - Fastening Heater Base to Stove Drop Bottom
Stove
Bottom
Heater
Base
Bolt
Hex Nut
Continued
Heater
Base

14
104024
INSTALLING
Continued
8. Set one-piece log on heater base as shown in Figure 15. Make sure middle
section at bottom of log is seated into "U" shaped cutout in center of heater
base. Log will fit securely on base. IMPORTANT: Make sure log does not
cover any burner ports and does not touch the stove cavity (see Figure 16).
Burner Porting Areas
(double slotted
rectangular openings
Figure 16 - Top View of One-Piece Log Set on Gas Log Heater
Safety Pilot
Location One-Piece
Log Set
9. Fasten back panel to stove with six (6) M6 x 1.20mm bolts and washers. Make
sure product identification label is located on the outside lower left-hand
corner.
10. Place freestanding stove in desired position in room. Be sure to maintain
clearances to combustibles as outlined on page 8.
Figure 15 - Installing One-Piece Stove Log Set
One-Piece
Log Set
Heater Base
"U" Shaped
Cutout in Chassis
Burner
Middle Section at
Bottom of Log Set
CONNECTING TO GAS SUPPLY
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
Installation Items Needed
Before installing heater, make sure you have the items listed below.
• piping (check local codes)
• sealant (resistant to LP gas)
• manual shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench

15
104024
INSTALLING
Continued
* An A.G.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternativetotestgaugeconnection.PurchasetheoptionalA.G.A.design-certifiedmanual
shutoff valve from your dealer. See Accessory, page 30.
WARNING ICON G 001
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of 1/2" diameter or greater to allow proper gas volume to
heater. If pipe is too small, undue loss of pressure will occur.
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT
tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be up-
stream from heater (see Figure 18, page 16).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
WARNING ICON G 001
WARNING
Never connect heater to private (non-utility) gas wells. This gas is
commonly known as wellhead gas.
The gas regulator for the stove heater is located on the lower right-hand side of the
stove when viewed from the front of the unit. The gas connection can be made either
through the bottom right side or through the lower back opening as illustrated in
Figure 17. Make sure gas log heater is secured to the stove cavity assembly.

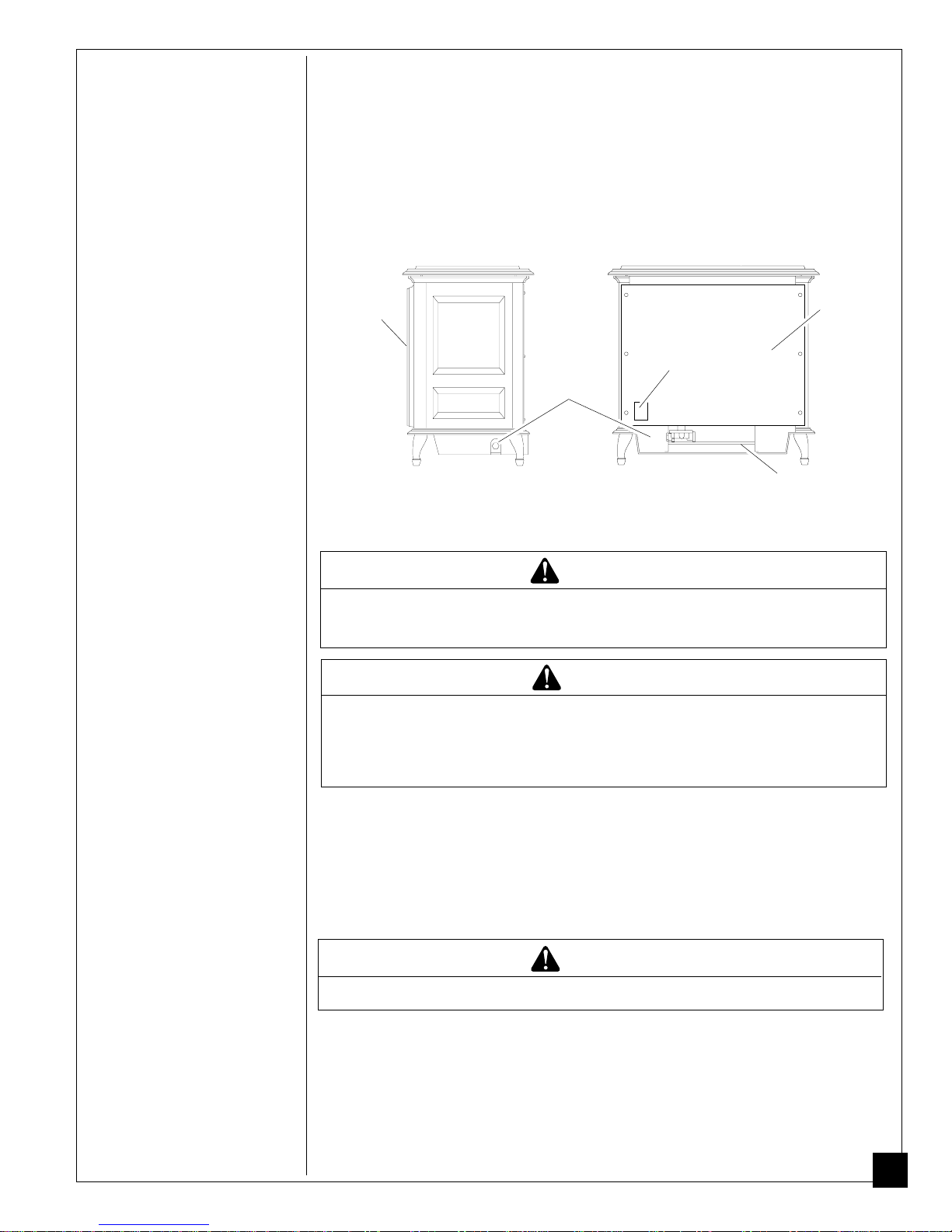

Figure 17 - Gas Regulator Location and Gas Line Access Into Stove Cabinet
Back Stove
Panel
Front of
Stove Unit
Gas
Regulator
Access
Product
Identification
Label
Gas Log
Heater
Back ViewSide View
Continued
WARNING ICON G 001
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
Install sediment trap in supply line as shown in Figure 18, page 16. Locate sedi-
ment trap where it is within reach for cleaning. Locate sediment trap where
trapped matter is not likely to freeze. A sediment trap traps moisture and contami-
nants. This keeps them from going into heater controls. If sediment trap is not
installed or is installed wrong, heater may not run properly.

16
104024
INSTALLING
Continued
Tee Joint
Pipe
Nipple
Cap
3" Minimum
Sediment
Trap
Gas
Regulator
From
Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
A.G.A. Design-Certified
Manual Shutoff Valve
With 1/8" NPT Tap* Approved Flexible
Gas Hose (if allowed
by local codes)

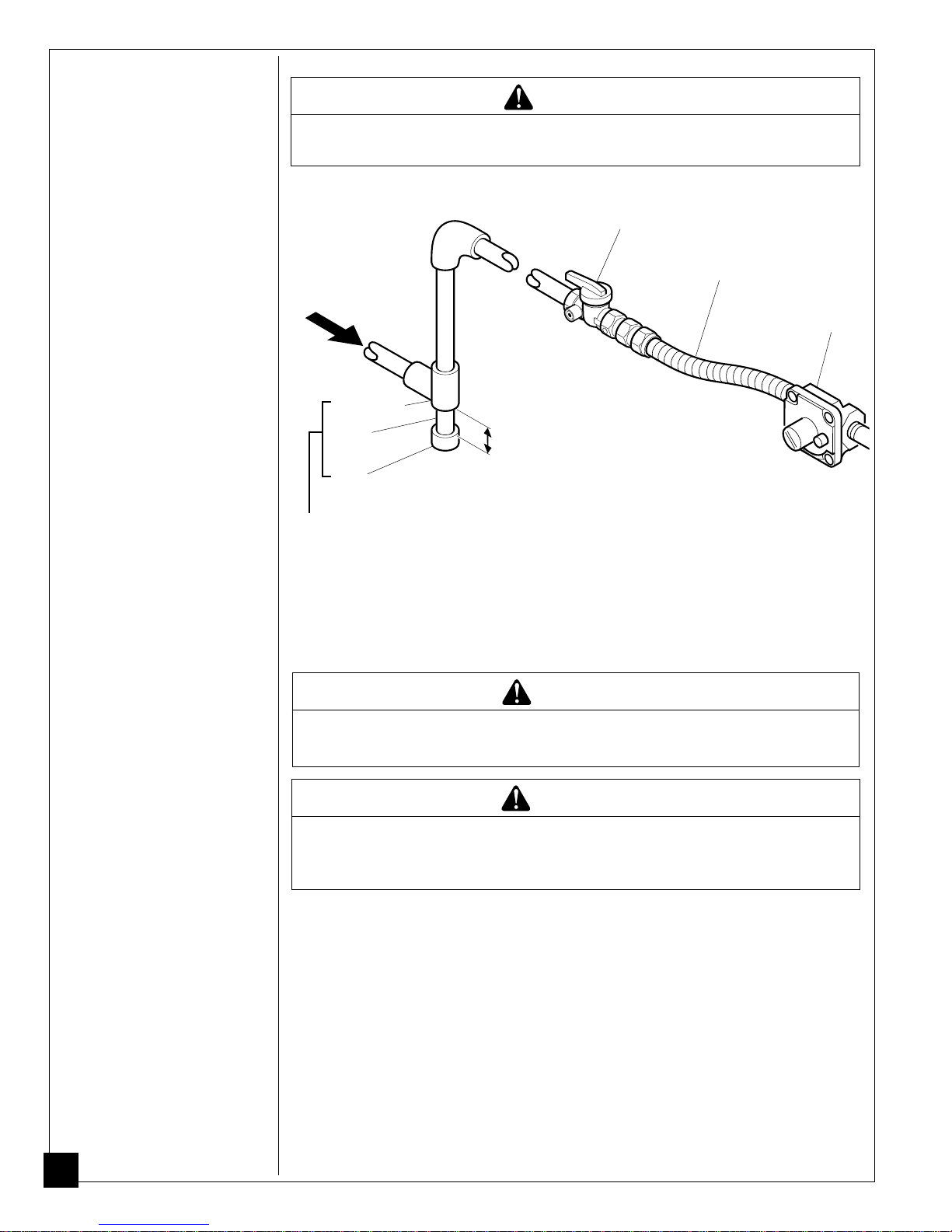

Figure 18 - Gas Connection
* Purchase the optional A.G.A. design-certified manual shutoff valve from your
dealer. See Accessory, page 30.
** Minimum inlet pressure for purpose of input adjustment.
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
WARNING ICON G 001
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
CHECKING GAS CONNECTIONS
WARNING ICON G 001
CAUTION
Avoid damage to regulator. Hold gas regulator with wrench when
connecting it to gas piping and/or fittings.
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or opening
main gas valve located on or near gas meter.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and manual shutoff valve to gas supply. Check reconnected
fittings for leaks.

17
104024
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 19).
2. Pressurize supply piping system by either using compressed air or opening
main gas valve located on or near gas meter.
3. Check all joints from gas meter to manual shutoff valve (see Figure 20). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Heater Gas Connections
1. Open manual shutoff valve (see Figure 19).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of heater is in the OFF position.
4. Checkalljointsfrommanualshutoffvalvetocontrolvalve(seeFigure20).Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 18 through 20). Check all other
internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 20).
INSTALLING
Continued

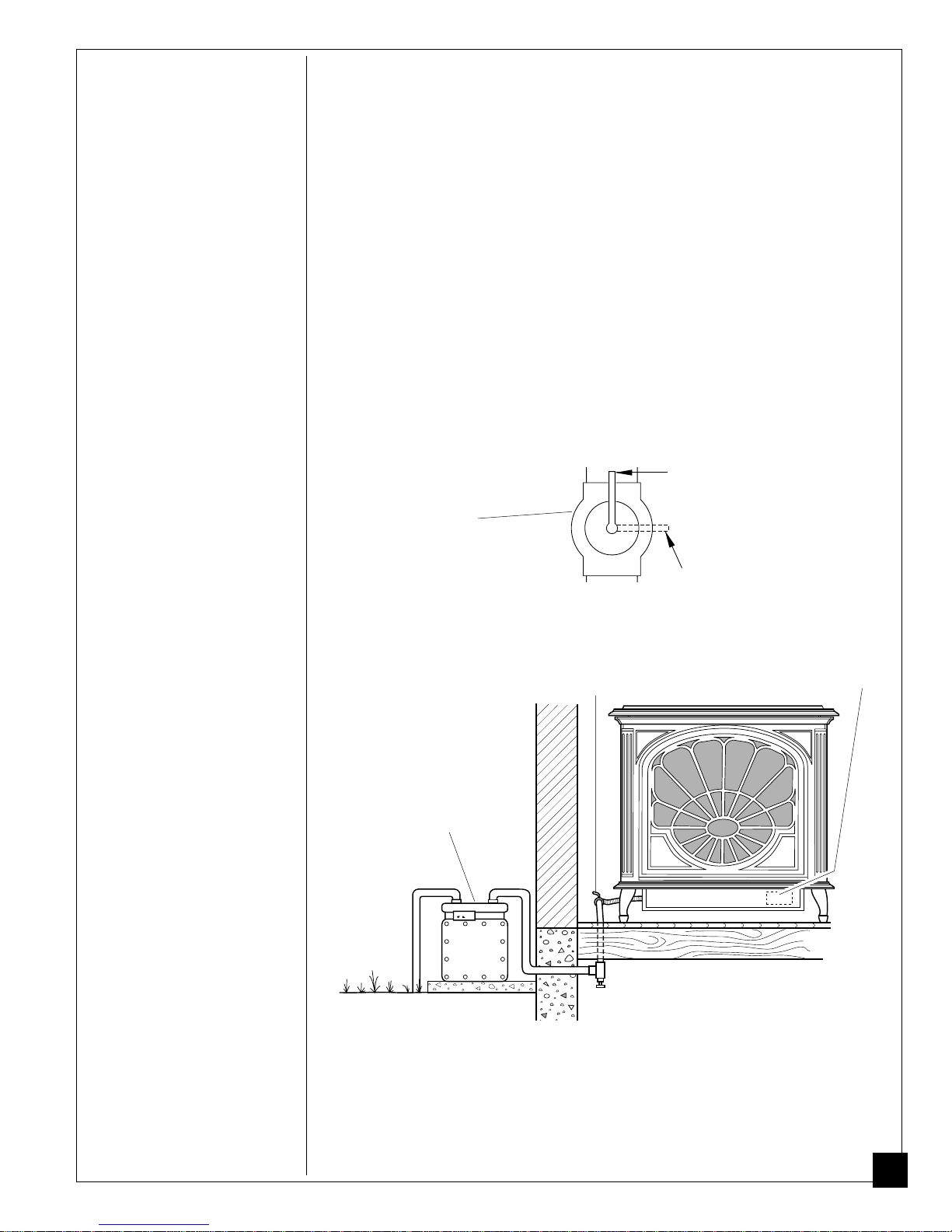

Figure 19 - Manual Shutoff Valve
ON
POSITION
OFF
POSITION
Open
Closed
Manual
Shutoff
Valve
Gas Meter
Manual
Shutoff
Valve Control Valve Location
Figure 20 - Checking Gas Joints

18
104024
OPERATING
HEATER FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING ICON G 001
WARNING
If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell
next to the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t try to repair it, call a qualified service
technician or gas supplier. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.

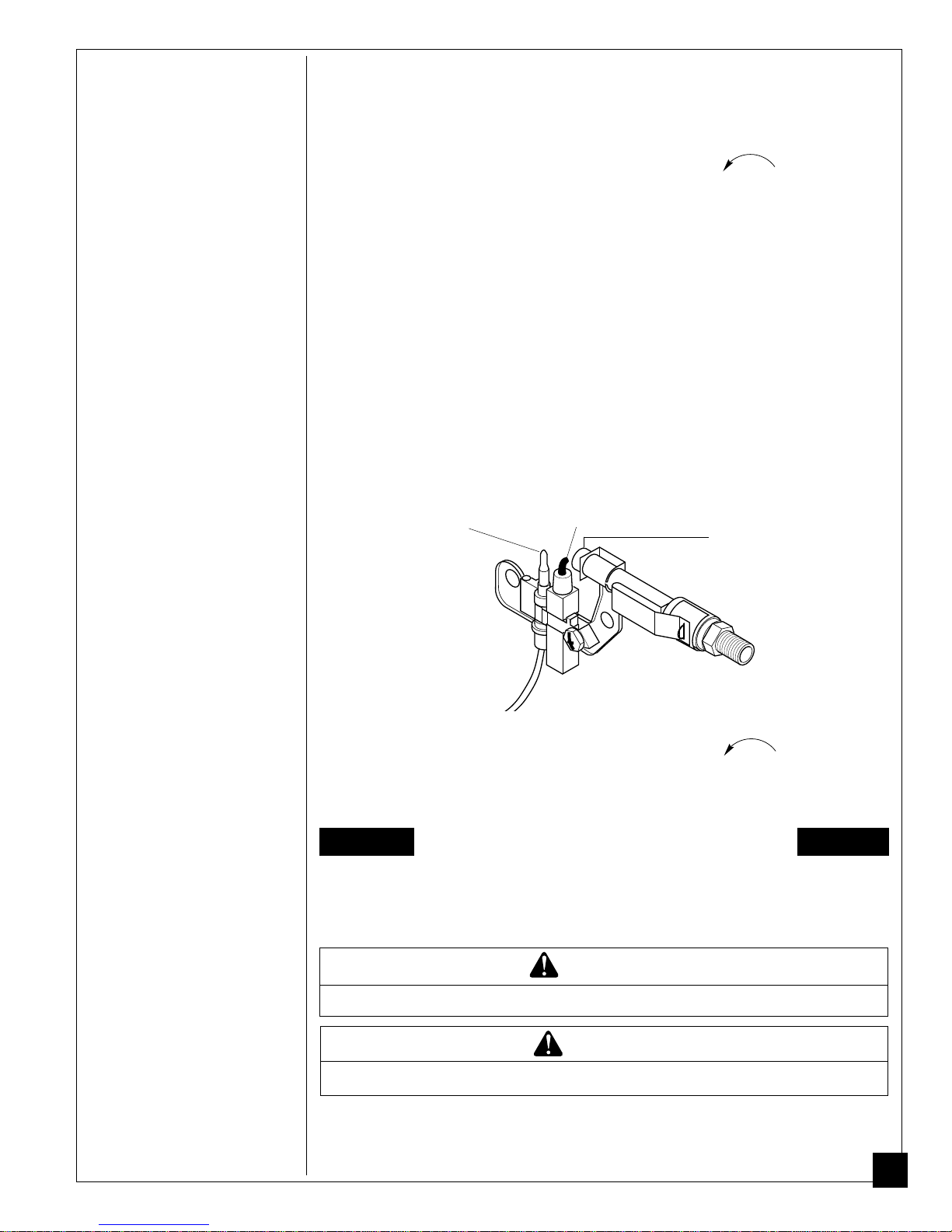

Figure 21 - Control Knob and Ignitor Button Location
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Press in and turn control knob clockwise to the OFF position.
NOTICE
During initial operation of new heater, burning logs will give off a paper-
burning smell. Open damper or window to vent smell. This will only last a
few hours.
Ignitor Button Control Knob

19
104024
WARNING ICON G 001
WARNING
Do not operate heater between PILOT and HIGH positions.
WARNING ICON G 001
CAUTION
Do not try to adjust heating levels by using the manual shutoff valve.
VARIABLE CONTROL OPERATION
The variable control valve can be set to any heat setting and flame height desired, by
simply turning the control knob until that setting is attained. Even the lowest setting
provides realistic, dancing yellow flames. Selecting higher settings produces greater
heat output. This results in increased heating comfort.
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B” in the safety information on page 18 . If
you don’t smell gas, go to the next step.
5. Slightly depress and turn control knob counterclockwise
C-clockwise
to the PILOT
position. Keep control knob pressed in for five (5) seconds (see Figure 21, page 18).
Note: You may be running this heater for the first time after hooking up to gas
supply. If so, the control knob may need to be pressed in for 30 seconds. This
will allow air to bleed from the gas system.
6. With control knob pressed in, press and release ignitor button. This will light
pilot. The pilot is attached to the burner (see Figure 16, page 14). If needed, keep
pressing ignitor button until pilot lights.
Note: If pilot does not light, contact a qualified service person or gas supplier
for repairs. Until repairs are made, light pilot with match. To light pilot with
match, see Manual Lighting Procedure on page 20.
7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds,
release control knob.
Note: If pilot goes out, repeat steps 3 through 7.
• If control knob does not pop out when released, contact a qualified service
person or gas supplier for repairs.
OPERATING
HEATER
Continued
8. Slightly depress and turn control knob counterclockwise
C-clockwise
to the HIGH
position. The burner should light. Set control knob to any heat level between
HIGH and LO.
Figure 22 - Pilot
Thermocouple Ignitor Electrode Pilot Burner
Continued

20
104024
OPERATING
HEATER
Continued
TO TURN OFF GAS TO APPLIANCE
Shutting Off Heater
1. Press in and turn control knob clockwise
Clockwise
to the HIGH position.
2. Turn the control knob clockwise
Clockwise
to the PILOT position.
3. Press in control knob and turn clockwise
Clockwise
to the OFF Position.
Shutting Off Burners Only (pilot stays lit)
1. Turn the control knob clockwise
Clockwise
to the HIGH position.
2. Press in and turn control knob clockwise
Clockwise
to the PILOT position.
MANUAL LIGHTING PROCEDURE
1. Follow steps 1 through 5 under Lighting Instructions, pages 18 and 19.
2. Pilot is located inside stove cavity attached to burner. Lift off top grate to allow
access to pilot.
3. Depress control knob and light pilot with match.
4. Keep control knob pressed in for 30 seconds after lighting pilot. After 30
seconds, release control knob.
5. Place top grate back into position. Now follow step 8, page 19.
INSPECTING
BURNERS
Check pilot flame pattern and burner flame patterns often.
PILOT FLAME PATTERN

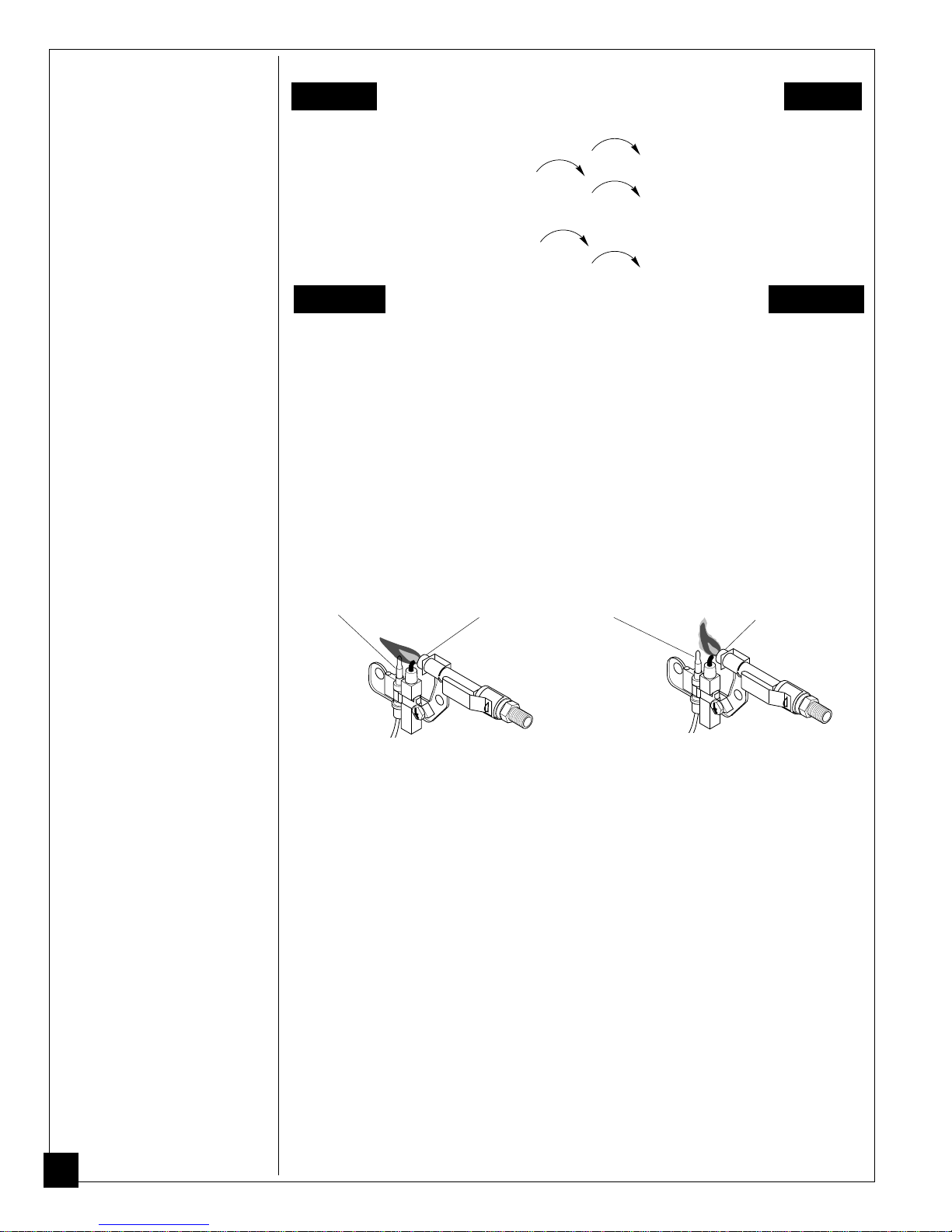

Figure 23 shows a correct pilot flame pattern. Figure 24 shows an incorrect pilot flame
pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the
thermocouple to cool. When the thermocouple cools, the heater will shut down.
Figure 23 - Correct Pilot
Flame Pattern Figure 24 - Incorrect Pilot
Flame Pattern
If pilot flame pattern is incorrect, as shown in Figure 24
• turn heater off (see To Turn Off Gas to Appliance, above)
• see Troubleshooting, pages 21 through 24
Thermocouple Pilot Burner Pilot Burner
Thermocouple
