Vanguard VN1800D Quick start guide

®
Models: VN1800D, VN1800ITA, VN3000D, and VN2550ITA
Save this manual for future reference.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Donottouchanyelectricalswitch;donotuseanyphoneinyourbuilding.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
®
INFRARED VENT-FREE NATURAL GAS HEATER
This appliance may be installed in an aftermarket* manufactured (mobile)
home, where not prohibited by state or local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
OWNER’S OPERATION AND INSTALLATION MANUAL

2
101822
CONTENTS SECTION PAGE
Safety Information......................................................................... 2
Product Identification .................................................................... 4
Local Codes ................................................................................... 4
Unpacking...................................................................................... 4
Product Features ............................................................................ 4
Fresh Air For Combustion And Ventilation ..................................5
Installing To Wall.......................................................................... 9
Connecting To Gas Supply............................................................ 14
Checking Gas Connections............................................................ 15
Operating Heater (Models VN1800ITA & VN2550ITA)............. 17
Operating Heater (Models VN1800D & VN3000D) ....................21
Inspecting Burner .......................................................................... 24
Cleaning And Maintenance ........................................................... 26
Troubleshooting............................................................................. 26
Technical Service .......................................................................... 30
Specifications ................................................................................ 30
Service Publications ...................................................................... 30
Service Hints ................................................................................. 30
Replacement Parts ......................................................................... 31
Accessories .................................................................................... 31
Illustrated Parts Breakdown and Parts List ................................... 32-39
Warranty Information .................................................................... Back Cover
SAFETY
INFORMATION
WARNING ICON G001
DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the
heater may not be working properly. Get fresh air at once! Have heater serviced.
Some people are more affected by carbon monoxide than others. These include
pregnant women, persons with heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
NaturalGas:Naturalgasisodorless.Anodor-makingagentisaddedtonaturalgas.
The odor helps you detect a natural gas leak. However, the odor added to natural gas
can fade. Natural gas may be present even though no odor exists.
Makecertain you readand understand all Warnings. Keepthis manual forreference.
It is your guide to safe and proper operation of this heater.
WARNING ICON G001
WARNINGS
IMPORTANT: Read this Owner’s Manual carefully and completely
beforetryingtoassemble,operate,orservicethisheater.Improperuse
of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide poisoning.
Safety Information continues on next page

3
101822
SAFETY
INFORMATION
Continued
WARNING ICON G001
WARNINGS Continued
WARNING: Any change to this heater or its controls can be dangerous.
1. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases.
2. If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department
3. This heater shall not be installed in a bedroom or bathroom.
4. Never install the heater
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less
than 36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
5. Always run heater with plaque control knob at the 1, 2, 3, or 4 locked posi-
tions. Never set control knob between locked positions. Poor combustion and
higher levels of carbon monoxide may result.
6. This heater needs fresh, outside air ventilation to run properly. This heater
has an oxygen depletion sensor (ODS) pilot light safety system. The ODS
shuts down the heater if not enough fresh air is available. See Fresh Air for
Combustion and Ventilation, pages 5 through 8.
7. Keep all air openings in front and bottom of heater clear and free of debris.
This will insure enough air for proper combustion.
8. If heater shuts off, do not relight until you provide fresh, outside air. If heater
keeps shutting off, have it serviced.
9. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
10.Never place any objects on the heater.
11.Surface of heater becomes very hot when running heater. Keep children and
adults away from hot surface to avoid burns or clothing ignition. Heater will
remain hot for a time after shut-down. Allow surface to cool before touching.
12.Carefully supervise young children when they are in same room with heater.
13.Make sure grill guard is in place before running heater.
14.Do not use heater if any part has been under water. Immediately call a
qualified service technician to inspect the room heater and to replace any part
of the control system and any gas control which has been under water.
15.Turn off and unplug heater and let cool before servicing. Only a qualified
service person should service and repair heater.
16. Operating heater above elevations of 4,500 feet could cause pilot outage.

4
101822
PRODUCT
IDENTIFICATION
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of National Fuel Gas Code ANSI Z223.1, also known
as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269

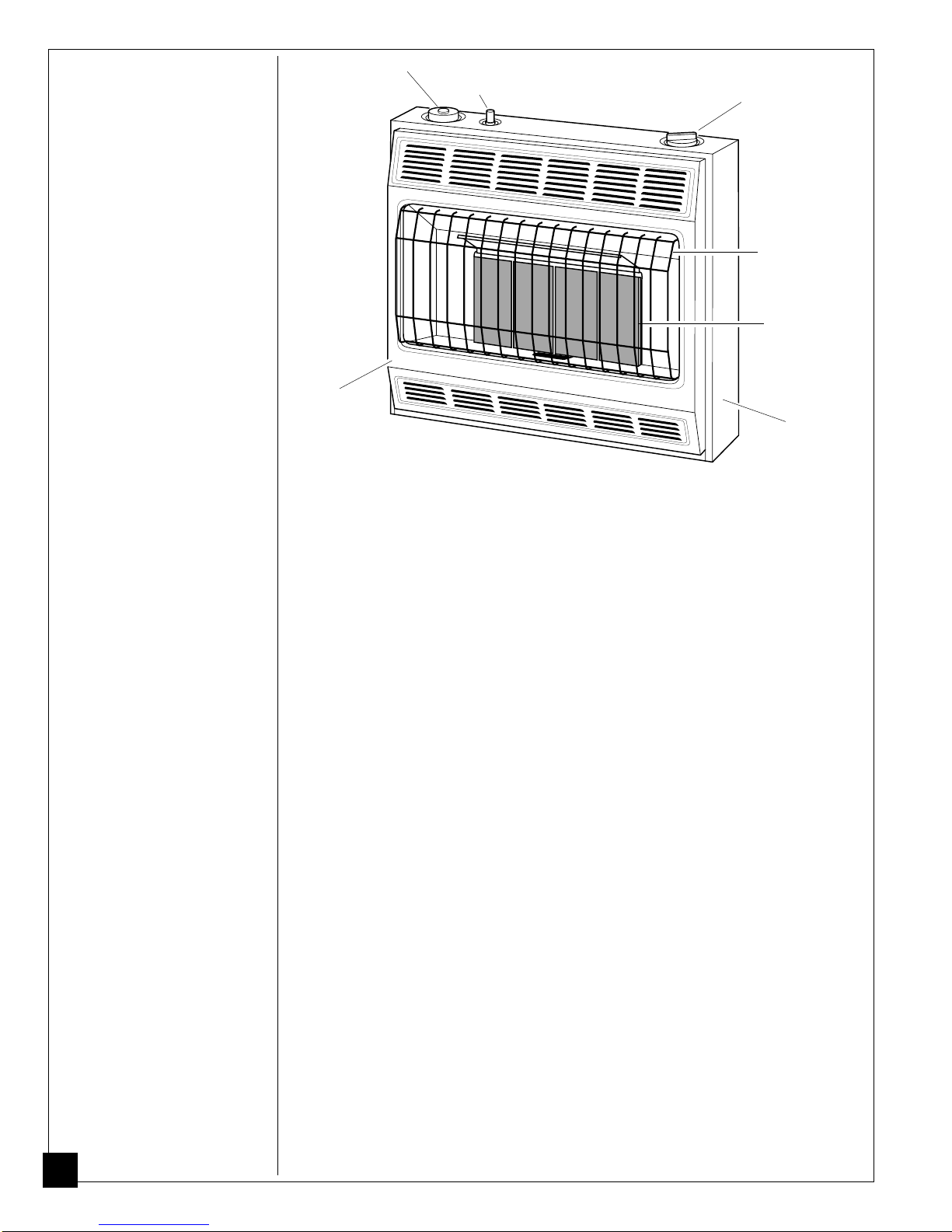

Figure 1 - Vent-Free Natural Gas Heater (Model VN2550ITA Shown)
Control Knob
PRODUCT
FEATURES
Safety Device
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts
off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
sources to light heater.
Thermostatic Heat Control
(Models VN1800ITA and VN2550ITA Only)
This heater has a thermostat sensing bulb and thermostat control. This results in the
greatest heater comfort. This can also result in lower gas bills.
UNPACKING 1. Remove heater from carton.
2. Remove all protective packaging applied to heater for shipment.
3. Check heater for any shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
Grill
Guard
Burners
Thermostat Control Knob (Models VN1800ITA and VN2550ITA Only)
Piezo Ignitor (Models VN1800ITA
and VN2550ITA Only)
Heater
Cabinet
Front
Panel

5
101822
FRESH AIR
FOR
COMBUSTION
AND
VENTILATION
WARNING ICON G 001
WARNING
This heater must have fresh air for proper operation. If not, poor
fuel combustion could result. Read the following instructions to
insure proper fresh air for this and other fuel-burning appliances
in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from
the house to operate. You must provide adequate fresh air for these appliances.
This will insure proper venting of vented fuel-burning appliances.
PRODUCING ADEQUATE VENTILATION
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Contruction; 2. Unconfined Space; 3. Confined Space.
The information on pages 5 through 8 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm or less with open-
ings gasketed or sealed and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide addi-
tional fresh air. See Ventilation Air From Outdoors , page 8 .
If your home does not meet all of the three criteria above, continue reading.
Unconfined Space
An unconfined space has a minimum air volume of 50 cubic feet for each 1000
Btu/Hr input rating of all appliances in the space (cubic feet equals length x
width x height of space). Include adjoining rooms only if there are doorless
passageways or ventilation grills between the rooms.
Confined Space
A confined space has an air volume of less than 50 cubic feet for each 1000 Btu/
Hr input rating of all appliances in the space (cubic feet equals length x width x
height of space). Include adjoining rooms only if there are doorless passageways
or ventilation grills between the rooms. Continued

6
101822
FRESH AIR
FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space
can support.
____________ (volume of space) ÷50 cu. ft. = (Maximum Btu/Hr
the space can support)
Example: 2560 cu. ft. (volume of space) ÷50 cu. ft. = 51.2 or 51,200 (maximum
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater ___________________ Btu/Hr
Gas water heater* ___________________ Btu/Hr
Gas furnace ___________________ Btu/Hr
Vented gas heater ___________________ Btu/Hr
Gas fireplace logs ___________________ Btu/Hr
Other gas appliances* +___________________ Btu/Hr
Total =___________________ Btu/Hr
Example: Gas water heater 40,000 Btu/Hr
Vent-free heater +18,000 Btu/Hr
Total =58,000 Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr
used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
58,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can support. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 8.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space
is an unconfined space. You will need no additional fresh air ventilation.

7
101822
FRESH AIR
FOR
COMBUSTION
AND
VENTILATION
Continued
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1
WARNING ICON G 001
WARNING
If the area in which the heater may be operated is smaller than
that defined as an unconfined space, provide adequate combus-
tion and ventilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoiningunconfinedspace,you must provide two permanent openings: one within 12" of the
ceilingandonewithin12"of theflooronthewallconnectingthetwospaces(seeoptions 1and
2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow
the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
WARNING ICON G 001
WARNING
Rework worksheet, adding the space of the adjoining unconfined
space. The combined spaces must have enough fresh air to supply all
appliances in both spaces.
Figure 2 - Ventilation Air from Inside Building
Continued

8
101822
FRESH AIR
FOR
COMBUSTION
AND
VENTILATION
Continued
Figure 3 - Ventilation Air from Outdoors
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these
items directly to the outdoors or spaces open to the outdoors. These spaces include attics
and crawl spaces.
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermo-
stat-controlled power vent. Heated air entering the attic will activate the power vent.
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic

9
101822
INSTALLING
TO WALL NOTICE
Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural, do not install heater. Call
dealer where you bought heater for proper type heater.
INSTALLATION ITEMS
Before installing heater, make sure you have the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• manual shutoff valve *
• sediment trap
• tee joint
• pipe wrench
• ground joint union
• test gauge connection *
(see Figure 13, page 15)
* An A.G.A. design certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design certified
manual shutoff valve from your dealer. See Accessories, page 31.
LOCATING HEATER
This heater is designed to be mounted on a wall.
WARNING ICON G 001
WARNING
MaintaintheminimumclearancesshowninFigure4(page10).Ifyou
can, provide greater clearances from floor, ceiling, and joining wall.
You can locate heater on floor, away from a wall. An optional floor mounting stand is
needed.Purchasethefloormountingstandfromyourdealer.SeeAccessories,page31.
WARNING ICON G 001
WARNING
Never install the heater
• in a bedroom or bathroom
• in a recreational vehicle
• wherecurtains,furniture,clothing,orotherflammableobjectsare
less than 36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial, in-
stalling heater in rooms without enough ventilation air may cause mildew to form from
too much moisture. See Fresh Air for Combustion and Ventilation, pages 5 through 8.
Continued
WARNING ICON G 001
CAUTION
If you install the heater in a home garage
• heater pilot and burner must be at least 18 inches above floor
• locate heater where moving vehicle will not hit it
WARNING ICON G 001
CAUTION
This heater creates warm air currents. These currents move heat
to wall surfaces next to heater. Installing heater next to vinyl or
cloth wall coverings or operating heater where impurities in the air
(such as tobacco smoke) exist, may discolor walls.

10
101822
Figure 5 - Attaching Thermostat Sensing Bulb
For convenience and efficiency, install heater
• where there is easy access for operation, inspection, and service
• in coldest part of room
An optional fan kit is available from your dealer. See Accessories, page 31. If
planning to use fan, locate heater near an electrical outlet.
Clamp
Thermostat
Sensing Bulb
36"
3"
FLOOR
CEILING
Minimum
Minimum To Top Surface
Of Carpeting, Tile Or Other
Combustible Material
8"
Minimum
From
Sides Of
Heater
Left
Side Right Side
THERMOSTAT SENSING BULB
(Models VN1800ITA and VN2550ITA Only)
The thermostat sensing bulb has been placed inside the heater for protection during
shipping.
Locating Thermostat Sensing Bulb
1. Remove front panel of heater (see Figure 7, page 11).
2. Locate thermostat sensing bulb just under the burner assembly.
IMPORTANT: Attach thermostat sensing bulb to the back of heater for proper
operation.
Attaching Thermostat Sensing Bulb
1. Remove thermostat sensing bulb from holders inside heater. Route through slot
opening in bottom of heater.
2. Place clamp on thermostat sensing bulb as shown in Figure 5. Clamp is pro-
vided in hardware package.
3. Snap clamp into upper mounting hole as shown in Figure 5. Mounting hole is
located on lower left edge on back of heater. Make sure the thermostat sensing
bulb is pointing up.
Figure 4 - Mounting Clearances As Viewed From Front of Heater
INSTALLING
TO WALL
Continued

11
101822
Methods For Attaching Mounting Bracket To Wall
Only use last hole on each end of mounting bracket to attach bracket to wall. These
two holes are 16 inches apart from their centers. Attach mounting bracket to wall in
one of two ways.
1. Attaching to wall stud
2. Attaching to wall anchor
Attaching to wall stud This method provides the strongest hold. Insert mounting
screws through mounting bracket and into wall studs.
Attaching to wall anchor This method allows you to attach mounting bracket to
hollow walls (wall areas between studs) or to solid walls (concrete or masonry).
Decide which method better suits your needs. Either method will provide a secure
hold for the mounting bracket.
INSTALLING HEATER TO WALL
Mounting Bracket
The mounting bracket is located on back panel of heater. It has been taped there for
shipping. Remove mounting bracket from back panel.

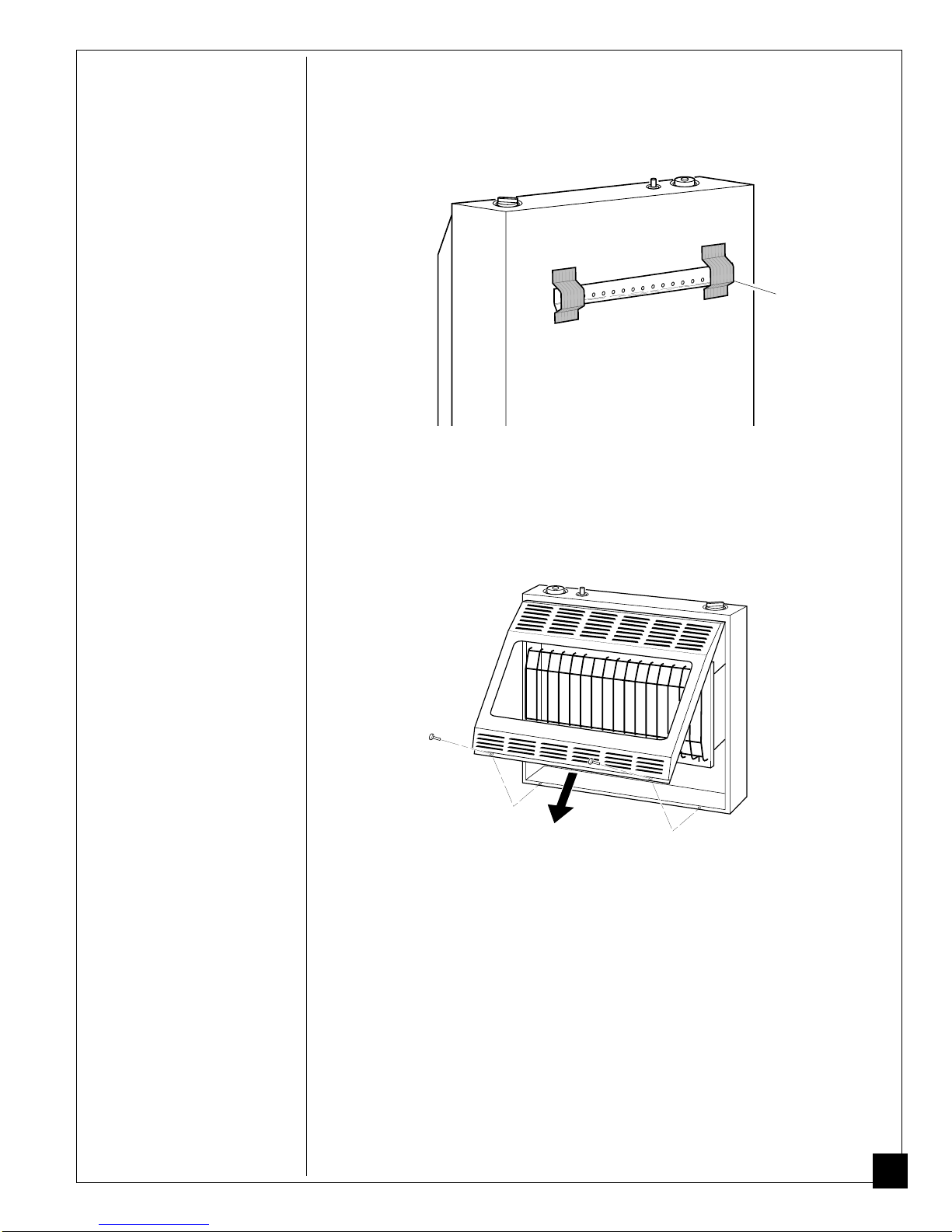

Figure 7 - Removing Front Panel Of Heater
Removing Front Panel Of Heater
1. Remove two screws near bottom corners of front panel.
2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4".
3. Pull bottom of front panel forward, then down.
Figure 6 - Mounting Bracket Location
Mounting
Bracket
INSTALLING
TO WALL
Continued
Continued

12
101822
Marking Screw Locations
1. Tape mounting bracket to wall where heater will be located. Make sure mounting
bracket is level.
Models VN3000D and VN2550ITA Models VN1800D and VN1800ITA
Figure 8 - Mounting Bracket Clearances
2. Mark screw locations on wall (see Figure 8).
Note: Only mark last hole on each end of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from wall.
18 3/4"
Min.
13"
Min. 16"
18 3/4"
Min.
9 1/4"
Min.
Adjoining Wall
16"
Adjoining Wall
Only Insert Mounting
Screws Through Last
Hole On Each End
Only Insert Mounting
Screws Through Last
Hole On Each End
Floor Floor
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and spacers are in hardware package. The
hardware package is provided with heater.
Attaching to wall stud method
For attaching mounting bracket to wall studs
1. Drill holes at marked locations using 9/64" drill bit.
2. Place mounting bracket onto wall. Line up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket and into wall studs.
4. Tighten screws until mounting bracket is firmly fastened to wall studs.
Attaching to wall anchor method
For attaching mounting bracket to hollow walls (wall areas between studs) or solid
walls (concrete or masonry)
1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.

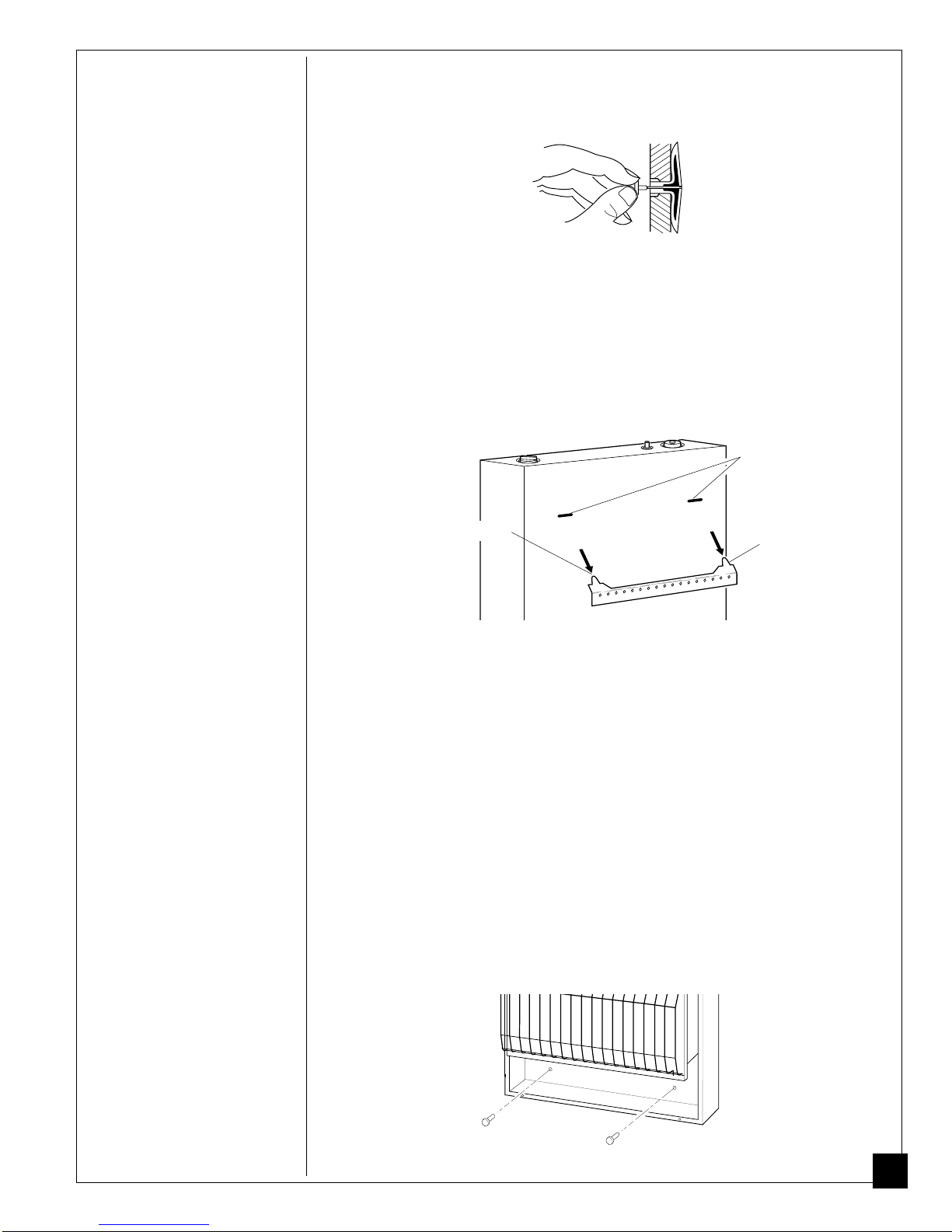

2. Fold wall anchor as shown in Figure 9.
3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.
Figure 9 - Folding Anchor
WARNING ICON G 001
WARNING
Maintain minimum clearances shown in Figure 8. If you can, pro-
vide greater clearances from floor and joining wall.
INSTALLING
TO WALL
Continued

13
101822
4. For thin walls (1/2" or less), insert red key into wall anchor. Push red key to
“pop” open anchor wings.
IMPORTANT: Do not hammer key!
For thick walls (over 1/2" thick) or solid walls, do not pop open wings.
Figure 10 - Popping Open Anchor Wings For Thin Walls
5. Place mounting bracket onto wall. Line up last hole on each end of bracket with
wall anchors.
6. Insert mounting screws through bracket and into wall anchors.
7. Tighten screws until mounting bracket is firmly fastened to wall.
Placing Heater On Mounting Bracket
1. Locate two horizontal slots on back panel of heater.
2. Place heater onto mounting bracket. Slide horizontal slots onto stand-out tabs on
mounting bracket.
Figure 11 - Mounting Heater Onto Mounting Bracket
Stand-Out Tab
Installing Bottom Mounting Screws
1. Locate two bottom mounting holes. These holes are near bottom on back panel
of heater (see Figure 14).
2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into hollow or solid wall, install wall
anchors. Follow steps 1 through 4 under Attaching To Wall Anchor Method,
page 12.
If installing bottom mounting screw into wall stud, drill holes at marked loca-
tions using 9/64" drill bit.
5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting holes and wall anchor or drilled hole.
7. Hold spacer in place with one hand. With other hand, insert mounting screw
through bottom mounting hole and spacer. Place tip of screw in opening of wall
anchor or drilled hole.
8. Tighten both screws until heater is firmly secured to wall. Do not over tighten.
Note: Do not replace front panel at this time. Replace front panel after making
gas connections and checking for leaks (see pages 14-16).
Mounting Bracket
(attached to wall)
Horizontal Slots
Figure 12 - Installing Bottom Mounting Screws
INSTALLING
TO WALL
Continued

14
101822
CONNECTING
TO GAS
SUPPLY
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
Typical Pipe Diameters
VN1800D or VN1800ITA 3/8" or greater
VN3000D or VN2550ITA 1/2" or greater
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from heater (see Figure 13, page 15).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
Install sediment trap in supply line as shown in Figure 13, page 15. Locate sediment
trap where it is within reach for cleaning. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps moisture and contaminants. This
keeps them from going into heater controls. If sediment trap is not installed or is
installed wrong, heater may not run properly.
WARNING ICON G 001
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
IMPORTANT: Check gas line pressure before connecting heater to gas line. Gas line
pressure must be no greater than 14 inches of water. If gas line pressure is higher,
heater regulator damage could occur.
WARNING ICON G 001
WARNING
Never connect heater to private (non-utility) gas wells. This gas is
commonly known as well-head gas.
WARNING ICON G 001
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of large enough diameter to allow proper gas volume to heater.
If pipe is too small, undue loss of pressure will occur.

15
101822
IMPORTANT: Hold pressure regulator with wrench when connecting it to gas piping
and/or fittings.
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test
Gauge
Connection *
Sediment
Trap
Tee Joint
Pipe
Nipple
Cap
Manual
Shutoff
Valve *
1/2" NPT
Pipe Nipple
Heater
Cabinet

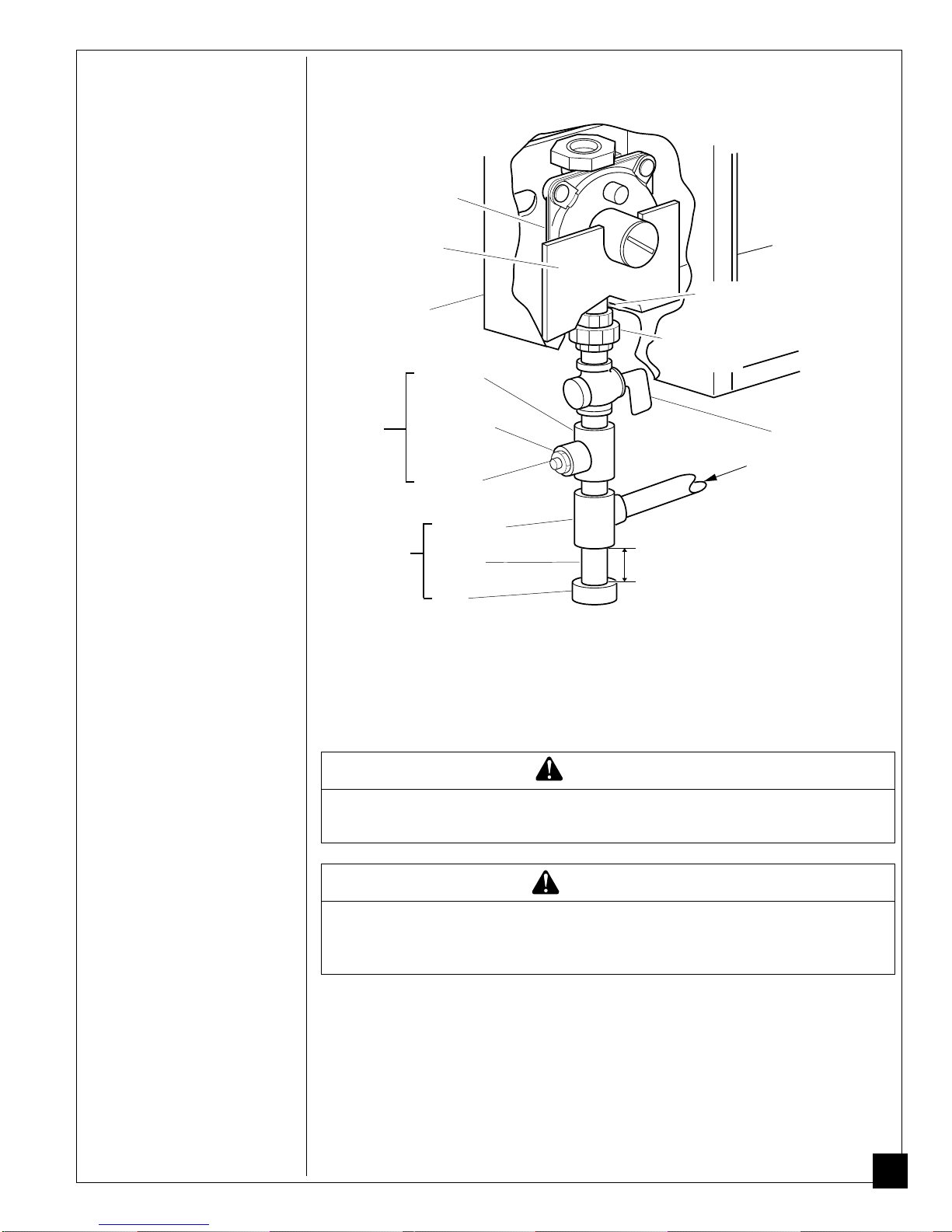

Figure 13 - Gas Connection
* AnA.G.A. design certified manual shutoffvalve with 1/8" NPT tapis an acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design certified
manual shutoff valve from your dealer. See Accessories, page 31.
CHECKING
GAS
CONNECTIONS
Continued
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 PSIG will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or
opening main gas valve located on or near gas meter.
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
WARNING ICON G001
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
3" Minimum
Ground Joint
Union
Pressure
Regulator
Regulator
Bracket
CONNECTING
TO GAS
SUPPLY
Continued
From
Gas Meter
(7" W.C. to 10.5" W.C. Pressure)

16
101822
ON
POSITION
OFF
POSITION
Figure 14 - Manual Shutoff Valve
Manual
Shutoff
Valve
Open
Closed
Figure 15 - Checking Gas Joints
Manual
Shutoff
Valve
Gas Meter
Control Valve Location
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 14).
2. Pressurize supply piping system by either using compressed air or opening main
gas valve located on or near gas meter.
3. Check all joints from gas meter to manual shutoff valve (see Figure 15). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNECTIONS
1. Open manual shutoff valve (see Figure 14).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to control valve (see Figure 15).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 17 through 24). Check the rest of the
internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 20 [models
VN1800ITA and VN2550ITA] or page 24 [models VN1800D and VN3000D]).
8. Replace front panel.
CHECKING
GAS
CONNECTIONS
Continued

17
101822
OPERATING
HEATER
Models VN1800ITA
and VN2550ITA
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING ICON G 001
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting
the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure
to smell next to the floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don’t try to repair it,
call a qualified service technician or gas supplier. Force or attempted
repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately
call a qualified service technician to inspect the appliance and to replace
any part of the control system and any gas control which has been under
water.
Continued

18
101822
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information at the top of page 17.
2. Make sure manual shutoff valve is fully open.
3. Turn thermostat control knob on left side of heater clockwise
Clockwise
to the
OFF position.
OPERATING
HEATER
Models VN1800ITA
and VN2550ITA
Continued
IGNITOR
PILOT
LO
OFF
HI
1
2
3
4
Plaque Control Knob
Thermostat Control Knob Ignitor Button

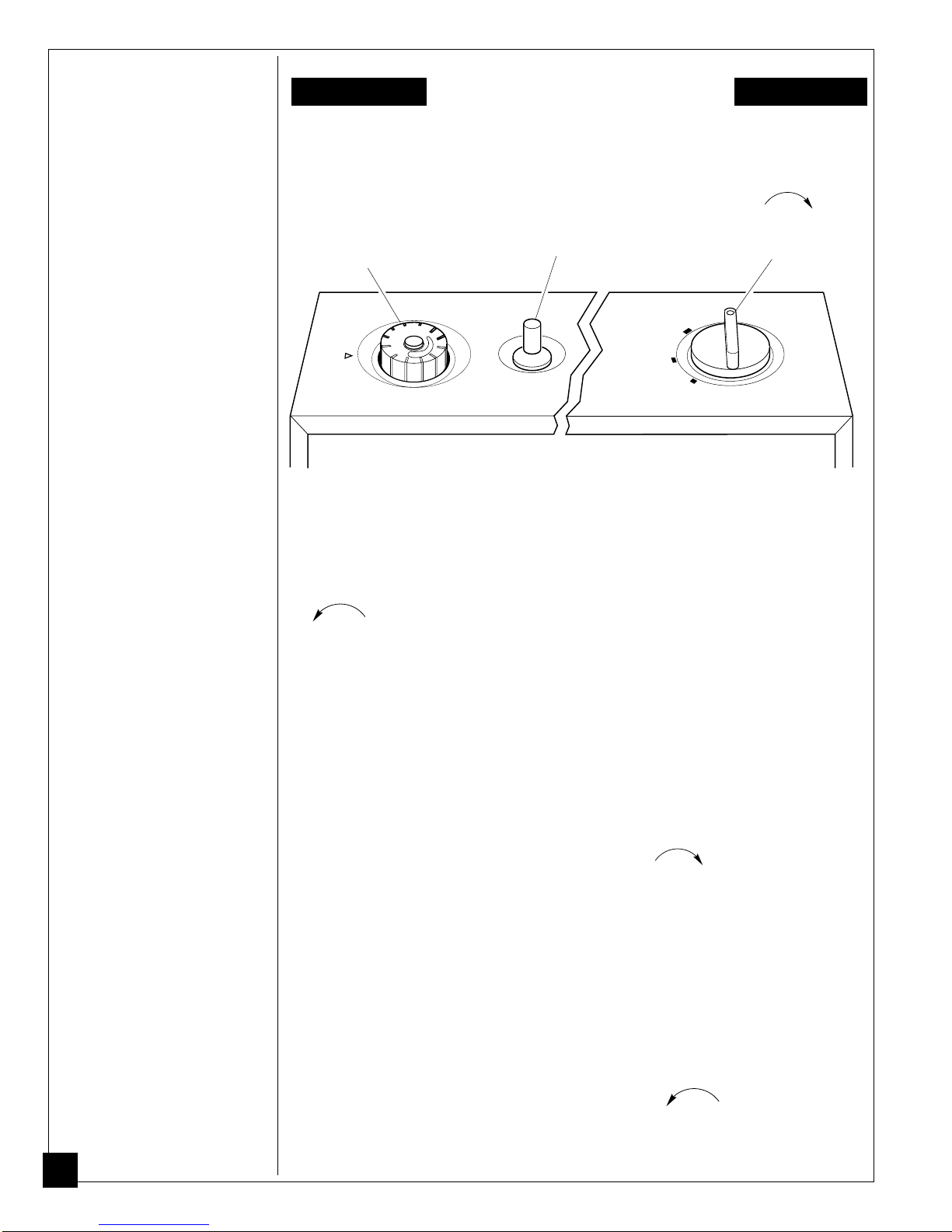

Figure 16 - Thermostat Control Knob In The OFF Position
4. Wait five minutes to clear out any gas. Then smell for gas, including near
the floor. If you smell gas, STOP! Follow “B” in the safety information at
the top of page 17. If you don’t smell gas, go to the next step.
5. Turn thermostat control knob on left side of heater counterclockwise
C-clockwise
to the PILOT position. Press in thermostat control knob for 5
seconds.
Note: You may be running this heater for the first time after hooking up
to gas supply. If so, you may need to press in thermostat control knob for
30 seconds. This will allow air to bleed from the gas system.
• If thermostat control knob does not pop up when released, contact a
qualified service person or gas supplier for repairs.
6. Keep thermostat control knob pressed in while pushing down and releasing
the ignitor button. This will light pilot. If necessary, continue to press
ignitor button until pilot lights.
If pilot does not light
• turn thermostat control knob clockwise
Clockwise
to the OFF position
• repeat steps 5 and 6
If pilot does not stay lit after several tries
• refer to Troubleshooting, pages 26 through 29
• contact a qualified service person or gas supplier
Until repairs are made, light pilot with match. To light pilot with match, see
Manual Lighting Procedure, page 20
7. Keep thermostat control knob pressed in for 30 seconds after lighting pilot.
After 30 seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7. This heater has a safety
interlock system. Wait one minute before lighting pilot again.
8. Turn thermostat control knob counterclockwise
C-clockwise
to the desired
heating level. The plaque directly above the pilot should light.

19
101822
1. Slightly press in plaque control knob on right side of heater and turn
counterclockwise
C-clockwise
to the desired position.
IMPORTANT: Release downward pressure while turning control knob.
Control knob will lock at the desired position.
2. Turn thermostat control knob on left side of heater to any setting between
LO and HI.
Note: When burners cycle on, or from LO to HI, a “click” will
be heard. When the burners light, a “whoosh” noise will be heard.
Figure 17 - Pilot
TO SELECT HEATING LEVEL
WARNING ICON G 001
WARNING
When running heater, set control knob at the 1, 2, 3, or 4
locked positions. Never set control knob between locked
positions. Poor combustion and higher levels of carbon
monoxide may result.
WARNING ICON G001
CAUTION
Do not try to adjust heating levels by using the manual shutoff
valve.
Control
Knob VN1800ITA VN2550ITA
3
4
21
3
4
21
3
4
21
3
4
21
OPERATING
HEATER
Models VN1800ITA
and VN2550ITA
Continued
Continued

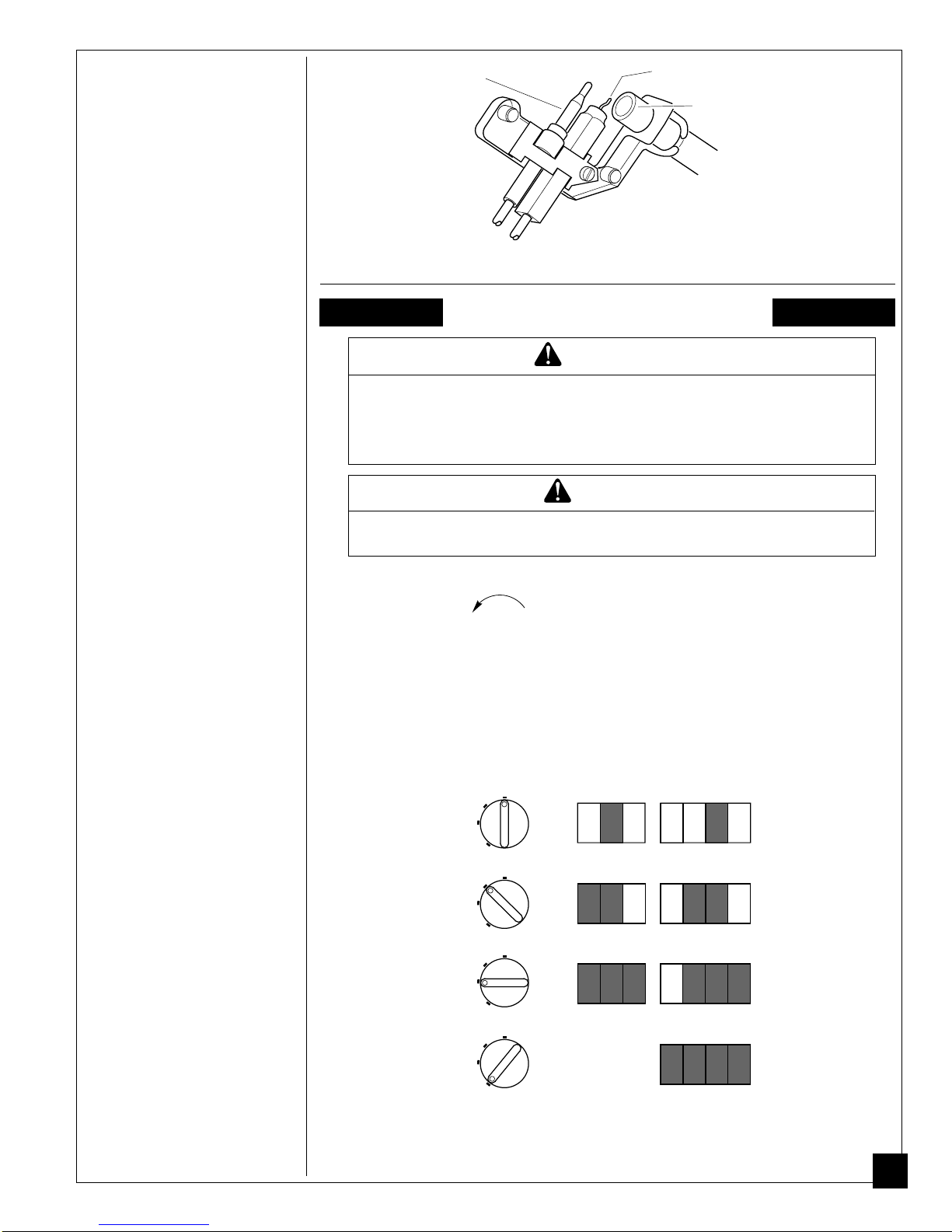

Figure 18 - Burner Patterns
Pilot Burner
Thermocouple Ignitor Electrode

20
101822
TO TURN OFF GAS TO APPLIANCE
OPERATING
HEATER
Models VN1800ITA
and VN2550ITA
Continued
Shutting Off Heater
1. Turn thermostat control knob clockwise
Clockwise
to the OFF position.
2. Turn off all electric power to the appliance if service is to be performed.
Shutting Off Burner Only (pilot stays lit)
1. Turn thermostat control knob clockwise
Clockwise
to the PILOT position.
THERMOSTAT OPERATION
(Models VN1800ITA and VN2550ITA Only)
Since the thermostat measures the temperature of air near the heater cabinet,
this may not always agree with room temperature (depending on housing
construction, installation location, room size, open air temperatures, etc.).
Frequent operation of your heater will enable you to determine your own
comfort levels.
MANUAL LIGHTING PROCEDURE
1. Follow steps 1 through 5 under Lighting Instructions, page 18.
2. With thermostat control knob pressed in, strike match. Hold match to pilot
until pilot lights.
3. Keep thermostat control knob pressed in for 30 seconds after lighting pilot.
After 30 seconds, release control knob.
