Vanguard VGP30 Quick start guide

Save this manual for future reference.
D
E
S
I
G
N
N
A
E
S
T
D
C
E
R
T
I
I
F
I
E
A
M
C
R
I
A
S
O
C
I
A
O
N
®
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediatelycallyourgassupplierfrom
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
WARNING:Improperinstallation,
adjustment, alteration, service, or
maintenance can cause injury or
property damage. Refer to this
manualforcorrectinstallationand
operationalprocedures.Forassis-
tance or additional information
consult a qualified installer, ser-
vice agency, or the gas supplier.
Model: VGP30
®
OWNER’S OPERATION AND INSTALLATION MANUAL
VENT-FREE PROPANE GAS GARAGE HEATER

2
CONTENTS SECTION PAGE
Safety Information......................................................................... 2
Product Identification .................................................................... 4
Local Codes ...................................................................................4
Unpacking......................................................................................4
Product Features ............................................................................4
Installing To Wall.......................................................................... 5
Connecting To Gas Supply............................................................10
Checking Gas Connections............................................................11
Operating Heater ........................................................................... 13
Inspecting Burner ..........................................................................15
Cleaning And Maintenance ...........................................................17
Troubleshooting.............................................................................17
Technical Service ..........................................................................21
Specifications ................................................................................ 21
Service Hints ................................................................................. 21
Replacement Parts .........................................................................22
Accessories ....................................................................................23
Illustrated Parts List.......................................................................24, 25
Warranty Information .................................................................... Back Cover
!
WARNING ICON G 001
WARNINGS
IMPORTANT: Read this Owner’s Manual carefully and completely
beforetryingtoassemble,operate,orservicethisheater.Improperuse
of this heater can cause serious injury or death from burns, fire,
explosion, electrical shock, and carbon monoxide poisoning.
!
WARNING ICON G 001
DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning
resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the
heater may not be working properly. Get fresh air at once! Have heater serviced.
Some people are more affected by carbon monoxide than others. These include
pregnant women, persons with heart or lung disease or anemia, those under the
influence of alcohol, and those at high altitudes.
PropaneGas: Propane gasis odorless.An odor-makingagent isaddedtopropane
gas. The odor helps you detect a propane gas leak. However, the odor added to
propane gas can fade. Propane gas may be present even though no odor exists.
Makecertainyoureadandunderstand allWarnings.Keep thismanualfor reference.
It is your guide to safe and proper operation of this heater.
SAFETY
INFORMATION
Safety Information continues on next page

3
SAFETY
INFORMATION
Continued
!
WARNING ICON G 001
WARNINGS Continued
1. Use only propane gas. Do not convert heater to use different fuel type.
2. Do not place propane supply tank(s) inside any structure. Locate propane
supply tank(s) outdoors.
3. If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
4. Never install the heater
• in sleeping quarters, a mobile home, or a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than
36 inches from the front, top, or sides of the heater
• as a fireplace insert
• in high traffic areas
• in windy or drafty areas
5. Open window or garage door to admit fresh, outside air when using heater.
Open window one (1) or two (2) inches. When used without fresh, outside air,
heater may give off carbon monoxide gas.
6. Never run heater in small, closed room.
7. If heater shuts off, do not relight until you provide fresh, outside air. If heater
keeps shutting off, have it serviced.
8. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
9. Never place any objects on the heater.
10.Surface of heater becomes very hot when running heater. Keep children and
adults away from hot surface to avoid burns or clothing ignition. Heater will
remain hot for a time after shut-down. Allow surface to cool before touching.
11.Make sure grill guard is in place before running heater.
12.Do not alter heater or its controls. Any change may create a safety hazard.
13.Do not use heater if any part of heater has been under water.
14.Turn off and unplug heater and let cool before servicing. Only a qualified
service person should service and repair heater.
15. Do not operate heater above elevations of 4,500 feet.

4
PRODUCT
IDENTIFICATION

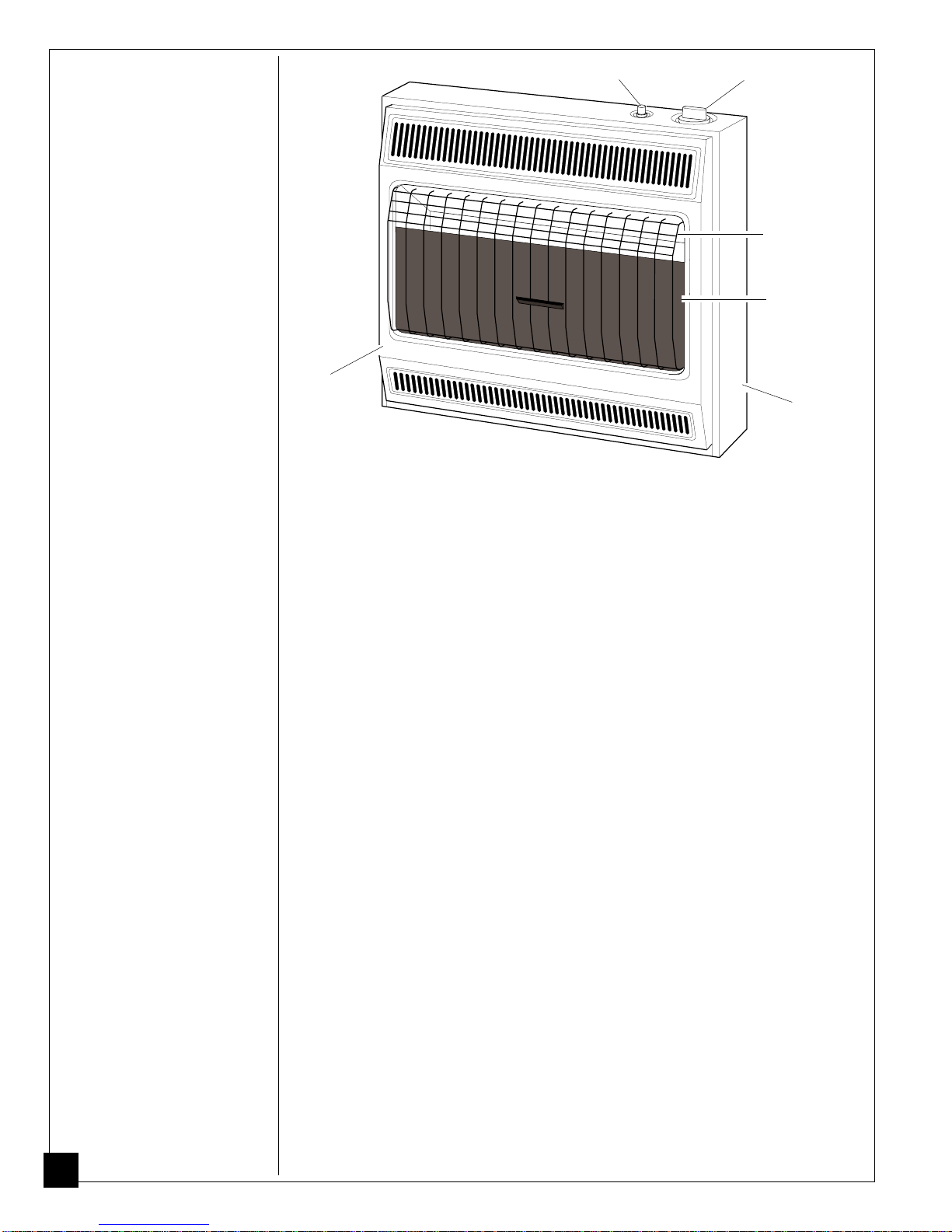

Figure 1 - Vent-Free Propane Gas Garage Heater
Ignitor Button Control Knob
Heater
Cabinet
Front
Panel
Heat
Shield
Grill
Guard
PRODUCT
FEATURES
Safety Device
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free garage heaters. The ODS/pilot
shuts off the heater if there is not enough fresh air.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
sources to light heater.
UNPACKING 1. Remove heater from carton.
2. Remove all protective packaging applied to heater for shipment.
3. Check heater for any shipping damage. If heater is damaged, promptly inform
dealer where you bought heater.
LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of National Gas Code ANSI Z223.1, also known as
NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269

5
INSTALLING
TO WALL NOTICE
Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.
CHECK GAS TYPE
Use only propane gas. If your gas supply is not propane, do not install heater. Call
dealer where you bought heater for proper type heater.
INSTALLATION ITEMS
Before installing heater, make sure you have the items listed below.
• external regulator (supplied by
installer-see page 10)
• piping (check local codes)
• sealant (resistant to propane gas)
• manual shutoff valve *
• ground joint union
• test gauge connection * (see
Figure 11, page 11)
• sediment trap
• tee joint
• pipe wrench
* AnA.G.A.design certified manualshutoffvalve with 1/8"NPTtap is anacceptable
alternative to test gauge connection. Purchase the optional A.G.A. design certified
manual shutoff valve from your dealer. See ACCESSORIES, page 23.
LOCATING HEATER
This heater is designed to be mounted on a wall.
!
WARNING ICON G 001
WARNING
Maintain the minimum clearances shown in Figure 2 (page 6). If
you can, provide greater clearances from floor, ceiling, and join-
ing wall.
!
WARNING ICON G 001
WARNING
Never install the heater
•in sleeping quarters, a mobile home, or a recreational vehicle
•where curtains, furniture, clothing, or other flammable objects
are less than 36 inches from the front, top, or sides of the
heater
•as a fireplace insert
•in high traffic areas
•in windy or drafty areas
Continued
NOTICE
Do not install or operate heater in areas where impurities in the air
(such as tobacco smoke) exist. Particles from these impurities may
discolor walls.

6
CAUTION
When installing, locate heater where moving vehicle will not hit it.
!
WARNING ICON G 001
GRH/PV 009A
CLEARANCE-Garage heater
36"
16 3/4"
FLOOR
CEILING
Minimum
Minimum To Top
Surface of
Combustible Material
6"
Minimum
From
Sides Of
Heater
Left
Side Right Side

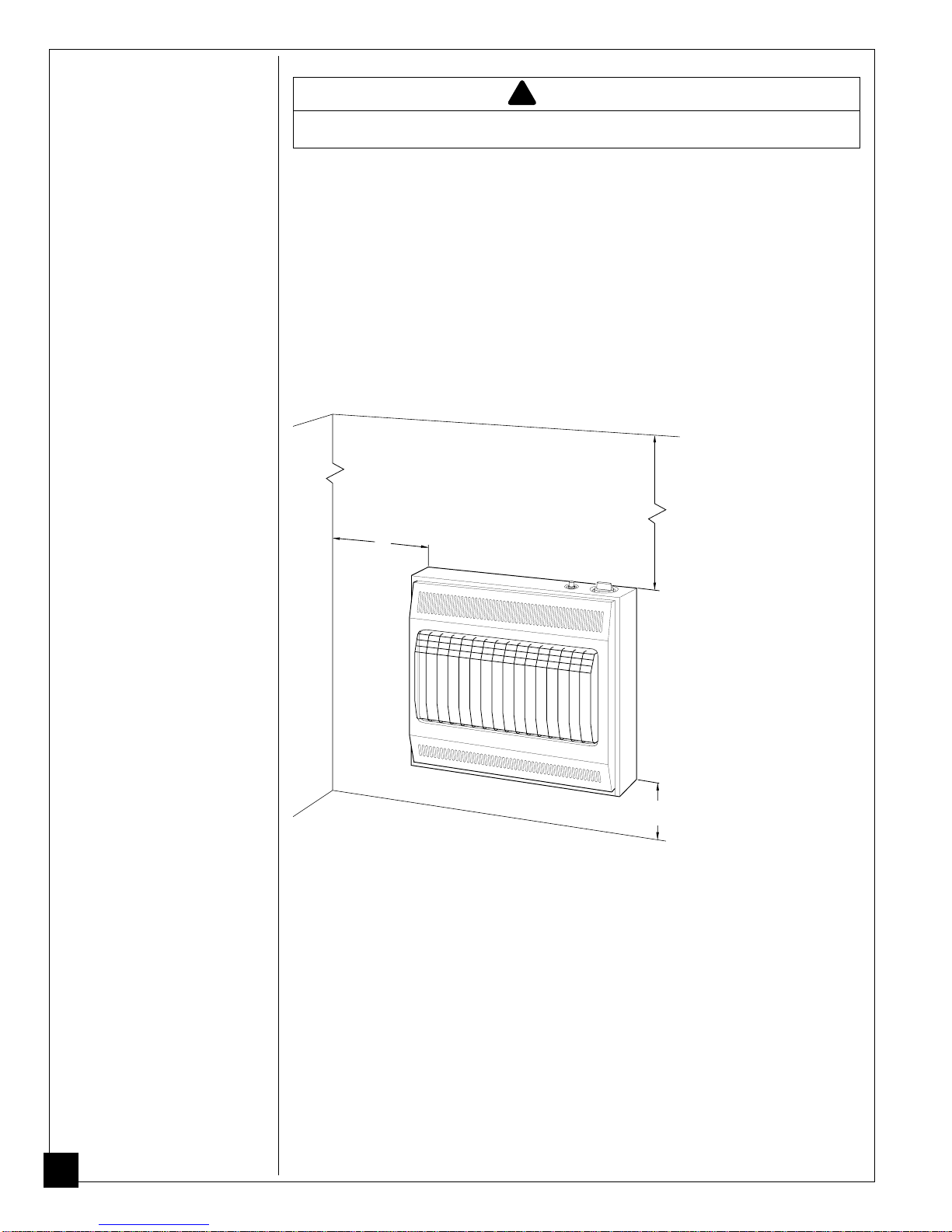

Figure 2 - Mounting Clearances As Viewed From Front of Heater
For convenience and efficiency, install heater
•where there is easy access for operation, inspection, and service
•where strong wind gusts from an open door or garage door can not blow
directly into heater.
An optional fan kit is available from your dealer. See ACCESSORIES, page 23. If
planning to use fan, locate heater near an electrical outlet.

7
Methods For Attaching Mounting Bracket To Wall
Only use last hole on each end of mounting bracket to attach bracket to wall. These
two holes are 16 inches apart from their centers. Attach mounting bracket to wall in
one of two ways.
1. Attaching to wall stud
2. Attaching to wall anchor
Attaching to wall stud This method provides the strongest hold. Insert mounting
screws through mounting bracket and into wall studs.
Attaching to wall anchor This method allows you to attach mounting bracket to
hollow walls (wall areas between studs) or to solid walls (concrete or masonry).
Decide which method better suits your needs. Either method will provide a secure
hold for the mounting bracket.
INSTALLING HEATER TO WALL
Mounting Bracket
The mounting bracket is located on back panel of heater. It has been taped there for
shipping. Remove mounting bracket from back panel.
Figure 3 - Mounting Bracket Location
GRH/OV 003B FRONT PANEL REMOVAL G H
Figure 4 - Removing Front Panel Of Heater
Removing Front Panel Of Heater
1. Remove two screws near bottom corners of front panel.
2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4".
3. Pull bottom of front panel forward, then down.
4. Remove cardboard packing from grill and heat shield.
Mounting
Bracket

8
18 3/4"
Min.
11"
Min. 16"
Adjoining Wall
Only Insert Mounting
Screws Through Last
Hole On Each End
Floor
Marking Screw Locations
1. Tape mounting bracket to wall where heater will be located. Make sure mount-
ing bracket is level.

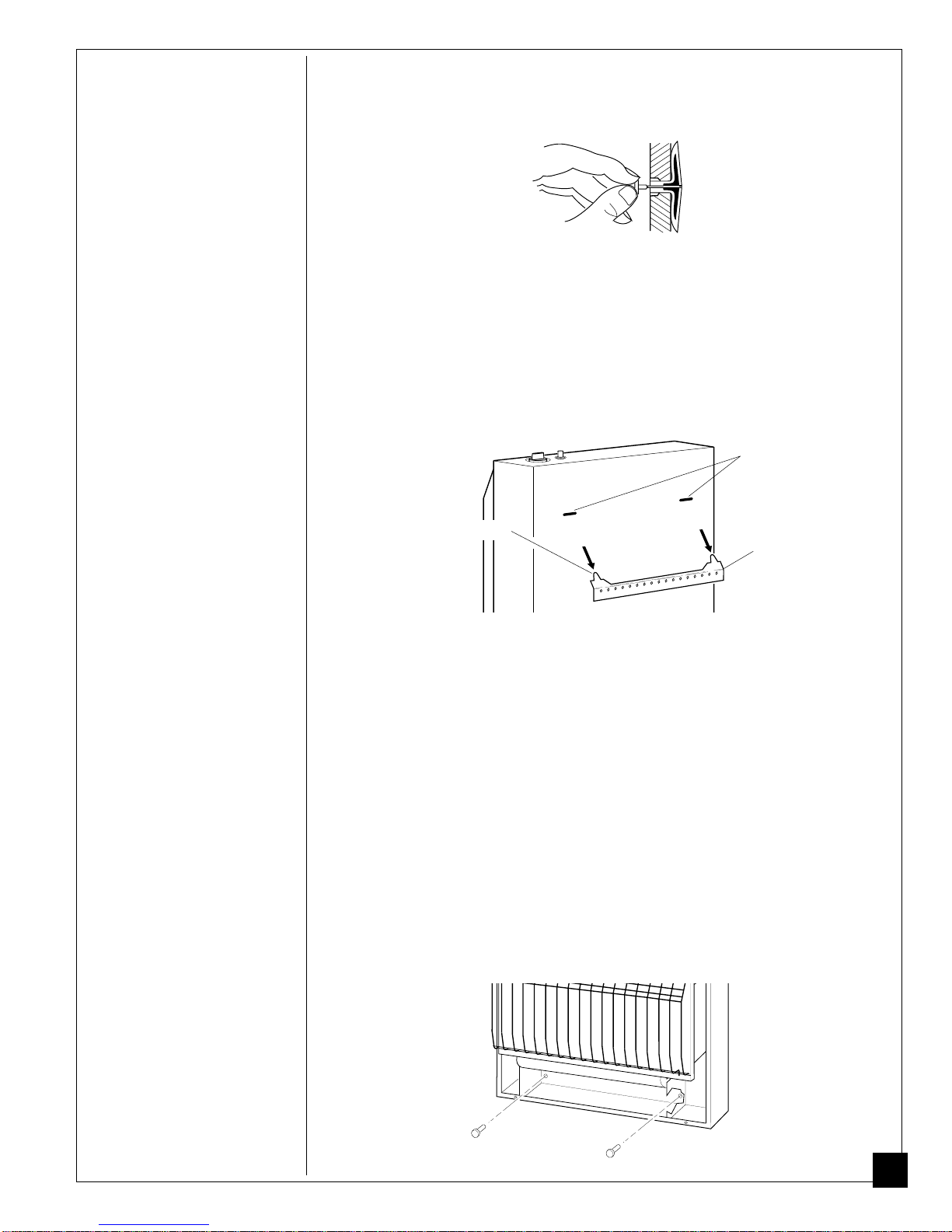

Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and spacers are in hardware package. The
hardware package is provided with heater.
Attaching to wall stud method
For attaching mounting bracket to wall studs
1. Drill holes at marked locations using 9/64" drill bit.
2. Place mounting bracket onto wall. Line up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket and into wall studs.
4. Tighten screws until mounting bracket is firmly fastened to wall studs.
Attaching to wall anchor method
For attaching mounting bracket to hollow walls (wall areas between studs) or solid
walls (concrete or masonry)
1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 6.
Figure 5 - Mounting Bracket Clearances
2. Mark screw locations on wall (see Figure 5).
Note: Only mark last hole on each end of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from wall.
!
WARNING ICON G 001
WARNING
Maintain minimum clearances shown in Figure 5. If you can,
provide greater clearances from floor and joining wall.
3. Insert wall anchor (wings first) into hole. Tap anchor flush to wall.
Figure 6 - Folding Anchor
Continued
32 1/2"

9
4. For thin walls (1/2" or less), insert red key into wall anchor. Push red key to
“pop”open anchor wings.
IMPORTANT: Do not hammer key!
For thick walls (over 1/2" thick) or solid walls, do not pop open wings.
Figure 9 - Installing Bottom Mounting Screws
Figure 7 - Popping Open Anchor Wings For Thin Walls
5. Place mounting bracket onto wall. Line up last hole on each end of bracket with
wall anchors.
6. Insert mounting screws through bracket and into wall anchors.
7. Tighten screws until mounting bracket is firmly fastened to wall.
Placing Heater On Mounting Bracket
1. Locate two horizontal slots on back panel of heater.
2. Place heater onto mounting bracket. Slide horizontal slots onto stand-out tabs on
mounting bracket.
Figure 8 - Mounting Heater Onto Mounting Bracket
Stand-Out Tab
Horizontal Slots
Mounting Bracket
(attached to wall)
Installing Bottom Mounting Screws
1. Locate two bottom mounting holes. These holes are near bottom on back panel
of heater (see Figure 9).
2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into hollow or solid wall, install wall
anchors. Follow steps 1 thru 4 under Attaching To Wall Anchor Method, page 8.
If installing bottom mounting screw into wall stud, drill holes at marked loca-
tions using 9/64" drill bit.
5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting holes and wall anchor or drilled hole.
7. Hold spacer in place with one hand. With other hand, insert mounting screw
through bottom mounting hole and spacer. Place tip of screw in opening of wall
anchor or drilled hole.
8. Tighten both screws until heater is firmly secured to wall. Do not over tighten.
Note: Do not replace front panel at this time. Replace front panel after making
gas connections and checking for leaks (see pages 10-12).

10
CONNECTING
TO GAS
SUPPLY CAUTION
Never connect heater directly to the propane supply. This heater
requires an external regulator (not supplied). Install the external
regulator between the heater and propane supply.
!
WARNING ICON G 001
The installer must supply an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas pressure to between 11 and
14 inches of water. If you do not reduce incoming gas pressure, heater regulator
damage can occur. Install external regulator with the vent pointing down as shown
in Figure 10. Pointing the vent down protects it from freezing rain or sleet.
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from heater (see Figure 11, page 11).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
!
WARNING ICON G 001
Propane
Supply Tank

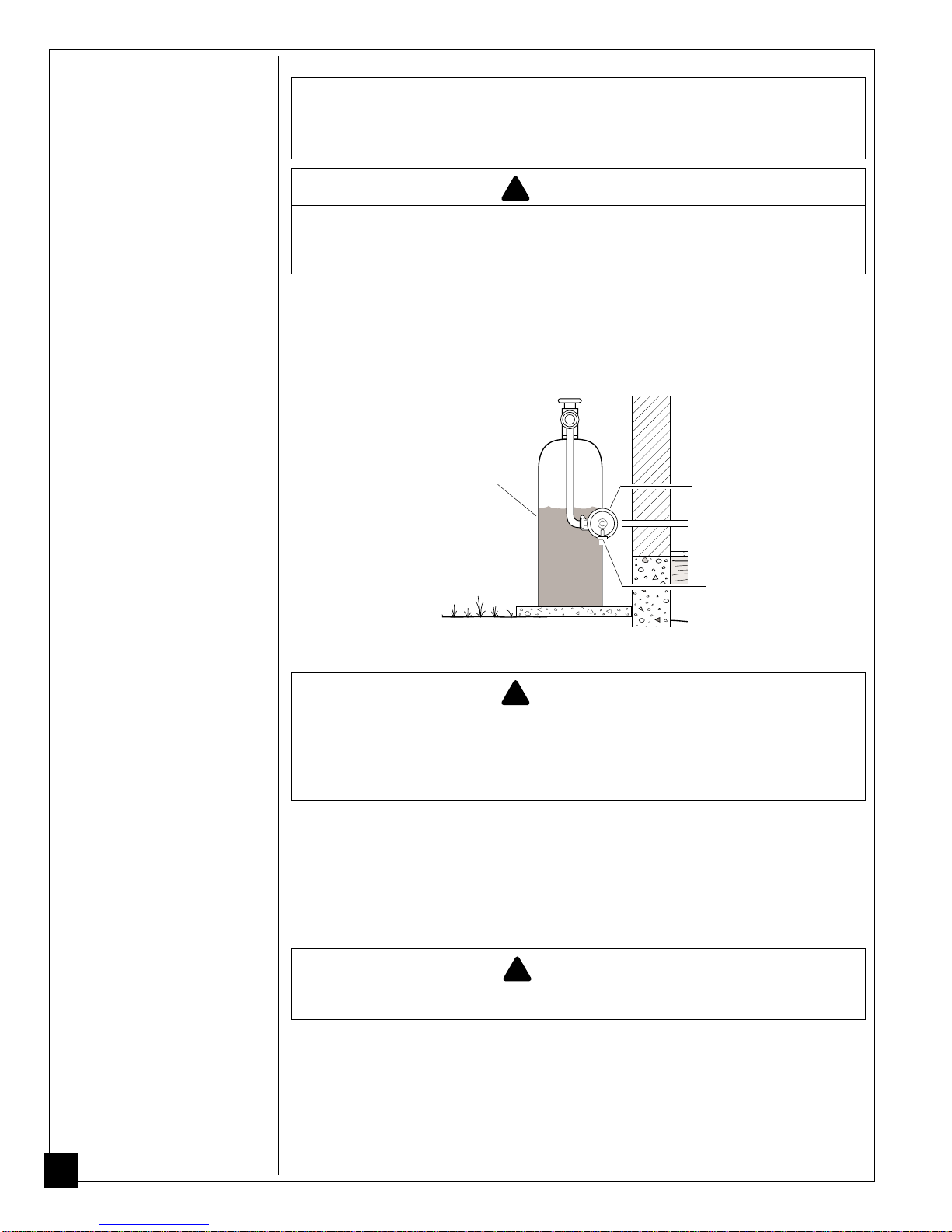

Figure 10 - External Regulator With Vent Pointing Down
Vent Pointing
Down
External
Regulator
CAUTION
Use only new, black iron or steel pipe. Copper tubing may be used
in certain areas. Check your local codes. Use pipe of 1/2" diameter
or greater to allow proper gas volume to heater. If pipe is too small,
undue loss of pressure will occur.
!
WARNING ICON G 001
Install sediment trap in supply line as shown in Figure 11. Locate sediment trap
where it is within reach for cleaning. Locate sediment trap where trapped matter is
not likely to freeze. A sediment trap traps moisture and contaminants. This keeps
them from going into heater controls. If sediment trap is not installed or is installed
wrong, heater may not run properly.

11
CAUTION
Make sure external regulator has been installed between propane
supply and heater. See guidelines under CONNECTING TO GAS
SUPPLY, page 10.
!
WARNING ICON G 001
!
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
CHECKING
GAS
CONNECTIONS
!
WARNING ICON G 001
WARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 PSIG will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
Continued
IMPORTANT: Holdpressure regulator withwrench whenconnectingit togaspiping
and/or fittings.
Pressure
Regulator
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test
Gauge
Connection *
Sediment
Trap
Tee Joint
Pipe
Nipple
Cap
Manual
Shutoff
Valve *
Heater
Cabinet
1/2" NPT
Pipe Nipple
Ground Joint
Union
Note: Burner bracket
not shown for clarity
From
External Regulator
(11" W.C. to 14" W.C. Pressure)
3" Minimum
Figure 11 - Gas Connection
* AnA.G.A.design certified manualshutoffvalve with 1/8"NPTtap is anacceptable
alternative to test gauge connection. Purchase the optional A.G.A. design certified
manual shutoff valve from your dealer. See ACCESSORIES, page 23.

12
3. Pressurize supply piping system by either using compressed air or
opening propane supply tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 12).
2. Pressurize supply piping system by either using compressed air or opening
propane supply tank valve.
3. Check all joints from propane supply tank to manual shutoff valve (see Figure
13). Apply mixture of liquid soap and water to gas joints. Bubbles forming
show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNECTIONS
1. Open manual shutoff valve (see Figure 12).
2. Open propane supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to control valve (see Figure 13).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a
leak.
5. Correct all leaks at once.
6. Light heater (see OPERATING HEATER, pages 13 thru 15). Check the rest of
the internal joints for leaks.
7. Turn off heater (see TO TURN OFF GAS TO APPLIANCE, page 15).
8. Replace front panel.
Figure 13- Checking Gas Joints
Manual
Shutoff
Valve
Propane
Supply Tank
ON
POSITION
OFF
POSITION
Figure 12 - Manual Shutoff Valve
Manual
Shutoff
Valve
Open
Closed
Control Valve Location

13
OPERATING
HEATER FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand. When lighting the
pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to
smell next to the floor because some gas is heavier than air and will settle on
the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If
the knob will not push in or turn by hand, don’t try to repair it, call a qualified
service technician or gas supplier. Force or attempted repair may result in a fire
or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of
the control system and any gas control which has been under water.
OFF
HIGH
PILOT LOW
IGNITOR
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Turn control knob clockwise to the OFF position.
Clockwise
Figure 14 - Control Knob In The OFF Position
Ignitor Button Control Knob
WARNING
If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal
injury or loss of life.
!
WARNING ICON G 001

14
CAUTION
Do not try to adjust heating levels by using the manual shutoff
valve.
!
WARNING ICON G 001
C-clockwise
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B”in the safety information at the top of
page 13. If you don’t smell gas, go to the next step.
5. Press in control knob and turn counterclockwise to the PILOT position.
Keep control knob pressed in for five (5) seconds (see Figure 14).
Note: You may be running this heater for the first time after hooking up to gas
supply. If so, the control knob may need to be pressed in for 30 seconds. This
will allow air to bleed from the gas system.
•If control knob does not pop up when released, contact a qualified service
person or gas supplier for repairs.
6. With control knob pressed in, push down and release ignitor button. This will
light pilot. The pilot is attached to the front of burner. The burner and pilot are
located behind the heat shield. If needed, keep pressing ignitor button until pilot
lights.
Note: If pilot does not stay lit, refer to TROUBLESHOOTING, pages 17 thru
20. Also contact a qualified service person or gas supplier for repairs. Until
repairs are made, light pilot with match. To light pilot with match, see
MANUAL LIGHTING PROCEDURE, page 15.
C-clockwise
Continued

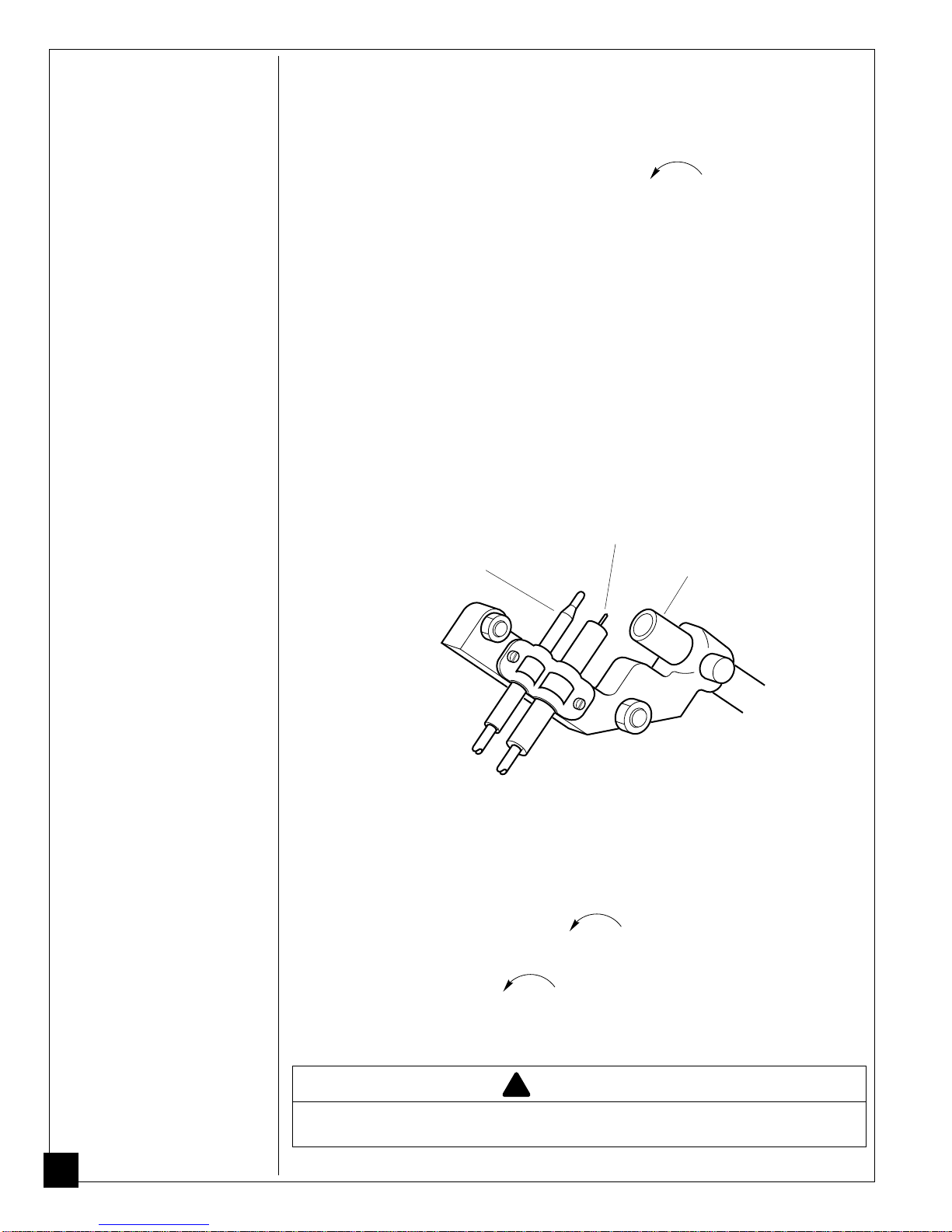

Pilot GRH/OV 007F
Thermocouple Pilot Burner
Figure 15 - Pilot
7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 sec-
onds, release control knob.
Note: If pilot goes out, repeat steps 3 thru 7.
8. Turn control knob counterclockwise to the LOW position. The main
burner should light. Set control knob to any heat level between HIGH and LOW.
To turn control knob from LOW to a higher setting, press in the control knob
and turn counterclockwise .
Note: Both HIGH and LOW are locked positions. You must press in control
knob before turning it from these positions.
Ignitor Electrode
C-clockwise

15
TO TURN OFF GAS TO APPLIANCE
Clockwise
Continued
Figure 17 - Incorrect Pilot Flame Pattern
Thermocouple Pilot Burner
Clockwise
INSPECTING
BURNER
Check pilot flame pattern and burner flame pattern often.
PILOT FLAME PATTERN
Figure 16 shows a correct pilot flame pattern. Figure 17 shows an incorrect pilot
flame pattern. The incorrect pilot flame is not touching the thermocouple. This will
cause the thermocouple to cool. When the thermocouple cools, the heater will shut
down.
Figure 16 - Correct Pilot Flame Pattern
Thermocouple Pilot Burner
Clockwise
Shutting Off Heater
1. Turn control knob clockwise to the PILOT position.
2. Press in control knob and turn clockwise to the OFF position.
3. Turn off all electric power to the appliance if service is to be performed.
Shutting Off Burner Only (pilot stays lit)
1. Turn control knob clockwise to the PILOT position.
MANUAL LIGHTING PROCEDURE
1. Remove front panel (see Figure 3, page 7).
2. Follow steps 1 thru 5 under LIGHTING INSTRUCTIONS, pages 13 and 14.
3. With control knob pressed in, strike match. Hold match to pilot until pilot lights.
4. Keep control knob pressed in for 30 seconds after lighting pilot. After 30
seconds, release control knob.
5. Replace front panel.

16
If pilot flame pattern is incorrect, as shown in Figure 17
•turn heater off (see TO TURN OFF GAS TO APPLIANCE, page 15)
•see TROUBLESHOOTING, pages 17 thru 20
BURNER FLAME PATTERN
Figure 18 shows a correct burner flame pattern. Figure 19 shows an incorrect
burner flame pattern. The incorrect burner flame pattern shows yellow tipping of
the flame. It also shows the flame higher than 1/2 the heat shield height.
CORRECT FLAME PATTERN
AT HIGH POSITION
1/2 HEAT
SHIELD HEIGHT
!
WARNING ICON G 001
WARNING
If yellow tipping occurs, your heater could produce increased
levels of carbon monoxide. If burner flame pattern shows yellow
tipping, follow instructions at bottom of this page.
NOTICE
Do not mistake orange flames with yellow tipping. Dirt or other fine
particles enter the heater and burn causing brief patches of orange
flame.
Figure 18 - Correct Burner Flame Pattern
Yellow
Tipping
1/2 HEAT
SHIELD HEIGHT
INCORRECT FLAME PATTERN
AT HIGH POSITION
Figure 19 - Incorrect Burner Flame Pattern
If burner flame pattern is incorrect, as shown in Figure 19
•turn heater off (see TO TURN OFF GAS TO APPLIANCE, page 15)
•see TROUBLESHOOTING, pages 17 thru 20

17
CLEANING
AND
MAINTENANCE
!
WARNING ICON G 001
WARNING
Turn off heater and let cool before cleaning.
TROUBLE-
SHOOTING
POSSIBLE
CAUSE
1. Ignitor electrode posi-
tioned wrong
2. Ignitor electrode broken
3. Ignitor electrode not con-
nected to ignitor cable
4. Ignitor cable pinched or
wet
5. Piezo ignitor nut is loose
6. Broken ignitor cable
7. Bad piezo ignitor
REMEDY
1. Replace ignitor
2. Replace ignitor
3. Reconnect ignitor cable
4. Free ignitor cable if
pinched by any metal or
tubing.Keepignitorcable
dry
5. Tightennutholdingpiezo
ignitor to heater cabinet.
Nut is located inside
heater cabinet at top
6. Replace ignitor cable
7. Replace piezo ignitor
OBSERVED
PROBLEM
Whenignitorbuttonis
pressed, there is no
spark at ODS/pilot
WARNING
Turn off and unplug heater and let cool before servicing. Only a
qualified service person should service and repair heater.
!
WARNING ICON G 001
Note: All troubleshooting
items are listed in order of
operation.
Continued
CAUTION
Never use a wire, needle, or similar object to clean ODS/pilot. This
can damage ODS/pilot unit.
!
WARNING ICON G 001
!
WARNING ICON G 001
CAUTION
You must keep control areas, burner, and circulating air
passageways of heater clean. Inspect these areas of heater before
each use. Have heater inspected yearly by a qualified service
person. Heater may need more frequent cleaning due to sawdust,
cobwebs, etc.
ODS/PILOT AND BURNER
•Use a vacuum cleaner, pressurized air, or small, soft bristled brush to clean.
CABINET
Air Passageways
•Use a vacuum cleaner or pressurized air to clean.
Exterior
•Use a soft cloth dampened with a mild soap and water mixture. Wipe the
cabinet to remove dust.

18
REMEDY
1. Turn on gas supply or
open manual shutoff
valve
2. Turncontrol knobto PI-
LOT position
3. Press in control knob
whileinPILOTposition
4. Continue holding down
controlknob.Repeat ig-
nitingoperationuntilair
is removed
5. Contact local propane
gas company
6. Clean ODS/pilot (see
CLEANING AND
MAINTENANCE,
page 17) or replace
ODS/pilot assembly
7. Replace gas regulator
1. Press in control knob
fully
2. After ODS/pilot lights,
keep control knob
pressed in 30 seconds
3. Fullyopenmanualshut-
off valve
4. Handtightenuntilsnug,
then tighten 1/4 turn
more
5. A) Contact local pro-
pane gas company
B)CleanODS/pilot(see
CLEANING AND
MAINTENANCE,
page 17) or replace
ODS/pilot assembly
6. Replace thermocouple
7. Replace control valve
1. Clean burner (see
CLEANING AND
MAINTENANCE,
page 17) or replace
burner orifice
OBSERVED
PROBLEM
Whenignitorbuttonis
pressed, there is spark
at ODS/pilot but no
ignition
ODS/pilot lights but
flame goes out when
control knob is
released
Burner does not light
after ODS/pilot is lit
POSSIBLE
CAUSE
1. Gassupplyturnedoffor
manual shutoff valve
closed
2. Control knob not in PI-
LOT position
3. Control knob not
pressed in while in PI-
LOT position
4. Air in gas lines when
installed
5. Depleted gas supply
6. ODS/pilot is clogged
7. Gas regulator setting is
not correct
1. Control knob not fully
pressed in
2. Control knob not
pressed in long enough
3. Manual shutoff valve
not fully open
4. Thermocouple connec-
tion loose at control
valve
5. Pilotflamenottouching
thermocouple, which
allows thermocouple to
cool, causing pilot
flame to go out. This
problem could be
causedbyoneorbothof
the following:
A) Low gas pressure
B) Dirty or partially
clogged ODS/pilot
6. Thermocouple dam-
aged
7. Control valve damaged
1. Burner orifice is
clogged
ContinuedContinued

19
OBSERVED
PROBLEM
Burner does not light
after ODS/pilot is lit
(continued from
page 18)
Delayed ignition of
burner
Burner backfiring
during combustion
Yellow flame during
burner combustion
Slight smoke or odor
during initial opera-
tion
Heater produces a
whistling noise when
burner is lit
REMEDY
2. Replace burner orifice
3. Contactlocalpropanegas
company
1. Contactlocalpropanegas
company
2. Clean burner (see
CLEANING AND
MAINTENANCE, page
17) or replace burner ori-
fice
1. Clean burner (see
CLEANING AND
MAINTENANCE, page
17) or replace burner ori-
fice
2. Replace burner
3. Replace gas regulator
1. Check burner for dirt and
debris. If found, clean
burner (see CLEANING
AND MAINTENANCE,
page 17)
2. Replace gas regulator
1. Problem will stop after a
few hours of operation
1. Turn control knob to
LOW position and let
warm up for a minute
2. Operateburner untilairis
removed from line. Have
gas line checked by local
propane gas company
3. Observeminimuminstal-
lation clearances (see
Figure 2, page 6)
4. Clean burner (see
CLEANING AND
MAINTENANCE, page
17) or replace burner ori-
fice
POSSIBLE
CAUSE
2. Burner orifice diameter
is too small
3. Inlet gas pressure is too
low
1. Manifoldpressureistoo
low
2. Burner orifice is
clogged
1. Burner orifice is
clogged or damaged
2. Burner damaged
3. Gas regulator defective
1. Not enough air
2. Gas regulator defective
1. Residues from manu-
facturing processes
1. Turning control knob to
HIGH position when
burner is cold
2. Air in gas line
3. Air passageways on
heater blocked
4. Dirty or partially
clogged burner orifice

20
WARNING
!
WARNING ICON G 001
If you smell gas
•Shut off gas supply.
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use
any phone in your building.
•Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the
fire department.
POSSIBLE
CAUSE
1. Metal expanding while
heating or contracting
while cooling
1. Heater burning vapors
from paint, solvents,
glues, etc.
2. Low fuel supply
3. Gas leak. See Warn-
ing statement at
top of page
1. Not enough fresh air is
available
2. Low line pressure
3. ODS/pilot is partially
clogged
1. Gas leak. See Warn-
ing statement at
top of page
2. Control valve defective
1. Foreignmatterbetween
control valve and
burner
2. Gas leak. See Warn-
ing statement at
top of page
OBSERVED
PROBLEM
Heater produces a
clicking/ticking noise
justafterburnerislitor
shut off
Heater produces un-
wanted odors
Heater shuts off in use
(ODS operates)
Gas odor even when
control knob is in OFF
position
Gas odor during com-
bustion
REMEDY
1. This is common with
most heaters. If noise is
excessive,contactquali-
fied service person
1. Ventilate garage. Stop
usingodorcausingprod-
ucts while heater is run-
ning
2. Refill supply tank
3. Locate and correct all
leaks (see CHECKING
GAS CONNECTIONS,
page 11)
1. Open window and/or
door for ventilation
2. Contact local propane
gas company
3. Clean ODS/pilot (see
CLEANING AND
MAINTENANCE, page
17)
1. Locate and correct all
leaks (see CHECKING
GAS CONNECTIONS,
page 11)
2. Replace control valve
1. Take apart gas tubing
andremoveforeign mat-
ter
2. Locate and correct all
leaks (see CHECKING
GAS CONNECTIONS,
page 11)
