Vantron IBOX66 User manual

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual www.vantrontech.com
Table of Contents
Foreword................................................................................................................................. 1
CHAPTER 1 INTRODUCTION ................................................................................................. 5
1.1 Product Overview .......................................................................................................... 6
1.2 Unpacking ...................................................................................................................... 7
1.3 Specifications ................................................................................................................. 8
1.4 Block Diagram ................................................................................................................ 9
1.5 Product Layout ............................................................................................................. 10
1.6 Operating System......................................................................................................... 12
1.7 Mechanical Dimensions ............................................................................................... 12
1.8 Power Supply and Consumption.................................................................................. 12
CHAPTER 2 GETTING STARTED ............................................................................................. 13
2.1 Hardware Connection .................................................................................................. 14
2.2 Connecting a Host Computer....................................................................................... 17
2.3 Turning on/off the Device ............................................................................................ 18
2.4 First-time Setup Guide (Android OS only).................................................................... 18
CHAPTER 3 HARDWARE DESCRIPTION ................................................................................. 19
3.1 Power input.................................................................................................................. 20
3.2 ON/OFF button ............................................................................................................ 20
3.3 Ethernet port ............................................................................................................... 21
3.4 USB 2.0......................................................................................................................... 21
3.5 USB 3.0......................................................................................................................... 21
3.6 HDMI port .................................................................................................................... 22
3.7 Micro SD & Micro SIM slots ......................................................................................... 22
3.8 Audio jack..................................................................................................................... 22
3.9 Serial ports ................................................................................................................... 22
3.10 Reset button................................................................................................................. 23
3.11 LED indicators............................................................................................................... 23
3.12 GPIO ............................................................................................................................. 24
3.13 eDP & backlight connector .......................................................................................... 25
3.14 Speaker ........................................................................................................................ 26
3.15 Grounding screw .......................................................................................................... 26
3.16 MIPI DSI/LVDS .............................................................................................................. 27
3.17 MIPI CSI ........................................................................................................................ 29
CHAPTER 4 SOFTWARE DEFINITION................................................................................. 30
4.1 Serial Ports ................................................................................................................... 31
4.2 GPIO ............................................................................................................................. 33
4.3 User Indicator Control.................................................................................................. 34

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual www.vantrontech.com
4.4App Installation via ADB Commands (Android OS only) .............................................. 34
4.4.1 Prerequisites ............................................................................................................... 34
4.4.2 ADB Setup ................................................................................................................... 34
4.4.3 App installation ........................................................................................................... 36
4.5 Image Flashing in Windows ......................................................................................... 37
4.5.1 Prerequisites ............................................................................................................... 37
4.5.2 ADB setup ................................................................................................................... 37
4.5.3 Driver installation........................................................................................................ 37
4.5.4 Image Flashing ............................................................................................................ 39
CHAPTER 5 WARRANTY AND DISPOSAL ........................................................................... 40
5.1 Disposal........................................................................................................................ 41
5.2 Warranty ...................................................................................................................... 42
Appendix Regulatory Compliance Statement.................................................................. 43

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 1 www.vantrontech.com
Foreword
Thank you for purchasing IBOX66 Embedded Industrial Computer (“the Device” or “the
Product”). This manual intends to provide guidance and assistance necessary on setting up,
operating or maintaining the Product. Please read this manual and make sure you understand
the structure and functionality of the Product before putting it into use.
Intended Users
This manual is intended for:
•Operator of the Device
•Technical support engineers
•Other users
Copyright
Chengdu Vantron Technology Co., Ltd. (“Vantron”) reserves all rights of this manual, including
the right to change the content, form, product features, and specifications contained herein
at any time without prior notice. An up-to-date version of this manual is available at
www.vantrontech.com.
The trademarks in this manual, registered or not, are properties of their respective owners.
Under no circumstances shall any part of this user manual be copied, reproduced, translated,
or sold. This manual is not intended to be altered or used for other purposes unless otherwise
permitted in writing by Vantron. Vantron reserves the right of all publicly released copies of
this manual.
Disclaimer
While all information contained herein has been carefully checked to assure its accuracy in
technical details and typography, Vantron does not assume any responsibility resulting from
any error or features of this manual, nor from improper uses of this manual or the software.
It is our practice to change part numbers when published ratings or features are changed, or
when significant construction changes are made. However, some specifications of the Product
may be changed without notice.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 2 www.vantrontech.com
Technical Support and Assistance
Should you have any question about the Product that is not covered in this manual, contact
your sales representative for solution. Please contain the following information in your
question:
•Product name and PO number;
•Complete description of the problem;
•Error message you received, if any.
US Office: Vantron Technology, Inc.
Address: 48434 Milmont Drive, Fremont, CA 94538
Tel: (650) 422-3128
Email: sales@vantrontech.com
China Office: Chengdu Vantron Technology Co., Ltd.
Address: 6th Floor, 1st Building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R.
China 610045
Tel: 86-28-8512-3930/3931, 86-28-8515-7572/6320
Email: sales@vantrontech.com.cn
Regulatory Information
The Product is designed to comply with:
•Part 15 of the FCC Rules;
Please refer to the Appendix for Regulatory Compliance Statement.
Symbology
This manual uses the following signs to prompt users to pay special attention to relevant
information.
Caution for latent damage to system or harm to personnel
Attention to important information or regulations

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 3 www.vantrontech.com
General Safety Instructions
The Product is supposed be installed by knowledgeable, skilled persons familiar with local
and/or international electrical codes and regulations. For your safety and prevention of
damage to the Product and other equipment connected to it, please read and observe
carefully the following safety instructions prior to installation and operation. Keep this manual
well for future reference.
•Do not disassemble or otherwise modify the Product. Such action may cause heat
generation, ignition, electronic shock, or other damages including human injury, and may
void your warranty.
•Keep the Product away from heat source, such as heater, heat dissipater, or engine casing.
•Do not insert foreign materials into any opening of the Product as it may cause the
Product to malfunction or burn out.
•To ensure proper functioning and prevent overheating of the Product, do not cover or
block the ventilation holes of the Product.
•Follow the installation instructions with the installation tools provided or recommended.
•The use or placement of the operation tools shall comply with the code of practice of
such tools to avoid short circuit of the Product.
•Cut off the power before inspection of the Product to avoid human injury or product
damage.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 4 www.vantrontech.com
Precautions for Power Cables and Accessories
Use proper power source only. Make sure the supply voltage falls within the specified
range. The Product is designed to use 9-36V DC. Always check whether the Product is DC
powered before applying power.
Place the cables properly at places without extrusion hazards.
Use only approved antenna(s). Non-approved antenna(s) may produce spurious or
excessive RF transmitting power which may violate FCC limits.
Cleaning instructions:
•Power off before cleaning the Product
•Do not use spray detergent
•Clean with a damp cloth
•Do not try to clean exposed electronic components unless with a dust collector
Power off and contact Vantron technical support engineer in case of the following faults:
•The Product is damaged
•The temperature is excessively high
•Fault is still not solved after troubleshooting according to this manual
Do not use in combustible and explosive environment:
•Keep away from combustible and explosive environment
•Keep away from all energized circuits
•Unauthorized removal of the enclosure from the device is not allowed
•Do not change components unless the power cable is unplugged. In some cases, the
device may still have residual voltage even if the power cable is unplugged.
Therefore, it is a must to remove and fully discharge the device before replacement
of the components.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 6 www.vantrontech.com
1.1 Product Overview
IBOX66 is a multi-functional embedded industrial computer independently developed by
Chengdu Vantron Technology Co., Ltd. Running the latest Android 11 operating system, the
high-performance industrial computer is GMS certified to enable customers to have
unimpeded access to Google mobile services.
IBOX66 is running on RK3566, a cost-effective multi-core processor developed by Rockchip.
With 4GB memory and 32GB eMMC storage, it features quick access to data and ultra large
capacity. As such, it is capable of dealing with huge volume of data in a timely manner.
As IBOX66 provides rich interfaces, a wide choice of peripherals can be connected for
extended applications, including barcode scanners, cameras, barcode printers and
keyboard plates. It also supports ultra-high-definition video outputs thanks to the high-
performance video engine coupled with H.265 (HEVC) hardware decoding and 1080p/2K
video decoding. Moreover, display interfaces of different specifications allow flexible
application of the device in intelligent retailing, new retailing, financial self-service
terminals, and other scenarios.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 7 www.vantrontech.com
1.2 Unpacking
The Product has been carefully packed with special attention to quality. However, should
you find any component damaged or missing, please contact your sales representative in
due time.

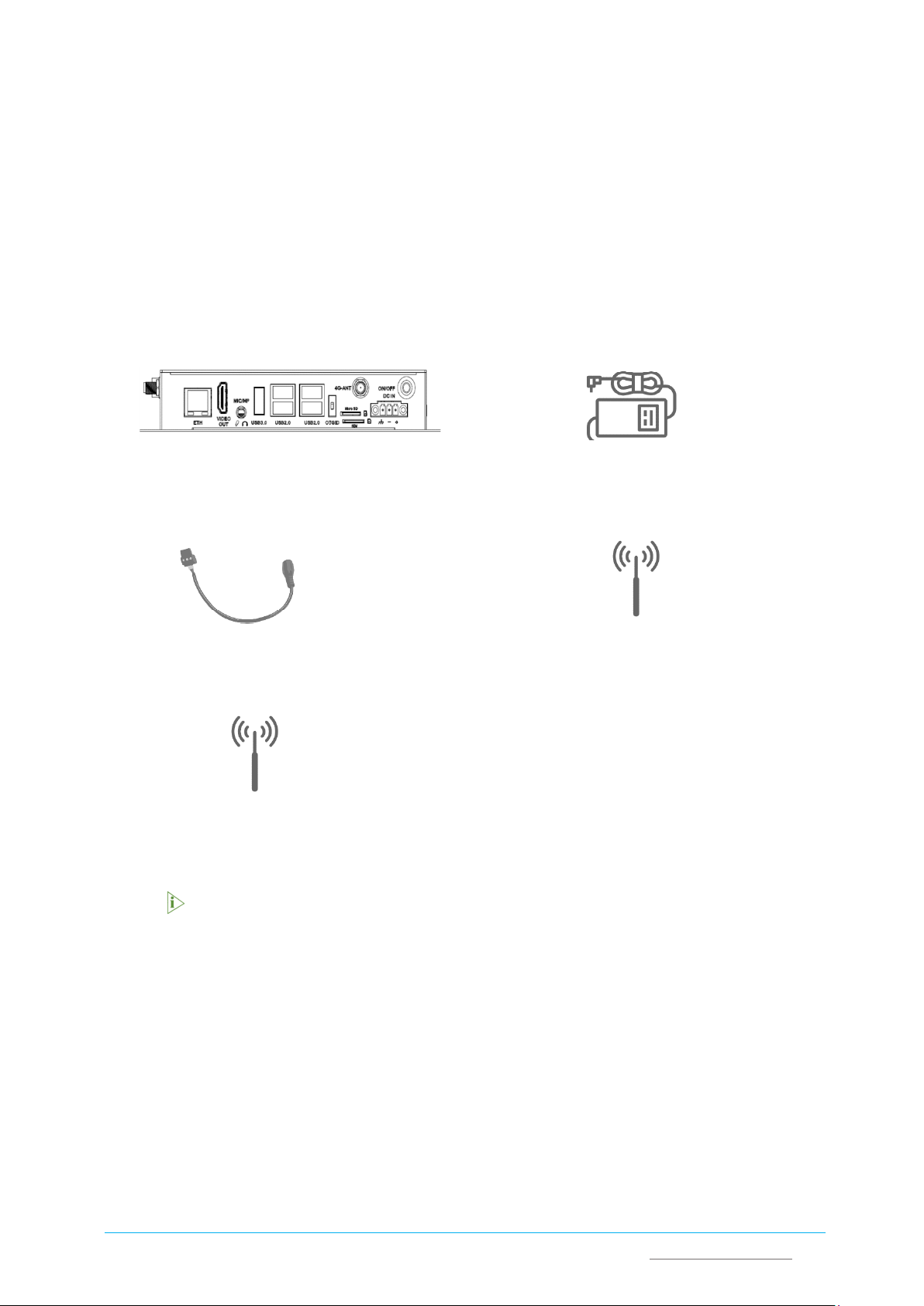

Accessories:
1 x IBOX66 1 x Power adapter
1 x Power cable 1 x Wi-Fi & BT antenna
2 x 4G LTE antenna (Optional)
Actual accessories might vary slightly from the list above as the customer order might
be different from the standard configuration options.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 8 www.vantrontech.com
1.3 Specifications
IBOX66
System
CPU
Rockchip RK3566, Quad core, ARM Cortex-A55, 1.8GHz (Max)
Memory
4GB (Optional: 2GB)
Storage
32GB (up to 128GB)
1 x Micro-SD (up to 128GB)
Communication
Ethernet
1 x RJ45, 10M/100M/1000Mbps
4G LTE (AT&T, Verizon)
Optional
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0
Media
Display
1 x HDMI, Type-A
1 x 4-lane eDP, 2560 x 1600 @60Hz, with LCD backlight connector
1 x 8-lane MIPI DSI (including 4 lanes multiplexed with LVDS), single-
channel MIPI DSI: 1920 x 1080 @60Hz, LVDS: 720P @60Hz;
dual-channel MIPI DSI: 2560 x 1440 @60Hz (with LCD backlight
connector)
Audio
1 x 3.5mm Combo audio jack
Speaker
1 x Speaker connector
Camera
1 x MIPI CSI-2, 2 x 10 x 2.0mm
I/Os
Serial port
2 x RS232, DB9 Connector
2 x RS232/RS485, DB9 Connector
USB
4 x USB 2.0 Type-A (USB OTG supported)
1 x USB 3.0
SIM slot
1 x SIM card slot
GPIO
8 x GPIO, 3.3V
Watchdog
Supported
RTC
Supported
Expansion
Mini-PCIe
1 x Mini-PCIe for LTE module
System Control
Button
1 x ON/OFF button
1 x Reset button
LED
1 x Power LED (Red)
1 x System LED (Green)
1 x 4G LED (Green)
1 x User defined (Green)
Software
OS
Android 11, GMS certified (Optional: Linux OS)
Device management
platform
Vantron BlueSphere Platform
Power
Input
12V/24V 3A DC (±5%), 1 x 3 x 3.81mm
Consumption
15W
Mechanical Dimensions
160mm x 110mm x 30mm (Enclosure only)
195mm x 110mm x 30mm (With installation bracket)
Weight
680g
Environment
Condition
Temperature
Operating: 0℃~+60℃
Storage: -40℃~+85℃
Humidity
Operating: RH 5%~95%
Storage: RH 5%~95%
Certification
FCC
ESD: ±4KV (contact) and ±8KV (air)

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 9 www.vantrontech.com
1.4 Block Diagram
Rockchip
RK3566
CPU: Octa-core Cortex-A55
GPU:
Mali-G52-2EE
I2C0
PMIC
RK809-5
Power Rail
eMMC5.1,
32GB
EMMC
2Kbit EEPROM
LPDDR4
1024Mbx32 DDR
SDIO1
1x4x1.25mm
I2C0
: IC Chip : Connector
LVDS & MIPI
MIPI 4 Lanes
MIPI
UART2 for Debug
WiFi & BT5.0
AP6256
802.11 a/b/g/n/ac UART1
IBOX66
Temperature:0~+60℃
WiFi & BT
ANT
USB_OTG0
5W Speaker
x2 L/R
SGM6132
POWER
KEY
3.3V DC
To system 5V
1x4x2.54mm
MAIN BOARD
LPDDR4
1024M*32b
MiniPCIe
4G ANT
MIC
I2S1
MICRO SIM
EC200
RS485/232
*2
RS232*2
USB2.0 HUB
USB2.0*3
Type-A
USB2.0
USB2.0
USB3.0
Type-A
USB3.0
USB2.0
Type-A OTG
SGM6132
12V/24V DC for LCD
5V DC for Peripheral
SGM6132
3.3V DC for Peripheral
DC JACK
12V/24V
AMP
5W/8R
Audio Jack
Headp
hone
RTC
I2C
Watchdog
Coin battery
SD-Card
SDIO
HDMI LVDS & MIPI
HDMI
1000Mbps
Ethernet PHY
AR8035
RGMII RJ45
eDP
eDP
UART4/5
UART0/7
TTL to RS232
TTL to
RS232/RS485
UART 3

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 10 www.vantrontech.com
1.5 Product Layout
1.5.1 Front view
1.5.2 Back view
USB 3.0
Type-A
Ethernet
jack
Audio jack
Micro SD
& SIM slots
OTG
supported
4G master
antenna
HDMI
USB 2.0
Type-A
ON/OFF
button
OTG
switch
DC in
Installation
bracket
Installation
bracket
RS232
RS485/RS232
Installation
bracket
Installation
bracket
LED
indicator
Wi-Fi & BT
antenna

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 11 www.vantrontech.com
1.5.3 Left side view
1.5.4 Right side view
4G diversity
antenna
RS232
MIPI DSI/
LVDS
Backlight
connector
MIPI CSI
eDP
Backlight
connector
Grounding screw
Speaker
connector
GPIO

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 12 www.vantrontech.com
1.6 Operating System
IBOX66 runs Android 11 operating system with GMS certified and users have the option of
Linux operating system.
1.7 Mechanical Dimensions
•160mm x 110mm x 30mm (Enclosure only)
•195mm x 110mm x 30mm (With installation bracket)
1.8 Power Supply and Consumption
IBOX66 works with 12V/24V 3A DC power input supplied by a DC connector.
The power consumption of IBOX66 is about 15W. It should be pointed out that the power
consumption is largely dependent on the RAM, storage capacity, peripherals, and other
configurations of the Product.

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 14 www.vantrontech.com
2.1 Hardware Connection
Before you proceed with the configuration of IBOX66, follow the steps below to finish
hardware connection.

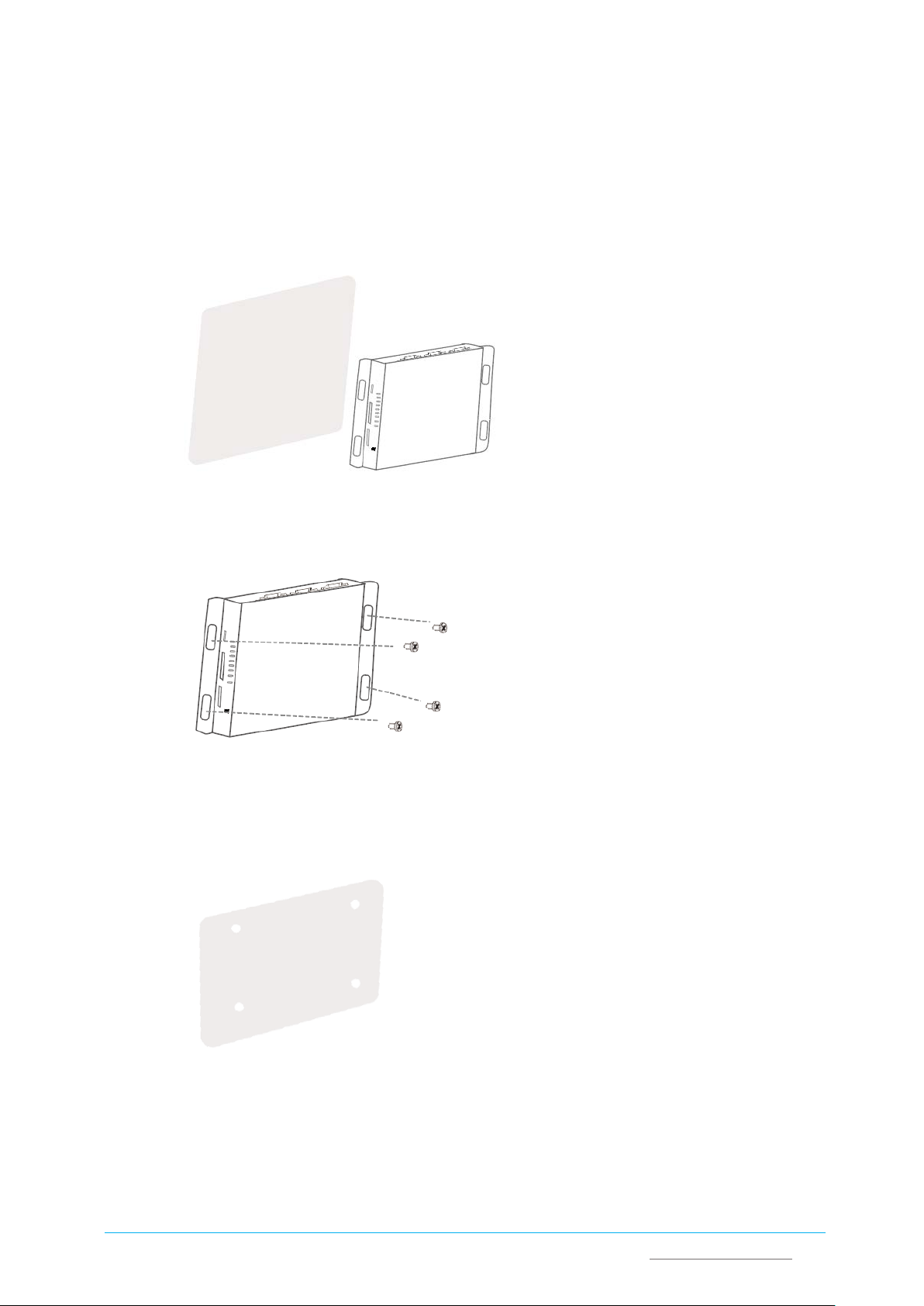

1. Position the Device on a desired place, for instance, a wall or a desktop;
2. Align the screws (M4 x 6 / M4 x 8 recommended) to the screw holes reserved on the
mounting bracket, and mark the position of the screws on the wall or the desktop;
3. Drill four screw holes on the marks made in the prior step;

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 15 www.vantrontech.com

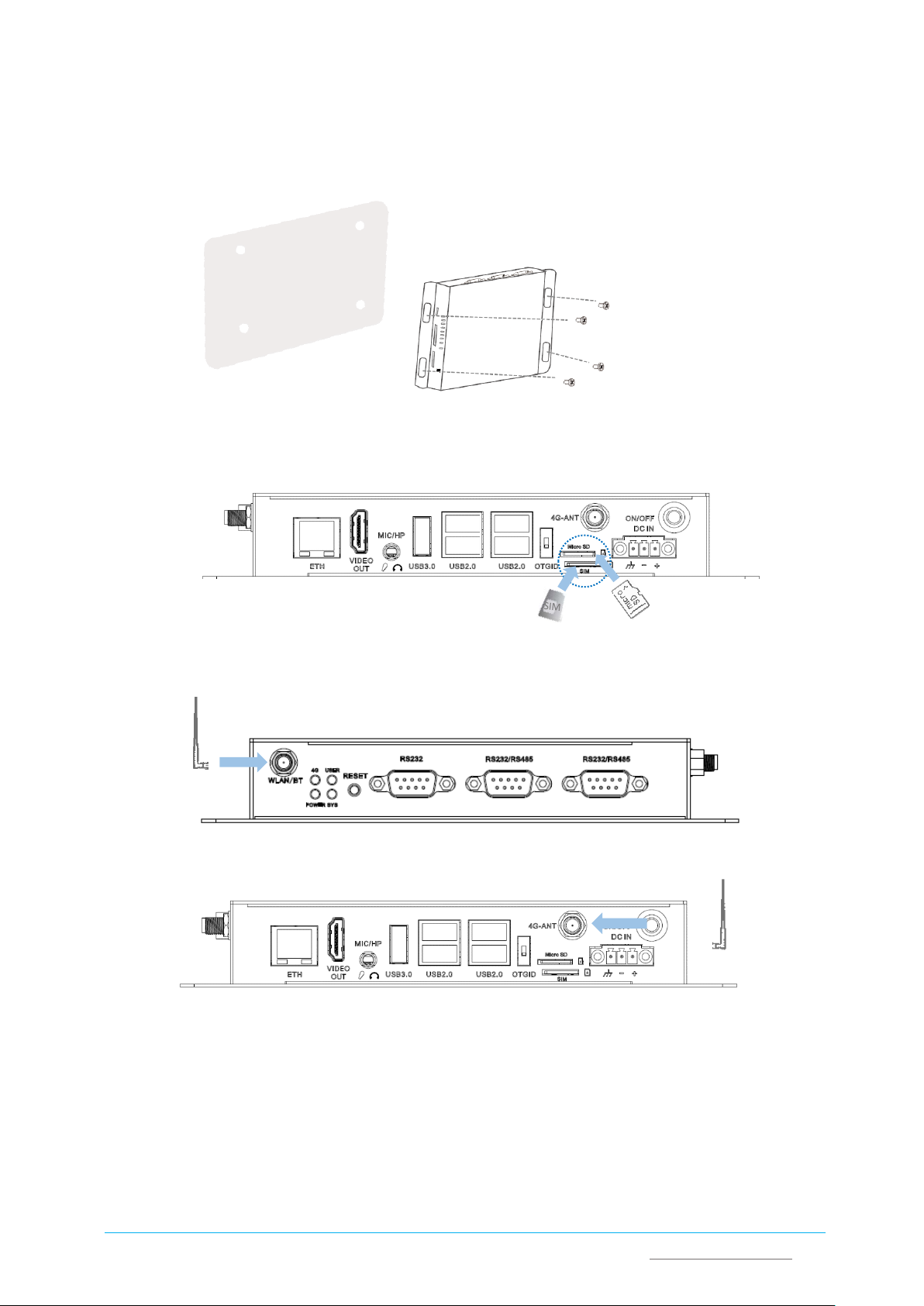

4. Place the Device back and adjust the position of the bracket, if needed, then use a
screwdriver to tighten the screws and secure the device;
5. Insert an active SIM card and a Micro SD card, if any, into the corresponsive slots with
the gold-colored contacts facing down;
6. Install the antennas to the antenna connectors and tighten the connectors;

Vantron| Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
IBOX66 | User Manual 16 www.vantrontech.com

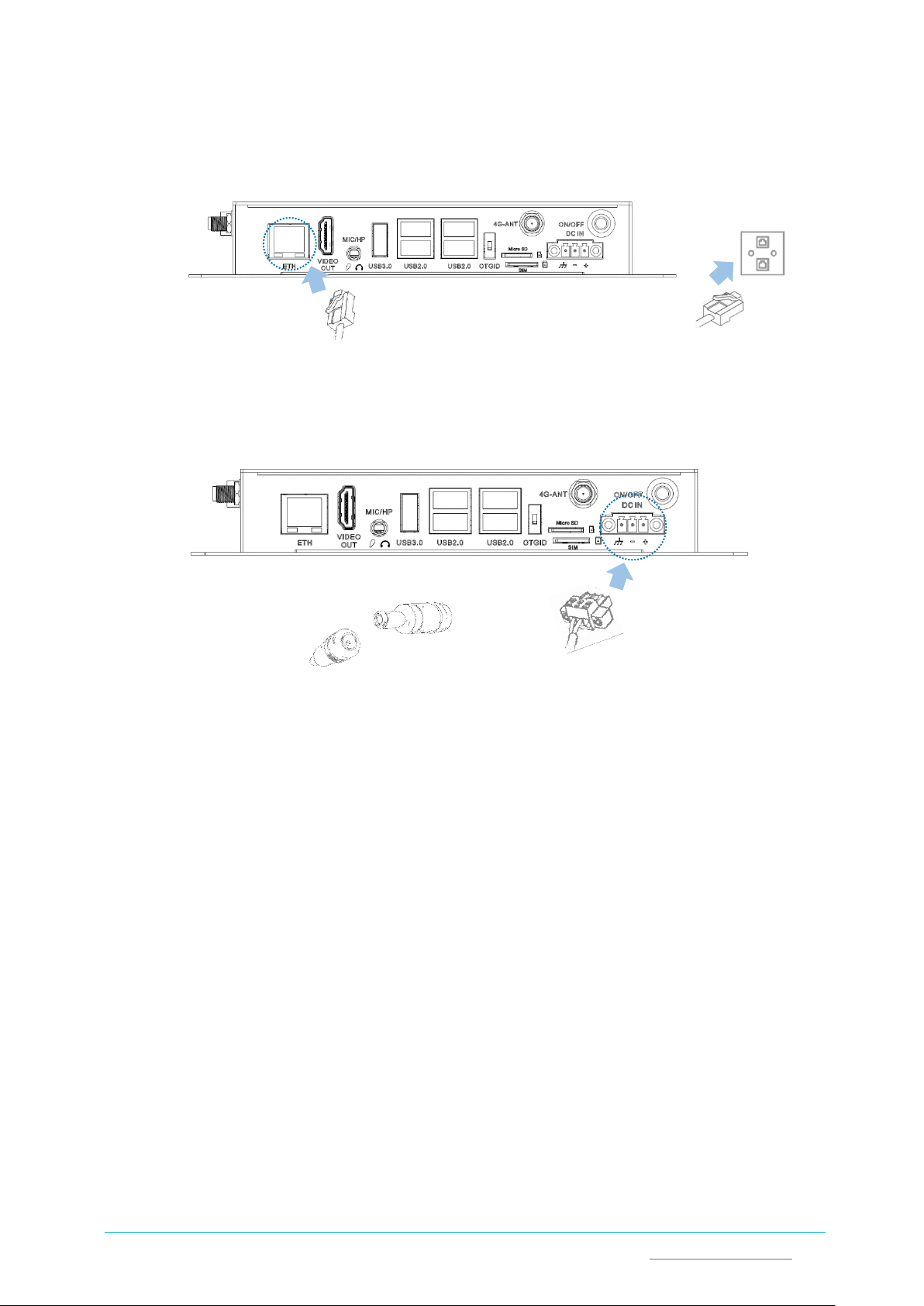

7. When necessary, plug one end of an Ethernet cable into the Ethernet jack of IBOX66
and the other to a live Ethernet port;
8. Connect the female connector plug of the power adapter to the power connector of
IBOX66 and the round end to the adapter;
9. Plug in the power connector to power on the Device.
Table of contents
Other Vantron Desktop manuals
