Vantron VT-HMI-156-TEL User manual

VT-HMI-156-TEL
All Rights Reserved
VT-HMI-156-TEL User’s Manual
Chengdu Vantron Technology, Ltd.

VT-HMI-156-TEL
Contents
1FOREWORD............................................................................................................................................................. 2
1.1 COPYRIGHT NOTICE.............................................................................................................................................................. 2
1.2 NOTES............................................................................................................................................................................... 2
1.3 STATEMENT ........................................................................................................................................................................ 3
1.4 DISCLAIMER ....................................................................................................................................................................... 3
1.5 LIMITATION OF LIABILITY/NON-WARRANTY ............................................................................................................................... 3
1.6 SAFETY INSTRUCTIONS .......................................................................................................................................................... 3
1.7 PRECAUTIONS ..................................................................................................................................................................... 4
1.8 SAFETY INSTRUCTIONS FOR POWER CABLES AND ACCESSORIES ..................................................................................................... 5
1.9 PRODUCT USAGE ENVIRONMENT:........................................................................................................................................... 6
2OVERVIEW .............................................................................................................................................................. 7
2.1 INTRODUCTION ................................................................................................................................................................... 7
2.2 ORDERING INFORMATION...................................................................................................................................................... 8
3VT-HMI-156-TELHARDWARE INSTRUCTIONS ........................................................................................................... 9
3.1 PRODUCT APPEARANCE ........................................................................................................................................................ 9
3.2 SPECIFICATIONS................................................................................................................................................................. 10
3.3 INTERFACE INSTRUCTIONS.................................................................................................................................................... 11
3.3.1 Front View............................................................................................................................................................... 11
3.3.2 Side View................................................................................................................................................................. 11
3.4 DIMENSION ...................................................................................................................................................................... 12
3.5 INTERFACE DESCRIPTION ..................................................................................................................................................... 12
3.5.1 USBOTG (Type C) ..................................................................................................................................................... 12
3.5.2 USB Host.................................................................................................................................................................. 12
3.5.3 Audio Jack ............................................................................................................................................................... 12
3.5.4 Debug...................................................................................................................................................................... 12
3.5.5 POE.......................................................................................................................................................................... 12
3.5.6 Wireless(WIFI and BLE) ........................................................................................................................................... 12
3.5.7 Front Camera .......................................................................................................................................................... 12
3.5.8 RTC .......................................................................................................................................................................... 12
3.6 PACKING LIST .................................................................................................................................................................... 13
4SOFTWARE INSTRUCTIONS.................................................................................................................................... 14
4.1 BRIEF INTRODUCTION ......................................................................................................................................................... 14
5TIPS....................................................................................................................................................................... 15

VT-HMI-156-TEL
1/18
Revision History
No. Ve r s i o n Description Date
1 V1.0 First release 2019/12/15

VT-HMI-156-TEL
2/18
1Foreword
1.1Copyright Notice
While all information contained herein have been carefully checked to
assure its accuracy in technical details and printing, Vantron assumes no
responsibility resulting from any error or features of this manual, or from
improper uses of this manual or the software. Please contact our technical
department for relevant operation solutions if there is any problem that cannot
be solved according to this manual.
Vantron reserves all rights of this manual, including the right to change the
content, form, product features, and specifications contained herein at any time
without prior notice. The latest version of this manual is at
www.vantrontech.com.cn. Please contact Vantron for further information:
Vantron Technology（Vantron）
E-mail: [e-mail]
The trademarks and registered trademarks in this manual are properties of
their respective owners. No part of this manual may be copied, reproduced,
translated or sold. No changes or other purposes are permitted without the prior
written consent of Vantron.
Vantron reserves the right of all publicly-released copies of this manual.
1.2Notes
Applicable notes are listed in the following table:
Sign Notice Type Description
Notice Important information and regulations
Caution Caution f or la tent d amage to s yst
em o r h arm to
personnel

VT-HMI-156-TEL
3/18
1.3Statement
It is recommended to read and comply with this manual before operating
15.6-inch Computer which provides important guidance and helps decreasing
the danger of injury, electric shock, fire, or any damage to the device.
1.4Disclaimer
Vantron assumes no legal liability of accidents resulting from failure of
conforming to the safety instructions.
1.5Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Vantron
caused by failure of conforming to this manual or the safety instructions on
device label, Vantron assumes neither warranty nor legal liability even if the
device is still under warranty.
1.6Safety Instructions
Keep and comply with all operation instructions, warnings, and
information.
Pay attention to warnings on this device.
Read the following precautions so as to decrease the danger of injury,
electric shock, fire, or any damage to the device.

VT-HMI-156-TEL
4/18
1.7Precautions
Pay attention to the product labels/safety instructions printed on silk
screens.
Do not try repairing this product unless declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine
casing.
Do not insert other items into the slot (if any) of this device.
Keep the ventilation slot ventilated for cooling.
System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation
standard.

VT-HMI-156-TEL
5/18
1.8Safety Instructions for Power Cables and Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage
necessary according to this manual. Please contact technical support personnel
of Vantron for any uncertainty about the requirements of necessary power
source.
Use tested power source
This product still contains a button lithium battery as a real-time clock
after its external power source is removed and therefore should not be
short-circuited during transportation or placed under high temperature.
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust
collector.
Support for special fault: Power off and contact technical support
personnel of Vantron in case of the following faults:
The device is damaged.
The temperature is excessively high.
Fault is still not solved after the operation according to the manual.

VT-HMI-156-TEL
6/18
1.9Product Usage Environment:
15.6-inch Computer could be mounted into a metal casing station and then mounted
on the wall or other place. The highest installation height is less than 2 meters.
Pic1. 15.6-inch Computer Pic2. VESA
Pic3. Front metal Pic4. Mount assembly
Installation diagram is as follows:
Step1. Mount the 15.6-inch Computer with the VESA;
Step2. Mount the assembly into front metal.
Step3. Installation the whole assembly on the wall or other place.
Pic5. Front view P ic6. Side view

VT-HMI-156-TEL
7/18
2Overview
2.1Introduction
Thank you for choosing Vantron. It is our commitment to provide our
valued customers with the embedded devices equipped with the state-of-the-art
technology and the best product services.
The HMIenables the interaction between operators/users and applications,
connects industrial control products such as wireless, transducer, battery inside,
storage, etc. HMI adopts a display for displaying and input units such as touch
screen, keyboard, audio, kind of sensors etc. for writing working parameters or
inputting operation commands. As a digital device for realizing information
interaction between human and machine, HMI is composed of hardware and
software. Based on its ample function interfaces and powerful user operational
interface, it is very suitable for control units such as medical device, intelligent
transportation, industrial field, etc..
Vantron’s15.6-inch Computer products are based on the most advanced
ARM and Rockchip processors and have low-power consumption and high
integration. The products are designed for applications such as industrials,
medicals, and transportations etc.

VT-HMI-156-TEL
8/18
2.2Ordering Information
VT-HMI-156-TEL
15.6’ T FT LCD, 1920*1080 16:9, RK3399, Qaud-Core2.0GHz,
USB OTG Type C,USB2.0+USB3.0 HOST, A udio J ack,Speaker a nd
MIC,WIFI/BT4.2

VT-HMI-156-TEL
9/18
3VT-HMI-156-TELHardware Instructions

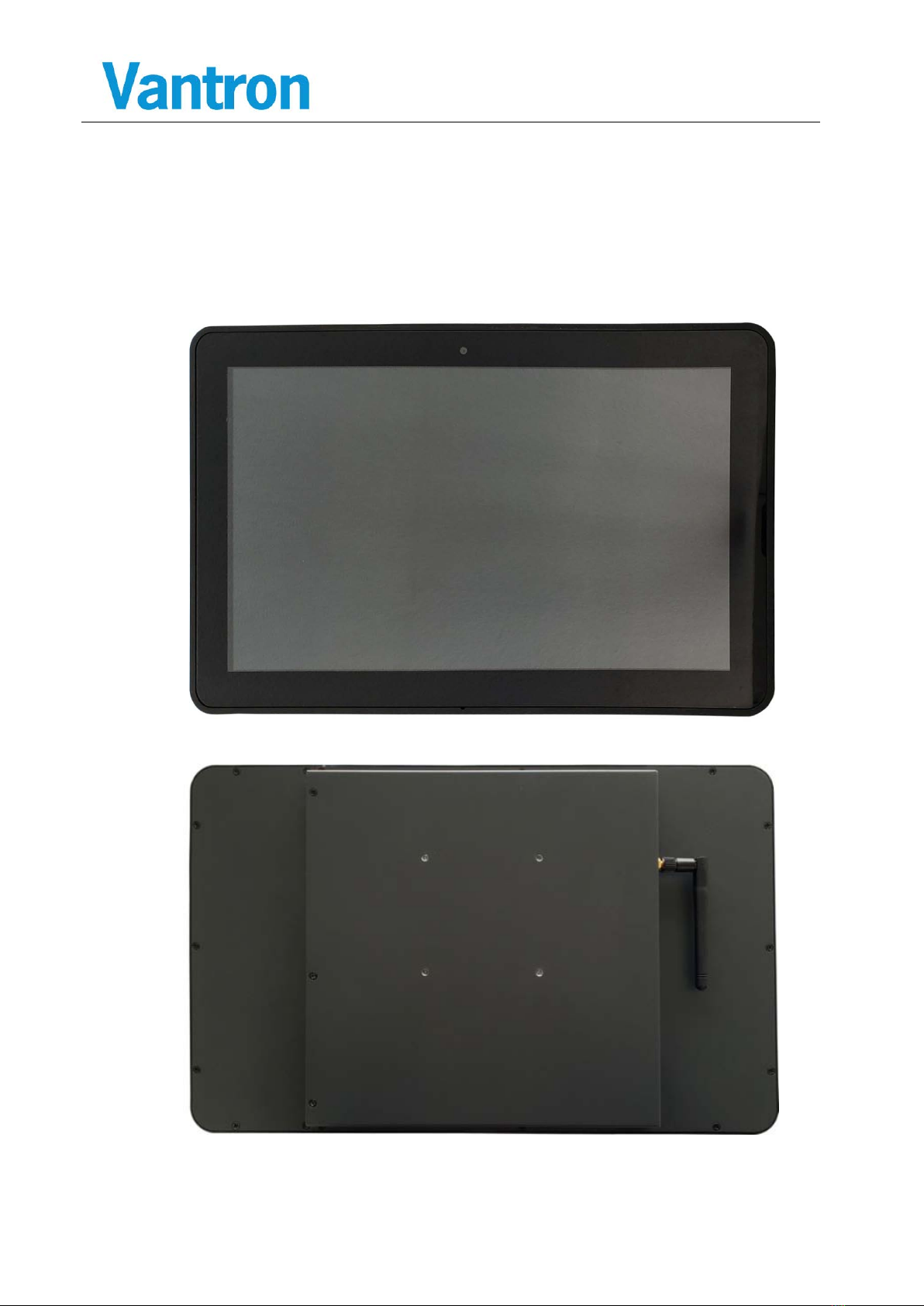

3.1Product Appearance
Front View
Back View

VT-HMI-156-TEL
10/18
3.2Specifications
Function
VT-HMI-156-TEL
CPU
RockchipRK3399 Qaud-Core Cotex-A72 2.0GHz+Daul-core-A53 1.4GHz
Display
15.6"LCD,1920x1080
Brightness :250cd/㎡
Touch
CAP TP, support 10 points touch, and 3.0mm cover glass.
System Memory
DDR32GB Standard
Storage
16GB eMMC Flash
Camera
Front 5MP, 25fps
LocalNetwork WLAN 802.11 b/g/n/ac& Bluetooth 4.2 External Antenna
IOs
1xUSB Type C (5V 1.4A)
Host USB2.0(5V 0.5A )+Host USB3.0(Type-A,5V 0.8A), USB2.0(Internal
Connector for touch panel)
1x1000M Ethernet(with POE)
Audio 1xHeadphone output,3.5mm Audio Jack, Support 4 section.
RTC
RTC with back up coin battery
Debug
1x Debug COM port (RS232), 3.5mm Audio Jack.
Power
DC 12V/3A and POE 802.3af/at(48V/0.7A)
Product Weight
Unit: 5.35Kg
OS
Android 7.1
Temperature
Operation: 0~50℃, Storage -20-60℃
Humidity Operation: 20% ~80%, Storage: 10% ~90%
Certification TBD

VT-HMI-156-TEL
11/18
3.3Interface Instructions
3.3.1 Front View
3.3.2 Port View
Front Camera
Reset button

VT-HMI-156-TEL
12/18
3.4Dimension
Outline dimension: 395*250*35mm Metal Cover
3.5Interface Description
3.5.1 USBOTG (Type C)
One hand, with a standard type-c USB port, customer can connect the HMI to
the host machine for example a PC, then manage it like all other android
devices. On the other hand, if the HMI is connected through a USB OTG cable,
it can be a host machine to operate the device that is connected to it.
3.5.2 USB Host
The HMI owns a USB 2.0 and a USB3.0 host so that we can connect a
keyboard or a mouse to it. Besides, other devices like U disk also can be
connected to it.
3.5.3 Audio Jack
A headphone can be connected to the HMIthrough the standard audio jack so
that we can experience the more wonderful music and not disturb people
around you.
3.5.4 Debug
A3.5mm Audio Jack, customer can be connected to the HMIthrough the
customized serial line.(RS232).
3.5.5 POE
This HMI supports the POE feature, customer can use the standard POE power
supply terminal to supply power and connect to the network.
3.5.6 Wireless(WIFI and BLE)
The HMI supports 802.11a/b/g/n/ac WIFI and low energy BLE 4.2. With a
good spec internal antenna, both WIFI and BLE can achieve better
performance.
3.5.7 Front Camera
The HMI has the ability to take beautiful photo and record the high resolution
video.
3.5.8 RTC
The HMI has internal RTC so the system time can keep a long time if we didn’t
turn it on.

VT-HMI-156-TEL
13/18
3.6Packing List
No Part Description Quantity Type
1 BPAG38RTE1 1 PCS VT-HMI-156-TEL
2 YAA003R043 1 PCS Antenna

VT-HMI-156-TEL
14/18
4Software Instructions
4.1Brief Introduction
VT-HMI-156-TEL has been pre-loaded with Android image, so that the
system can run Android tool to update the system image, please reference to
SW-UM.

VT-HMI-156-TEL
15/18
5Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity
with local regulations. Please ensure that the abandoned batteries are disposed according
to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put
in common waste canister. Products or product packages with the sign of “explosive”
should not be disposed like household waste but delivered to specialized electrical＆
electronic waste recycling/disposal center. Proper disposal of this sort of waste helps
avoiding harm and adverse effect upon surroundings and people’s health. Please contact
local organizations or recycling/disposal center for more recycling/disposal methods of
related products.
Comply with the following safety tips:
Do not use in combustible and explosive environment
Keep away from combustible and explosive environment for fear of danger.
Keep away from all energized circuits.
Operators should not remove enclosure from the device. Only the group or person
with factory certification is permitted to open the enclosure to adjust and replace the
structure and components of the device. Do not change components unless the power
cord is removed. In some cases, the device may still have residual voltage even if the
power cord is removed. Therefore, it is a must to remove and fully discharge the device
before contact so as to avoid injury.
Unauthorized changes to this product or its components are prohibited.
In the aim of avoiding accidents as far as possible, it is not allowed to replace the
system or change components unless with permission and certification. Please contact
the technical department of Vantron or local branches for help.
Pay attention to caution signs.
Caution signs in this manual remind of possible danger. Please comply with
relevant safety tips below each sign. Meanwhile, you should strictly conform to all

VT-HMI-156-TEL
16/18
safety tips for operation environment.
Notice
Considering that reasonable efforts have been made to assure accuracy of this
manual, Vantron assumes no responsibility of possible missing contents and information,
errors in contents, citations, examples, and source programs.
Vantron reserves the right to make necessary changes to this manual without prior
notice. No part of this manual may be reprinted or publicly released in forms of
photocopy, tape, broadcast, e-document, etc.
FCC Warning
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generate, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Any modification to the product is not permitted unless authorized by Vantron. It’s
not allowed to disassemble the product, it is not allowed to replace the system or change
components unless with permission and certification. Please contact the technical
support department of Vantron or local branches for help.

VT-HMI-156-TEL
17/18
RF Exposure Statement
This equipment must be installed and operated in accordance with provide
instructions and the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operation in conjunction with any other antenna or transmitter. End-users and installers
must be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.

VT-HMI-156-TEL
18/18
US Office: Vantron Technology, Inc.
Address: 440 Boulder Court, Suite 300,
Pleasanton, CA 94566
Tel: [phone]
Email: [e-mail]
China Office: Chengdu Vantron Technology, Ltd.
Address: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045
Tel: [phone]/3931, 8515-7572/6320
Email: [e-mail]
