VARO POWERPLUS POWE50102 User manual

POWE50102 EN
Copyright © 2018 VARO P a g e | 1www.varo.com
1APPLICATION..................................................................................3
2DESCRIPTION (FIG. A, B & C) .......................................................3
3PACKAGE CONTENT LIST.............................................................3
4SYMBOLS........................................................................................4
5GENERAL POWER TOOL SAFETY WARNINGS ..........................4
5.1 Working area...........................................................................................................4
5.2 Electrical safety.......................................................................................................4
5.3 Personal safety .......................................................................................................4
5.4 Power tools use and care.......................................................................................5
5.5 Service.....................................................................................................................5
6ADDITIONAL SAFETY INSTRUCTIONS ........................................5

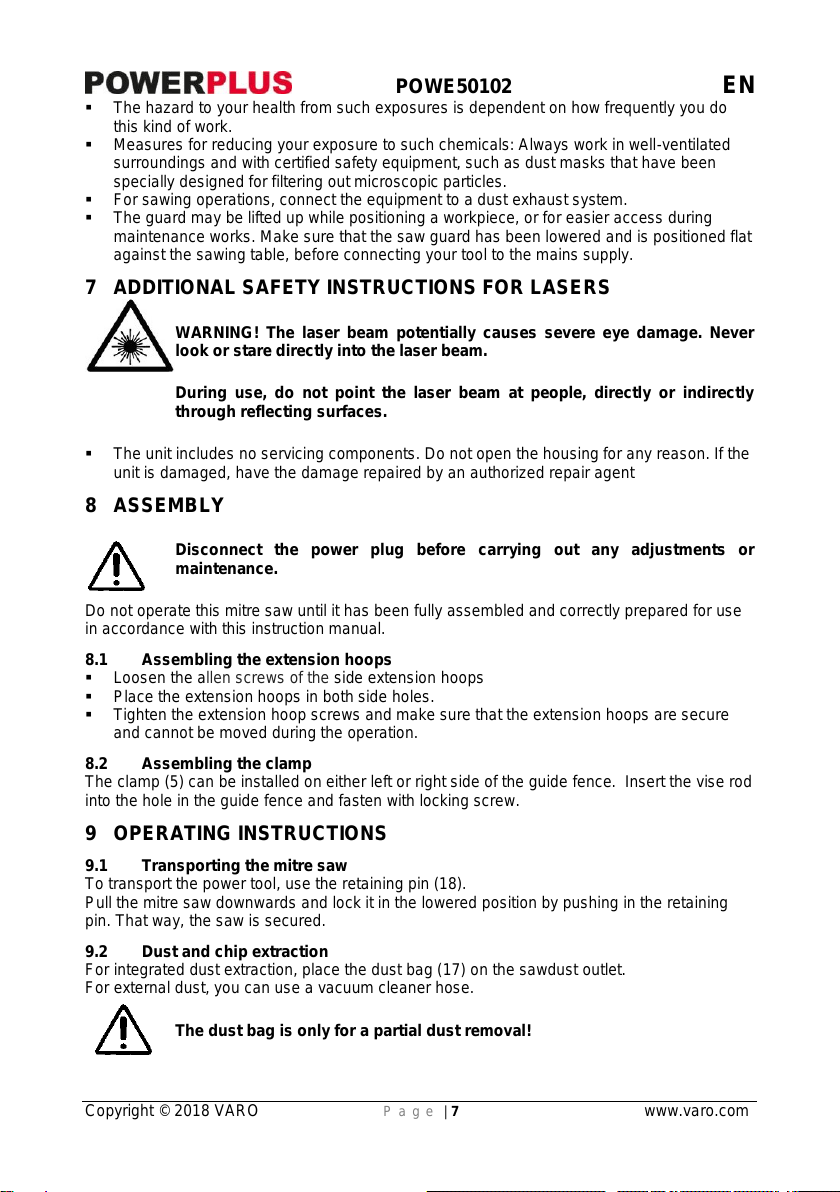

7ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS................7
8ASSEMBLY......................................................................................7
8.1 Assembling the extension hoops ..........................................................................7
8.2 Assembling the clamp............................................................................................7
9OPERATING INSTRUCTIONS ........................................................7
9.1 Transporting the mitre saw ....................................................................................7
9.2 Dust and chip extraction ........................................................................................7

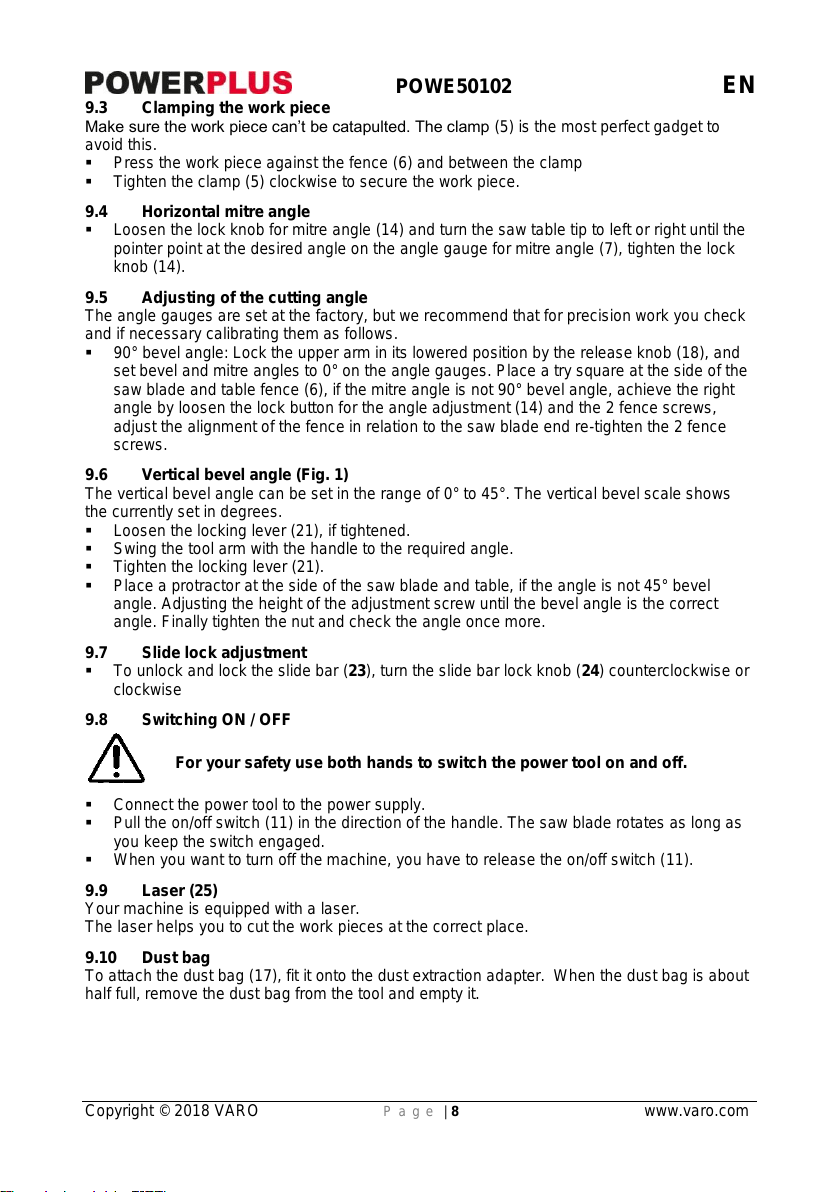

9.3 Clamping the work piece........................................................................................8
9.4 Horizontal mitre angle.............................................................................................8
9.5 Adjusting of the cutting angle................................................................................8
9.6 Vertical bevel angle (Fig. 1)....................................................................................8
9.7 Slide lock adjustment .............................................................................................8
9.8 Switching ON / OFF.................................................................................................8
9.9 Laser (25).................................................................................................................8
9.10 Dust bag ..................................................................................................................8
9.11 Sawing.....................................................................................................................9
9.12 Sawing special work pieces...................................................................................9
9.13 Replacing the saw blade (Fig. 2)............................................................................9
10 CLEANING AND MAINTENANCE...................................................9
10.1 Cleaning...................................................................................................................9
All manuals and user guides at all-guides.com

POWE50102 EN

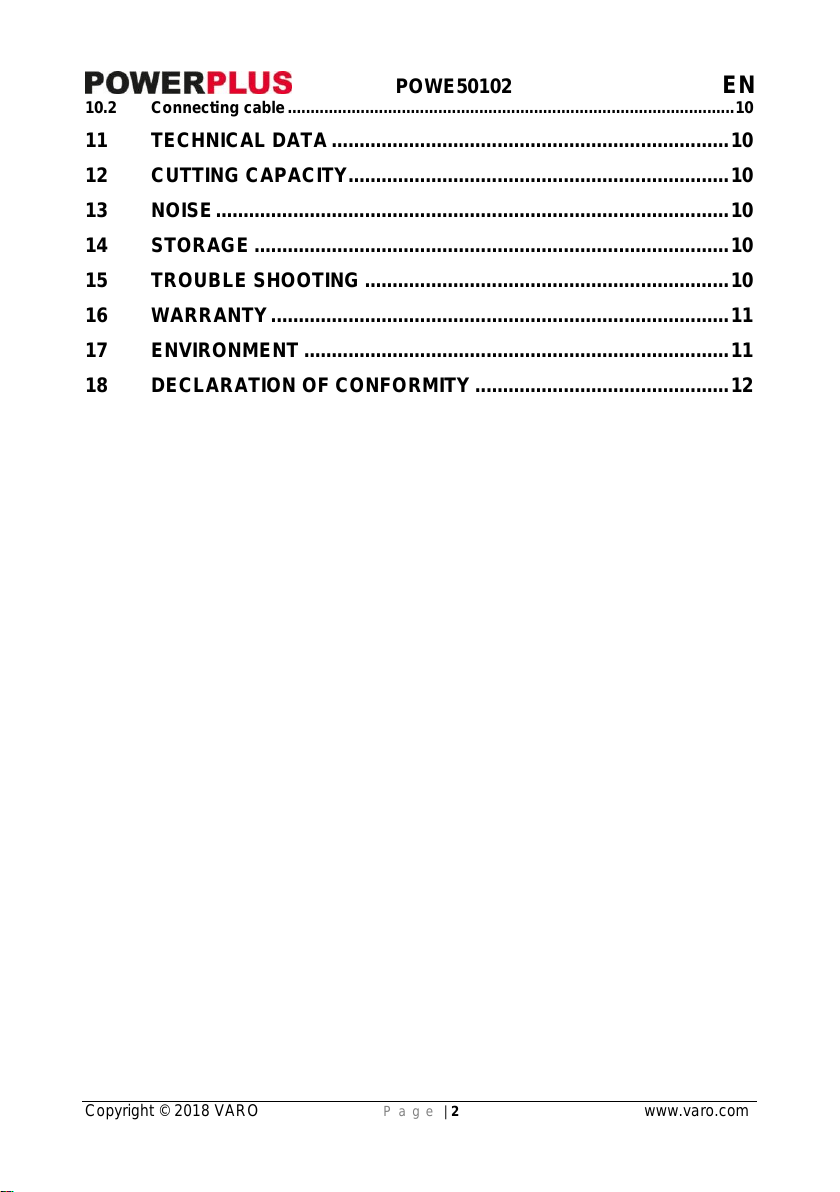

Copyright © 2018 VARO P a g e | 2www.varo.com
10.2 Connecting cable..................................................................................................10
11 TECHNICAL DATA........................................................................10
12 CUTTING CAPACITY.....................................................................10
13 NOISE.............................................................................................10
14 STORAGE ......................................................................................10
15 TROUBLE SHOOTING ..................................................................10
16 WARRANTY...................................................................................11
17 ENVIRONMENT .............................................................................11
18 DECLARATION OF CONFORMITY ..............................................12
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 3www.varo.com
MINI TELESCOPIC MITRE SAW 1650W
POWE50102
1 APPLICATION
This power tool is intended as a stationary machine for making straight and cross cuts in wood.
You can saw hard and soft wood as well as chip and fibre boards.
Only adults may use this tool.
WARNING! For your own safety, read this manual and the general safety
instructions carefully before using the appliance. Your power tool should
only be given to other users together with these instructions.
2 DESCRIPTION (FIG. A, B & C)
1. Removable blade guard
2. Lock lever for removable blade guard
3. Handle
4. Carbon brush cover
5. Clamp
6. Fence
7. Angle gauge
8. Saw table
9. Surface protector
10. Mounting hole
11. Switch
12. Guard
13. Saw blade
14. Lock button for angle adjustment
15. Side support bar
16. Base
17. Dust bag
18. Release knob
19. Spindle lock
20. Angle gauge for bevel angle
21. Lock knob for bevel angle
22. Dust outlet
23. Slide bar
24. Slide bar lock
25. Laser light
26. Laser light on/off switch
3 PACKAGE CONTENT LIST
▪Remove all packaging materials.
▪Remove remaining packaging and packing inserts (if included).
▪Check that the package contents are complete.
▪Check the appliance, the power cord, the power plug and all accessories for transportation
damage.
▪Keep the packaging materials as far as possible until the end of the warranty period. Then
take it to your local waste disposal system.
WARNING! Packaging materials are not toys! Children must not play with
plastic bags! There is a danger of suffocation!
In this packaging, you can find:
1 mitre saw
2 allen key
1 set clamps
1 manual
2 side guides
1 dust bag
If any parts are missing or damaged, please contact your dealer.
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 4www.varo.com
4 SYMBOLS
The following symbols are used in this manual and/or on the machine:
Denotes risk of personal
injury or damage to the tool.
Wear ear guards and goggles
Read manual before use.
In accordance with essential
requirements of the European
directive(s)
Wear gloves.
Class II - The machine is double
insulated; Earthing wire is
therefore not necessary.
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to heed warnings and
follow instructions may result in electric shock, fire and/or serious injury.
Keep safety warnings and instructions for future reference. The term
"power tool" in the safety warnings refers to your mains- operated (corded)
power tool or battery- operated (cordless) power tool.
5.1 Working area
▪Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
▪Do not operate power tools in potentially explosive surroundings, for example, in the
presence of inflammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
▪Keep children and bystanders at a distance when operating a power tool. Distractions can
cause you to lose control of it.
5.2 Electrical safety
Always check that the power supply corresponds to the voltage on the
rating plate.
▪Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce
the risk of an electric shock.
▪Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will
increase the risk of an electric shock.
▪Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of an electric shock.
▪When operating a power tool outdoors, use an extension cable suitable for outdoor use.
Using a cord suitable for outdoor use reduces the risk of an electric shock.
▪If operating a power tool in a damp location is unavoidable, use a power supply protected
by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.
5.3 Personal safety
▪Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention when operating a power tool may result in serious
personal injury.
All manuals and user guides at all-guides.com

POWE50102 EN

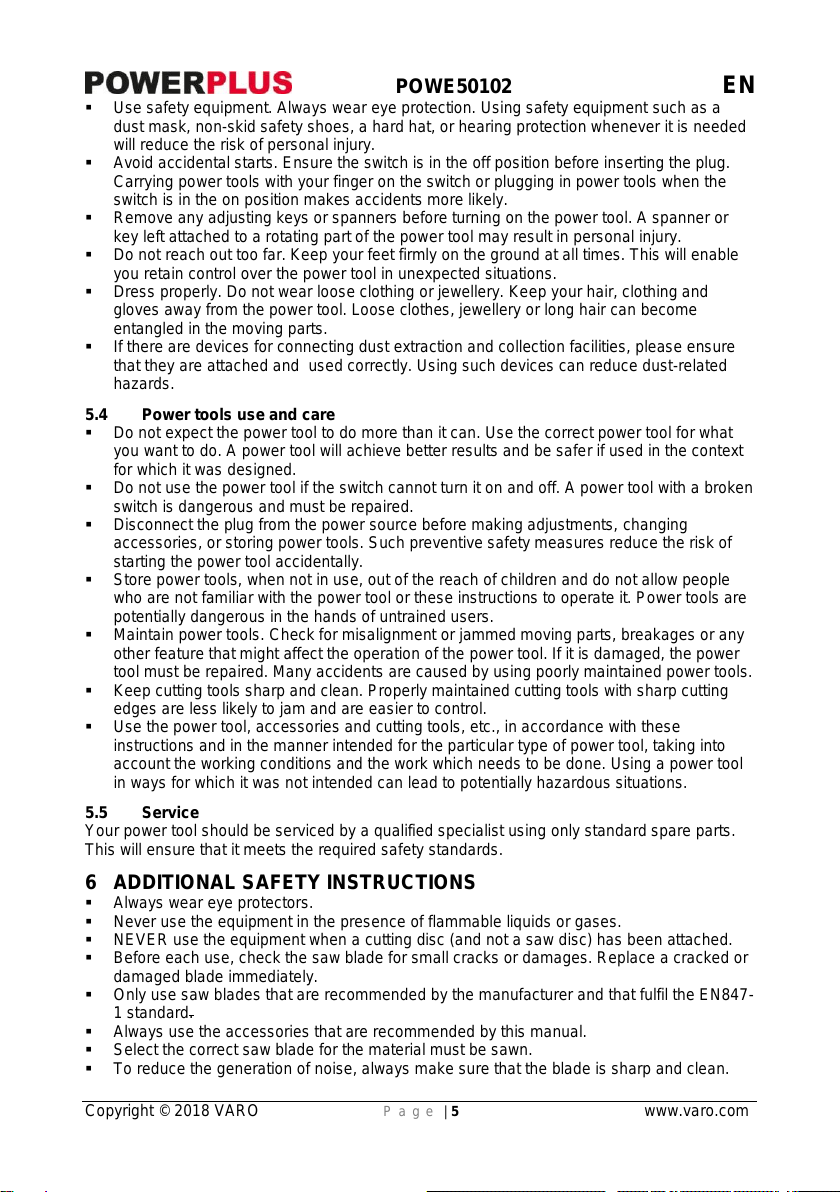

Copyright © 2018 VARO P a g e | 5www.varo.com
▪Use safety equipment. Always wear eye protection. Using safety equipment such as a
dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed
will reduce the risk of personal injury.
▪Avoid accidental starts. Ensure the switch is in the off position before inserting the plug.
Carrying power tools with your finger on the switch or plugging in power tools when the
switch is in the on position makes accidents more likely.
▪Remove any adjusting keys or spanners before turning on the power tool. A spanner or
key left attached to a rotating part of the power tool may result in personal injury.
▪Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable
you retain control over the power tool in unexpected situations.
▪Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from the power tool. Loose clothes, jewellery or long hair can become
entangled in the moving parts.
▪If there are devices for connecting dust extraction and collection facilities, please ensure
that they are attached and used correctly. Using such devices can reduce dust-related
hazards.
5.4 Power tools use and care
▪Do not expect the power tool to do more than it can. Use the correct power tool for what
you want to do. A power tool will achieve better results and be safer if used in the context
for which it was designed.
▪Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken
switch is dangerous and must be repaired.
▪Disconnect the plug from the power source before making adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
▪Store power tools, when not in use, out of the reach of children and do not allow people
who are not familiar with the power tool or these instructions to operate it. Power tools are
potentially dangerous in the hands of untrained users.
▪Maintain power tools. Check for misalignment or jammed moving parts, breakages or any
other feature that might affect the operation of the power tool. If it is damaged, the power
tool must be repaired. Many accidents are caused by using poorly maintained power tools.
▪Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to jam and are easier to control.
▪Use the power tool, accessories and cutting tools, etc., in accordance with these
instructions and in the manner intended for the particular type of power tool, taking into
account the working conditions and the work which needs to be done. Using a power tool
in ways for which it was not intended can lead to potentially hazardous situations.
5.5 Service
Your power tool should be serviced by a qualified specialist using only standard spare parts.
This will ensure that it meets the required safety standards.
6 ADDITIONAL SAFETY INSTRUCTIONS
▪Always wear eye protectors.
▪Never use the equipment in the presence of flammable liquids or gases.
▪NEVER use the equipment when a cutting disc (and not a saw disc) has been attached.
▪Before each use, check the saw blade for small cracks or damages. Replace a cracked or
damaged blade immediately.
▪Only use saw blades that are recommended by the manufacturer and that fulfil the EN847-
1 standard.
▪Always use the accessories that are recommended by this manual.
▪Select the correct saw blade for the material must be sawn.
▪To reduce the generation of noise, always make sure that the blade is sharp and clean.
All manuals and user guides at all-guides.com

POWE50102 EN

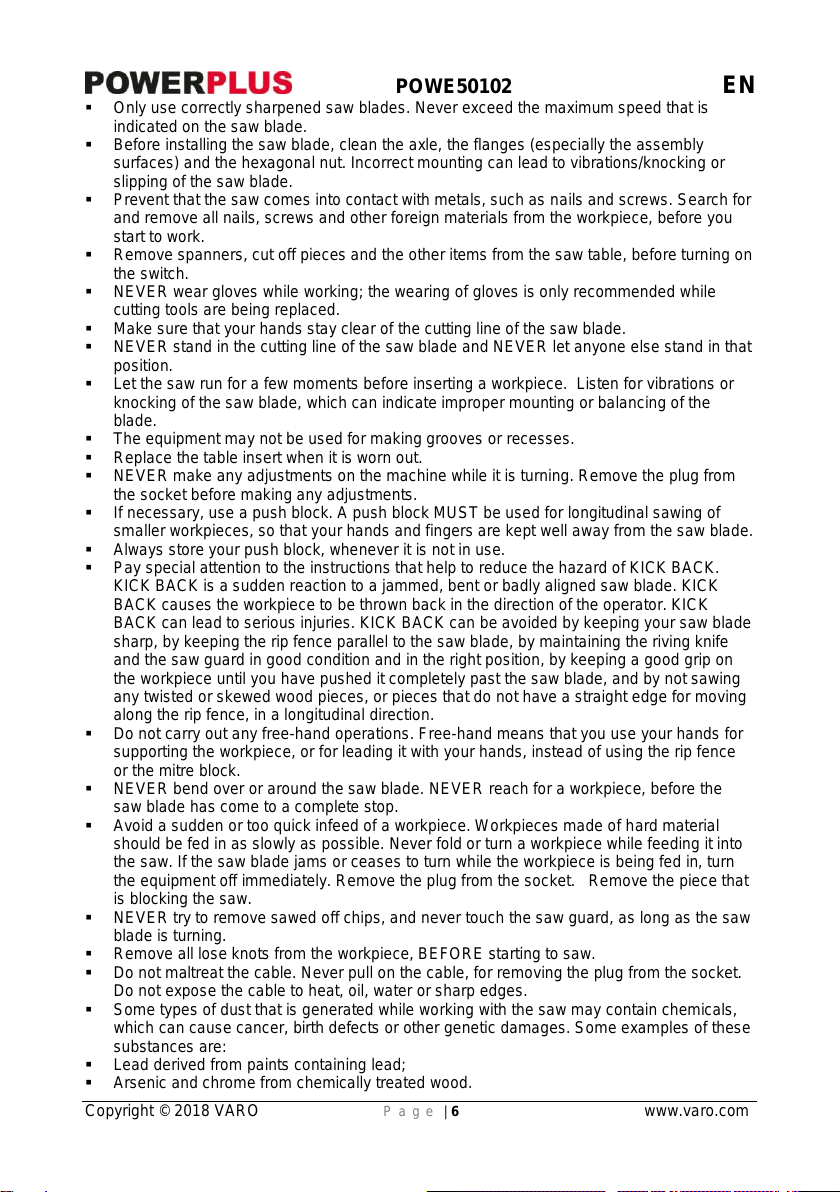

Copyright © 2018 VARO P a g e | 6www.varo.com
▪Only use correctly sharpened saw blades. Never exceed the maximum speed that is
indicated on the saw blade.
▪Before installing the saw blade, clean the axle, the flanges (especially the assembly
surfaces) and the hexagonal nut. Incorrect mounting can lead to vibrations/knocking or
slipping of the saw blade.
▪Prevent that the saw comes into contact with metals, such as nails and screws. Search for
and remove all nails, screws and other foreign materials from the workpiece, before you
start to work.
▪Remove spanners, cut off pieces and the other items from the saw table, before turning on
the switch.
▪NEVER wear gloves while working; the wearing of gloves is only recommended while
cutting tools are being replaced.
▪Make sure that your hands stay clear of the cutting line of the saw blade.
▪NEVER stand in the cutting line of the saw blade and NEVER let anyone else stand in that
position.
▪Let the saw run for a few moments before inserting a workpiece. Listen for vibrations or
knocking of the saw blade, which can indicate improper mounting or balancing of the
blade.
▪The equipment may not be used for making grooves or recesses.
▪Replace the table insert when it is worn out.
▪NEVER make any adjustments on the machine while it is turning. Remove the plug from
the socket before making any adjustments.
▪If necessary, use a push block. A push block MUST be used for longitudinal sawing of
smaller workpieces, so that your hands and fingers are kept well away from the saw blade.
▪Always store your push block, whenever it is not in use.
▪Pay special attention to the instructions that help to reduce the hazard of KICK BACK.
KICK BACK is a sudden reaction to a jammed, bent or badly aligned saw blade. KICK
BACK causes the workpiece to be thrown back in the direction of the operator. KICK
BACK can lead to serious injuries. KICK BACK can be avoided by keeping your saw blade
sharp, by keeping the rip fence parallel to the saw blade, by maintaining the riving knife
and the saw guard in good condition and in the right position, by keeping a good grip on
the workpiece until you have pushed it completely past the saw blade, and by not sawing
any twisted or skewed wood pieces, or pieces that do not have a straight edge for moving
along the rip fence, in a longitudinal direction.
▪Do not carry out any free-hand operations. Free-hand means that you use your hands for
supporting the workpiece, or for leading it with your hands, instead of using the rip fence
or the mitre block.
▪NEVER bend over or around the saw blade. NEVER reach for a workpiece, before the
saw blade has come to a complete stop.
▪Avoid a sudden or too quick infeed of a workpiece. Workpieces made of hard material
should be fed in as slowly as possible. Never fold or turn a workpiece while feeding it into
the saw. If the saw blade jams or ceases to turn while the workpiece is being fed in, turn
the equipment off immediately. Remove the plug from the socket. Remove the piece that
is blocking the saw.
▪NEVER try to remove sawed off chips, and never touch the saw guard, as long as the saw
blade is turning.
▪Remove all lose knots from the workpiece, BEFORE starting to saw.
▪Do not maltreat the cable. Never pull on the cable, for removing the plug from the socket.
Do not expose the cable to heat, oil, water or sharp edges.
▪Some types of dust that is generated while working with the saw may contain chemicals,
which can cause cancer, birth defects or other genetic damages. Some examples of these
substances are:
▪Lead derived from paints containing lead;
▪Arsenic and chrome from chemically treated wood.
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 7www.varo.com
▪The hazard to your health from such exposures is dependent on how frequently you do
this kind of work.
▪Measures for reducing your exposure to such chemicals: Always work in well-ventilated
surroundings and with certified safety equipment, such as dust masks that have been
specially designed for filtering out microscopic particles.
▪For sawing operations, connect the equipment to a dust exhaust system.
▪The guard may be lifted up while positioning a workpiece, or for easier access during
maintenance works. Make sure that the saw guard has been lowered and is positioned flat
against the sawing table, before connecting your tool to the mains supply.
7 ADDITIONAL SAFETY INSTRUCTIONS FOR LASERS
WARNING! The laser beam potentially causes severe eye damage. Never
look or stare directly into the laser beam.
During use, do not point the laser beam at people, directly or indirectly
through reflecting surfaces.
▪The unit includes no servicing components. Do not open the housing for any reason. If the
unit is damaged, have the damage repaired by an authorized repair agent
8 ASSEMBLY
Disconnect the power plug before carrying out any adjustments or
maintenance.
Do not operate this mitre saw until it has been fully assembled and correctly prepared for use
in accordance with this instruction manual.
8.1 Assembling the extension hoops
▪Loosen the allen screws of the side extension hoops
▪Place the extension hoops in both side holes.
▪Tighten the extension hoop screws and make sure that the extension hoops are secure
and cannot be moved during the operation.
8.2 Assembling the clamp
The clamp (5) can be installed on either left or right side of the guide fence. Insert the vise rod
into the hole in the guide fence and fasten with locking screw.
9 OPERATING INSTRUCTIONS
9.1 Transporting the mitre saw
To transport the power tool, use the retaining pin (18).
Pull the mitre saw downwards and lock it in the lowered position by pushing in the retaining
pin. That way, the saw is secured.
9.2 Dust and chip extraction
For integrated dust extraction, place the dust bag (17) on the sawdust outlet.
For external dust, you can use a vacuum cleaner hose.
The dust bag is only for a partial dust removal!
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 8www.varo.com
9.3 Clamping the work piece
Make sure the work piece can’t be catapulted. The clamp (5) is the most perfect gadget to
avoid this.
▪Press the work piece against the fence (6) and between the clamp
▪Tighten the clamp (5) clockwise to secure the work piece.
9.4 Horizontal mitre angle
▪Loosen the lock knob for mitre angle (14) and turn the saw table tip to left or right until the
pointer point at the desired angle on the angle gauge for mitre angle (7), tighten the lock
knob (14).
9.5 Adjusting of the cutting angle
The angle gauges are set at the factory, but we recommend that for precision work you check
and if necessary calibrating them as follows.
▪90° bevel angle: Lock the upper arm in its lowered position by the release knob (18), and
set bevel and mitre angles to 0° on the angle gauges. Place a try square at the side of the
saw blade and table fence (6), if the mitre angle is not 90° bevel angle, achieve the right
angle by loosen the lock button for the angle adjustment (14) and the 2 fence screws,
adjust the alignment of the fence in relation to the saw blade end re-tighten the 2 fence
screws.
9.6 Vertical bevel angle (Fig. 1)
The vertical bevel angle can be set in the range of 0° to 45°. The vertical bevel scale shows
the currently set in degrees.
▪Loosen the locking lever (21), if tightened.
▪Swing the tool arm with the handle to the required angle.
▪Tighten the locking lever (21).
▪Place a protractor at the side of the saw blade and table, if the angle is not 45° bevel
angle. Adjusting the height of the adjustment screw until the bevel angle is the correct
angle. Finally tighten the nut and check the angle once more.
9.7 Slide lock adjustment
▪To unlock and lock the slide bar (23), turn the slide bar lock knob (24) counterclockwise or
clockwise
9.8 Switching ON / OFF
For your safety use both hands to switch the power tool on and off.
▪Connect the power tool to the power supply.
▪Pull the on/off switch (11) in the direction of the handle. The saw blade rotates as long as
you keep the switch engaged.
▪When you want to turn off the machine, you have to release the on/off switch (11).
9.9 Laser (25)
Your machine is equipped with a laser.
The laser helps you to cut the work pieces at the correct place.
9.10 Dust bag
To attach the dust bag (17), fit it onto the dust extraction adapter. When the dust bag is about
half full, remove the dust bag from the tool and empty it.
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 9www.varo.com
9.11 Sawing
Make sure the saw blade doesn’t block while you are sawing. It causes
damage to and burning of the motor. If there is a blockade of the saw blade,
please loosen the switch immediately to prevent damage at the motor.
▪Clamp the work piece firmly.
▪Set the required horizontal mitre angle or the required vertical bevel angle.
▪Switch on the power tool.
▪Move the handle (3) slowly downwards. You have to push the safety switch (2) before you
can do this.
▪Saw trough the work piece.
▪Switch off the power tool.
▪Wait until the saw blade (13) has come to a complete standstill before removing the work
piece.
9.12 Sawing special work pieces
Curved or round work pieces need to be secured against slipping.
Make sure there is no gap between the work piece and the fence (6) or the saw table (8).
9.13 Replacing the saw blade (Fig. 2)
Disconnect the tool from the outlet before working on the saw blade.
Wait a while before touching the saw blade. It can be very hot.
The teeth of the saw blade are very sharp.
▪Allow the mitre saw cutting head to rise to the upright position
▪Loosen the cover plate screw (2) with a allen key.
▪Tilt the cover plate (3) upwards in order to make the axle bolt (4) accessible.
▪Press the spindle lock button, holding it in firmly while turning the blade wrench clockwise.
The spindle lock will engage after turning the wrench. Continue to hold the spindle lock
button to keep it engaged, while turning the wrench clockwise to loosen the spindle bolt.
▪Remove the spindle bolt, the blade collar and the blade. Do not remove the inner blade
collar.
▪Replace the saw blade (the tips of the sawing teeth have to point in the same direction as
indicated by the arrow on the cover) and then reassemble all parts in the reverse order.
▪Turn the plastic cover back in its original position.
10 CLEANING AND MAINTENANCE
Before performing any work on the equipment, pull the power plug.
10.1 Cleaning
▪Regularly clean the machine housing with a soft cloth, preferably after each use.
▪If the dirt does not come off use a soft cloth moistened with soapy water.
▪Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may
damage the plastic parts.
Make sure no water can reach the inside of the power tool!
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 10 www.varo.com
10.2 Connecting cable
If the connecting cable (or mains plug) is damaged, it must be replaced. Replacement of the
connecting cable should only be carried out by a qualified specialist (qualified electrician).
11 TECHNICAL DATA
Nominal Voltage
220-240 V ~ 50 Hz
Power rating
1650 W
No load speed
5000 min-1
Protection class
II
Blade size
210 mm x 30 mm
12 CUTTING CAPACITY
Worktable tilting
angle
Head tilting angle
Height x width (mm)
90°
90°
60 x 170 mm
45°
90°
60 x 120 mm
90°
45°
34 x 170 mm
45°
45°
34 x 120 mm
13 NOISE
Noise emission values measured according to relevant standard. (K=3)
Acoustic pressure level LpA
90 dB(A)
Acoustic power level LwA
110 dB(A)
ATTENTION! Wear hearing protection when sound pressure is
over 85 dB(A).
14 STORAGE
▪Thoroughly clean the whole machine and its accessories.
▪Store it out of the reach of children, in a stable and secure position, in a cool and dry
place; avoid too high and too low temperatures.
▪Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
▪Don’t keep it in plastic bags to avoid humidity build-up.
15 TROUBLE SHOOTING
PROBLEM
POSSIBLE CAUSE
SOLUTION
Motor does not run.
No electricity arrives at the machine.
The motor is overloaded or
overheated.
Check the power supply and
the power line.
Allow the machine to run idle
for about 2 minutes to cool
down.
Vibrations are too
strong.
Screws or parts are loose.
The mitre saw is not correctly
mounted.
Work piece is not properly supported.
Tighten all screws.
Mount the mitre saw
correctly.
Secure the work piece.
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 11 www.varo.com
16 WARRANTY
▪This product is warranted as provided by law for a 24 -month period effective from the
date of purchase by the first user.
▪This warranty covers all material or production flaws excluding: batteries, chargers,
defective parts subject to normal wear & tear such as bearings, brushes, cables, and
plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects
resulting from maltreatment, accidents or alterations; nor the cost of transportation.
▪Damage and/or defects resulting from inappropriate use also do not fall under the
warranty provisions.
▪We also disclaim all liability for any bodily injury resulting from inappropriate use of the
tool.
▪Repairs may only be carried out by an authorised customer service centre for Powerplus
tools.
▪You can always obtain more information at the number 00 32 3 292 92 90.
▪Any transportation costs shall always be borne by the customer, unless agreed otherwise
in writing.
▪At the same time, no claim can be made on the warranty if the damage of the device is the
result of negligent maintenance or overload.
▪Definitely excluded from the warranty is damage resulting from fluid permeation, excessive
dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate
usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not
following the instructions given in the manual), inexpert assembly, lightning strike,
erroneus net voltage. This list is not exhaustive.
▪Acceptance of claims under warranty can never lead to the prolongation of the warranty
period nor commencement of a new warranty period in case of a device replacement.
▪Devices or parts which are replaced under the warranty therefore remain the property of
Varo NV.
▪We reserve the right to reject a claim whenever the purchase cannot be verified or when it
is clear that the product has not been properly maintained. (Clean ventilation slots, carbon
brushes serviced regularly, etc.).
▪Your purchase receipt must be kept as proof of date of purchase.
▪Your appliance must be returned undismantled to your dealer in an acceptably clean state,
(in its original blow-moulded case if applicable to the unit), accompanied by proof of
purchase.
17 ENVIRONMENT
Should your machine need replacement after extended use, do not put it in the
domestic waste but dispose of it in an environmentally safe way.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
All manuals and user guides at all-guides.com

POWE50102 EN
Copyright © 2018 VARO P a g e | 12 www.varo.com
18 DECLARATION OF CONFORMITY
VARO N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,
product: Mini Mitre saw
trade mark: POWERplus
model: POWE50102
is in conformity with the essential requirements and other relevant provisions of the applicable
European Directives, based on the application of European harmonized standards. Any
unauthorized modification of the apparatus voids this declaration.
European Directives (including, if applicable, their amendments up to the date of signature):
2011/65/EU
2006/42/EC
2014/30/EU
European harmonized standards (including, if applicable, their amendments up to the date of
signature):
EN61029-1 : 2009
EN61029-2-9 : 2012
EN55014-1 : 2006
EN55014-2 : 2015
EN61000-3-2 : 2014
EN61000-3-11 : 2013
Keeper of the Technical Documentation: Philippe Vankerkhove, VARO –Vic. Van Rompuy
N.V.
The undersigned acts on behalf of the company CEO,
Philippe Vankerkhove
Regulatory Affairs –Compliance Manager
Date: 28/09/2016
All manuals and user guides at all-guides.com
