Vaughan Stratfield User manual
Care Instructions -
Read Before Installation
- This box contains fragile and valuable goods that
have been carefully packed. Please take utmost care
in unpacking the parcel as damage can occur in this
process.
- Please be sure you have received the correct
number of boxes i.e. 1 of 2, 2 of 2 etc.
- Under no circumstances should the product be
lifted out by the neck or light tting.
- If you have received any damaged goods or are
missing any part of your order, please contact our
sales oce as soon as possible
Recycling
-
Recyclable packaging used, please consult with
your local recycling centre for further information.
- Waste electrical products should not be disposed
of with conventional household waste. Please
recycle all parts when possible.
Cleaning Instructions
Brass - all types: Use a soft dry lint free cloth
Bronze, Nickel, Silver & Chrome: Use a dry cloth
only, no chemical cleaners
Glass: We recommend using a strong alcohol such as
isopropyl alcohol. Note: some modern cleaning
solutions can contain chemicals that can leave a
greasy lm on glass.
Gilt Wood: Use a dry cloth only
Ceramic: Use a damp cloth only
Wood: Wax polish i.e. Antique wax
Alabaster: Dust with a soft brush or a clean dry cloth.
Avoid water or water-based cleaners. Any marks that
cannot be removed by dusting must be cleaned by a
specialist.
Lacquered Furniture: Furniture polish
Crystal: Damp cloth
Card/Laminated Shades: Use a Feather duster only
Silk Shades: Gently tap to lift dust
Needlework: Dry-clean
-Any decorative parts made from other materials
must be removed and cleaned separately to avoid
damage - e.g. alabaster.
After choosing a suitable location that meets all the requirements of
the safety information install the unit following the steps overleaf.
- Carefully unpack all parts and check for damage or missing parts
before commencing installation.
- Installation of this product must be carried out by a qualied
electrician.
- Disconnect the electrical supply before installation. Switch o the
electricity at the fuse box by removing the relevant fuse or switching
o the circuit breaker before proceeding with the installation.
- Install should be carried out in accordance with the wiring regulations
and building codes applicable to the country of installation.
- Before making any xing hole(s), check that there are no obstructions
hidden beneath the mounting surface such as pipes or cables.
- Ensure that the support for the light is of sucient structural strength and that any xing screws do not
interfere with the connecting cables.
- The unit can get very hot during use. Switch the product o and allow to cool before handling or changing
bulbs. .
- Ensure adequate ventilation space is allowed between the unit and any object above, in front or to either
side of the unit. Suggested minimum space is 0.5m above and 0.5m on all sides.
- To prevent tarnishing, it is advisable to wear gloves at all times when handling the product.
- Mains connector must be a lever slicing connector; with a minimum of 3 terminals; rated to 240v 16A
(minimum); conforming to IEC 60998-2-1 or IEC 60998-2-7
Safety Information - Read Before Installation
VAUGHAN
Installation Guide
www.vaughandesigns.com
Stratfield Wall Lantern
WA0364
Rev 1
6. Reattached the cover previously
removed ensuring it is correctly
secured to the product.
5. Having identied the house-
hold wiring, connect the building
supply and the product wires
together in the terminal block/s as
shown above.
Once complete make sure the
exible seals and terminal block
cover are correctly secured.
(
4. Position the product onto the
wall by lining up the product's
location holes to that of the
mounting screws.
3. Pierce the grommit in the back
of the product and feed the
household cabling through the
grommit into the terminal
enclosure at the bottom of the
product.
2. Measure and mark out the wall
xings prior to installation. Screw
suitable xings to the two top
mounting locations.
Ensure the xings protrude from
the wall approximately 8mm
8mm
1. Remove the screws on the
cover located on the underside of
the product. This will expose the
sealed terminal block.
After choosing a suitable location that meets all the requirements of
the safety information install the unit following the steps overleaf.
- Carefully unpack all parts and check for damage or missing parts
before commencing installation.
- Installation of this product must be carried out by a qualied
electrician.
- Disconnect the electrical supply before installation. Switch o the
electricity at the fuse box by removing the relevant fuse or switching
o the circuit breaker before proceeding with the installation.
- Install should be carried out in accordance with the wiring regulations
and building codes applicable to the country of installation.
- Before making any xing hole(s), check that there are no obstructions
hidden beneath the mounting surface such as pipes or cables.
- Ensure that the support for the light is of sucient structural strength and that any xing screws do not
interfere with the connecting cables.
- The unit can get very hot during use. Switch the product o and allow to cool before handling or changing
bulbs. .
- Ensure adequate ventilation space is allowed between the unit and any object above, in front or to either
side of the unit. Suggested minimum space is 0.5m above and 0.5m on all sides.
- To prevent tarnishing, it is advisable to wear gloves at all times when handling the product.
- Mains connector must be a lever slicing connector; with a minimum of 3 terminals; rated to 240v 16A
(minimum); conforming to IEC 60998-2-1 or IEC 60998-2-7
www.vaughandesigns.com
Stratfield Wall Lantern Stratfield Wall Lantern
WA0364

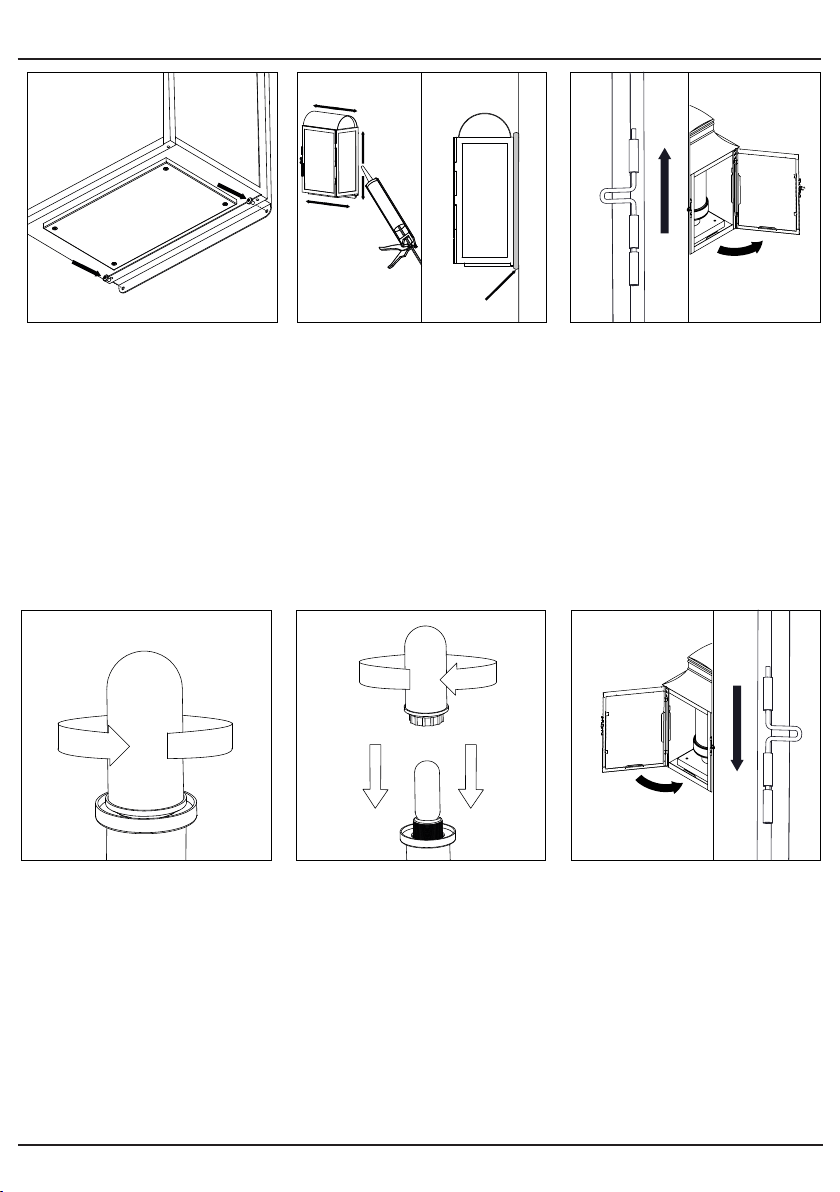

9. To access the bulb, lift the latch
to release the door.
8. Apply a 3mm bead of silicone
around the perimeter of the
product. Ensure there is a
complete seal between the
product and the wall.
7. Secure the bottom of the
product to the wall using
mounting screws.
Ensure the product is secured to
the wall.
12. After accessing the bulb,
gently close the door. Close the
latch and ensure it is secure.
11. When the bulb has been
replaced, replace the gasket and
the glass cap ensuring the cap is
secured tightly. NOTE: The cap
must be tightly secured, failure to
secure the cap will result in water
ingress and risk of electrical shock.
10. To replace the bulb, unscrew
the glass cap on the lamp holder
and remove the bulb.
www.vaughandesigns.com
Stratfield Wall Lantern
WA0364
1. Retirez les vis du couvercle situé sur la face inférieure
du produit. Le bornier scellé est alors exposé.
2. Mesurez et marquez les xations murales avant
l'installation. Vissez des xations appropriées aux deux
emplacements de montage supérieurs. Assurez-vous que
les xations dépassent du mur d'environ 8mm.
3. Faites passer le câblage domestique par le trou de
câble dans le boîtier de la borne au bas du produit.
4. Positionnez le produit sur le mur en alignant les trous
d'emplacement du produit avec ceux des vis de
montage.
5. Après avoir identié le câblage domestique, connectez
les ls d'alimentation du bâtiment et les ls du produit
ensemble dans le bornier comme indiqué ci-dessus. Une
fois terminé, assurez-vous que les joints exibles et le
couvercle du bornier sont correctement xés.
6. Remettez le couvercle retiré précédemment en place
en vous assurant qu'il est correctement xé au produit.
7. Fixez le bas du produit au mur à l'aide de vis de
montage. Assurez-vous que le produit est bien xé au
mur.
8. Appliquez un cordon de silicone de 3mm sur le
périmètre du produit. Assurez-vous qu'il y a un joint
complet entre le produit et le mur.
9. Pour accéder à l'ampoule, tirez sur le loquet an de
libérer la porte.
10. Pour remplacer l'ampoule, dévissez le bouchon en
verre du support de lampe et retirez l'ampoule.
11. Une fois l'ampoule remplacée, remettez le joint et le
bouchon en verre en vous assurant que le bouchon est
Français
1. Quite los tornillos de la tapa ubicada en la parte inferior
del producto. Esto expondrá el bloque de terminales
sellado.
2. Mida y marque las jaciones de la pared antes de la
instalación. Atornille las jaciones adecuadas en los dos
lugares de montaje superiores. Asegúrese de que las
jaciones sobresalgan de la pared aproximadamente
8mm.
3. Pase el cableado de la casa a través del oricio del cable
de la caja de terminales situado en la parte inferior del
producto.
4. Alinee los oricios de ubicación del producto con los
de los tornillos de montaje para colocarlo en la pared.
5. Una vez identicado el cableado de la casa, conecte el
suministro del edicio y los cables del producto juntos en
el bloque de terminales como se muestra arriba. Una vez
hecho esto, compruebe que los sellos exibles y la
cubierta del bloque de terminales estén correctamente
asegurados.
6. Vuelva a colocar la cubierta que quitó anteriormente y
compruebe que esté correctamente jada al producto.
7. Asegure la parte inferior del producto a la pared con
tornillos de montaje. Compruebe que el producto esté
asegurado a la pared.
8. Aplique una bola de silicona de 3mm alrededor del
perímetro del producto. Cerciórese de que se forme un
sello completo entre el producto y la pared.
9. Para acceder a la bombilla, tire del pestillo para abrir la
compuerta.
10. Para reemplazar la bombilla, desenrosque la tapa de
vidrio del portalámparas y retire la bombilla.
Español
1. Entfernen Sie die Schrauben an der Abdeckung auf der
Unterseite des Produkts. Dadurch wird der vergossene
Klemmleiste oengelegt.
2. Messen und markieren Sie die Wandmarkierungen vor der
Montage. Schrauben Sie geeignete Befestigungen an die zwei
oberen Befestigungsstellen. Stellen Sie sicher, dass die
Befestigungen etwa 8mm aus der Wand herausragen.
3. Führen Sie die Hausverkabelung durch das Kabelloch im
Anschlussklemmen-Gehäuse unten am Produkt.
4. Positionieren Sie das Produkt an der Wand, indem Sie die
Aufnahmebohrungen des Produkts mit denen der Befesti-
gungsschrauben ausrichten.
5. Nach Identikation der Hausstromverkabelung verbinden Sie
die Gebäudeversorgung und die Produktkabel in der
Klemmleiste wie oben gezeigt. Wenn Sie damit fertig sind,
vergewissern Sie sich, dass die exiblen Dichtungen und die
Klemmleiste korrekt gesichert sind.
6. Bringen Sie die zuvor entfernte Abdeckung wieder an und
stellen sie sicher, dass Sie korrekt am Produkt befestigt sind.
7. Befestigen Sie den Boden des Produkts mit Hilfe der
Befestigungsschrauben an der Wand. Stellen Sie sicher, dass
das Produkt an der Wand befestigt ist.
8. Tragen Sie eine 3 mm dicke Silikonraupe um den Umfang
des Produkts herum auf. Stellen Sie sicher, dass eine vollständi-
ge Abdichtung zwischen dem Produkt und der Wand
vorhanden ist.
9. Um an die Glühbirne zu gelangen, ziehen Sie an der
Verriegelung, um die Klappe zu entriegeln.
10. Um die Glühbirne zu wechseln, schrauben Sie die
Glaskappe auf dem Lampenhalter ab und entfernen die
Deutsche
1. Rimuovere le viti dalla copertura situata sul lato inferiore del
prodotto. Ciò esporrà il blocco terminale sigillato.
2. Misurare e segnare i sostegni a parete prima dell'installazione.
Avvitare sostegni adeguati alle due posizioni di montaggio
superiori. Assicurarsi che i sostegni sporgano dalla parete di
circa 8mm.
3. Collegare all'impianto elettrico domestico attraverso il buco
per i cavi situato all'estremità inferiore del prodotto.
4. Posizionare il prodotto sulla parete allineando i fori di
posizione del prodotto a quelli delle viti di montaggio.
5. Dopo aver individuato l'impianto elettrico domestico,
collegare l'alimentazione dell'edicio ai cavi del prodotto nel
blocco terminale come mostrato sopra. Dopodiché, assicurarsi
che i sigilli essibili e la copertura del blocco terminale siano
correttamente ssati.
6. Riattaccare la copertura precedentemente rimossa
assicurandosi che sia correttamente ssata al prodotto.
7. Fissare la parte inferiore del prodotto alla parete utilizzando le
viti di montaggio. Assicurarsi che il prodotto sia ssato alla
parete.
8. Applicare un cordone di silicone da 3 mm lungo il perimetro
del prodotto. Assicurarsi che la sigillatura tra il prodotto e la
parete sia completa.
9. Per accedere alla lampadina, tirare il fermo per rilasciare lo
sportello.
10. Per sostituire la lampadina, svitare la copertura di vetro sul
supporto della lampada e rimuovere la lampadina.
11. Una volta sostituita la lampadina, riposizionare la
guarnizione e la copertura di vetro assicurandosi che la
copertura sia ssata saldamente.NOTA: La copertura deve
Italiano
Stratfield Wall Lantern
WA0364
WA0364_EU_IG
Other Vaughan Home Lighting manuals
