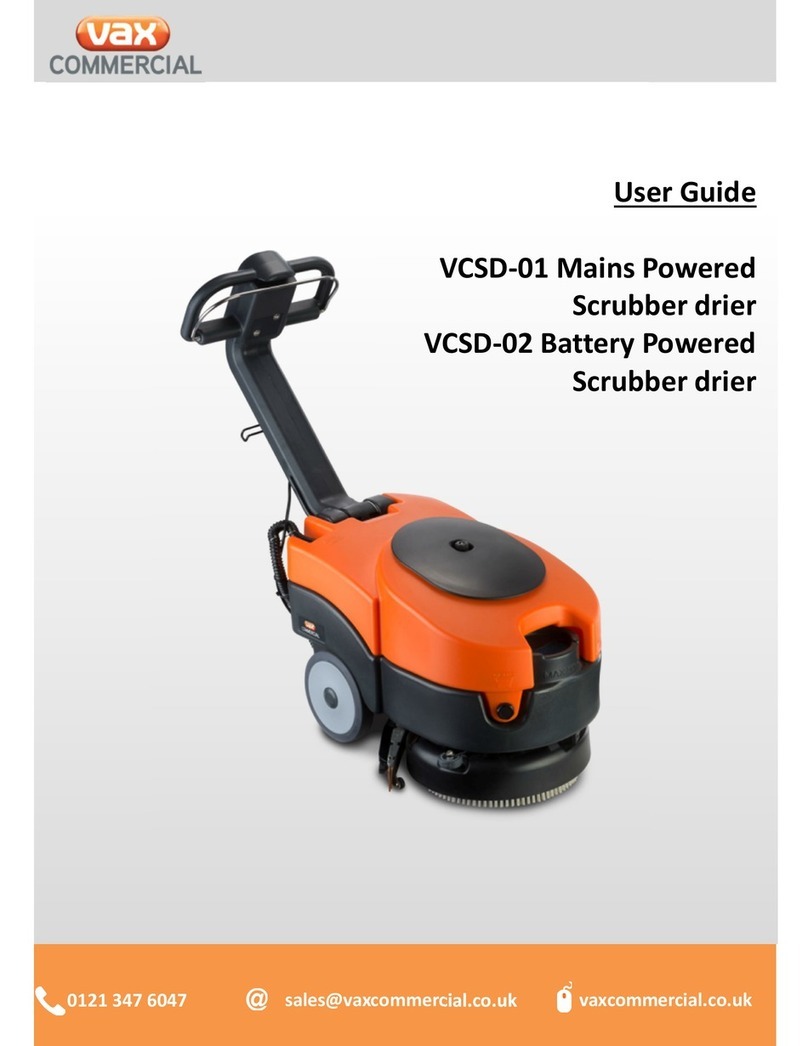

Vax VCSD-01 User manual

Getting the most out of your machine
Quickstart Guide
VCSD-01/VCSD-02
Scrubber dryer
VCSD-01/VCSD-02
1) Getting started 2) How to use
Release the handle bar by depressing the handle
release pedal (A).
Turn the machine on and select the
required setting.
A = on/o switch (mains powered
unit only)
B = suction motor on/o switch
C = water ow on/o switch
D = brush motor on/o switch
Disconnect the recovery hose, remove the orange dirty
water tank, plug the charger into the battery then replace
the tank. The unit needs to be plugged in and charged for
4 hours before use until the green LED is displayed.
Fill machine - Pour recommended amount of cleaning
solution into the opening as shown, and top with water
to maximum ll level (max temp of 50°C).
To lift or lower
the squeegee
use the lever
as indicated.
Connect main
isolator key
(battery
version only).
Place scrubber
pad on the oor
and lift pad
holder over the
pad to x to the
machine.
To activate brushes, pull control
lever towards handle.
Rotate the isolation key on the back
of the unit anti-clockwise to isolate
all power. The key can now be
removed from the unit.
Insert the key and fully rotate
clockwise to provide power for
all functions. The key cannot be
removed in this position.
Open and
adjust the clean
solution water
tap to adjust
ow of water.
Connect the recovery hose located on the back of the
machine to the dirty water tank.
VCSD-01_VCSD-02_QSG_A5_[J1831]_Amd_11.07.13_2.indd 1 11/07/2013 17:03

Simply visit: commercial.vax.co.uk/SUPPORT or call (UK) 0844 375 4275 (ROI) 1-800 928 308
we’re here if you need us
UK based customer care centre
— Open 7 days a week
Monday-Friday 8:30-18:30
Saturday and Sunday 9:00-17:00
It’s quick and easy to register for your
FREE 1 year warranty
online at:
vaxcommercial.co.uk/warranty
3) To empty and maintain
To empty the recovery tank (model may vary from image shown):
1. Pull out the hose and locate over a drain or bucket. Remove the hose cap.
2. Remove any solid dirt by lling and draining the tanks until all dirt has gone:
use a washing hose or similar tool to do this.
Important: Water hotter than 50°C, a high-pressure cleaner or excessively powerful sprays
may damage the tanks and the machine.
To empty the clean water/solution tank:
Unscrew water lter cap found in lower part of the solution tank and wait until the tank
is completely empty.
Note – water should be emptied near a drain.
Maintenance tips
Leave tanks open while the machine is not in use. This will prevent odours from developing in the tanks.
Always remember to replace tank caps before use.
Safety
• Thisguideisaquickreferenceguidetousingthismachine.Forfulldetailsonsafety,useandmaintenance,
please refer to the full user guide. This can be downloaded at vaxcommercial.co.uk.
• Thismachinemustbemaintainedaspertheinstructionsintheuserguide.
• Wearableorwornpart–donotusethemachineuntilthesepartshavebeenreplacedbyanauthorisedperson.
• Healthandsafetyproceduresmustbeadheredtoatalltimes.
Spares and accessories
For spares and accessories call us on 0121 347 6047 or email [e-mail]
For a copy of the full user guide, visit vaxcommercial.co.uk
To arrange a free demonstration or to book any product training, please email us:
[e-mail]
