Vax Air Force VAFTHU User manual

Bagless Upright
Get Cleaning...
What’s your Vax’s model number?
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
vax.com.au VAFTHU
User Guide
Vax Careline: AU: 1300 361 505
NZ: 0800 800 900
V A F T H U

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900 vax.com.au

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au 2
Machine Overview
Unit
Accessories
22
Filters
2
3
1
4
5
6
7
10
16
19
1
11
13
14
15
18
17
8
9
20
16
21
12
1 Telescopic extension tube / handle
2 Handle height adjuster
3 Dirt container release button
4 Carry handle
5 Power on/o button
6 Inner cyclones
7 Dirt container
8 Hose
9 Hose to machine connector
10 Height adjustment
11 Hose extension tube connector
12 Handle cord hook
(for attaching the cord when the
machine is in use)
13 Handle release button
14 Turbo tool caddy
15 Upper cord hook
16 3-in-1 crevice, upholstery and
dusting brush tool
17 Cord
18 Lower cord hook
19 Turbo tool
20 Hard oor tool
21 Pre-motor lter
22 HEPA H12 antibacterial post motor lter
PLEASE NOTE: some parts may vary
according to model. Please check inside ap
of box for more details.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au
3
General Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions should
always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
2. Turn off the on/off switch on the vacuum cleaner controls
before disconnecting or connecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the vacuum hose and accessories.
4. Children should be supervised to ensure that they do not play
with the appliance.
5. This appliance is not intended for use by children and persons
with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance
in a safe way and understands the hazards involved.
6. Cleaning and maintenance shall not be made by children.
7. The appliance should only be used as described in this
user guide.
8. Only Vax recommended attachments should be used with
this appliance.
9. Do not use this vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not use this
vacuum cleaner with a damaged cord or plug.
10. Do not pull or carry this appliance by the cord. Do not use the
cord as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the vacuum cleaner
over the cord. Keep the cord away from heated surfaces.
11. Do not handle the plug or the vacuum cleaner with wet hands.
12. Keep hair, loose clothing, fingers and all parts of the body away
from openings and moving parts.
13. Do not pick up any hot coals, ash, cigarette butts, matches or
any hot, smoking or burning objects.
14. Do not pick up any flammable or combustible materials (lighter
fluid, petrol, kerosene etc.) or use in the presence of explosive
liquids or vapours.
15. Do not vacuum harmful or toxic material (chlorine, bleach,
ammonia, drain cleaner etc.).
16. Do not vacuum hard or sharp objects such as glass, nails,
screws, coins etc.
17. Do not vacuum plaster dust, concrete dust or any other building
or vitreous materials.
18. Do not vacuum baking soda or any other powder-based carpet
refresher or deodoriser.
19. Store the vacuum cleaner in a cool, dry area.
20. Use only SAA approved 10amp extension cords. Non-approved
cords may overheat. Care should be taken to arrange the cord
so that the cord cannot be tripped over.
21. Do not put any objects into openings. Do not use with any
openings blocked and do not restrict airflow. Keep all openings
free of dust, lint, hair or anything that might reduce airflow.
22. Do not use the vacuum cleaner with blocked filters and without
all of the filters in place.
23. Take extra care when positioning the vacuum cleaner on the stairs.
24. Please ensure that the brushbar is turned off when you are
vacuuming on the stairs.
25. Keep vacuuming area well lit.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au 4
General Safety Information
WARNING: Always switch off and unplug the vacuum
cleaner from the electrical socket before assembling, opening
or emptying the dirt container, or before connecting/
disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful unit.
Before plugging the cord into the electrical socket, make sure
the switch is in the ‘off’ position.
IMPORTANT: If the inlet, hose or telescopic tube is blocked,
switch off the vacuum cleaner and remove the blockage(s)
before re-starting the vacuum cleaner.
IMPORTANT: Vax recommends the use of Residual Current
Device Rating of 30mA or less.
IMPORTANT: It is very important that filters are kept clean
to obtain maximum performance from your vacuum cleaner.
Not cleaning and not replacing your filters regularly can
reduce the suction power and cause overheating and
permanent damage to the vacuum cleaner.
NOTE: If the supply cord is damaged it must be replaced by
the manufacturer, or a similarly qualified person in order to
avoid hazard, or invalidating the warranty.
IMPORTANT: The motor is equipped with a thermal cut-out.
If for any reason the unit should overheat (eg. from blocked
nozzles, a full dust container or unclean filters), the
thermostat will automatically turn off the switch. Should this
occur, unplug the vacuum cleaner from the electrical socket
and turn off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately one (1)
hour. To re-start, plug into an electrical socket and switch
back on.
DAMAGE TO THE VACUUM CLEANER CAUSED AS A
DIRECT RESULT OF NOT ADHERING TO THE GENERAL
SAFETY INFORMATION AND THE INSTRUCTIONS IN
THIS USER GUIDE INVALIDATES THE WARRANTY
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au
5
Operation
Keep your Vax like new
Assembling your vacuum cleaner
IMPORTANT: The condition of the lters aects the performance of your machine. For best cleaning
results, check the condition of your lters every time you empty the dirt container and clean accordingly.
If your lters are washable make sure they are completely dry before inserting them into the vacuum
cleaner. For full cleaning instructions, see pages 8 and 9.
IMPORTANT: Do not use the vacuum cleaner without all of the lters in place.
IMPORTANT: Even with regular cleaning, lters have a limited lifespan and will eventually need to be
replaced during the lifetime of the vacuum cleaner. If the performance of your vacuum cleaner is
compromised and/or the lters are severely discoloured, the lters may need to be replaced. As a general
guide, Vax recommends lters be replaced every 3-6 months depending on the level of use to ensure
optimum performance of your vacuum cleaner.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au 6
Operation
Operating the appliance
Twist cord hook to
release cord.
Recline unit by pressing
foot on front of unit.
Adjust handle height.
In upright position turn
height adjustment to
desired setting.
High setting for high
carpet pile and hard oors.
Low setting for low
carpet pile.
IMPORTANT: When the vacuum cleaner is stood in the upright position or when using the hose and tools,
the carpet height adjustment must be set to the high setting.
NOTE: Vax recommends that you raise the height of the brushbar to the high setting when using this cleaner
on lino and hard ooring due to constant rotation. Vax cannot be held responsible for damage to these
surfaces if the customer fails to take notice of this recommendation.
Plug into mains. Turn unit on.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au
7
Operation
Using accessories
Attaching the hose
Attaching the telescopic extension tube
NOTE: The 3-in-1 tool and TurboTool can be attached to the telescopic tube or hose directly.
NOTE: The hard oor tool can ONLY be attached to the telescopic tube.
NOTE: To change setting on your 3-in-1 tool, press in the Vax logo located at the top of the tool.
Press the latch release on
the hose before removing.
Remove telescopic
extension tube.
Choose an accessory.
Attach hose to telescopic
extension tube ensuring
the latch secures the hose.
Choose an accessory.
Attach accessory to
telescopic extension tube.
Attach accessory to hose
ensuring the latch secures
the accessory.
Hard oor tool can only be
attached to telescopic tube.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au 8
Maintenance (Keep your Vax as good as new)
Emptying and cleaning the dirt container

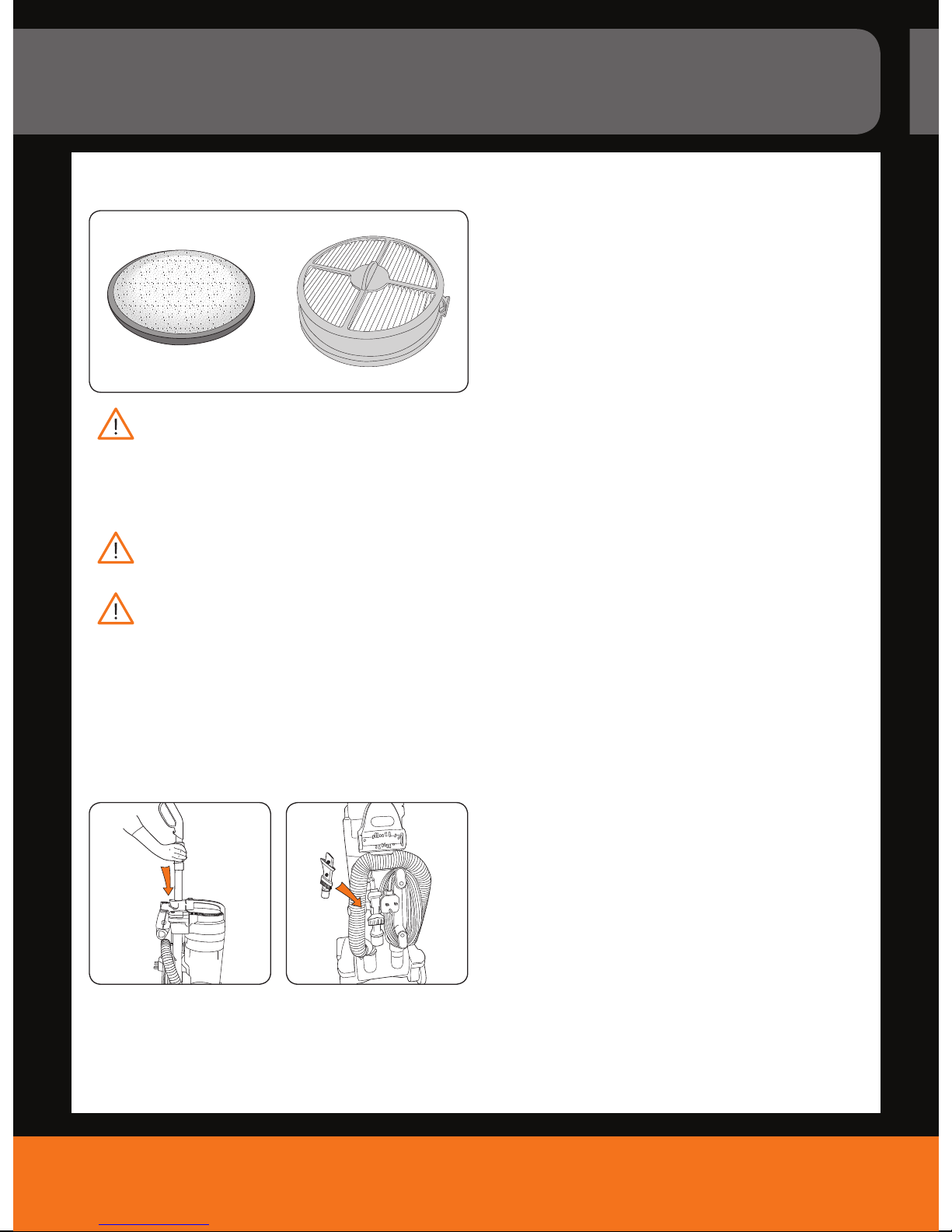

Cleaning the HEPA pre-motor lter
IMPORTANT: Water temperature should not exceed 40°C when washing the pre-motor lter.
IMPORTANT: Ensure the pre-motor lter is completely dry before inserting back into the vacuum cleaner.
Tap to remove dirt and debris for
a quick clean and before washing.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au
9
Maintenance (Keep your Vax as good as new)
Advanced lter cleaning
Cleaning the post-motor lter WARNING: Do not wash the post-motor lter

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au 10
Maintenance (Keep your Vax as good as new)
Removing blockages

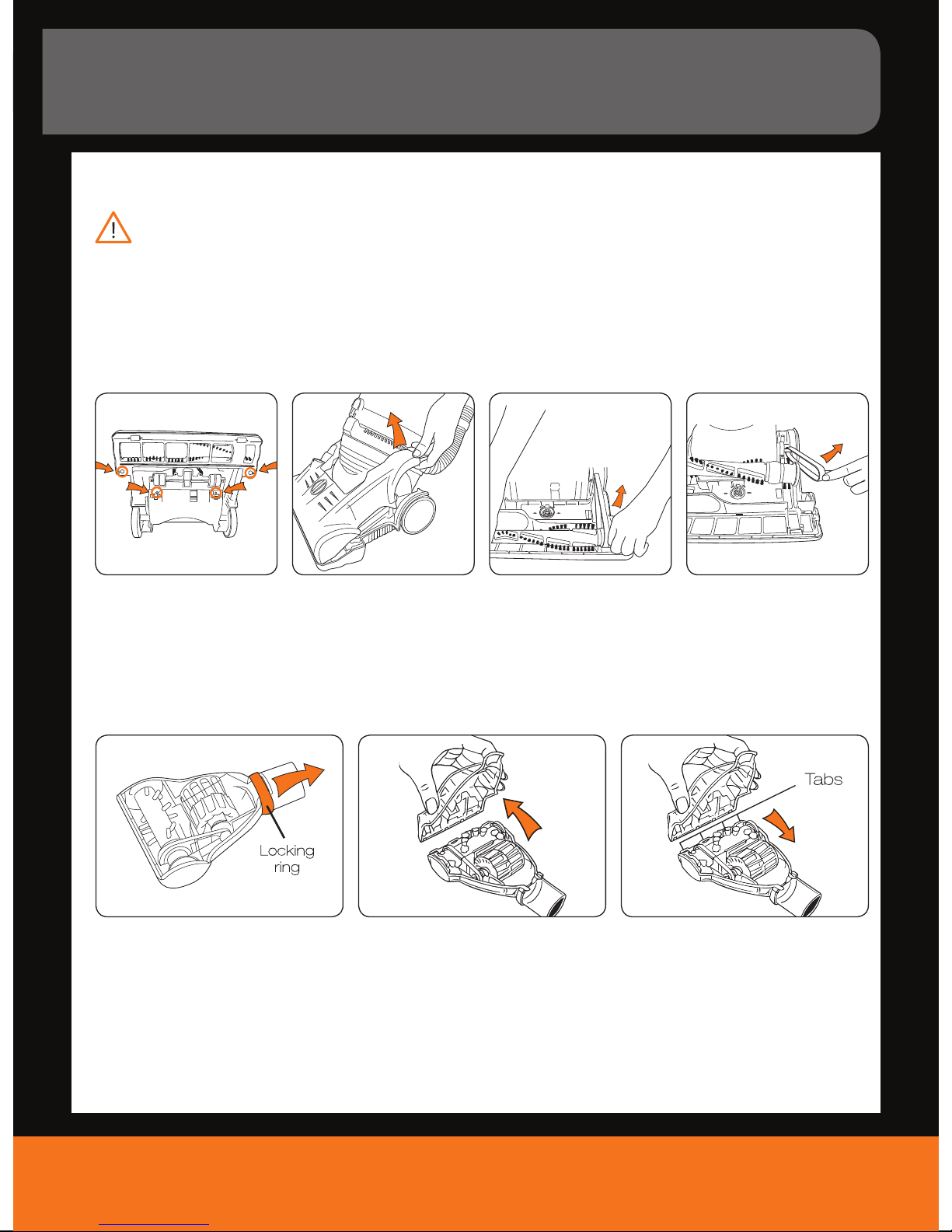

Removing blockages from the brushbar
Removing blockages from the TurboTool
WARNING: To reduce the risk of electric shock, turn the vacuum cleaner o and unplug from the electrical
outlet before performing maintenance/troubleshooting checks.
Disconnect the hose from the vacuum cleaner and remove any blockages found then reconnect the hose securely.
Unscrew the 4 screws
on the base of unit.
Slide o the locking ring. Pivot lowering housing and
remove clog.
To re-assemble, be sure that the
tabs are engaged. Pivot the lower
housing closed. Slip the locking ring
into the groove at the neck of the
Turbo Tool to complete reassembly.
Remove cover of
oor nozzle.
Lift the brush bar out of its
position.
Remove the belt from the
end of the brushbar.
Advanced lter cleaning

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au
11
FAQ’s
Problem Solution
Is there an accessory missing? Check the ‘Machine Overview’ page in this guide to make sure the part is definitely
included in your unit.
If it is missing, we’re here to help. Simply call us on AU 1300 361 505 or NZ 0800 800 900
Why won’t the vacuum cleaner
pick up?
The dirt container may be incorrectly installed; remove the dirt container from the unit by
pressing the dirt container release catch and then re-attaching it to the unit, ensuring it is locked
firmly back into place.
The filter may be clogged; refer to ‘Keep you Vax like new’ on page 5 and ‘Maintenance: Cleaning
the filters’ on pages 8 and 9.
The dirt container may be blocked; refer to ‘Maintenance: Emptying and cleaning the dirt
container’ on page 8.
There may be a blockage in the hose/tube; disconnect from the vacuum cleaner. Carefully
remove any blockages found and reconnect securely.
Why is dust escaping from
the vacuum?
The filter may be clogged; refer to ‘Keep you Vax like new’ on page 5 and ‘Maintenance: Cleaning
the filters’ on pages 8 and 9.
The dirt container may be blocked; refer to ‘Maintenance: Emptying and cleaning the dirt
container’ on page 8.
The dirt container may be incorrectly installed; remove the dirt container from the unit by
pressing the dirt container release catch and then re-attaching it to the unit, ensuring it is locked
firmly back into place.
What do I do if the unit/an accessory
becomes damaged or broken? We’re here to help. Simply call us on AU 1300 361 505 or NZ 0800 800 900
Why won’t the accessories pick
up properly?
Hose blockages: remove the hose from the unit. Carefully remove any blockages found and
reconnect hose securely.
Accessory blockages: remove accessory from handle/tube. Carefully remove blockage and
re-attach to the vacuum cleaner.
The accessory may be faulty. Simply call us on AU 1300 361 505 or NZ 0800 800 900
Why will the vacuum cleaner
not run?
It may not be plugged into the electrical outlet correctly; ensure that the plug is pushed in securely.
The electrical outlet may not be working properly; check the fuse or breaker, or consult an electrician.
The motor thermostat may have tripped; switch off and unplug the vacuum cleaner, and leave for
one hour before switching the cleaner back on.
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before performing
maintenance/troubleshooting checks.

Vax Service line: AU: 1300 361 505
NZ: 0800 800 900
vax.com.au 12
Other Information
Vax Service & Help
Vax Careline:
Australia 1300 361 505
New Zealand 0800 800 900
Monday-Friday 8.30am to 5.00pm
If you have queries or concerns about using your Vax, call the Vax Careline. Calls are charged at the standard
local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling.
For the nearest Service Agent, please call the Vax Customer Careline or visit vax.com.au
Technical Specication
Voltage: 220-240V ~50Hz
Wattage: 1600W
Capacity: 4 Litres
Filter: Pre-motor lter – washable
HEPA H12 antibacterial post motor lter – tap to clean (do not wash)
Cord length: 10m
Weight: 8kg
Subject to technical change without notice.
\
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
N197
Double
Insulated
Indoor
Use
Read
Instructions

Distributed by Techtronic Industries Australia Pty. Ltd.
Level 1, 660 Doncaster Road, Doncaster, Australia 3108.
www.vax.com.au Service Line: AU: 1300 361 505 / NZ: 0800 800 900
