Vax Power Plus 6 User manual

Get Cleaning...
Bagless Upright
User Guide
www.vax.com.au VPPUP1500
What’s your Vax’s model number?
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
Vax Service line AU: 1300 361 505
NZ: 0800 800 900
-----
VPPUP 1 500

2Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900

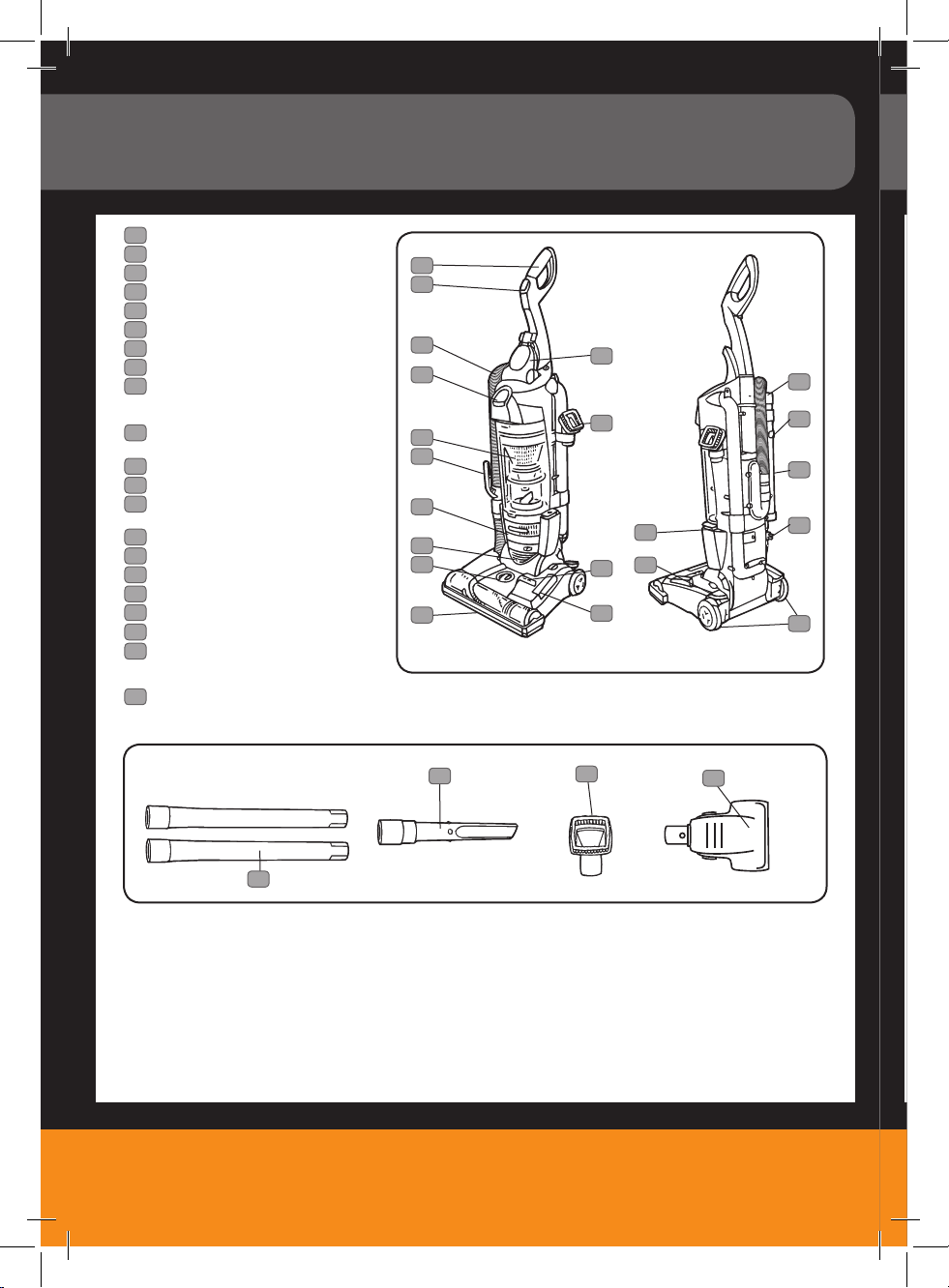

Machine Overview
Lubrication
The motor is equipped with bearings that contain sufficient lubrication for the life of the motor. The addition of lubricant could
cause damage. Therefore, do not add lubricant to motor bearings.
The agitator brush roll is equipped with two ball bearings that should be lubricated periodically by a Vax Authorised
Service Agent.
Accessories
Operate cleaner only at voltage specified
on rating plate on back of cleaner.
Soft Touch™ Handle Grip
ON/OFF Switch
Hose
Dust Bin release button
Dust Bin assembly
Hose Handle
Cord reel window
Headlight
Nozzle control (Turn knob to correct
setting for height of carpet being
cleaned)
Furniture guard (Helps prevent
cleaner from marking furniture)
Agitator brush roll shut-off indicator
Final filter access
Combination tool (Upholstery &
dusting brush
Turbo tool
Crevice tool
Hose/tool holder
Wands
Cord reel
Soft Touch™ wheels
Handle release pedal (step on
lever to lower handle to operating
positions.)
Cord rewind button (press button to
rewind cord for storage. Hold plug
until cord is rewound)
1
2
3
4
5
6
7
8
9
11
10
12
13
14
15
16
16
17
17
18
18
19
20
21
1
2
3
4
5
6
7
8
9
10
13
14
15
11
12
19
20
21
14
15
17
13

3
www.vax.com.au
General Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces.
2. Turn off the vacuum cleaner controls before disconnecting
or connecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the vacuum hose and accessories.
4. Children should be supervised to ensure that they do not
play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not
use the vacuum cleaner with a damaged cord or plug.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
8. Do not pull or carry by cord. Do not use the cord as a
handle, close a door on the cord or pull cord around sharp
edges or corners. Do not run the vacuum cleaner over the
cord. Keep the cord away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet hands.
Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use with
any openings blocked and do not restrict airflow. Keep
all openings free of dust, lint, hair or anything that might
reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the body
away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or any
hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene etc.) or use in the presence
of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material (chlorine,
bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as glass,
nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner
21. Use only SAA approved 10 amp extension cords. Non-
approved cords may overheat. Care should be taken to
arrange the cord so that the cord cannot be tripped over.
22. Damaged cord to be replaced by manufacturer or
authorised Vax service agent.
23. We recommend the use of a residual current device with
a residual current rating of 30mA or less.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt container, or
before connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical outlet,
make sure the switch is in the ‘off’ position. Hold the vacuum
cleaner firmly when starting and in use.
IMPORTANT: If the inlet, hose or telescopic tube is
blocked, switch off the vacuum cleaner and remove
the blockage(s) before re-starting the vacuum cleaner.
IMPORTANT: Cleaning filters improves vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters
are washable make sure they are completely dry before
inserting back into the vacuum cleaner.
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason the unit should overheat, the
thermostat will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately one hour.
To re-start, plug into an electrical outlet and switch back on.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.

4Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Operation
1
4
3
56
2
Carton Contents
Attach handle
Position tools
Remove all parts from carton and identify each
item shown.
Make sure all parts are located before disposing
of packing materials.
Using a Phillips screwdriver, remove screws from the top of the upper housing assembly.
Insert handle section into upper housing assembly. Push down firmly until you hear a click.
Fasten screws on either side of handle base.
Place smaller diameter end of
wand (A) into bottom of rack.
Snap wand into clip at top.
Repeat with other wand.
Crevice tool (B) fits into one of
the extension wands.
Fit combination tool (C) into
storage area on side of cleaner
as shown.
Fit turbo tool (A) into recessed
area on front
of cleaner. Pivot toward handle
to snap in place.
Handle section
Cleaner base and upper
housing assembly
Extension wands
Turbo tool
Crevice tool
Combination tool
(Upholstery/ dusting brush)
1
2
3
5
4
6
C
A
A
B

5
www.vax.com.au

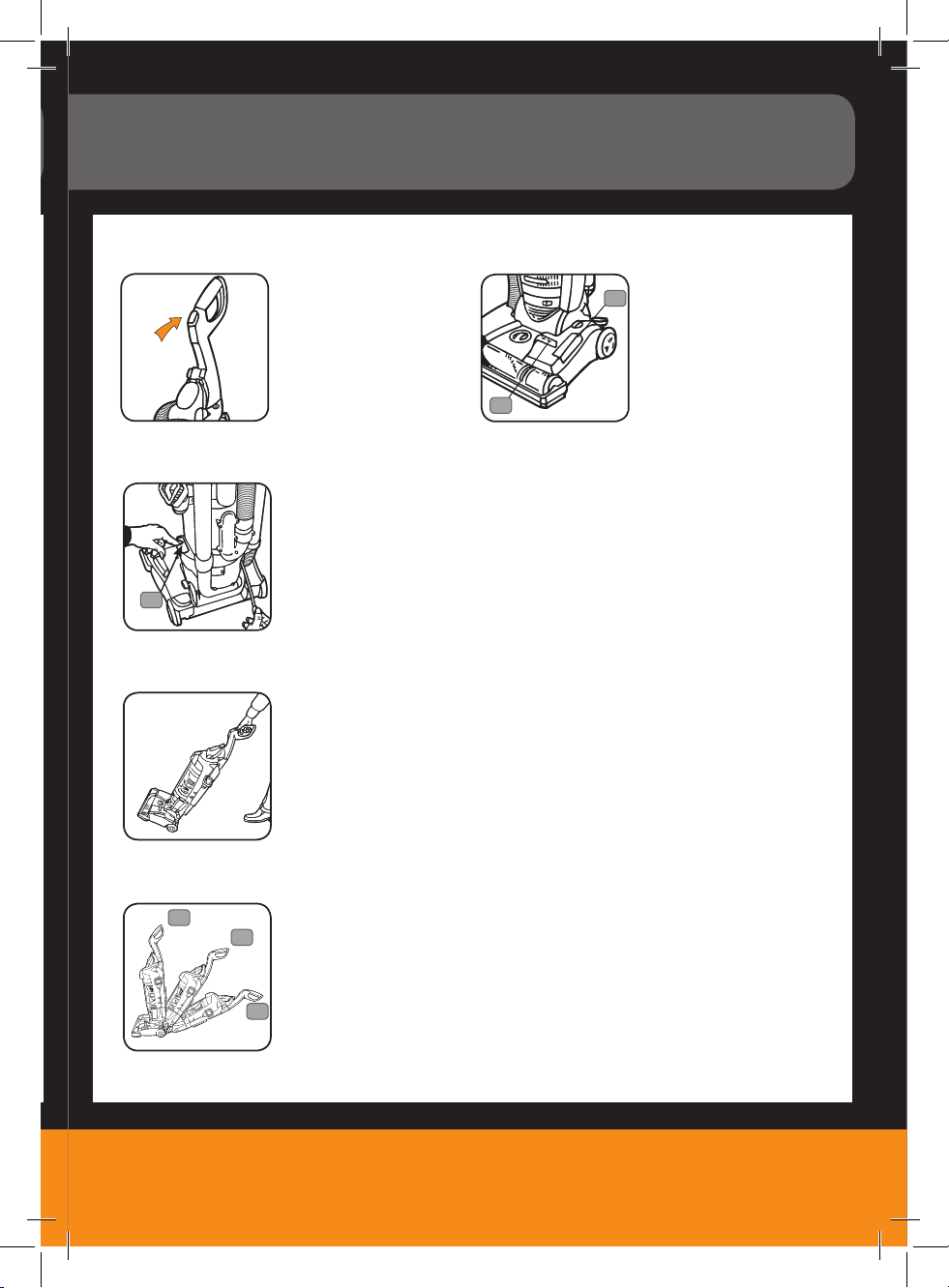

Operation
ON-OFF Switch Brush Roll Switch
Cord Rewind
Transporting Cleaner
Handle Positions
Plug cord into electrical outlet.
To turn cleaner ON, push ON/
OFF switch once.
To turn cleaner OFF, push
switch again.
Grasp the end of the plug and pull to release cord from cord
reel. After desired cord length is reached, the cord will lock into
position. To return cord for storage, hold plug and press on
button (A) at top of cord reel. To prevent cord from whipping,
hold plug until cord is rewound.
To move your cleaner from room to room,
put handle in upright position, tilt cleaner
back on rear wheels and push forward.
The handle of your cleaner has three positions; upright for
storage and when using cleaning tools; operating position for
general operation on carpet and floors; low for reaching under
low furniture. Step on handle release lever to lower handle.
The cleaner is shipped with
the agitator brush
roll in the OFF position.
To turn the agitator brush roll
ON, step on the pedal (A). The
indicator (B) will show red in
the “brush roll on” window.
1
2
3
A
B
A

6Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Operation
Carpet Height Adjustment
Settings
Agitator Brush Roll Shut-Off
Cleaning Tools
The cleaning of carpet and rugs takes place at the nozzle (A). When it is
necessary to raise and lower the nozzle for various carpet pile heights,
turn the nozzle control knob (B) to the desired setting.
For maximum cleaning performance, the following carpet height settings
are recommended:
• Lowest setting: for all types of carpet.
Note: If the cleaner is difficult to push, turn knob to the next higher setting.
• Higher settings: for very deep pile carpet, where easier pushing effort is
desired, while maintaining good cleaning performance.
The agitator brush roll shuts off automatically for tool use, when the cleaner
is in the upright position.
To manually shut off the agitator brush roll for cleaning hard floors, step on
the pedal (A). The indicator (B) will show red in the “brush roll off” window.
To turn the agitator brush roll on, step on the pedal again. The indicator will
show red in the “brush roll on” window.
Tools allow for cleaning surfaces above the floor and for reaching hard to clean areas.
The cleaner is ready for tool use when handle is in upright position.
The agitator brush roll will not rotate when the cleaner is in the upright position or the if the agitator brush
roll shut off indicator is in the OFF position when the handle is lowered.
IMPORTANT: Turn brush bar off when cleaning hard floors.
B
A
A
B

7
www.vax.com.au

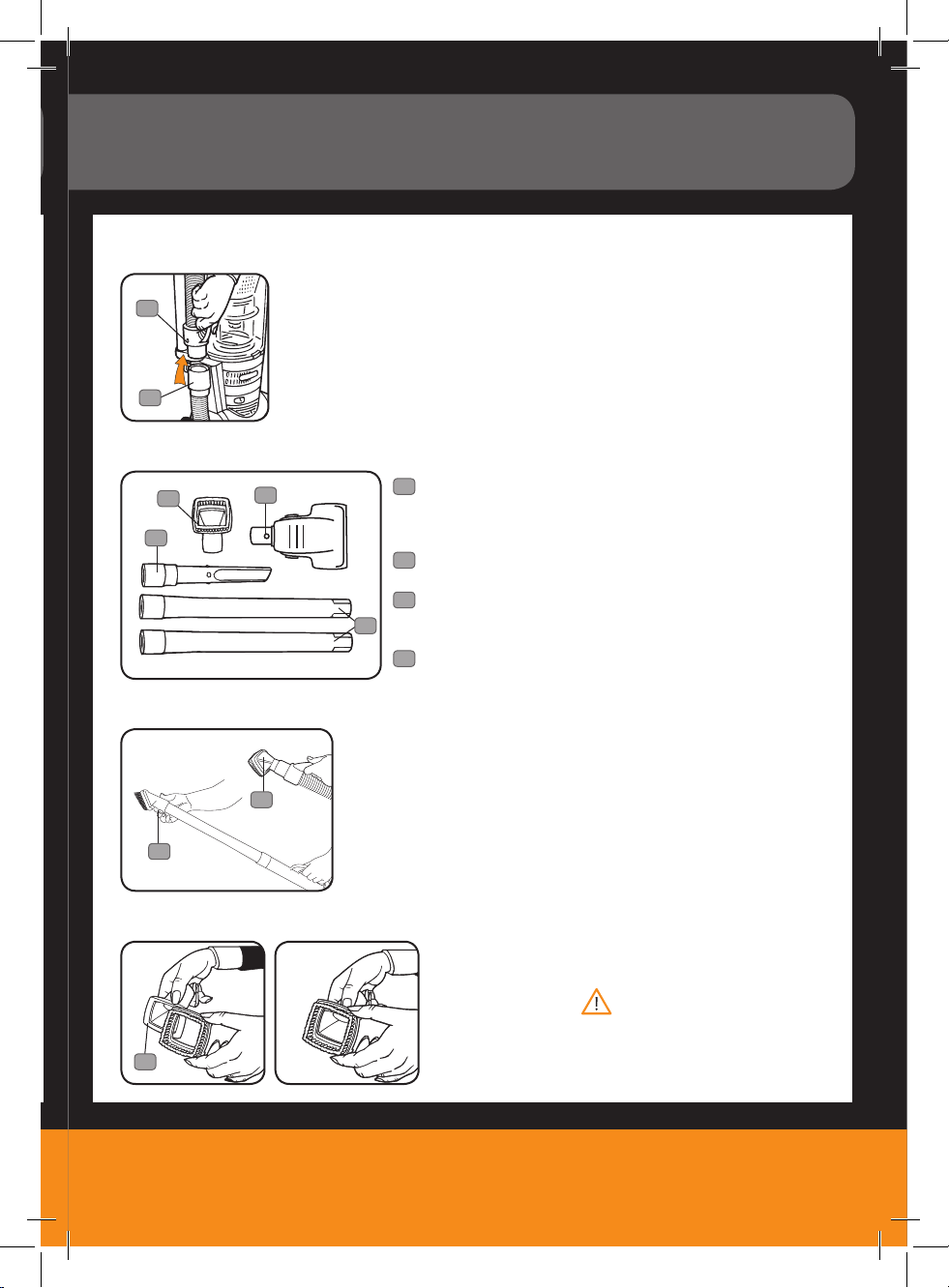

Operation
Removing Hose
Attached Wand & Tools
Combination Tool (Upholstery & Dust Brush)
Select Proper Tool
When using cleaning tools, place cleaner handle in the upright position. The agitator
brush roll will not rotate when the cleaner is in the upright position. Also, turn cleaner
OFF before disconnecting and connecting hose to hose tube (A).
To use hose, lift hose end (B) as shown. When you are finished cleaning with the
tools, reposition hose end into tube.
Attach tool or wand to the hose (A).
Attach tool to wand (B) by pushing it firmly onto the wand.
Twist wand or tool slightly to tighten or loosen the connection.
How to clean tools
To clean the hose and turbo tool, wipe off dirt with a cloth dampened in a mild
detergent. Rinse with a damp cloth. DO NOT submerge powered hand tool in water.
Cleaning tools may be washed in warm water with a detergent. Rinse and air dry
before using.
Slide brush to remove.
To replace brushes,
align bottom of brush
with grooves (A) on tool.
Slide brush into place.
Combination tool (Upholstery/ dust brush) use with brush for carved
furniture, table tops, books, lamps, lighting fixtures, venetian blinds,
baseboards, shutters, and registers. Remove brush to clean upholstered
furniture, draperies, mattresses, clothing, and carpeted stairs.
Turbo tool may be used for upholstered furniture, draperies, mattresses,
clothing, automobile interiors, and carpeted stairs.
Crevice tool may be used in tight spaces, corners and along edges
in such places as dresser drawers, upholstered furniture, stairs and
baseboards.
Extension wands are used to give extra length to your hose. Use them
with any of the above tools.
A
B
C
D
A
B
B
A
D
C
B
A
A
Use the hose and turbo tool for stair
cleaning. Clean from bottom to top.
CAUTION: To avoid personal injury
or unnecessary wear to carpet, and
to prevent the cleaner from falling, always
place it at bottom of stairs.
Stair Cleaning

8Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Maintenance
Familiarise yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued
cleaning effectiveness.
Empty the dust bin before the dirt reaches the fill line (A). Place the cleaner in the upright position
before removing the dust bin.
Disconnect cleaner from electrical outlet. Do not use cleaner without dust bin or filters in place.
Press dust bin release button (A) and pivot bin out. Holding dust bin over trash receptacle, press dust bin door
release button (A) to open dust bin door (B).
Close door and press dust bin door release button to latch
dust bin door closed.
Place bottom of dust bin into
cleaner body first.
Pivot cup into cleaner body.
Press on dust bin release button
while firmly pressing
on dust bin.
Release button in order for it
to return to proper position
and lock the dust bin into place.
Dust Bin
When to Empty
How to Empty
CAUTION: Very fine materials, such as face powder or cornstarch, may seal the filter and
cause a reduction in performance. When using the cleaner for this type of dust, empty the
bin and clean the filters often.
A
AA B

9
www.vax.com.au
Maintenance

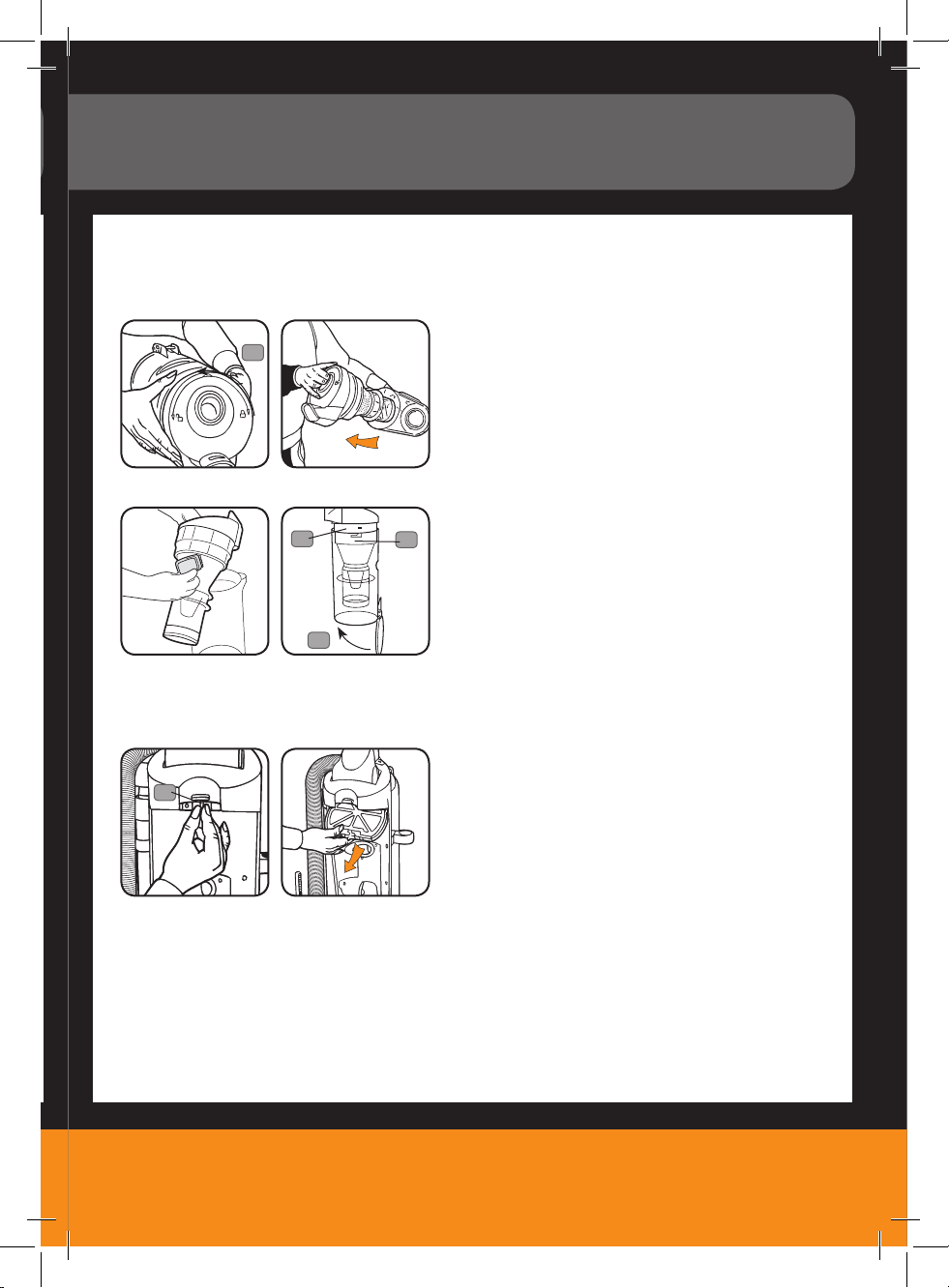

Disconnect cleaner from electrical outlet. Do not use cleaner without dust bin or filters in place.
Disconnect cleaner from electrical outlet. Do not use cleaner without dirt cup or filters in place.
Twist filter assembly (A) counterclockwise.
Remove assembly from dust bin.
Remove dust bin.
With thumb and forefinger, slide latch (A) located at the top of the
housing to the right and pull down to remove grey filter frame.
Remove black foam filter. Rinse filter frame cartridge and foam filter
under cold water.
Allow both filter frame and filter to air dry for 24 hours before
replacing filter into filter frame. Reposition filter frame cartridge by
inserting tabs into slots on back of housing. Rotate filter cartridge
frame up toward top of housing and snap closed.
Dirt and debris can be cleaned from the filter assembly
by brushing with the cleaner’s combination tool.
Place the filter assembly on the dust bin, aligning (3)
tabs (A) on filter with (3) slots on dust bin (B) and twist
it clockwise to secure into position. Press dirt cup door
release button (C) to latch dust bin door closed.
Replace dust bin.
A
A
A
B
C
Filters
Cyclonic Filter Assembly: How to Clean
Filters
Secondary Filter: How to Clean

10 Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Maintenance
Disconnect cleaner from electrical outlet. Do not use cleaner without dust bin or filters in place.
Disconnect cleaner from electrical outlet.

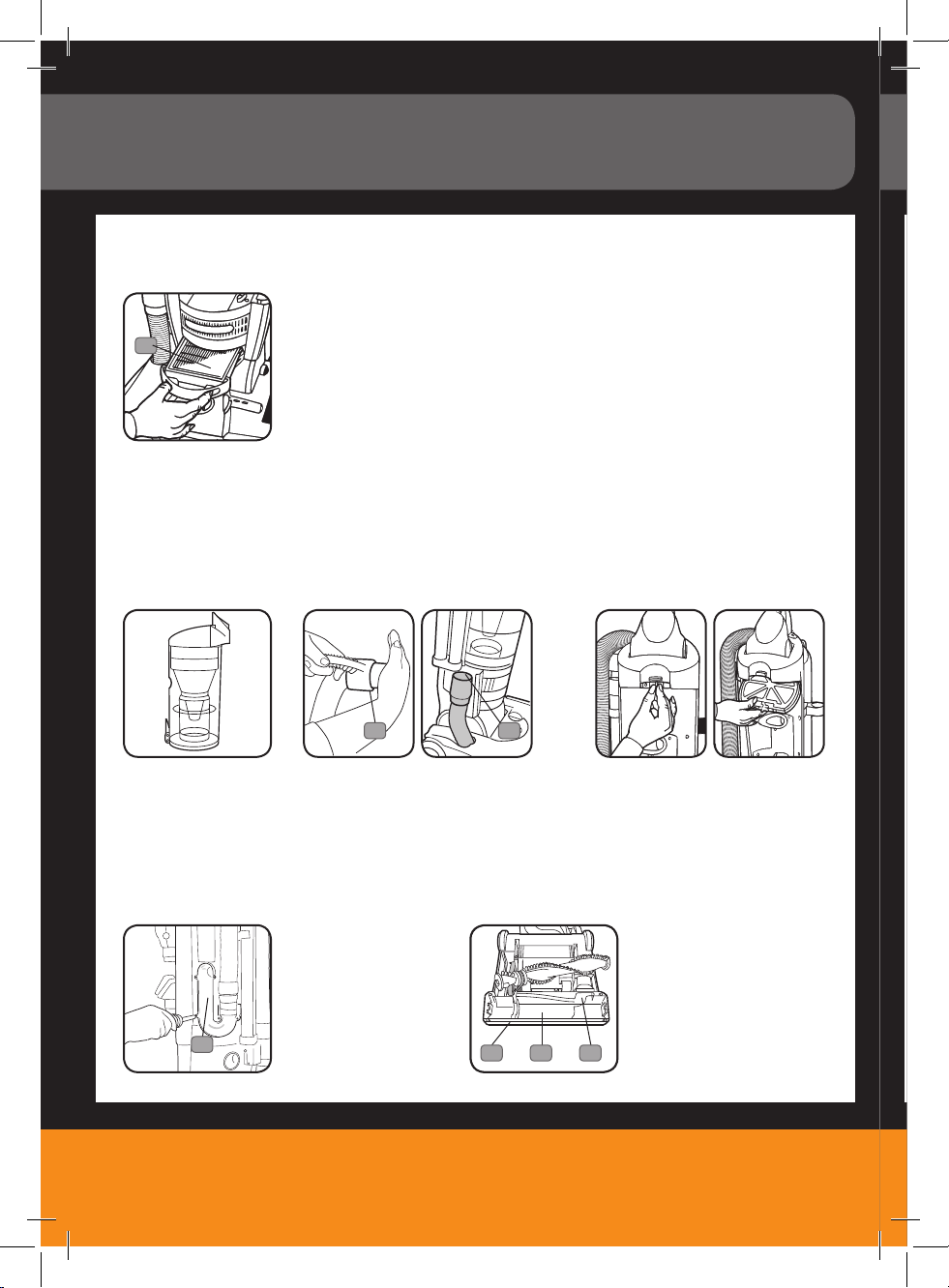

Low suction or pick up may be due to a blockage in the system. Refer to the following steps to check for blockages continuing
with each step until the blockage is found:
Check fullness of dust
bin; empty if needed
Turn cleaner OFF and unplug.
If blockage can be seen in tube
(A), remove 5 screws using a
Phillips screwdriver.
Pull tube from cleaner, remove
blockage.
Reposition tube on back of
cleaner, replace 5 screws.
Turn cleaner OFF and unplug.
Remove bottom plate and agitator
brush roll.
Look into opening (A), in channels
(B) and round liner (C) and
remove any accumulated debris.
Replace agitator brush roll and
bottom plate.
Plug cleaner in and turn ON. Check
for suction at end of hose (A). If there is
suction turn cleaner OFF and unplug.
Check connection at hose tube (B);
remove any blockage.
Remove and clean secondary filter
Replace filter.
With fingers in slots, pull filter frame (A) straight out.
Dirt and debris can be cleaned from the filter cartridge by brushing with the cleaner’s
combination tool.
DO NOT RINSE OR WASH the HEPA filter cartridge.
Slide back into position on cleaner.
HEPA Final Filter: How to Clean
A
Clearing Blockages
Fullness of
Dust Bin
Check Hose
Inlet Checking Under Bottom Plate
Check Airflow
Path Check Secondary Filter
A B
AC B A

11
www.vax.com.au
Maintenance
Disconnect cleaner from electrical outlet.
Disconnect turbo tool from hose.
Remove bottom plate, belt guard and turbine (see Pg 14-15)
Remove any blockage from turbine channel.
Replace belt turbine, brush roll, belt guard and bottom plate.
Press handle release pedal and place handle in
low position.
Using a Phillips screwdriver, remove the the screw
as shown and lift off lens.
Pull old bulb straight out of socket. Push
new bulb straight into socket until locked in place.
Excessive force is not required.
Reposition lens and secure with the screw.
Removing Lens
Installing Bulb
Replacing Lens
Blockage in Turbo Tool
Headlight
Headlight: What to buy
The cleaner uses a 13 volt,
T-3 114 wedge base bulb

12 Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Place handle in low position and
turn cleaner over so bottom
side is facing up.
Remove the 6 screws
as shown with a Phillips
screwdriver.
Lift off bottom plate.
Remove used belt (A) from large
pulley (B) and discard.
With lettering on outside of belt, slide new belt
over motor shaft (A).
Place other end of belt over large pulley (B) while
rolling the pulley in direction shown.
Turn agitator brush roll making sure belt turns
freely and is not pinched between agitator brush
roll and agitator shield.
Reposition bottom plate and 6 Phillips head
screws. Tighten screws securely.
Maintenance
Belts
Disconnect cleaner from electrical outlet.
The belts are located under the bottom plate of the cleaner and should be checked from time to time to be sure they are
in good condition.
Replacing Flat Belt
Replace belt if it is stretched, cut or broken. To check the flat belt, refer below.
Removing Bottom Plate Removing Belt
Positioning Belt
WARNING: Agitator brush roll can start suddenly. Unplug cleaner before turning it over.
A
A B
B
V-Belt: What to buy
Use only genuine VAX belts with your cleaner

13
www.vax.com.au

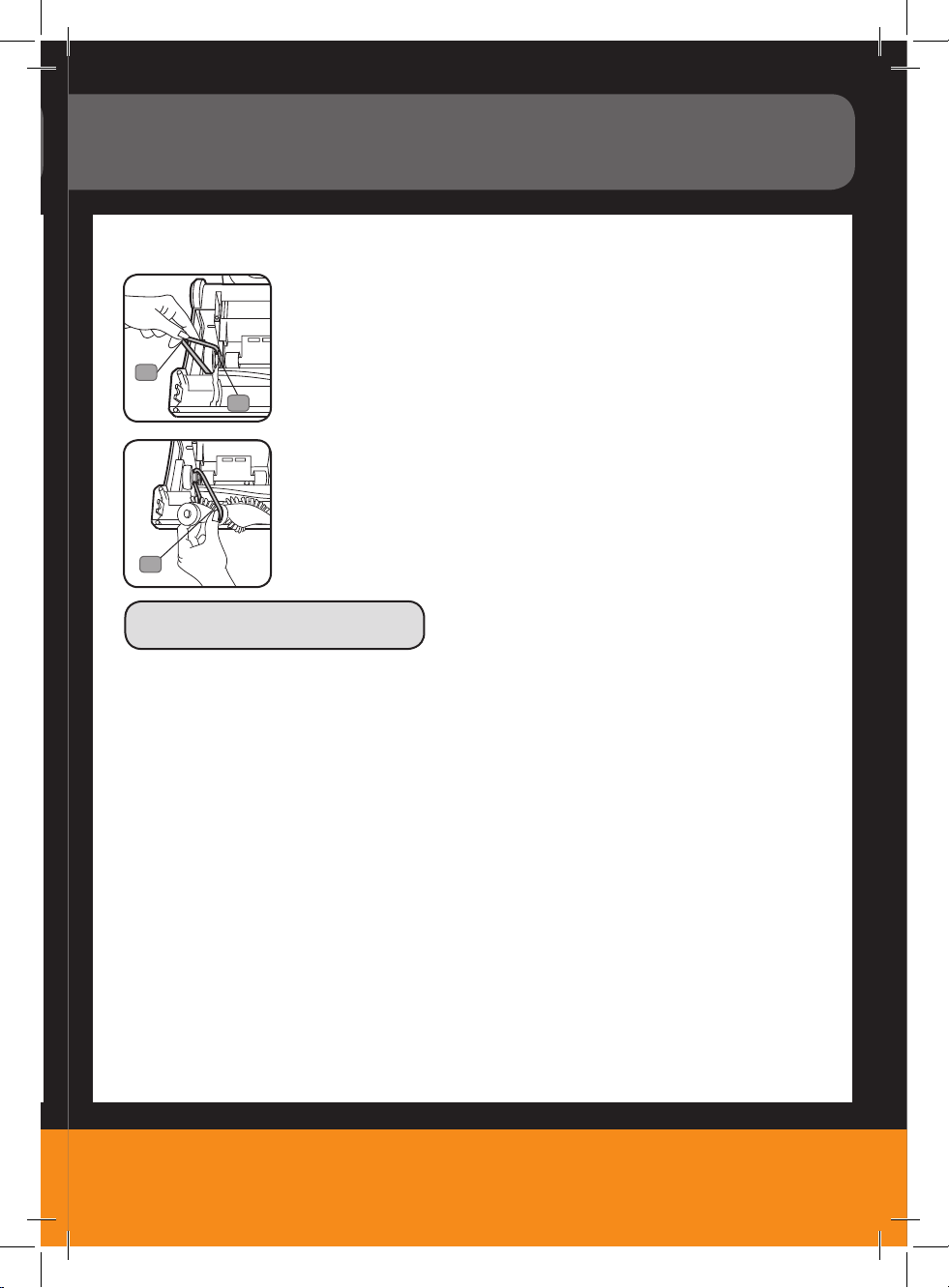

The V-belt is designed to last for a long time and is not normally replaced. However, if the V-belt is
cracked, gouged or broken, it should be replaced.
Slide flat belt off large pulley as shown in Removing Belt.
To remove V-belt, slide back of belt over pulley (A). Then firmly pull on belt and “snap” it out.
Discard used belt.
To install new belt (with lettering on outside of belt), slide back of belt over pulley and pull front of
belt toward groove (B) next to pulley. Belt will “pop” into place.
Insert agitator brush roll through belt and position belt in groove (A) on agitator brush roll.
Maintenance
Inspecting V-Belt
A
B
A
V-Belt: What to buy
Use only genuine VAX belts with your cleaner

14 Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
To check condition of brushes,
move edge of a card across
bottom plate while turning
agitator brush roll. To maintain
cleaning effectiveness, replace
agitator brush roll if brushes do
not touch card.
Turn tool so bottom
faces up. Press the
latches on either side
of tool and remove
bottom plate (A).
Insert agitator brush roll
through belt and position
belt in groove (A) on agitator
brush roll.
Turn carpet height adjustment
knob to lowest setting. Turn
cleaner over and remove
bottom plate.
Lift up agitator brush roll and
slide V-belt (A) off agitator
brush roll.
Unscrew the two
Phillips screws and
remove belt
guard (A).
Grasp agitator brush roll firmly
and fit it into position by first
sliding end opposite the belt into
the rectangular slot (A) on side
of cleaner. Pull other side of
agitator brush roll (B) into place.
Belt may fit loosely when
properly installed. Reposition flat
belt and bottom plate
Agitator Brush Roll
Disconnect cleaner from electrical outlet.
Replacing Agitator Brush Roll
When Agitator brushes are worn, the brushroll should be replaced.
Turbo Tool
Replacing Agitator Brush Roll
When agitator brushes are worn, the brush roll should be replaced.
How To Replace
WARNING: Agitator brush roll can start suddenly. Unplug cleaner before turning it over.
Inspecting Agitator Brush Roll
Positioning V-Belt
Removing Agitator Brush Roll
Installing Agitator Brush Roll
A
A
AA
BA
Maintenance

15
www.vax.com.au
Remove agitator including end
plates (A) and discard.
Inspect belt to ensure that it
is in good condition. If belt is
cracked, gouged or broken,
replace it (see following
section).
Insert brush roll through belt
and position belt over gear
teeth (B) on brush roll.
With curved ends down, slide
end plates (A) of brush roll into
slots (B) on tool.
Replace belt guard (A) making
sure not to pinch brush bristles
in guard. Turn agitator, to make
sure it rotates freely.
Replace and tighten screws.
Replace belt guard (A) making sure not to pinch brush bristles in guard. Turn agitator, to make
sure it rotates freely.
Replace and tighten screws.
Replace belt guard (A) making
sure not to pinch brush bristles
in guard. Turn agitator, to make
sure it rotates freely.
Replace and tighten screws.
Replace belt guard (A) making
sure not to pinch brush bristles
in guard. Turn agitator, to make
sure it rotates freely.
Replace and tighten screws.
To replace bottom plate, insert
the four tabs on edge of bottom
plate into slots on front of tool.
Pivot bottom plate down and
snap closed.
Belt Replacement
The powered hand tool belt is designed to last a long time and is not normally replaced. However, if the belt is cracked,
gouged or broken, it should be replaced.
Inspecting the Belt
Replacing the Belt
A
B
A B
A
Maintenance
A
BB
A

16 Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
FAQs
Problem Possible Reason Possible Solution
Cleaner won’t run
1. Power cord not firmly plugged into outlet. 1. Plug unit in firmly.
2. Blown fuse or tripped breaker. 2. Check fuse or breaker in home. Replace fuse/reset breaker.
3. Thermal Protector activated. 3. Unplug and allow cleaner to cool for 60 minutes.
(This willl reset the thermal protector)
Cleaner won’t pick
up or low suction
1. Blockage in air flow passages. 1. Clear blockage - Pg. 10.
2. Dust bin full. 2. Empty dirt cup - Pg. 8.
3. Agitator Brush Roll worn. 3. Replace Agitator Brush Roll - Pg. 14.
4. Broken or worn belt. 4. Replace belt - Pg. 12-13.
5. Clogged filter. 5. Remove filter and clean - Pg. 9-10.
6. Nozzle/dirt passage hose clogged. 6. Remove lower hose; remove obstruction - Pg. 10.
7. Carpet height setting is incorrect. 7. Set carpet height adjustment to appropriate
setting for carpet being cleaned - Pg. 6.
8. Agitator Brush Roll is OFF. 8. Step on pedal to turn Agitator Brush Roll on -Pg. 6.
Dust escaping
from cleaner
1. Dust bin full. 1. Empty dust bin - Pg. 8.
2. Dust bin not installed correctly. 2. Review dirt cup removal and replacement -Pg. 8-9
3. Hose not installed correctly. 3. Review hose installation - Pg. 7.
4. Filter not installed completely. 4. Review filter removal and replacement - Pg. 9-10.
Headlight not
working
1. Bulb burnt out. 1. Replace bulb - Pg. 11.
2. Loose electrical wires. 2. Do not use - disconnect from power and contact
an Authorised VAX Service Agent.
Cleaner is difficult to push
or won’tmove forward 1. Carpet height setting is incorrect. 1. Set carpet height adjust lever to appropriate
setting for carpet being cleaned - Pg. 6.
Turbo Tool Brush Roll
won’t turn
1. Too much pressure being applied to tool. 1. Continue using tool applying light pressure.
2. Blockage in turbine channel. 2. Remove blockage - Pg. 11.
3. Broken or worn belt. 3. Replace belt - Pg. 12-13.
4. Low cleaner suction. 4. Check items under “Cleaner won’t pick or low suction.”
Smoky/burning smell detected 1. Belt broken or stretched. 1. Replace agitator brush roll belt - Pg. 14.
Don’t take your machine back to the
shop, simply contact us
www.vax.com.au AU: 1300 361 505
NZ: 0800 800 900
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before
performing maintenance/ troubleshooting checks.

17
www.vax.com.au
Other Information
Vax Service & Help
Vax Customer Careline AU: 1300 361 505 / NZ: 0800 800 900
Monday - Friday 8.30am to 5.30pm
Any queries or concerns about using the Vax, call the Vax Careline. Calls are charged at the
Standard national rate.
Please make a note of the serial number and model number of the carpet cleaner before calling.
For the nearest Service Agent, please call the Vax Customer Careline or visit www.vax.com.au
Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1500W
Air Watts: 160AW
Capacity: 1.5L
Filters: Pre-motor: Washable Sponge filter
Central filter: Non-Washable, Multicyclonic
Post-motor: Washable, Antibacterial HEPA filter
Cord Length: 8.5m
Weight: 10.5kg
Hose Length: 2.6m Stretch Hose
Subject to technical change without notice.
Waste electrical products should not be disposed of with household waste. Please recycle
where facilitiesd exist. Check with your Local Authority or retailer for recycling advice.
Double
Insulated
Indoor
Use
Read
Instructions

18 Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
Notes

19
www.vax.com.au
Notes

Distributed by Techtronic Industries Ptd. Ltd.
Level 1. 666 Doncaster Rd, Doncaster, Australia 3108.
www.vax.com.au Service Line: AU: 1300 361 505 / NZ: 0800 800 900
