Vax Force 10 Cyclonic VZL-401CSP User manual

www.vax.co.uk Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Bagless upright
Vax model number:
VZL-401CSP
WARNING: This cleaner has a constantly
rotating brush bar which, when left in
contact with lino, parquet and other hard flooring
could potentially cause some damage to the floor
surface.
N TE: Vax recommends that you raise the height
of the brush bar when using this cleaner on lino and
hard flooring. Vax cannot be held responsible for
damage to these surfaces if the customer fails to
take notice of this recommendation.
!
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 1

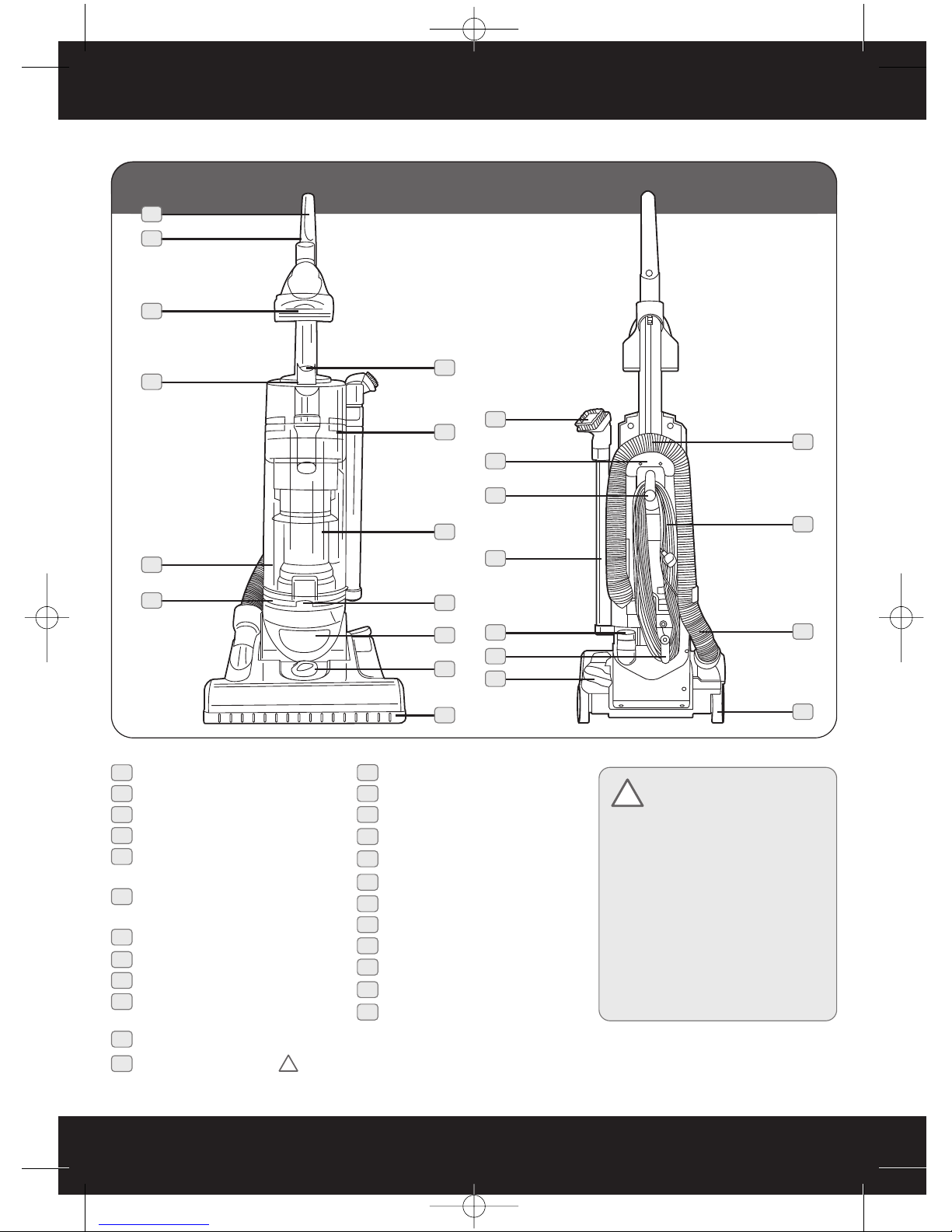

1. Diagram
www.vax.co.uk
2parts overview
1 Handle Grip
2 Handle
3 TurboTool
4 Carry Handle
5 Pre-motor filter assembly (located
behind dirt container)
6 Post-motor filter assembly
(located under dirt container)
7 Dirt container release button
8 Dirt Container
9 Central Dust Chamber
10 Bin release empty button (located
on the back of the dirt container)
11 Headlight
12 Carpet Height Adjuster
13 Scuff guard bumper
14 Dust Brush / Upholstery Tool
15 Hose caddy
16 Upper Cord Wrap
17 Crevice Tool and extension wand
18 On/ off pedal
19 Lower Cord Wrap
20 Handle Release Pedal
21 Upper hose
22 Power Cord
23 Lower Hose
24 Wheels
Fig.1/1
3
2
1
4
8
9
10
11
13
12
5
6
21
22
23
24
15
14
16
19
18
20
17
7
!
VZL-401CSP
WARNING: This cleaner has a
constantly rotating brush bar
which, when left in contact with lino,
parquet and other hard flooring
could potentially cause some
damage to the floor surface.
N TE: Vax recommends that you
raise the height of the brush bar
when using this cleaner on lino and
hard flooring. Vax cannot be held
responsible for damage to these
surfaces if the customer fails to
take notice of this recommendation.
!
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 2

3
Vax Careline 0870 606 1248
safety information
2. Safety Information
For Household Use nly
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. Close attention is necessary when used by or near
children. Do not allow children to use as
a toy.
5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.
7. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
8. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
9. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.
12. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.
13. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).
14. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool, dry area.
19. Turn off the on/off switch before unplugging the
vacuum cleaner.
20. Use only CE-approved 13 amp extension cords. Non-
approved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.
CAUTI N: The vacuum cleaner is a very
powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position. Hold the vacuum cleaner firmly when
starting and in use.
IMP RTANT: If the inlet, hose or extension
tube is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the
vacuum cleaner.
IMP RTANT: Cleaning filters regularly improves
vacuum performance. Make sure all filters are
replaced back into the vacuum cleaner before using.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTI NS F R
FURTHER USE.
!
!
!
!
Motor Thermostat
IMP RTANT: The motor is equipped with a
thermal cut-out. If for any reason, the
vacuum cleaner should over-heat, the thermostat
will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the
electrical outlet and turn off the switch. Remove
the dirt container and empty. Clean the filters.
Allow the cleaner to cool for approximately one
(1) hour. To re-start, plug into an electrical outlet
and switch back on.
!
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 3

www.vax.co.uk
4how to assemble / how to operate

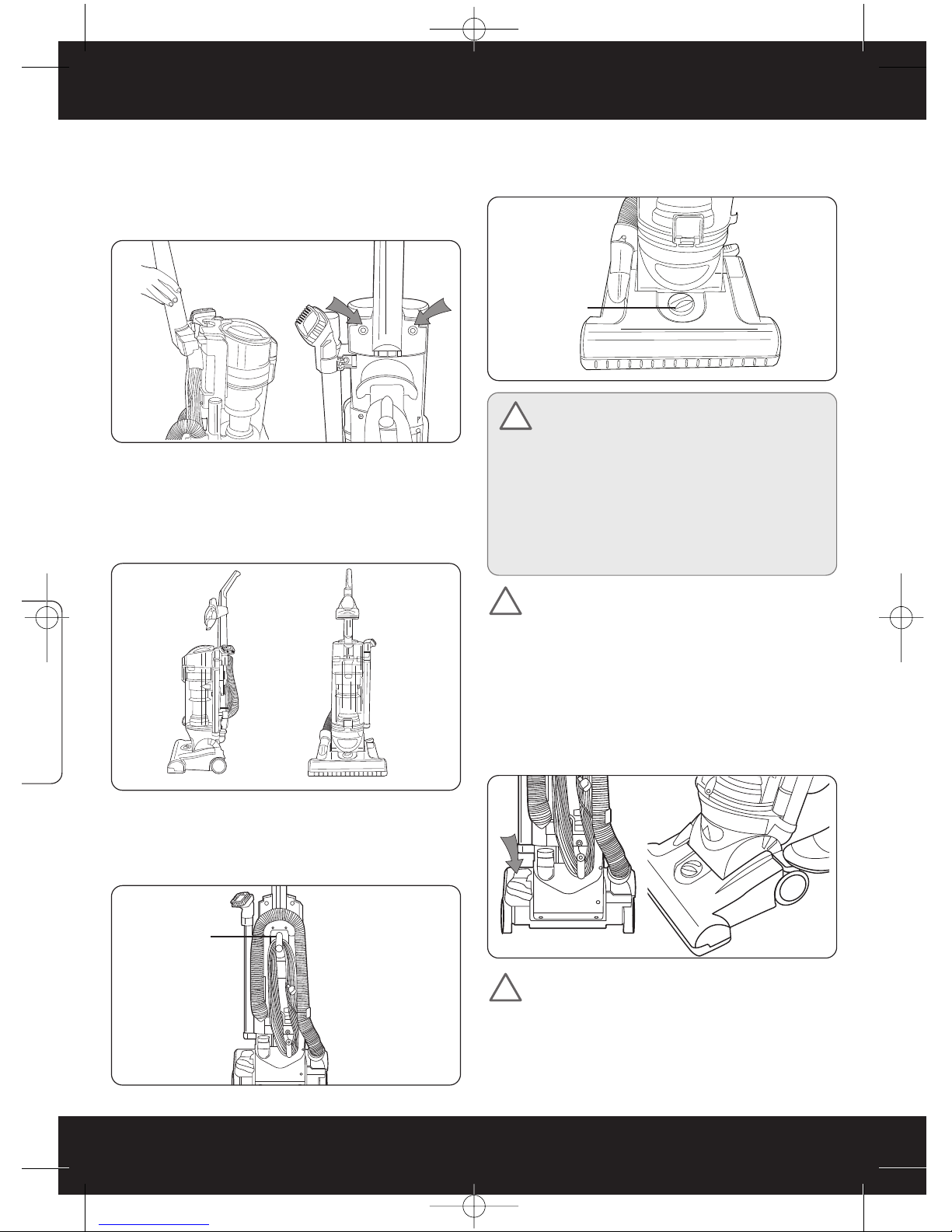

3. How to assemble
Handle Assembly
Slide handle piece into slot in the back of the unit. Insert
screws into holes indicated (Fig.3/1).
Tool Storage
Attach tools: (a) Clip the dusting brush into the holster at
the side of the cleaner with bristles facing out. (b) Insert
the crevice tool and extension wand into the slots on the
side of the cleaner (Fig.3/2). (c) Clip Turbo Tool onto the
front of the cleaner (Fig.3/2).
4. How to operate
Cord release
Turn Upper Cord Release for easy cord removal (Fig.4/1).
Carpet height adjuster
Turn the carpet height adjuster knob to match the
surface being cleaned (Fig.4/2).
IMP RTANT: For easiest adjustment, place
cleaner in full upright position.
n/ ff Switch
Plug cord into electrical outlet. Turn cleaner on by
pressing the on/off switch located on the lower back
of unit.
Handle Release Pedal
To release handle, push the handle release pedal located
on the lower left side of the cleaner (Fig.4/3).
CAUTI N: Brushbar continues to rotate while
hose is removed or in use and at all times
while cleaner is on. Keep hair, loose clothing, fingers,
and all parts of body away from brush area while
cleaner is on. Cleaner must be in the upright position
to lift the rotating brush off the carpet when
cleaning above the floor.
Fig.3/2
Fig.4/1
Fig.4/2
Fig.4/3
Cord Release
Height adjuster
Fig.3/1
WARNING: This cleaner has a constantly
rotating brush bar which, when left in contact
with lino, parquet and other hard flooring could
potentially cause some damage to the floor surface.
N TE: Vax recommends that you raise the height of
the brush bar when using this cleaner on lino and hard
flooring. Vax cannot be held responsible for damage to
these surfaces if the customer fails to take notice of
this recommendation.
!
!
!
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 4

5
Vax Careline 0870 606 1248
how to operate
Floor/Carpet Cleaning
ove the handle and adjust it to the desired position for
(a) storing the upright, (b) operating the cleaner, and (c)
de-press the handle release pedal again to clean under
furniture. NOTE: Brushbar could cause rug fringe area to
become tangled within cleaner. Use caution when
vacuuming throw rugs with fringe.
Using the Accessories
Cleaner must be in its upright position to raise brushbar.
Turn carpet height adjuster to long carpet pile setting
(Fig.4/5).
Remove the lower hose from the base of the cleaner and
the upper hose from the hose caddy (Fig.4/6).
Any of the accessories can be directly attached to the
hose end or the end of the extension wand (Fig.4/7).
Simply push the attachment
firmly onto the end of the
extension wand. To remove
tool, twist and pull apart
gently (Fig.4/8).
The TurboTool is ideal for
lifting pet hair off carpets,
stairs and upholstery. The
TurboTool is most effective
when using backward
strokes over the area that
is being cleaned .
Carry Handle
Use the carry handle located
on the top of the dirt
container lid to move the
cleaner from room to room
(Fig.4/9).
Fig.4/5
Fig.4/6
Fig.4/7
Fig.4/8
Fig.4/9
Fig.4/4
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 5

www.vax.co.uk
6dirt container and filter
5. Dirt container & filter:
removal & replacement
WARNING: to reduce risk of injury from moving
parts - unplug before servicing.
Press dirt container release button and remove dirt
container from cleaner (Fig.5/1).
Hold dirt container inside rubbish bin (Fig.5/2) and press
bin release empty button to empty (Fig.5/2). Tap the dirt
container on the inside of rubbish bin to remove excess
dust.
Wipe inside of dust container and shroud with a damp
cloth to remove excess dust.
Remove foam filter
Press tab on bottom of foam filter cover and pull to remove
(Fig.5/3).
Clean foam filter
Separate the filter assembly by removing the foam filter
from its plastic housing. Tap the foam filter on the inside
of a rubbish bin to remove excess dust and dirt from filter.
Wash foam filter
Hold foam filter under running water to wash. Ring
excess water out of filter. Allow filter to dry for at least
24 hours before replacing in filter cartridge (Fig.5/5)..
Replace foam filter
Return foam filter to
cleaner and snap into
place. Replace foam filter
cover and snap into place
to secure (Fig.5/6)..
N TE: The filter housing also needs to be washed
regularly with cold water and dried thoroughly before
replacing and restarting the vacuum cleaner.
Fig.5/1
Fig.5/2
Fig.5/6
Fig.5/3
Fig.5/5
!
Fig.5/4
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 6

7
Vax Careline 0870 606 1248
dirt container and filter

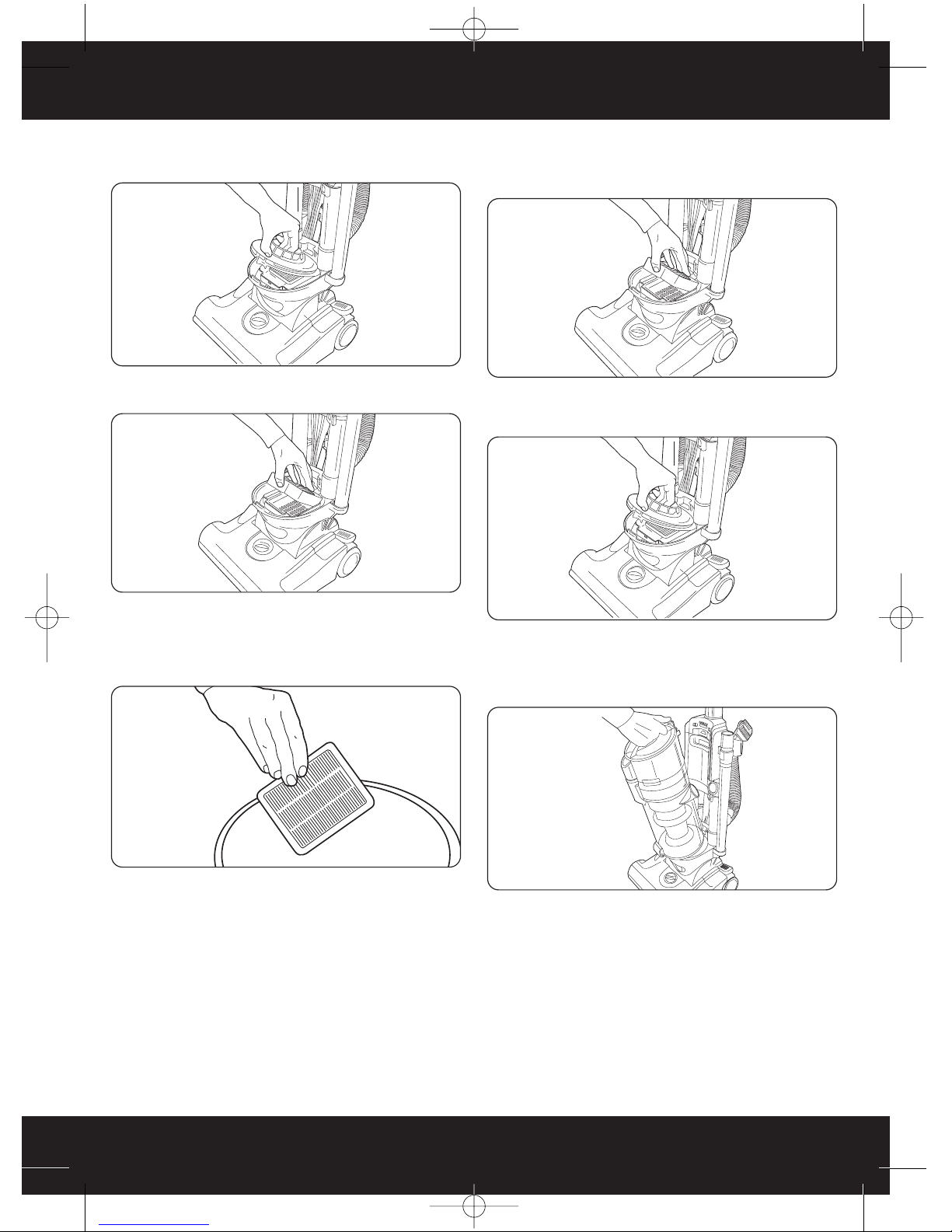

Remove exhaust filter
Press tab on front of exhaust cover and lift to remove.
Press tab on exhaust filter and lift filter out of base of
cleaner (Fig.5/8).
Clean exhaust filter
Tap the exhaust filter on the inside of a rubbish bin to
remove excess dust and dirt from filter (Fig.5/9)..
Wash the exhaust filter under cold running water every 9
-12 months. Leave to dry for 24 hours before replacing
in machine.
Replace exhaust filter
Return exhaust filter to base of cleaner and snap into
place (Fig.5/10).
Replace exhaust filter cover and snap into place to secure
(Fig.5/11).
Replace dirt container
Return dirt container to cleaner. Align slot on bottom of
dirt container with tab on cleaner. Push to snap into place
(Fig.5/12)..
Regular Maintenance
Each time the dirt container is emptied, the foam filter
should be checked and when necessary, cleaned (Filter
will be discoloured after use, this will not affect the
filter’s performance). Do not brush the filter. The cleaning
instructions may vary depending on the dirt conditions. In
some cases, more or less cleaning of the filter may be
required.
Fig.5/9
Fig.5/8
Fig.5/10
Fig.5/7
Fig.5/11
Fig.5/12
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 7

www.vax.co.uk
8belt or brush bar

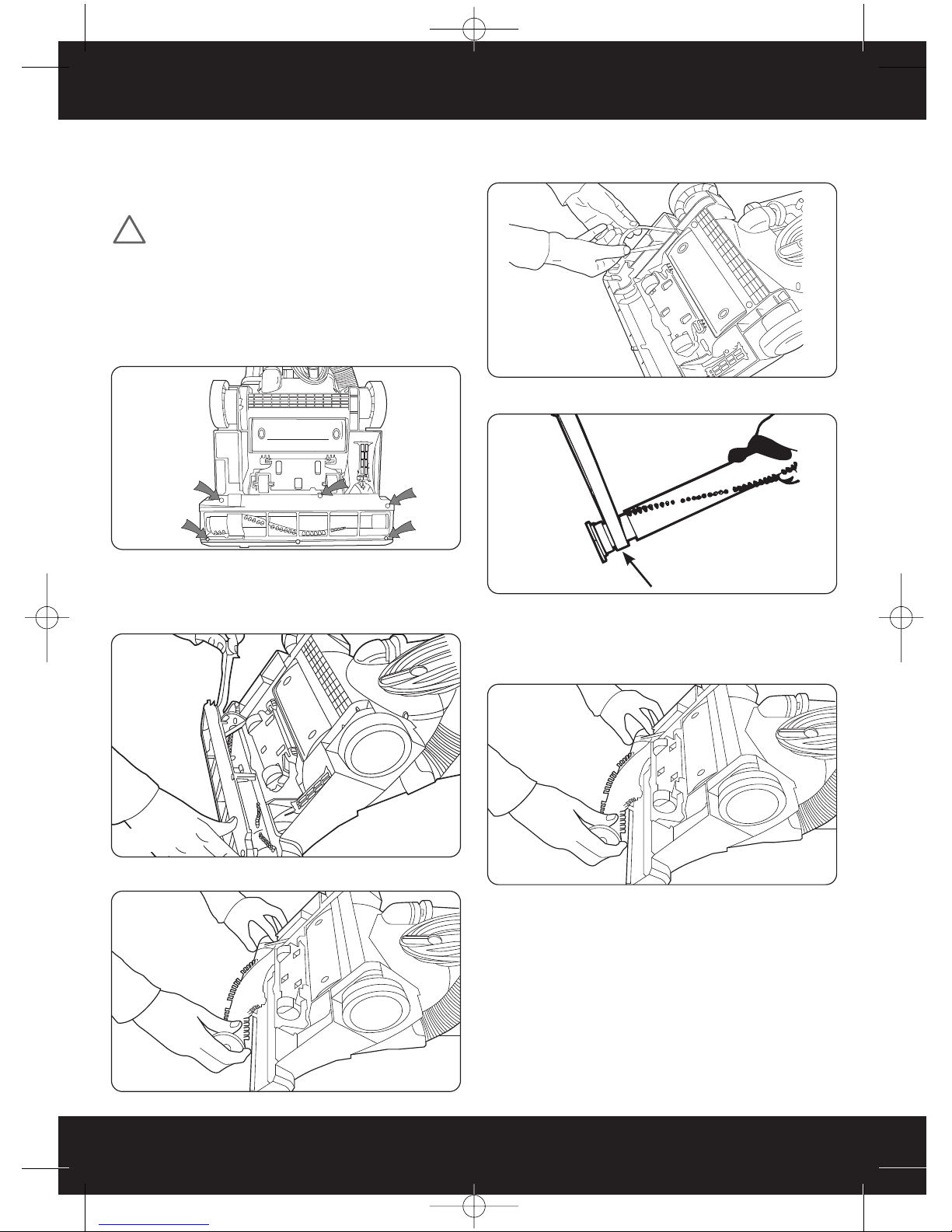

6. Belt or brushbar: removal
and replacement
T L REQUIRED: Phillips screwdriver
WARNING: to reduce the risk of injury from
moving parts - unplug cleaner before changing
belt or brush.
To remove belt
Lay cleaner flat and flip cleaner to expose nozzle base
(Fig.6/1).
Base should lay flat and face up. To remove nozzle guard,
use Phillips screwdriver to remove the SIX (6 ) screws.
Arrows show location of screws (Fig.6/1).
Remove sole plate by lifting off (Fig.6/2).
Lift and remove brushbar. Dispose of old belt (Fig.6/3).
To replace belt or brushbar
Slide belt onto motor shaft (Fig.6/4).
Place new belt in area of brushbar without bristles (Fig.6/5).
With new belt in place, pull and slide brushbar into nozzle
making sure that the brushbar end caps are in the correct
orientation (Fig. 6/6 inset). Rotate brushbar manually to
make sure belt is properly aligned.
Replace sole plate onto base of cleaner. (Fig. 6/7).
Fig.6/1
Fig.6/3
Fig.6/4
Fig.6/5
!
Fig.6/6
Fig.6/2
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 8

9
Vax Careline 0870 606 1248
belt or brush bar / lightbulb removal and replacement
8. General maintenance
WARNING: To reduce risk of injury from moving
parts - unplug before servicing.
Debris removal/nozzle guard
• Check to see if dirt container is full; empty if needed.
• Plug cleaner in and check to see if there is any suction
at end of hose.
1. Unwrap hose from caddy. Twist and unlock to remove
clogs. Clean out hose with a broom handle. Check access
door on back of cleaner (near hose end). Remove the
seven (7) screws and check for obstruction (Fig.8/1).
2. Remove dirt container (Pg. 6) and check dirt container
inlet located on cleaner.
3. Remove nozzle guard by removing the three (6) screws.
Remove obstructions (Refer to Page 8 for belt and
brushbar removal and replacement).
Debris removal/Turbo Tool
Rotate locking ring 180oand turn Turbo Tool over
(Fig.8/3).
Replace all six (6) screws to secure nozzle guard (Fig.6/8).
7. Lightbulb: removal and
replacement
Please contact Vax on 0870 606 1248 for further
advice.
IMP RTANT: Do not attempt to remove or replace the
lightbulb yourself.
Fig.6/8
Fig.6/7
Fig.8/2
Fig.8/1
!
LOCKING RING
Fig.8/3
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 9

www.vax.co.uk
10 general maintenance / troubleshooting

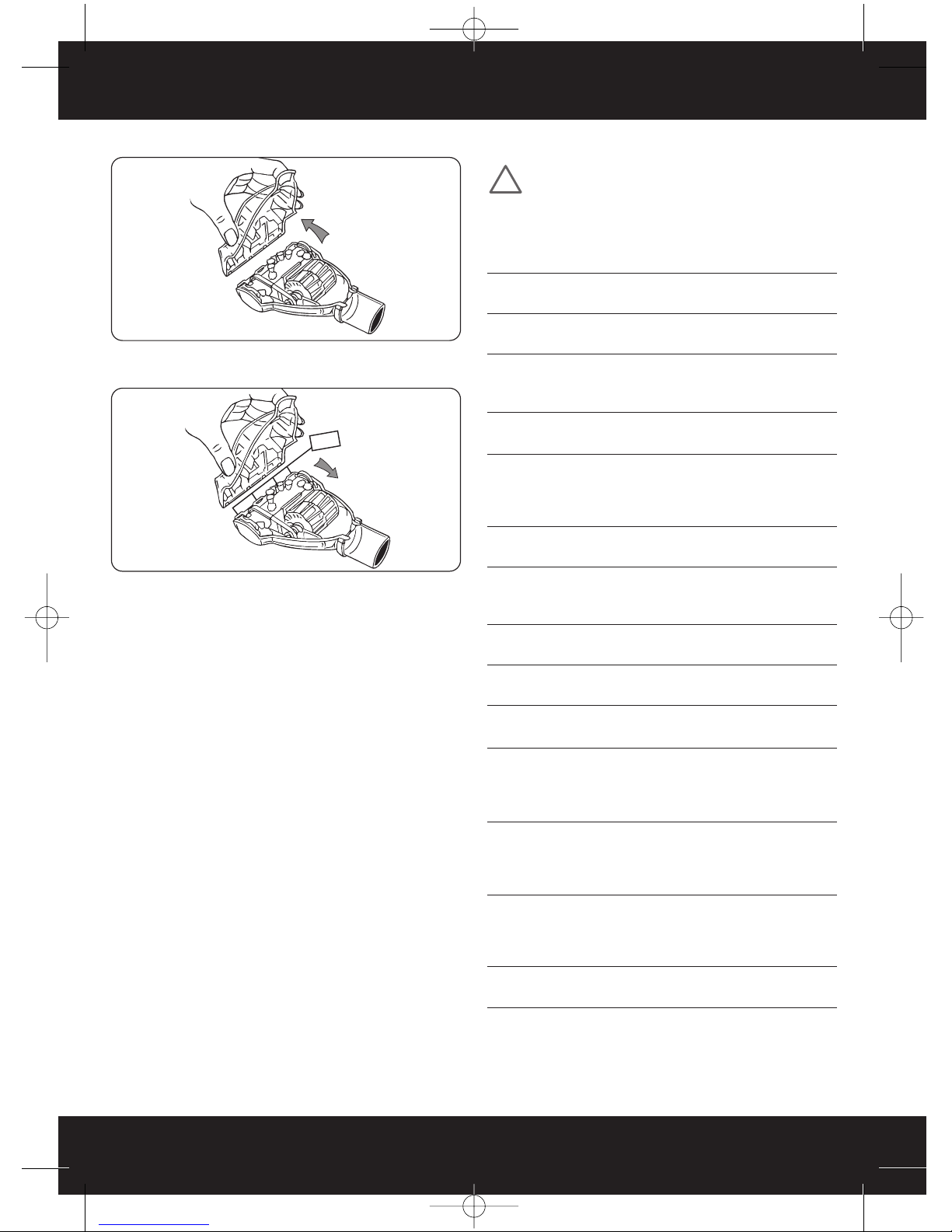

Pivot lower housing and remove clog (Fig.8/4).
To reassemble, be sure tabs are engaged. Pivot the lower
housing closed (Fig.8/5).
Rotate locking ring back round to secure.
9. Troubleshooting
WARNING: To reduce risk of personal injury,
unplug vacuum cleaner before servicing.
PR BLEM: Cleaner won’t run
Cause: Not properly plugged into wall outlet.
Solution: Plug in firmly.
Cause: No electricity in wall outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: otor thermostat tripped.
Solution: Switch off and unplug the vacuum cleaner.
Leave for one (1) hour. See page 3.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PR BLEM: Cleaner won't pick up
Cause: Full or clogged dirt container.
Solution: Clean dirt container.
Cause: Clogged nozzle.
Solution: Remove obstruction.
Cause: Clogged dirt inlet.
Solution: Remove suction channel cover and remove
obstruction.
Cause: Clogged hose.
Solution: Remove obstruction.
Cause: Hose not inserted fully.
Solution: Push hose in securely.
Cause: Dirty filters or filter container.
Solution: Clean/change filters or filter container.
PR BLEM: Accessories won't pick up
Cause: Accessories not attached correctly.
Solution: Refer to page 5 for fitting information.
PR BLEM: Brushbar does not turn
Cause: Brushbar blocked.
Solution: Remove blockages.
PR BLEM: Air flow restricted with attachment use
Cause: Attachment use restricts air flow.
Solution: Check attachment.
Cause: New carpet debris clogging air path.
Solution: Remove obstruction.
Fig.8/4
TABS
Fig.8/5
!
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 10

11
Vax Careline 0870 606 1248
service & help / technical specification
10. UK Service & Help
Vax Care 0870 6061248
onday-Friday 8.00am to 8.00pm.
Saturday-Sunday 9.00am to 5.00pm.
Any queries or concerns about using the Vax, call the
Vax Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
11. Technical Specification
Voltage: 220 – 240V ~50Hz
Wattage: 1300W
Capacity: 3 litres total, 2 litres max fill
Filters: Foam pre-motor
Pleated HEPA exhaust filter
Cord Length: 6.75m
Weight: 7.36kg
Subject to technical change without notice.
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 11

EEC STATEMENT F C MPLIANCE
anufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
VZL-401CSP Force 10 Cyclonic Upright is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 QH, UK
email: inf[email protected]o.uk - website: www.vax.co.uk
Vax VZL 401CSP U er Guide.qxd:VZL-401CSP U er Guide 3/9/08 16:43 Page 12
