Vax G2 V-107 User manual

www.vax.co.uk Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Bagless cylinder
Vax model number:
V-107
V-107P
V-107UP
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:33 Page 1
All manuals and user guides at all-guides.com
all-guides.com

V-107
1. Diagram
www.vax.co.uk
2parts overview
1
2
8
10
Fig.1/1
1 Telescopic tube
2 Combination floor head
3 Flexible hose
4 Dirt container handle
5 Cord rewind button
6 Variable power dial
7 On/off button
8 Dirt container
9 Wheel
10 Hose connector / release button
7
6
9
3
4
5
1
2
Fig.1/2
3 4
5
6
1 Combination floor head
2 Crevice tool
3 Dusting brush attachment
4 Small vacuuming tool
5 Telescopic tube
6 TurboTool and adaptor (Model: V-107P & V-107UP only)
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:33 Page 2
All manuals and user guides at all-guides.com

3
Vax Careline 0870 606 1248
safety information

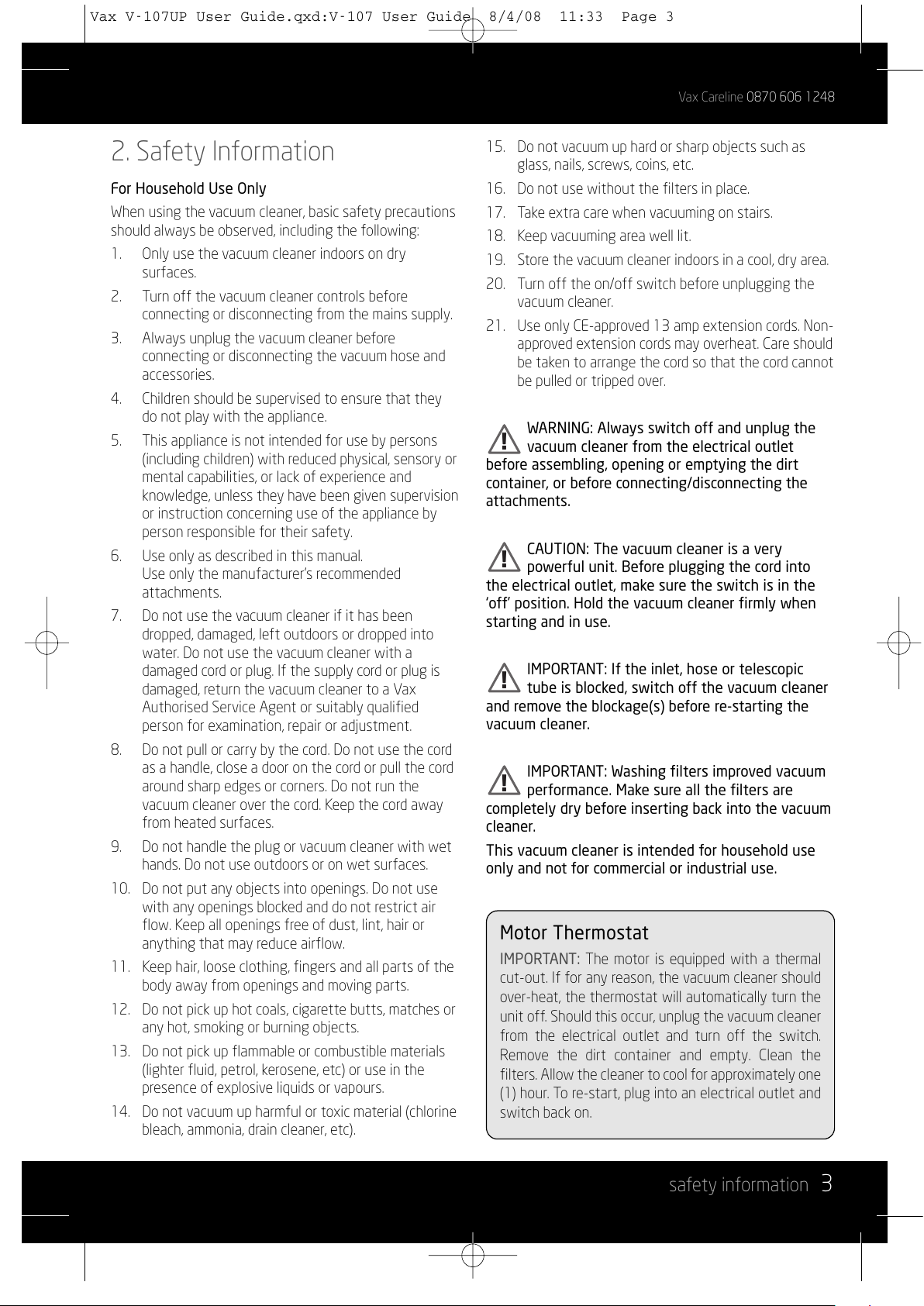

2. Safety Information
For Household Use nly
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. Children should be supervised to ensure that they
do not play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by
person responsible for their safety.
6. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.
8. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).
15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
16. Do not use without the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner indoors in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner.
21. Use only CE-approved 13 amp extension cords. on-
approved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.
CAUTI N: The vacuum cleaner is a very
powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position. Hold the vacuum cleaner firmly when
starting and in use.
IMP RTANT: If the inlet, hose or telescopic
tube is blocked, switch off the vacuum cleaner
and remove the blockage(s) before re-starting the
vacuum cleaner.
IMP RTANT: Washing filters improved vacuum
performance. Make sure all the filters are
completely dry before inserting back into the vacuum
cleaner.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
!
!
!
!
Motor Thermostat
IMP RTANT: The motor is equipped with a thermal
cut-out. If for any reason, the vacuum cleaner should
over-heat, the thermostat will automatically turn the
unit off. Should this occur, unplug the vacuum cleaner
from the electrical outlet and turn off the switch.
Remove the dirt container and empty. Clean the
filters. Allow the cleaner to cool for approximately one
(1) hour. To re-start, plug into an electrical outlet and
switch back on.
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:33 Page 3
All manuals and user guides at all-guides.com

www.vax.co.uk
4assembly
3. How to Assemble
IMP RTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or
removing the accessories.
Tool required: Phillips screwdriver
Insert the flexible hose into the inlet on the main body of
the vacuum cleaner. Push in until it clicks into position
(Fig.3/1).
Push the telescopic tube onto the end of the handle
(Fig.3/2).
The telescopic tube can be lengthened or shortened by
pushing the button in and sliding the tube apart or
together as required (Fig.3/3).
4. Fit the combination floor head by pushing on to the
telescopic tube tube (Fig.3/4).
Fig.3/1
Fig.3/4
Fig.3/2
Fig.3/3
!
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 4
All manuals and user guides at all-guides.com

5
Vax Careline 0870 606 1248
operation

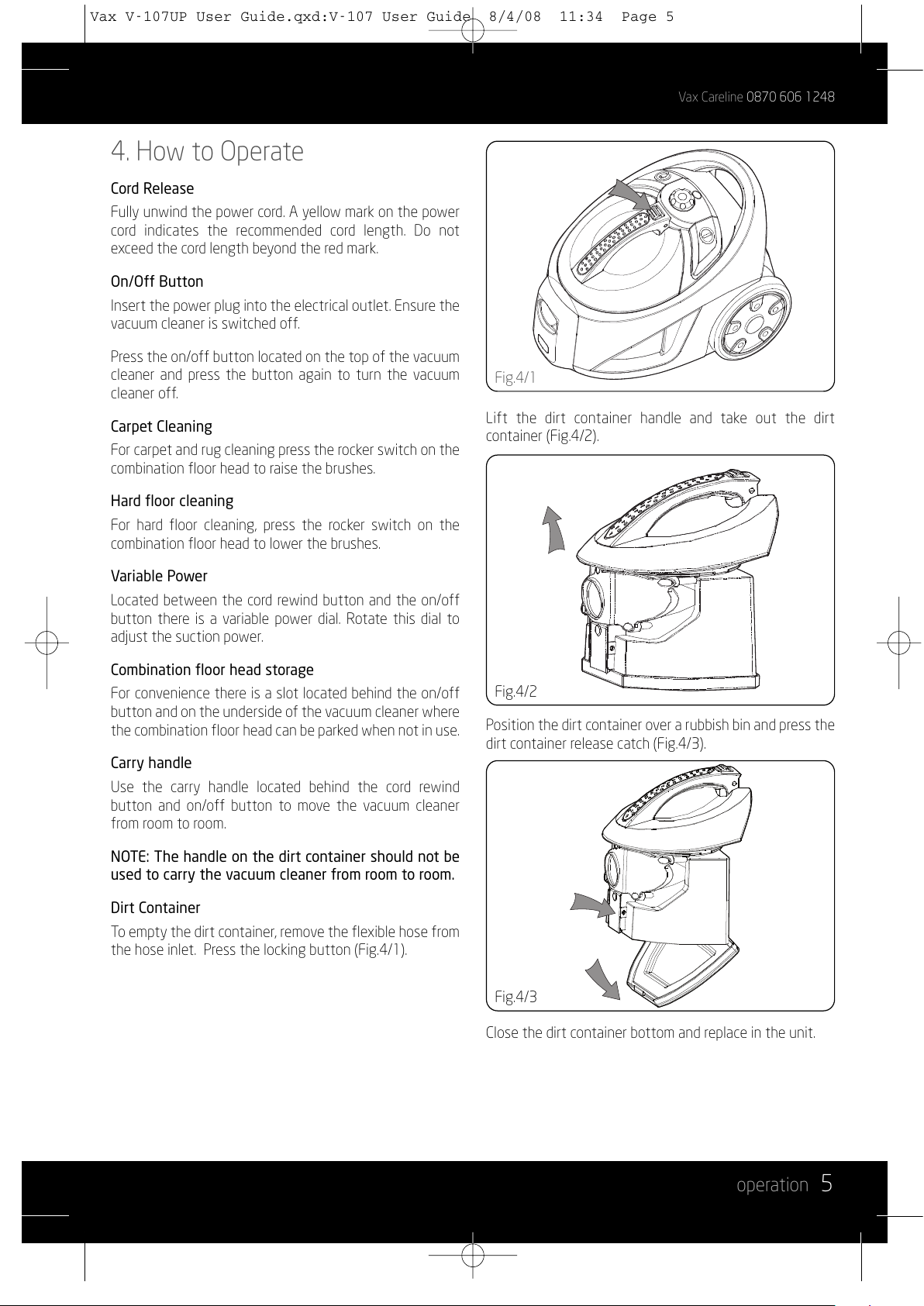

4. How to Operate
Cord Release
Fully unwind the power cord. A yellow mark on the power
cord indicates the recommended cord length. Do not
exceed the cord length beyond the red mark.
n/ ff Button
Insert the power plug into the electrical outlet. Ensure the
vacuum cleaner is switched off.
Press the on/off button located on the top of the vacuum
cleaner and press the button again to turn the vacuum
cleaner off.
Carpet Cleaning
For carpet and rug cleaning press the rocker switch on the
combination floor head to raise the brushes.
Hard floor cleaning
For hard floor cleaning, press the rocker switch on the
combination floor head to lower the brushes.
Variable Power
Located between the cord rewind button and the on/off
button there is a variable power dial. Rotate this dial to
adjust the suction power.
Combination floor head storage
For convenience there is a slot located behind the on/off
button and on the underside of the vacuum cleaner where
the combination floor head can be parked when not in use.
Carry handle
Use the carry handle located behind the cord rewind
button and on/off button to move the vacuum cleaner
from room to room.
N TE: The handle on the dirt container should not be
used to carry the vacuum cleaner from room to room.
Dirt Container
To empty the dirt container, remove the flexible hose from
the hose inlet. Press the locking button (Fig.4/1).
Lift the dirt container handle and take out the dirt
container (Fig.4/2).
Position the dirt container over a rubbish bin and press the
dirt container release catch (Fig.4/3).
Close the dirt container bottom and replace in the unit.
Fig.4/1
Fig.4/2
Fig.4/3
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 5
All manuals and user guides at all-guides.com

www.vax.co.uk

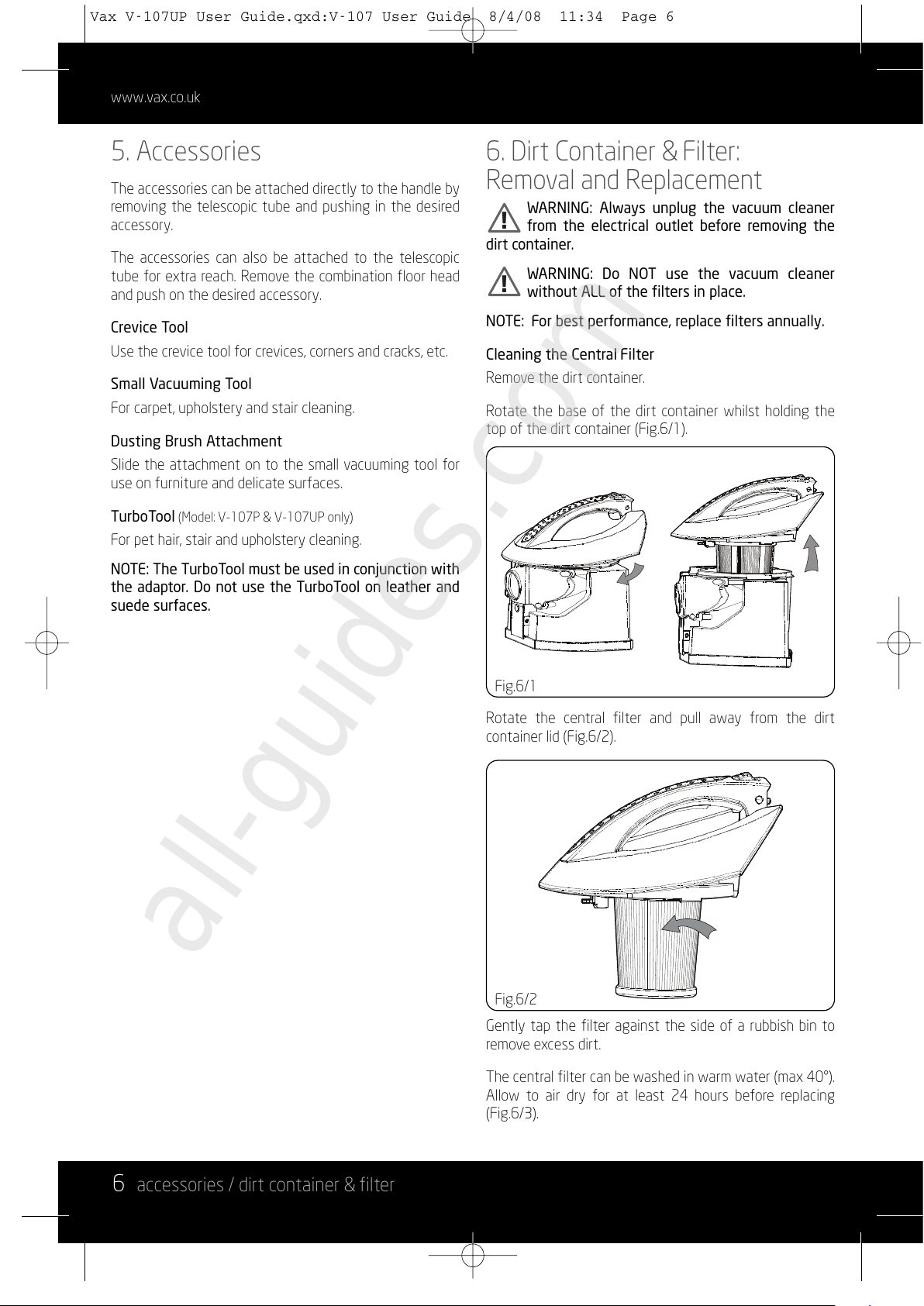

6accessories / dirt container & filter
5. Accessories
The accessories can be attached directly to the handle by
removing the telescopic tube and pushing in the desired
accessory.
The accessories can also be attached to the telescopic
tube for extra reach. Remove the combination floor head
and push on the desired accessory.
Crevice Tool
Use the crevice tool for crevices, corners and cracks, etc.
Small Vacuuming Tool
For carpet, upholstery and stair cleaning.
Dusting Brush Attachment
Slide the attachment on to the small vacuuming tool for
use on furniture and delicate surfaces.
TurboTool (Model: V-107P & V-107UP only)
For pet hair, stair and upholstery cleaning.
N TE: The TurboTool must be used in conjunction with
the adaptor. Do not use the TurboTool on leather and
suede surfaces.
6. Dirt Container & Filter:
Removal and Replacement
WARNING: Always unplug the vacuum cleaner
from the electrical outlet before removing the
dirt container.
WARNING: Do N T use the vacuum cleaner
without ALL of the filters in place.
N TE: For best performance, replace filters annually.
Cleaning the Central Filter
Remove the dirt container.
Rotate the base of the dirt container whilst holding the
top of the dirt container (Fig.6/1).
Rotate the central filter and pull away from the dirt
container lid (Fig.6/2).
Gently tap the filter against the side of a rubbish bin to
remove excess dirt.
The central filter can be washed in warm water (max 40°).
Allow to air dry for at least 24 hours before replacing
(Fig.6/3).
Fig.6/1
Fig.6/2
!
!
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 6
All manuals and user guides at all-guides.com
all-guides.com

7
Vax Careline 0870 606 1248
dirt container & filter / clearing blockages
N TE: Do N T use any detergents or boiling water to
wash the filter. Vax recommends washing the filter
every time you empty the dirt container.
Return the central filter to the dirt container and twist
until the filter is secure.
Return the dirt container to the vacuum cleaner.
Cleaning the Post-Motor Filter
N TE: This is located at the back of the vacuum cleaner
Release the post-motor cover by pressing in the catch at
the top of the cover.
Remove the filter by pulling the filter away from the
casing (Fig.6/4).
The post-motor filter can be rinsed in warm water
(max 40°C). Allow to air dry for at least 24 hours before
replacing.
N TE: Do N T use any detergents or boiling water to
wash the filter. Vax recommends washing the filter
every 4 weeks.
Replace the post-motor filter in the case and re-fit to the
back of the vacuum cleaner.
7. Clearing Blockages
WARNING: To reduce the risk of electric shock,
the power cord must be disconnected before
performing maintenance or troubleshooting checks.
Turn the vacuum cleaner off and unplug from the electrical
outlet.
The flexible hose can be disconnected from the vacuum
cleaner by pushing in the button on the hose and pulling
away from the machine. Remove any blockages found then
re-connect the hose securely.
Removing debris from the TurboTool (Model: V-107P & V-
107UP only)
Switch the vacuum cleaner off and disconnect the power
plug from the electrical outlet.
Rotate the locking ring 180º (Fig.7/1).
Lift the top cover off and remove any blockage (Fig.7/2).
To re-assemble, ensure that the tabs are engage. Pivot the
lower housing closed and rotate the locking ring 180º
(Fig.7/2).
Fig.6/3
Fig.6/4
!
LOCKING RING
Fig.7/1
TABS
Fig.7/2
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 7
All manuals and user guides at all-guides.com

www.vax.co.uk
8storage / troubleshooting
8. Storage
IMP RTANT: Always unplug the vacuum cleaner
from the electrical outlet and rewind the power
cord as directed before storing.
N TE: Always store the vacuum cleaner base down.

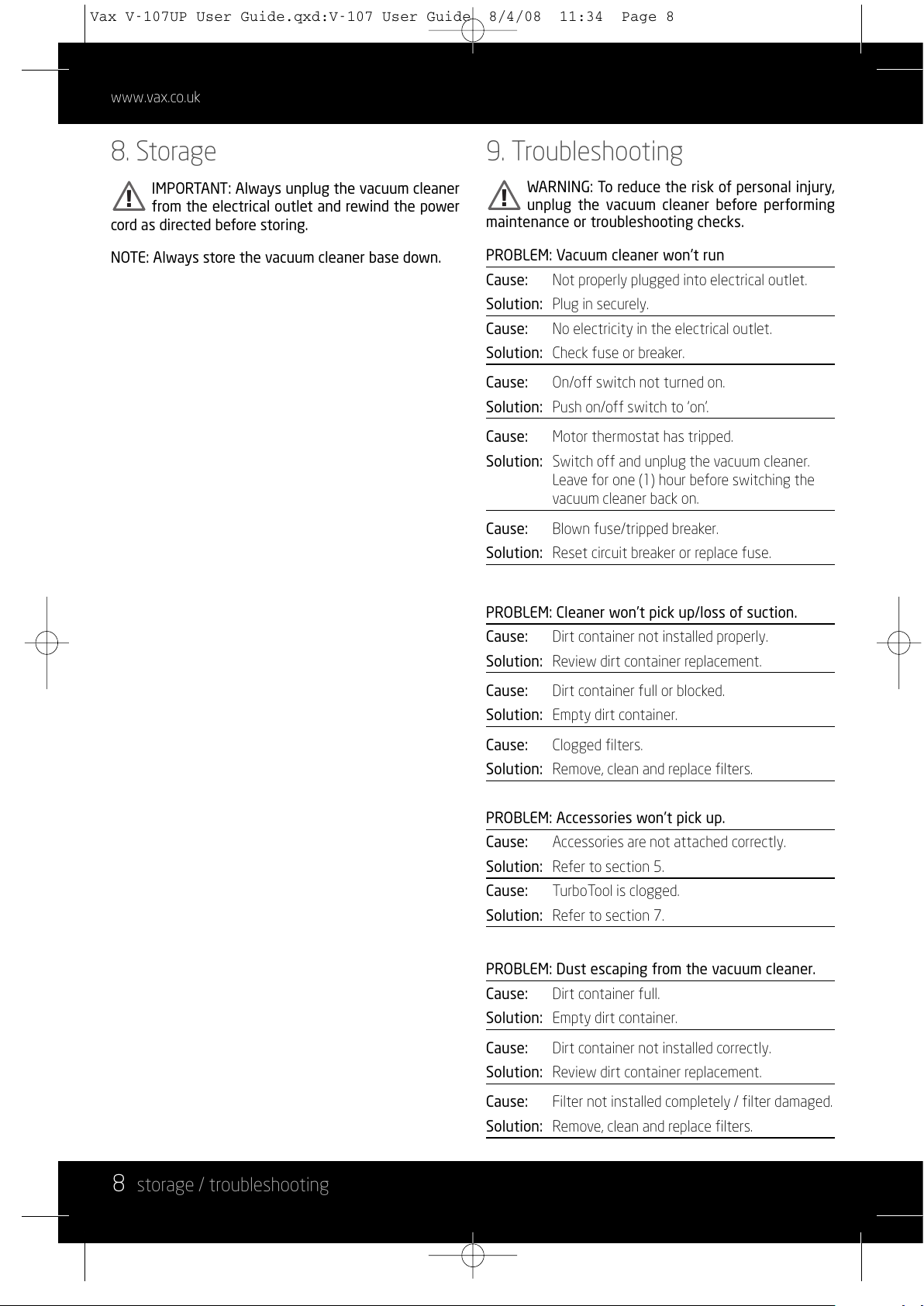

9. Troubleshooting
WARNING: To reduce the risk of personal injury,
unplug the vacuum cleaner before performing
maintenance or troubleshooting checks.
PR BLEM: Vacuum cleaner won't run
Cause: ot properly plugged into electrical outlet.
Solution: Plug in securely.
Cause: o electricity in the electrical outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to ‘on’.
Cause: Motor thermostat has tripped.
Solution: Switch off and unplug the vacuum cleaner.
Leave for one (1) hour before switching the
vacuum cleaner back on.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PR BLEM: Cleaner won’t pick up/loss of suction.
Cause: Dirt container not installed properly.
Solution: Review dirt container replacement.
Cause: Dirt container full or blocked.
Solution: Empty dirt container.
Cause: Clogged filters.
Solution: Remove, clean and replace filters.
PR BLEM: Accessories won’t pick up.
Cause: Accessories are not attached correctly.
Solution: Refer to section 5.
Cause: TurboTool is clogged.
Solution: Refer to section 7.
PR BLEM: Dust escaping from the vacuum cleaner.
Cause: Dirt container full.
Solution: Empty dirt container.
Cause: Dirt container not installed correctly.
Solution: Review dirt container replacement.
Cause: Filter not installed completely / filter damaged.
Solution: Remove, clean and replace filters.
!
!
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 8
All manuals and user guides at all-guides.com

10. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 9.00am to 5.00pm.
An answerphone is available outside of these hours. Any
queries or concerns about using the Vax, call the Vax
Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
11. Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1800W
Capacity: 1.4L
Filters: Central filter - washable
Post-motor filter - washable
Cord length: 6m
Weight: 6.8kg
Subject to technical change without notice.
9
Vax Careline 0870 606 1248
uk service & help / technical specification
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 9
All manuals and user guides at all-guides.com

www.vax.co.uk
10
This page has been left intentionally blank
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 10
All manuals and user guides at all-guides.com

11
Vax Careline 0870 606 1248
This page has been left intentionally blank
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 11
All manuals and user guides at all-guides.com
all-guides.com

---
EEC STATEMENT F C MPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
V-107,V-107P & V-107UP G:2 bagless cylinder is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 89/336/EEC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 QH, UK
email: info@vax.co.uk - website: www.vax.co.uk
Vax V-107UP User Guide.qxd:V-107 User Guide 8/4/08 11:34 Page 12
All manuals and user guides at all-guides.com
This manual suits for next models
2
Table of contents
Other Vax Vacuum Cleaner manuals

Vax
Vax Power 5 Pet VX28 User manual

Vax
Vax Impact 502 Installation instructions

Vax
Vax Mach Air U90-MA User manual

Vax
Vax Air Cordless Switch User manual

Vax
Vax Silentium VBGS1800 User manual

Vax
Vax VZL-6017 Series User manual

Vax
Vax Pro User manual

Vax
Vax RAPID POWER 2 User manual

Vax
Vax Mach Air U91-MA series User manual

Vax
Vax Power 6 SERIES User manual

Vax
Vax familyVAX 6155 Product information sheet

Vax
Vax VS-19EC User manual

Vax
Vax Rapide User manual

Vax
Vax Performance Cyclonic V-008SC User manual

Vax
Vax U88-VU-B User manual

Vax
Vax U89-VU-R-A User manual

Vax
Vax U86-AL-B User manual

Vax
Vax Workman VCC-05 User manual

Vax
Vax KURV K-010 User manual

Vax
Vax V-091 User manual
