Vax VMST144V User manual

User Guide
www.vax.com.au
Vax Service line AU: 1300 361 505
NZ: 0800 800 900
2 in 1
Cordless Stick Vac
Get Cleaning...
What’s your Vax’s model number?
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
VMST144V
V M S T 1 4 4
– – – – –
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 1
V

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
2

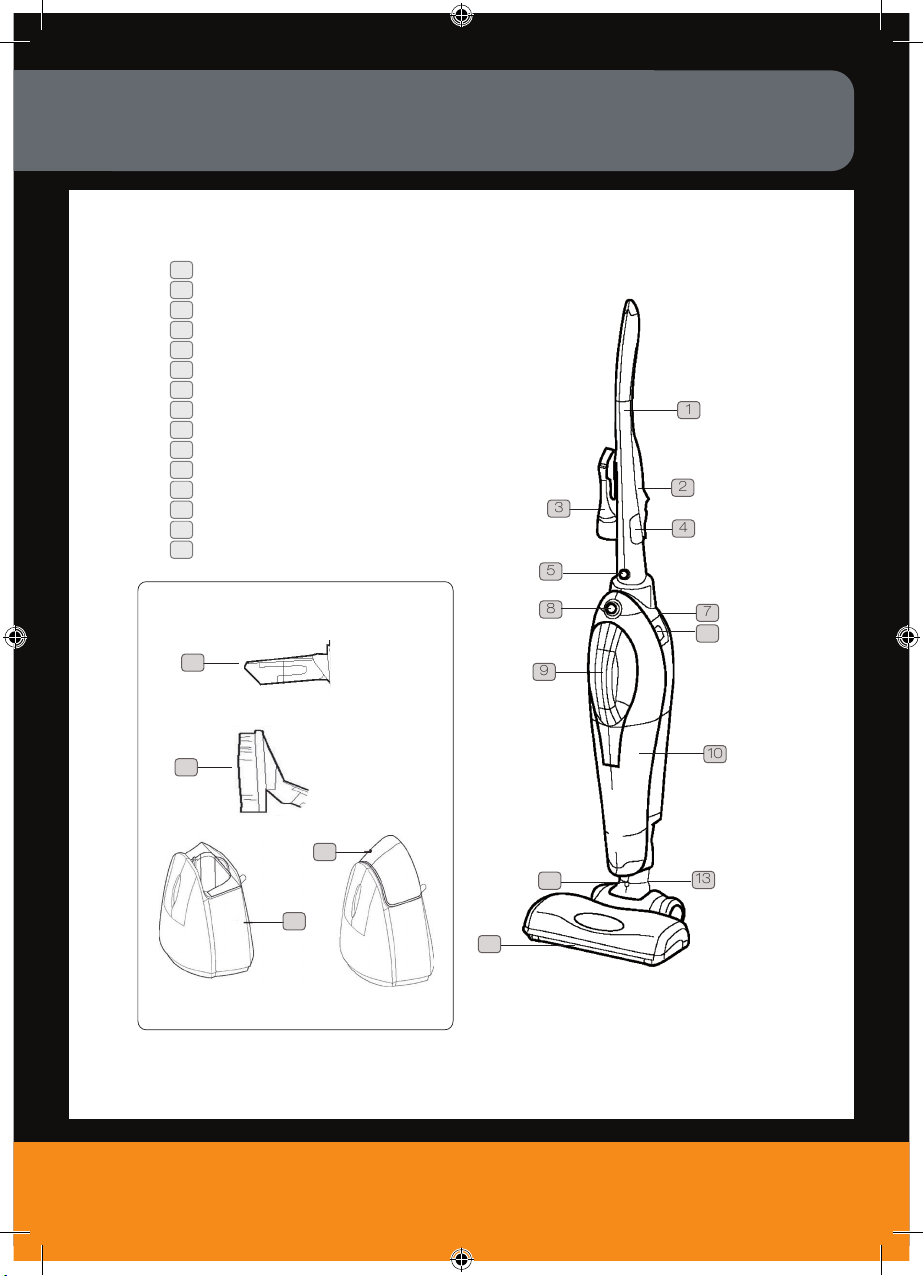

Machine Overview
---
Machine Overview
Unit
2Vax Careline
0870 606 1248
2
3
1
4
5
7
8
9
10
13
1 Handle
2 Upholstery brush
3 Crevice tool
4 Accessory hook
5 Handle button
6 Battery release button
7 Battery compartment
8 Power button
9 Carry handle
10 Dirt Cup
11 Roller brush release button
12 Roller brush
13 Dirt cup release button
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 2
6
11
12
3
2
14
15
14 Battery
15 Charger

---
www.vax.com.au
3
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
disconnecting or connecting from the battery.
3. Always unplug the vacuum cleaner battery before
connecting or disconnecting the vacuum
accessories.
4. Children should be supervised to ensure that they
do not play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner charger with a
damaged cord or plug. If the supply cord is damaged,
8. Do not pull or carry charger by cord. Do not use the
cord as a handle, close a door on the cord or pull cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord
away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air-
flow. Keep all openings free of dust, lint, hair or
anything that might reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
13. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene etc.) or use
in the presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material
(chlorine, bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner battery.
General Safety Information
WARNING: Always switch off and unplug the
vacuum cleaner from the battery before
assembling, opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
!
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the battery in make sure the
switch is in the ‘off’ position. Hold the vacuum cleaner
firmly when starting and in use.
IMPORTANT: If the inlet, hose or telescopic tube
is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the vacuum
cleaner.
IMPORTANT: Cleaning filters improves vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters are
washable make sure they are completely dry before
inserting back into the vacuum cleaner.
!
!
!
vax.co.uk 3
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 3
it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
WARNING: Do not recharge non-rechargable
!
WARNING: Indoor Use Only.
!
batteries.
Read operator’s manual
General Safety Information

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
4
Operation
---
Operation
4Vax Careline
0870 606 1248
Before assembling, please be sure that all parts and accessories are included by
reviewing the Parts and Accessories List.

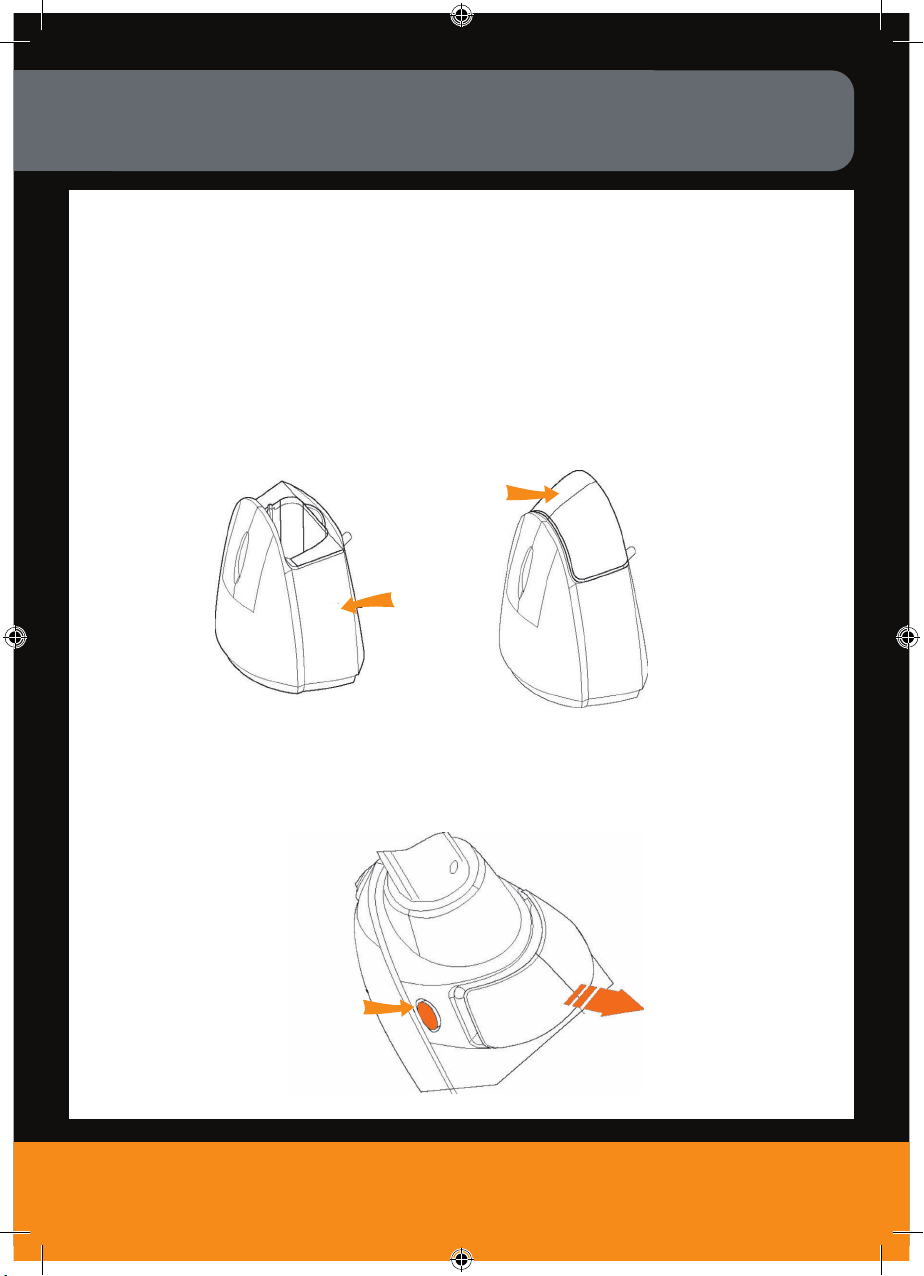

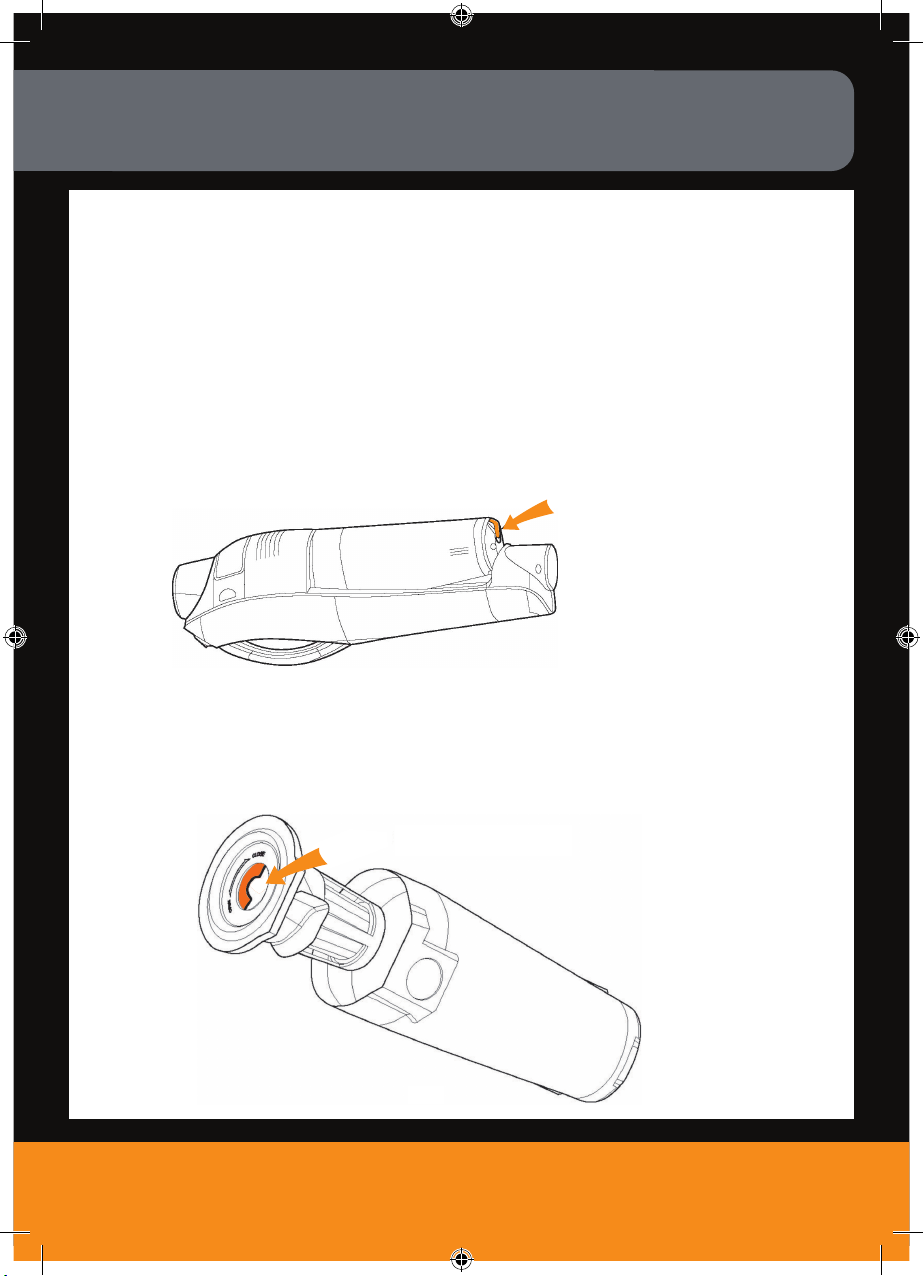

Dirt Cup Assembly
As is shown in the Figure below, place the toll bar of the dust barrel on the back of the unit,
and press down the dirt cup. When the front-end hook on the dirt cup is placed into the
corresponding part on the unit completely, press firmly until a “click” is heard confirming it is
securely in place. To remove the dirt cup, simply grasp the bottom end of the dirt cup and press
the release button, while pulling away from the unit.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 4
dirt cup release button
Emptying the Dirt Cup
After removing the dirt cup as described above, you can now empty its contents.
handle for dirt cup filter

---
www.vax.com.au
5
Operation
---
Operation
4Vax Careline
0870 606 1248
Assembly of Roller Brush
As is shown in the figure below, carefully insert the roller brush into the unit, making sure to
align within the specific guide slots and ensuring electric contacts are fully aligned.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 4
Assembly of the Handle
As shown below, pressing the handle release button will allow for the handle to be removed
from the main unit. To reinstall, simply reinsert the handle making sure the guide slots line up.
guide slots
electrical contacts
handle release button

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
6
Operation
---
Operation
4Vax Careline
0870 606 1248
1. It is necessary for the rechargeable battery to be fully charged prior to use.
2. The charger is uniquely designed for the rechargeable Ni-MH battery, rating:
Input: 220-240V~50 Hz, 50mA; Output: 16V dc at 280mA; Class: II
3. After inserting the plug of the charger into the electrical socket, the power light (green)
will illuminate. Insert the rechargeable battery module, this will cause the charge indicator light
(red) to blink. Battery will be fully charged after 8 hours when red light is solid (not blinking).
4. Once the battery is fully charged, it can be placed into the unit. Before doing so, be sure to
switch the power “OFF” to prevent any possible electrical discharge.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 4
Battery removal
Removing the rechargeable battery is done by simply pressing the battery release button located
on the side of the unit as shown below.
battery charger
battery
battery release button

---
www.vax.com.au
7
Operation
---
Operation
4Vax Careline
0870 606 1248

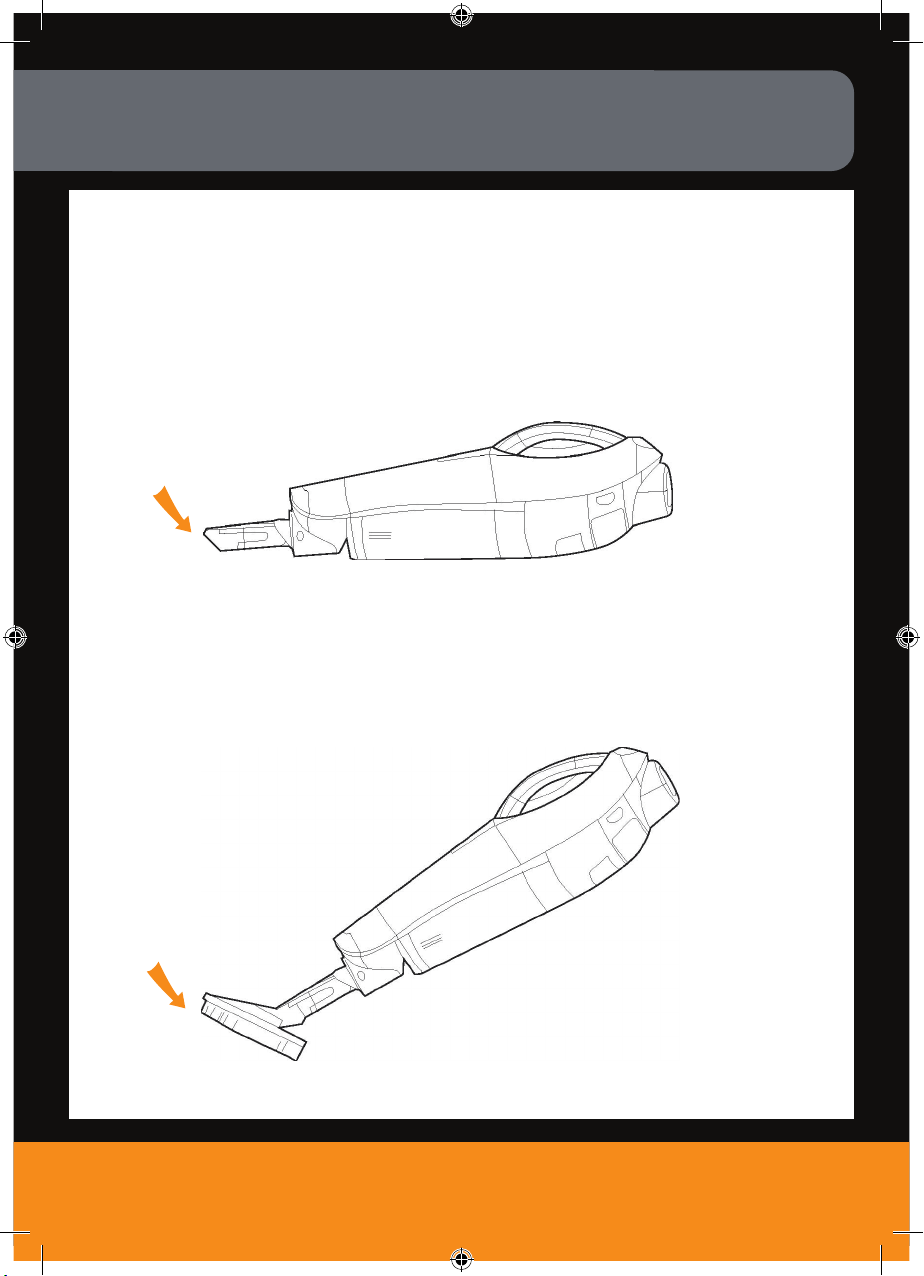

Accessory Items
Included with this unit are two accessory items: a crevice tool and upholstery brush.
A) Crevice Tool
Shown below, the crevice tool is attached for cleaning in tight spaces.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 4
B) Upholstery Brush
With the crevice tool still attached, affix the upholstery brush to the end of the
crevice tool as indicated below.
crevice tool
upholstery brush

---
www.vax.com.au
8
Maintenance (Keep your Vax as good as new)
---
Operation
4Vax Careline
0870 606 1248
1. Dirt Cup filter
After emptying the dirt cup, the filter can also be cleaned at the same time. By grasping the
filter screen guard in one hand, use the opposite hand to rotate the handle as indicated by
the arrow direction shown on the top of the filter. Once removed, the filter can be shaken off
to remove any collected debris.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:53 Page 4
2. Air intake screen
As shown below, the air intake screen can be removed and cleaned in warm soapy water.
Once completely dry, it can be placed back into the unit.
filter screen guard
air intake screen

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
9
FAQs
---
FAQs
!WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner
before performing maintenance/troubleshooting checks.
Is there an accessory missing?
•Check the ‘Machine Overview’ page in this guide
to make sure the part is definitely included in your
unit.
•If it is missing, we’re here to help. Simply call us on
AU: 1300 361 505 / NZ: 0800 800 900
Why won’t the vacuum cleaner pick up?
•The filters may be clogged: Refer to the
Maintenance sections (Page 8).
•The Dirt Container is full or blocked: Refer to
the Maintenance sections (Page 4,8).
•The Dirt Container may be incorrectly installed:
Refer to the Maintenance sections (Page 8).
Why is dust escaping from the vacuum?
•The filters may not be installed correctly. Refer to the
Maintenance sections (Page 8).
•The Dirt container may be incorrectly installed:
Remove the Dirt Container from the unit by
pressing the Dirt Container Release Button (Page
4) and reattach it to the unit, ensuring it is locked
firmly back into place.
•The filters may be clogged: Refer to the
Maintenance sections (Page 8).
What do I do if an accessory/the unit becomes
damaged or broken?
•Visit www.vax.com.au for parts and spares.
•Please call our Vax careline to purchase new
spares or order a replacement:
Why won’t the accessories pick up properly?
•The accessory may be blocked: Refer to the
Maintanance section (Page 7).
•The accessory may be faulty: call our
Vax Careline to order a replacement:
Don’t take your machine
back to the shop, simply
contact us
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:54 Page 8
AU: 1300 361 505 / NZ: 0800 800 900
AU: 1300 361 505 / NZ: 0800 800 900
AU: 1300 361 505
NZ: 0800 800 900
www.vax.com.au

---
www.vax.com.au
10
Other Information
9
Service & Help
Vax Customer Careline AU: 1300 361 505 / NZ: 0800 800 900
Monday-Friday 8.30am to 5.30pm
Any queries or concerns about using the Vax, call the Vax Careline. Calls are charged at the
Standard national rate.
Please make a note of the serial number and model number of the carpet cleaner before calling.
For the nearest Service Agent, please call the Vax Customer Careline or visit www.
vax.com.au
Technical Specification
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:54 Page 9
Vax
Subject to technical change without notice.
Vacuum Cleaner
Charger
Voltage Input: 220-240V~50Hz
Output: 16V d.c at 280mA
Suitable for battery supplied with Vax Mach VMST144V Stick Vacuum Only.
Battery
Battery charge
time: 7-8 hours
Approx run
time: 12-18 minutes
N197
Volts 14.4V d.c.
Capacity: 700ml
Filters: Air Inlet: HEPA & Mesh filter (washable)
Air outlet: Foam filter
Weight: 3.8kg
Other Information

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
11
Notes

---
Distributed by Techtronic Industries Pty. Ltd.
Level 1, 666 Doncaster Rd, Doncaster, Australia 3108.
www.vax.com.au. Service Line: AU: 1300 361 505 / NZ: 0800 800 900
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:54 Page 12
