Vax Rapide Spring Fresh V-021T User manual

www.vax.co.uk Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Upright Carpet Washer
Vax model number:
V-021T

V-021T
1. Diagram
www.vax.co.uk
2parts overview
1 Handle
2 Clean Water Tank Release Button
3 Clean Water Tank
4 Dirty Water Tank Latch
5 Dirty Water Tank Handle
6 Exhaust Filter
7 Brushbar
8 Dirty Water Tank
9 Solution Release Trigger
10 Power Cord Tidy
11 Power Cord Holder
12 Power Cord
13 Power Switch
14 Handle Release Pedal
15 Bottle of Spring Clean
14
9
10
Fig.1/1
AAA
ANTI
ALLERGEN
ADDITIVE
spring
carpet cleaner
INCLUDES
clean
2
1
3
5
7
4
12
13
11
15
8
6

3
Vax Careline 0870 606 1248
safety information
2. Safety Information
For Household Use Only
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Do not leave the carpet washer unattended when
plugged in. Unplug it from socket when not in use.
2. To prevent electric shock do not use outdoors.
3. ot to be used as a toy. Close supervision is
necessary when used by or near children or the
infirm.
4. Use only as described in this manual.
5. Do not use with a damaged cord or plug. If the supply
cord and/or plug is damaged, they must be replaced
by the manufacturer, a Vax Service Agent or similarly
qualified persons in order to avoid hazard.
6. Do not pull or carry by the cord, use the cord as a
handle, allow the cord to come into contact with hot
or sharp surfaces or close a door on the cord.
7. Do not unplug by pulling on the cord.
8. Do not handle the plug or carpet washer with wet
hands.
9. Do not put any objects into openings or operate with
openings blocked, keep them free of anything that
may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
11. Do not use the carpet washer on any glowing,
burning or smoking particles.
12. Do not use without the solution tank and dirty water
tank in place.
13. Turn off all controls before unplugging.
14. Do not use to pick up flammable or combustible
liquids such as petrol, or use in areas where they may
be present.
15. Keep the carpet washer on the floor.
16. Do not use an extension cord.
17. Do not attempt to remove blockages with sharp
objects as they may cause damage.
18. Store indoors put away after use to prevent tripping
accidents.
19. Using improper voltage may result in damage to the
motor and possible injury to the user. The correct
voltage is listed on the rating label.
20. A hazard may occur if the carpet washer runs over
the power supply cord.
NOTE: Carpets should be dry vacuumed thoroughly
before washing.
NOTE: If the supply cord is damaged, it must be
replaced by the manufacturer, a Vax service agent or
similarly qualified persons in order to avoid hazard.
NOTE: The carpet washer must be unplugged from
the mains socket outlet after use, and before
cleaning or maintaining the carpet washer.
IMPORTANT: This carpet washer is not
intended for commercial use.
!
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the vacuum
cleaner should over-heat, the thermostat will
automatically turn the unit off. Should this occur,
unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove the dirt container
and empty. Clean the filters. Allow the cleaner to cool
for approximately one (1) hour. To re-start, plug into
an electrical outlet and switch back on.
!

www.vax.co.uk
4assembly
3. How to Assemble
Components
Assembly
Line up mid-section with base unit and slot into place (Fig
3/6).
Insert handle into mid-section ensuring that the solution
trigger is at the back of the machine and the screw hole
in the handle is lined up with the screw hole in the mid-
section (Fig 3/7).
Insert and tighten (Fig 3/8).
Fig.3/5 - Clean Water Tank
Fig.3/6
Fig.3/7
Fig.3/4 - 3 Screws
Fig.3/3 - Handle
Fig.3/2 - Mid-Section
Fig.3/1 - Base Unit
Align screw holes

5
Vax Careline 0870 606 1248
assembly / before cleaning
Twist cord holder until it is facing upwards (Fig 3/9).
Finally insert clean water tank and machine is fully
assembled (Fig 3/10).
4. Before cleaning
IMPORTANT: Do not use the carpet washer as a
dry vacuum.
1. Vacuum carpet thoroughly. Use a vacuum cleaner
with a revolving brushbar for best results.
2. Remove as much furniture from the room as
possible. If unable to remove the furniture, place
plastic or foil under and around the legs until the
carpet has dried completely.
Helpful hints for cleaning carpet:
1. Only use Vax AAA Carpet Cleaner with this carpet
washer.
2. Do not oversaturate carpet with cleaning solution
while using the carpet washer.
3. For heavily soiled areas, additional applications may
be necessary.
4. Allow plenty of time to dry carpet thoroughly.
5. Wipe cleaning solution from woodwork and wood to
prevent any damage.
6. Try not to walk on carpet until it is completely dry.
7. After carpet is thoroughly dry, vacuum the carpet
using a vacuum cleaner with a revolving brushbar.
8. Before cleaning, determine where to start and end,
making sure not to walk over previously cleaned
areas.
Check for colour fastness:
Before cleaning carpet, test for colour fastness. Dampen
a white cloth with solution. Test a small area in a closet.
Gently rub the cloth over the area. Check each colour for
colour bleeding. If the cloth remains clean, it should be
safe to clean the carpet.
After cleaning:
• Allow carpet to dry completely. Try not to walk on
the carpet until it is dry.
• If it is necessary to walk on the carpet, place white
towels on the areas to be walked on.
• If the carpet is not dry and the furniture must be
placed back in the room, use plastic or foil under the
furniture to prevent staining the carpet.
• Thoroughly clean the dirty water tank with warm
(max 40ºC) tap water.
Fig.3/8
Fig.3/9
Fig.3/9
!
Insert Screw Insert Screw
Insert Screw

www.vax.co.uk
6preparing the machine
5. Preparing the Machine
Hold the handle of the clean water tank and press ‘Clean
Water Tank Release’. Tilt Clean Water Tank away from
the carpet washer and remove (Fig 5/1).
Unscrew the measuring cap from the reverse side of the
clean water tank. Fill measuring cap with solution (Use
only 1 capful of solution per full tank). Pour into clean
water tank (Fig 5/2).
IMPORTANT: Use only Vax AAA Carpet Cleaner
solution. Using other cleaning solutions may
cause excess foaming. Excessive foam will prevent the
machine from working effectively. Using other
solutions will void the warranty.
Fill remainder of clean water tank with warm (max 40°C)
tap water. Replace cap (Fig 5/3).
Place bottom of clean water tank into carpet washer and
push back until it locks into place (Fig 5/4).
Fig.5/3
Fig.5/4
!
Fig.5/1
Fig.5/2

7
Vax Careline 0870 606 1248
usage
6. Usage
Plug cord into electrical socket. Turn on the machine by
using the on/off switch located on the side of the machine.
IMPORTANT: Never leave unit unattended with
power on. Turn off when emptying and filling
tanks. Do not over-saturate the carpet
Step onto handle release pedal to put the machine into
cleaning position (Fig.6/1).
While depressing the solution spray trigger, pull carpet
washer in a backward motion. Release the trigger and
push the unit forward in the same path to agitate and
remove dirty water and solution from carpet. (For more
heavily soiled areas, repeat if necessary).
IMPORTANT: For best cleaning results use a
steady, moderate, forward and backward
motion. Always work from back to front across the
room to avoid stepping on wet carpet and lowering
the pile.

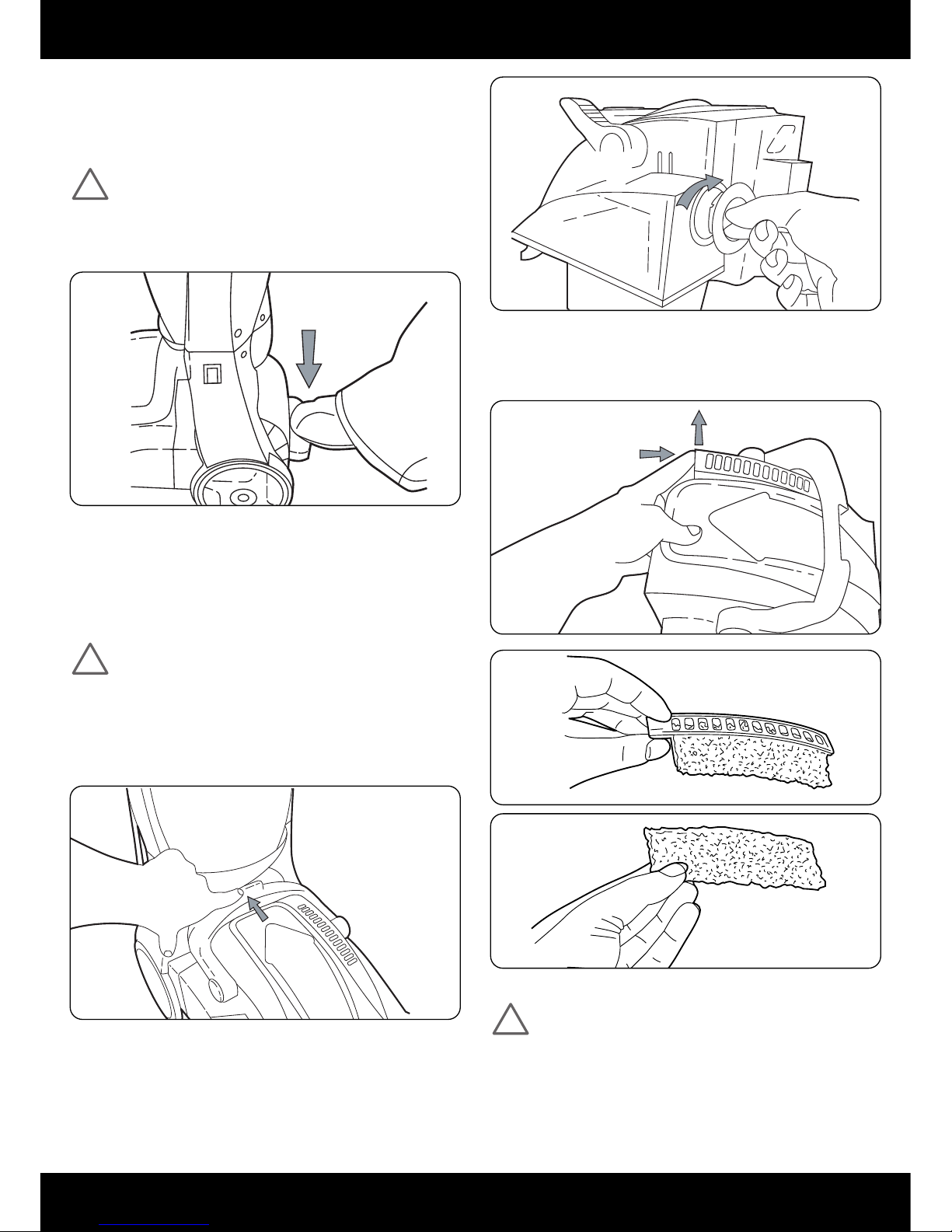

When dirty water tank is full lift dirty water tank latch
and remove from base unit using the handle (Fig.6/2).
Twist dirty water tank outlet cap to the left and remove,
empty, rinse and replace (Fig.6/3)
When finished cleaning remove the dirty water tank and
rinse with warm water and allow it to dry before storage.
Also remove filter (as shown) rinse with warm water and
allow it to dry thoroughly before storing.
IMPORTANT: Do not use any chemicals when
cleaning.
NOTE: Do not store cleaner with solution in clean
water tank or dirty water in dirty water tank. Mineral
deposits and mildew can form with will affect the
performance of the carpet washer.
!
!
!
!
Fig.6/2
Fig.6/3
Fig.6/4
Fig.6/1
Fig.6/5
Fig.6/6

www.vax.co.uk
8troubleshooting / uk service and help
7. Troubleshooting
WARNING: To reduce risk of personal injury,
unplug carpet washer before servicing.
Problem: The cleaner won't run
Cause: ot properly plugged into electrical outlet.
olution: Plug in firmly.
Cause: o electricity in electrical outlet.
olution: Check fuse or breaker.
Cause: On/off switch not turned on.
olution: Push on/off switch to ‘on’.
Cause: Blown fuse/tripped breaker.
olution: Reset circuit breaker or replace fuse.
8. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 8.00am to 8.00pm
Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using the Vax, call the Vax
Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
!

9. Technical Specification
Voltage: 220 ~ 240V 50Hz
Motor Power: 550W
Clean water tank volume: 2.6 litres
Dirty water tank volume: 2.4 litres
Cord length: 6.1m
Weight: 5.7kg
Subject to technical change without notice.
9
Vax Careline 0870 606 1248
technical specification

www.vax.co.uk
10
This page has been left intentionally blank

11
Vax Careline 0870 606 1248
This page has been left intentionally blank

-
EEC TATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that
the V-021T is manufactured in compliance with the following Directives:
afety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: inf[email protected]o.uk - website: www.vax.co.uk
