Vecow EMBC-5000 Series User manual

USER
Manual
USER
Manual
1.0.0 Edition 20210318
Intel®Core™ i7/i5/i3 SoC (Tiger Lake UP3) 3.5" Single Board Computer
1 GigE LAN, 2.5G GigE LAN, 4 10G USB, 4 COM, SUMIT A, B, TPM, Ignition Control
EMBC-5000

ii
©Vecow EMBC-5000 User Manual
Version Date Page Description Remark
1.00 2021/03/18 All O󰀩cial Release
Record of Revision

iii
©Vecow EMBC-5000 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow EMBC-5000 User Manual
Part Number Description
EMBC-5000E-1185G7E
EMBC-5000 3.5" Embedded Single Board Computer,
onboard Intel® Core™ i7-1185G7E Processor (Tiger Lake UP3),
DDR4 SO-DIMM, 1 GigE LAN, 2.5GigE LAN, 2 10G USB,
2 USB 2.0, 4 COM RS-232/422/485, 2 SATA, SUMIT A, B,
9V to 55V DC-in, Ignition Control, High Performance, Fanless,
Extended Temperature
EMBC-5000-1185G7E
EMBC-5000 3.5" Embedded Single Board Computer, onboard
Intel® Core™ i7-1185G7E Processor (Tiger Lake UP3), DDR4
SO-DIMM, 1 GigE LAN, 2.5GigE LAN, 2 10G USB, 6 USB 2.0,
4 COM RS-232/422/485, 2 SATA, 9V to 55V DC-in, Ignition
Control, High Performance, Fanless, Extended Temperature
EMBC-5000-1145G7E
EMBC-5000 3.5" Embedded Single Board Computer, onboard
Intel® Core™ i5-1145G7E Processor (Tiger Lake UP3), DDR4
SO-DIMM, 1 GigE LAN, 2.5GigE LAN, 2 10G USB, 6 USB 2.0,
4 COM RS-232/422/485, 2 SATA, 9V to 55V DC-in,
Ignition Control, High Performance, Fanless,
Extended Temperature
Order Information

v
©Vecow EMBC-5000 User Manual
Part Number Description
61-13Q1009-0DA COM Port Cable
61-1300011-100 SATA Data Cable
61-13P0430-08A SATA Power Cable
Heat Sink Heat Sink for EMBC-5000 Series
Heat Spreader Heat Spreader for EMBC-5000 Series
61-13T10LM-3CG Audio Cable
61-193102U-156 USB 2.0 Cable
Optional Accessories

vi
©Vecow EMBC-5000 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of EMBC-5000E-1185G7E 3
1.3.2 Specications of EMBC-5000-1185G7E 5
1.3.3 Specications of EMBC-5000-1145G7E 7
1.4 Supported CPU List 9

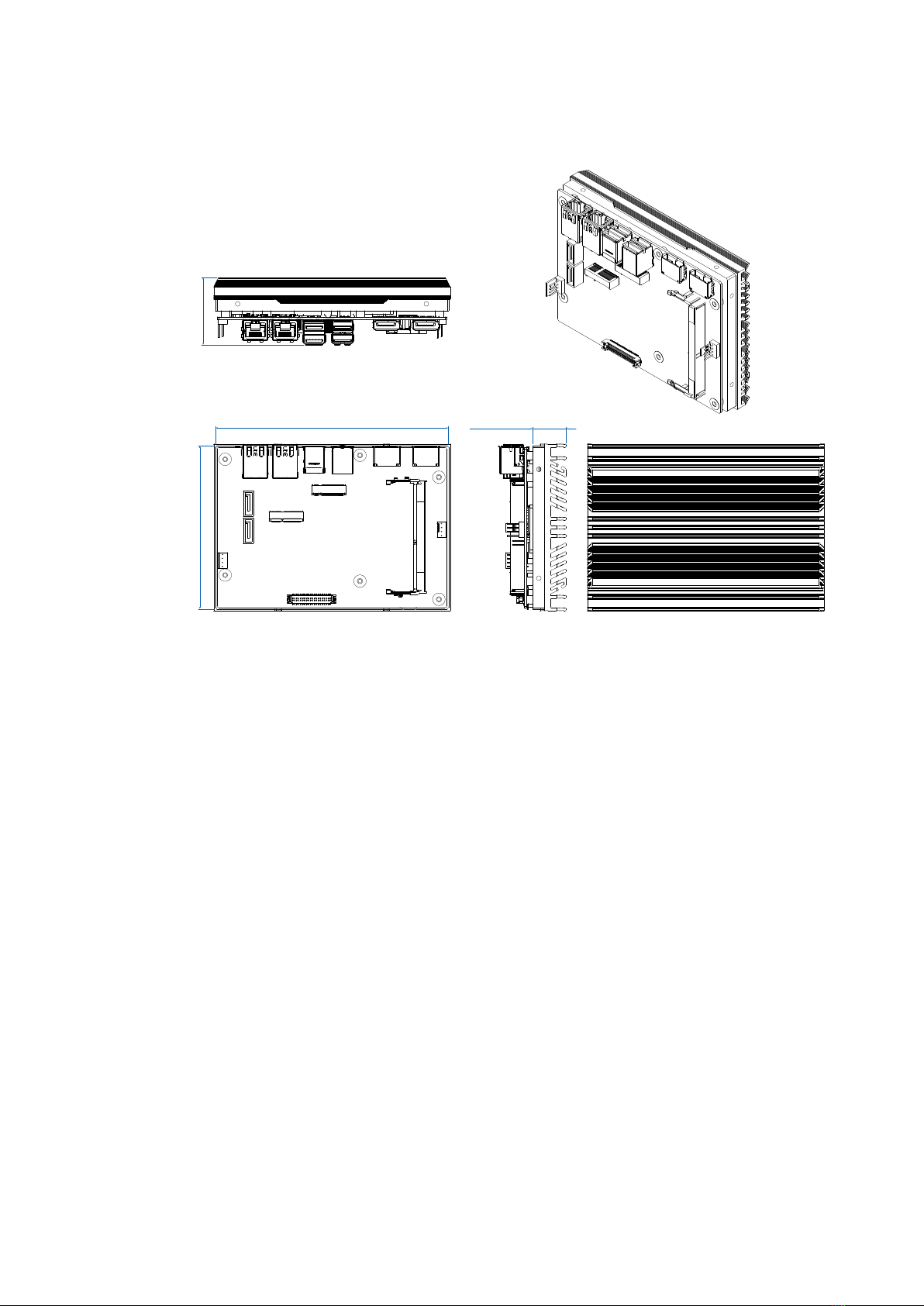

1.5 Mechanical Dimension 10
1.5.1 Dimensions of EMBC-5000 10
1.5.2 Dimensions of Heat Spreader 10
1.5.3 Dimensions of Heat Sink 11
1.5.4 Dimensions of MB+Heat Spreader 11
1.5.5 Dimensions of MB+Heat Sink 12
CHAPTER 2 GETTING TO KNOW YOUR EMBC-5000 13
2.1 Packing List 13
2.2 Connector/Jumper Locations 14
2.3 Main Board Jumper Settings 34
2.4 Ignition Control 37
CHAPTER 3 SYSTEM SETUP 40
3.1 Installing Heat Spreader 40
3.2 Installing Heat Sink 41
3.3 Installing DDR4 SO-DIMM Module 42
3.4 Installing M.2 43
3.5 Installing SIM Card 45

vii
©Vecow EMBC-5000 User Manual
CHAPTER 4 BIOS SETUP 46
4.1 BIOS Setting 46
4.2 Main Manu 47
4.3 Advanced Functions 47
4.4 Chipset Functions 60
4.5 Security 67
4.6 Boot Functions 69
4.7 Save & Exit 70
APPENDIX A : GPIO GUIDE 71
APPENDIX B : Software Functions 74
APPENDIX C : RAID Functions 77
APPENDIX D : Power Consumption 87
APPENDIX E : Supported Memory & Storage List 90

1
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
Vecow EMBC-5000 is a new generation smart and power-efficient compact
embedded engine. Powered by 11th Gen Intel® Core™ i7/i5/i3 processor (Tiger
Lake UP3) running with up to 32GB DDR4 memory, Vecow EMBC-5000 is
equipped with advanced Intel® Iris® Xe Graphics supporting up to 8K resolution;
multiple 10G SuperSpeed USB 3.1 Gen 2 (10Gbps), PCIe 3.0 (8GT/s), SATA III
(6Gbps), USB 3.1 (5Gbps), GigE LAN (1Gbps) and wireless connection make
high-speed data conveying possible. With outstanding performance, small-form-
factor compact design, leading power protection, exible expansion functions,
and industrial-grade reliability, Vecow EMBC-5000 3.5" SBC is your smart
computing engines for any AIoT/Industry 4.0 applications in harsh environments.
Fanless design supporting -40°C to 75°C extended operating temperature,
DisplayPort and dual channel 16-bit LVDS display interfaces support triple
independent displays and up to 8K resolution, 4 USB ports support up to
10Gbps SuperSpeed data delivery, 1 GigE LAN, 2.5G GigE LAN, 4 COM RS-
232/422/485, 2 SATA III, SIM socket for 5G, WiFi, 4G, 3G, LTE, GPRS or UMTS
wireless data transfer, optional full function SUMIT A, B expansion supports
multiple SIM sockets, 9V to 55V wide range DC power input, Ignition Power
Control for in-vehicle computing, iAMT 12.0, TPM 2.0, Wake on LAN and PXE
smart manageability, Vecow EMBC-5000 Series 3.5" SBC serves compact &
exible solutions to meet your project requirements.
High performance Intel® Core™ i7/i5/i3 SoC (Tiger Lake UP3), excellent power
productivity with outstanding performance, small-form-factor compact design,
leading power protection, easy to customize, system-oriented integrated
functions, and industrial-grade reliability, Vecow EMBC5000 Series 3.5"
Embedded ingle Board Computer is your performance-driven solution for
Telemedicine, Intelligent Transportation (ITS), Intelligent Vending, Robotic
Control, Industry 4.0 and Internet of Things (IoT) applications.
1

2
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.2 Features
• 11th Gen Intel® Core™ i7/i5/i3 processor (Tiger Lake UP3) delivers new
generation system productivity than ever, up to 28W TDP
• Fanless -40°C to 75°C Operating Temperature
• DDR4 3200MHz memory, up to 32GB
• Intel® Iris® Xe Graphics supports dual DisplayPort and 1 LVDS display interfaces,
up to 8K resolution
• Multiple USB supports up to 10Gbps data transfer
• 1 Independent 2.5GigE LAN supports Intel® Time Sensitive Networking (TSN) for
real-time data synchronization
• 1 GigE LAN supports iAMT, TPM 2.0 supported
• SIM Socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
• 4 COM RS-232/422/485, 2 SATA III, 1 M.2 Key E, 1 M.2 Key B
• Supports full function SUMIT A, B expansion
• 9V to 55V DC wide range Power Input
• Ignition Power Control
• Easy to customize for low-profile system applications
• One-stop SUMIT Expansion Design and Manufacturing Services

3
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of EMBC-5000E-1185G7E
System
Processor Intel® Core™ i7-1185G7E Processor (Tiger Lake-UP3)
Chipset Intel® SoC (Tiger Lake)
BIOS AMI
SIO IT8786E
Memory
• 1 DDR4 3200MHz
• Up to 32GB
• 1 260-pin SO-DIMM Socket
Graphics
Graphics Processor Intel® Iris® Xe Graphics
Interface
3 display interfaces :
• DisplayPort 1 : Up to 4096 x 2304 @60Hz
• DisplayPort 2 : Up to 4096 x 2304 @60Hz
• LVDS : Dual channel 16-bit, up to 1920 x 1200
Ethernet
LAN1 Intel® Ethernet Controller I219LM GigE LAN supports iAMT
LAN2 Intel® I225-IT supports 2.5 GigE LAN
Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 2 SATA III (6Gbps)
M.2 1 M.2 Key B 2260 Socket
I/O Interface
Front I/O
• 2 DisplayPort Connector
• 4 USB Connector
• 2 RJ45 Connector
• 1 Reset Button
• 1 Power LED
• 1 Wireless LED
• 1 HDD LED
• 1 WiFi LED
Internal I/O
• 4 COM RS-232/422/485 Connector
• 1 ATX 4-pin Power Connector
• 1 SUMIT A Connector (Optional)
• 1 SUMIT B Connector (Optional)
• 1 M.2 Key B Socket (3042/3052/2260)
• 1 M.2 Key E Socket (2230)
• 1 SIM Card Socket
• 1 DDR4 SO-DIMM Socket
• 1 LVDS Connector
• 1 LVDS Backlight Connector
• 2 USB 2.0 Wafer with 4 ports (Optional)
• 2 SATA Data Connector
• 1 SATA Power Connector
• 1 4-pin Fan Connector

4
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
Expansion
SUMIT • 1 SUMIT A Connector
• 1 SUMIT B Connector
M.2
2 M.2 sockets :
• 1 M.2 Key B Socket (3042/3052)
• 1 M.2 Key E Socket (2230)
Power
Power Input 9V to 55V DC-in
Power Interface ATX Power Connector
Ignition Control 16 Mode (Internal)
Others
TPM Inneon SLB9665 supports TPM 2.0, SPI interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L) 146.0mm x 102.0mm (5.75" x 4.02")
Weight 351 g (0.77 lb)
Environment
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
EMC CE, FCC

5
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.3.2 Specications of EMBC-5000-1185G7E
System
Processor Intel® Core™ i7-1185G7E Processor (Tiger Lake-UP3)
Chipset Intel® SoC (Tiger Lake)
BIOS AMI
SIO IT8786E
Memory
• 1 DDR4 3200MHz
• Up to 32GB
• 1 260-pin SO-DIMM Socket
Graphics
Graphics Processor Intel® Iris® Xe Graphics
Interface
3 display interfaces :
• DisplayPort 1 : Up to 4096 x 2304 @60Hz
• DisplayPort 2 : Up to 4096 x 2304 @60Hz
• LVDS : Dual channel 16-bit, up to 1920 x 1200
Ethernet
LAN1 Intel® Ethernet Controller I219LM GigE LAN supports iAMT
LAN2 Intel® I225-IT supports 2.5 GigE LAN
Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 2 SATA III (6Gbps)
M.2 1 M.2 Key B 2260 Socket
I/O Interface
Front I/O
• 2 DisplayPort Connector
• 4 USB Connector
• 2 RJ45 Connector
• 1 Reset Button
• 1 Power LED
• 1 Wireless LED
• 1 HDD LED
• 1 WiFi LED
Internal I/O
• 4 COM RS-232/422/485 Connector
• 1 ATX 4-pin Power Connector
• 1 SUMIT A Connector (Optional)
• 1 SUMIT B Connector (Optional)
• 1 M.2 Key B Socket (3042/3052/2260)
• 1 M.2 Key E Socket (2230)
• 1 SIM Card Socket
• 1 DDR4 SO-DIMM Socket
• 1 LVDS Connector
• 1 LVDS Backlight Connector
• 2 USB 2.0 Wafer with 4 ports (Optional)
• 2 SATA Data Connector
• 1 SATA Power Connector
• 1 4-pin Fan Connector

6
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
Expansion
SUMIT • 1 SUMIT A Connector
• 1 SUMIT B Connector
M.2
2 M.2 sockets :
• 1 M.2 Key B Socket (3042/3052)
• 1 M.2 Key E Socket (2230)
Power
Power Input 9V to 55V DC-in
Power Interface ATX Power Connector
Ignition Control 16 Mode (Internal)
Others
TPM Inneon SLB9665 supports TPM 2.0, SPI interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L) 146.0mm x 102.0mm (5.75" x 4.02")
Weight 351 g (0.77 lb)
Environment
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
EMC CE, FCC

7
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.3.3 Specications of EMBC-5000-1145G7E
System
Processor Intel® Core™ i5-1145G7E Processor (Tiger Lake-UP3)
Chipset Intel® SoC (Tiger Lake)
BIOS AMI
SIO IT8786E
Memory
• 1 DDR4 3200MHz
• Up to 32GB
• 1 260-pin SO-DIMM Socket
Graphics
Graphics Processor Intel® Iris® Xe Graphics
Interface
3 display interfaces :
• DisplayPort 1 : Up to 4096 x 2304 @60Hz
• DisplayPort 2 : Up to 4096 x 2304 @60Hz
• LVDS : Dual channel 16-bit, up to 1920 x 1200
Ethernet
LAN1 Intel® Ethernet Controller I219LM GigE LAN supports iAMT
LAN2 Intel® I225-IT supports 2.5 GigE LAN
Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 2 SATA III (6Gbps)
M.2 1 M.2 Key B 2260 Socket
I/O Interface
Front I/O
• 2 DisplayPort Connector
• 4 USB Connector
• 2 RJ45 Connector
• 1 Reset Button
• 1 Power LED
• 1 Wireless LED
• 1 HDD LED
• 1 WiFi LED
Internal I/O
• 4 COM RS-232/422/485 Connector
• 1 ATX 4-pin Power Connector
• 1 SUMIT A Connector (Optional)
• 1 SUMIT B Connector (Optional)
• 1 M.2 Key B Socket (3042/3052/2260)
• 1 M.2 Key E Socket (2230)
• 1 SIM Card Socket
• 1 DDR4 SO-DIMM Socket
• 1 LVDS Connector
• 1 LVDS Backlight Connector
• 2 USB 2.0 Wafer with 4 ports (Optional)
• 2 SATA Data Connector
• 1 SATA Power Connector
• 1 4-pin Fan Connector

8
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
Expansion
SUMIT • 1 SUMIT A Connector
• 1 SUMIT B Connector
M.2
2 M.2 sockets :
• 1 M.2 Key B Socket (3042/3052)
• 1 M.2 Key E Socket (2230)
Power
Power Input 9V to 55V DC-in
Power Interface ATX Power Connector
Ignition Control 16 Mode (Internal)
Others
TPM Inneon SLB9665 supports TPM 2.0, SPI interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L) 146.0mm x 102.0mm (5.75" x 4.02")
Weight 351 g (0.77 lb)
Environment
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
EMC CE, FCC

9
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
Processor No. Cores TDP Cache Max. Frequency ECC Memory
Intel® Core™ i7-1185G7E 4 15W 12M Up to 4.4GHz N
Intel® Core™ i5-1145G7E 4 15W 8M Up to 4.1GHz N

10
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.5 Mechanical Dimension
1.5.1 Dimensions of EMBC-5000
146.0 (5.75)
85.7 (3.38)
5.3 (0.21)
77.7 (3.06)
50.2 (1.98) 5.1 (0.20)
102.0 (4.02)
19.0 (0.75)
55.2 (2.17) 85.7 (3.38)
73.7 (2.90)7.6 (0.30)
17.9 (0.71)
Unit : mm (inch)
1.5.2 Dimensions of Heat Spreader
148.0 (5.83)
103.8 (4.09)
8.5 (0.33)
Unit : mm (inch)

11
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.5.3 Dimensions of Heat Sink
150.4 (5.92)
50.2 (1.98) 85.7 (3.38)
106.1 (4.18)
50.2 (1.98) 85.7 (3.38)
22.7 (0.89)
22.7 (0.89)
73.7 (2.90)
9.7 (0.38)
25.2 (0.99)
Unit : mm (inch)
1.5.4 Dimensions of MB+Heat Spreader
148.0 (5.83)
103.8 (4.09)
8.5 (0.33)
30.4 (1.20)
Unit : mm (inch)

12
©Vecow EMBC-5000 User Manual GENERAL INTRODUCTION
1.5.5 Dimensions of MB+Heat Sink
43.2 (1.70)
148.0 (5.83)
103.8 (4.09)
21.2 (0.84)
Unit : mm (inch)

13
©Vecow EMBC-5000 User Manual GETTING TO KNOW YOUR EMBC-5000
2
GETTING TO KNOW YOUR EMBC-5000
2.1 Packing List
Item Description Qty
1EMBC-5000 3.5 Embedded Single Board Computer 1
2Driver/User Manual DVD 1
3
Cable Kit
• COM Port Cable
• COM Screw#4-40, L=5mm
• SATA Data Cable
• SATA Power Cable
• USB 2.0 Cable
• USB Screw PH-M3, L=6mm
• Audio Cable
• Audio Ring
2
8
1
1
1
4
1
2
