Vector MZ3-FU-V01 User manual

MZ3-FU-V01
Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 1-6
Subject to alternation www.vectorcontrols.com

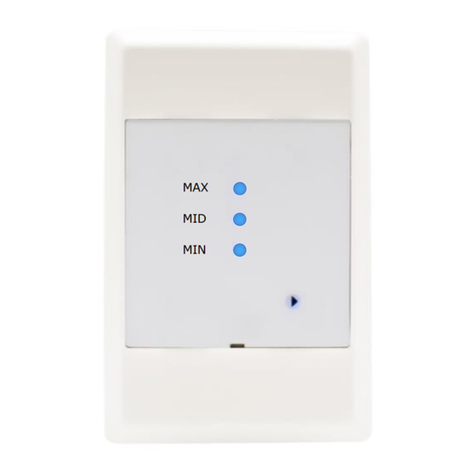

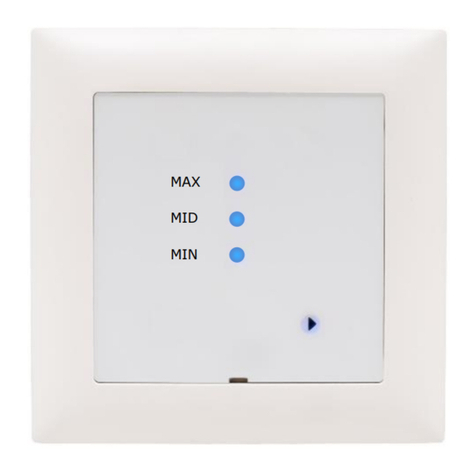

MZ3-FU-V01
3-Level Switch
Function
•Electronic 3-level switch with touch panel
•Manual operation with up to 3 Levels: MIN, MID, MAX
•Automatic reset of the level MAX to specified level (per default no reset)
•One 0…10 VDC output to output defined voltage levels
•Password protected settings
•Copy of settings with accessory (AEC-PM2)
Applications
Comfort ventilation, for example for very well insulated living rooms which must be
ventilated according to regulations or for controlling dampers, valve drives, blinds or
windows, etc.
General description
The MZ3-FU-V01 is a microprocessor-controlled precision level switch with touch
panel. Through parameters the level switch may be configured. Settings such as
switching levels for each step may be adjusted. The level switch is configuration with
a programming device called OPA-S. Configuration can as well be updated using a
remote memory device called AEC-PM2.
Safety
DANGER! Safety note
This device is intended to be used as 3-level switch. Where a device failure endangers human life and/or
property, it is the responsibility of the client to add additional safety devices to prevent or detect a system failure
caused by such a device failure.
The device contains electronic components and must not be disposed of with household waste.
Types and ordering
Product name
Product No.
Description
Features
MZ3-FU-V01-B3-T3
on request
- Blue LED
- White frame
- Lettering: MIN, MID, MAX
Compact positioner/controller in a
frame, with one 0-10 VDC output.
Operation as 3-level switch with
touch panel.
MZ3-FU-V01-G3-T3
on request
- Green LED
- White frame
- Lettering: MIN, MID, MAX
Accessories
OPA-S
40-500006
Programming and display device
LCD display for surface mounting
or handheld operation.
AEC-PM2
40-500130
Memory-Device. Used for copying settings
Stores settings of MZ3
Interface to the ventilation system
The 3-level switch works with all systems that are designed for a 0...10 VDC or 2...10 VDC input signal.
MAX
MID
MIN

MZ3-FU-V01
Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 2-6
Subject to alternation www.vectorcontrols.com
Technical Data
Power supply
Operating voltage
24 V AC/DC ± 10%, 50/60 Hz, Class 2 48 VA max.
Power consumption
Max. 1 VA
Electrical connection
Terminal connectors,
wire 0,34-2,5 mm2 (AWG 22…13)
Signal output
Analog output
Output signal
Maximum load
DC 0…10 V
2 mA or 5 kΩ
Environment
Operation
Climatic conditions
Temperature
Humidity
To IEC 721-3-3
class 3K5
0...50 ° C (32...122 ° F)
< 95% RH non-condensing
Transport & storage
Climatic conditions
Temperature
Humidity
Mechanical conditions
To IEC 721-3-2 and IEC 721-3-1
class 3K3 and class 1K3
-25…70 °C (-13…158 °F)
< 95% RH non-condensing
class 2MT2
Standards
Degree of protection
Wall mounted: IP40 acc. EN 60529
Not installed: IP00 acc. EN 60529
Safety class
III (IEC 60536)
General
Housing material:
Flame retardant PC+ABS plastic (UL94 class V-0)
Dimensions (H x W x D)
including packaging
145 x 105 x 70 mm (5,7” x 4,1” x 2,8”)
Weight (incl. packaging)
155 g (5.5 oz)
Product testing and certification
Declaration of
Conformity
Information on the conformity of our products can be found on our website
www.vectorcontrols.com on the corresponding product page under "Downloads".
Connection diagram
Description:
1
GND
Power supply:
0 V, -24 VDC, internally connected to signal common
2
V+
Power supply:
24 VAC, +24 VDC
3
Not used, do not connect
4
AO
Analog output ventilation:
0/2…10 VDC
Mounting instruction
For more information on mounting, refer to MZ3-FU-V01 Installation Manual No. 70-000841
(www.vectorcontrols.com).

MZ3-FU-V01
Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 3-6
Subject to alternation www.vectorcontrols.com
View of rear part, without front panel
NOTE: For parameter programming, the OPA-S programming and display unit must be plugged in at the connector
under the front panel or on the back of the MZ3.
Dimensions mm (in)
The MZ3-FU-V01 is so designed that it can be incorporated into a commercially available flush box.

MZ3-FU-V01
Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 4-6
Subject to alternation www.vectorcontrols.com
Display and Operation
Manual operation
The following operation modes will be activated through repeated pressing of the
level button:
-Level 0 = MIN = Minimum
-Level 1 = MID = Medium
-Level 2 = MAX = Maximum
The active level is activated after 3 seconds. This prevents unnecessary switching
when setting the device. The level-indication and buttons light up in blue.
The device is equipped with proximity detection. When approaching a distance of
approx. 10 cm, the luminosity of the LED increases. After 30 seconds without
interaction, the LEDs dim down again and thus save energy.
Level button
Level LEDs

MZ3-FU-V01
Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 5-6
Subject to alternation www.vectorcontrols.com
Configuration
Configuration of the output signal and jumper
−If JP1 is in position 1-2, the output signal is 0…10 VDC
−If JP1 is in position 2-3, the output signal is 2…10 VDC
The jumper position can be seen in section "View of rear part, without front panel" page 3.
Output configuration (AO)
Parameter
Description
Range
Default
OP00
Output level 0 (MIN): 0…100 % = 0…10.0 VDC
0…100%
0% =
0 V (JP1 = 1-2)
2 V (JP1 = 2-3)
OP01
Output level 1 (MID): 0…100 % = 0…10.0 VDC
Note: setting a level to 0 disables it
0…100%
50% =
5 V (JP1 = 1-2)
6 V (JP1 = 2-3)
OP02
Output level 2 (MAX): 0…100 % = 0…10.0 VDC
Note: setting a level to 0 disables it
0…100%
100% =
10 V (JP1 = 1-2)
10 V (JP1 = 2-3)
OP03
Automatic reset time of the lowest level to the level defined
in OP05. The reset is deactivated with setting = 0
0…255 min
0 min
(deactivated)
OP04
Automatic reset time of the highest level to the level defined
in OP05. The reset is deactivated with setting = 0
0…255 min
0 min
(deactivated)
OP05
Level after automatic reset. This level will be activated once
the reset time defined in OP04 has expired.
0…2
1
OP06
- 0: Parameter copy successful; No action
- 1: Start parameter copy to AEC-PM2
- 7: Copy fail (no AEC-PM2 or communication error)
0…1
7: display only
0
Setting the parameters
The MZ3 is designed to work for most comfort ventilation applications. It is
however possible to fine tune it to fit perfect into the application at hand.
The parameters can be changed during operation through an operation unit
called OPA-S. The operating unit OPA-S must be connected for the
adjustment of the parameters with the MZ3.
Carefully lift the front panel of the MZ3 and pull it away to the front. Plug the
connecting cable of the OPA-S operating unit into the rear part of the MZ3.
Important
The MZ3 does not accept the new settings until the OPA-S parameter menu is exited. The connection must not be
disconnected earlier than five seconds after the last keystroke!
Copy parameters
It is now possible to copy settings to an accessory (AEC-PM2) and to copy them back to
other MZ3. For this, remove the front panel of the MZ3, insert AEC-PM2 in the
designated plug.
Copy parameters from MZ3 to AEC-PM2
Connect OPA-S and copy parameters from MZ3 to AEC-PM2 by setting OP06 to 1. The
"Data" LED of the AEC-PM2 lights up for 5 seconds after successful parameter copying
and OP06 is set to 0. If parameter copying has failed, the LED flashes for 5 seconds and
OP06 is set to 7.
Copy parameters from AEC-PM2 to MZ3
Copy the parameters from AEC-PM2 to MZ3 simply by pressing the "Copy" button on the
AEC-PM2. The "Data" LED on the AEC-PM2 will light for 5 seconds after the parameters
have been successfully copied. If the parameter copy failed, the LED will blink for 5
seconds.

MZ3-FU-V01
Doc: 70-00-0842A V2.5, 20230220 © Vector Controls GmbH, Switzerland Page 6-6
Subject to alternation www.vectorcontrols.com
