Vedia VDI 3/6 User manual

User Manual
ELECTRONIC SCALE
The product is designed and produced in the
terms of applied Quality Management
System ISO 9001:2008

Contents
I. Contents of the package
II. Brief Introduction
III. Technical characteristics
IV. Layout of the scale and its components
V. Instructions for operation
The preparation for use with the initial start of the scale should be done only after thorough study of
the instructions provided with this manual. Unsealed and non-marked scale is not legal for trade. In
case the scale is unsealed, immediately turn to an authorized agency so it can be checked and sealed.
Validity of the sticker for conformity assessment of the product is till the end of the year that follows
the one on the sticker. When the term expires, the scale is liable to re-verification from the authorized
agency. Warranty term is valid only if the conditions of the warranty are adhered.
I. Contents of the package
After unpacking the scale, please check whether there are all components and documents listed below:
1. Electronic indicator VEDIA (with required marking)
2. Platform
3. Adaptor
4. User’s manual
5. Declaration of conformity
In case of missing, please immediately turn to the distributor you bought the scale from or directly to
VEDICOM Ltd.
II. Brief Introduction
Electronic scales VEDIA are non-automatic weighing instruments with high accuracy,
designed and produced in the terms of applied Quality Management System ISO 9001:2008 and
intended for use in retails, warehouses, markets, laboratories and households. TARE key is used to
performed TARE function, which allows measuring the NET weight of the goods.
The number of performed measures can be counted and the prices of the goods for one
customer can be summed up. Direct price input for a product that needs no weighing and calculation of
the charge due is also possible. Interfaces for connection with a cash register and a computer are
optional. They expand the opportunities to operate with VDI scales. All scales from the range have
built-in additional devices and functions are information about the battery charge, thermometer,
backlight and etc. The VEDIA VDI range of scales is of 4 types varying in maximum capacity 30/60
kg and 60/150 kg. The mark “C” stands for price-computing scale, the mark “Р” stands for scale for
postal services.

Features:
Highly accuracy load cell;
Quick and precise weighing;
ZERO and TARE functions;
Software “damper” protection from vibrations and air draughts;
Mechanical overload protection;
Overload waring and low battery warning;
Plastic protector;
Built-in rechargeable battery;
Interface connection with cash register and computer (optional);
Connection with label printer (optional);
Backlight on the display;
Built-in thermometer.
III. Technical characteristics
Model Max. capacity Division
Platform size
(mm)
No. of Load
Cells Built-in battery
VDI 3/6 3/6kg 1g/2g 350/450 1 yes
VDI 6/15 6/15kg 2g/5g 350/450 1 yes
VDI 6/30 6/30kg 2g/10g 350/450 1 yes
VDI 15/30 15/30kg 5g/10g 350/450 1 yes
VDI 30/60 30/60kg 10g/20g 450/550 1 yes
VDI 60/150 60/150kg 20g/50g 450/600 1 yes
VDI 150/300 150/300kg 50g/100g 600/700 1 yes
VDI 300/600 300/600kg 100g/200g 800/800 1 yes
VDI 300/600 300/600kg 100g/200g 1000/1200 4 no
VDI 600/1000 600/1000kg 200g/500g 1000/1200 4 no
VDI 600/1000 600/1000kg 200g/500g 1500/1200 4 no
VDI 600/1500 600/1500kg 200g/500g 1500/1500 4 no
VDI 1500/2000 1500/2000kg 500g/1kg 2000/1500 4 no
VDI 1500/3000 1500/3000kg 500g/kg 2000/2000 4 no

IV. Layout of the scale and its components
Keyboard:
Display:

V. Instruction for operation
1. Environment requirements:
Operation temperature range: - 10С÷ + 40С;
Storage temperature: - 25С÷ + 40С;
Permissible relative humidity: < 80%. Condense is not allowed.
2.Preparation for work and scale maintenance :
Before start using the scale, check whether the set is full. Check for mechanical damages which may
have occurred during transportation. For the right functioning of the scale it is necessary to be placed
on stable and flat surface; the four adjustable feet are used to level the scale. During the leveling watch
the mounted in the down left angle bubble-level. After turning the scale on wait 10 minutes before
starting to use it.
Attention!
1. The scale is a precise instrument. Please, place it on flat surface and avoid serious hits. Loads over
the maximum capacity can damage the load cell permanently. Avoid operating it on vibrating surfaces
and close to sources of strong electro-magnetic fields;
2. Keep the scale in airy and dry place; avoid leaving it under direct sunlight;
3. Check the functionality of the display during the automatic testing of the scale after turning the
power on;
4. Do not use chemical and abrasive dissolving agents for cleaning it. Please, clean the scale with wet
cloth but avoid letting water into it;
5. Do not push the buttons too strongly and do not use sharp objects for this purpose.
3.Functions of the keys:
Key Function
ZERO setting
Set and remove TARE
Enter/Return to the main menu
Enter in selected sub-menu. Setting/ parameter
confirmation
Menu up
Menu down
Used in service mode
Used in service mode

4. Operation with the scale in weighing mode:
4.1. Turn on and Turn off – Turning on and turning off is done by the ON/Off switch, which
is on the right at the bottom of the case. First the indication test starts, and then for short the display

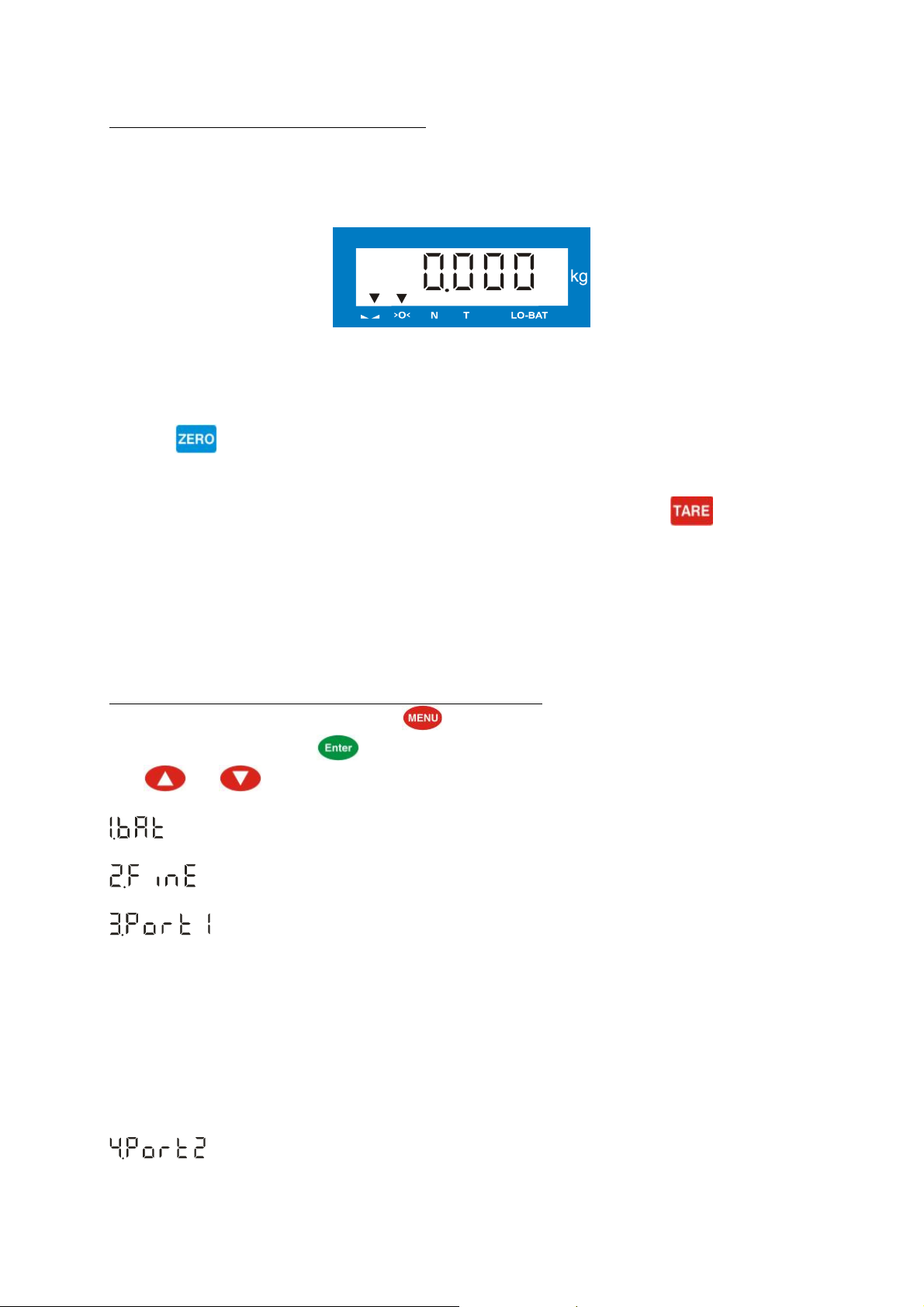

shows the model and the software version. Then the scale is ready to work and the display:
4.2. Turn on and Turn off of the backlight - Turning on and turning off of the backlight is
done by Back Light On/Off switch, which is on the left at the bottom side of the case.
4.3. Zero setting – If there is some minimal reading on the display, it can be zeroed by
pressing key.
4.4. Work with tare - After placing the package (tare) on the pan, press key. Readings
on the display is zeroed and the indicator „net weight“ lights up. This mean that next readings will be
net weight. To remove tare, unload the scale. The display will show the weight of the tare with „-“ and
the indicator „tare“ lights up. By pressing TARE key the scale is zeroed again.
4.5. Weight measuring – The item to be weighted is placed on the scale pan; the first line of
the display shows the measured weight. The weight data are considered correct, when the indicator for
stable reading lights up.
5. Work with the menus and service mode functions of the scale
To enter the main menu of the scale, press .key. To enter a submenu and confirm the select
adjustement/parameter, press key. Moving between the different submenu and parameters is
with and keys.
- Entering the submenu Bat, the display shows voltage of the built-in rechargeable battery in
Volts.
- Entering the submenu Fine, the display shows the measured weight in high resolution.
In this mode all data transmission over the serial interfaces is forbidden.
- In this submenu, a protocol for connection with the first serial interface is selected.
The sustained protocols are:
OFF – the port if turned off;
Pr1 – Protocol VEDIA with uninterrupted weight transmission;
Pr2 – Protocol VEDIA with a single time weight transmission after external command and
pressing key Enter;
Pr3 – Protocol for “Datecs” cash-registers;
Pr4 – Protocol for connection with cash-registers produced by “Zavod Electronica”, “ZEKA”,
“Orgtechnika”;
Pr5 – Protocol for “ZIT”cash-registers.
After each change of the protocol, the scale is restarted.
- In this submenu, a protocol for connection with second serial interface is selected. The
sustained protocols are:
6

OFF – the port is turned off;
Pr1 – Protocol VEDIA with uninterrupted weight transmission;
Prn – is not used.
After each change of the protocol, the scale is restarted.
- In the submenu, an operating mode for the backlights of the two LCD displays is
selected. Available working modes:
1.OFF – Backlight is turned off each time the readings for the weight is zero (battery saving mode);
2.On – Backlight is always on.
- In the submenu the user has access to the following service mode functions:
1. ADC – Test of the Analog-to-Digital Converter. The display shows direct readings of the
ADC;
2. toC – Thermometer. The display shows themperature in degree Celsius;
3. Ver – Version. The display shows the current version of the scale software;
4. nCal – The display shows the number of the performed actions in service mode.
6. Operation with the rechargeable battery
The charging of the rechargeable battery is made with an adapter, bought together with the scale.
The adapter should be plug in DC 12V jack that is on the right side of the case. During the recharging
the scale can operate or can be switched off. The battery is fully recharged for approximately 8 hours.
The current voltage of the battery can be checked from menu 1.Bat of the scale. When “battery”
symbol is shown on the display, please recharge the battery as soon as possible. In reaching
impermissibly low voltages, the display turns off and the scale operation is blocked till the normal
values of the voltage are restored (plug in the adaptor).
7. Errors
Err1 – it is shown after passing the indication test when the load cell is deformed of
overloading or due to some reason the platform is heavier. The extra load should be removed.
If the error does not disappear turn to the closest service centre.
Err2 – when it is shown after passing the indication test it means that the load cell is
deformed backwards or the platform has is lightened. Place the pan on the scale or if it is on
its place turn to the closest service centre.
Err3 – after the initial zero- setting the weight of the platform is below the given limits.
Probably the pan has been removed during the operation or something is raising it.
Err4 – the scale is loaded with so extremely heavy load that it cannot be read by the
electronic block. If the scale is unloaded, turn to the nearest service.
Err5 – It is shown on the display with turning on the scale when data incorrectness in the
memory is detected.
“-HI-“ – overloading indication –a load over the maximum capacity is placed on the platform
