Vega VEGAPULS 62 standpipeversion User manual

Operating Instructions
VEGAPULS 62 standpipe version
Foundation Fieldbus
Document ID:
36510
Radar

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions . . . . . . . . . . . . . . . . . . . . 5
2.5CE conformity ............................. 6
2.6NAMUR recommendations . . . . . . . . . . . . . . . . . . . . 6
2.7Radio license for Europe. . . . . . . . . . . . . . . . . . . . . . 6
2.8Radio license for USA/Canada . . . . . . . . . . . . . . . . . 6
2.9Environmental instructions..................... 7
3Product description
3.1Structure ................................. 8
3.2Principle of operation ........................ 9
3.3Packaging,transport and storage ............... 10
3.4Accessories and replacement parts . . . . . . . . . . . . . . 10
4Mounting
4.1General instructions ......................... 12
4.2Instructions for installation ..................... 12
5Connecting to the bus system
5.1Preparing the connection ..................... 13
5.2Connect.................................. 14
5.3Wiring plan,single chamber housing . . . . . . . . . . . . . 15
5.4Wiring plan,double chamber housing . . . . . . . . . . . . 16
5.5Wiring plan with double chamber housing Ex d . . . . . 17
5.6Wiring plan -version IP 66/IP 68,1bar . . . . . . . . . . . 19
5.7Switch-on phase............................ 19
6Set up with the indicating and adjustment module
6.1Insert indicating and adjustment module. . . . . . . . . . . 20
6.2Adjustment system .......................... 22
6.3Parameter adjustment........................ 23
6.4Saving the parameter adjustment data . . . . . . . . . . . . 30
7Setup with PACTware
7.1Connect the PC ............................ 32
7.2Parameter adjustment with PACTware . . . . . . . . . . . . 32
7.3Saving the parameter adjustment data . . . . . . . . . . . . 33
8Set up with other systems
8.1DD adjustment programs ..................... 34
2VEGAPULS 62 standpipe version •Foundation Fieldbus
Contents
36510-EN-120301

8.2Communicator 375,475 ...................... 34
9Diagnosis,Asset Management and service
9.1Maintaining ............................... 35
9.2Measured value and event memory . . . . . . . . . . . . . . 35
9.3Asset Management function ................... 36
9.4Remove interferences ........................ 40
9.5Exchanging the electronics module . . . . . . . . . . . . . . 43
9.6Software update ............................ 43
9.7How to proceed in case of repair................ 44
10 Dismounting
10.1Dismounting steps .......................... 45
10.2Disposal ................................. 45
11 Supplement
11.1Technical data ............................. 46
11.2Supplementary information Foundation Fieldbus . . . . . 54
11.3Dimensions ............................... 66
Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
Editing status:2012-02-08
VEGAPULS 62 standpipe version •Foundation Fieldbus 3
Contents
36510-EN-120301

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGAPULS 62 standpipe version •Foundation Fieldbus
1About this document
36510-EN-120301

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGAPULS 62 is a sensor for continuous level measurement.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines.The instrument must only be operated in a
technically flawless and reliable condition.The operator is responsible
for the trouble-free operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
The safety instructions in this operating instructions manual,the
national installation standards as well as the valid safety regulations
and accident prevention rules must be observed by the user.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
The safety approval markings and safety tips on the device must also
be observed.
VEGAPULS 62 standpipe version •Foundation Fieldbus 5
2For your safety
36510-EN-120301

Depending on the instrument version,the emitting frequencies are in
the Cor Kband range.The low emitting frequencies are far below the
internationally approved limit values.When used correctly,there is no
danger to health.
2.5CE conformity
The device fulfills the legal requirements of the applicable EC
guidelines.With the CE mark,we provide confirmation of successful
testing.
You can find the conformity certificate in the download section of our
homepage.
Only with Ex-d-ia version
The instrument is designed for use in an industrial environment.
Nevertheless,electromagnetic interference from electrical conductors
and radiated emissions must be taken into account,as is usual with a
class Ainstrument according to EN 61326-1.If the instrument is used
in a different environment,its electromagnetic compatibility with other
devices must be ensured by suitable measures.
2.6NAMUR recommendations
NAMUR is a user association for automation technology in the process
industries in Germany.The published NAMUR recommendations are
accepted as the standard in field instrumentation.
The device fulfills the requirements of the following NAMUR
recommendations:
lNE 21 –Electromagnetic compatibility of equipment
lNE 43 –Standardization of the signal level for malfunction
information from digital transmitters
lNE 53 –Compatibility of field devices and indicating/adjustment
components
lNE 107 -Self-monitoring and diagnosis of field devices
For further information see www.namur.de.
2.7Radio license for Europe
The instrument is approved according to EN 302372-1/2(2006-04)for
use in closed vessels.
2.8Radio license for USA/Canada
The instrument is in conformity with part 15 of the FCC regulations.
Take note of the following two regulations:
lThe device must not generate interfering emissions,and
6VEGAPULS 62 standpipe version •Foundation Fieldbus
2For your safety
36510-EN-120301

lThe device must be non-sensitive to interfering immissions,
including those that may cause undesirable operating conditions.
Modifications not expressly approved by the manufacturer will lead to
expiry of the operating licence according to FCC/IC.
The instrument is in conformity with RSS-210 of the IC regulations.
The instrument may only be operated in closed vessels made of metal,
concrete,or fibre-reinforced plastic.
2.9Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
VEGAPULS 62 standpipe version •Foundation Fieldbus 7
2For your safety
36510-EN-120301

3Product description
3.1Structure
The type label contains the most important data for identification and
use of the instrument:
2
1
13
14
15
16
12
11
5
3
6
4
7
8
9
10
Fig.1:Structure of the type label (example)
1Instrument type
2Product code
3Approvals
4Power supply and signal output,electronics
5Protection rating
6Measuring range
7Process and ambient temperature,process pressure
8Material,wetted parts
9Hardware and software version
10 Order number
11 Serial number of the instrument
12 Symbol of the device protection class
13 ID numbers,instrument documentation
14 Note to observe the instrument documentation
15 Notified authority for CE marking
16 Approval directive
With the serial number of the instrument on the type label you have
access to the following data on our homepage:
lArticle number of the instrument (HTML)
lDelivery date (HTML)
lOrder-specific instrument features (HTML)
lOperating instructions at the time of shipment (PDF)
lOrder-specific sensor data for an electronics exchange (XML)
lTest certificate "Measuring Accuracy"(PDF)
Go to www.vega.com,"Service" "VEGA Tools"and "serial number
search".
Type label
Serial number
8VEGAPULS 62 standpipe version •Foundation Fieldbus
3Product description
36510-EN-120301

This operating instructions manual applies to the following instrument
versions:
lHardware from 2.1.1
lSoftware from 4.4.0
The instrument is available in two different electronics versions.Each
version can be identified via the product code on the type label as well
as on the electronics.
lStandard electronics type PS60FFC.-
lElectronics with increased sensitivity type PS60FFS.-
The scope of delivery encompasses:
lRadar sensor
lDocumentation
-this operating instructions manual
-Test certificate measuring accuracy,depending on the
instrument VEGAPULS 62 (optional)
-Operating instructions manual "Indicating and adjustment
module PLICSCOM"(optional)
-Supplementary instructions "GSM/GPRS radio module"(op-
tional)
-Supplementary instructions manual "Heating for indicating and
adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
3.2Principle of operation
The instrument is suitable for applications in liquids in storage tanks
and process vessels under difficult process conditions.Application
possibilities can be found in the chemical industry,in environmental
and recycling technology as well as in the petrochemical industry.
The version with standpipe antenna is particularly suitable for
measurement of solvents and liquid gases,for vessels with foam
generation or for measurement of products with low dielectric figures
(DK >1.6).
Measurement in a standpipe is not recommended for very adhesive
products.
The standard electronics enables the use of instruments in products
with an ε
r
-Wert ≥1.8.The electronics version with increased sensitivity
enables the use of the instrument also in applications with very poor
reflective properties or products with an ε
r
value ≥1.5.The values that
can be actually reached depend on the measurement conditions,the
antenna system or the standpipe or bypass tube.
Scope of the operating
instructions manual
Versions
Scope of delivery
Application area
VEGAPULS 62 standpipe version •Foundation Fieldbus 9
3Product description
36510-EN-120301

The antenna of the radar sensor emits short radar pulses with a
duration of approx.1ns.These pulses are reflected by the product
and received by the antenna as echoes.The running time of the radar
pulses from emission to reception is proportional to the distance and
hence to the level.The determined level is converted into an
appropriate output signal and outputted as measured value.
3.3Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.4Accessories and replacement parts
The indicating and adjustment module PLICSCOM is used for
measured value indication,adjustment and diagnosis.It can be
inserted into the sensor and removed at any time.
You can find further information in the operating instructions "Indicating
and adjustment module PLICSCOM"(Document-ID 27835).
Functional principle
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
Indicating and adjust-
ment module
10 VEGAPULS 62 standpipe version •Foundation Fieldbus
3Product description
36510-EN-120301

The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC.For
parameter adjustment of these instruments,an adjustment software
such as PACTware with VEGA-DTM is required.
You can find further information in the operating instructions "Interface
adapter VEGACONNECT"(Document-ID 32628).
VEGADIS 61 is an external indicating and adjustment unit for sensors
with single chamber housing and Ex-d double chamber housing.
It is suitable for measured value indication and adjustment of plics
®
sensors and is connected to the sensor with a four-wire,screened
standard cable up to 50 m long.
You can find further information in the operating instructions
"VEGADIS 61"(Document-ID 27720).
The PLICSMOBILE T61 is an external GSM/GPRS radio unit for
transmission of measured values and for remote parameter adjust-
ment of plics
®
sensors.The adjustment is carried out via PACTware/
DTM by using the integrated USB connection.
You can find further information in the supplementary instructions
"PLICSMOBILE T61"(Document-ID 36849).
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
Flanges are available in different versions according to the following
standards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,
GOST 12821-80.
You can find additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS"(Document-ID
31088).
The electronics module VEGAPULS series 60 is a replacement part
for radar sensors of VEGAPULS series 60.An own version is available
for each type of signal output.
You can find further information in the operating instructions
"Electronics module VEGAPULS series 60"(Document-ID 36801).
Interface adapter
External indicating and
adjustment unit
External radio unit
Protective cap
Flanges
Electronics module
VEGAPULS 62 standpipe version •Foundation Fieldbus 11
3Product description
36510-EN-120301

4Mounting
4.1General instructions
With instruments with threaded process fitting,suitable tools must be
applied for tightening the hexagon.
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
Make sure that all parts of the instrument exposed to the process,in
particular the active measuring component,process seal and process
fitting,are suitable for the existing process conditions.These include
above all the process pressure,process temperature as well as the
chemical properties of the medium.
You can find the specifications in chapter "Technical data"and on the
type label.
4.2Instructions for installation
By using the standpipe version,the influence of turbulence and vessel
installations,such as e.g.heating spirals or agitators,is excluded.If
turbulence or vigorous product movement occurs in the vessel,long
standpipe antennas should be fastened to the vessel wall.
The standpipe antenna must extend all the way down to the requested
min.level,as measurement is only possible within the tube.If a good
mixing of the product is important,you should use a version with
perforated surge pipe.
Warning:
Remember that with the version with ¾" thread,a max.torque of
80 Nm(59 lbf ft)must not be exceeded.
Screwing in
Moisture
Suitability for the pro-
cess conditions
Installation
12 VEGAPULS 62 standpipe version •Foundation Fieldbus
4Mounting
36510-EN-120301

5Connecting to the bus system
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf voltage surges are expected,install overvoltage arresters
The instrument requires a operating voltage of 9…32 V DC.
Operating voltage and the digital bus signal are carried on the same
two-wire connection cable.Power is supplied via the H1power supply.
Connection is carried out with screened cable according to Fieldbus
specification.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
Make sure that the entire installation is carried out according to the
Fieldbus specification.In particular,make sure that the bus is
terminated with suitable terminating resistors.
With plastic housing,the NPT cable gland or the Conduit steel tube
must be screwed without grease into the threaded insert.
Max.torque for all housings see chapter "Technical data"
Make sure that the cable screening and ground is executed according
to the Fielbus specification.If electromagnetic interference is expected
which is above the test values of EN 61326-1for industrial areas,we
recommend to connect the cable screen on both ends to ground
potential.
In this case with systems with potential equalisation,connect the cable
screen directly to ground potential at the power supply unit,in the
connection box and at the sensor.The screen in the sensor must be
connected directly to the internal ground terminal.The ground terminal
outside on the housing must be connected to the potential equalisation
(low impedance).
In systems without potential equalisation with cable screening on both
sides,connect the cable screen directly to ground potential at the
power supply unit and at the sensor.In the connection box or T-
distributor,the screen of the short stub to the sensor must not be
connected to ground potential or to another cable screen.The cable
screens to the power supply unit and to the next distributor must be
connected to each other and also connected to ground potential via a
ceramic capacitor (e.g.1nF,1500 V). Low-frequency potential
equalisation currents are thus suppressed,but the protective effect
against high frequency interference signals remains.
Safety instructions
Voltage supply
Connection cable
Cable gland ½NPT
Cable screening and
grounding
VEGAPULS 62 standpipe version •Foundation Fieldbus 13
5Connecting to the bus system
36510-EN-120301

5.2Connect
The voltage supply and signal output are connected via the spring-
loaded terminals in the housing.
The connection to the indicating and adjustment module or to the
interface adapter is carried out via contact pins in the housing.
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove it by
turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm (4in)of the cable mantle,strip approx.
1cm (0.4in)of insulation from the ends of the individual wires
5Insert the cable into the sensor through the cable entry
Fig.2:Connection steps 5and 6
6Insert the wire ends into the terminals according to the wiring plan
Information:
Solid cores as well as flexible cores with cable end sleeves are
inserted directly into the terminal openings.In case of flexible cores
without end sleeves,press the terminal head with a small screwdriver;
the terminal opening is freed.When the screwdriver is released,the
terminal closes again.
7Check the hold of the wires in the terminals by lightly pulling on
them
8Connect the screen to the internal ground terminal,connect the
outer ground terminal to potential equalisation
Connection technology
Connection procedure
14 VEGAPULS 62 standpipe version •Foundation Fieldbus
5Connecting to the bus system
36510-EN-120301

9Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
10 Screw the housing cover back on
The electrical connection is finished.
Information:
The terminal block is pluggable and can be removed from the
electronics.To do this,lift the terminal block with a small screwdriver
and pull it out.When inserting the terminal block again,you should
hear it snap in.
5.3Wiring plan,single chamber housing
12
( ) (-)
1
5
0
1
0
1
+6 7 8
Bus
2
3
4
5

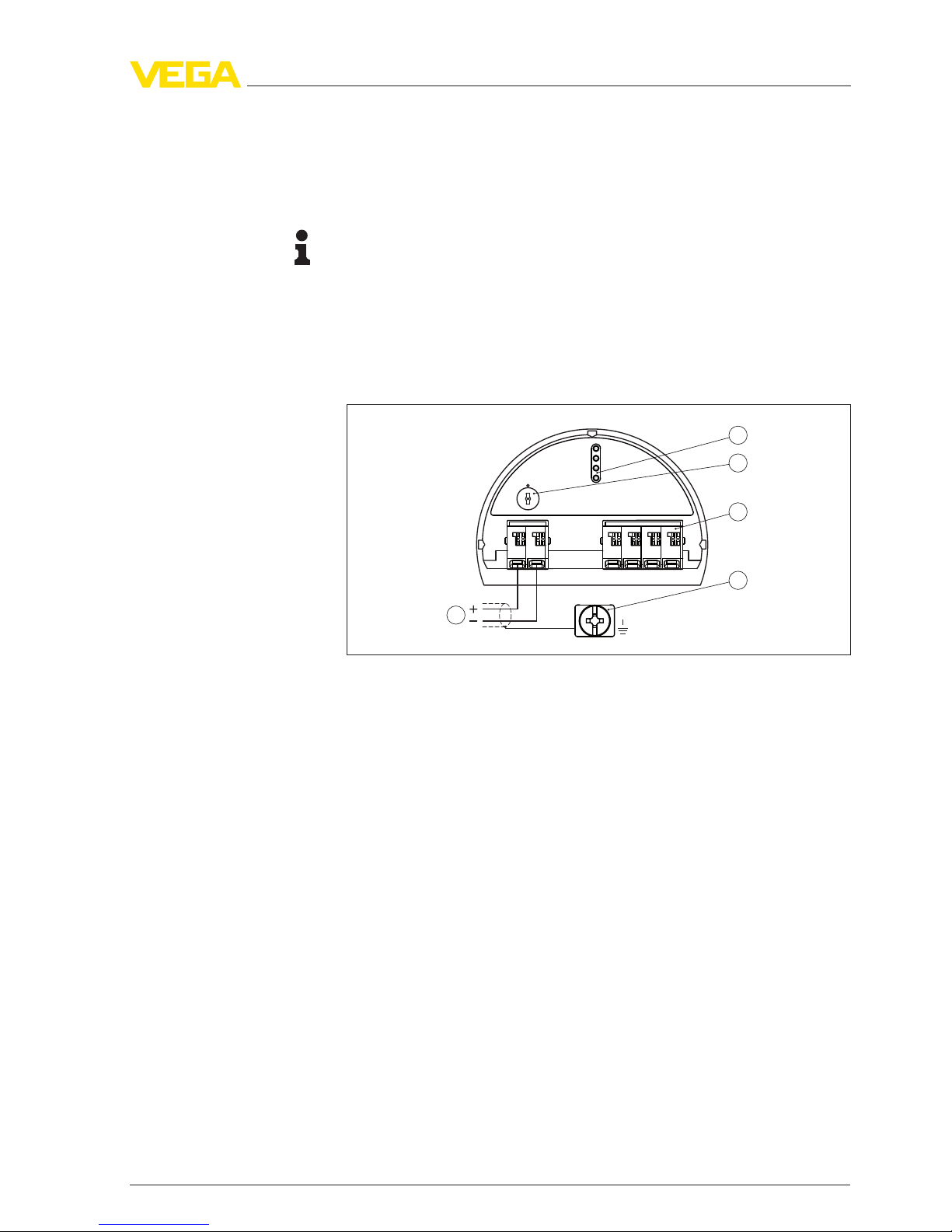

Fig.3:Electronics and connection compartment,single chamber housing
1Voltage supply,signal output
2Contact pins for the indicating and adjustment module or interface adapter
3Simulation switch ("1" = mode for simulation release)
4For external indicating and adjustment unit
5Ground terminal for connection of the cable screen
Electronics and connec-
tion compartment
VEGAPULS 62 standpipe version •Foundation Fieldbus 15
5Connecting to the bus system
36510-EN-120301

5.4Wiring plan,double chamber housing
5
0
1
0
1
+6 7 8
Bus
2
3
12
( ) (-)
11
Fig.4:Electronics compartment,double chamber housing
1Internal connection to the connection compartment
2Contact pins for the indicating and adjustment module or interface adapter
3Simulation switch ("on" = mode for simulation release)
+
Bus
2
3
12
( ) (-)
1
Fig.5:Connection compartment,double chamber housing
1Voltage supply,signal output
2For indicating and adjustment module or interface adapter
3Ground terminal for connection of the cable screen
Electronics compart-
ment
Connection compart-
ment
16 VEGAPULS 62 standpipe version •Foundation Fieldbus
5Connecting to the bus system
36510-EN-120301

1
Bus
USB
Status
Test
SIM-Card
12
+
( ) (-)
Fig.6:CConnection of the voltage supply of the radio module
1Voltage supply
You can find detailed information for connection in the supplementary
instructions "PLICSMOBILE GSM/GPRS radio module".
5.5Wiring plan with double chamber housing Ex d
5
0
1
0
1
+6 7 8
Bus
2
3
12
( ) (-)
11
Fig.7:Electronics compartment,double chamber housing
1Internal connection to the connection compartment
2Contact pins for the indicating and adjustment module or interface adapter
3Simulation switch ("on" = mode for simulation release)
Radio module PLICS-
MOBILE integrated in
the connection compart-
ment
Electronics compart-
ment
VEGAPULS 62 standpipe version •Foundation Fieldbus 17
5Connecting to the bus system
36510-EN-120301

+
Bus
2
12
( ) (-)
1
Fig.8:Connection compartment,double chamber housing Ex d
1Voltage supply,signal output
2Ground terminal for connection of the cable screen
34
12
Fig.9:Top view of the plug connector
1Pin 1
2Pin 2
3Pin 3
4Pin 4
Contact pin Colour connection
cable in the sensor
Terminal,electronics
module
Pin 1Brown 5
Pin 2White 6
Pin 3Blue 7
Pin 4Black 8
Connection compart-
ment
Plug M12 x1for external
indicating and adjust-
ment unit
18 VEGAPULS 62 standpipe version •Foundation Fieldbus
5Connecting to the bus system
36510-EN-120301

5.6Wiring plan -version IP 66/IP 68,1bar
1
2
Fig.10:Wire assignment fix-connected connection cable
1brown (+)and blue (-) to power supply or to the processing system
2Shielding
5.7Switch-on phase
After VEGAPULS 62 is connected to the bus system,the instrument
carries out a self-test for approx.30 seconds.The following steps are
carried out:
lInternal check of the electronics
lIndication of the instrument type,hardware and software version,
measurement loop name on the display or PC
lIndication of the status message "F105 Determine measured
value"on the display or PC
lStatus byte goes briefly to fault value
As soon as a plausible measured value is found,it is outputted to the
signal cable.The value corresponds to the actual level as well as the
settings already carried out,e.g.factory setting.
Wire assignment con-
nection cable
VEGAPULS 62 standpipe version •Foundation Fieldbus 19
5Connecting to the bus system
36510-EN-120301

6Set up with the indicating and adjustment
module
6.1Insert indicating and adjustment module
The indicating and adjustment module can be inserted into the sensor
and removed any time.Four positions displaced by 90°can be
selected.It is not necessary to interrupt the power supply.
Proceed as follows:
1Unscrew the housing cover
2Place the indicating and adjustment module in the requested
position onto the electronics and turn to the right until it snaps in
3Screw housing cover with inspection window tightly back on
Removal is carried out in reverse order.
The indicating and adjustment module is powered by the sensor,an
additional connection is not necessary.
Fig.11:Insertion of the indicating and adjustment module with single chamber
housing into the electronics compartment
20 VEGAPULS 62 standpipe version •Foundation Fieldbus
6Set up with the indicating and adjustment module
36510-EN-120301
