Veko VEDVR 2108 User manual

I
User Manual
VEDVR 2108 / VEDVR 2116
H.264 Multiplex DVR

II
This symbol is intended to alert the user to the presence of unprotected “Dangerous voltage"
within the product's enclosure that may be strong enough tocause a risk of electric shock.
This symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
NOTE: This equipment has been tested and found to comply with the limits for a class digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at ones own expense.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.

III
All the safety and operating instructions must be read before the unit is operated.
•Make sure to switch the power off before you install the DVR.
•There is the danger of an electric shock if the DVR is opened by an unqualified service
engineer or installer.
•Avoid using the DVR outside of the reference temperature and humidity indicated in the
specification.
•Avoid exposing the DVR to violent movement or vibration.
•Do not use or store the DVR in direct sunlight or near to any source of heat.
•Do not place any object into the holes used for air circulation.
•Always use the DVR in a well ventilated location to prevent overheating.
•Risk of explosion if battery is replaced by an incorrect type.
•Dispose of used batteries according to the instructions.

IV
TABLE OF CONTENTS
Chapter 1 FEATURES.........................................................................................................1
Chapter 2 PACKING DETAIL...............................................................................................2
Chapter 3 LOCATIONAND CONTROL...............................................................................3
3.1 Front Panel Controls...............................................................................................3
3.2 Real Panel Connectors...........................................................................................6
3.3 Remote Controller...................................................................................................7
3.4 Mouse Control ........................................................................................................9
Chapter 4 INSTALLATION.................................................................................................10
4.1 Total Connection Lay-out......................................................................................10

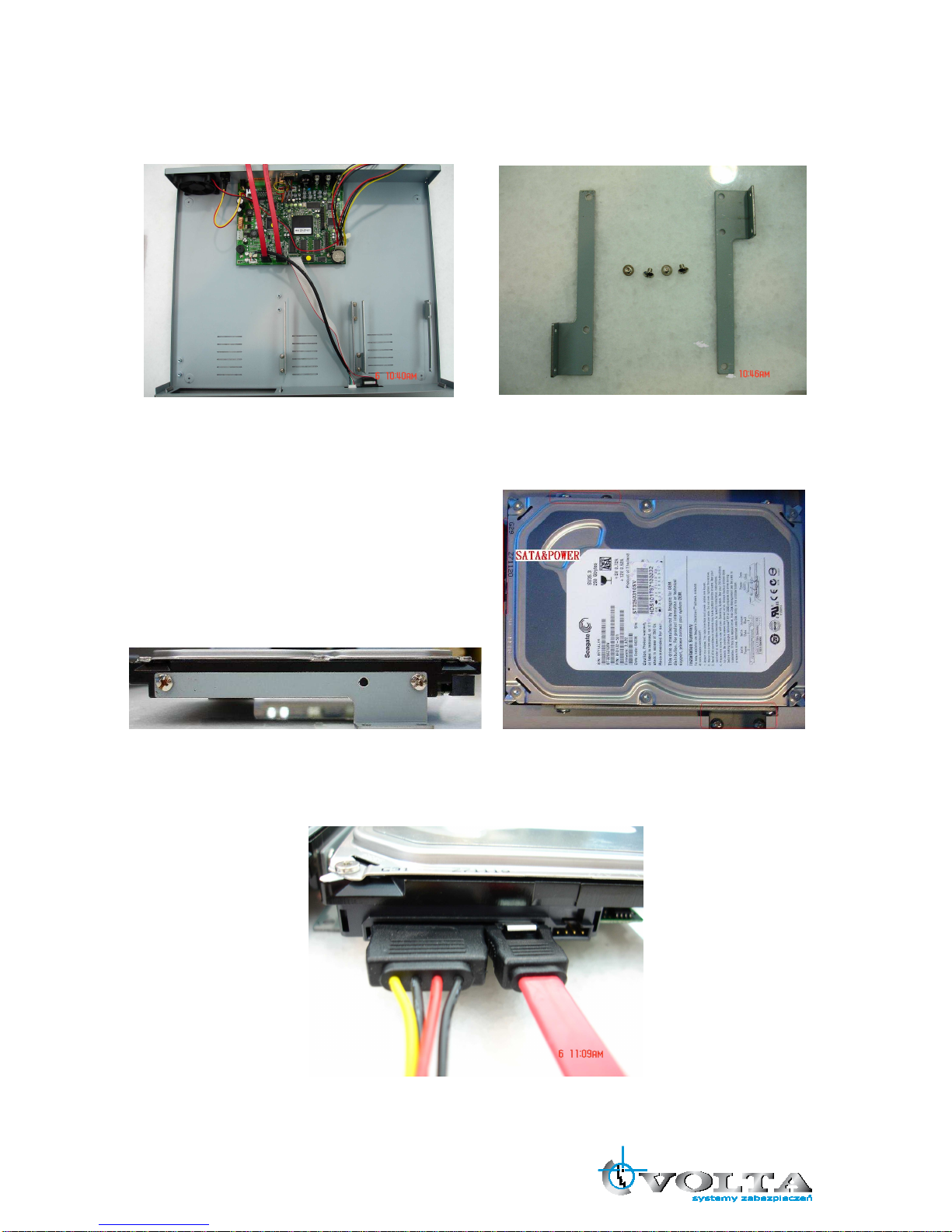

4.2 Hard Disk Installation............................................................................................11
4.3 Main Devices Installtion........................................................................................13
4.3.1 Camera.......................................................................................................13
4.3.2 Audio...........................................................................................................13
4.3.3 Monitor........................................................................................................14
4.4 sensor Input..........................................................................................................15
4.4.1 Sensor Input Menu Setup...........................................................................15
4.5 RS-485 .................................................................................................................16
4.5.1 RS-485 Menu Setup...................................................................................16
4.5.2 PTZ Camera Installation.............................................................................16
4.5.3 PTZ Camera Operation ..............................................................................17
4.5.4 PTZ Camera Preset Mode..........................................................................17
4.6 Relay Output.........................................................................................................18
Chapter 5 BASIC OPERATION AND MENU SETUP.........................................................19
5.1 Basic Operation....................................................................................................19
5.1.1 Power ON/OFF...........................................................................................19
5.1.2 Screen Display ...........................................................................................19
5.1.3 System Status.............................................................................................20
5.1.4 Audio Control..............................................................................................21
5.1.5 PIP Mode....................................................................................................21
5.1.6 Digital Zoom ...............................................................................................21
5.1.7 Menu Operation..........................................................................................22
5.2 Screen..................................................................................................................23
5.2.1 Auto Sequence...........................................................................................24
5.2.2 Display........................................................................................................25
5.2.3 Title.............................................................................................................27
5.2.4 Multi Screen................................................................................................27
5.2.5 Covert.........................................................................................................27
5.2.6 SPOT..........................................................................................................28
5.2.7 Camera.......................................................................................................29

V
5.3 System..................................................................................................................29
5.3.1 HDD............................................................................................................29
5.3.2 Clock...........................................................................................................30
5.3.3 Video Standard...........................................................................................31
5.3.4 Language....................................................................................................31
5.3.5 Remote Control ID......................................................................................31
5.3.6 Key Echo....................................................................................................31
5.3.7 Advanced Setup .........................................................................................31
5.3.8 Firmware Upgrade......................................................................................34
Chapter 6 RECORD OPERATION AND MENU SETUP....................................................35
6.1 Record Operation .................................................................................................35
6.2 Quick Setup..........................................................................................................36
6.3 Record Setup........................................................................................................38
6.4 Event Setup..........................................................................................................39
6.4.1 Motion Detection.........................................................................................39
6.4.2 Event Screen Mode....................................................................................40
6.4.3 Event Message...........................................................................................40
6.4.4 Event Message Reset.................................................................................40
6.4.5 Event Buzzer..............................................................................................40
6.4.6 Event Record..............................................................................................40
6.5 Other Record Setup..............................................................................................42
6.5.1 Preview Quality...........................................................................................42
6.5.2 Audio Record..............................................................................................43
6.5.3 Repeat Record ...........................................................................................43
6.5.5 Holiday........................................................................................................43
Chapter 7 SEARCH OPERATION AND MENU SETUP.....................................................44
7.1 Calendar Search...................................................................................................44
7.2 Search & Copy......................................................................................................45
7.3 Time Search..........................................................................................................45
7.4 Event Search........................................................................................................46
7.5 Block Search.........................................................................................................46
7.6 File Search ...........................................................................................................47
7.7 Bookmark Search.................................................................................................47
7.8 LOG File Search...................................................................................................47
7.9 Search Button Information....................................................................................48

VI
Chapter 8 COPY OPERATION AND MENU SETUP .........................................................51
8.1 Copy.....................................................................................................................51
8.1.1 Copy to USB Storage Device......................................................................51
8.1.2 Copy to DVD±RW.......................................................................................52
8.1.3 Stop Copy...................................................................................................52
8.1.4 Continue Copy............................................................................................53
8.2 Copy Status ..........................................................................................................53
8.3 Format Media........................................................................................................53
Chapter 9 NETWORK SETUPAND OPERATION.............................................................55
9.1 Network Setup......................................................................................................55
9.2 DVR-Viewer Installation........................................................................................56
9.2.1 System Requirement..................................................................................56
9.2.2 Network Environment .................................................................................56
9.2.3 Installation Steps.........................................................................................56
9.3 DVR-Viewer Control Panel Introduction................................................................58
9.4 DVR-Viewer Operation .........................................................................................60
9.4.1 DVR-Viewer Software Password................................................................60
9.4.2 DVR List .....................................................................................................60
9.4.3 HDD Search ...............................................................................................61
9.4.4 File Search .................................................................................................62
9.4.5 Arrange Windows .......................................................................................63
9.4.6 Viewer Option.............................................................................................63
9.4.7 Display........................................................................................................65
9.4.8 DVR Controller ...........................................................................................66
9.4.9 PTZ Controller............................................................................................66
9.4.10 Setup........................................................................................................67
9.4.11 Status........................................................................................................70
9.4.12 Print..........................................................................................................70
9.4.13 Copy.........................................................................................................71
9.4.14 Search......................................................................................................71
9.4.15 Record and Playback Control Buttons......................................................71
Chapter 10 ADDITIONAL FUNCTION OPERATION AND MENU SETUP.........................73
10.1 E-mail .................................................................................................................73
10.2 Record Limit........................................................................................................74
10.3 Connect the DVR through Internet Explorer.......................................................75
Chapter 11 TROUBLESHOOTING ....................................................................................77
Chapter 12 SPECIFICATION.............................................................................................78
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information herein.

1
Chapter 1 FEATURES
H.264 compression for DVR recording and web transmission
Graphic OSD and mouse control(PS/2)
Live display, record, backup, playback and network access as the same time
DVD writer (optional) and USB device backup
Remote view and manage through 16CH client software and IE browser
Audio recording
Motion detection with area selecting and sensitivity adjusting by each camera
Remote controller
Email notification
Control all functions of PTZ camera
TCP/IP, DHCP, DDNS, Dynamic IP network protocol
System auto recovery after power reconnected
Watermark proof
Manual / event / schedule recording
Multi-language OSD: English /Polish / Spanish / Russian / Traditional Chinese / French / Turkish /
German / Italian / Portuguese

2
Chapter 2 PACKING DETAIL
1. DVR
2. Client Viewer Software CD 3. User Manual 4. Remote Controller
5. Power Cord 6. Power Adapter 7. Battery
CONTENTS
1. DVR
2. Client Viewer Software CD
3. User Manual
4. Remote Controller
5. Power Cord
6. Power Adapter
7. Battery

3
Chapter 3 LOCATION AND CONTROL
3.1 Front Panel Controls
Item Description
1 DVD-RW A DVD-RW drive is installed in the front bay. (sold separately)
2 EJECT Press EJECT button to open/close the DVD-RW drive.
3 IR RECEIVER Infrared signal receiver for the IR remote controller. Do not block the
receiver as a clear line of sight is required for proper operation.
4 NUMERIC BUTTON /
CHANNEL SELECT
(a) selects a specific channel number to be displayed in full screen
(b) enter the numeric password when prompted
(c) number 0 for audio function
5 PLAY / PAUSE
( ) / Z(-)
(a) Starts the playback of recorded data. By default, the playback
starts from the earliest recording.
(b) Toggles between playback and pause mode
(c) Zoom out (PTZ mode)
6 FAST
( ) /Z(+)
(a) Fast forward. Press this button repeatedly to toggle between 2X
normal playback speed through 128X normal playback speed.
(b) Zoom in (PTZ mode)
(c) Playback forward, picture by picture.
7 RECORD
()
This button starts and stops the recording mode.
8 STATUS LED Displays the status of the DVR (standby), HDD read/write and
network transmission.

4
9 ALARM RESET / LEFT
DIRECTION BUTTON (⊳)
(a) resets the alarm buzzer
(b) left pans in PTZ mode
(c) navigates left in the menu screen
(d) moves the zoom box left in zoom mode
10
MENU / UP DIRECTIONAL
BUTTON ()
(a) accesses the main menu screen
(b) tilts up in PTZ mode
(c) navigates up in the menu screen
(d) moves the zoom box up in zoom mode
11 PIP / LOOP PLAYBACK
CLEAR / DOWN
DIRECTIONAL BUTTON ()
(a) activates the picture-in-picture mode
(b) tilts down in PTZ mode
(c) navigates down in the menu screen
(d) moves the zoom box down in zoom mode
(e) clears the loop playback in playback mode
12
DIGITAL ZOOM / RIGHT
DIRECTIONAL BUTTON ( )
(a) enters digital zoom mode
(b) pans right in PTZ mode
(c) navigates right in the menu screen
(d) moves the zoom box right in zoom mode
13
USB 2.0 The USB 2.0 port can be used to connect to numerous USB 2.0
backup devices.
14
MULIT This button is used to toggle between multiple display modes: 16,
13, 10, 9, 7 and 4 channel split screen display modes.
15
SLOW ( )/ IRIS CLOSE /
PIC BY PIC
(a) Slow playback. Press this button repeatedly to toggle between
1/2 normal playback speed through 128 normal playback speed.
(b) Control the iris close in PTZ mode
(c) Playback backward, picture by picture
16
PTZ / BOOKMARK (a) enters PTZ control mode
(b) creates a bookmark during playback mode
17
DIRECT ION ( )
(a) Change the playback direction.
(b) Control the iris open in PTZ mode
18
COPY / AUTO FOCUS (a) enters the copy menu screen
(b) switches the PTZ camera to auto focus mode in PTZ mode
19
STOP (■) Switches the Playback mode to LIVE mode.
20
SEARCH / PRESET (a) enters the search menu screen
(b) sets the preset positions in PTZ mode
21
SPOT MONITOR / ESC (a) Activates the spot monitor control
(b) Returns to previous menu screen
(c) Exits from various function and menu screen
