Velatia ORMAZABAL gae.630 User manual
LIB
SF6-insulated circuit-
breaker panel
Type gae.630 -1LSV(G)-/5/ in modular
extensible design up to 24 kV, 20 kA
General instructions
IG-322-EN, version 03, 22/07/2022
In view of the constant evolution in standards and design, the characteristics of the elements contained in this manual are subject
to change without prior notice. These characteristics, as well as the availability of components, are subject to confirmation by
Ormazabal.
CAUTION!
When medium-voltage equipment is operating, certain components are live, other parts may be in movement and some may
reach high temperatures. Therefore, the use of this equipment poses electrical, mechanical and thermal risks.
In order to ensure an acceptable level of protection for people and property, and in compliance with applicable environmental
recommendations, Ormazabal designs and manufactures its products according to the principle of integrated safety, based on
the following criteria:
• Elimination of hazards wherever possible.
• Where elimination of hazards is neither technically nor economically feasible, appropriate protection functions are
incorporated in the equipment.
• Communication about remaining risks to facilitate the design of operating procedures which prevent such risks,
training for the personnel in charge of the equipment, and the use of suitable personal protective equipment.
• Use of recyclable materials and establishment of procedures for the disposal of equipment and components so
that once the end of their service lives is reached, they are duly processed in accordance, as far as possible, with the
environmental restrictions established by the competent authorities.
Consequently, the equipment to which the present manual refers complies with the requirements of section 11.2 of Standard
IEC 62271-1. It must therefore only be operated by appropriately qualified and supervised personnel, in accordance with the
requirements of standard EN 50110-1 on the safety of electrical installations and standard EN 50110-2 on activities in or near
electrical installations. Personnel must be fully familiar with the instructions and warnings contained in this manual and in other
recommendations of a more general nature which are applicable to the situation according to current legislation[1].
The above must be carefully observed, as the correct and safe operation of this equipment depends not only on its design but also
on general circumstances which are in general beyond the control and responsibility of the manufacturer. More specifically:
• The equipment must be handled and transported appropriately from the factory to the place of installation.
• All intermediate storage should occur in conditions which do not alter or damage the characteristics of the equipment
or its essential components.
• Service conditions must be compatible with the equipment rating.
• The equipment must be operated strictly in accordance with the instructions given in the manual, and the applicable
operating and safety principles must be clearly understood.
• Maintenance should be performed properly, taking into account the actual service and environmental conditions in
the place of installation.
The manufacturer declines all liability for any significant indirect damages resulting from violation of the guarantee, under any
jurisdiction, including loss of income, stoppages and costs resulting from repair or replacement of parts.
Warranty
The manufacturer guarantees this product against any defect in materials and operation during the contractual period. In the
event that defects are detected, the manufacturer may opt either to repair or replace the equipment. Improper handling of this
equipment and its repair by the user shall constitute a violation of the guarantee.
Registered Trademarks and Copyrights
All registered trademarks cited in this document are the property of their respective owners. The intellectual property of this manual
belongs to Ormazabal.
[1] For example, in Spain the “Regulation on technical conditions and guarantees for safety in high-voltage electrical installations” – Royal Decree
337/2014 is obligatory.
IG-322-EN version 03; 22/07/2022 3
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Contents
In view of the constant evolution in standards and design, the characteristics of the elements contained in this manual are subject
to change without prior notice. These characteristics, as well as the availability of components, are subject to confirmation by
Ormazabal.
CAUTION!
When medium-voltage equipment is operating, certain components are live, other parts may be in movement and some may
reach high temperatures. Therefore, the use of this equipment poses electrical, mechanical and thermal risks.
In order to ensure an acceptable level of protection for people and property, and in compliance with applicable environmental
recommendations, Ormazabal designs and manufactures its products according to the principle of integrated safety, based on
the following criteria:
• Elimination of hazards wherever possible.
• Where elimination of hazards is neither technically nor economically feasible, appropriate protection functions are
incorporated in the equipment.
• Communication about remaining risks to facilitate the design of operating procedures which prevent such risks,
training for the personnel in charge of the equipment, and the use of suitable personal protective equipment.
• Use of recyclable materials and establishment of procedures for the disposal of equipment and components so
that once the end of their service lives is reached, they are duly processed in accordance, as far as possible, with the
environmental restrictions established by the competent authorities.
Consequently, the equipment to which the present manual refers complies with the requirements of section 11.2 of Standard
IEC 62271-1. It must therefore only be operated by appropriately qualified and supervised personnel, in accordance with the
requirements of standard EN 50110-1 on the safety of electrical installations and standard EN 50110-2 on activities in or near
electrical installations. Personnel must be fully familiar with the instructions and warnings contained in this manual and in other
recommendations of a more general nature which are applicable to the situation according to current legislation[1].
The above must be carefully observed, as the correct and safe operation of this equipment depends not only on its design but also
on general circumstances which are in general beyond the control and responsibility of the manufacturer. More specifically:
• The equipment must be handled and transported appropriately from the factory to the place of installation.
• All intermediate storage should occur in conditions which do not alter or damage the characteristics of the equipment
or its essential components.
• Service conditions must be compatible with the equipment rating.
• The equipment must be operated strictly in accordance with the instructions given in the manual, and the applicable
operating and safety principles must be clearly understood.
• Maintenance should be performed properly, taking into account the actual service and environmental conditions in
the place of installation.
The manufacturer declines all liability for any significant indirect damages resulting from violation of the guarantee, under any
jurisdiction, including loss of income, stoppages and costs resulting from repair or replacement of parts.
Warranty
The manufacturer guarantees this product against any defect in materials and operation during the contractual period. In the
event that defects are detected, the manufacturer may opt either to repair or replace the equipment. Improper handling of this
equipment and its repair by the user shall constitute a violation of the guarantee.
Registered Trademarks and Copyrights
All registered trademarks cited in this document are the property of their respective owners. The intellectual property of this manual
belongs to Ormazabal.
[1] For example, in Spain the “Regulation on technical conditions and guarantees for safety in high-voltage electrical installations” – Royal Decree
337/2014 is obligatory.
Contents
1. General........................................................................8
1.1. Liability and warranty . . . . . . . . . . . . . . . . . . . . . . . .8
1.2. Service information ..........................8
2. Safety regulations......................................................9
2.1. Intended use ................................9
2.2. Explanation of symbols and notes ...........10
2.3. General health and safety instructions .......10
2.3.1. Operation ..................................11
2.3.2. Safety features ..............................11
2.3.3. Auxiliary device for operation,
maintenance and repair .....................11
2.3.4. Statutory health and safety instructions .....11
2.3.5. Personal Protective Equipment (PPE) ........11
3. Transport and installation.......................................12
3.1. Safety notes for transport ...................12
3.2. Transport and unloading ....................12
3.3. Arrival and unpacking.......................13
3.4. Storage.....................................14
3.5. Installation and assembly ...................15
3.6. Planning of installation......................16
3.6.1. Floor fastening measurements ..............16
3.6.2. Dimensions.................................18
3.6.3. Possible installations ........................19
3.7. Installation of the supply line for
the auxiliary and control circuits.............20
3.8. Connection of the power cables .............21
3.8.1. Optional VTs at the cable compartment......22
3.9. Attachments................................22
3.10. Earthing ....................................23
4. Technical description...............................................24
4.1. Circuit-breaker panel........................24
4.2. Extension of the circuit- breaker panel .......25
4.3. Gas tank ....................................26
4.4. Pressure indicator...........................26
4.4.1. Checking the switching readiness ...........27
4.5. Density monitor (optional) ..................28
4.5.1. Checking the switching readiness ...........28
4.6. Vacuum circuit-breaker......................29
4.7. Three-position switch .......................31
4.8. Three-position switch drive .................32
4.9. Switch panel interlocks......................32
4.10. Current transformer.........................33
4.11. Voltage transformer.........................34
4.11.1. Voltage transformer connected
to the bus bar...............................34
4.11.2. Voltage transformer connected
to the outgoing.............................34
4.12. Capacitive voltage detecting system.........35
4.13. Short-circuit indicator / earth fault
indicator (option)...........................35
5. Operation..................................................................36
5.1. Switching accessories . . . . . . . . . . . . . . . . . . . . . . .36
5.2. Padlocking facility ..........................37
5.3. Delivery state of the circuit-breaker panel....37
5.4. Switching the circuit-breaker panel..........40
5.4.1. Inspection activities and
safety instructions ..........................40
5.4.2. Tensioning the spring accumulator ..........41
5.4.3. Switching the circuit-breaker panel ON ......42
5.4.4. Switching the circuit-breaker panel OFF .....47
6. Commissioning ........................................................51
6.1. Inspection activities and
safety instructions ..........................51
6.2. Switching the circuit-breaker panel
(manually) ..................................51
6.3. Undervoltage release (optional) .............52
6.4. Switching using motor drive (option) ........52
6.5. Checking for electrical isolation .............53
6.6. Cable test...................................53
7. Maintenance.............................................................54
7.1. General.....................................54
7.2. Inspection and maintenance ................55
7.2.1. Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
7.2.2. Maintenance................................56
7.2.3. Cleaning the circuit-breaker panel...........56
7.2.4. Scope of maintenance on the vacuum
circuit-breaker’s mechanical drive groups ....56
7.3. Fault clearance on the vacuum
circuit-breaker ..............................57
7.4. Return of switchgear ........................57
IG-322-EN version 03; 22/07/2022
4
Contents General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
8. Technical data...........................................................58
8.1. General data ................................58
8.2. Circuit-breaker panel gae.630 -1LSV(G)
ratings......................................58
8.3. Switchgear ratings ..........................59
8.4. Processing time guide values................59
8.5. Release and blocking magnet ...............59
8.6. Motor winder ...............................60
8.7. Tightening torques..........................60
8.8. Materials ...................................60
8.9. Auxiliary and operating materials
for circuit-breakers ..........................60
8.10. Test voltages for cable test ..................61
8.11. Regulations and standards ..................61
8.11.1. Test specifications...........................61
IG-322-EN version 03; 22/07/2022 5
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
1Vacuum circuit-breaker control panel
2OFF push-button (0 = red)
3ON push-button (I = green)
4Spring accumulator indicator
5Spring accumulator manual winding up
6Operations counter
7Switch position indicator circuit breaker
8Relay cabinet
9Relay cabinet door
10 Relay cabinet door fastener
11 Panel designation
12 Control panel cover
13 Control panel cover fastening screws

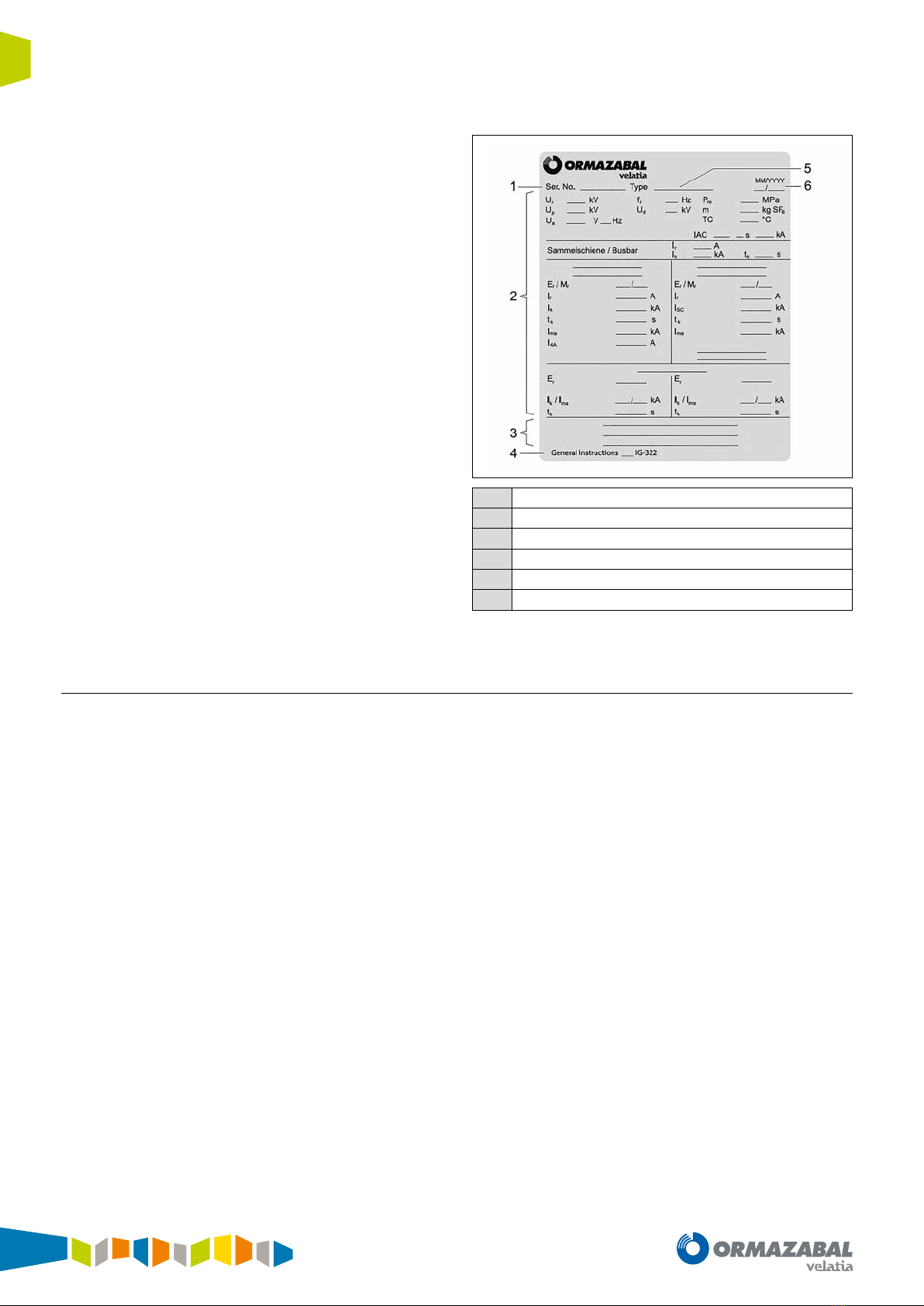

14 Rating plate
15 Interlock operating lever (disconnector circuit-breaker)
16 Actuating shaft disconnector
17 Switch position indicator disconnector
18 Switch position indicator earthing switch
19 Actuating shaft earthing switch
20 Front cover
21 Front cover fastener
22 Capacitive voltage detection system (voltage indication ledge)
23 Gas leakage indicator
24 Lifting eyes
25 Vacuum circuit-breaker drive
26 Disconnector/earthing switch drive
27 Auxiliary switch bar earthing switch
28 Auxiliary switch bar disconnector
29 Cable connection compartment
30 SF6-gas tank
31 Cable xing iron
32 Pedestal
33 System earthing
34 T-connector for VPE-cable
Figure 1.1.
IG-322-EN version 03; 22/07/2022
6
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
1Top panel screw connection (guide pin)
2Bushing with contact springs
3Contact bolt
4Double seal
5Bottom panel screw connection (guide pin)
Figure 1.2.
IG-322-EN version 03; 22/07/2022 7
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
1Sealing plug
2Sealing end side bushing
3Clamping sheet
4Busbar bushing (inside taper)
5Contact springs
6Single seal
7Cover
8Screw plug
Figure 1.3.
IG-322-EN version 03; 22/07/2022
8
General General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
1. General
1.1. Liability and warranty
All information and notes concerning operation and
maintenance of the circuit-breaker panel are provided
under due consideration of our present experience and to
the best of our knowledge. These instructions describe the
standard circuit-breaker panel.
All technical information and data contained in these
operating instructions are up to date at the day of printing.
We reserve the right to make technical changes in the
course of further development without the need to change
these instructions.
Therefore, no claims can be made based on the information
and descriptions in these instructions.
We will not assume liability for damage or malfunctions
resulting from operating errors, failure to observe these
operating instructions or incorrect repairs.
Genuine spare parts from Ormazabal have been specially
designed and tested for Ormazabal circuit-breaker panels.
It is highly recommended to purchase spare parts and
accessories only from Ormazabal. We would like to make
explicitly clear, that any spare parts and accessories not
supplied by us require the approval by Ormazabal.
The assembly and use of other products may have a
negative eect on design specic characteristics of the
circuit- breaker panel and thereby impair the safety for man,
circuit-breaker panel or other property.
For damage resulting from the use of spare parts and
accessories not approved by Ormazabal any liability by
Ormazabal is excluded.
Any unauthorized conversions and changes to the circuit-
breaker panels are prohibited for safety reasons and cause
the exclusion of any liability by Ormazabal for any damage
resulting from this.
1.2. Service information
The Ormazabal customer service is available to provide
technical information on Ormazabal products.
IG-322-EN version 03; 22/07/2022 9
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Safety regulations
2. Safety regulations
2.1. Intended use
The gae.630 circuit-breaker panel is a prefabricated, type
approved, metal- enclosed, interior switching panel for use
in accessible switchgear rooms and an operating voltage of
up to 24 kV.
It can be extended using series gae panel / block modules.
Circuit-breaker panels are used in:
• transformer stations
• node stations
• combined heating and power plants
• industrial plants
• customer consumer installations
• wind energy converters.
The circuit-breaker panel gae.630 -1LSV is used to switch:
• overhead lines and cables
• transformers
• motors
• generators
• choke coils.
The gae.630 circuit-breaker panel is used as a bus
sectionaliser panel gae.630 -1LSVG.
The circuit-breaker panel must only be operated, serviced
and repaired by authorised personnel, who have been
instructed or trained accordingly.
These operating instructions must be read carefully and
strictly observed before installing and commissioning the
circuit-breaker panel.
Every person involved in the installation, commissioning,
operation, maintenance and repair of the unit must
have read and understood these operating instructions,
especially the chapter on safety and any other safety
instructions.
We recommend that the user/owner obtains written
conrmation of compliance with this requirement.
Only the exact knowledge of these operating instructions
helps to avoid operating errors and ensures trouble- free
operation.
The general safety and accident prevention instruction
issued by the legislator and possible regulations of the
insurer, which may be dierent from country to country,
must be strictly observed when operating and servicing the
circuit-breaker panel.
These operating instructions are part of the circuit-
breaker panel. When passing on the circuit-breaker panel
(relocation, selling or similar) the operating instructions
must also be handed over.
IG-322-EN version 03; 22/07/2022
10
Safety regulations General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
2.2. Explanation of symbols and notes
Observe the following instructions and exercise extreme
care in such cases. Hand out all notes on health and
safety also to all persons who are involved in work on
the equipment. Besides the notes in these operating
instructions you must also comply with the generally
valid safety and accident prevention instructions (e. g.
DIN EN 50110-1/-2, DIN VDE 0105-100, DGUV Prescription 3
(previously BGV A3)).
Health and safety symbols
You will nd these symbols with all health and safety
instructions in these operating instructions in which
reference is made to hazards for personnel.
Warning about risk of electric voltage
This special health and safety symbol warns against
dangers due the risk of electric voltage.
Cautionary instruction
In these operating instructions this note appears
at all points which must be especially observed in
order to comply with guidelines, instructions and the
correct work sequence, thereby avoiding damage and
destruction of the circuit-breaker panel.
2.3. General health and safety instructions
The circuit-breaker panel is designed and manufactured to
the latest technical standards and with due consideration of
all safety instructions.
However, dangers for people and property may arise from
these circuit- breaker panels if they are used incorrectly by
untrained personnel or for purposes they are not intended
for, if they are manipulated or if the safety regulations are
disregarded. For this reason every person involved in the
installation, commissioning, operation or maintenance of
the circuit-breaker panel must have read and understood
these instructions.
IG-322-EN version 03; 22/07/2022 11
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Safety regulations
2.3.1. Operation
Whenoperatingthecircuit-breakerpaneltheresponsibilities
must be clearly dened and observed, so that no unclear
areas of responsibility in relation to safety arise.
Before commissioning the circuit- breaker panel and after
service work or modications the circuit-breaker panel
must be inspected by qualied personnel for safe working
condition.
Before commissioning, all personnel in the danger zone
around the circuit-breaker panel must be warned and asked
to leave this area. There must not be any objects blocking
the access to the controls.
The user must operate the circuit- breaker panel only in
perfect condition.
Any changes that degrade safety must be reported
immediately to the supervisor.
Changes to the circuit-breaker panel are only permitted in
coordination with Ormazabal and under the supervision of
expert personnel.
Specialist personnel are persons who, due to their
professional training and experience, have sucient
knowledge in the eld of electrical technology and are
familiar with the applicable health and safety regulations
(DGUV Prescription 3 (previously BGV A3)), directives and
the generally accepted technical rules and regulations
(e. g. VDE-regulations, IEC-standards, DIN-standards).
2.3.2. Safety features
Safety features must not be altered, dismantled or rendered
ineective. Unprotected parts of the system can cause fatal
injuries.
All safety installations, e. g. shrouds, must always be fully
functional and correctly in place. Operation of circuit-
breaker panel with faulty safety features is not allowed.
2.3.3. Auxiliary device for operation, maintenance and repair
If any auxiliary devices (tools or similar) are required for
operation, maintenance or repair of the circuit-breaker
panel, these must be in safe condition and should be used
in a safe way.
Any unnecessary and endangering use of auxiliary devices
of any kind on the circuit-breaker panel is not permitted.
2.3.4. Statutory health and safety instructions
Apart from these notes on prevention of accidents and the
notes attached to the circuit-breaker panel the locally valid
accident prevention instructions must also be observed.
2.3.5. Personal Protective Equipment (PPE)
To achieve the best possible protection for persons, we
recommend wearing personal protective equipment. This
applies for work on the switchgear as well as for switchgear
operation.
For the selection of personal protective equipment,
the national regulations of appropriate authorities and
professional associations must be complied with.
IG-322-EN version 03; 22/07/2022
12
Transport and installation General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
3. Transport and installation
3.1. Safety notes for transport
1. Lifting tackle must only be used at points
intended for this purpose.
2. Ropes, chains or other lifting tackle must be tted
with safety hooks.
3. Do not use any torn or worn ropes.
4. Ropes and chains must not be knotted.
5. Ropes and chains must not touch any sharp
edges.
6. Only use ropes and chains of sucient loading
capacity (for weight of the circuit-breaker panel,
see Chapter "8. Technical data", "Table 8.3.").
7. Only use lifting gear of sucient loading capacity
(for weight of the circuit-breaker panel, see
Chapter "8. Technical data", "Table 8.3.").
8. Do not lift loads over persons.
During transport, comply with the warning and
safety instructions on the circuit-breaker panel and its
packaging.
When unloading observe the safety instructions (see
Chap. 3.1) and the applicable accident prevention
regulations.
3.2. Transport and unloading
The circuit-breaker panel is delivered packed upright on
a pallet. It is fastened to the pallet with tightening straps
(Figure 3.1).
For transportation or intermediate storage, please always
use the original packaging and secure the circuit- breaker
panel with straps in the same way as for delivery.
When attaching the tightening straps make sure to attach
these as shown in Figure 3.1, as otherwise the circuit-
breaker panel may be damaged.
Import: Unloading is only allowed to be performed by
experienced persons who are fully familiar with the lifting
gear.
Observe the permissible hoisting weight of lifting tackle
and lifting gear (forklift truck, crane).
37250304
1
2
3
1Corner protectors (cardboard)
2Tightening strap
3Switchgear front
Figure 3.1.
IG-322-EN version 03; 22/07/2022 13
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Transport and installation
3.3. Arrival and unpacking
The goods must be checked immediately upon receipt!
Any complaints have to be stated on the freight
document and countersigned by the driver!
In case of complaints please contact your distributor:
www.ormazabal.com
Remove the tightening straps. The circuit-breaker panel
is then no longer secured. Due to its design, the centre
of gravity of the circuit-breaker panel is higher than the
middle of the switch panel.
When handling the circuit- breaker panel in unsecured
condition the unit may tip over! Particular attention is
to be paid to this issue when transporting the circuit-
breaker panel to its place of installation. It not allowed
to use levers to transport the circuit-breaker panel to
its nal position. This action could cause damage to
the enclosure.
Eyebolts are tted to both sides of the gae.630 -1LSV panel,
which hold the panel safely in its position of centre of
gravity when transporting with chain or rope lifting gear
(Figure 3.2). Only transport cross members must be used
with this type of lifting gear. Otherwise there is a risk of
damage to the panel.
In some individual cases, the eyebolts are enclosed with the
panel. When tting the eyebolts, it must be observed that
they are tightly seated and in the correct Figure 3.2 position.
37250305
Figure 3.2.
IG-322-EN version 03; 22/07/2022
14
Transport and installation General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
After moving the circuit-breaker panel to the place of
installation, remove the lifting eyes.
When installing as an end panel, close o the thread with a
exible plastic plug.
Keep the eyebolts in a safe, accessible place for future use in
transporting the circuit-breaker panel. When re-tting the
eyebolts, it must be observed that they are tightly seated
and in the correct position.
Check the circuit-breaker panel delivery for correctness and
completeness. The serial numbers on the delivery note and
on the rating plate on the circuit-breaker panel (Figure 3.3)
must match.
1Serial number
2Technical data
3Standards applied
4Document number
5Type of unit
6Manufacturing date: month/year
Figure 3.3. Rating plate (example)
3.4. Storage
In the factory the circuit-breaker panel is packed ready for
transport and storage. It must only be stored in dry, clean
rooms and must be protected against excessive soiling.
The environmental conditions must comply with
IEC 62271-1 / DIN EN 62271-1 and VDE 0671-1, ambient
temperature class“minus 5 indoor”.
IG-322-EN version 03; 22/07/2022 15
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Transport and installation
3.5. Installation and assembly
To install the circuit-breaker panel, use the installation plan
shown in Chapter 3.6.1. In order to assure secure standing
of the circuit-breaker panel use all fastening bores provided.
The depths of the individual panel types in the gae family
vary.
In order to ensure all possible block/ panel combinations
can be installed, the foundation projection must be drawn
at a distance of 135 mm from the wall!
On the variant with pressure absorber channel the minimum
distance is 100 mm.
If it is certain that during a system extension no:
•gae.630 -1LSFxx- panels
•gae measuring panels with metal cooling stretch are
installed, the distance from the wall can be reduced
to 100 mm.
To ease the assembly of the modular switchgear gae.630,
we recommend the following distances from side walls on
installation from left to right:
• Distance from left wall at least 100 mm
• Right wall distance at least 300 mm.
When installing from right to left the lateral wall distances
are reversed.
The area for the oor opening must not be reduced in
size, so that, in case of an arc incident, the hot gases
can be safely discharged.
A straight and level oor surface is a prerequisite for the
stress-free installation. Pay attention to the information
in DIN 43661. In particular the tolerance on the evenness
(maximum 1 mm over a measured length of 1 m) and
the tolerance on the straightness (maximum 1 mm per
metre and maximum 2 mm over the entire length of the
foundation rail) are to be observed.
To ease the assembly work on the installation of
several gae panels, we recommend the usage of a
metal chassis.
The fastening material is not part of the delivery.
To fastening the switch panel to a raised oor, we
recommend the following fastening material:
• Hexagon screw M10 (minimum M8, strength class 5.6)
DIN EN ISO 4017
• Washers DIN EN ISO 7093 (switch panel side)
• Washers DIN EN ISO 7089/7090 (raised oor side) or
tapered washers for fastening to U-sections
• Spring lock ring DIN 127 / DIN 128
• Hexagon nut M10 DIN EN ISO 4032
In the case of installation on concrete with a strength of
B ≥ 25 N/mm², we recommend the following fastening
material:
• Fischer plastic dowels of type S12
• Wood screw DIN 571-10x80-St
• Washer DIN 125 A10
To make the fastening bores accessible for installation,
remove the front cover (see Chapter 5) and if applicable the
cable xing irons of cable connection compartment.
IG-322-EN version 03; 22/07/2022
16
Transport and installation General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
3.6. Planning of installation
3.6.1. Floor fastening measurements
Figure 3.4 shows the oor mounting and the oor
breakthrough dimensions for the standard circuit-breaker
panel. On the left, the pressure relief into the cable pit, on
the right, with the rear pressure absorber channel into the
switchgear room.
Fastening bores Ø 12
Floor contact area
Floor opening
Only gae.630-1LSV-/5/ with deeper front cover for double cable
connection (optional)
Figure 3.4. Dimensions in mm
Figure 3.5 shows the oor mounting and the oor
breakthrough dimensions for the circuit-breaker panel with
deep cable compartment cover. On the left, the pressure
relief into the cable pit, on the right, with the rear pressure
absorber channel into the switchgear room.
Fastening bores Ø 12
Floor contact area
Floor opening
Outgoing cable (Ø 70)
Earthing standard (Ø 30)
Earthing bus bar (Ø 70)
Figure 3.5. Dimensions in mm
IG-322-EN version 03; 22/07/2022 17
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Transport and installation
Figure 3.6 the oor mounting and the oor breakthrough
dimensions for the circuit-breaker panel with VTs on the
cable compartment. On the left, the pressure relief into
the cable pit, on the right, with the rear pressure absorber
channel into the switchgear room.
Fastening bores Ø 12
Floor contact area
Floor opening
Outgoing cable (Ø 70)
Earthing standard (Ø 30)
Earthing bus bar (Ø 70)
Figure 3.6. Dimensions in mm
IG-322-EN version 03; 22/07/2022
18
Transport and installation General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
3.6.2. Dimensions
The circuit-breaker panel gae.630 -1LSV is supplied in the
following designs:
• Type gae.630 -1LSV standard circuit-breaker panel
• Type gae.630 -1LSVG bus sectionaliser circuit-breaker
panel
The dimensions of the circuit-breaker panel gae.630 -1LSV
are shown in Figure 3.7.
Additional panel equipment (transformers, relays, etc.) is
tted to customer-specic requirements.Their handling and
main attributes can be found in the following, customer-
specic plans and additional documents:
• Installation plans
• Overview plans
• Equipment list
• Equipment plans
• Control plans
• Telecommunication plans
• Connection plans.
1Pressure absorber channel (optional) with minimum relay cabinet height 600 mm
Dimension with standard front cover;
Dimension approx. 120 larger if tted with deep front cover (optional).
Figure 3.7.
IG-322-EN version 03; 22/07/2022 19
General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
Transport and installation
3.6.3. Possible installations
Installationpossibilityforcircuit-breakerpanelsinaccessible
switchgear rooms.
During installation make sure not to damage the burst
protection in the bottom of the gas tank (Figure 3.5).
This diaphragm opens in case of an internal arc fault.
The gases emerging must be discharged as shown in
Figure 3.8.
As shown in Figure 3.8 the cable trench must have a dened
minimum cross section. For the optional pressure relief
of the cable trench the following rule of thumb must be
applied:
• up to 3 panels: 1 metal cooling stretch arrangement
(400 x 600 mm)
• from 4 panels: 1 second metal cooling stretch arrangement
of the same size
The metal cooling stretch arrangement provided by the
customer must be arranged in a way that the cable trench
is evenly divided.
Please ask for our assistance in the planning and installation
of the station.
The construction of the building and the switchgear
room must withstand the expected mechanical loads
and the internal pressure caused by a short- circuit arc.
Corresponding calculations for this are recommended.
Switchgear related pressure calculations can be requested
as part of the services provided by the sales department at
Ormazabal GmbH.
2
34
1
ab
aPressure relief only into the cable trench/raised oor
bPressure relief via metal absorber and rear pressure absorber
channel into the switchgear room
1Metal cooling stretch arrangement
2Metal absorber
3Cable trench / raised oor
4Cable trench / raised oor
Figure 3.8.
IG-322-EN version 03; 22/07/2022
20
Transport and installation General instructions
SF6-insulated circuit-breaker panel:
Type gae.630 -1LSV(G)-/5/
in modular extensible design up to 24 kV, 20 kA
3.7. Installation of the supply line for the auxiliary and control circuits
There are openings for laying the supply line for the auxiliary
and control circuits in the roof of the relay cabinet.
Flexible plugs are tted in these openings, which provide
a cable bushing protected against dust and moisture. For
adaptation to the cable diameter use the separating lines
on the plugs.
The supply line from a neighbouring panel on the left or
right (loop cable) is laid through openings in the related
side wall on the relay cabinet (Figure 3.9).
If the relay cabinet on the neighbouring panel is tted
oset, the cable can be laid through the openings in the
roof of the relay cabinet (Figure 3.10).
1
2
1Openings in the roof
2Openings in the side wall
Figure 3.9. Relay cabinet ush at the rear wall
1
1Openings in the roof
Figure 3.10. Relay cabinet oset
