Velatia Ormazabal gmcosmos Instruction manual

LIB
Outdoor cubicles
cgmcosmos, cgm.3 and cgm.800
systems
General Instructions
IG-305-EN, version 01, 07/04/2020

In view of the constant evolution in standards and design, the characteristics of the elements contained in this manual are subject
to change without prior notice. These characteristics, as well as the availability of components, are subject to confirmation by
Ormazabal.
CAUTION!
When medium-voltage equipment is operating, certain components are live, other parts may be in movement and some may
reach high temperatures. Therefore, the use of this equipment poses electrical, mechanical and thermal risks.
In order to ensure an acceptable level of protection for people and property, and in compliance with applicable environmental
recommendations, Ormazabal designs and manufactures its products according to the principle of integrated safety, based on
the following criteria:
• Elimination of hazards wherever possible.
• Where elimination of hazards is neither technically nor economically feasible, appropriate protection functions are
incorporated in the equipment.
• Communication about remaining risks to facilitate the design of operating procedures which prevent such risks,
training for the personnel in charge of the equipment, and the use of suitable personal protective equipment.
• Use of recyclable materials and establishment of procedures for the disposal of equipment and components so
that once the end of their service lives is reached, they are duly processed in accordance, as far as possible, with the
environmental restrictions established by the competent authorities.
Consequently, the equipment to which the present manual refers complies with the requirements of section 11.2 of Standard
IEC 62271-1. It must therefore only be operated by appropriately qualified and supervised personnel, in accordance with the
requirements of standard EN 50110-1 on the safety of electrical installations and standard EN 50110-2 on activities in or near
electrical installations. Personnel must be fully familiar with the instructions and warnings contained in this manual and in other
recommendations of a more general nature which are applicable to the situation according to current legislation[1].
The above must be carefully observed, as the correct and safe operation of this equipment depends not only on its design but also
on general circumstances which are in general beyond the control and responsibility of the manufacturer. More specifically:
• The equipment must be handled and transported appropriately from the factory to the place of installation.
• All intermediate storage should occur in conditions which do not alter or damage the characteristics of the equipment
or its essential components.
• Service conditions must be compatible with the equipment rating.
• The equipment must be operated strictly in accordance with the instructions given in the manual, and the applicable
operating and safety principles must be clearly understood.
• Maintenance should be performed properly, taking into account the actual service and environmental conditions in
the place of installation.
The manufacturer declines all liability for any significant indirect damages resulting from violation of the guarantee, under any
jurisdiction, including loss of income, stoppages and costs resulting from repair or replacement of parts.
Warranty
The manufacturer guarantees this product against any defect in materials and operation during the contractual period. In the
event that defects are detected, the manufacturer may opt either to repair or replace the equipment. Improper handling of this
equipment and its repair by the user shall constitute a violation of the guarantee.
Registered Trademarks and Copyrights
All registered trademarks cited in this document are the property of their respective owners. The intellectual property of this manual
belongs to Ormazabal.
[1] For example, in Spain the “Regulation on technical conditions and guarantees for safety in high-voltage electrical installations” – Royal Decree
337/2014 is obligatory.

IG-305-EN version 01; 07/04/2020 3
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Contents
Contents
1. General description ...................................................4
1.1. Models ......................................4
1.2. Main components ...........................5
1.2.1. Name plate ..................................5
1.3. Ratings table.................................6
1.4. Dimensions and weights .....................7
1.5. Operating conditions ........................8
2. Handling and transport.............................................9
2.1. Lifting equipment............................9
2.2. Transport ...................................10
2.2.1. Road haulage ...............................10
2.2.2. Sea transport ...............................10
3. Storage......................................................................11
4. Installation ...............................................................12
4.1. Unpacking the equipment ..................12
4.2. Fastening outdoor cubicles to the floor ......12
4.3. Earthing the equipment.....................14
5. Recommended sequence of operations.................15
5.1. Access to the driving mechanism and cable
compartment...............................15
5.2. Operations sequence for replacing cubicles
on site ......................................17
6. Maintenance.............................................................19
6.1. Maintenance and cleaning ..................19
6.1.1. General aspects .............................19
6.1.2. Cleaning and maintenance..................20
6.2. Paint repair procedure ......................21
6.2.1. General aspects .............................21
6.2.2. Instructions for repairing damage or areas
affected by rust .............................22
7. Spares and accessories ............................................24

IG-305-EN version 01; 07/04/2020
4
General description General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
1. General description
Ormazabal's outdoor cubicle systems, formed by dierent
congurations, are designed following the requirements
set out in International Electrotechnical Committee (IEC)
standards.
ThisGIdocumentsupplements the general instructions
of the switchgear system of the cubicles, namely the
IG-078 in the case of cgm, IG-136 in the case of cgm.3,
or IG-284 in the case of cgm.800.
1.1. Models
Multifunctional
switchgear Functions
-2lv 2 feeder and 1 vacuum circuit-breaker functions
-3lv 3 feeder and 1 vacuum circuit-breaker functions
-2l2v 2 feeder and 2 vacuum circuit-breaker functions
-lv 1 feeder and 1 vacuum circuit-breaker function
-l2v 1 feeder and 2 vacuum circuit-breaker functions
Table 1.1. Outdoor multifunctional switchgear
For other models, please contact Ormazabal's
Technical Department.

IG-305-EN version 01; 07/04/2020 5
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
General description
1.2. Main components
1cgmcosmos, cgm.3 or cgm.800 cubicles
2Cable compartment cover
3External enclosure
3.1 Doors
3.2 External enclosure bottom cover
Figure 1.1. Main components outdoor cubicles
1.2.1. Name plate
Every unit includes a name plate, with some of the following
data:
Figure 1.2. Example of name plate

IG-305-EN version 01; 07/04/2020
6
General description General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
1.3. Ratings table
Rated voltage [kV] 24 36 40.5
Internal arc classication according to IEC 62271-200*
IAC AF 25 kA (1 s)
IAC AFL 25 kA (1 s)
IAC AFLR 25 kA (1 s)
IP rating: external enclosure IP 54**
Standard unit colour [RAL] grey 7035
* Gas output to trench as standard. Optional gas output upwards via the relief duct.
** For other options, please contact Ormazabal's Technical Department.
Table 1.2. Characteristics
The values set out in this table are general for the
enclosure. See the cubicles' general instructions for
other technical characteristics.

IG-305-EN version 01; 07/04/2020 7
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
General description

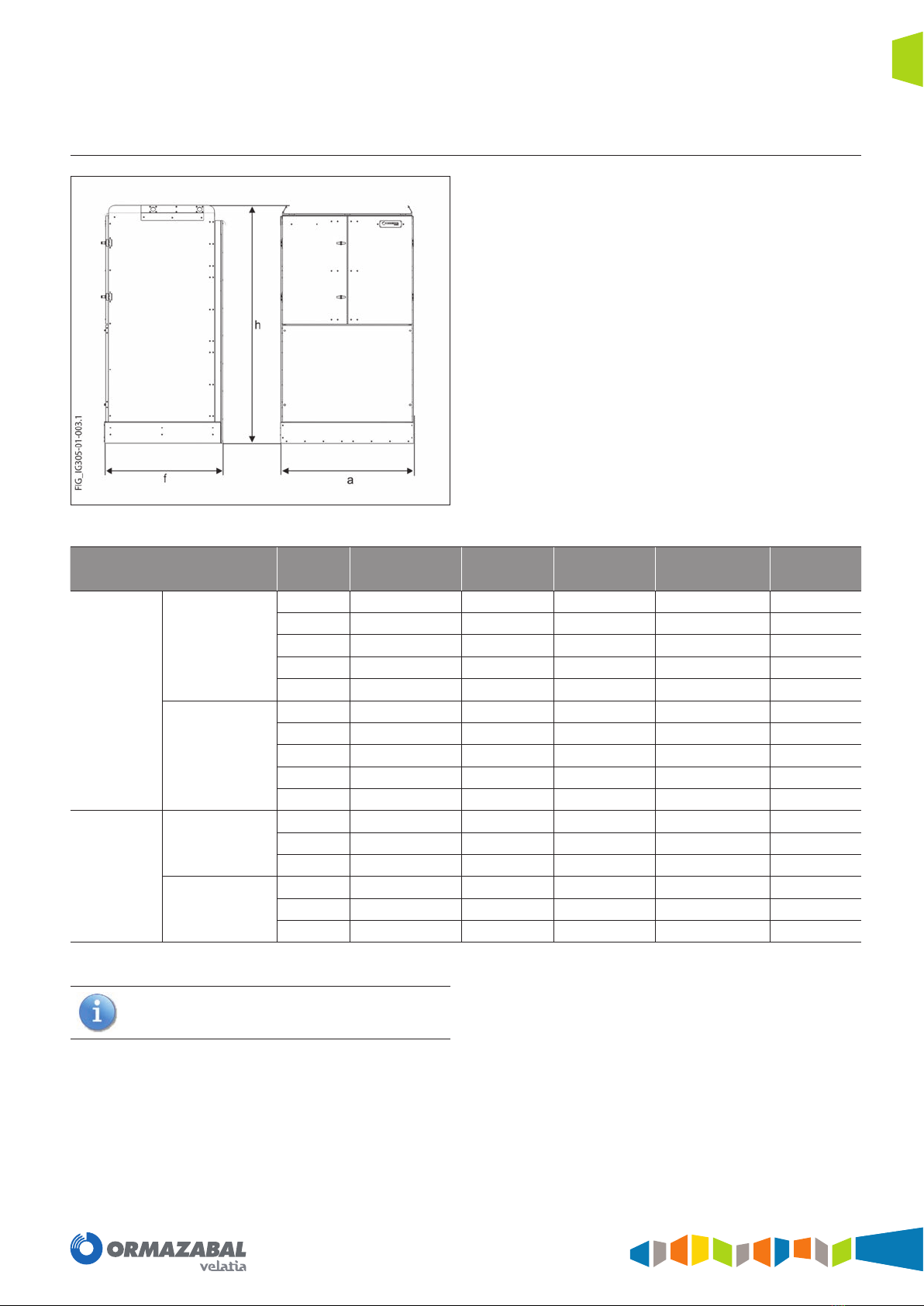

1.4. Dimensions and weights
Figure 1.3. Outdoor cubicle dimensions
Cubicle Model Conguration Width (a)
[mm]
Depth (f)
[mm]
Height (h)
[mm]
Weight
[kg]
cgm.3
cgm.800
Gases to trench
-2lv LVL 1558 1026 1889 798
-3lv LVLL 1978 1026 1889 995
-2l2v LVLV 2158 1026 1889 1102
-lv LV 1142 1026 1889 601
-l2v LVV 1742 1026 1889 905
Upwards gases
-2lv LVL 1560 1070 2074 898
-3lv LVLL 1978 1070 2074 1118
-2l2v LVLV 2160 1070 2074 1234
-lv LV 1142 1070 2074 704
-l2v LVV 1742 1070 2074 1035
cgmcosmos
Gases to trench
-2lv LVL 1187 1026 1889 606
-3lv LVLL 1551 1026 1889 710
-2l2v LVLV 1666 1026 1889 863
Upwards gases
-2lv LVL 1187 1069 2074 678
-3lv LVLL 1551 1069 2074 800
-2l2v LVLV 1666 1069 2074 959
Table 1.3. Outdoor cubicle dimensions and weights
For other congurations, please contact Ormazabal's
Technical Department.

IG-305-EN version 01; 07/04/2020
8
General description General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
1.5. Operating conditions
Installation Outdoor
Maximum ambient temperature + 40 °C
Minimum ambient temperature - 5 °C /- 30 °C(b)
Maximum mean ambient temperature, measured over a 24-hour period + 35 °C
Maximum mean relative humidity, measured over a 24-hour period < 95 %
Maximum mean relative humidity, measured over a 1-month period < 90 %
Maximum mean vapour pressure, measured over a 24-hour period 2.2 kPa
Maximum mean vapour pressure, measured over a 1-month period 1.8 kPa
Maximum height 2000 m
Solar radiation 1000 W/m2*
Ambient air pollution (dust, smoke, corrosive and/or ammable gases, vapours or salt) Medium**
Wind speed 34 m/s***
Vibrations due to causes external to the switchgear or to seismic movements Insignicant
* For other values, please contact Ormazabal's Technical Department.
** In accordance with Standard IEC TS 60815-1:2008.
*** Doors closed.
Table 1.4. Outdoor cubicle operating conditions
The specications refer to the section "Normal
service conditions for outdoor cubicles" in Standard
IEC 62271-1, "Common specications for high-voltage
cubicles".
For special service conditions: ambient temperature
above + 40 ºC, installation between 2000 and 4000
m above sea level, signicant pollution level, solar
radiation, or others dierent to those described, check
with Ormazabal.

IG-305-EN version 01; 07/04/2020 9
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Handling and transport
2. Handling and transport
Important: During transport, the switchgear must
be perfectly seated and xed so that it cannot move
about and possibly damage the equipment.
2.1. Lifting equipment
The switchgear must always be kept upright, directly on the
ground or on a pallet, depending on the type of handling
involved.
Outdoor units must be handled using lifting systems with
slings or chains secured to side lifting brackets located at
the top of the enclosure.
The angle of pull must be as vertical as possible (with an
angle greater than 60º from the horizontal).
Handling with a forklift truck is also possible.
Figure 2.1. Lifting outdoor units
Figure 2.2. Lifting an outdoor cubicle with a forklift truck

IG-305-EN version 01; 07/04/2020
10
Handling and transport General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
2.2. Transport
2.2.1. Road haulage
Transport is carried out on a standard truck or crane truck
platform.
Securing the unit to the truck's platform using slings is
recommended during transport, protecting the corners
with L-shaped proles.
Local regulations must be followed for other road transport
aspects (gauge, maximum authorised weight, etc).
Packaging for road haulage
The outdoor units are supplied from the factory on a pallet
that is larger than the dimensions of the unit. All transport
protection elements must be removed once the unit is
installed, before it is commissioned.
2.2.2. Sea transport
Outdoor cubicles can be transported completely assembled
in an ISO container. The containers recommended for sea
transport are standard dry-van or high cube. In order to
prevent any defects or damage during transport, once the
unit is inside the container, we recommend securing it to
the base with slings tied rmly to the four lifting anchors on
the top part of the enclosure.
Packaging for sea freight
Ormazabal recommends using Cortec VpCI-126 Blue lm
(corrosion inhibitor in vapour phase) or similar to seal
the unit, thus preventing corrosion during sea transport.
Placing the enclosure in dehydrated salt is recommended.
The outdoor cubicles are transported from the factory on
a pallet, with polyurethane corner pieces on top of VpCI
lm or similar. Once the equipment has been installed,
remove all the protection and transport elements before
commissioning.

IG-305-EN version 01; 07/04/2020 11
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Storage
3. Storage
If it needs to be stored, the equipment must be placed on
dry ground or on top of damp-proof insulating material, still
in its original packaging.
After prolonged storage, clean all the insulating parts
carefully before commissioning the equipment. The
enclosure must be cleaned with a clean, dry lint-free cloth.
Storing INDOORS in the following conditions is reco-
mmended:
1. Ambient air temperature must not exceed 40 ºC and
its average value, measured over a period of 24 hours,
must not exceed 35 ºC.
2. The ambient air temperature must not drop below
- 5 °C. There are also cubicles with storage temperature
up to - 40 °C.
3. The switchgear must be protected from direct solar
radiation.
4. Altitude, both in transport and in storage, must not
exceed 2000 m.
5. The ambient air must not have any signicant
contamination from dust, smoke, corrosive and/or
inammable gases, vapours or salt.
6. The switchgear must be protected from the rain, and
the humidity conditions must be as follows:
a. the average relative humidity value, measured over
a period of 24 hours, must not exceed 95 %.
b. the average water vapour pressure value, measured
over a period of 24 hours, must not exceed 2.2 kPa.
c. the average relative humidity value, measured over
a period of one month, must not exceed 90 %.
d. the average water vapour pressure value, measured
over a period of one month, must not exceed
1.8 kPa.
7. During transport, vibrations caused by external factors
or seismic movements must be insignicant.
Any other conditions must be notied beforehand,
since the equipment must be factory-adjusted to
atmospheric pressure at the destination.
If this is not the case, the manometer needle may
indicate an incorrect value, even if the equipment's
internal pressure is correct.

IG-305-EN version 01; 07/04/2020
12
Installation General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
4. Installation
4.1. Unpacking the equipment
It is advisable to cut the cellophane at the rear of the cubicle or at the corner to avoid scratching the surface.
The outdoor cubicles are supplied protected in plastic as
standard.
On receiving the equipment, check that the goods supplied
correspond to the order and associated documentation. If
this is not the case, contact Ormazabal immediately.
The disassembly process for the equipment is as follows:
1. Use a blade, cutter or similar tool to cut the cellophane
the cubicle is wrapped in[2].
2. Completely remove the cellophane.
3. Detach the white polystyrene corner pieces.
4. Unscrew the xings between the base and the pallet.
5. Remove the pallet, handling the cubicle as indicated in
section 2.1.
6. Dispose of any waste in an environmentally friendly
manner.
It is advisable to make a visual inspection of the equipment
to check whether it has suered any damage in transit. If
damaged, contact Ormazabal immediately.
4.2. Fastening outdoor cubicles to the floor
To install outdoor cubicles with gas output to trench, follow
the procedure for fastening to the oor described in the
corresponding GI document.
Furthermore, we recommend sealing the outer perimeter
of the enclosure and bottom front cable compartment
access cover using a single-sided adhesive cellular foam
seal, 30 mm wide and 5 mm thick, made of EPDM material
(Ormazabal reference: 440142).

IG-305-EN version 01; 07/04/2020 13
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Installation

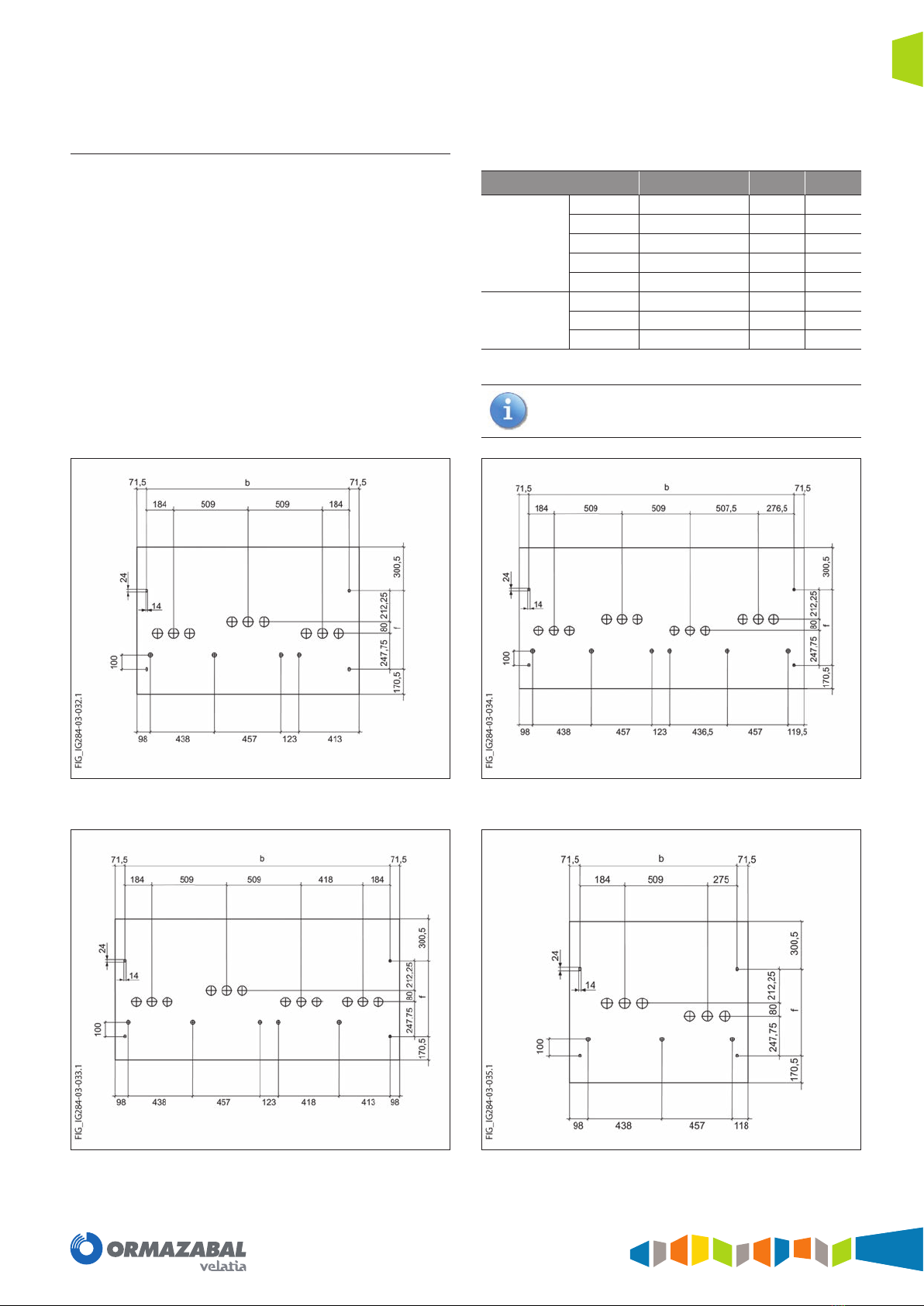

Fastening outdoor cubicles with upwards gas output
to the floor
Outdoor cubicles with upwards gas output must be
anchored to the oor of the facility with four M12 bolts,
using the points prepared for this purpose in the base of
the relief duct. Take the following dimensions and diagrams
into account for anchoring:
Cubicle Module Conguration b f
cgm.3
cgm.800
-2lv LVL 1386 540
-3lv LVLL 1804 540
-2l2v LVLV 1986 540
-lv LV 968 540
-l2v LVV 1568 540
cgmcosmos
-2lv LVL 1031 540
-3lv LVLL 1378 540
-2l2v LVLV 1511 540
Table 4.1. Fastening outdoor cubicles to the oor
For other congurations, please contact Ormazabal's
Technical Department.
Figure 4.1. Anchoring diagram cgm.3/cgm.800-2lv with upwards gas
output
Figure 4.2. Anchoring diagram cgm.3/cgm.800-3lv with upwards gas
output
Figure 4.3. Anchoring diagram cgm.3/cgm.800-2l2v with upwards gas
output
Figure 4.4. Anchoring diagram cgm.3/cgm.800-lv with upwards gas
output

IG-305-EN version 01; 07/04/2020
14
Installation General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Figure 4.5. Anchoring diagram cgm.3/cgm.800-2l2v with upwards gas
output
Figure 4.6. Anchoring diagram outdoor cgmcosmos-2lv with upwards
gas output
Figure 4.7. Anchoring diagram outdoor cgmcosmos-3lv with upwards
gas output
Figure 4.8. Anchoring diagram outdoor cgmcosmos-2l2v with upwards
gas output
4.3. Earthing the equipment
In outdoor cubicles, connect the earthing bar inside the
cable compartment.
In the case of rear gas output, the cable ducts at the base
of the relief duct can be used for the earthing connection.

IG-305-EN version 01; 07/04/2020 15
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Recommended sequence of operations
5. Recommended sequence of operations
5.1. Access to the driving mechanism and cable compartment
Proceed as follows to access the cubicle cable compartment
and driving mechanism:
1. Turn both handles 90° with the key provided.
Figure 5.1. Handle position in the left-hand door

IG-305-EN version 01; 07/04/2020
16
Recommended sequence of operations General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
2. Release the two bolts at the top and bottom of the
right-hand door.
Figure 5.2. Interior bolt position in the right-hand door
3. Remove the 4 vandal-proof screws in the bottom cover.
Tool: 40 Thorsen key with hole.
Figure 5.3. Bolt position in the bottom cover

IG-305-EN version 01; 07/04/2020 17
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Recommended sequence of operations

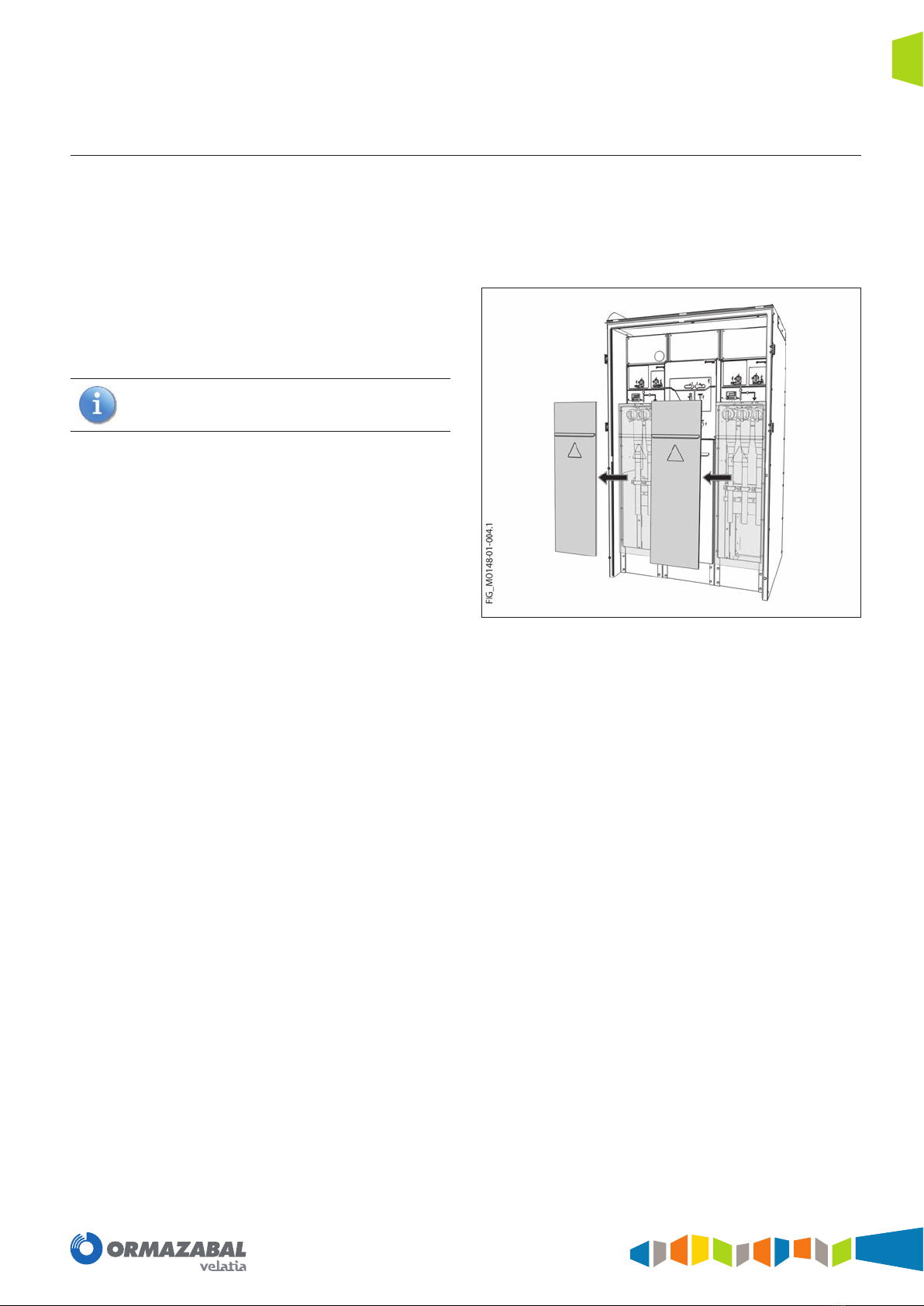

5.2. Operations sequence for replacing cubicles on site
The following sequence describes the operations to be
followed for dismantling and removing the external
enclosure.
1. Follow steps 1 to 3 in the above sequence for access to
the driving mechanisms and cable compartment.
2. Remove the two cable compartment covers from
the two side cubicles. To do this, place the cubicle in
earthing position following the instructions of the
corresponding GI document.
In the case of cgmcosmos cubicles, IG-078: cgm.3,
IG-136; cgm.800, IG-284.
Figure 5.4. Removing the cable compartment covers.

IG-305-EN version 01; 07/04/2020
18
Recommended sequence of operations General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
3. From inside the cable compartment, unscrew the
12 DIN933M8 hex bolts (6 on each side) that secure the
cubicles to the external enclosure.
Tool: 13 open-end wrench.
If a relief duct is tted, also unscrew the 12 M8 bolts
(DIN 933) for anchoring the assembly to the relief duct,
located at the bottom rear.
Figure 5.5. Anchoring bolt position relief duct with
enclosure
Figure 5.6. Bolt position inside the cable compartment
4. Remove the external enclosure, lifting it around 100
mm, and withdraw toward the rear section using slings
or chains secured to the side lifting brackets at the top
of the enclosure. The angle of pull must be as vertical
as possible (with an angle greater than 60º from the
horizontal).
Maximum weight of the enclosure: 300 kg.
Figure 5.7. Removing the external enclosure

IG-305-EN version 01; 07/04/2020 19
General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
Maintenance
6. Maintenance
In order to oer an outdoor solution, Ormazabal's cubicles
are tted with a galvanised sheet metal enclosure painted
in RAL 7035 polyester powder for outdoors, with corrosion
category C5, according to Standard ISO 12944-2, and
high durability (H), according to standard ISO 12944-1. It
is important to stress that, as indicated in this Standard,
durability is not a warranty period, but rather a technical
consideration that helps establish a maintenance period.
For other categories of corrosiveness and/or durability,
please contact Ormazabal's Technical Department.
6.1. Maintenance and cleaning
6.1.1. General aspects
The switchgear's cleaning and maintenance frequency
depends to a large extent on the location of the facility. Due
to their knowledge of the installation, maintenance sta
are the most qualied to establish time intervals between
maintenance operations.
Standard ISO 12944 must be consulted as a reference
to establish the maintenance periods.

IG-305-EN version 01; 07/04/2020
20
Maintenance General Instructions
Outdoor cubicles:
cgmcosmos, cgm.3 and cgm.800 systems
6.1.2. Cleaning and maintenance
Cleaning is understood to be the action and eect of
removing any dirt, dust and/or contamination deposited
on the surface to be cleaned as it is detrimental and causes
deterioration.
Maintenance is understood as the series of actions or
activities to be undertaken in order to ensure that any unit
or machine continues to perform the desired functions.
Cleaning external painted surfaces
Eliminate accumulations of pollutants deposited on
exposed areas of the equipment:
• Remove any excess surface dust, earth and pollutants
in the most convenient way, using non-aggressive
methods. A vacuum cleaner can be used to perform this
operation.
• Avoid rubbing solid sediments on painted surfaces to
prevent scratching. For this purpose it may be necessary
to remove larger solid particles by hand, and the rest
with a soft brush and/or a vacuum cleaner.
• Wipe the surface with a damp cloth, using clean water.
Free of salts and/or chemical products.
• Finally, dry the surface with a cloth or paper towel,
leaving no threads or pieces.
In no case during the surface cleaning operations
should liquids be directly poured on the surfaces.
Liquids must always be applied with a suitable cloth.
Clean the surfaces with suitable liquids and tools:
• Clean water.
• Use a cloth that does not leave threads. Soft brushes
designed specically for cleaning painted surfaces can
be used.
• Do not use cleaners containing chlorides, hydrochloric
acid and/or bleach.
• Do not use cloths that are dirty and/or contaminated
with solvents.
• Do not use steel scouring pads or wire brushes, hard
scrapers or knives that can scratch and/or damage the
painted surface.
