Vello shutterboss version ii User manual

WIRELESS
SHUTTERBOSS II
 

2
Thank you for choosing the Vello Wireless
ShutterBoss II. It has a range of up to 250
feet on 99 channels over the reliable FSK
modulated 2.4 GHz frequency. But this device
is more than just a wireless shutter release.
It features many timer functions: self-timer,
interval timer, long exposure timer, as well
as controls for the number of continuous
shutter trips. The transmitter is powered by
two AAA batteries that can provide the low
power the device uses for up to four years.
INTRODUCTION

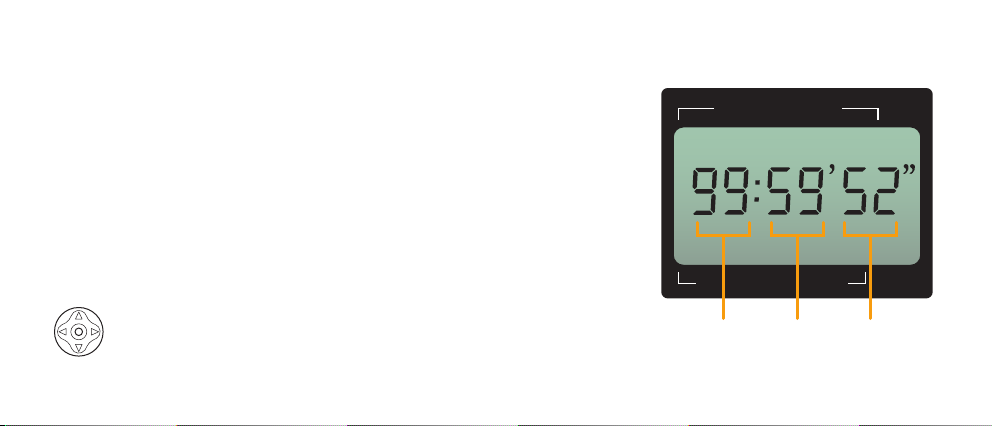

You can set the timer delays, exposure times,
and intervals up to 99 hours, 59 minutes,
59 seconds in one second increments.
You can select anywhere from  to 999
continuous shots, or set the device to
take an unlimited number of photos.
The LCD screen also has a backlit
function for low-light conditions.
The Vello Wireless ShutterBoss II is great
for time-lapse recording of blooming
flowers, astrophotography, etc.

3
Channel Selector: 99 possible radio
channels, plus one universal channel, over
the reliable FSK 2.4 GHz frequency. No
DIP switches to set. One transmitter can
trigger multiple receivers.
Extended Range: about 250 ft. (80 m).
Multi-Function: Trigger your camera
wirelessly or wired.
Versatile: One receiver works with dozens
of camera models. Just swap out the
camera release cable.
Dual-Function Release: Press halfway to
focus; press full to trigger shutter.
Delayed Release: Delay function gives you
extra time to get into position.
Multi-Exposure: Take multiple shots with
one press of the trigger.
Interval Control: Control the amount of
time between multiple shots.
Long Exposure: Control the length of the
exposure remotely.
LED Indicators: Confirm pre-focus and
exposure.
Ultra-low Power: AAA transmitter
batteries can last up to four years on
standby.
KEY FEATURES

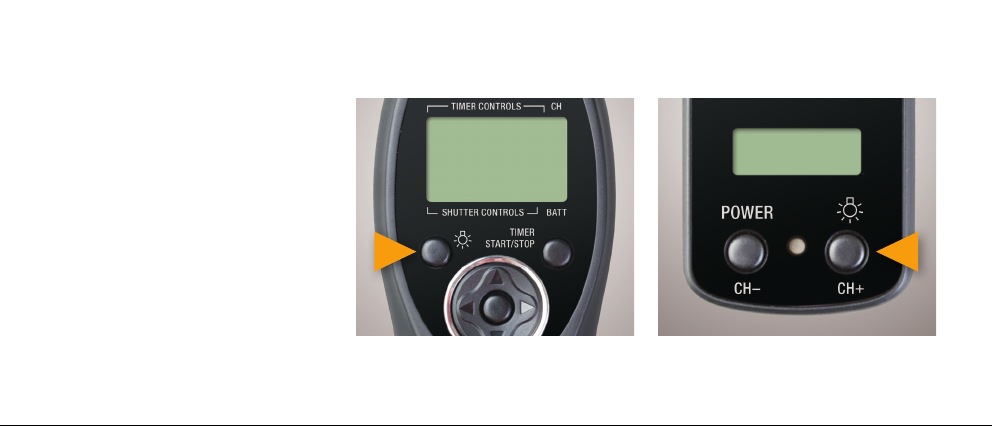

Battery Compartment
Confirmation LED
Transmitter
Display Panel
Backlight Button
Timer Start/Stop Button
Shutter Release Button
Control Selection Button
4
FEATURE DIAGRAMS

Battery Compartment
Display Panel
Power/Channel Down Button
Backlight/Channel Up Button
Shutter Release Port
Power LED
Cold-Shoe Mount
with Thumb-Wheel Lock
Receiver
5

DELAY
BULB
LONG INTVL NCH
TIMER CONTROLS
SHUTTER CONTROLS
CH
BATT
Exposure Length Function
Interval Function
Delay Function
Number of Shots Function
Bulb Shot Indicator
Channel Indicator
Multi Shot Indicator
Delay Indicator
Single Shot Indicator Low Battery Indicator
6
TRANSMITTER DISPLAY PANEL

7

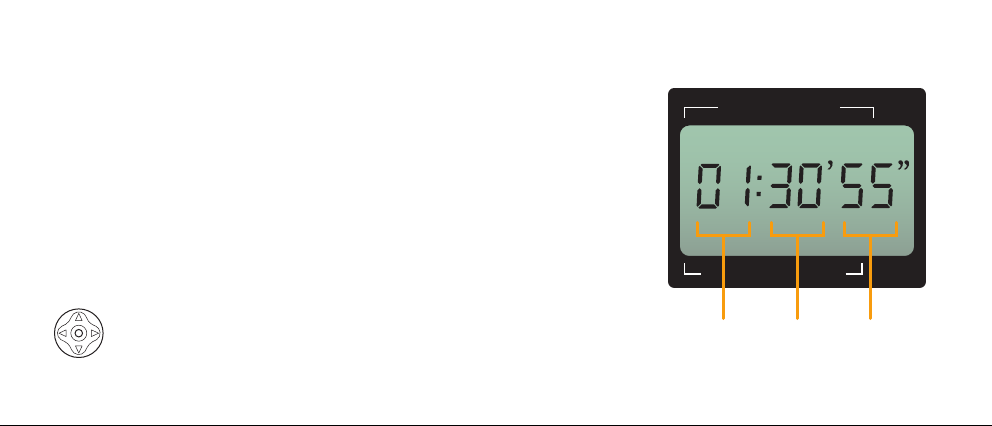

Turning ON the Transmitter: The
Wireless ShutterBoss II is optimized for ultra-
low power usage. Pressing any key will wake
the device. If no operation is performed,
the transmitter will revert to standby status
in one minute, and the display will turn o.
The device will stay active during timing
operations and bulb exposures longer than
one minute.
Turning ON the Receiver: Press and
hold the power button for two seconds. The
display will show the channel in use. The
receiver turns o the same way. Press and
hold the power button until the display goes
o.
Press and hold the power button for two
seconds to power up the receiver. The LED
will blink green while the device is on.
The transmitter uses ultra low power, and
can last up to four years on standby.
POWERING UP

8

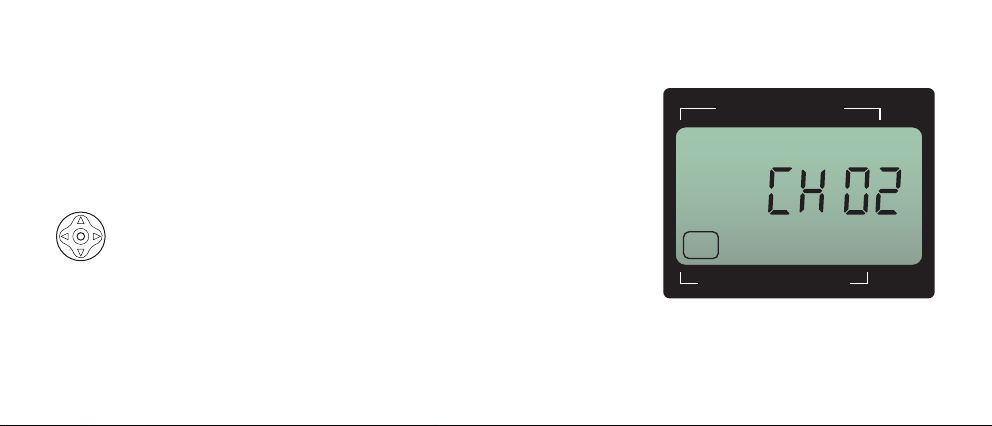

Setting the Channel on the
Transmitter: The transmitter and receiver
must be set to the same channel for proper
communication.
1: Use the arrow button to select the channel
setting. Press the left and right
arrows until CH is displayed in the
upper right corner of the screen.
2: Press the center button on the arrow
button to change the setting.
3: Press the up and down arrows to adjust
the channel up or down.
4: Press the center button to lock the setting.
Setting the Channel on the Receiver:
1: With the device on, press the CH− and
CH+ at the same time. The CH in the
display will blink, indicating that you can
now change the setting.
2: Press the CH− or CH+ buttons to adjust
the channel.
3: Press both CH− and CH+ buttons a
second time to save your setting. If no
action is taken in ten seconds, the device
will save the setting displayed.
The channels you select for the transmitter
and receiver will become the default settings
for the next time you power up the device.
When you select [––] as the channel for the
transmitter and receiver, this eectively sets
the devices to communicate on all channels.
A receiver set to [––] will respond to any
transmission it receives on the 2.4 GHz
frequency. This is useful in setups with
multiple devices all needing to respond to a
single trigger.
SETTING THE CHANNEL

9

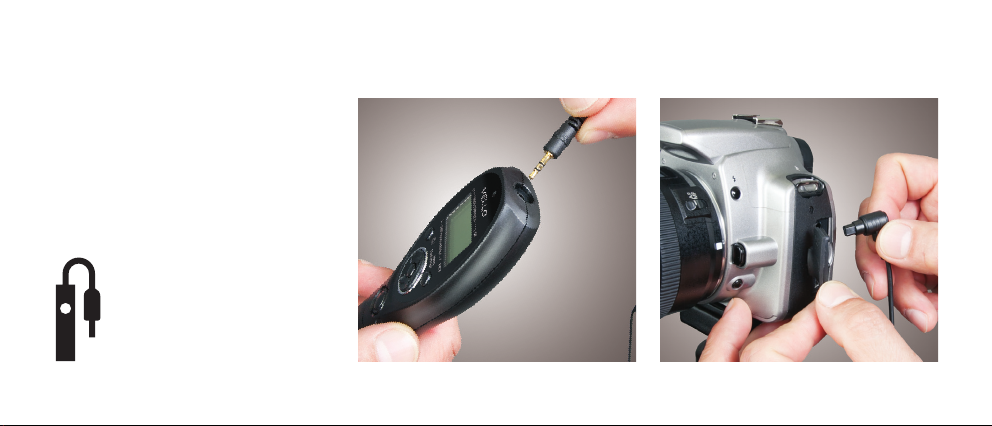

You can use your transmitter as a wired
remote. With your camera and transmitter
both OFF, connect the shutter release cable’s
sub-mini plug end to the jack at the front of
the transmitter and the other end to your
camera’s shutter release jack. Power up your
camera.
WIRED SETUP
Look for this symbol.
Many camera manufacturers
use it to indicate the jack for
connecting remote devices.

0

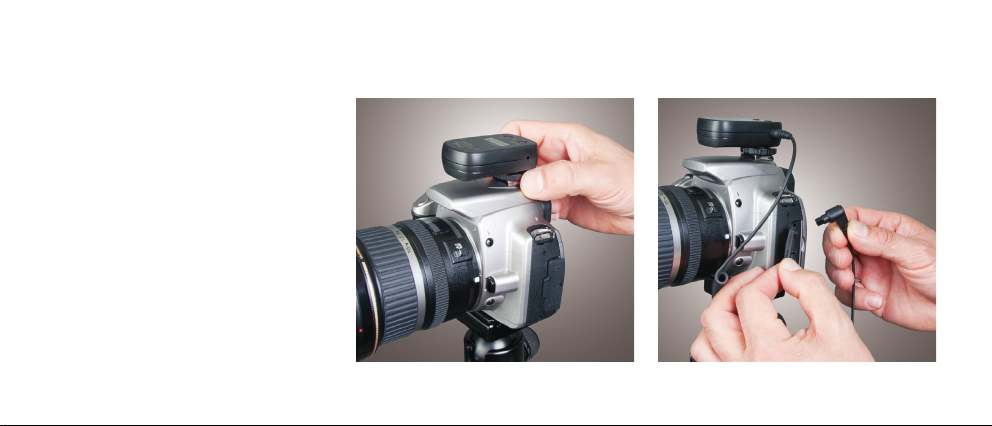

Mount the receiver onto your camera’s hot
shoe, facing forwards or backwards. If your
camera’s hot shoe is in use, you can mount
the receiver to an accessory bracket or a
tripod using either an accessory shoe or the
receiver’s /4"-20 threaded socket.
With your camera and receiver OFF, connect
the shutter release cable’s sub-mini plug end
to the receiver and the other end to your
camera’s shutter release jack. Power up the
receiver and then the camera.
Be sure to also read your camera’s manual for
guidance on use of remotes.
WIRELESS SETUP
