Vemer Mithos GSM User manual

Cronotermostato
Digitale
Mithos GSM
Manuale d’Uso
User Manual
DIGITAL PROGRAMMABLE THERMOSTAT

English
- 1 -
Mithos GSM Programmable Thermostat User Manual
■Assembly Page 3
■Dimensions Page 4
■Connection diagrams Page 4
■Safety warnings Page 5
■Technical characteristics Page 5
■Control elements / display indications Page 7
■Initial start-up / Reset Page 9
■Clock setting Page 9
■Programs setting Page 11
■Temperatures setting Page 13
■Manual operation Page 14
■Summer / winter operation Page 15
■Keypad On-Off command Page 16
■Timing Page 16
■Advanced programming Page 18
■Advanced functions Page 23
■Regulation type Page 26
■GSM interface Page 27
■Programmable thermostat management Page 30
■Alarms management Page 36
■Backup battery Page 42
■Reference standards Page 42
■Winter programs Page 43
■Summer programs Page 44
Index

English
- 2 -
Mithos GSM Programmable Thermostat User Manual
Mithos Digital Programmable thermostat
• Power supply: 230 V AC
(with rechargeable backup battery
NiMh type AA)
• Comfort and control of consumptions
are ensured both in winter and in
summer (heating/air conditioning)
• Integrated GSM module for the remote
control of th device throven your
mobile
• Interchangeable silver colored front
panel available as accessory
(code VE323200)
• Installation can be wall or box 503
coverage (3 modules)
• Display of the operation status, time,
day and internal and
external temperature
• Weekly programming with three temperature
values controllable during the day

English
- 3 -
Mithos GSM Programmable Thermostat User Manual
ASSEMBLY
• It is advisable to place the programmable
thermostat in an area that mirrors, as much
as possible, the conditions of average
temperature of the entire environment.
Avoid installing too close to doors, windows,
heat sources, direct sunlight radiation, and
positions with excess or total lack of air inlet.
It is moreover advised to install the
environment programmable thermostat at
about 150 cm from the floor and in an area
in wich the gsm signal is good.
Assembly can be wall or box 503 coverage

English
- 4 -
Mithos GSM Programmable Thermostat User Manual
DIMENSIONS
CONNECTION DIAGRAM







,QJUHVVRSHU
;7HPSR',*
&20
1$
1&
1
/
a 

9a





,QSXWIRU
;WHPSRU',*
&20
1$
1&
1
/
T
3
T2
T
1
1
32
95
3
6

English
- 5 -
Mithos GSM Programmable Thermostat User Manual
■During installation and operation of the product, it is necessary to comply
with the following instructions:
1) The instrument must be installed by a skilled person, in strict compliance with
the connection diagrams.
2) Do not power on or connect the instrument if any part of it is damaged.
3) After installation, inaccessibility to the connection terminals without
appropriate tools must be granted.
4) The instrument must be installed and activated in compliance with current
electric systems standards.
5) Before accessing the connection terminals, verify that the leads are not live.
6) The use of a GSM device can cause interference with the functioning of
electronic devices non-screened from radiofrequency signals (electromedical
devices, pacemakers, hearing aids etc.)
TECHNICAL CHARACTERISTICS
• Power supply: 230 V AC (-15% ÷ +10%) 50/60Hz
• Charge reserve: about 1 hour thanks to the backup battery
• Backup battery:NiMH rechargeabre type AA, capacity 2000 mAh or higher
Use rechargeabre battery only
• Auxiliary input configurable to connect alternately:
- a contact non in live (dig)
- X.Temp external probe
• Output:
- bistable relay with change-over contact 8A / 250V AC
• 5 temperature settings:
- T3, T2,T1 for automatic regulation
SAFETY WARNINGS
■Mithos is an electronic wall-mounting weekly programmable thermostat with grm
module that executes 1B type actions and is suitable for environments with a pollution
degree of 2 and overvoltage category III (EN 60730-1).
Code Model Description
VE384400 Mithos GSM Black
Wall-mounting weekly programmable thermostat
VE385100 Mithos GSM White Wall-mounting weekly programmable thermostat
VE323200 FR.Mithos Silver painted front panel

English
- 6 -
Mithos GSM Programmable Thermostat User Manual
- T0 antifreeze temperature setting in advanced programming
- T temperature in manual operation
• Temperature regulation:
- ON/OFF with differential setting between 0.1°C and 1°C
- PROPORTIONAL with proportional band and regulation period setting
• Weekly programming
• Daily resolution: 1h
• Activation delay setting between 15, 30 and 45 minutes (independent for every hour)
• Measured temperature scale:
– 0°C ÷ +50°C (internal probe)
– -40°C ÷ +60°C (external probe)
• Measured and displayed temperature resolution: 0.1°C
• Temperature regulation range: 2.0°C ÷ +50°C
• Measurement update: every 20 seconds
• Measurement precision: ± 0.5°C
• Winter or summer or manual operation
• Optional display in °F
• Automatic change CET / DST
• Password protected keypad lock for installation in public places
• GSM quad band module (900 - 950 - 1800 - 1900 MHz)
• Integrated gsm antenna
• Possibility to store up 5 numbers with whon to act on the instrument and to receive
alarm
• Wall mounting (or on 503 type box)
• Terminal strips:
- Output: 3 poles 1.5mm
2
for bistable relay
- Input: 2 poles 1.5mm
2
for external probe or digital input
2 poles 1.5mm
2
for connection of the power supply
• Operating temperature: 0 °C ÷ +50 °C
• Operating humidity: 20% ÷ 90% noncondensing
• Storage temperature -10°C ÷ +65°C
• Degree of protection: XXD
The preset temperature values (expressed in °C) are the following:
funct. winter funct. summer
T1 5.0 OFF
T2 15.0 23.0
T3 18.0 25.0
TMANUAL 20.0 24.0
Regulation of temperature levels is subjected to the following condition: T1 ≤ T2 ≤T3.
In summer mode, T1 cannot be set and corresponds to the air conditioning OFF.

English
- 7 -
Mithos GSM Programmable Thermostat User Manual

5

10

2

1

3

4

6

9

11

12

13

8

7

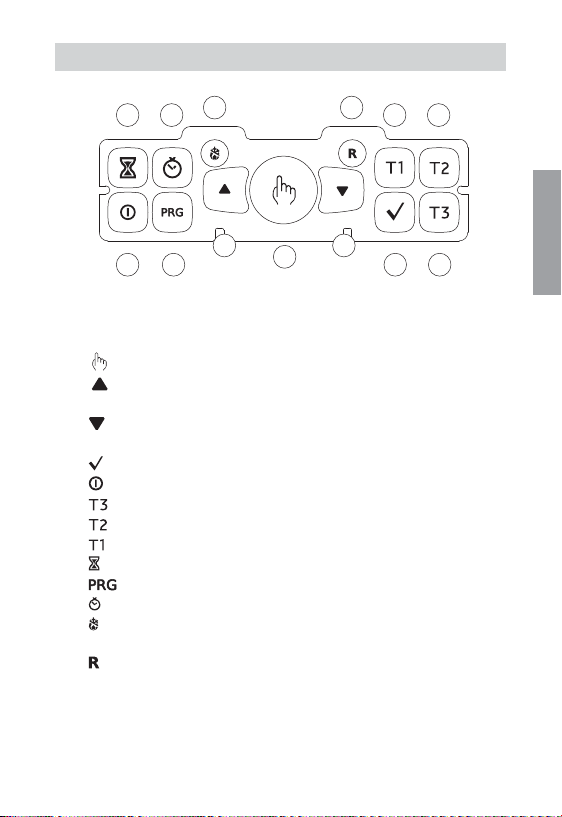

■Control elements
1) “ ” Key: manual operation
2) “ ” Key: increases the selected field
or displays the daily maximum
temperature
3) “ ” Key: decreases the selected field
or displays the daily minimum
temperature
4) “ ” Key: confirms the set data
5) “ ” Key: activation and deactivation of the programmable thermostat
6) “ ” Key: selects temperature T3
7) “ ” Key: selects temperature T2
8) “ ” Key: selects temperature T1
9) “ ” Key: allows to set a timer or an activation delay
10) “ ” Key:programs setting or advanced programming
11) “ ” Key: clock setting
12) “ ” Key: winter operation (preset) or summer operation (the button is
reachable only with a point)
13) “ ” Key: deletes date and time but not the set programs (to do this see
"Restoring default parameters" page 56)
(the key is reachable only with a point).
CONTROL ELEMENTS / DISPLAY INDICATIONS

English
- 8 -
Mithos GSM Programmable Thermostat User Manual
■display indications
14) “Day” Field
15) “External temperature” Field
16) “Environment temperature” Field
17) “Set program” Field
18) “Manual operation activation” Field
19) “Timer” Field
20) “Air conditioning activation” Field
21) “Heating activation” Field
22) “Clock” Field
23) “Ring or sms received”
Field
24) “Gsm module status” Field
25) “Unit of measurement”
Field
26) “Off” Field
14 24 19
16
26
22
21
20 18
15
25
17
23

English
- 9 -
Mithos GSM Programmable Thermostat User Manual
INITIAL START-UP / RESET
• Connect the output, power supply and,
if present, the expernal probe (or digital
input) in accordin to the diagram shown in
page 4.
After applyng power, all the display
segments will turn on and the relay will
be activated for 3 seconds; after this, the
clock field (22) will start at 12:00 and will
flash until the clock is set.
Attention
if the clock is not set,
the programmable thermostat
will not adjust; it will start doing
so only once the clock is set.
CLOCK SETTING
• Press the “ ” key; on field (16)
seconds will run flashing, while field (22)
will display digits for minutes and hours.
Press the “ ” key to reset seconds
and increase the minute field by 1 or
“ ” to reset the seconds field.
Press the “ ” key to confirm.
(In case the setting of the clock takes
place after a reset, the first parameter to
set will be the “ minutes" field).

English
- 10 -
Mithos GSM Programmable Thermostat User Manual
At this point, the minutes digit will start flashing.
Use the “ ” and “ ” keys to increase or decrease the field and press “ ” to
confirm.
Repeat the procedure to set the hours.
Once the value for the hours is set, field (22) will display a flashing value of the year,
field (15) the value of the month and field (16) the value of the day.
Press the “ ” and “ ” keys to modify the values and “ ” to confirm.
Once the day is set, press the “ ” key to exit the menu.
Upon exiting such procedure the clock indication will not flash any more; field (16) will
display the environment temperature again, while, if the external probe is connected,
field (15) will display the external temperature.

English
- 11 -
Mithos GSM Programmable Thermostat User Manual
PROGRAMS SETTING
• Pressing the “ PRG ” key on field (14) will
display the indication regarding Monday,
field (16) will display the selected program
flashing (in the example: P1), field (15) will
display “ Pro ”, field (17) will display the
graphic trend of the corresponding program
and will activate symbol (20) or (21)
depending on the set operation (summer or
winter).
If the selected program is correct, press the
“ ”key to continue to the next day.
• If the selected program is not correct for
that day, you can create another one using
the “ ” and “ ” keys which modify
value “ Px ” contained in field (16); as the
program changes, so does the content of
field (17) regarding the selected program.
The default programs are listed at the end
of this manual.
Once the correct program is selected, press
the “ ”key to move on to the next day.
•
If no program satisfies the user's needs,
choose any program and press the
“ PRG ” key again; this will bring the
segment of the corresponding field
(17)
to flash.

English
- 12 -
Mithos GSM Programmable Thermostat User Manual
With the T1 , T2 and T3 keys, it is possible
to modify the temperature selected for
that hour and, at the same time, move on
to the next one. Using the
“ ” and
“ ”
keys, it is possible to move from
one hour to the next without modifying
the set temperature.
Pressing the
“ ” key, it is possible
to set the activation delay for that
specific hour. Each pressure of the
“ ” key increases the delay by 15
minutes.
Pressing the
“ ” key confirms
the modified program and returns to
the situation with
“ Px ” flashing on
field
(16) .
Pressing the
“ ” key confirms the
program for that day and moves on to the
next until Sunday appears, after which
operation goes back to normal mode.

English
- 13 -
Mithos GSM Programmable Thermostat User Manual
TEMPERATURES SETTING

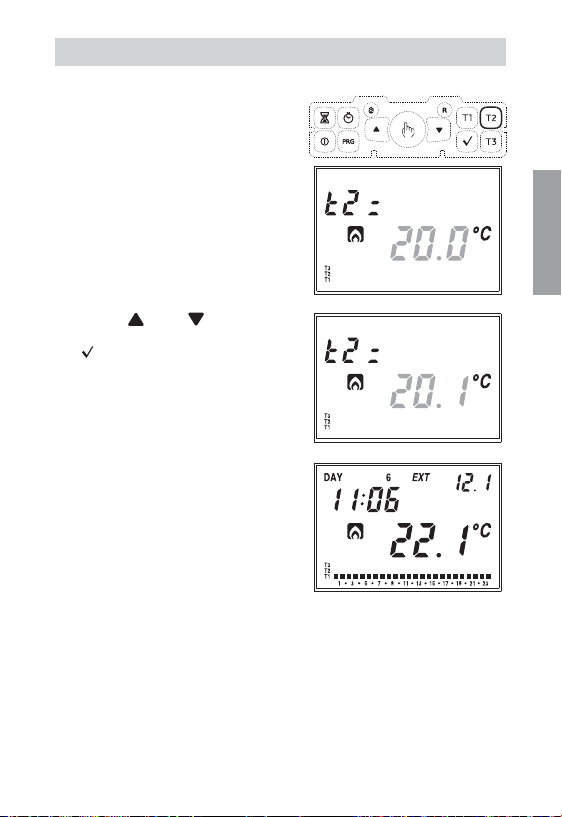

• In any of the operation modes, pressing
the
T1 , T2 and T3 keys will bring field (22)
to display the writing corresponding to the
temperature that is being modified; on
field
(16) the value of the aforementioned
temperature will flash.
With the
“ ” and “ ” keys, it is
possible to modify the value and with the
“ ” key it is possible to confirm the
change and return to normal operation.
The setting limits are reported in the
technical characteristics.

English
- 14 -
Mithos GSM Programmable Thermostat User Manual
MANUAL OPERATION
• During automatic operation, when pressing the “ ” key, the system will act as a
normal thermostat with operating temperature Tm.
Field
(22) will show the current time.
Field
(14) will show the current date.
Field
(15) will display the writing “ SEt ” .
The symbol
(18) will appear.
Field
(17) will disappear. On field (16) the
set manual temperature value will flash.
With the
“ ” and “ ” keys, it is
possible to change the value from 2.0°C
to 50°C.
Pressing the
“ ” key or after 45
seconds from the last operation, field
(16)
will display the value of the environment
temperature, while field
(15) will display
the external temperature value (if probe is
connected).
At any time, it is possible to verify the
set temperature pressing the
“ ” key
or the
“ ” key; pressing one of the 2
keys again will allow modification of the
temperature setting. To move from the
manual program to the automatic one,
simply press the
“ ” key again for at
least 3 seconds.

English
- 15 -
Mithos GSM Programmable Thermostat User Manual
SUMMER / WINTER OPERATION
To move from winter to summer operation
(or vice versa), press the “
” key with
a point (12).
On field (22) the writing “ rISC
”
(or “ Cond
” ) will flash and the symbol
“ ” (or “ ” ) will appear.
With the
“ ” and “ ” keys, it
is possible to select one of the two
operations.
The program will go to the desired
operation pressing the
“ ” key or after
45 seconds from the last operation.
The potential of the summer operation
is the same as the one of the winter
operation; therefore the setting of
all parameters can be carried out
following the procedures reported in this
instructions manual.

English
- 16 -
Mithos GSM Programmable Thermostat User Manual
• To deactivate the programmable
thermostat press the
“ ” key.
The display will show the
“ ” symbol.
Once deactivated, during winter
operation the programmable thermostat
will activate the antifreeze function to
ensure that the temperature does not
decrease below a certain threshold.
Such temperature value is set in
advanced programming (see "Antifreeze
temperature" page 20)
During summer operation, instead, the
deactivated system condition completely
excludes the refrigeration command.
To go back to the operating mode prior to the deactivation, press the
“ ” key
again.
KEYPAD ON-OFF COMMAND
TIMING
The programmable thermostat allows to activate three different timed operation
modes, useful when you want to maintain a certain condition for some hours/days.
The three timed operations are:
Manual operation
If in manual status you set a timing, such manual status will be maintained until
the end of the timing; operation will then switch to automatic. If, during the timing,
operation is switched to automatic or off, the timing ends.
Automatic operation
If in automatic status you set a timing, such automatic status will be maintained until
the end of the timing; operation will then switch to automatic. If, during the timing,
operation is switched to manual or off, the timing ends.

English
- 17 -
Mithos GSM Programmable Thermostat User Manual

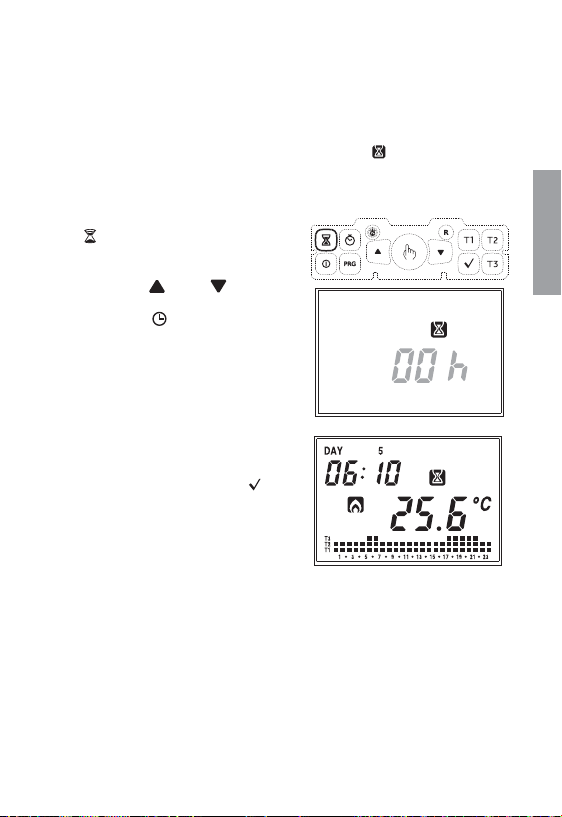

To activate timing it is necessary to press
the
“ ” key
The writing “ 00h ”
will flash, indicating the
timing. With the
“ ” and “ ” keys it
is possible to choose a value between 0 and
99. Pressing the “
” key will allow to
choose the measurement unit between hours
and days.
Timed deactivation
If in off status you set a timing, such off status will be maintained until the end of
the timing; operation will then switch to the one active before deactivation. If, during
timing, the system is activated, the timing ends.
In all cases, the timing condition is signalled by the symbol “
” .
Setting a timing
Each change in measurement unit implies a
resetting of the set timing value.
Once the value has been set, press
“ ” to
confirm or wait 45 seconds.
Note. In case time is modified during timing, it will not be updated.
Note. In the hour count, the hour in which programming is carried out is
included. In the same way, if the measurement unit is in days, the count
also includes the current one. Timing in hours terminate on the hour,
the ones in days at midnight.

English
- 18 -
Mithos GSM Programmable Thermostat User Manual
ADVANCED PROGRAMMING
• In advanced programming it is possible to access the following operation
parameters:
- regulation type
- parameters for regulation type
- antifreeze temperature
- temperature measurement unit
- measured temperature adjustment
- setting the
external auxiliary input
- regulation probe selection
- page gsm functions
- keypad lock password
• Field (22) will display the writing
“ rEG=
” and on field (16) letter
“ O ” (ON-OFF programming) or “ P ”
(proportional programming) will flash.
- system operation hours
• To enter advanced programming, press
the “ PRG
” key for more than 3 seconds.
The parameter to be modified will flash;
using
“ ” and “ ” it is possible to
modify its value. Use
“ ” to confirm
the setting and move on to the next
parameter. Once the last parameter has
been confirmed, you will exit the menu
and the programmable thermostat will
restore operation with the previously set
operation.
Regulation type (only for winter operation)

English
- 19 -
Mithos GSM Programmable Thermostat User Manual
• Using the “ ” and “ ” keys,
choose the desired regulation mode and
press
“ ” to confirm and move to the
setting of the next parameter.
Parameters for the chosen regulation type (only for winter operation)
• In case of “ ON/OFF ” regulation type,
the only parameter to be set is the
differential. Field (22) will display the
writing “ dIF= ” and on field (16) the
value currently set will flash. Press the
“ ” and “ ” keys to increase or
decrease the value. The range varies from
0.1°C to 1°C.
• In case of
PROPORTIONAL regulation type, the parameters to be set are:
- regulation band
- regulation period
Field (22 )will display the writing
“ bnd= ” and on field (16) the value
currently set will flash. Press the
“ ”
and
“ ” keys to increase or decrease
the value.
The range varies from 0.5°C to 5°C.
Once the band value is confirmed, field
(22) will display the writing “ PEr= ” and
on field
(16) the value currently set will
flash. Press the
“ ” and “ ” keys
to increase or decrease the value. It is
possible to choose between 10, 20 or 30
minutes.
For a wider description on how to operate the regulation type choice, please refer to
the chapter "REGULATION TYPE" on page 26.
