Vemer Memo DW E User manual

English
- 1 -
User manual memo DW E
Index
■Safety warnings page 3
■Technical characteristics page 3
■Dimensions page 4
■Connection diagrams page 4
■Display and keypad description page 5
■Installation page 6
Setting language page 6
Setting date format page 7
Setting date page 7
Setting time page 7
■Programmings page 8
ON/OFF Events page 8
IMPULSE Events page 8
CYCLE Events page 8
HOLIDAY Events page 9
Programming priority page 9
■Manual operation page 10
Manual switching on/off page 10
Casual switchings on/off page 10
Lock output switchings (Lock) page 10
Battery test page 11

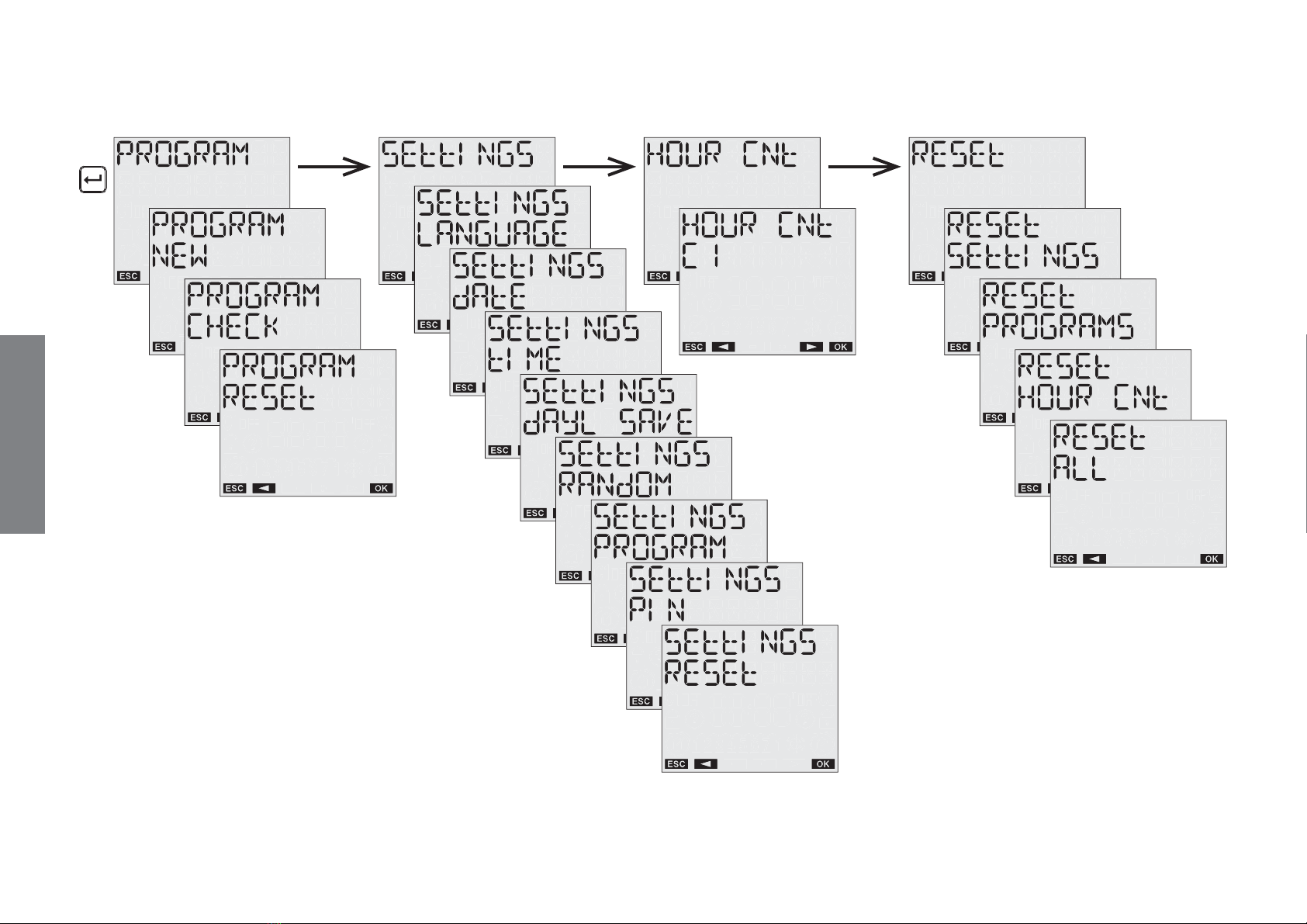

Menu Overview page 12
■Automatic programming page 13
Creation of a new programme page 13
Programmes ON/OFF page 13
IMPULSE Programmes page 14
CYCLE Programmes page 16
HOLIDAY Programmes page 17
Checking a programme page 19
Displaying a programme page 19
Modifying a programme page 20
Deleting a programme page 20
Reset programmes page 21
■Settings menu page 22
LANGUAGE menu page 22
DATE menu page 23
TIME menu page 23
CHANGE CET/DST menu page 23
CASUAL PARAMETERS menu page 26
PROGRAMME OPTIONS menu page 27
PIN menu page 27
RESET SETTINGS menu page 28
■Meter menu page 29
■Reset menu page 29
■Battery replacement page 30
■Reference Standards page 30

English
- 2 -
User manual memo DW E
Digital programmable switchesDigital programmable switches
• Large display with text guide to
facilitate programming
• Sealable cover and possibility to
lock keypad through password
Time switch with daily/weekly programming
for the management of electric utilities
• Cover on the back of the instrument
for replacing the battery

English
- 3 -
User manual memo DW E
SAFETY WARNINGS TECHNICAL CHARACTERISTICS
During product installation and operation it is necessary
to observe the following instructions::
1) The instrument must be installed and started up by a qualified
person, strictly in observance of the connection diagrams shown
in this manual.
2) After installation inaccessibility to the terminals without using
dedicated tools must be guaranteed
3) Before accessing the connection terminals, make sure that the
leads are not live.
4) Do not connect or feed the instrument if any part of it is
damaged
5) The instrument must be installed and activated in compliance
with current electric systems standards.
6) Do not use the instrument for anything other than the indicated
purpose
Code Model Description
VP871800 memo DW E Daily/weekly time switch 1 relay
• Power supply: 230Vac ± 10% 50/60Hz
• Absorption: 8VA (2W)
• Replaceable battery
• Output: 1 monostable change-over contact 16(10)A / 250Vac
• Type of action: 1B
• Memorisable programmes:
- 30 events (on, off, impulse, cycle)
- 4 periods + 20 holiday days
• Backlit LCD display
• Software class: A
• Mounting: DIN rail to backplane
• Container: 2 DIN modules
• Operating temperature: 0 ÷ +50°C
• Storage temperature -10°C ÷ +70°C
• Pollution level: 2
• Rated impulse voltage: 4kV
• Degree of protection: IP20 for the terminals
• Insulation: reinforced between accessible parts (frontal) and all the
other terminals

English
- 4 -
User manual memo DW E



DIMENSIONS CONNECTION DIAGRAMS

English
- 5 -
User manual memo DW E
C1 C2
ROk
DISPLAY AND KEYPAD DESCRIPTION
aField “text1 / day”
bField “text 2 / date”
cField “status relay”
dField “time”
eField “lock” (lock relay switchings)
fField “random programme”
gField “day of the week”
hField “programme running”
iField “CET/DST”
jField “key functions”
Key “ ”: activation menu/esc/check battery
Key “Ok”: confirm datum
Key “C1”: decrease datum/previous menu/ switching channel/lock
channel
Key “C2”: increase datum/next menu
Key “R”: reset settings
Key “Ok” + “C1” (3 sec): random on/off channel

English
- 6 -
User manual memo DW E
INSTALLATION
• The instrument is supplied with the battery not inserted to avoid
wasted consumption. Extract the battery from its packing and insert
it into the housing located behind the instrument so that pole (+)
is visible as shown in the figure. Then secure the closure cover,
turning it clockwise.
• Using a pointed object press key “R”
to perform a reset. All the segments
of the display will light for a few
seconds and then the instrument shows
the version of the firmware and the type of instrument.
• At this point it is possible to insert the parameters necessary for the
instrument to work correctly:
− language
− date format
− date
− time
Setting language
It is possible to choose from 5 languages:
Italian ´English ´Spanish ´
French ´German
Use keys “C1” and “C2” to choose
the desired language.
Press “Ok” to confirm and go on to the
“data format” menu.
• Connect the load and the power supply as illustrated in section
“Connection diagrams”
C1 C2
ROk
C1 C2
ROk
C1 C2
ROk

English
- 7 -
User manual memo DW E
Setting date format
It is possible to choose from two
date formats:
DD-MM-YY or YY-MM-DD
Use keys “C1” and “C2” to choose
the desired format.
Press “Ok” to confirm and go
on to the “data” menu.
Setting date
The parameter (year, month,
day) to be changed
flashes.
Use keys “C1” and “C2” to
choose the desired value
- and press “Ok” to confirm
and go on to the next parameter.
The sequence of parameters to be
entered is year ´month ´day
When the day is inserted,
also appearing on the display
is the bar with the corresponding
day of the week
(1´Monday, 7´Sunday).
Press “Ok” to confirm and go on
to the “data” menu.
Setting time
The parameter (hours, minutes)
to be changed flashes.
Use keys “C1” and “C2” to
choose the desired value
C1 C2
ROk
C1 C2
ROk
C1 C2
ROk

English
- 8 -
User manual memo DW E
and press “Ok” to
confirm and go on to the next parameter.
The sequence of parameters
to be inserted is hours ´minutes
Press “Ok” to confirm.
The instrument then goes into normal
operational status and is ready to work.
The display shows the values for the date,
time, status relay, day of the week (on
the first line in letters and lower down in
numbers) and the DST/CET symbol.
Note: if the instrument is not fed by
the mains, on the first line of the
display instead of the day are the words
.
In this condition backlighting is not active
and the relay not switched.
C1 C2
ROk
ON/OFF Events
ON and OFF events consist of switching the relay to the on or off
position.
They may be daily (every day at the same time) or weekly (one or more
days during the week, each week).
IMPULSE events
An impulse event can be an on or off type and may last for a maximum
of 59 second:
ON OFF
At the end of the on impulse the relay will always be in the off status; at
the end of an off impulse the relay will always be in the on status.
An impulsive event can be interrupted following a manual operation.
CYCLE events
A cycle event is a programme which repeats itself over a preset period
of time (maximum duration 1 week) during which there is a succession
of on and off switching.
The cycle programme always starts from the on status and always ends
in the off status. The duration of the on and off status cannot be less
PROGRAMMINGS

English
- 9 -
User manual memo DW E
ON OFF
than one minute.
The cycle event may be interrupted following a holiday event (relay
status:off), a manual operation, a date/rime change, automatic updating
of CET/DST time (we recommend disabling the automatic time change
when using the cycle programme).
HOLIDAY events
A holiday event allows you to enter individual days or holiday periods
during which all the set programmes shall not be carried out and the
relay shall be in the off position.
Holiday events always start at 00:00 on the starting day and end at
23:59 on the last day of the holiday.
Holiday events are interrupted in the case of manual operations on
output.
Programming priority
In automatic function mode the instrument behaves as foreseen by the
entered programmes. Should there be conflict between programmes
(different events starting at the same moment) the instrument will only
run the one with the highest priority, according to the following table
(1 maximum priority):
Event Weekly Daily
Cycle 1 -
Impulse 2 3
ON or OFF 4 5
Programmed events which starting during an event already in progress
(holiday, cycle) are ignored.
In the case of non-instantaneous (holiday, cycle, impulse) the device
always completed the started programme before managing the next.
Exceptions to this are cases in which:
- a holiday event occurs while executing a non-instantaneous
programme
- there is a change to manual operation while executing a non-
instantaneous programme. In this case all the programmes running are
interrupted and if there is a lock or random on the channel, execution
of all programmes is disabled until manual procedure is deactivated
Programmes that are active when one of these exceptions occurs are
interrupted and will not be restored. When execution is interrupted, the
relays still maintain status unless entering a holiday day (or period).

English
- 10 -
User manual memo DW E
MANUAL OPERATION
Manual operations are reachable from the
normal operational status in which the
display assumes an appearance similar to
the following:
Manual switching on/off
Briefly pressing keys “C1” allows
switching The achieved status is
maintained until the next programmed
event.
Casual on/off switchings
It is possible to activate casual output
switching.
Activation brings the output to the on
status and shall then be followed by on/
off switching with casual periods and
duty-cycles (the default minimum period
is 1 minute and the maximum 5 minutes:
such values can in any case be changed
in the settings menu)
Hold keys “C1” and “Ok” down
simultaneously for 3 seconds to activate
the function.
On confirmation of activation, under the
output status indication appears the
symbol .
Pressing keys “C1” and “Ok” again for 3
seconds deactivates the function.
The relay is set to off status.
Lock output switching (Lock)
It is possible to activate the function
which allows all the switchings of one
output to be locked. In this way all the
programmes are locked (including the
holiday programme and the other manual
switchings) and the output is maintained
in its current status until manual
unlocking.
C1 C2
ROk
3 seconds

English
- 11 -
User manual memo DW E
Hold key “C1” down for 3 seconds to
activate output locking.
On confirmation of activation, on the
display under the channel indication
appears symbol .
Hold key “C1” down for 3 seconds to
unlock the ouput.
Battery Test
The battery is read automatically once a week (Monday at 00:00). It is
in any case possible to read battery status by holding down key “ ”
for 3 seconds. On the display appear the words if the
battery charge level is sufficient for correct operation; otherwise the
words appear to indicate that replacement is required as
soon as possible.
The manual functions which work on the output relays have
priority over any set programming.
The highest priority function is the lock switchings function
(LOCK).
C1 C2
ROk
3 seconds

English
- 12 -
User manual memo DW E
“Menu Overview”

English
- 13 -
User manual memo DW E
AUTOMATIC PROGRAMMING
1. Creation of a new programme
1.1 Programmes ON / OFF
Press key “ ” to enter the menu, choose
the PROGRAM option using keys “C1”
and “C2” and press “Ok” to confirm.
Choose option NEW using keys
“C1” and “C2”
and press “Ok” to confirm.
Using keys “C1” and “C2”
choose the frequency
of the event from:
DAILY, WEEKLY.
Press “Ok”
to confirm.
Choose between an
ON or OFF event.
Press “Ok” to confirm.
C1 C2
ROk
C1 C2
ROk
C1 C2
ROk
C2
C1
C2
C1

English
- 14 -
User manual memo DW E
Insert the date using keys “C1” and “C2”.
(not required for daily events)
For weekly events it is possible to set
more than one day of the week. By
pressing key “Ok” you select/deselect
the day in question while using key “C2”
you scroll through the days until Sunday.
By pressing “C2” again,
appears: press “Ok” to confirm.

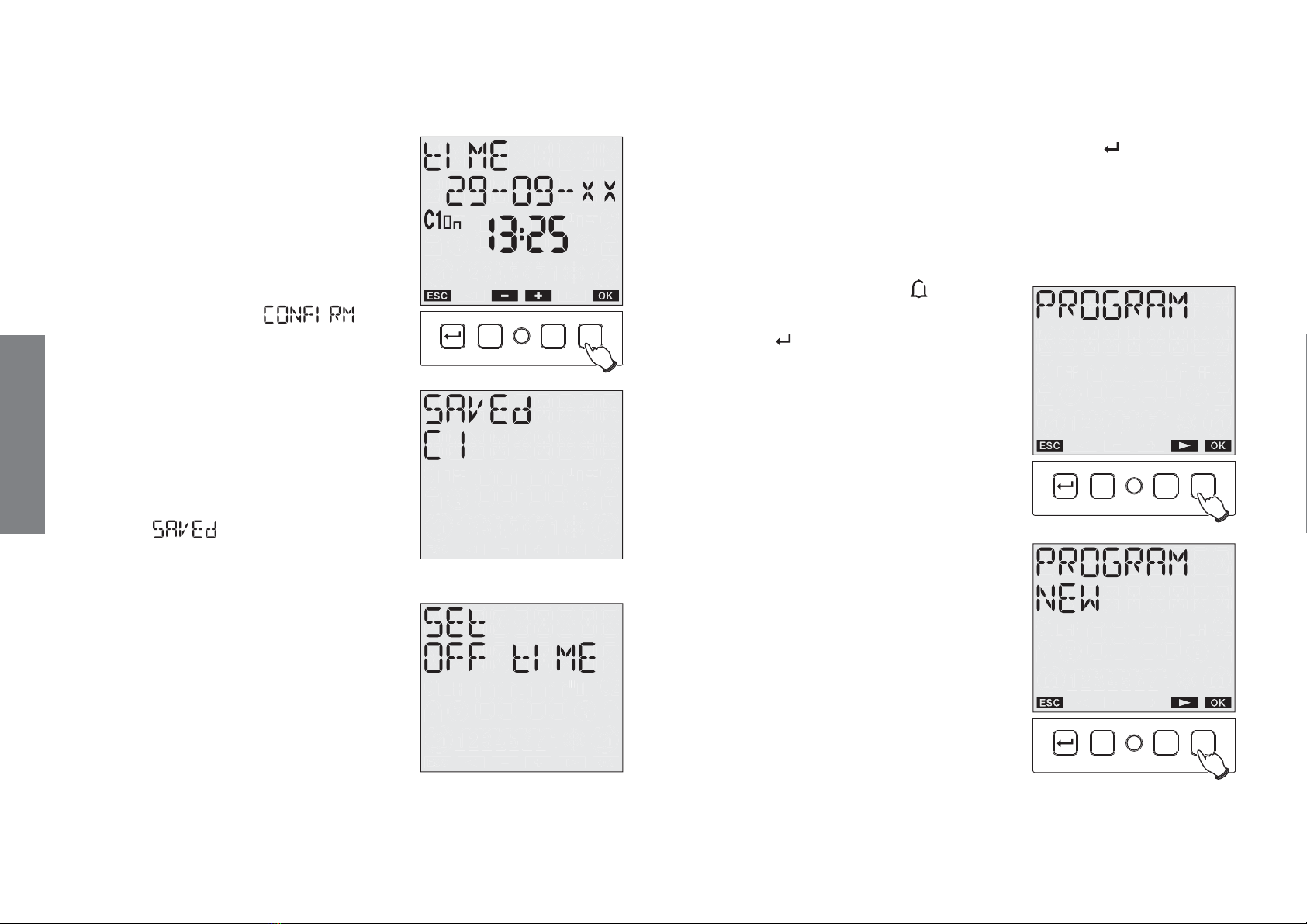

Enter the hours and minutes
for the switching using keys
“C1” and “C2”.
Press “Ok” to confirm.
Confirmation of programming is shown by
the words on the display.
Note: recursive function
t this point the instrument activates the
recursive function which allows several
on-off events to be programmed in
succession on the same day.
Thereby once an activation (deactivation)
event has been programmed, it is possible
to enter the time of a deactivation
(activation) event for the same day.
If you do not wish to enter an off (on) time, press key “ ” to terminate
programming.
There is no control of the correlation between on/off events
programmed using the recursive function: such function is therefore to
be intended as facilitated programming.
1.2 IMPULSE programmes
Press key “ ” to enter the menu, choose
the PROGRAM option using keys “C1”
and “C2” and press “Ok” to confirm.
Choose option NEW using keys
“C1” and “C2” and
press “Ok” to confirm.
C1 C2
ROk
C1 C2
ROk
C1 C2
ROk

English
- 15 -
User manual memo DW E
Using keys “C1” and “C2”
choose the frequency
of the event from:
DAILY, WEEKLY.
Press “Ok”
to confirm.
Choose the impulse
using keys “C1” and “C2”
and press “Ok” to confirm.
Using keys “C1” and “C2”
choose whether it is an
ON impulse
or an OFF impulse.
Press “Ok” to confirm.
Se the date using keys “C1” and “C2”
(not required for daily events).
Press “Ok” to confirm.
C1 C2
ROk
C2
C1
C1 C2
ROk
C1 C2
ROk
C2
C1
C1 C2
ROk

English
- 16 -
User manual memo DW E
Enter the starting time
and duration of the impulse
(max 59 seconds).
Press “Ok” to confirm.
Once programming is confirmed,
on the display the are shown
the words .
During normal operation, the eventual
execution of an impulse programme is
shown by symbol on field (8) of the
display.
1.3 CYCLE Programmes
Press key “ ” to enter the menu,
choose the PROGRAM option
using keys “C1” and “C2”
and press “Ok” to confirm.
Choose option NEW
using keys “C1” and “C2”
and press “Ok” to confirm.
Choose
with keys “C1” and “C2”.
Press “Ok” to confirm.
C1 C2
ROk
C1 C2
ROk

English
- 17 -
User manual memo DW E
Enter the day
and time
(hours, minutes)
of cycle start,
the duration
of the
ON period
(hours, minutes),
the duration of the
OFF period
(hours,minutes),
the date and time
(hours, minutes)
of cycle end (the device
will give some possible
values for the end of the event:
such values are calculated so
that the last period is always
complete).
The maximum duration of a cycle is one
week.
Press “Ok” to confirm.
Once programming is confirmed,
on the display appear the words .
During normal operation, the eventual
execution of a cycle programme is shown
by symbol on field (8) of the display.
1.4 HOLIDAY programmes
Press key “ ” to enter the menu,
choose the PROGRAM option using keys
“C1” and “C2”
and press “Ok” to confirm.
Choose option NEW using keys “C1”
and “C2”
and press “Ok” to confirm.
C1 C2
ROk
C1 C2
ROk

English
- 18 -
User manual memo DW E
Choose
with keys “C1” and “C2”.
Press “Ok” to confirm.
Choose
one days’ holiday
or
a holiday period
using keys “C1” and “C2”
Press “Ok” to confirm.
Insert the date
(holiday day)
or
the interval of holiday days
(holiday period).
Press “Ok” to confirm.
Note: the details of the interval are to be
considered as included in the period.
As confirmation of programming,
on the display appear the words
During normal operation, the eventual
execution of a holiday programme is
shown by symbol on field (8) of the
display.
Note: recursive function
t this point the instrument activates the recursive function which
allows several holiday days (or holiday periods) to the programmed in
succession.
C1 C2
ROk
C1 C2
ROk
C1
C2
C1 C2
ROk

English
- 19 -
User manual memo DW E
If you do not wish to enter another
days’ holiday (or period),
press key “ ” to end programming.
There is no control of the correlation
between holiday events programmed
using the recursive function:
such function is therefore to be intended
as facilitated programming.
The instrument’s internal memory allows up to 30 events + 4
holiday periods + 20 holiday days to be memorised.
Once maximum capacity is reached, attempts to memorise
another programme causes the display to show the message
. In this case it is necessary to delete a
programme in the memory in order to enter a new one.
The message is shown on the display whenever there
is an attempt to save a programme overwriting a pre-existent
programme of the same type (for example trying to enter a daily
off event at 08:00 if there is already a daily on event at the same
time).
2. Checking a programme
Through this menu it is possible to display, amend or delete a
programme saved in the instrument.
2.1 Displaying a programme
Press key “ ” to enter the menu, and
using keys “C1” and “C2” choose the
PROGRAM option.
Press “Ok” to confirm.
Using keys “C1” and “C2” choose
CHECK
Press “Ok” to confirm.
Finally, choose the frequency and type of event you wish to check using
“C1” and “C2”.
At this point the first programme pertaining to the specified type is
displayed.

English
- 20 -
User manual memo DW E
If more than one programme is present, it is possible to scroll forwards
and backwards through them by using keys “C1” and “C2”
If no programme of that particular type is present, on the display appear
the words .
2.2 Modifying a programme
It is possible to access programme
modification from the programme display
status.
Choose the programme to be modified
and press key “Ok”
Choose the MODIFY option using keys
“C1” and “C2”
and press “Ok” to confirm.
At this point it is possible to insert the new
programme parameters.
The parameter under modification flashes.
Use keys “C1” and “C2” to set the values
and “Ok” to confirm or the key “ ” to exit without modifications.
At the end of the modification the words are displayed and the
instrument returns to the normal operational status once again.
2.3 Deleting a programme
It is possible to access programme
deletion from the programme display
status.
Choose the programme to be deleted and
press key “Ok”
Choose, using keys “C1” and “C2” the
DELETE option and press “Ok” to confirm
or key “ ” to exit without deletion.
On the display appear the words
and the instrument returns to
normal operational status once again.
C1 C2
ROk
C1 C2
ROk
C1 C2
ROk
C1 C2
ROk
