Venini VVD60 User manual

User Manual for your Venini
VVD60
6.0 kg Tumble Dryer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will enable
you to get the most out of your appliance. Please keep it in a safe
place so that it is easily available for future reference; for you or any
person not familiar with the operation of the appliance.
JW 09/08/13

2
Contents
Environmental note 3
Important safety information 4 – 6
Specifications 7 – 9
Product dimensions 7
Product specifications 7
Electricaldetails 7
Controlpanel 8
Appliancefeatures 9
Using your tumble-dryer 10 - 12
Powerbutton 10
Programmebutton 10
Heatbutton 10
Anti-crease guard button 10
Start/Pausebutton 10
Indicatorlights 11
Neonindicatorlights 11
At the end of a drying cycle 11
Cancelling a program 11
Changingaprogram 12
Carelabels 12
Startingadryingprogram 12
Drying program guidance 13-14
Drying program table 14
Laundryweights 14
Maintenanceandcleaning 15-16
Indailyuse 15
Control panel and tumble dryer cabinet 15
Thetumbledryerdrum 15
Door 15
Thefilter 16
Installation 17-20
Ventilation 17
Positioning 17
Powersupply 18
Installing the appliance on a wall 19-20
Troubleshooting 21–22
Contact details 24

Environmental note
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside the
appliance.
oThe packaging materials that Venini uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
3

Important safety information
Your safety is of the utmost importance to us. Please make
sure that you read this instruction booklet before
attempting to install or use the appliance. If you are unsure
of any of the information contained in this booklet, please
contact the Retailer where you purchased your unit.
General Safety
oRepairs to your appliance must only be carried out by an authorised
engineer or one of our authorised service agents. Any attempt by
an inexperienced person to repair the appliance, could result in
injury or damage to your tumble dryer.
oIf you notice that the special mains cable is damaged. The
appliance must not be used. The same applies if you notice that
the worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe window of the porthole door may become hot during use.
oThe machine should be allowed to cool before cleaning the filter.
oIt is possible for small animals to chew either mains cables or water
hoses, which could cause an electric shock hazard.
oIf you stop the tumble dryer before the end of a drying cycle ensure
all items are quickly spread out so that heat is dissipated. Ideally
you should follow the “cancelling a program” instructions.
4

5
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations.
oAdequate venting must be provided to avoid back flow of gases into
the room from appliances burning other fuels including open fires.
oExhaust gas must not be discharged into a flue used for exhausting
fumes from appliances burning gas or other fuels.
oDo not allow the venting hose (where applicable) or filter to become
blocked.
During Use
oIt is recommended that the appliance is turned off after the
machine is used.
oThis appliance is only designed to dry normal domestic washloads.
If you use your tumble dryer in any other way or it is incorrectly
used, then Venini accepts no liability for any damage that might be
caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications of
this appliance.
oYou should not dry garments that have been in contact with
flammable materials.
oYour tumble dryer should not be used for dry cleaning.
oDo not dry unwashed items in the tumble dryer.
oDo not allow fluff to accumulate around the tumble dryer.
oIf you use either dyes or bleaching agents inside this machine, then
you should consult with the manufacturer of these products to
make sure they are suitable for use in your tumble dryer. Venini
cannot be held responsible for any damage that may result.
oFabric softeners should be used as specified in the manufacturer’s
instructions.

6
oItems soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax
removers should be washed in hot water with extra detergent
before being dried.
oRemove all objects from pockets of clothes such as lighters and
matches.
oDO NOT place items in the dryer if anything other than a water
solution has been used in the cleaning process.
oDO NOT attempt to dry dripping wet items.
Child Safety
oThe tumble dryer is not intended for use by persons with reduced
mental, physical or sensory capabilities or lack of experience or
knowledge, unless they have been given supervision and
instructions concerning the use of the appliance by a person
responsible for their safety.
oChildren should be supervised to ensure they do not play with the
appliance.
oIt could be possible for a child or pet to gain access to the tumble
dryer through the porthole door. Therefore please check the drum
before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.

7
Specifications
Appliance dimensions
Height: 840 mm
Width: 595 mm
Depth: 545 mm
Product specifications
oCapacity: 6 kg
o4 drying programs
oElectronic control operation
oReverse tumble action
oAdjustable drying temperature
oDrying time selector
o180° door opening
oRemovable fluff filter
oAnti-crease function
oDrying phase indicator
oSafety lock
oEnergy efficiency class: 2 star
Electrical details
Rated voltage: 220 - 240 Vac 50 Hz
Electrical connection rating: 1.70 kW
Supply connection: 10A GPO
IMPORTANT: For future reference please record the following information
which can be found on the rating plate and the date of purchase which
can be found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number …………………………………….
Serial Number …………………………………….
Date of Purchase …………………………………….

Control panel
1. Power button (On/Off)
2. Start / Pause button
3. Program button
o1 Hour
oLight dry
oMiddle dry
oExtra dry
4. Heat button
oAiring
oHalf
oFull
5. Crease guard
6. Control panel lock (not numbered- buttons 3 & 4).
8

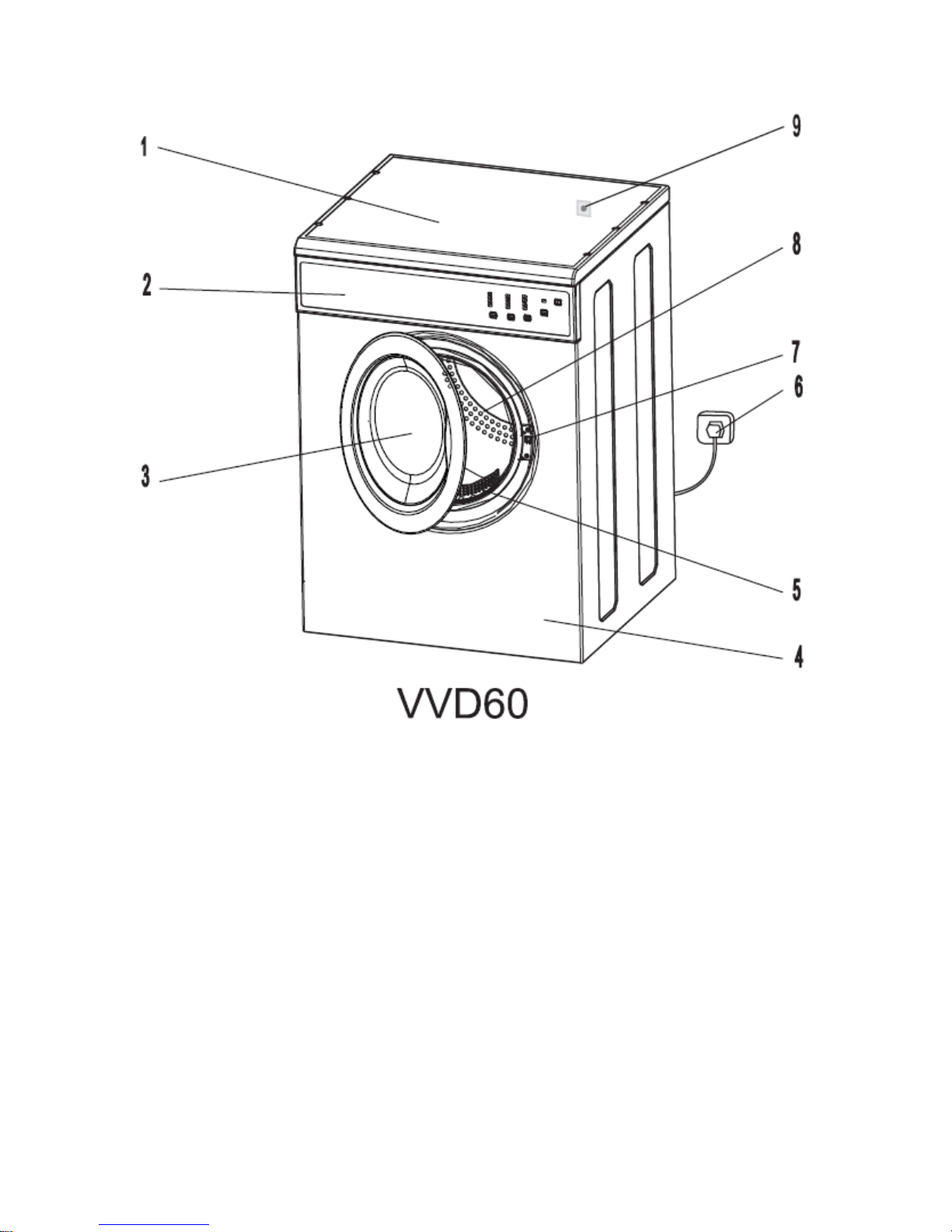

Appliance features
1. Top cover
2. Control panel
3. Door
4. Front cover
5. Filter
6. Power lead / plug
7. Door lock
8. Drum
9. Reset button
9

10
Selecting a drying program
Power button
oPush the power button to turn the appliance on. Always remember
to turn the appliance off after use.
Program button
oRepeatedly press the program button to select your desired drying
cycle.
o1 Hour
oLight dry
oMiddle dry
oExtra dry
Please see the drying program table for more information on the
recommended drying cycles.
Heat button
oRepeatedly press the heat button to select your desired drying
temperature.
oAiring (cool)
oHalf (warm)
oFull (hot)
Please see the drying program table for more information on the
recommended drying temperatures.
Crease guard
You can select the crease guard (anti-crease) option to help prevent
creasing of delicate clothes or clothes which are more susceptible to
creasing. This function will add an additional 30 seconds of tumble
drying to the drying program.
Start / Pause button
oOnce a drying program (and any additional optional function) has
been selected, this button should be pressed to start the drying
cycle.
oPressing this button during a drying cycle, or opening the door, will
pause the operation. Once paused, you must press the start button
again to resume the drying cycle.

11
Indicator lights
When an option button is pressed the corresponding LED light will
illuminate. If the button is pressed again the LED light will go out and the
function is then deselected, or where applicable, it will scroll to the next
option available option for that function button.
At the end of a drying cycle
oAt the end of a program the dryer will stop operating and a buzzer
will sound to alert the user to take out the clothes.
NOTE: This machine will auto power-off after the buzzer has sounded
6 times after drying. It will also power off after 10 minutes with no
operation.
IMPORTANT: YOU SHOULD CLEAN THE FILTER AFTER EACH USE.
Cancelling a program
If you need to cancel a drying program before it has completed the drying
cycle then we recommend the following:
oPress the start / pause button.
oRemove your items from the dryer. Depending on how long the
items have been drying for, you should spread out the items so that
the heat can dissipate.
CAUTION: The clothes and internal parts of the dryer could be hot.
Use caution when opening the door or removing clothes mid-
cycle.
oPress the power button to turn off the appliance and remove the
plug
Changing a program
To change a drying program that is in operation:
oYou should first press the start/pause button to pause the current
cycle.
oYou can then add or remove clothes if required
oSelect a new drying cycle from the available options.
oPress the start/pause button to start the new cycle.

Locking the control panel
You have the option to lock the control panel to protect from accidental
misuse. All buttons except the power button will be inoperable.
oPress the “Heat” and “program” buttons
simultaneously for 2-3 seconds until the “lock”
Led is illuminated.
oRepeat this process to unlock the control panel
Care labels
oYou may find the following symbols on the care labels of your
garments. These indicate how to dry the item correctly.
Tumble drying safe
Normal drying (high temperature)
Delicate drying (low temperature)
Do not tumble dry
Starting a drying program
oOpen the tumble dryer door and load the clothes loosely into the
drum. Items such as sheets should be loaded corner-first.
oClose the door and dry your hands thoroughly.
oPress the start button (2) and the drum will begin rotating.
oThe tumble dryer will stop when the drying program has completed.
12

13
Drying program guidance
oCheck the wash care labels of the garments that you want to dry, to
make sure that they are suitable for drying in a tumble dryer.
oThe maximum amount of clothing that can be dried in your appliance
in a single drying cycle is 6kg. If the tumble dryer is overloaded, then
the drying performance will be affected and clothing may come out
creased.
oIf you have taken the clothes you want to dry out of a washing
machine with an inadequate spin cycle, roll the clothes in a towel to
remove the excess water.
oIMPORTANT: Do not dry clothes that are dripping wet.
oOnly dry garments of the same fabric type in a single drying program.
If heavy and light fabrics are dried in the same drying cycle, then you
will get uneven drying performance.
oWhen drying larger garments such as sheets, it is advisable not to
place more than two garments in the appliance at once. You should
stop the dryer before the completion of a program to redistribute the
load.
oDelicate items such as tights and stockings should be placed inside a
pillowcase before drying.
oDO NOT dry clothes containing foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads in the appliance.
oDO NOT dry one item at a time as the garment will roll up and
increase the drying time.
oClose pillowcases and covers with fasteners to prevent smaller items
getting tangled inside them.
oFasten press studs, zips, hooks, tie belts, apron strings, etc.
oAvoid drying dark and light coloured fluffy items together as the fluff
could transfer.
IMPORTANT: If the clothes become dry before the cycle has
finished, the thermostat will automatically switch off the heater to
prevent over-drying the garments. This will save energy although
the drum will still rotate.
IMPORTANT: remove all metal objects such as hair clips, pins, coins, etc.

Drying program table
√= Optional
NOTE: The last 10 minutes of a drying cycle is cold-air drying. This
ensures that the items are not too hot for handling.
Laundry Weights
The below table is an approximate guide only.
Bathrobe 1200g Tea cloth 150g
Napkin 100g Night dress 200g
Quilt cover 700g Underwear 100g
Sheet 500g T-shirt 200g
Pillow case 200g Work shirt 250g
Hand towel 250g Blouse 150g
14

15
Maintenance and cleaning
In daily use
oThe filter should be cleaned after each drying cycle.
oLeave the porthole door ajar for a short while after a drying cycle
has completed. This should help to prevent stagnant smells and to
protect the door seal.
oWe suggest that you disconnect the appliance from your mains
supply when it is not in use.
Control panel and tumble dryer cabinet.
IMPORTANT: Do not use any abrasive cleaner or household polish on
either the control panel or operating parts.
oWipe over the control panel and the external surface of the machine
using a brand new damp cloth with warm water.
The tumble dryer drum
The drum of your tumble dryer is constructed from stainless steel.
However, if there are objects that can rust placed inside the drum, then it
is possible for the drum to become discoloured.
IMPORTANT: Do not use a descaling agent, iron/steel wool or scouring
agents to clean the drum of your appliance.
Door
oYou should regularly check to see if any deposits have formed
around the door, or there are any foreign bodies in the rubber door
gasket. This sits inside the opening of the porthole door.

The filter
oIt is important to remove fluff from the filter after each drying
cycle.
oYou should disconnect the appliance from the mains supply before
cleaning the filter.

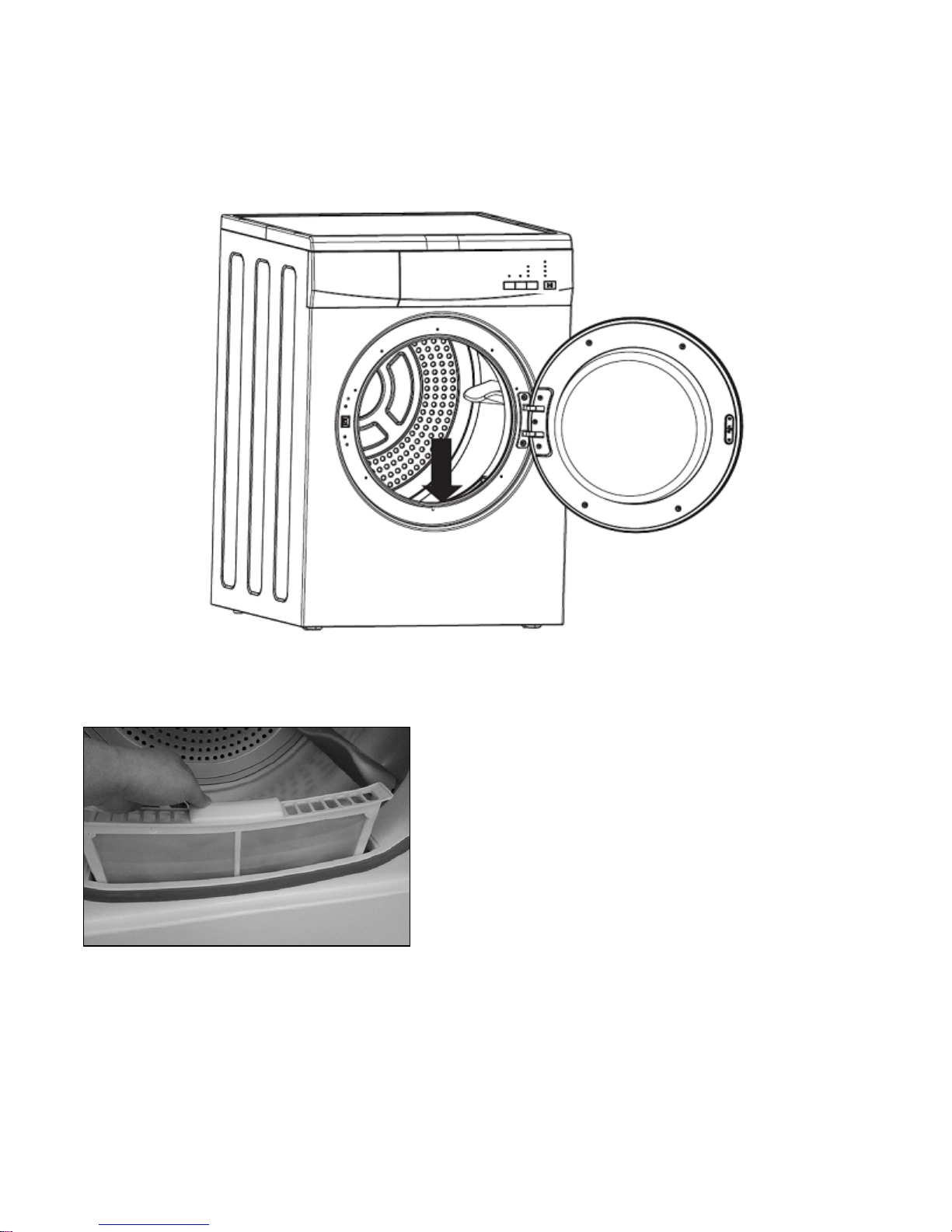

oThe filter is located inside the doorway rim at the bottom, as shown
in the below diagram.
oTo remove the filter, pull it
upwards.
oRemove any thread or fluff by hand
or with a soft brush.
oSlide the filter back into position.
oWash the filter occasionally in a detergent solution and with a soft
bush to remove all small particles. Do not use an abrasive cleaning
product on the filter.
16

Installation
IMPORTANT: THIS INSTALLATION MUST BE
COMPLETED BY A SUITABLY QUALIFIED PERSON.
VENINI ONLY SANCTION THE INSTALLATION GIVEN IN
THIS INSTRUCTION MANUAL. YOU SHOULD KEEP THE
TRANSIT PACKAGING, IN CASE YOU NEED TO
TRANSPORT THE MACHINE IN THE FUTURE.
Installing the appliance
IMPORTANT: THIS APPLIANCE MUST NOT BE BUILT-IN.
IMPORTANT: The air vents of the appliance must never be
covered or blocked in any way as this will cause the dryer to
overheat. You MUST leave a gap of at least 10cm at the back of
the appliance, and 150cm at the front.
Positioning
The appliance should be positioned on a solid and flat surface. This will
reduce vibration and noise. Large amounts of vibration can damage the
appliance.
17

Power supply
18
oIMPORTANT: The electrical socket or mains switch must still
be accessible once the appliance is installed.
oConsult the rating plate, located on the back of the appliance
BEFORE making the electrical connections. Ensure that the voltage
reaching the plug is the same as that on the rating plate.
oDO NOT REMOVE THE RATING PLATE AS THE INFORMATION
ON IT IS IMPORTANT.
oThe moulded plug that is supplied with the appliance must be
placed into an earthed and insulated socket.
oThe special mains cable and plug assembly must only be replaced
with a genuine part from the Venini Spares department or our
appointed service agent.
oIMPORTANT: We do not recommend that this appliance is
connected to an extension lead.

Installing the appliance on a wall (upside down)
oYour dryer is provided with wall-mounting brackets to allow for a
wall installation. Please follow the steps below:
1. Fix the two metallic hooks onto a suitable wall, which align with the
mounting slots of the dryer
NOTE: Make sure the mounting wall is of sufficient strength to
support the dryer weight.
Warning: The dryer weight exceeds 35kg. You should seek
assistance when installing the appliance.
2. Install the plastic spacers / supports into their slots at the opposite end
of the bracket slots.
19

3. Carefully raise the dryer and hang it onto the metallic hooks. Slowly
release the weight of the appliance so that the hooks take the weight,
and ensure that the plastic spacers/supports rest against the wall.
4. Replace the panel sticker with the inverted sticker.
20
