VENOM VEN-1827 User manual

Thank you for purchasing your new Venom 26cc 4.5 KWA Marine Engine. Not only did you purchase
a top of the line R/C Marine Engine but you have also joined the Venom Team and it’s world class
product line and customer service. Please fully read and understand this instruction manual BEFORE
operating this product.
Note: This product is not a toy and may cause serious injury if not used properly.

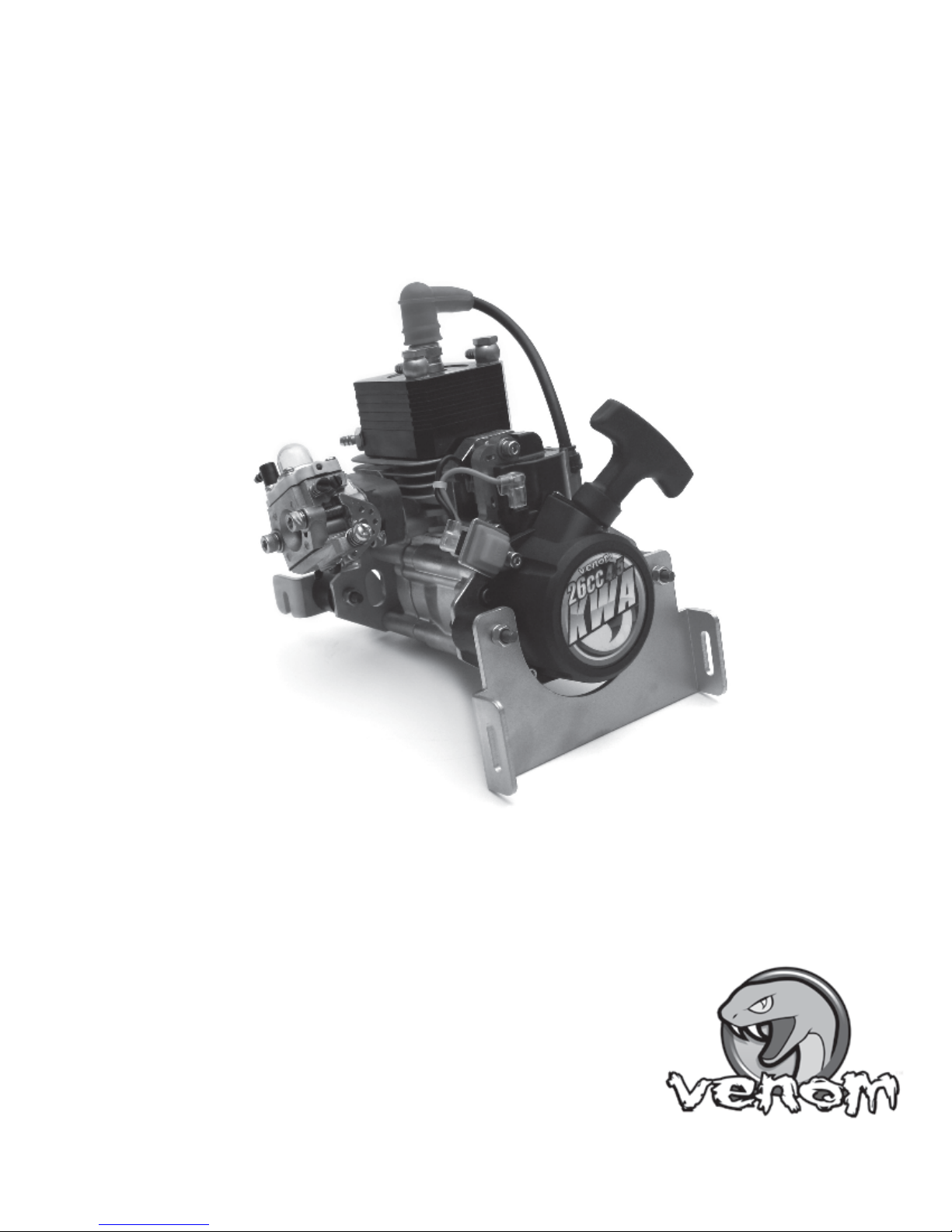

26cc 4.5 KWA Marine Engine
VEN-1827

Basic Engine Specifications:
Displacement - 25.4cc
Bore x Stroke - 34mm x 28mm
Max HP - 4.5@12,500 RPM
Idle RPM - 3500 +/- 150
Fuel Type - 87 Octane with Premix 2 Stroke Oil
Ignition - Ikeda TDi
Carburetion - Walbro WT771 with Primer Pump
Net Weight - 2.05kg (w/ Mount)
Manual Pull Start
Premix Fuel Specifications:
Use 90+ Octane Unleaded Gasoline
Do not use gasoline with any alcohol or ethanol added
Use a high performance 2 Stroke Premix Engine Oil
Mix Ratio - 20-25 parts Oil to 1 part Gas (20-25:1) for break-in period, 30:1 standard mixture
-The carburetor is tuned from the factory to run but may require an adjustment due to the climate and
elevation in your area.
-There are three adjustments on the carburetor. The low speed needle, high speed needle and idle
screw.
Specifications
Specifications
Engine Operations
Engine Operations
High
Speed Needle
Low
Speed Needle
Idle Screw
- 2 -

-The low speed needle controls the low rpm range of the engine.
-The high speed needle controls the high rpm range of the engine.
-The idle screw mechanically sets the opening of the carburetor and adjusts the minimum gap for air
to pass through the carburetor. In a boat application this setting is often set to the maximum opening.
Engine Operations Continued
Engine Operations Continued
Standard opening of each needle as follows:
High Low
1 5/8 + 1/4 1 + 1/4
To start the engine;
1. First be sure the correct fuel mixture has been added and the fuel tank is full.
2. Pump the priming bulb on the carburetor until you see the fuel enter the bulb.
3. Pump the priming bulb 3 more times.
4. Be sure all people and objects are clear of any rotating parts.
5. With one hand, apply firm pressure to hold the top of the engine in place and
with the other hand take hold of the pull start T-handle.
6. With a fast deliberate motion, pull the T-handle quickly away from the engine
but no further than 10 inches while firmly holding the engine in place.
7. Repeat as necessary until the engine either starts or shows signs of starting.
8. You may adjust the low speed needle, either open or close, to help the
engine start but only in small increments of 1/8th of a turn at a time until the
engine starts.
9. Repeat step 6 until the engine starts.
10. Once the engine starts return the T-handle to the rest position and remove
your hands from the engine and any rotating parts.
To shut the engine off press the red shut off button located on the exterior of the model or on the
engine itself.
It is very important not to over-stress a new engine in the first few running hours of its life. It is highly
recommended that the fuel and oil mixture be made slightly more oil rich for optimum lubrication
during the first 2-4 hours of operation. In addition, it is also recommended that the engine speed
should be limited to about 7000rpm or about half throttle during this time. Please follow the break in
schedule below.
Initial running - 20:1 fuel ratio for 1hr
25:1 fuel ratio for 3hrs
30:1 fuel ratio for standard operation
The engine will continue to improve in performance and will continue to break in for a short time
following the initial 4hrs of operation.
- 3 -

Tuning Guide
Tuning Guide
There are three basic areas of adjustment on a gasoline 2 stroke engine:
1. Carburetor
2. Spark Plug
3. Gasoline to Oil Ratio
Carburetor Tuning
While the engine is running at idle speed you can adjust the Low Speed Needle to set a steady low
RPM idle. When the engine speed is at its maximum RPM the High Speed Needle is used to adjust
the optimum top speed performance. The goal is to try to tune the engine until there is smooth transi-
tion from low to high speed and back to idle with out any interruptions.
To set the High Speed Needle while the engine is running there are two steps.
1. Once the engine is warmed up set the engine to full open throttle and adjust
the High Speed Needle until the engine sound is clear and smooth. Now place the
needle setting to 1/8th to 1/4th turn rich (Counter Clockwise, CCW). Do this within 30
seconds and allow the engine to return to idle. Monitor the engine temperature during
this step.
2. Step 1 above is done without a load on the engine to get an initial setting. Now run the
engine in the model and set the throttle to full open. The engine should run smooth and
with full power. If not, readjust the High Speed Needle until you hear a smooth crisp
exhaust note. This will be the maximum performance setting for that particular day and
will require fine tuning depending on climate and location from day to day.
NOTE: Always pay close attention to the engine temperature when tuning on the bench and in normal use.
Maximum Operating Temperature - 250F
Optimal Engine Head Temperature Range - 210-230F max
Maximum Engine Head Water Temperature - 212F
Pro Tuner Tip
Use a small aquarium water pump, extra silicone tubing and a bucket
of cold tap water to keep the engine and exhaust pipe cool while
testing and breaking in a new engine.
The Idle Screw will set the mechanical travel of the carburetor butterfly valve which controls engine
speed and response. Setting the Idle Screw and the Low Speed Needle together will control the low
speed idle range of the engine. In a boat application when a clutch is not installed on the engine a
higher Idle Screw setting is required and it is common for this to be adjusted to the maximum setting.
Use the Low Speed Needle to make idle speed adjustments in this case.
Factory Needle Settings
High Speed Needle - 1 5/8 turns from closed Low Speed Needle - 1 turn from closed
CCW (Counter Clockwise) = Richer mixture CW (Clockwise) = Leaner mixture
(Does not apply to the Idle Screw)
- 4 -

Tuning Guide Continued
Tuning Guide Continued
NOTE: Never over tighten the tuning needles when adjusting. This will cause
damage and poor tuning ability.
Spark Plug Tuning
There are a few performance gains from understanding and tuning the spark plug of a gasoline
engine. The basic areas of interest are the Air Gap and Color of the spark plug used.
Spark Plug Air Gap - the distance between the outer electrode and inner electrode.
The main issues with spark plug gaps are:
• narrow-gap risk: spark might be too weak/small to ignite fuel
• narrow-gap benefit: plug always fires on each cycle
• wide-gap risk: plug might not fire, or miss at high speeds
• wide-gap benefit: spark is strong for a clean burn
A properly gapped plug will be wide enough to burn hot, but not so wide that it skips or misses at high
speeds, causing that cylinder to drag, or the engine to begin to rattle.
Standard Spark Plug Gap - 0.6-0.7mm / 0.023-0.0275in
Reading the Color of the Spark Plug
•Normal Operating Color - exterior electrode has a very light tan color, resembles ash, the interior
electrode has a clean brown color, no deposits on any surfaces.
• Dry or Wet Fouling - the overall appearance of the plug is black and sooty or very wet with an oily
appearance.
• Over Heating - The plug end will appear glazed especially around the ceramic insulator
Replace wet, fouled, or damaged spark plugs and try to determine the cause of the fouling. Its ok to
clean a spark plug if a replacement is not available but for optimum performance the fouled plug
should be replaced. The color of the plug will indicate the operating condition of the engine internally.
Adjusting the carburetor and using the correct fuel mixture will usually correct the problem.
Gasoline to Oil Ratios
The two stroke engine relies on a delicate mixture of oil mixed in with the gasoline in order to perform
at maximum performance levels. Since the oil which lubricates the engine is mixed in with the fuel it is
possible to cause severe engine damage and total failure if the mixture is incorrect. Please follow
these guidelines to ensure proper performance and good engine life.
Fuel Ratios
How to read the ratio of gasoline to oil:
The ratio above is related to 1 US Gallon of gasoline. The more rich the ratio the closer the relation-
ship of gasoline to oil is 1 part to 1 part (1:1). The number on the left is the amount of gasoline used.
The number on the right is the amount of oil. The smaller the gasoline number, the more rich the
mixture will be because there is more oil in relation to gasoline.
Use high performance 2 Cycle Premix Oils that contain Castor Oil and Synthetic Lubricants commonly
found at Motorcycle Dealerships, Go-Karting suppliers, Gardening and Power Tool Supply stores. Use
a proper oil ratio measuring cup or container.
20:1 Initial running - 1hr
25:1 3hrs
30:1 Standard operation
32:1 Only recommended for experienced tuners
- 5 -

Recommendations
Recommendations
Exhaust Recommendations
The Venom 26cc 4.5 KWA Marine Engine can accept a whole range of exhaust sys-
tems from tuned exhausts to silencers and various manifolds. Choose the exhaust
system according to your application and follow the exhaust manufacturer’s recom-
mendations for tuning and performance guidelines.
Exhaust Port Bolt Pattern - 34mm center to center, M5 thread
Basic Exhaust Port Dimension - 20.6mm x 11.5mm
Propeller Recommendations
The Venom 26cc 4.5 KWA Marine Engine will perform with a range of propellers for gas
boats. The Hull design, weight and drive system will have a great influence on the
choice of an optimal propeller. Some experimentation will be required to obtain the best
performance possible.
Propeller Diameter range - 65-75mm
Pitch Ratio range - 1.4-1.9mm
Pro Tuner Tip
Experiment with multiple blade counts and pitch ratios for different conditions. A 3 blade
prop will help in choppy conditions and with acceleration from corners. A two blade
prop is the most efficient and will usually achieve the highest speeds, but it is sensitive
to water conditions. Changing the pitch ratio will change the rpm of the engine and will
have different performance benefits. Listen to the engine sound, aka note, when
experimenting with propellers to find the best performance. A crisp clean sound should
resonate from the engine when at full power with the correct prop. Use a GPS hand-
held unit mounted in the boat to compare speeds between set ups.
- 6 -

Trouble Shooting
Trouble Shooting
Description Cause Fix
Spark Plug 1. Wet Spark Plug Electrode Dry Electrode
2. Carbon Deposits On The Electrode Clean Spark Plug
3. Spark Plug Insulator Damage Replace Spark Plug
4. Improper Spark Gap Adjust To 0.6-0.7mm
5. Burned Out Electrode Replace Spark Plug
Magneto 1. Ignition Coil Inside Failure Replace Spark Plug
2. Damaged Cable Sheath or Disconnected Cable Replace Or Repair
Switch 1. Switch Is Off Turn On Switch
2. Switch Failure Replace Switch
3. Primary Wiring Is Grounded Repair
Engine Does Not Start - No spark in spark plug
Description Cause Fix
1. Too much Fuel In Engine Drain Excess Fuel from Engine
2. Fuel too Rich Adjust Carburetor
3. Flooded Carb Adjust Carburetor or Replace
4. Poor Fuel Quality Exchange with Proper Fuel
1. Worn Out Cylinder, Piston, or Piston Ring Replace Cylinder & Piston Set
2. Gas Leakage from Cylinder & Crank Case Gasket Apply Liquid Gasket & Reassemble
1. Choked Breather Air Hole Clean Breather
2. Clogged Carburetor Clean Carburetor
3. Fuel Lines Improperly Installed Check Fuel Lines
Engine Does Not Start - Sparks appear in the spark plug
Compression
& Fueling Is
Normal
Fueling Normal
But Poor
Compression
No Fuel
Supply
Description Cause Fix
1. Air Leak in Fuel System Check Connections
2. Air Leak at Intake Tube Joint or Carburetor Joint Replace Gasket or Tighten Screws
3. Water in Fuel Replace Fuel
4. Piston Seized Replace Piston & Cylinder
5. Muffler has Excessive Carbon Build-up Clean Muffler
1. Carburetor Set too Lean Adjust Carburetor
2. Poor Fuel Quality Replace Fuel
3. Excessive Carbon Build-Up in the Combustion Chamber Clean Combustion Chamber
4. Spark Plug Electrode Red Hot Thoroughly Clean, Adjust
Spark Gap [0.6-0.7(0.023-0.028in)]
1. Over Loading Reduce Load
Lack of Power or Poor Performance
Compression
Is Normal w/
No Misfire
Overheating
Others
- 7 -

Warranty
Warranty
Warning
Warning
VENOM™ LIMITED WARRANTY:
Venom warrants this product to be free of material and workmanship defects when new. If a compo-
nent is defective or was not correctly made, Venom will, at its sole discretion, repair or replace it free
of charge within 90 days from date of purchase. If you believe a defect became evident only after
operation, please contact us to discuss the situation. A dated and itemized sales receipt must accom-
pany any product returned for warranty work. Before returning any product, please contact Venom
Customer Service at 800-705-0620 to receive a Return Merchandise Authorization Number (RMA#).
GUARANTEE:
We guarantee this product to be free of manufacturing faults and material defects. This product has
been checked and adjusted individually before leaving the manufacturer. Please contact your local
retailer for replacement parts and technical support or contact Venom Customer Service at
800.705.0620 or [email protected]. Copyright © 2008 by Venom
WARNING:
This product is not a toy. It is not recommended for children under 14 years. Minors should be
accompanied by an adult when using. This product is a precision machine that requires proper
assembly and setup to avoid accidents. Failure to take caution when operating this product may
result in serious injury or property damage. It is the owner’s responsibility to operate this product in a
safe manner. Venom and its affiliates, successors, heirs, and assigns are not responsible in any way
for any and all bodily injury(s) and/or property damage that may occur from the use of or caused by in
any way this product or its parts.
CALIFORNIA PROPOSITION 65 HEALTH RISK WARNING:
This product contains a chemical or chemicals known to the state of California to cause cancer, birth
defects, or other reproductive harm. This (these) chemical(s) may be harmful to your health. Do not
place hands in mouth after handling this product. Do not place this product in mouth. Wash hands
with soap and water immediately after handling this product.
- 8 -

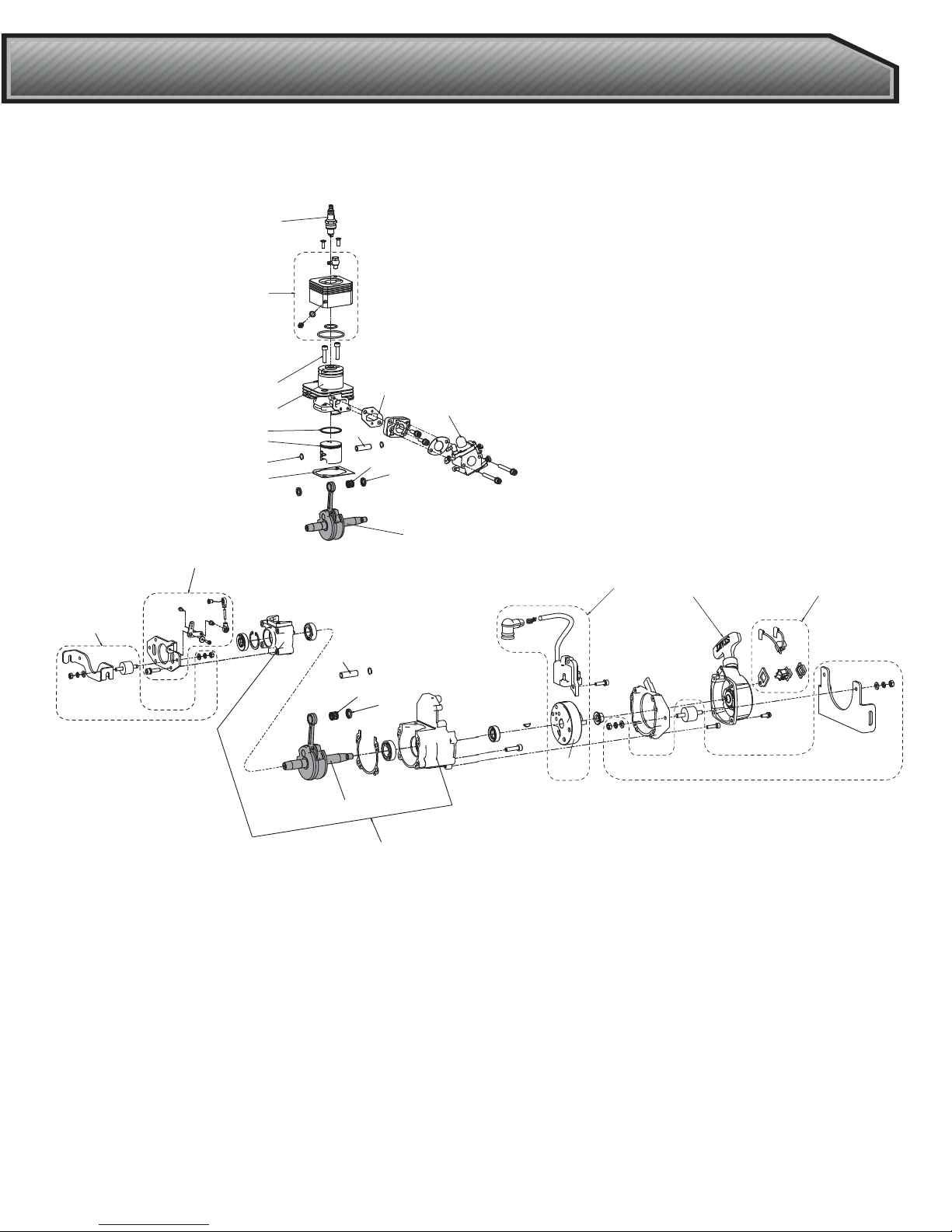

Parts List
Parts List
1849
1833
1832
1835
1831
1839
1830
1838
1842
1841
1836
1834
1837
1829
1848
1847
1836
1834
1837
1828
1829
1848
1845
1844
1846
1843
- 9 -
VEN-1828 Crankcase Assembly - KWA
VEN-1829 Crank Shaft Assembly - KWA
VEN-1830 26cc Cylinder - KWA
VEN-1831 Cylinder Gasket - KWA
VEN-1832 26cc Piston - KWA
VEN-1833 Piston Ring
VEN-1834 Piston Pin
VEN-1835 Snap Ring
VEN-1836 Positioning Washer
VEN-1837 Need Bearing
VEN-1838 Intake Gasket
VEN-1839 Bolt (M5*25) - KWA
VEN-1840 Exhaust Gasket - KWA
VEN-1841 Water Jacket - KWA
VEN-1842 Carburetor
VEN-1843 Recoil Assembly
VEN-1844 Flywheel - KWA
VEN-1845 Ignition Coil -KWA
VEN-1846 Kill Switch Set - KWA
VEN-1847 Frame Set - KWA
VEN-1848 Mount Assembly - KWA
VEN-1849 Spark Plug

Notes
Notes

Customer Service
800.705.0620
[e-mail]
www.venom-group.com
Venom Group International
United States of America
600 West Buckles Road
Hayden, ID 83835
Australia
P.O. Box 7325
Alexandria NSW 2015, Australia
