QuFresh Air Purifier
AS1000WHT
Owner’s Manual
SAFETY
This safety alert symbol is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Danger indicates an imminently hazardous situation, which,
if not avoided, will result in death or serious injury.
DANGER
Warning indicates a potentially hazardous situation, which,
if not avoided, could result in death or serious injury.
WARNING
Caution indicates a potentially hazardous situation, which,
if not avoided, may result in minor or moderate injury.
CAUTION
Used to indicate an electrical shock or electrocution hazard.
ELECTRICAL
SHOCK
SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
2
General Information
Thank you for choosing the QuFresh Air Purier.
The QuFresh Air Purier is a portable ltration system that draws
air in from the surrounding environment and passes it through
an advanced ltration system.
The unit removes airborne particles like dust, mold spores, pollen,
pet dander and other particles as small as 0.3 microns.
The unit’s maximum 500 CFM motor draws air into three types
of lters: a pre-lter, an activated carbon lter, and a HEPA H-13
lter.
The rst stage of ltration captures larger particles, the second
stage of ltration effectively captures airborne toxicants and the
third stage of ltration captures much smaller particles down to
0.3 microns (such as mold spores and fungi).

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
3
IMPORTANT INSTRUCTIONS
When using any electrical appliance, basic safety precautions
should always be followed.
WARNING: To reduce the risk of re, electrical shock or injury to
persons or property:
1. Always operate the unit from a power source of the same
voltage, frequency and rating as indicated on the product
identication plate.
2. Close supervision is necessary when any product is used by or
near children, the elderly or the inrm. Do not allow children
to use the appliance as a toy.
3. Do not operate any product with a damaged power cord
or plug, after the product malfunctions, or if the product is
dropped or damaged in any way. Return the complete product
to the place of purchase for inspection, repair or replacement.
4. Switch off and unplug from the power socket when not in use,
before assembling or before cleaning.
5. Do not operate in standing water.
6. Keep wiring and motor dry. If electrical components become
wet, allow them to dry completely before using.
7. Unit must be electrically grounded. Insert 3-prong plug on
power cord directly into matching grounded receptacle.
8. Never use a water hose or pressure washer to clean electrical
components; water could enter the electrical compartment
causing a shock hazard.
WARNING

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
4
- 3 -
Control panel
PRODUCT IDENTIFICATION
LOGO
Air outlet
Power cord
Air inlet (first stage pre-filter)
Removable foam cap
(WARNING: Must be remove when unit running )
Latches
(total 4pcs)
Handle
Front housing
Back housing
WARNING: Must be removed when unit is running.
WARNING
PRODUCT IDENTIFICATION
Diag. 1
Product Identication
Diag. 2
Intake and lters

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
5

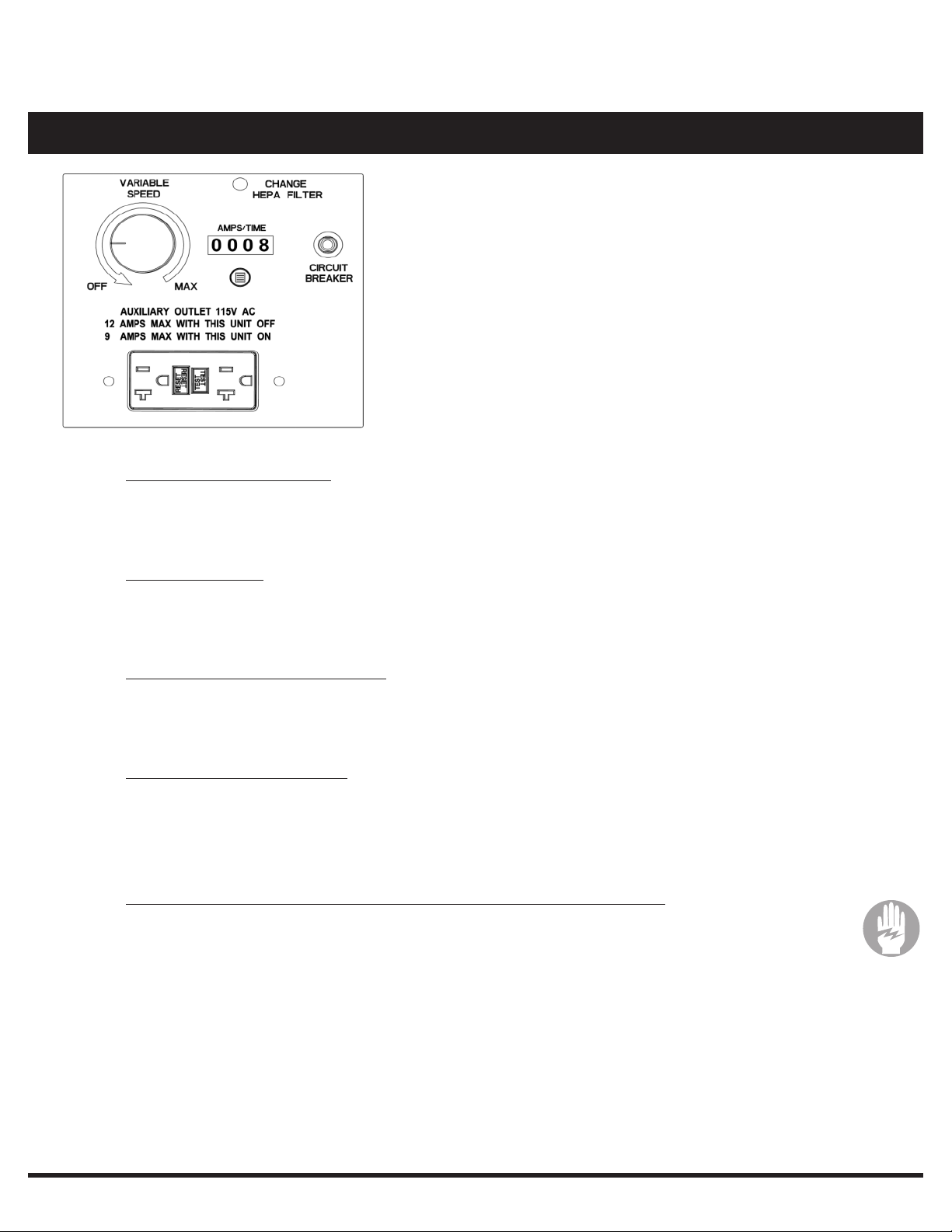

CONTROL PANEL
1. VARIABLE SPEED:
Used to control fan motor speed and unit ON/OFF.
Maximum setting to 500 CFM
2. AMPS/TIME:
Press (ICON) key to toggle display from actual running amps
to total running time
3. CHANGE HEPA FILTER:
Change HEPA Filter light illuminates when you need to
change the HEPA lter.
4. CIRCUIT BREAKER:......................................................................
The primary purpose of the circuit breaker is to protect the
wiring to the machine. It turns the unit off when more than 12
amps runs through the circuit.
5. GROUND FAULT CIRCUIT INTERRUPTER (GFCI):...................
The GFCI helps protect the user should it detect a sudden
“ground fault,” the GFCI will interrupt the electrical current.
The GFCI will also trip when a short circuit or an overload
occurs. When the GFCI “trips,” unplug the unit, and look for
potential hazards such as standing water, frayed cords, etc.
or anything that would cause a surge of electrical current.
Relocate the unit and plug it into a different outlet. Then push
the “RESET” button and check to see if it is operating; if so,
continue use, if not contact your local distributor.
- 4 -
CONTROL PANEL
 VARIABLE SPEED: It control fan motor speed and unit
ON/OFF. Maximum seting to 500CFM
 AMPS/TIME:
Press keys, The PCB can switched display motor
actual running current and total running time.
 CHANGE HEPA FILTER: The change light illuminates when
you need to change the HEPA filter.
 CIRCUIT BREAKER: The primary purpose of the circuit
breaker is to protect the machine. It turns the unit off
when more than 12 amps run through the on-unit circuit.
 Ground Fault Circuit Interrupter (GFCI): The GFCI helps
protect the user should it detect a sudden “ground fault,”
the GFCI will interrupt the electric current. The GFCI will
also trip when a short circuit or an overload occurs.
When the GFCI “trips,” unplug the unit, and look for
potential hazards standing water, frayed cords, etc.
anything that would cause a surge of electrical current.
Relocate the unit and plug it into a different outlet. Then
push the “reset” button, and check to see if it’s operating;
if so, continue use, if not contact your local distributor.
Diag. 3
Control Panel Layout

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
6
FILTER MAINTENANCE
The air purier utilizes a 3-stage ltration system, designed with
the most advanced HEPA ltration technology available.
Please replace the HEPA lter when the Change HEPA Filter
indicator light comes on.
Inspect pre-lter before each use. Look for accumulated dust
and dirt that could restrict airow through the lter into the unit.
If any is visible dust or dirt replace the pre-lter.
For environments with a high volume of aerosolized particles
you can often replace a dirty pre-lter to extend the life of the
HEPA lter.

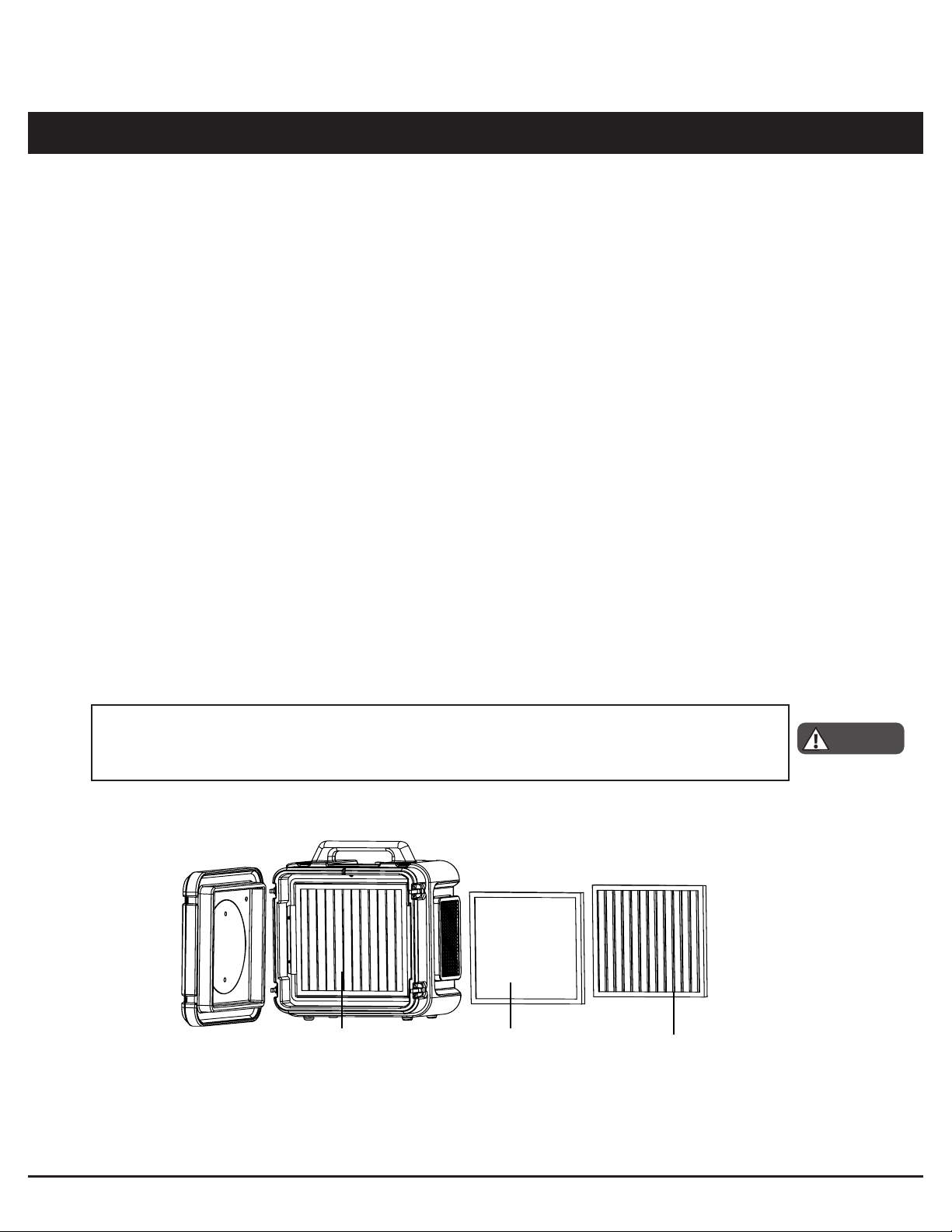

Replace lter procedures should be performed as follows:
1. Loosen the 4 latches to take apart front housing
2. Remove used dirty lters and replace
- 5 -
Filter Maintenance
The air scrubber utilizes a 3-stage filtration system
designed with the most advanced HEPA filtration technology
available.
Please replace HEPA filter when the change filter indicator light
comes on.
Inspect pre-filter before each use. Look for accumulated dust
and dirt that could restrict airflow through the filter into the
unit. If any is visible,replace out the pre-filter.
For environments with a high volume of aerosolized particles,
you can often replace dirt prefilter to extend the life of the
HEPA filter.
Replace filter procedures should be performed as follows:
1. loosen the 4 latches to take apart front housing
2. Remove used dirty filters and replace.
Third stage
HEPA filter
Second stage
Activated
carbon filter
First stage
Pre-filter
WARNING
WARNING: To minimize possible exposure to harmful materials, airborne pathogens,
and biological hazards, proper personal protective equipment (PPE) should be worn
while replacing lters or cleaning unit. Dispose of used lter in a sealed bag.

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
7
SPECIALIZED FEATURES
Daisy-Chain Capability
The air purier is designed for optimal versatility and convenience.
You can interconnect up to three units by plugging the third
into the auxiliary outlet of the second and the second into the
auxiliary outlet of the rst to create a maximum of 500, 1000, or
1500 CFM using only 1 electrical supply outlet.

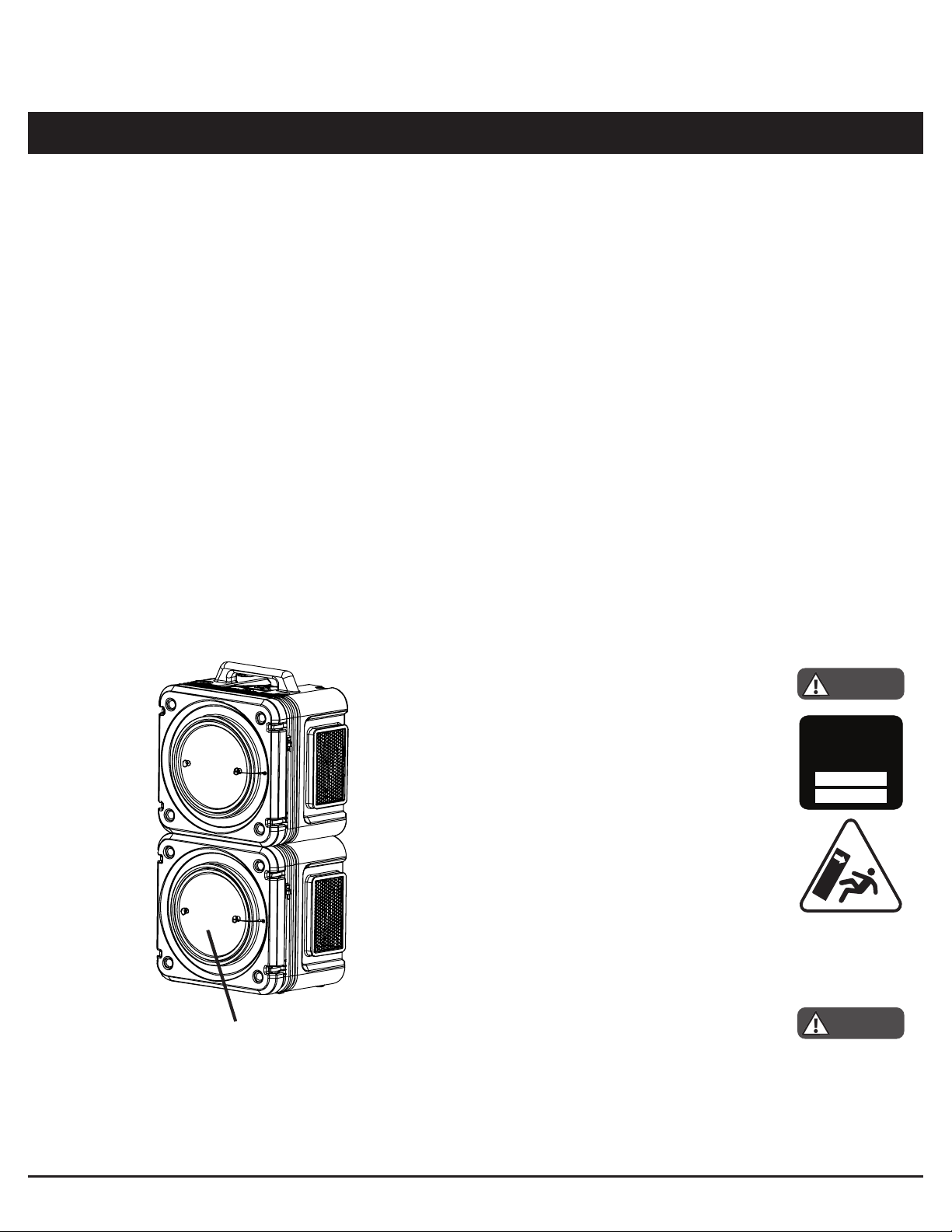

Stacking the Unit
To save oor space during storage, up to 3 units can be stacked
vertically. Orient the unit so the handle of the lower unit ts into
the base of the upper unit. You can also stack them horizontally
for space saving storage, or operate a unit with its outlet facing
upward.
WARNING: When stacking units,
beware of tipping.
Do not stack more than 3 units on
top of each other.
Falling equipment could cause
bodily harm.
WARNING: Foam cap must be removed when unit is
operating.
- 6 -
Specialized Features
Daisy-chain capability
Our designed the air scrubber for optimal versatility. You can
interconnect up to three units to create a maximum of 500,
1000, or 1500 CFM using the auxiliary outlet on the unit’s
control panel.
Stacking the unit
The handle of one unit fits into bottom of another unit.
You can also stack them horizontally for space saving storage,
or operate a unit with its outlet facing upward.
WARNING
When stacking units,beware of tipping.
Do not stack more than 3 units on top
of each other.
Falling equipment could cause bodily
harm.
WARNING:
Must be remove foam cap when unit running
WARNING
WARNING
3

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
8
TROUBLESHOOTING
FAULT CAUSE SOLUTION
Unit does not
operate
No power to machine Plug in the unit; check
power at outlet
Switch not turned on Turn on the switch
No power to outlet Reset circuit breaker/GFCI
GFCI tripped Reset circuit breaker/GFCI
Change light
illuminated
Primary lter is full Replace the lters; refer to
maintenance section
Air intake restricted Remove any obstructions
to airow intake
Blower wheel not
turning
Obstructed blower Remove obstruction
Loose blower wheel
set screw Tighten set screw
WARNING:
DO NOT attempt to rectify faults using unqualied personnel.
If the problem you are experiencing is not listed here, call your
local distributor.
WARNING
SPECIFICATIONS
Power Supply: 115V / 60Hz / 210W 1.8A
Process Air: MAX 500 CFM
MERV-9 Pre-Filter (inches): 16 x 16 x 1
Activated Carbon Filter (inches): 16 x 16 x 1
HEPA H-13 (inches): 16 x 16 x 2
Unit Size (inches): 25.5 x 16.5 x 22.625
Packing Size (inches): 26 x 17 x 22.875
Net/Gross Weight (lbs): 46/51
Complied: cETLus

Ventamatic, Ltd. P.O. Box 728, Mineral Wells, TX 76068-0728 1-800-433-1626 Fax: [phone] www.BVC.com
©2021 VENTAMATIC, LTD. 2021 QuFrEsh AIr PurIFIEr INs MANuAL 0121/#1182
VENTAMATIC, Ltd.
LIMITED WARRANTY STATEMENT
This warranty is underwritten by Falco Insurance Company and is extended to the original
retail purchaser of this model or, if this unit is purchased and requires installation by a building
contractor, to the original owner of the home. No subsequent purchaser of the unit or of a home
in which it is installed is entitled to any of the bene ts of this warranty.
This product is warranted against defects in materials and workmanship for a period of one (1)
year from the date of original retail purchase. No other parts or components are warranted.
There is no warranty for defects caused by abuse, faulty installation, or the like.
Repairs or replacement parts supplied under this warranty are warranted only for the period of
this warranty; that is, one (1) year from the date of the original retail purchase of the unit.
In the event of a defect or malfunction, we will replace or repair the defective part or component
only and return the new or repaired part to you freight prepaid.
You must bear all other expenses incurred in obtaining repairs, including labor required for  eld
repair or replacement, and the cost of shipping the defective part to us. You must also bear the
cost of repair to or replacement of any part or component and the shipping charges incurred
for the repair or replacement and return to you of any part or component not covered by this
warranty, including parts or components damaged by you.
The company reserves the right to demand and receive written evidence of the date of purchase
before undertaking its obligations under this warranty. The right to demand and receive written
evidence of date of purchase extends to all licensed dealers of Ventamatic, Ltd. products.
You should, therefore, retain your sales slip and attach a copy of it to the warranty claim.
To start a warranty claim you must:
Contact Ventamatic, Ltd.
An RGA (Returned Goods Authorization) form is required for returns to the factory
to ensure your return can be processed effi ciently and quickly. Please contact
Ventamatic, Ltd. toll-free at 800-433-1626 or via web at www.bvc.com to obtain an
RGA and follow the instructions given.
There is no informal dispute settling mechanism available in the event of a controversy involving
this warranty.
Any and all implied warranties which may exist terminate upon the expiration of this warranty
one (1) year from the date of the original retail purchase. Some states do not allow limitations on
how long an implied warranty lasts, so this limitation may not apply to you.
Ventamatic, Ltd. is not liable to you for incidental or consequential damages arising out of defect
or malfunction of a unit or its installation or out of any alleged breach of this warranty. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
This warranty gives you speci c legal rights and you may also have other rights which may vary
from state to state.
rev. 04/19
