Vents MICRA 80 A3 User manual

MICRA 80 A3
MICRA 80 A4
Energy recovery
air handling unit
USER’S MANUAL

www.ventilation-system.com
2
Safety requirements ............................................................................................... 3
Introduction .............................................................................................................. 5
Purpose ....................................................................................................................... 5
Delivery set ................................................................................................................ 5
Designation key ....................................................................................................... 5
Technical data ........................................................................................................... 6
Unit design and operating principle ................................................................ 7
Mounting and set-up ............................................................................................. 8
Connection to power mains ................................................................................ 10
Unit control ............................................................................................................... 10
Technical maintenance ......................................................................................... 11
Troubleshooting ...................................................................................................... 12
Storage and transportation regulations ......................................................... 12
Manufacturer's warranty ...................................................................................... 13
Acceptance certicate ........................................................................................... 14
Seller information ................................................................................................... 14
Installation certicate ............................................................................................ 14
Warranty card ........................................................................................................... 15
CONTENTS

3

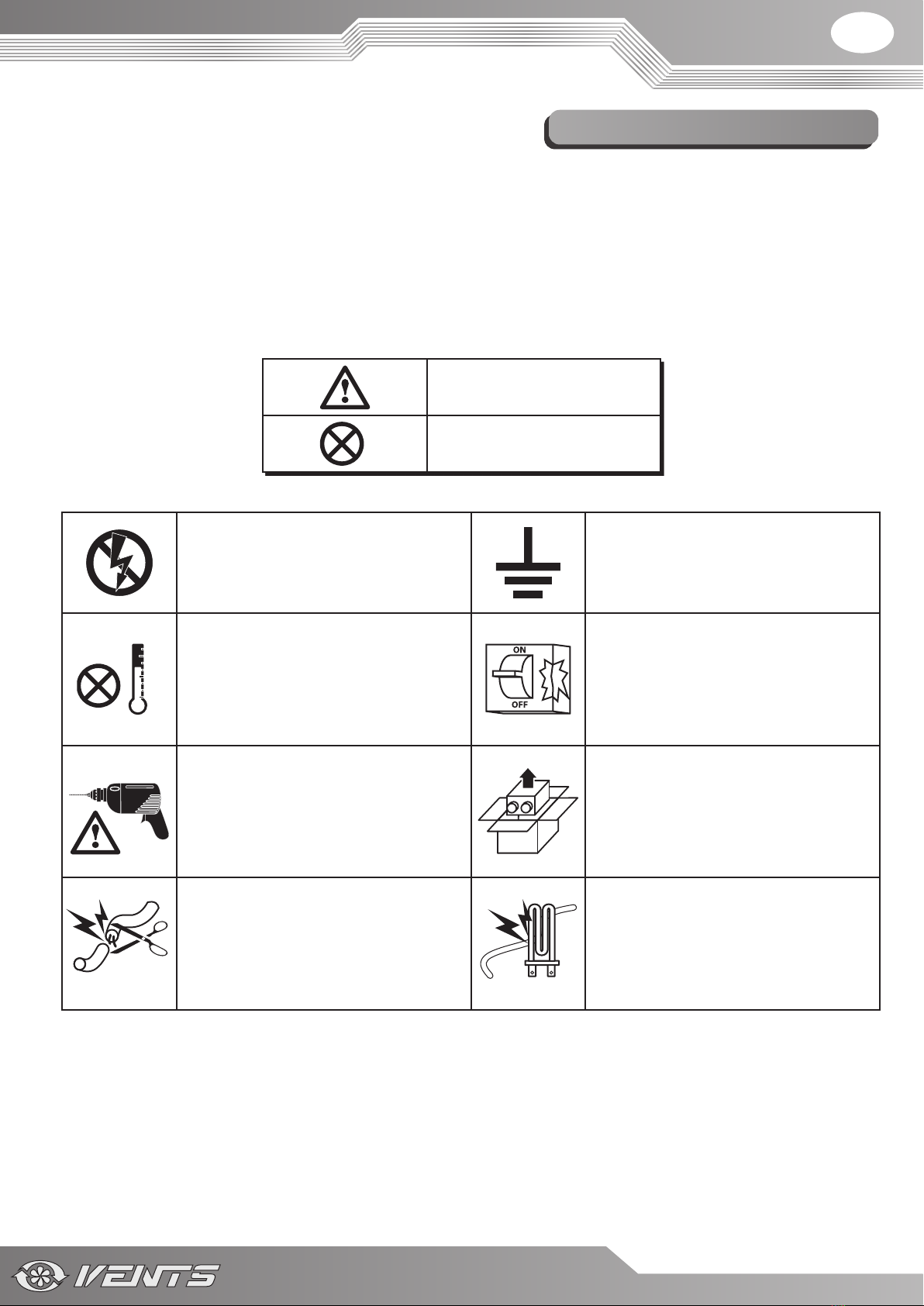

SAFETY REQUIREMENTS
• Read the user’s manual carefully prior installing and operating the energy recovery air handling unit (hereinafter referred to as «the
unit»).
• Full the operation manual requirements as well as the provisions of all the applicable local and national construction, electrical and
technical norms and standards.
• The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
• After a careful reading of the manual, keep it for the entire service life of the unit.
• While transferring the unit control the user’s manual must be turned over to the receiving operator.
Symbol legend:
UNIT MOUNTING SAFETY PRECAUTIONS
WARNING!
DO NOT!
Disconnect the unit from power mains prior to
any installation or repair operations. The unit must be grounded!
The unit must not be operated outside the
temperature range stated in the user's manual
and in aggressive or explosive environments.
Do not use damaged equipment or cables when
connecting the unit to power mains.
While installing the unit follow the safety
regulations specic to the use of electric tools. Unpack the unit with care.
Do not change the power cable length at your
own discretion.
Do not bend the power cable.
Avoid damaging the power cable.
Do not position any heating devices or other
equipment in close proximity to the unit power
cable.

www.ventilation-system.com
4

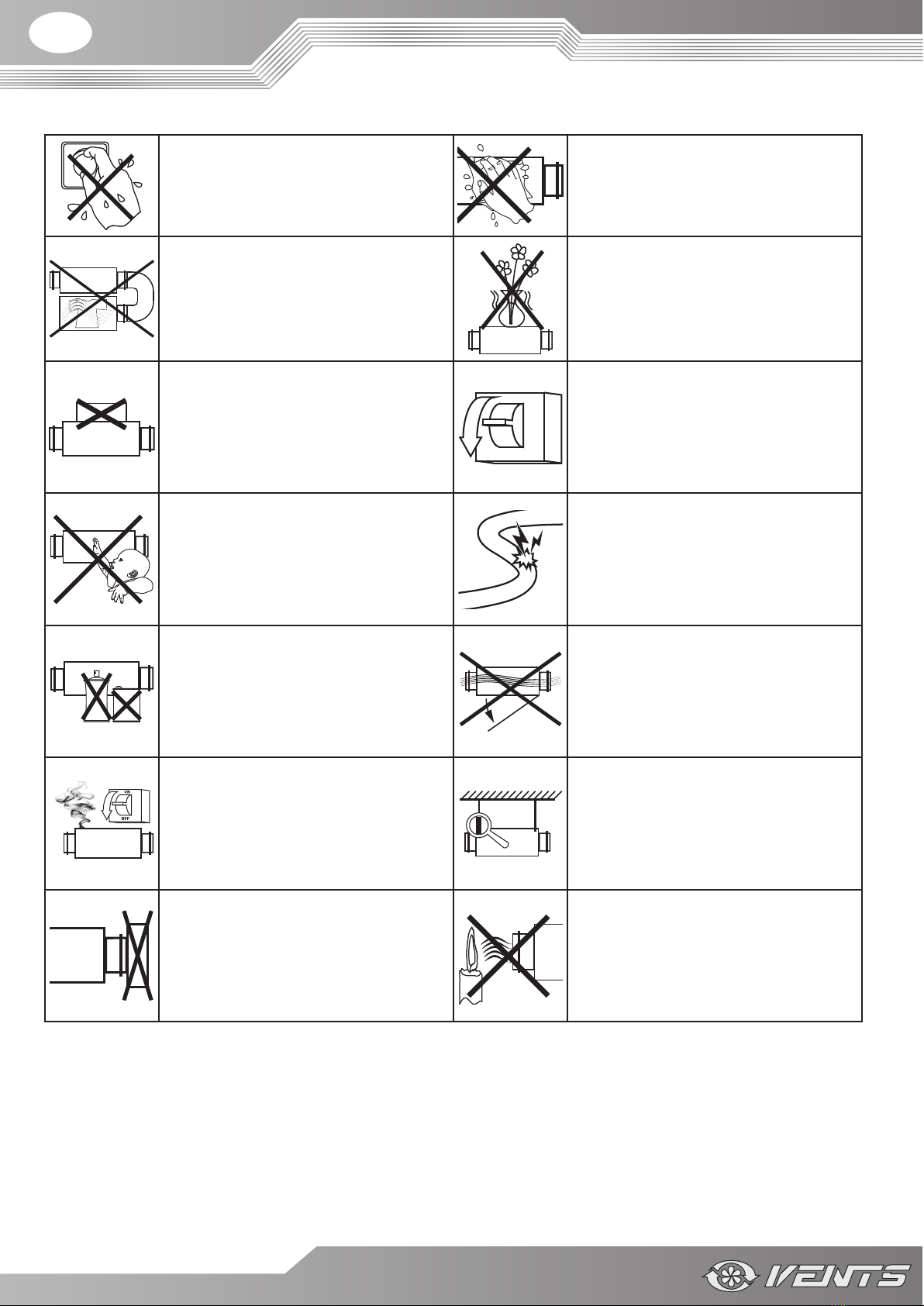

UNIT OPERATION SAFETY PRECAUTIONS
Do not touch the unit controls with wet hands.
Do not carry out the unit maintenance with wet
hands.
Do not wash the unit with water.
Protect the unit electric parts from water ingress.
Use the unit only as intended by the
manufacturer.
Do not connect a clothes dryer or other similar
equipment to the unit or the ventilation system.
Do not put any water containers on the unit, i.e.
ower vases.
Do not sit on the unit and do not put any
objects on it.
OFF
ON
Disconnect the unit from power mains prior to
any technical maintenance.
Do not let children operate the unit.
Do not damage the power cable while operating
the unit.
Do not put any foreign objects on the power
cable.
Keep combustible gases and inammable
products away of the unit. Do not open the operating unit.
When the unit generates unusual sounds, odour
or emits smoke disconnect it from power supply
and contact the Seller.
In case of continuous operation of the unit
periodically check the security of mounting.
Do not block the air duct when the unit is on. Do not let air ow from the unit be directed to
the open ame devices or candles.

5
INTRODUCTION
The present User’s manual contains the technical details, operating instructions and technical specication for the unit.
PURPOSE
The unit is an energy saving device based on energy recovery technology and is one of the energy saving components used in the buildings
and premises.
The unit is a component part and is not designed for stand-alone operation.
The unit is designed to ensure continuous mechanical air exchange in houses, oces, hotels, cafés, conference halls and other utility and
public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the ltered stream of supply air.
The units are designed for wall mounting.
The unit is rated for continuous operation.
Transported air must not contain any ammable or explosive mixtures, evaporation of chemicals, sticky substances, brous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic
germs).
THE UNIT MAY NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL
OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL AFTER
THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS BY
UNATTENDED CHILDREN.
DELIVERY SET
Name Number
Air handling unit 1 item
Fastening kit 1 item
Cardboard template 1 item
User's manual 1 item
Packing box 1 item
MICRA 80 AX
Unit name
Air capacity [m3/h]
Unit control panel
3 - P3-1-300 control panel
4 - SP3-1 control panel
DESIGNATION KEY

www.ventilation-system.com
6
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %.
The transported air temperature range is from -25 °C up to +50 °C.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
IP44 for the unit motors
IP22 for the assembled unit connected to the air ducts
The unit design is constantly being improved, so some models may be slightly dierent from those ones described in this manual.
TECHNICAL DATA
374
270
220
630
125
125
OVERALL DIMENSIONS OF THE UNIT MM
UNIT TECHNICAL DATA
Speed 1 2 3
Voltage [V/50 Hz] 1 ~ 230
Power [W] 25 35 57
Total unit current [A] 0.15 0.2 0.34
Air capacity [m3/h] 40 60 80
Noise level [dBA] 24 32 41
Transported air temperature [°C] from -25 up to +50
Casing material painted steel
Insulation 15 mm, penofol* type C
Filter: exhaust G4
supply G4
Connected air duct diameter [mm] 125
Weight [kg] 17
Heat recovery eciency [%] from 68 up to 77
Heat exchanger type cross ow
Heat exchanger material polymerized cellulose
* — vapour and thermal insulation barrier based on polyethylene foam covered with aluminum foil

7
Heat exchanger
Front panel
Intake lter
Extract lter
Extract fan
Supply fan
Thermostat
Control panel
А4 А3
• The unit casing is made of painted steel, internally lled with a layer of heat- and sound-insulating material.
• The cross ow plate heat exchanger, the supply and the extract fan are installed inside the unit.
• The front panel is installed on the latches to enable quick access for unit servicing.
UNIT DESIGN
• If the exhaust air temperature falls down below +3 °C the heat exchanger is subjected to the freezing danger.The freeze protection thermostat
is installed in the exhaust air duct downstream of the heat exchanger. In case of a freezing danger the supply fan is turned o and the unit
operates in air exhaust mode only. After the heat exchanger is warmed up and there is no freezing danger the unit reverts to the standard
operation mode.
The unit has the following operating principle.
Warm stale extract air from the room ows to the unit, where it is ltered, then
air ows through the heat exchanger and is exhausted outside by the extract fan.
Clean cold air from outside is moved to the supply lter. Then ltered air ows
through the heat exchanger and is moved to the room with the supply fan.
Heat energy of warm extract air is transferred to clean intake fresh air from
outside and warms it up. Heat recovery minimizes thermal energy losses and
space heating expenses in cold seasons.
The unit heat exchanger is able to recover not only heat energy but contained
humidity thus maintaining indoor humidity level. In summer time the heat
exchanger serves for supply air cooling and dehumidication and in winter time
for its heating and moistening.
SUPPLY AIR
EXTRACT AIR
EXHAUST AIR
INTAKE AIR
DESIGN AND OPERATING PRINCIPLE

www.ventilation-system.com
8
MOUNTING AND SETUP
Install the unit using the master plate from the scope of delivery and two Ø 125 mm ducts of required length.
Make 4 holes (Ø 8 and 60 mm deep)
in the wall using a master plate
Cable exit from the unit
2 holes for the round Ø 150 mm duct Fill
the gaps between the wall and the air duct
with a mounting foam
Make 4 holes (Ø 8 and 60 mm deep)
in the wall using a master plate
2 holes for the round Ø 150 mm duct.
Fill the gaps between the wall and
the air duct with a mounting foam
160
85
35 415
100
370
615
200
300
100
Cable exit from the unit
drill 4 holes in the wall,
Ø 8 mm and 60 mm deep
2 holes for the round Ø 125 mm duct Fill
the gaps between the wall and the air duct
with a mounting foam
Cable exit from the unit
CARDBOARD MASTER PLATE FOR HOLE MARKING, MM
UNIT MOUNTING
Unit mounting sequence:
1. Fix the master plate (included in the scope of delivery) to the wall
at required level using adhesive tape.
2. Use a master plate to mark two Ø 150 mm holes for the air ducts and four Ø 8 mm holes for the dowels.
3. Remove the master plate and drill through holes for the air ducts and the 60 mm deep holes for the dowels. The through holes for the air ducts
must be sloped down by 2-3°. After that insert the dowels from the scope of delivery into the respective holes. While preparing the holes consider
the method of laying the power cable. The cable exit from the unit is shown on the master plate.
Install the air ducts with the slope 2-3° down-
wards to prevent ingress of liquid and foreign
objects into the unit from outside.
Insert the dowels into the holes.
INSIDE
OUTSIDE

9
Make 4 holes (Ø 8 and 60 mm deep)
in the wall using a master plate
2 holes for the round Ø 125 mm duct Fill
the gaps between the wall and the air duct
with a mounting foam
Cable exit from the unit
Outer ventilation
hood
7. Mounting sequence:
Open the front panel and remove the heat exchanger.
Connect the unit spigots to the plastic air ducts.
Fix the unit to the wall installing the 5.0x50 screws from
the scope of delivery into four Ø 8 mm holes.
Install the heat exchanger and close the front panel.
ATTENTION! The round air ducts and the outer ventilation hood
are not included in the scope of delivery and are available
separately.
8. Install a Ø 125 mm outer ventilation hood on the outer wall side to
prevent ingress of large foreign objects into the air ducts.
The outer hood is not included in the scope of delivery and is available
separately.
4. Using adhesive tape x the master plate back in place.
5. Install the air ducts into the master plate holes and seal those with a
mounting foam through the openings in the master plate.
Install the air ducts sloped down by 2-3° to enable condensate drainage
from the unit.
6. After the mounting foam hardening (see the solidication time in
the product specication) remove the master plate and cut o the
protruding parts of the air ducts to be ush with the outer and inner
wall.

www.ventilation-system.com
10

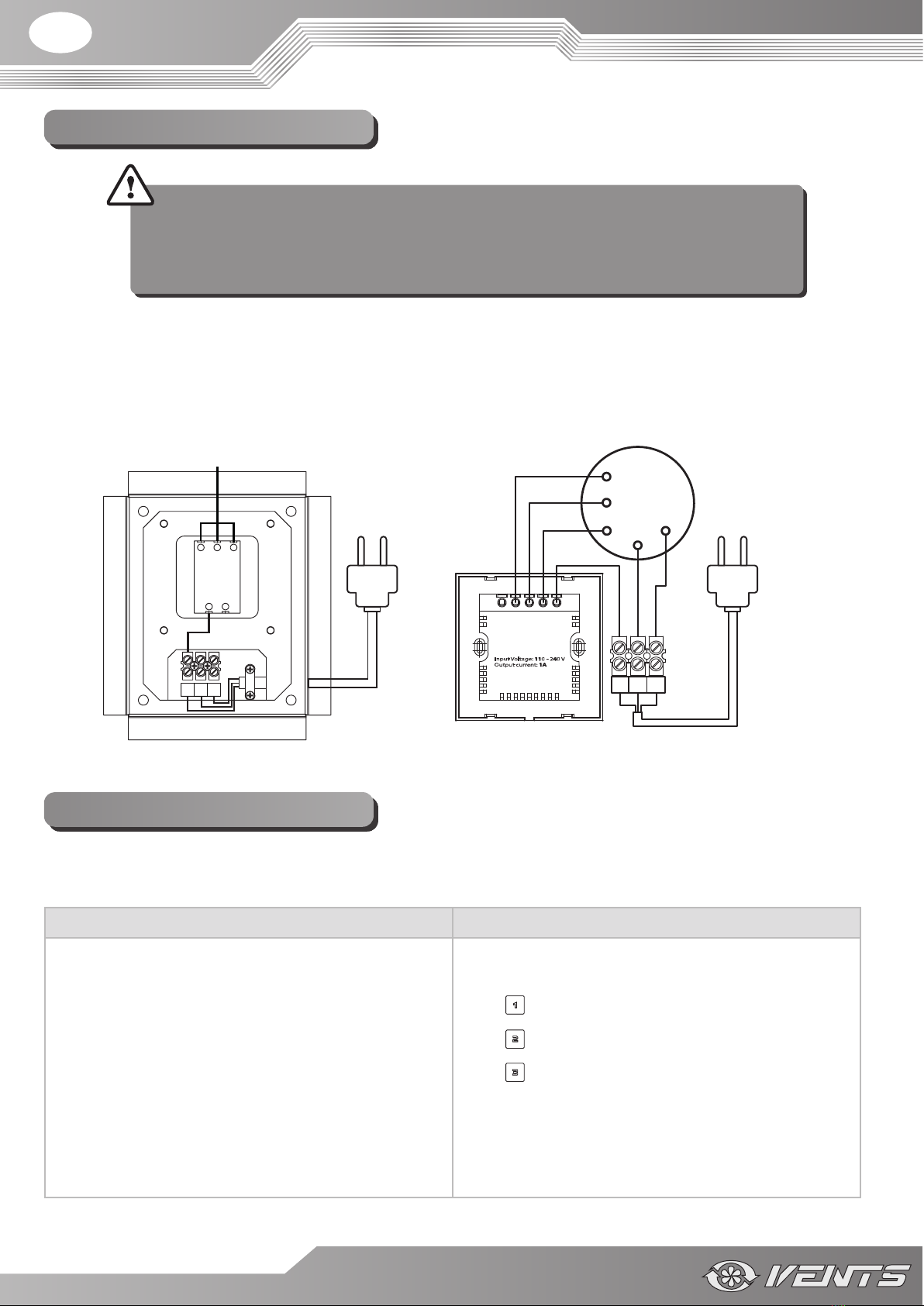

CONNECTION TO POWER MAINS
DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. CONNECT THE UNIT
TO A PROPERLY INSTALLED SOCKET WITH A GROUNDED TERMINAL.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE
WARRANTY.
The unit is rated for connection to single-phase AC power mains 1~230 V/50 Hz. For this purpose the power cable with a plug is connected by
the Manufacturer.
Connect the unit to power mains through the external automatic circuit breaker with a magnetic trip integrated into the xed wiring system.
The trip current must correspond to the current consumption.
The unit is controlled via the A3 or A4 sensor control panel, depending on the model. The control panels are located on the unit back panel.
The A3/A4 control panel is included in the scope of delivery.
UNIT CONTROL VIA THE A3 CONTROL PANEL UNIT CONTROL VIA THE A4 CONTROL PANEL
To activate a required unit speed rotate the speed knob clockwise
and select one of three speed settings:
1 – first speed
2 – second speed
3 – third speed
To turn the unit off rotate the speed knob counter clockwise and
set it to OFF position.
To activate a required unit speed touch a respective speed button
on the sensor panel:
–rst speed
–second speed
–third speed
To change speed press a respective speed button.
To turn the unit off press the current speed button again. The
activated speed button glows blue.
UNIT CONTROL
L N PE
3 2 1
BC
1~230 V/50 Hz 1~230 V/50 Hz
To the terminal box
of the unit
OUT
OUT OUTOUT IN
L
L1L2L3
L4
L N PE
M
1
2
3
N
PE
WIRING DIAGRAM OF THE A3 CONTROL PANEL WIRING DIAGRAM OF THE A4 CONTROL PANEL

11
TECHNICAL MAINTENANCE
Maintenance operations of the unit are required 3-4 times per year. Maintenance includes general cleaning of the unit and the following
operations:
1. Filter maintenance (3-4 times per year).
Clogged lters increase air resistance in the system and reduce supply air volume. The lters require cleaning not less than 3-4 times per
year. Vacuum cleaning is allowed. After two cleanings lters must be replaced. For new lters contact the Seller.
Sequence of lter removal:
1. Lift the service panel latches.
2. Open or remove the service panel. Remove the panel with care.
3. Remove the lters from the unit.
2. Heat exchanger inspection (once per year).
Some dust may accumulate on the heat exchanger block even in case of regular maintenance of the lters. To maintain the high heat recovery
eciency, regular cleaning is required. To clean the heat exchanger remove it from the unit and clean the heat exchanger by using compressed
air or a vacuum cleaner.

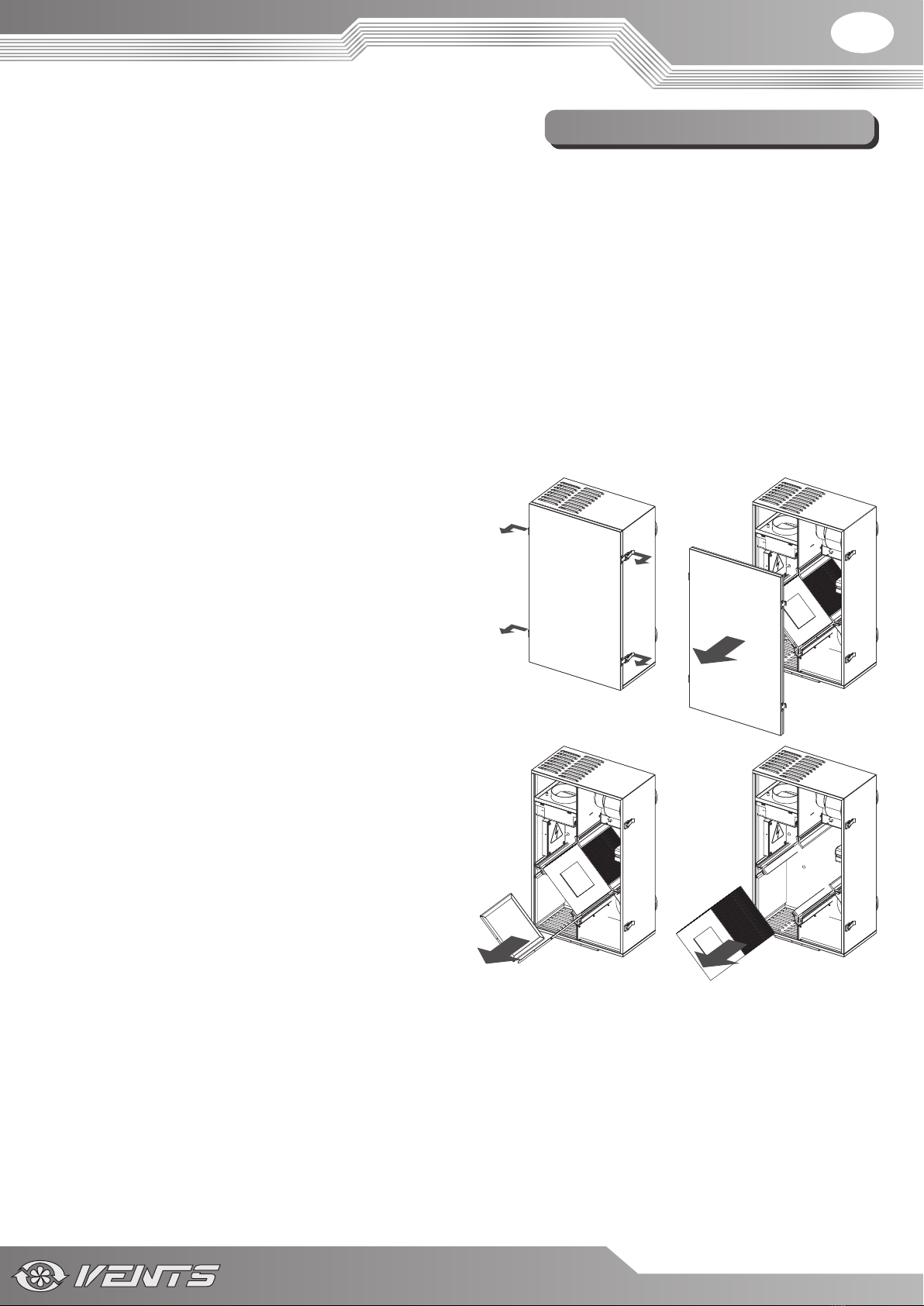

Sequence of heat exchanger removal:
1. Lift the service panel latches.
2. Open or remove the panel carefully, supporting it with the hand. Remove the panel with care.
3. Remove the heat exchanger.
1. 2.
3. 4.
3. Fan inspection (once per year).
Even in case of regular maintenance of the lters, some dust may
accumulate inside the fans and reduce the fan performance and supply
air ow.
Clean the fans with a soft cloth or brush.Do not use water, aggressive
solvents or sharp objects as they may damage the impeller.
4. Exhaust louver shutters and intake diusers cleaning.
Wash the diusers and the louver shutters with warm detergent
solution. Exhaust louver shutters and intake diusers cleaning (as
required).
5. Supply air ow control (twice per year).
The supply duct grille may get clogged with leaves and other objects
reducing the unit performance and supply air delivery.Check the supply
grille twice per year and clean it as required.
6. Ductwork system inspection (once in 5 years).
Even regular fullling of all the maintenance operations described
above may not completely prevent dirt accumulation in the air ducts
which reduces the unit capacity. Duct maintenance means regular
cleaning or replacement.

www.ventilation-system.com
12
POSSIBLE REASONS AND TROUBLESHOOTING
Problem Possible reasons Troubleshooting
The fan(s) do(es) no
start.
No power supply. Make sure the power supply line is connected correctly,
otherwise troubleshoot a connection error.
The motor is jammed, the impeller blades are
clogged.
Turn the unit o. Troubleshoot the motor jamming. Clean
the blades. Restart the unit.
Automatic circuit
breaker tripping
following the unit
turning on.
Overcurrent as a result of short circuit in the
electric line. Turn the unit o. Contact the Seller.
Low air ow.
Low set fan speed. Set higher speed.
The lters and the fans are clogged, the heat
exchanger is clogged.
Clean or replace the lters, clean the fans and the heat
exchanger.
The ventilation system components (air ducts,
diusers, louver shutters, grilles) are clogged or
damaged.
Clean or replace the ventilation system components (air
ducts, diusers, louver shutters, grilles).
Cold supply air.
The extract lter is soiled. Clean or replace the extract lter.
The heat exchanger is frozen. Check the heat exchanger condition. Turn the unit o if
required and restart it when freezing danger is past.
Noise, vibration.
The impeller(s) is soiled. Clean the impeller(s).
The fan or casing screw connection is loose. Tighten the screw connection of the fans or the casing
against stop.
No anti-vibration connectors. Install anti-vibration connectors.
TROUBLESHOOTING
STORAGE AND TRANSPORTATION REGULATIONS
Store the unit in the manufacturer’s original packing box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C.
Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation and sealing deformation.
Use hoist machinery for handling and transportation to prevent possible mechanical damages of the unit.
Follow the handling requirements applicable for the particular type of cargo.
The unit can be carried in the original packing by any mode of transport provided proper protection against precipitation and mechanical
damage.
Avoid sharp blows, scratches or rough handling during loading and unloading.

13
MANUFACTURER’S WARRANTY
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user’s observance of the
transportation, storage, mounting and operation regulations.
Should any malfunctions occur in the course of the unit operation through the Manufacturer’s fault during the guaranteed period of operation
the user is entitled to elimination of faults by the manufacturer by means of warranty repair at the factory free of charge.
The warranty repair includes work specic to elimination of faults in the unit operation to ensure its intended use by the user within the
warranty period.
The faults are eliminated by means of replacement or repair of the complete unit or the faulty part thereof.
The warranty repair does not include:
• routine technical maintenance
• unit installation / dismantling
• unit setup
To benet from warranty repair the user must provide the unit, the user’s manual with the purchase date stamp and the payment document
certifying the purchase.
The unit model must comply with the one stated in the user’s manual.
Contact the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• user’s failure to provide the unit with the entire delivery package as stated in the user’s manual or with missing component parts previously
dismounted by the user
• mismatch of the unit model and make with the respective details stated on the unit packing and in the user’s manual
• user’s failure to ensure timely technical maintenance of the unit
• external damage to the casing (excluding external modications of the unit as required for its installation) and the internal components
of the unit
• alteration of the unit design or engineering changes of the unit
• replacement and use of the unit assemblies, parts and components not approved by the manufacturer;
• unit misuse
• user’s violation of the unit installation regulations
• user’s violation of the unit management regulations
• unit connection to the power mains with a voltage dierent from the one stated in the user’s manual
• unit breakdown due to voltage surges in the power mains
• user’s discretionary repair of the unit
• unit repair performed by any persons not authorized by the manufacturer
• expiry of the unit warranty period
• user’s violation of the established regulations specic to the unit transportation
• user’s violation of the unit storage regulations
• wrongful acts against the unit committed by third persons
• unit breakdown due to circumstances of insuperable force (re, ood, earthquake, war, hostilities of any kind, or blockade)
• missing seals if provided by the user’s manual
• failure to submit the user’s manual with the unit purchase date stamp
• missing payment document certifying the unit purchase
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USER’S CLAIMS SHALL BE A SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT,
THEPAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE SALE DATE STAMP.

www.ventilation-system.com
14
Seller
Address
Phone Number
E-mail
Purchase Date
Seller’s Stamp
ACCEPTANCE CERTIFICATE
INSTALLATION CERTIFICATE
SELLER INFORMATION
Unit Type Energy recovery air handling unit
Model MICRA 80
Serial Number
Manufacture Date
We hereby declare that the product complies with the essential protection requirements of Electromagnetic Council Directive2004/108/EC,
89/336/EEC and Low Voltage Directive 2006/95/EC, 73/23/EEC and CE-marking Directive 93/68/EEC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
This certicate is issued following test carried out on samples of the product referred to above.
Quality
Inspector’s Stamp
This is to certify delivery of the complete unit with the user’s manual.
Customer’s Signature
The MICRA 80 energy recovery air handling unit has been connected to power mains pursuant to the
requirements stated in the present user’s manual.
Company Name
Address
Phone Number
Installation
Technician's Full Name
Installation Date: Signature: Installation Company Stamp
The unit has been installed in accordance with the provisions of all the applicable local and national
construction, electrical and technical codes and standards. The unit operates normally as intended by
the manufacturer.
Signature:

15
Unit Type Energy recovery air handling unit
Model MICRA 80
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller
Seller’s Stamp
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
___________________________________________________________________________________________________________
______________________________________________________________________________________________________
WARRANTY CARD

V104EN-02
