PURELAB Option-S 7/15 - US
Operator Manual

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page i
Copyright Note
The information contained in this document is the property of VWS
(UK) Ltd. and is supplied without liability for errors or omissions.
No part of this document may be reproduced or used except as
authorized by contract or other written permission from VWS (UK) Ltd.
The copyright and all restrictions on reproduction and use apply to all
media in which this information may be placed.
VWS (UK) Ltd. pursue a policy of continual product improvement and
reserve the right to alter without notice the specification, design, price
or conditions of supply of any product or service.
ELGA LabWater is a trading name of VWS (UK) Ltd.
ELGA®is the global laboratory water brand name of Veolia Water.
ELGA®, PURELAB®, MEDICA® and CENTRA® are trademarks of
ELGA LabWater.
© VWS (UK) Ltd. 2014
All rights reserved.
Publication ref: MANU40544
Version 1 – 08/14

PURELAB Option-S 7/15 US Operator Manual ELGA
Page ii PURELAB Option-S 7/15 US Version 1 08/14
TABLE OF CONTENTS
1. INTRODUCTION...........................................................1
1.1 Product Range .....................................................1
1.2 Use of this Manual................................................1
1.3 Customer Support................................................1
2. HEALTH AND SAFETY NOTES ...................................2
2.1 Electricity..............................................................2
2.2 Pressure...............................................................2
2.3 Control of Substances Hazardous to Health
(COSHH)..............................................................2
3. PRODUCT AND PROCESS DESCRIPTION.................3
3.1 Product Description..............................................3
3.2 Process Description .............................................4
3.3 Technical Specifications.......................................6
4. CONTROLS ................................................................10
5. INSTALLATION INSTRUCTIONS...............................11
5.1 Unpacking the PURELAB Option-S US..............11
5.2 Positioning the PURELAB Option-S US .............11
5.3 Connecting up the PURELAB Option-S US........13
5.4 Initial Controller Set-Up ......................................15
5.5 Initial Start Up.....................................................18
6. OPERATION...............................................................19
6.1 Alarm Conditions................................................19
7. MAINTENANCE..........................................................20
7.1 Replacing the LC140 Pre-treatment Cartridge....21
7.2 Replacing the LC141 Ion-exchange Cartridge
Pack...................................................................22
7.3 Cleaning the Inlet Strainer..................................23
7.4 Replacement of LC143 Reverse Osmosis
Cartridge(s)........................................................
23
8. TROUBLE SHOOTING...............................................24
9. CONSUMABLES AND ACCESSORIES .....................25
10. KEY TO CONTROL PANEL........................................26
10.1 Icons ..................................................................26
10.2 Alarm Conditions................................................26
10.3 Replacement Timers..........................................26
10.4 Quality and Standby Alarms...............................27
11. WARRANTY/CONDITIONS OF SALE ........................28
12. USEFUL CONTACT DETAILS....................................30

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 1
1. INTRODUCTION
1.1 Product Range
This Operator Manual has been prepared for the PURELAB Option-S
US product models:
PURELAB Option-S7 US
PURELAB Option-S7 BP US (with boost pump)
PURELAB Option-S15 US
PURELAB Option-S15 BP US (with boost pump)
1.2 Use of this Manual
This manual contains full details on installation, commissioning and
operation of the PURELAB Option-S US unit. If this unit is used
contrary to the instructions in this handbook, then the safety of the
user may be compromised.
1.3 Customer Support
Service support and consumable items are available from your local
supplier or distributor. Refer to customer service contact details shown
at the end of this publication.
PURELAB Option-S

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 2 PURELAB Option-S 7/15 US Version 1 08/14
2. HEALTH AND SAFETY NOTES
PURELAB Option-S US products have been designed to be safe,
however, it is important that personnel working on these units
understand any potential dangers. All safety information detailed in this
handbook is highlighted as WARNING and CAUTION instructions.
These are used as follows:
WARNING! WARNINGS ARE GIVEN WHERE FAILING
TO OBSERVE THE INSTRUCTION COULD
RESULT IN INJURY OR DEATH TO
PERSONS.
CAUTION! Cautions are given where failure to
observe the instruction could result in
damage to the equipment, associated
equipment and processes.
2.1 Electricity
It is essential that the electrical supply to the PURELAB Option-S US
is isolated before any items are changed or maintenance work
performed.
The ON/OFF switch is located at the left-hand side of the unit. The
mains power lead is located just behind the ON /OFF switch.
WARNING! THIS APPLIANCE MUST BE EARTHED.
2.2 Pressure
The main water supply pressure should be isolated and residual
pressure released prior to removal of any cartridges or carrying out
work on the unit.
2.3 Control of Substances Hazardous to Health (COSHH)
Material safety data sheets covering the various replaceable cartridges
are available upon request. Contact your local supplier or distributor.
Fuse
ON/OFF
switch
Mains power lead
Mains power socket
Mains Power Supply

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 3
3. PRODUCT AND PROCESS
DESCRIPTION
3.1 Product Description
The PURELAB Option-S US water purification unit has been
specifically designed to provide a supply of purified water equivalent
in quality to water prepared by single-distillation, but without the high
energy cost associated with distillation.
The PURELAB Option-S US can be bench or wall mounted with an
optional wall mounting kit. A range of accessories is available to
complement the unit. (See Section 9 - Consumables and Accessories,
for details).

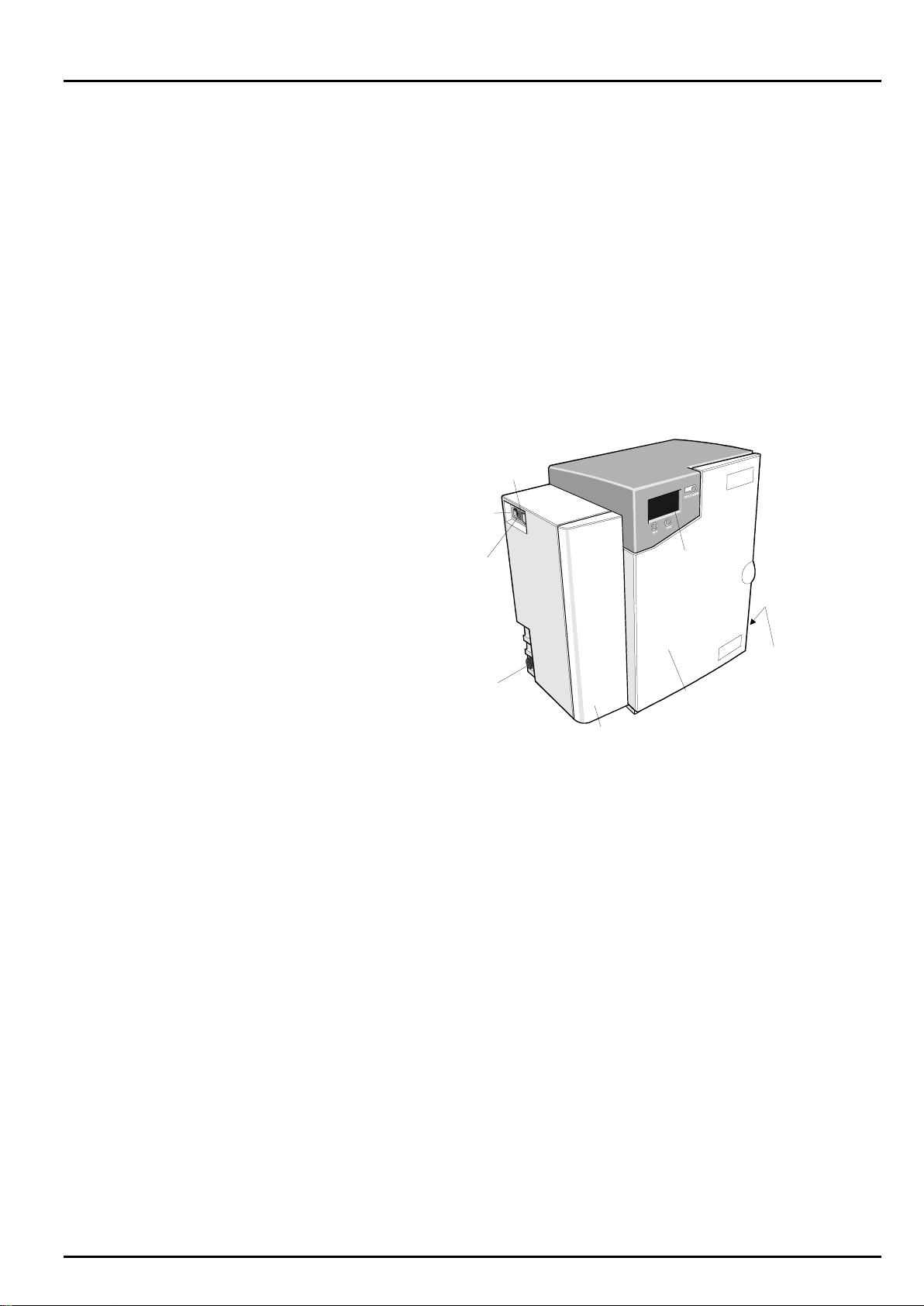

Power switch
ON/OFF
Mains
power
socket
Fuse
Feedwater
connection
Removeable cover
Control panel
Door
Outlet &
drain
connections
PURELAB Option-S US

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 4 PURELAB Option-S 7/15 US Version 1 08/14
3.2 Process Description
The PURELAB Option-S US process links three purification
technologies, reverse osmosis, adsorption and de-ionization and also
incorporates an optional RO feed water boost pump.
The unit is designed to operate from a good quality potable water
supply, and produces either 7 or 15 liters per hour of purified reverse
osmosis grade water which is collected in a treated water reservoir.
A graphics screen displays the system status and provides control by
means of three function buttons.
The water is processed and treated by the PURELAB Option-S US
unit as follows:
•Potable water enters through a strainer and inlet solenoid
valve at either regulated mains water pressure, or is pumped
by means of a feed water pump (optional), and passes
through the pre-treatment cartridge. The pre-treatment
cartridge has been designed to protect the reverse osmosis
cartridges from particulate/colloidal matter and excessive
free chlorine, which may be present in the incoming
feedwater.
•The permeate water then passes through one or two reverse
osmosis cartridges, set up in series, which split the flow into
permeate and concentrate streams. The permeate water is
further purified whilst the waste concentrate stream is
passed to drain.
•The permeate water then passes through the ion-exchange
cartridge which removes dissolved ionic impurities from the
permeate water.
•Finally, the water is passed through a:
•Water quality sensor, which measures the resistivity of
the water.
•Temperature sensor which provides accurate
temperature measurement.

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 5
Temperature
sensor
Water quality
sensor
Outlet
Outlet
Drain
Drain
Reverse
Osmosis
LC143
Reverse
Osmosis
LC143
Inlet
Inlet
Feed water
inlet
Strainer
Solenoid
Boost
pump
(optional)
Pre-treatment
LC140
Concentrate
drain
Flow
controller
Ion-exchange
cartridge
LC141
Purified
water outlet
Reservoir
Process Flow - PURELAB Option-S US

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 6 PURELAB Option-S 7/15 US Version 1 08/14
3.3 Technical Specifications
The Technical Specifications for the PURELAB Option-S US are as
follows:
Feedwater
PURELAB Option-S 7 US PURELAB Option-S 15 US
Feedwater
Source Quality Potable mains water supply Potable mains water supply
Fouling Index-maximum 10 10
Total Dissolved Solids-maximum 1400µS/cm 1400µS/cm
Free Chlorine-maximum 0.5ppm 0.5ppm
Heavy Metals - maximum 0.05ppm 0.05ppm
Silica- maximum 30ppm 30ppm
Temperature 1 - 35°C 1 - 35°C
Flowrate (Maximum requirement) 78 l/hr 85 l/hr
Drain Requirements (gravity fall with air gap). Maximum
during Service 70 l/hr 70 l/hr
Feedwater Pressure
Maximum - without internal boost pump 6.0 bar (90 psi) 6.0 bar (90 psi)
Minimum - without internal boost pump 4.0 bar (60 psi) 4.0 bar (60 psi)
Maximum - with internal boost pump 2.0 bar (30 psi) 2.0 bar (30 psi)
Minimum - with internal boost pump Flooded Suction Flooded Suction
Dimensions
Height 460mm (18.1") 460mm (18.1")
Width 410mm (16.1") 410mm (16.1")
Depth 270mm (10.6") 270mm (10.6")
Weight
With internal boost pump 16kg (35lb) 16.5kg (36lb)
Without internal boost pump 13.5kg (30lb) 14.5kg (32lb)
Connections
Inlet-quick connect 8mm (5/16") OD 8mm (5/16") OD
Outlet-quick connect 8mm (5/16") OD 8mm (5/16") OD
Drain RO-quick connect 8mm (5/16") OD 8mm (5/16") OD
Reservoir feed-quick connect 8mm (5/16") OD 8mm (5/16") OD
Positioning Wall, bench or under bench
mounted. Wall, bench or under bench mounted.
Environment Clean dry indoor.
Temp 5 - 40°C.
Humidity max 80%
non-condensing.
Clean dry indoor.
Temp 5 - 40°C.
Humidity max 80%
non-condensing.

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 7
Electrical Requirements
Mains input 100-240V ac, 50-60Hz all models
System voltage 24V dc
Power consumption with boost pump 43VA
Power consumption without boost pump 19VA
Fuses 2 x T3.15 Amp
Reservoir level connection Jack Plug 3.5mm
Noise level <45 dBA
User Interface
Display Continuous graphical and numerical reservoir level display
Graphical flow schematic on screen with mimic display
Intuitive icons
Adjustable settings Auto restart after power failure Selectable
Audible alarm Selectable
Water purity units MicroSiemens/cm or MegaOhms.cm
Water purity Alarm Setpoints
Indicators De-ionized water Temperature compensated resistivity/
conductivity
Temperature Degrees centigrade
Reservoir % Full
Pre-treatment cartridge Maximum remaining life indicator
Ion-exchange cartridge Maximum remaining life indicator
Alarms-Audiovisual Purified water purity Outside set point alarm
Reservoir Low level
Pre-treatment cartridge Change reminder
Ion-exchange cartridge Change reminder
Outputs RS232 Printer connection
RS232 Remote display connection
Volt free contact-internal
Safety Features
Power fail safe
Boost pump protection from particulates
Low operating voltage 24V
Audio visual alarms
Adjustable alarm settings

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 8 PURELAB Option-S 7/15 US Version 1 08/14
Special Features
Low noise levels – minimum intrusion
Flow rate upgradable
Optional internal boost pump for low pressure feed waters
Optional printer kit for record of operating parameters
Optional remote display
Technologies
Purification Methods Adsorption
Reverse osmosis
Ion-exchange
Purified Water Specification
PURELAB Option-S7 US PURELAB Option-S15 US
*Make Up Rate 7.5 l/hr 15 l/hr
*Daily Output (nominal max) 180 l/24 hour day 360 l/24 hour day
**Output reverse pressure (max) 0.1 bar (1 psi) 0.1 bar (1 psi)
Purity:
Inorganic-Typical 1 to >10MΩ.cm @ 25°C
Total Organic Carbon (TOC) <30ppb
pH Effectively neutral
* Standard conditions are 4 bar inlet pressure, 0 bar back
pressure at 15 degrees centigrade, fed with potable water and a
clean pre-treatment cartridge. Refer to flow tables outside these
conditions.
** Purification unit and reservoirs should be at same level.
As part of our policy of continual improvement we reserve the right to
alter the specifications given in this document.

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 9
PURELAB Option-S US Reverse Osmosis Capacity Charts
Option S-7
Flow (l/hr)
Pressure (bar)
Graph 1 - Nominal Flowrate vs Inlet Pressure for
PURELAB Option-S7 US
Option S-15
Flow (l/hr)
Pressure (bar)
Graph 2 - Nominal Flowrate vs Inlet Pressure for
PURELAB Option-S15 US

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 10 PURELAB Option-S 7/15 US Version 1 08/14
4. CONTROLS
The PURELAB Option-S US operates with a tactile membrane touch
pad control panel which has a graphics display window and three
program function control buttons.
Details of how to use the controls will be given in the appropriate
sections.
Control Button Function
PROCESS Turns the process ON/OFF.
The PURELAB Option-S US control panel has a range of control
icons as follows:
Button Icon Description
LEFT
Menu
Scroll
RIGHT
Reset
Mute Alarm
Accept
Printer
Process button
Right hand
control button
Left hand
control button
Control Panel

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 11
5. INSTALLATION INSTRUCTIONS
5.1 Unpacking the PURELAB Option-S US
The following items should be supplied with your PURELAB Option-S
US:
1. PURELAB Option-S US unit
2. Cartridge Pack LC141
3. Installation kit (LA513 or LA506)
4. Operator Manual
5. Mains Lead
5.2 Positioning the PURELAB Option-S US
Before commencing with installation and operation of the PURELAB
Option-S US unit, please read and observe the following points.
Environment
The unit should be installed on a flat, level surface, in a clean,
dry environment. The unit can also be wall mounted against a
vertical wall capable of supporting the weight (for this we
recommend the use of the wall mounting kit Part No LA610).
CAUTION!If unit is to be wall mounted, ensure it is
mounted on a substantial brick or concrete
solid wall capable of supporting the
operating weight of the system. If
mounting the unit on the wall, use the wall
mounting kit and follow the instructions
included in the kit.
Note: Refer to specifications for unit weights.
The unit is designed to operate safely under the following conditions:
•Indoor Use
•Altitude up to 2000m
•Temperature Range 5 - 40°C
•Maximum Relative Humidity 80% @ 31°C decreasing linearly
to 50% @ 40°C, non-condensating
The unit is in Installation Category II, Pollution Degree 2, as per
IEC1010-1.
Rear mounting locations points
Unit Rear Mounting Points

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 12 PURELAB Option-S 7/15 US Version 1 08/14
Electrical
The unit can be connected universally to any electrical supply in
the range of 100 - 240V and 50 - 60Hz. The mains lead is
supplied with a molded plug on one end and a molded
connector to the unit on the other. The unit should be connected
to an earth.
Drain
A semi rigid flexible connection to a sink or suitable drain
capable of handling at least 1.5 l/min is required. The drain point
should have a gravity fall below the level of the unit and any
connections direct to drain should have an air-break device
fitted.
Feed Water
The feed water should be of good quality and comply with
specifications provided. This should enter the unit via an 8mm
(5/16") O/D semi rigid tube, and should be in the temperature
range 1 to 35°C.
CAUTION! Operating with feedwater temperatures
outside the range 1 to 35°C will cause
damage to the PURELAB Option-S US unit.
For pressurized feeds, the minimum direct inlet pressure is
4.0 bar (60 psi) and maximum inlet pressure is 6 bar (90 psi).
Higher feedwater pressures must be reduced using a pressure
regulator valve (Part No. LA512).
Reservoir feeds to the PURELAB Option-S US unit should be
positioned at the same height, or above the unit, to provide a
positive flooded inlet pressure.

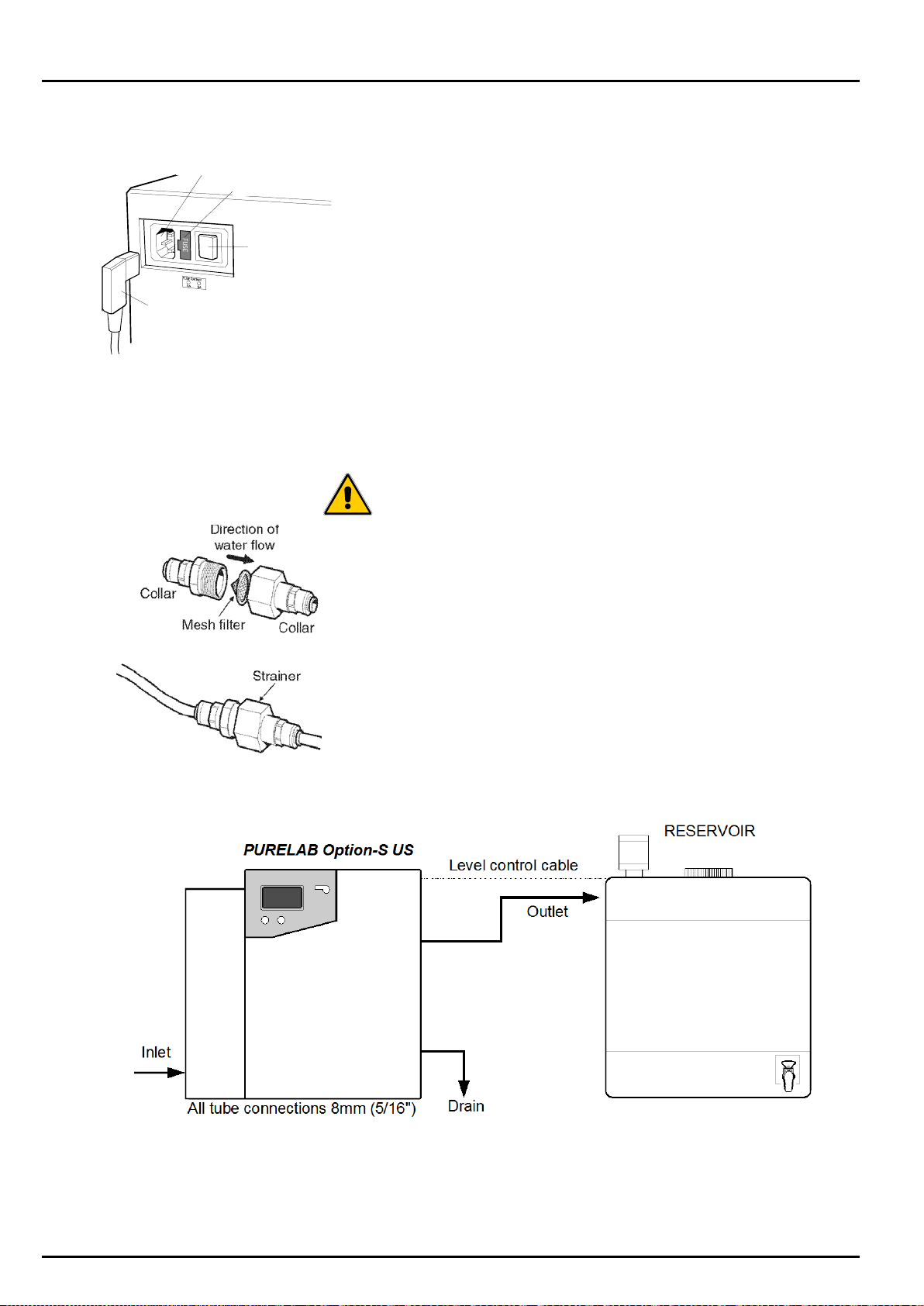

PURELAB Option-S US unit installed with storage reservoir
Feed Water Strainer
Mains power socket
Mains power lead
Fuse
ON/OFF
switch
Electrical Connections

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 13
Outlet to
reservoir
Blank
Blank
Drain
Outlet and Drain Connections
5.3 Connecting up the PURELAB Option-S US
Once the PURELAB Option-S US unit has been positioned either on
a wall or on a bench, it should be connected as follows:
•Mains water inlet tube
•Drain
•Outlet to reservoir
Step 1 - Fitting Tubes
1. PUSH in collet on connector.
2. PULL out transit plug.
3. CUT a clean square end on an 8mm OD semi
rigid drain tube.
4. PUSH tube into connector.
CAUTION! Do not restrict drain line.
CAUTION! If the water supply is at a pressure greater
than 6 bar (90 psi) fit a pressure regulator
(LA512).
Connector
Collet
Blanking
transit plug
Pull plug
Depress
collet
Clean square
cut end
Tube 8mm OD
Simply push in tube to attach
Tube in secured position
Fitting Tubes
Feed Water Inlet Connection

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 14 PURELAB Option-S 7/15 US Version 1 08/14

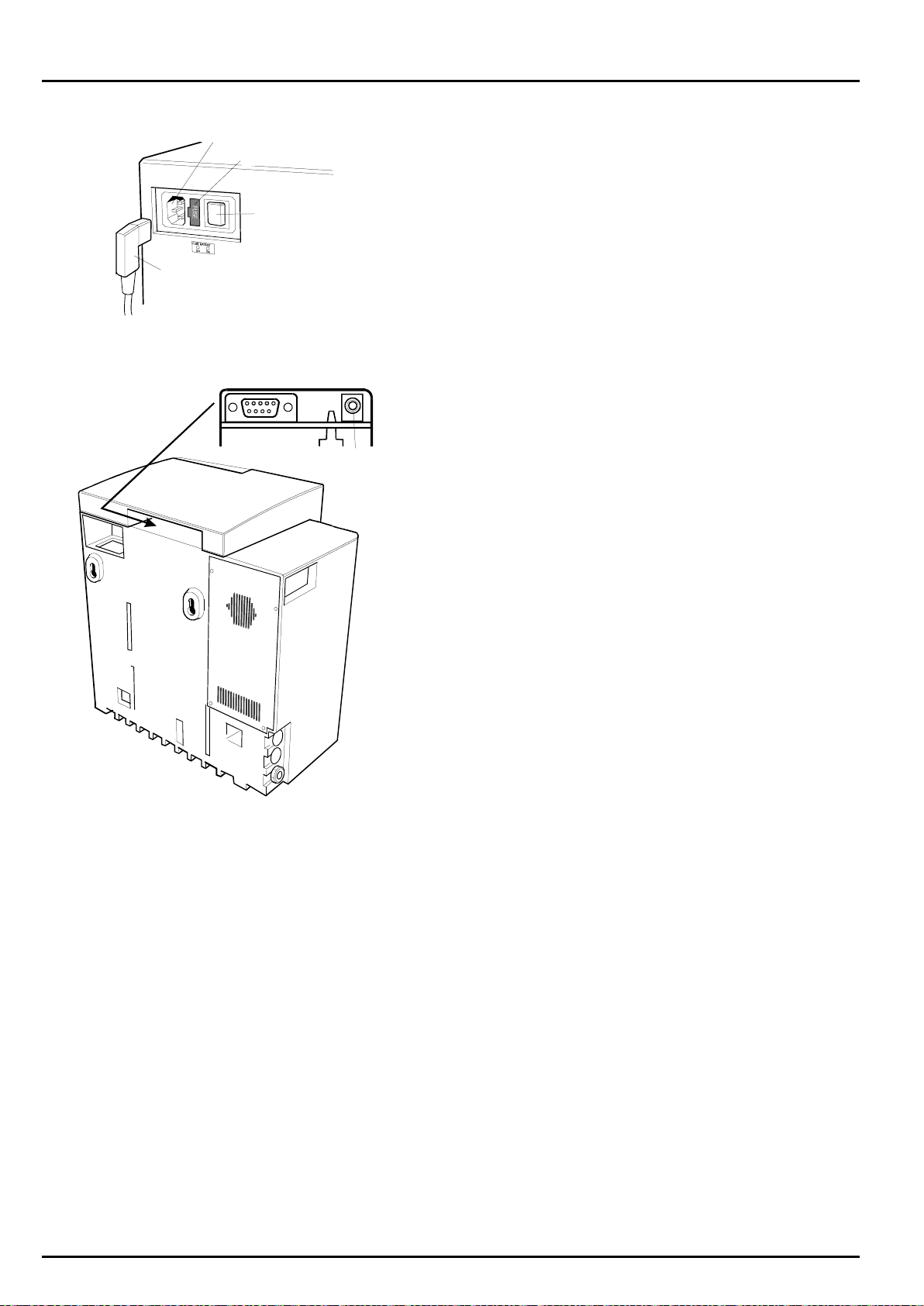

Step 2 - Connect Electrical Supply
1. PLUG mains lead into the socket on the left hand
side of the PURELAB Option-S US unit.
2. PLUG mains lead into mains socket.
Step 3 - Connect High/Low Level Switch to Reservoir
1. INSERT jack plug into the level control socket
located at rear of unit and reservoir.
Mains power socket
Fuse
ON/OFF
switch
Mains power lead
Electrical Connections
Level control
Reservoir Level Connections

ELGA PURELAB Option-S 7/15 US Operator Manual
PURELAB Option-S 7/15 US Version 1 08/14 Page 15
5.4 Initial Controller Set-Up
The PURELAB Option-S US control panel is fitted with three control
buttons. These are:
1. The PROCESS button, which switches the
purification process ON and OFF.
2. Two software controlled touch pad buttons which
are used to control set-up and process control
functions.
When the PURELAB Option-S US unit is started for the first time
after installation the following steps should be carried out to set up
system preferences:
Step 1 - Setting Up Menu Options
SWITCH the mains power on to initialize the controller hardware
set-up sequence.
Note: Always allow the initialization process to
complete. This is indicated by the
appearance of the MENU icon on the
control screen.
PRESS the MENU button to go to the next screen to activate
the set-up menu sequence.
A series of set-up screens will now be displayed. Various control
icons are used to allow you to step through the set up instruction
process. These icons include:
• A “scroll” icon indicated by an arrow
• An “accept” button indicated by a tick 
• A “selection” icon indicated by a 
Step 2 - Auto / Manual Restart
This allows the selection of the AUTO/MANUAL restart option. If
auto restart is selected the unit will automatically restart after a
power failure. In manual mode the unit will remain in standby.
Select the option required using the button and accept with
the button.
Step 3 - Audible Alarm Enabled / Disabled
This display provides the option of either enabling the audible
alarm causing it to sound or disabling the audible alarm causing
it to remain muted whilst it flashes the alarm. Select the option
required using the button and accept with the button.
Process button
Touch pad buttons
Menu
Start Up Screens
Auto Restart
Manual Restart
Auto/Manual Restart
Audible Alarm Enabled
Audible Alarm Disabled
Audible Alarm Enable/Disable

PURELAB Option-S 7/15 US Operator Manual ELGA
Page 16 PURELAB Option-S 7/15 US Version 1 08/14
Step 4 - Water Purity Unit Setting
This screen enables the preferred water purity unit of measure
to be set, to either, MΩ.cm or µS/cm. Once selected, all future
water purity measurements will be displayed with your unit of
choice. Select the option required using the button and
accept with the button.
Step 5 - Purity Alarm Setting
This screen is used for setting the value at which the water
purity alarm will activate.
If the MΩ.cm water purity alarm unit setting was chosen, then
the following water purity alarm choices will be displayed.
10 MΩ.cm 
5 MΩ.cm 
1 MΩ.cm 
If the µS/cm water purity alarm unit setting was chosen, then
the following water purity alarm choices will be displayed.
0.1 µS/cm 
0.2 µS/cm 
1.0 µS/cm 
Select the alarm setting required using the button and accept
with the button.
Note: To reset any of the setup parameters,
restart from the set-up menu and follow
instructions from Step 1.
Setting Up Display and Replacement Timers
Turn the unit off at the power inlet module. To enter the
replacement timer set up, press the left hand touch pad button
and at the same time turn the power on.
A graphic of the ion-exchange cartridge, UV lamp, pre-treatment
cartridge and clock graphics are displayed with hourly timer
status.
CAUTION! Before re-setting any of the cartridge
timers, ensure that the appropriate new
cartridges have been installed and
securely located correctly in the PURELAB
Option-S US.
Step 1 - Ion-exchange Cartridge Replacement Timer
Setting this screen will cause the Ion-exchange cartridge timer
to reset to the preset value of 4380 hours (6 months).
Press to jump to the next consumable or to initiate reset.
Press to reset timer or press to abort reset.
Press to jump to the next consumable.
MegaOhm
MicroSiemen
Purity Alarm Setting
Ion-exchange Cartridge Timer
MegaOhm
MicroSiemen
Water Purity Settings
