VERDER VERDERAIR CONT-EX VA-C10 User manual

Find you local supplier
at www.verderair.com
or scan the QR code
VA-C_man_Rev01-2016_VI_(uk)
Solid machined air operated diaphragm pumps
VERDERAIR CONT-EX

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 2
Pump Matrix
Atex
Warnings
Installation
Operation
Maintenance / repair
Trouble shooting
Parts and kits
Torque Values
Exploded views
Dimensions and mounting
Performance charts
Technical data
Customer services & guarantee
3
4
5
7
10
11
16
17
17
18
20
21
23
24
TABLE OF CONTENTS

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 3
PUMP MATRIX
Before putting your pump in operation,
check the identication plate (ID) on the
pump. The ID is mentioning the year of
construction, the serial number and the
construction code of the pump. Use the
matrix below to dene the components of
your pump. Make sure the wetted parts of
the pump are compatible to the pumped
liquid.
NOTE:
In case of doubt, please contact your
local supplier. (www.verderair.com)
To build a pump code, please use the
below coding system or use the pump
congurator on www.verderair.com.
PUMP CODING VA-C
Pump size Housing and center section valve material Diaphragm material
10 : 3/8" GG : Conductive Polyethylene TF : PTFE ball valve TO : PTFE overmolded
20 : 1/2" EP : EPDM ball valve EO : EPDM overmolded
50 : 3/4" CV : PE cylinder valve
130 : 1 1/4"
EXAMPLE : VA-C20GG TF TO
ID-Plate of Pump

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 4
ATEX
All pumps of the CONT-EX range are
manufactured from Conductive Polyethylene
and are ATEX certied II 2GD c T70°.
The pumps have to be grounded following
the instructions on page 8.
When using conductive diaphragms at the
liquid side, no restrictions are applicable.
When using non - conductive diaphragms,
the following protective measures have to be
taken into account:
Pumped liquid must be conductive or
soluble in water
Dry running have to be prevented by
means of monitoring systems
which are placed in the pump system
WARNINGS
The following warnings are for the setup,
use, grounding, maintenance, and repair
of this equipment. The exclamation point
symbol alerts you to a general warning
and the hazard symbol refers to procedure
specic risk. When these symbols appear
in the body of this manual, refer back to
these warnings. Additional, product-specic
warnings may be found throughout
the body of this manual where applicable.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or
explode. To help prevent re and explosion:
Use equipment only in well ventilated area.
Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric
lamps, and plastic drop cloths (potential static arc).
Keep work area free of debris, including solvent, rags and gasoline.
Do not plug or unplug power cords, or turn power or light switches on or off when
ammable fumes are present.
Ground all equipment in the work area. See grounding instructions.
Use only grounded hoses.
If there is static sparking or you feel a shock, stop operation immediately.
Do not use equipment until you identify and correct the problem.
Keep a working re extinguisher in the work area.
Static charge may build up on plastic parts during cleaning and could discharge
and ignite ammable materials and gases. To help prevent re and explosion:
Clean plastic parts in a well ventilated area.
Do not clean with a dry cloth.
WARNING

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
Do not operate the unit when fatigued or under the inuence of drugs or alcohol.
Do not exceed the maximum working pressure or temperature rating of the
lowest rated system component. See Technical Data in all equipment manuals.
Use uids and solvents that are compatible with equipment wetted parts. See
Technical Data in all equipment manuals. Read uid and solvent manufacturer’s
warnings. For complete information about your material, request MSDS from
distributor or retailer.
Do not leave the work area while equipment is energized or under pressure.
Turn off all equipment and follow the Pressure Relief Procedure in this manual
when equipment is not in use.
Check equipment daily. Repair or replace worn or damaged parts immediately
with genuine manufacturer’s replacement parts only.
Do not alter or modify equipment.
Use equipment only for its intended purpose. Call your distributor for information.
Route hoses and cables away from trafc areas, sharp edges, moving parts,
and hot surfaces.
Do not kink or over bend hoses or use hoses to pull equipment.
Keep children and animals away from work area.
Comply with all applicable safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Fluid from dispense valve, leaks, or ruptured components can splash
in the eyes or on skin and cause serious injury.
Follow Pressure Relief Procedure in this manual, when you stop the pump
and before cleaning, checking, or servicing equipment.
Tighten all uid connections before operating the equipment.
Check hoses, tubes, and couplings daily. Replace worn or damaged parts
immediately.
THERMAL EXPANSION HAZARD
Fluids subjected to heat in conned spaces, including hoses, can create a rapid
rise in pressure due to the thermal expansion. Over-pressurization can result
in equipment rupture and serious injury.
Open a valve to relieve the uid expansion during heating.
Replace hoses proactively at regular intervals based on your operating conditions.
WARNING
MPa/bar/PSI
MPa/bar/PSI

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 6
WARNING
PLASTIC PARTS CLEANING SOLVENT HAZARD
Use only compatible water-based solvents to clean plastic structural or pressure-
containing parts. Many solvents can degrade plastic parts and cause them to fail,
which could cause serious injury or property damage. See Technical Data in this
and all other equipment instruction manuals. Read uid and solvent manufacturer’s
warnings.
TOXIC FLUID OR FUMES HAZARD
Toxic uids or fumes can cause serious injury or death if splashed
in the eyes or on skin, inhaled, or swallowed.
Read MSDS’s to know the specic hazards of the uids you are using.
Route exhaust away from work area. If diaphragm ruptures,
uid may be exhausted with air.
Store hazardous uid in approved containers, and dispose of it according
to applicable guidelines.
Always wear impervious gloves when cleaning equipment.
BURN HAZARD
Equipment surfaces and uid that’s heated can become very hot during operation.
To avoid severe burns:
Do not touch hot uid or equipment.
Wait until equipment/uid has cooled completely.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing,
or when in the operating area of the equipment to help protect you from serious
injury, including eye injury, inhalation of toxic fumes, burns, and hearing loss.
This equipment includes but is not limited to:
Protective eyewear, gloves, and hearing protection
Protective clothing

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 7
INSTALLATION
Tighten Fasteners Before Setup
Before using the pump for the rst time,
check and retorque the housing bolts (23).
Also the valve stops of the discharge valves
(09) have to be checked. Also after the rst
day of operation, after periods of important
temperature
uctuations, after transport, after
dismantling of the pump and after periods
when the pump hasn’t been working the
stops, plugs and housing bolts have to be
checked. For the housing bolts please use
the torque values as mentioned on page 22.
Figure 1 showing the installation of the pump
AAir Control pro unit consists of:
- On/of valve
- Pressure regulator
- Throttle valve
- Soft start valve
BIsolating valve
CDischarge gauge
DSuction gauge
EFlexible connection
A
E
E
C
B
B
D
Recommended installation drawing
PLEASE CHECK THE ADDITIONAL DELIVERED
EXPLODED VIEW FOR ALL POSITION NUMBERS

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 8
Mounting
The pump exhaust air may contain
contaminants. Ventilate to a remote area.
See Air Exhaust Ventilation on page 9.
Never move or lift a pump under
pressure. If dropped, the uid section may
rupture. Always follow the Pressure Relief
Procedure on page 10 before moving or
lifting the pump.
1. Be sure the mounting surface can support
the weight of the pump, hoses and
accessories, as well as the stress caused
during operation.
2. For ease of operation and service, mount
the pump so air inlet, uid inlet and uid
outlet ports are easy accessible.
Grounding
The equipment must be grounded.
Grounding reduces the risk of static and
electric shock by providing an escape wire
for the electrical current due to static build
up or in event of a short circuit. In the site
housing a grounding connection is included.
Check your system electrical continuity
after the initial installation. Set up a regular
schedule for checking continuity to be sure
proper grounding is maintained.
Follow your local re codes. When pumping
ammable uids, always ground the entire
uid system as described.
Air Line
See recommended installation drawing
on page 7.
1. Install an air regulator and gauge. Set
pressure of the driving air should be
limited to the pressure required to run
the pump on the desired working point.
Setting the pressure too high will cause
higher wear of the pump and will increase
the compressed air consumption. The
uid stall pressure will be the same as the
setting of the air regulator.
2. If the air regulator do not have a bleed off
function to relieve trapped air, or the air
regulator is not placed close to the pump,
locate a bleed-type master air-valve close
to the pump. Be sure the valve is easily
accessible from the pump.
MPa/bar/PSI
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious
injury from splashing.
3. The master air valve will be used to
regulate the ow rate of the air to the
pump. By using a throttle valve, it is
possible to regulate the pump speed even
at the lower end of the curves.
4. Install a grounded, exible air hose
between the accessories and the pump
air inlet. The inner diameter of the hose
have to be the same diameter of the air
connection of the pump or bigger.

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 9
Air Exhaust Ventilation
Do not restrict the air exhaust port.
Excessive exhaust restriction can cause
erratic pump operation. At a diaphragm
rupture, it is possible the pumped liquid will
escape through the mufer. To prevent this
the air exhaust need to be remote to a safe
environment.
Fluid suction line
1. A shut of valve should be installed just
before the pump to isolate the pump
from the system for maintenance and
installation.
2. Always use a exible connection to avoid
vibrations being brought into the piping
system.
3. Use a suction line which can stand
vacuum. By the pumping action, vacuum
will be created at the suction side of the
pump.
4. The inner diameter of the hose should be
equal to the connection diameter of the
pump.
5. If the inlet pressure to the pump is more
than 25% of the outlet working pressure,
the ball check valves will not close fast
enough, resulting in inefcient pump
operation and is a possible cause of noise.
6. Inlet pressure greater than 1 bar (15
PSI), diaphragm life will be shortened.
Fluid outlet line
1. A shut of valve should be installed just
after the pump to isolate the pump
from the system for maintenance and
installation. A drain valve should be
installed to relief the pressure of the
pump before starting maintenance work
at the pump.
2. Always use a exible connection to avoid
vibrations being brought into the piping
system.
Fluid inlet and outlet ports
VA-C series of pump are having the suction
and discharge connections integrated in the
center block. Suction connection is horizontal
and discharge vertical. Pay attention to this
conguration as this is only valid for correct
pump function.
Installation remarks
1. VA-C pumps must be installed load free
to avoid possible damage of pumps
and/or installation.
2. VA-C pumps will be delivered with blind
plugs to prevent dust or other materials
to enter the pump. Those plugs have to
be removed before installing the pump!
3. As UV – radiation can damage
Polyethyene. This must taken in account
by installing VA-C pumps are made out of
Conductive PE.
4. The air-valves used in VA-C pumps are
manufactured with tight tolerances.
They should be used with clean, dry and
oil-free compressed air. If the quality of
the compressed air at the place where
the pump is installed is not optimal, it is
possible to install a dryer and/or a water
separator. Please contact your distributor
for more detailed information.
Figure 2
Discharge
Suction

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 10
5. VA-C pumps are dry self-priming. So they
don’t need to be lled before rst use.
The gures of the possible suction heights
can be found in the technical information.
(see page 21).
6. VA-C pumps will building up pressure at
the liquid side up to the pressure set on
the compressed air-inlet of the pump.
If this pressure is higher than the rated
pressure of the discharge line, a pressure
relief valve or another pressure safety
equipment should be installed at the
discharge side of the pump.
7. VA-C pumps can stall against a closed
discharge line without damage. The pump
will stop working when the pressure at
the liquid side of the diaphragms is equal
(or higher) then the compressed air
pressure at the air-side of the diaphragm.
As soon the pressure at the liquid side will
drop below the compressed air pressure,
the pump will restart automatically.
Due to internal losses, occasionally the pump
can make a stroke during stalling.
OPERATION
Pressure relief procedure
MPa/bar/PSI
Trapped air can cause the pump to cycle
unexpectedly, which could result in serious
injury from splashing.
1. Shut off the air supply to the pump.
2. Open the dispensing valve, if used.
3. Open the uid drain valve to relieve uid
pressure. Have a container ready to catch
the drainage.
Flushpumpbeforerstuse
The pump was tested before leaving the
factory. Residue of the testing water can be
left in the pump. To avoid contamination,
ush the pump before rst use.
Starting and adjusting the pump
1. Be sure the pump is properly grounded.
See page 8 for proper grounding.
2. Check ttings to be sure they are tight.
Tighten uid inlet and outlet ttings
securely.
3. Place the suction tube (if used) in uid
to be pumped.
NOTE: If uid inlet pressure to the pump is
more than 25% of outlet working pressure,
the ball check valves will not close fast
enough, resulting in inefcient pump
operation.
4. Place the end of the uid hose into an
appropriate container.
5. Close the uid drain valve.
6. Back out the air regulator knob, and open
all bleed-type master air valves.
8. Slowly increase air pressure with the air
regulator until the pump starts to cycle.
Allow the pump to cycle slowly until all air
is pushed out of the lines and the pump
is primed. Trapped air can cause the
pump to cycle unexpectedly, which could
result in serious injury from splashing.
9. If you are ushing, run the pump long
enough to thoroughly clean the pump
and hoses.
10. Close the bleed-type master air valve.
Pump shutdown
MPa/bar/PSI
At the end of the work shift and before you
check, adjust, clean or repair the system,
follow Pressure Relief Procedure, in the
left column here.

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 11
Special precautions
1. When medium is left in the pump
chambers, this can generate chemical
reactions when pumping another uid.
Always ush pumps with a neutral uid
before changing from medium.
2. Take care liquids left in the pump chamber
can’t freeze, this can damage the pump.
3. It is possible to run the pumps on
nitrogen gas instead of compressed air.
Take care about sufcient ventilation
around the pump as the exhaust of
the pump will put nitrogen gas in the
atmosphere.
4. Using the pump submerged: It is
necessary to connect the air outlet of
the pump to the atmosphere be using
a exible hose, to prevent liquid to
enter the air side of the pump. Take in
consideration , all external parts of the
pump must be 100% resistance to the
medium where the pump is placed in.
Special care have to been taken the pump
is standing 100% vertical and can’t start
to oat in all circumstances.
5. In case of big changes in temperature
while operating, it is necessary to control
the tension on the bolts carefully. Sudden
big temperature shocks can cause over or
under tightening of the pump and will lead
to leaks and/or damage the pump.
MAINTENANCE / REPAIR
Flushing and storage
Flush the pump often enough to prevent
the uid you are pumping from drying
or freezing in the pump and damaging
it. Always ush the pump and follow the
Pressure relief Procedure on page 10
before storing it for any length of time.
Use a compatible ushing agent.
Tightening Threaded connections
Before each use, check all hoses for wear
or damage and replace as necessary. Check
to be sure all threaded connections are tight
and leak-free. Tighten and retorque the
pump if necessary. Use torque values on
page 22
Preventive maintenance schedule
Establish a preventive maintenance
schedule, based on the pump’s service
history. This is especially important for
prevention of spills or leakage due to
diaphragm failure.
Disassembly
IMPORTANT:
Follow the Pressure Relief Procedure
at page 10 before starting to work at the
pump !
After a diaphragm rupture always make
sure no liquid is left at the air side of the
pump. Especially the mufer (07) have
to be checked before opening the pump.
The uid side of the range of VA-C pumps
are built together the same way. The only
difference are the number of assembly (23)
pins used. VA-C pumps are having different
right and left side housings (02 and 03).
1. The center section has the same built up
for VA-C50 and VA-C130. The air valves
for the VA-C10 and the VA-C20 are not
having an air valve shaft. On those pumps
the diaphragm shaft (19) is also used as
piston shaft. Due to this the VA-C10 and
VA-C20 are not having diaphragm shaft
o-rings and diaphragm shaft bearings (20)
mounted in the center housing.
Every Verderair CONT-EX pump is delivered
with a tool to disassemble the air valve.
Figure 3.1: air-valve tool
Figure 3.2:
plug tools
Special tools to easy disassemble the valve
plugs (9) can be ordered separately. See
gure 3.2.

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 12
Disassembly of the housing
Unscrew the bolts on the assembly pins
(23) on one side using a socket wrench.
Remove the washers, than remove the side
housing (02-03). Take care not to damage
the sealing surfaces in contact with the
diaphragms. Remove the assembly pins
from the other side housing and remove the
second side housing.
Disassembly of the valve seats and valve
balls (or cylindrical valves).
To have access to the valve seats and balls
you need to disassemble the pump side
housings rst. Unscrew the liquid plug (09)
at the top of the side housing (02-03) with
the special tool (see Figure 7.1 and 7.2).
Figure 5
Figure 6
22
1
2
1
3
4
Figure 4
Figure 7.1
Figure 7.2
Figure 8
9
12
2
9
2
2
Plug tool
Plug tool
Remove housing o-rings (22).
Remove discharge valve ball or discharge
cylindrical valve and put a at screwdriver
in to liquid ow hole of side section (see
gure 5) and gentle push-up seat to remove
it. Take out second valve ball (11) or the
cylindrical valve (10).

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 13

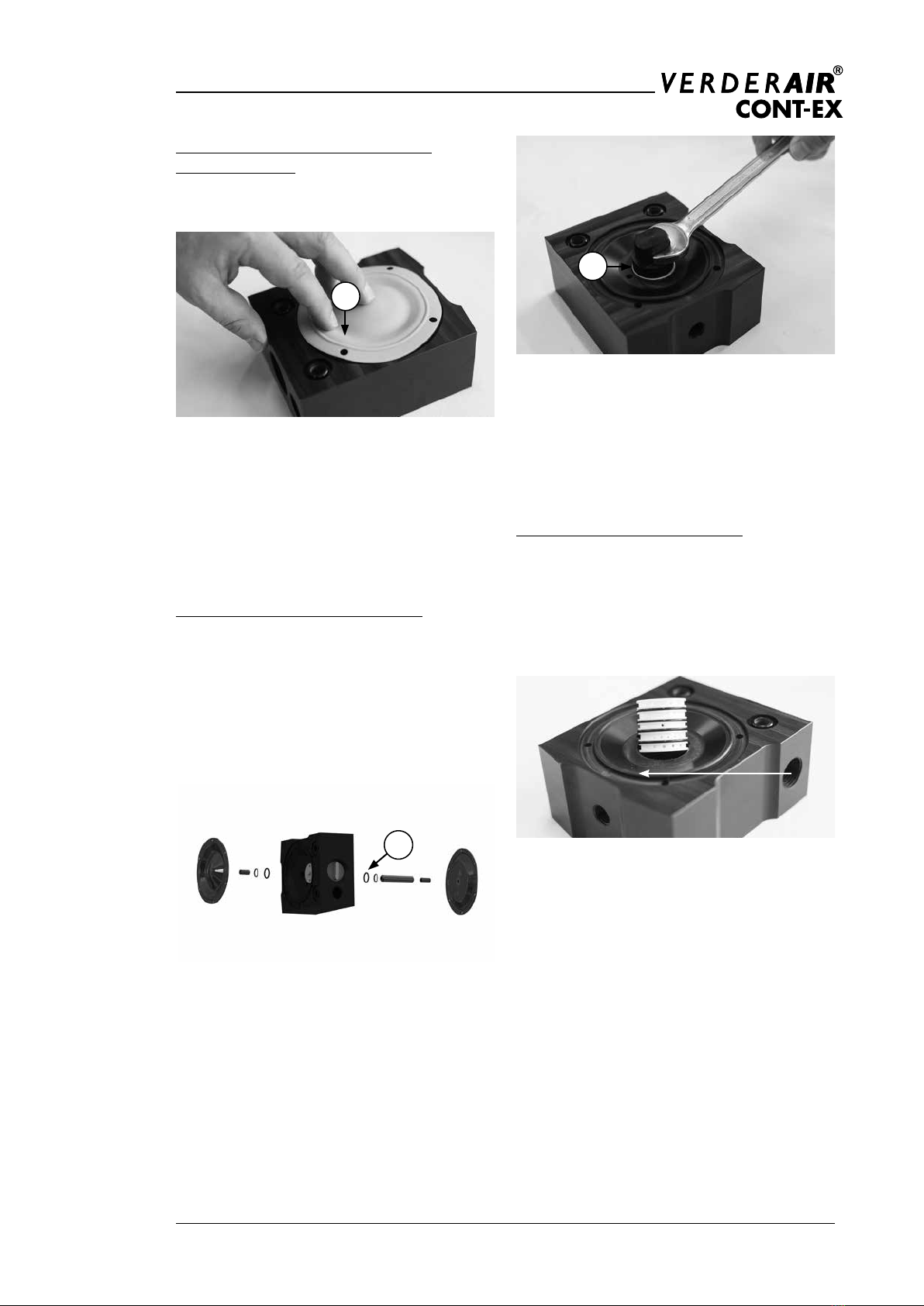

Disassembly of the diaphragms and
diaphragm shaft.
Unscrew one diaphragm (17) (left turning)
of the diaphragm shaft (19*).
Pull the diaphragm shaft (19*) with the
second diaphragm out of the centre housing
(01). Unscrew the second diaphragm from
the shaft.
* For VA-C10 and VA-C20, part of the air-
valve (27).
Disassembly of the centre housing.
For VA-C50 and VA-C130 (not for VA-
C10 and VA-C20). Remove carefully the
diaphragm shaft bearings and o-rings (20)
from their grooves in the centre housing.
(If disassembled they need to be replaced!)
Take care not to damage the edges of
the grooves (see Figure 10).
Unscrew the mufer (07)
Unscrew both end caps of the air valve (27)
by using the special tool (see Figure 11).
Push out the main-valve and the air valve
shaft (air valve shaft not for VA-C10 and VA-
C20). Push out the air-valve housing.
Assembly
Before starting to assemble please check all
parts on possible damages. Especially the
sealing area of the diaphragms have to be
free from scratches (see Figure 12).
Assembly of the centre housing.
Remove the end caps, the main-valve and
the air valve shaft out of the the air-valve
(27). Screw one end cap ush into the
centre housing (01) by using the special tool
(see Figure 11). Put 1 off the six air-valves
housing o-rings part of (27) into the end cap.
Push the air-valve housing in the centre
housing until it touches the end cap. Be sure
the 4 air valve-housing o-rings are kept in
their seat. Push the main-valve and the air
valve shaft (air valve shaft not for VA-C10
and VA-C20) in the centre housing.
Put the last air-valve housing o-ring on top
of it and screw the second end cap ush with
the centre housing using the special tool
(see Figure 11).
Screw the centre housing plug (04) in the
bottom connection (for standard pumps) of
the centre housing (01). Screw the mufer
(07) into the centre housing.>>
Figure 12
Figure 10
Figure 9
17
20
Figure 11
27
Sealing area

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 14
For VA-C50 and VA-C130 only :
put the diaphragm shaft o-rings (20) in
the groove of the centre housing, by
forming them as kidney’s with locking
ring pliers (see Figure 13).
Push them into the groove with a round
tool. On the same way the diaphragm shaft
bearings can be placed in the groove.
Assembly of the diaphragms and
diaphragm shaft.
Screw the diaphragm shaft screws (18)
into the diaphragms and tighten. Screw
one diaphragm (17) completely into the
diaphragm shaft (19) (see Figure 14).
Push the shaft in the centre housing (1) and
screw the second diaphragm (17) completely
into the shaft(19) (see Figure 15).
Adjust, when necessary, the position of the
holes for the assembly pins by turning one
of the diaphragms a little backwards.
Assembly of the housing.
Place O-rings (22) into side sections (2 and
3). Place the valve ball (11) or the cylindrical
valve (10) in to the side section integrated
suction seat (see Figure 16.1), place valve
seat (12) in to side section and pay attention
that valve seat ow bore will be in the
center with internal channel of side section
(see Figure 16.2). Put second valve ball or
cylindrical valve inside the seat. Place an
o-ring (14) on the top edge of valve seat
(see Figure 16.3) and close valve with valve
plug (09) using special tool. Screw in plug
ush to side housing top surface (Figure
16.4). Preassemble closed nuts and one at
washer at the one end of each assembly pin.
Push the assembly pins (23) through one of
the side housings (Figure 16.5).
Figure 14
Figure 15
Figure 16
Figure 13

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 15
Put the washers on the assembly pins and
put the bolts on. Fasten the bolts crosswise
up to the torque values as mentioned on
page 22.
Always test the pump on leakages before
using it.
Figure 17
Figure 16.3
Figure 16.5
Figure 16.2
Figure 16.4
14
23
Figure 16.1
Align both holes
Assemble plug
ush with side
housing

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 16
Problem Cause Solution
Pumps cycles at stall or falls to
hold pressure at stall.
- Worn check valves and/or
o-rings
- Replace worn parts.
Pump will not cycle, or cycle
once and stops.
- Air valve is dirty.
- Air valve is leaking
- Air valve is blocked
- Check if valve ball is not
sticked in seat or chamber.
- Icing of the mufer and/or
air valve.
- Not sufcient air pressure
- Discharge line is closed
- Suction line closed
- Diaphragm rupture
- Clean or replace the air valve.
Use ltered air!
- Replace air valve
- Replace air valve
- Replace valve balls and/or seats.
- Improve air quality.
- Check air supply system on
blockage and/or leakage.
Or increase air supply.
- Open valve in the discharge line
and/or check on blockage.
- Open valve in the suction line
and/or check on blockage.
- Replace the diaphragms and clean
the pump.
Pumps operates erratically - Clogged suction line
- Check valves sticky or
blocked.
- Diaphragm rupture
- Restricted exhaust
- Air valve is leaking or blocked
- Check suction line
- Clean or replace check valves.
- Replace the diaphragms and clean
the pump.
- Remove restriction (check on icing!)
and when necessary replace
mufer.
- Replace air valve
Air bubbles in uid - Suction line is loose
- Diaphragm rupture
- Suction container empty
- Cavitation
- Tighten
- Replace the diaphragms and clean
the pump.
- Fill or replace suction container
- Check suction condition and adapt
when necessary
Fluid in exhaust air - Diaphragm rupture - Replace the diaphragms and clean
the pump.
Insufcient discharge pressure - Not enough air pressure
- Air supply is leaking
- Check valves worn
- Air valve is leaking
- Increase compressed air pressure
or check if no other components are
consuming to much air on the same
compressed air line.
- Check and repair
- Replace check valves
- Replace air valve
Discharge is decreasing - Other components are
consuming to much air on
the same air supply line.
- Air supply is reduced
- Suction strainer is blocking
- Discharge strainer is blocking
- Medium becomes more
viscous
- Mufer blocked
- Increase the volume of air.
- Check air supply system on
blockage and/or leakage.
- Clean suction strainer
- Clean discharge strainer
- Check why and if necessary adjust
pump settings.
- Clean out or replace. Check on
icing!
Pump is running but not
enough suction capability
- Pump is running to fast
- Cavitation
- Suction strainer is blocking
- Suction line closed
- Worn check valves
- Leak in suction line and/or
suction connections
- Start-up pump slow running. Once
the pump is lled with liquid you
can run the pump faster.
- Check suction condition and adapt
when necessary
- Clean suction strainer
- Open valve in the suction line
and/or check on blockage.
- Replace worn parts.
- Repair and make leak tight

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 17
PART & KITS
Parts
Kits
In case of break down, we recommend to have a spare part kit for your pump on stock.
Spare part kits contains:
Spare part kit, content Quantity
O-ring side housing (22)
Ball (11) / cylinder valve (10)
Diaphragm (17)
O-ring valve plug
Shaft seal (20) (only VA-C50 and VA-C130)
Mufer (7)
Air valve (27)
4
4
2
2
2
1
1
Please check the seperate spare parts list for the order nr. for the kit you need for your pump.
SEE SEPERATE PARTS LIST
Torque values for housing bolts assembly in Nm
Device model VA-C10 VA-C20 VA-C50 VA-C130
all models 3 4 6 8
Torque values for housing bolts assembly in inlb
Device model VA-C10 VA-C20 VA-C50 VA-C130
all models 27 35 53 71
TORQUE VALUES

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 18
EXPLODED VIEWS
VA-C10 & VA-C20
623
3 17 27
2
101112
1
97
14 22
POS. N° DESCRIPTION QUANTITY NEEDED
1 CENTER HOUSING 1
2 SIDE HOUSING RIGHT 1
3 SIDE HOUSING LEFT 1
6 SHOCK ABSORBER 4
7 MUFFLER 1
9 VALVE PLUG 2
10 CYLINDER VALVE 4
11 VALVE BALL (*) 4
12 VALVE SEAT(**) 2
14 O-RING SET VALVE PLUG 1
17 DIAPHRAGM 2
22 O-RING SET HOUSING 1
23 ASSEMBLY PIN SET 4
27 AIR VALVE 1

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 19
EXPLODED VIEWS
VA-C50 & VA-C130
23 6
2
10
1112
22
1
7149
3 17 19 20 18 27
POS. N° DESCRIPTION QUANTITY NEEDED
1 CENTER HOUSING 1
2 SIDE HOUSING RIGHT 1
3 SIDE HOUSING LEFT 1
6 SHOCK ABSORBER 4
7 MUFFLER 1
9 VALVE PLUG 2
10 CYLINDER VALVE 4
11 VALVE BALL (*) 4
12 VALVE SEAT(**) 2
14 O-RING SET VALVE PLUG 1
17 DIAPHRAGM 2
18 DIAPHRAGM SHAFT SCREW 2
19 SHAFT 1
20 BEARING SET SHAFT 1
22 O-RING SET HOUSING 1
23 ASSEMBLY PIN SET 6
27 AIR VALVE 1

VA-C_man rev01-2016_VI_(uk) | 1.02.2017 20

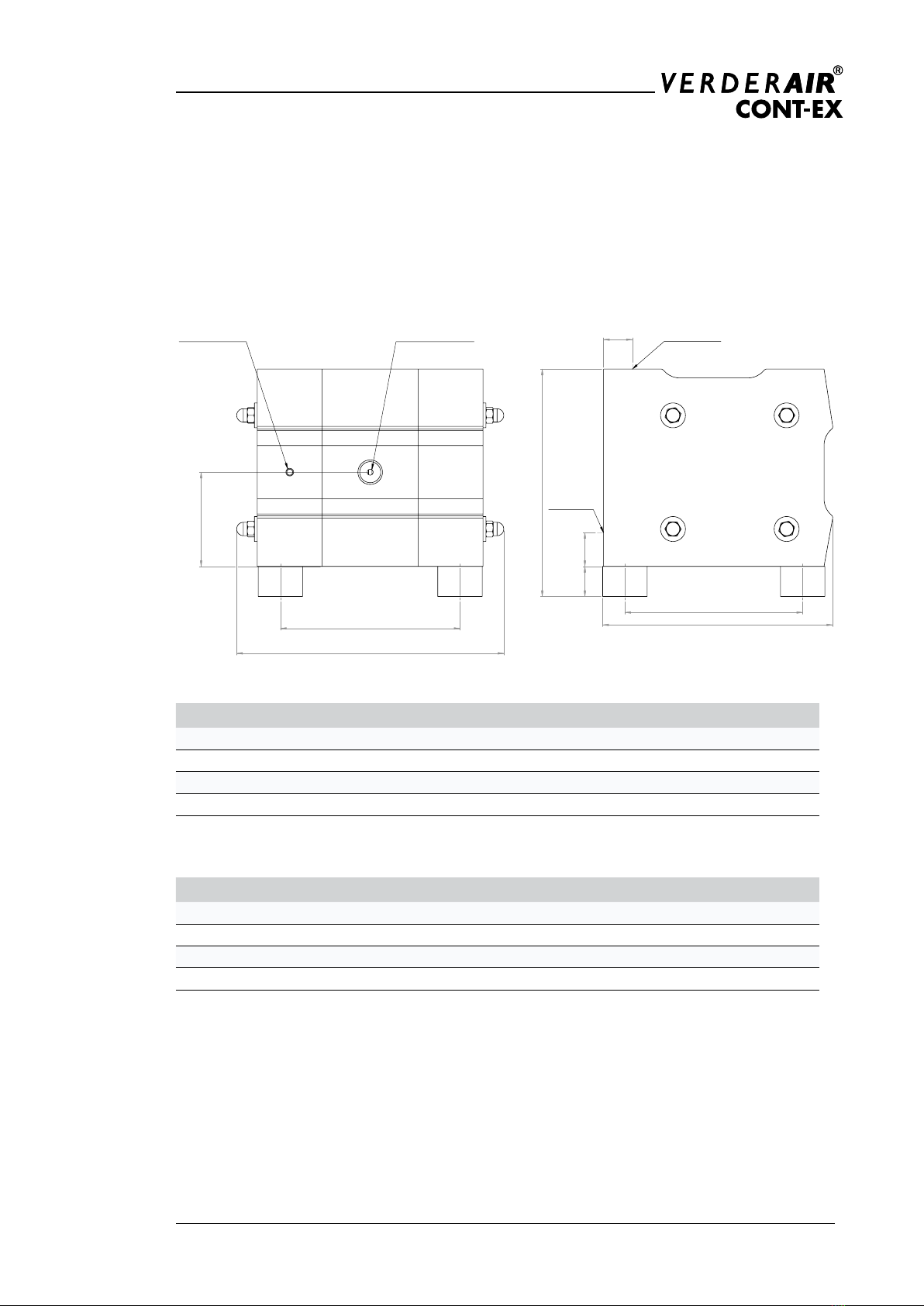

DIMENSIONS
A
M
B
R
Q
O
G SUCTION
G DISCHARGE
C
S
N
H COMPRESSED AIR
M4 GROUNDING
ALL TYPES
TYPE A B C G H M N O Q R S
VA-C10 90 94 132 NPT 3/8" R 1/4" 71 41 14 15 8 98
VA-C20 130 128 150 NPT 1/2" R 1/4" 100 53 19 19 17 101
VA-C50 180 172 197 NPT 3/4" R 1/4" 150 75 27 23 17 145
VA-C130 246 223 259 NPT 1-1/2" R 1/4" 215 100 37 33 17 200
TYPE A B C G H M N O Q R S
VA-C10 3,54 3,70 5,20 NPT(f) 3/8" R 1/4" 2,80 1,61 0,55 0,59 0,31 3,86
VA-C20 5,12 5,04 5,91 NPT(f) 1/2" R 1/4" 3,94 2,09 0,75 0,75 0,67 3,98
VA-C50 7,09 6,77 7,76 NPT(f) 3/4" R 1/4" 5,91 2,95 1,06 0,91 0,67 5,71
VA-C130 9,69 8,78 10,20 NPT(f) 1 1/2" R 1/4" 8,46 3,94 1,46 1,30 0,67 7,87
in mm
in inches
