Verizon Wireless Network_Extender_Business Installation instructions manual

WALL AND
CEILING MOUNT
BRACKET
INSTALLATION
GUIDE
NETWORK EXTENDER
FOR BUSINESS
EP96-03684A

1
CONTENTS
BASICS
Provides a description of what is in the
installation box, an overview of your
installation components, and a brief overview
of the differences between the various
installation and mounting options.
INSTALLATIONS
Describe the setup and installation
procedures for all three available mounting
options including: Floating Ceiling, Fixed
Ceiling, and Wall Mounting.
CONTENTS
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 1 10/24/2011 12:54:02 PM

BASICS
2
WARNING
The Network Extender for Business should
not be installed near fire or smoke sensors or
detectors, or installed so as to block exit or
other safety signs, fire or other emergency
or warning lights, and the power cord cannot
be tucked up into a floating ceiling. The
Customer is responsible for insuring that
installation complies with all applicable
building codes, and any other applicable
laws, ordinances, rules and regulations.
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 2 10/24/2011 12:54:04 PM

3
BASICS
BASICS
BRACKET FEATURES
1. RAILBRACKET
2. POE SPLITTER
ENCLOSURE
3. NETWORK
EXTENDER FOR
BUSINESS
(SCS-2U3100)
4. FIXED BUTTONS
(TWO PER SIDE)
1
2
3
4
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 3 10/24/2011 12:54:17 PM

4
BASICS
1. RAILBRACKET
2. SPLITTER
ENCLOSURE - TOP COVER
3. SPLITTER ENCLOSURE
- BODY
4. ETHERNET PORT
5. LAN PORT (NETWORK)
6. POWER PORT
1
2
3
4
5
6
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 4 10/24/2011 12:54:26 PM

5
BASICS
WHAT’S IN THE BOX
1. Confirm the box contents:
≠(1) Enclosure ISG (Installation Guide)
≠(1) Rail Bracket
≠(1) POE Splitter Enclosure (Top Cover,
and Housing)
≠(9) Securing screws
≠(2) Drywall screws
≠(2) Drywall anchors
2. Remove them from the packaging and
place them carefully nearby.
NOTE: There are a total of 9 securing screws: 2 are
preassembled to rail bracket, 4 are used to assemble the rail
bracket to top cover, and 3 to assemble the top cover to the
enclosure.
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 5 10/24/2011 12:54:27 PM

6
BASICS

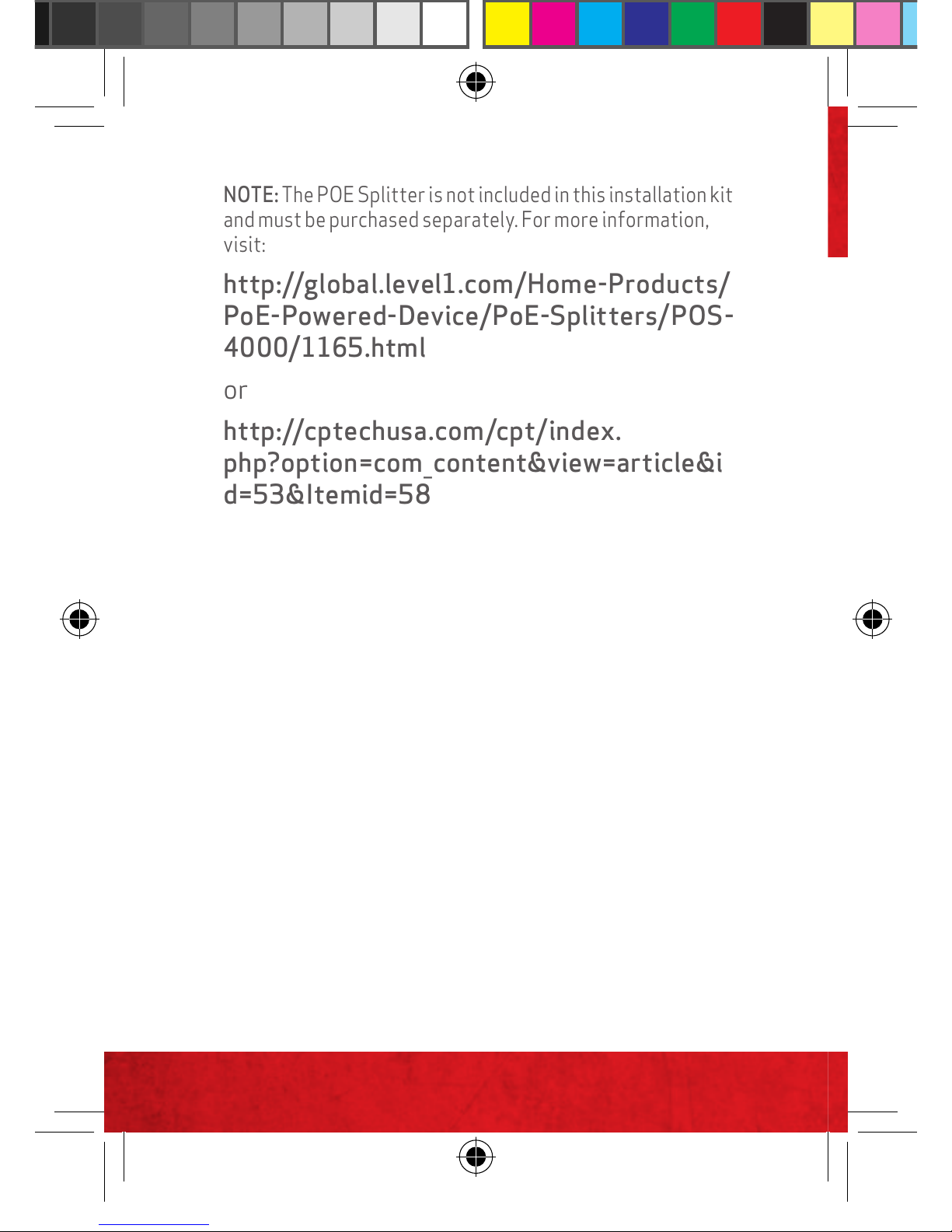

NOTE: The POE Splitter is not included in this installation kit
and must be purchased separately. For more information,
visit:
http://global.level1.com/Home-Products/
PoE-Powered-Device/PoE-Splitters/POS-
4000/1165.html
or
http://cptechusa.com/cpt/index.
php?option=com_content&view=article&i
d=53&Itemid=58
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 6 10/24/2011 12:54:28 PM

7
INSTALLATIONS
INSTALLATION
This section covers the installation
procedures for all three available mounting
scenarios:
≠Floating Ceiling Bracket Mounting
≠Fixed Ceiling Bracket Mounting
≠Wall Bracket Mounting
FLOATING CEILING BRACKET
MOUNTING
Confirm you have the following items:
≠Rail Bracket
≠Splitter - Top Cover
≠POE Splitter (not included)
≠Splitter - Enclosure
≠Securing screws (4)
≠Cables: LAN, Ethernet, and Power
NOTE: The following rail widths are supported: 15 mm
(9/16”), 24 mm (15/16”), 38 mm (1-1/2”), and 56 mm
(2-13/64”)
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 7 10/24/2011 12:54:28 PM

8
INSTALLATIONS
In environments where there are ceiling
tiles (Floating ceilings) being supported
by rails, use the rail bracket to support the
installation of the POE Splitter Enclosure.
RAIL AND BRACKET INSTALLATION
1. Locate the rail bracket.
2. Remove the four silver bracket securing
screws from the areas above and below
the measurement tongs.
3. Spread open the rail bracket to fit onto
the rail.
[Rail Width]
1. 15mm (9/16”)
2. 24mm (15/16”)
3. 38mm (1-1/2”)
4. 56mm (2-13/64”)
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 8 10/24/2011 12:54:29 PM

9
INSTALLATIONS
4. With the bracket placed securely on the
rail, pull the bracket measurement tongs
outwards to close the bracket onto the
rail.
5. Tighten the rail screws (shown above) to
fasten the bracket to the rail.
6. Align the rail bracket to the POE Splitter’s
top cover (orient the cable opening as
shown).
7. Align the screw holes between the rail
bracket and top cover.
NOTE: Both the top cover and rail bracket can be rotated
to accommodate for different installation orientations as
seen in following image.
CABLE OPENING
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 9 10/24/2011 12:54:30 PM

10
INSTALLATIONS
8. Insert and tighten the previously
removed screws to fasten the bracket to
the top cover.
RAILBRACKET
using a 90� Rotation
TOP COVER
using a 90� Rotation
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 10 10/24/2011 12:54:34 PM

11
INSTALLATIONS
9. Thread the LAN Ethernet cable (from
your local network) through the cable
opening on the top cover.
SECURING SCREWS
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 11 10/24/2011 12:54:36 PM

12
INSTALLATIONS
ENCLOSURE AND CABLE INSTALLATION
1. Connect all three cables to their
corresponding port locations on the POE
Splitter as shown.
NOTE: The LAN cable must originate from a PoE port on a
PoE - compatible switch that can pass both power and data
through the CAT cable.
LAN CABLE (POE SWITCH - NETWORK)
ETHERNET CABLE TO
NETWORK EXTENDER
POWER CABLE TO
NETWORK EXTENDER
POWER PORT
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 12 10/24/2011 12:54:46 PM

13
INSTALLATIONS
ENCLOSURE AND CABLE INSTALLATION
1. Connect all three cables to their
corresponding port locations on the POE
Splitter as shown.
NOTE: The LAN cable must originate from a PoE port on a
PoE - compatible switch that can pass both power and data
through the CAT cable.
2. Thread the Ethernet cable and Power
cable through the housing and out the
bottom cable opening.
3. Insert the splitter component into the
housing.
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 13 10/24/2011 12:54:51 PM

14
INSTALLATIONS
4. Assemble the POE Splitter to the top
cover as shown.
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 14 10/24/2011 12:55:23 PM

15
INSTALLATIONS
5. Secure the top cover to the enclosure
using the three securing screws.
SECURING SCREWS (3)
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 15 10/24/2011 12:55:24 PM

16
INSTALLATIONS
6. Slide the Network Extender into the
bottom of the POE Enclosure as shown.
NETWORK EXTENDER
FOR BUSINESS (SCS-2U3100)
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 16 10/24/2011 12:56:42 PM

17
INSTALLATIONS
7. Align the Fixed Buttons to their
corresponding opening alongside the
Network Extender.
8. Press each Fixed Button until they snap
into their secured position.
UNSECURED SECURED
FIXED
BUTTONS
(4)
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 17 10/24/2011 12:58:06 PM

18
INSTALLATIONS
9. Connect the Power and Ethernet cable
connectors (previously threaded through
the side opening) to their corresponding
ports on the attached Network Extender.
Ethernet Cable
Connector
Power Port
Power cable
Connector
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 18 10/24/2011 12:58:08 PM

19
INSTALLATIONS
10. Confirm the proper installation of
both cables to the attached Network
Extender.
Power Cable
Ethernet
Cable
VZW_BCNE8_NEBracket_Mounting_ISG_WB_100511_F8.indd 19 10/24/2011 12:58:22 PM
