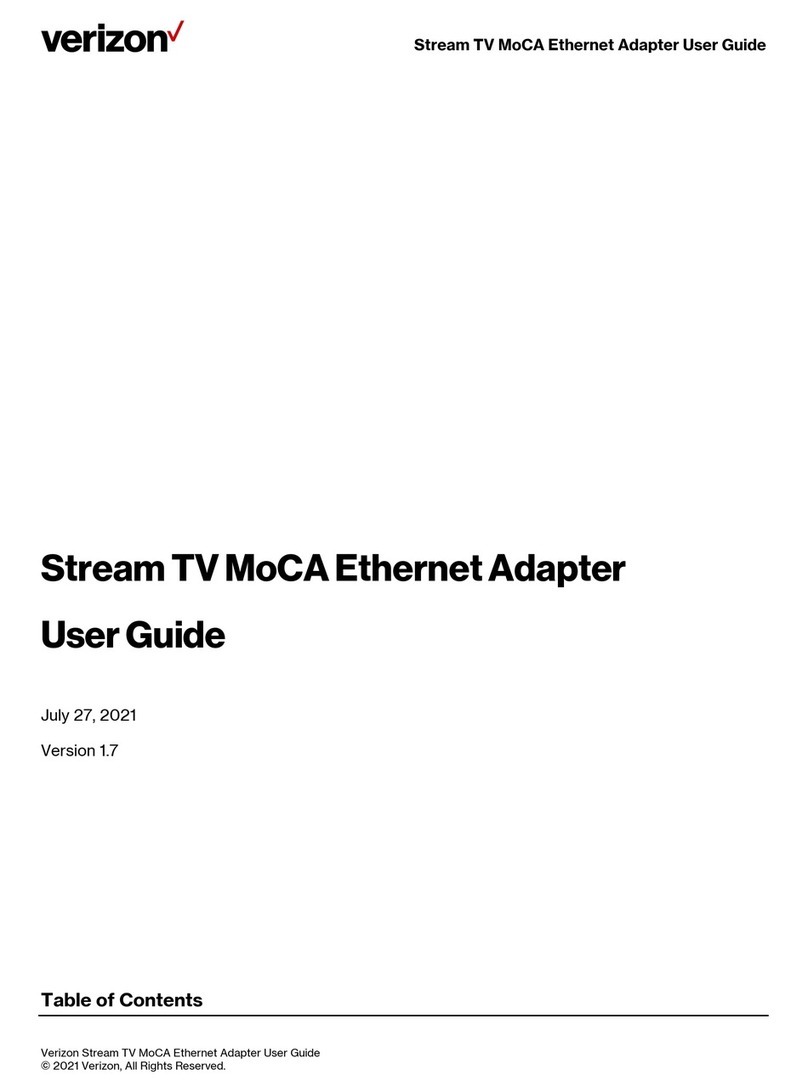

Verizon ASK-MAE340 User manual

MoCA Ethernet
Adapter
Model: ASK-MAE340

   

 
1. MoCA Ethernet Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Inside the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Install MoCA Ethernet Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.1 Positioning the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.2 Mounting the device to the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.3 Setup requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.4 Installing the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.Congure your MoCA Ethernet Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.1 Log in the device’s Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. Web User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.1 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5.2 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3 Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7. Technical specication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.Regulatory compliance notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

1. MoCA Ethernet Adapter
The MoCA Ethernet Adapter uses the existing coaxial
wiring in most homes to create a high-speed Ethernet
network connection. The MoCA Ethernet Adapter complies
with MoCA 2.5 standard which can deliver up to 2.5Gbps
wired speed through your existing home coaxial wiring.
With four Ethernet ports, the MoCA Ethernet Adapter
provides wired connections of all your devices including
PC, TV, streaming devices, gaming console, and Data Reset
more devices to access content simultaneously.
DC Port
2.5G RJ-45 Port 1G RJ-45 Port
1


Interfaces & buttons
Interfaces Description
Data The “Data” port on the MoCA Ethernet Adapter is for connection
to your existing Coaxial network.
DC Port Connect the supplied 12V, 1A power adapter to this port to power
on the device.
Reset If you experience difficulties with your device or want to revert all
settings that you have changed, the reset button allows you to
reset the device back to its factory default state. A single quick
press and release the reset button restart the device. Press and
hold the reset button for 10 seconds to restore the factory default
settings.
2.5G RJ-45 Port The 2.5G RJ-45 port creates an interface to connect an Ethernet
device via your MoCA network.
1G RJ-45 Port The 1G RJ-45 ports provide 1Gbps Ethernet connection for
Ethernet enabled devices via your MoCA network.
LEDs
The LEDs indicate the system and Ethernet connection status of the MoCA Ethernet Adapter.
Indicator/ Scenario Description Light type
System System off Off
Power on Yellow
MoCA network connected White
MoCA traffic Blinking White
RJ45 10/100M connection speed Yellow
1G/2.5G connection speed White
10/100M connect (traffic) Blinking Yellow
1G/2.5G connect (traffic) Blinking White
2

2. Inside the box
Inside the product package you should nd the following items. Contact Verizon Customer
Support if any of the items is missing or damaged.
MoCA Ethernet Adapter
Ethernet Cable Coaxial Cable x2 Wall Mount Screw
Splitter Power adapter
3

3. Install MoCA Ethernet Adapter
3.1 Positioning the device
• Position the device where the cable can axcess the power outlet
and coax source
• Keep the device away from the direct sunlight.
3.2 Mounting the device to the wall
Please follow the steps below to install the MoCA Ethernet
Adapter on the wall.
Step 1: Mark on the wall where you would like to install the
device and pre-drill a hole for the anchor.
Step 2: Install the anchor and screw into the pre-drilled hole.
Step 3: Hang the device onto the screw through the mounting
hole on the device.
3.3 Setup requirements
To congure your MoCA Ethernet Adapter via a computer,
you need a router and computer that meet the following
system requirements:
• A router supports RJ-45 LAN and MoCA LAN.
•A computer with an Ethernet RJ-45 (LAN) port
(10Base-T/100Base-TX/1000Base-TX/2.5GBASE-T).
• Web browser such as Internet Explorer, Firefox, Safari,
or Google Chrome.
4

     
3.4 Installing the device
3.4.1 Use the MoCA Ethernet Adapter as a connector
between the coax outlet and your computer.
1. Verify that the MoCA capable router in your home is
connected to a coax outlet at the router location.
2. Connect a coaxial cable from the coax outlet to the “Data”
port on the MoCA Ethernet Adapter. If needed, use the
included RF splitter to add an additional coax connector
from the coax outlet.
3. Connect your laptop, desktop, or game console devices to
the “LAN” ports on the MoCA Ethernet Adapter.
4. Connect the provided Power Adapter to the MoCA
Ethernet Adapter.
5. Wait for the system light to turn solid white. This indicates
that the MoCA Ethernet Adapter has successfully formed
a network with the router.
5

     
3.4.2 Use the MoCA Ethernet Adapter as a connector
between your router and your coax outlet.
1. Connect a coaxial cable from the coax outlet to the “Data”
port on the MoCA Ethernet Adapter. If needed, use the
included RF splitter to add an additional coax connector
from the coax outlet.
2. Connect an Ethernet cable from the “2.5G LAN” port of
the MoCA Ethernet Adapter to the Ethernet port on the
modem/router.
3. Connect your laptop, desktop, or game console devices
to the “LAN” ports on the MoCA Ethernet Adapter.
4. Connect the provided Power Adapter to the MoCA
Ethernet Adapter.
5. The system light should be yellow. This indicates the MoCA
Ethernet Adapter has powered on, and it is ready for other
MoCA enabled devices to join the MoCA network.
6

    4. Congure your MoCA Ethernet Adapter
The MoCA Ethernet adapter works out-of-the-box without
additional settings. If you want to change settings (such
as the IP address), you can congure via the device’s
Web User Interface.
4.1 Log in the device’s Web User Interface
Make sure that the MoCA Ethernet adapter is properly
connected to the home network (refer to section 3 on
how to install your MoCA Ethernet Adapter).
1. Find the IP address of the MoCA Ethernet Adapter from
the home router.
2. Open a web browser and enter the MoCA Ethernet
Adapter’s IP Address in the address bar.
3. The login dialog box is displayed.
4. Enter the username and password.
Username: admin
Password: password can be found by scanning the
QR code on your MoCA Ethernet Adapter’s product label.
5. You can use the Web UI to view or change the device settings.
7

5. Web User Interface
The MoCA Ethernet Adapter’s Web User Interface (Web UI) allows you to check the current
status of the device and congure its various functions. Ensure you click the Save button
to save your settings after making changes. After completing the conguration, reset the
device for the settings to take effect (please refer to Section 5.3.1 on how to reset the device).
Menu Save
Use the left side of the menu to navigate. Remember to save your changes by clicking on the
save button.
8

5.1 Settings
5.1.1 MoCA Settings
This page is the rst screen you will see when accessing the
Web User Interface of MoCA Ethernet Adapter. It allows you
to congure the basic MoCA settings of the device. Please
ensure to click the “Save” button to save your settings after
making changes. After completing the conguration, please
Reset the device for the settings to take effect (refer to
Section 5.3.2 on how to reset the device).
9

MoCA Setup
Name You can select the adapter name here to indicate the location
of the device.
LOF The Last Operating Frequency (LOF) parameter identies the
frequency (in MHz) that the MoCA Ethernet Adapter uses to
transmit beacon for joining the MoCA network.
Tx Power The Tx power parameter is the maximum transmit power of the
MoCA Ethernet Adapter. Each incremental value increases the
transmit power by 3dB. The following table lists the transmit
power for each setting.
value 10 9 8 7 6 4 3 2 15 0
dBM 2 -1 -4 -7 -10 -13 -16 -19 -22 -25 -28
Beacon Power Level The beacon power level is the maximum power of the MoCA
Ethernet Adapter for beacon transmission power. The value
range is from 1 to 10. Each incremental value increases the
beacon transmit power by 3dB. When the MoCA Ethernet
Adapter is set up with a higher beacon power level, it may
interfere with the video devices connected to the coaxial cable.
Please leave it at the default setting if you are not sure what
value to use.
10

5.1.2 Device Settings
This page allows you to congure the IP address assignment
mode of the MoCA Ethernet Adapter. The IP Address is not
needed for normally operating the MoCA Ethernet Adapter. It
is only for you to access the Web User Interface of the MoCA
Ethernet Adapter.
Please ensure to click the button to save your settings
after making changes. After
Save
completing the conguration,
reset the device for the settings to take effect
(refer to Section 5.3.2 on how to reset the device).
11

Device Setup
DHCP & Link Local
Automatic Conguration By default, the DHCP & Link Local Automatic Conguration is selected and you will obtain an IP address for the MoCA
Ethernet Adapter from your home router. It is recommended
to select this mode.
Static IP Address Select the Static IP Address if you want to manually
congure the IP address of the MoCA Ethernet Adapter.
IP Address This is only needed if the Static IP Address is selected above.
Enter the IP address. Please make sure that the IP address
of each MoCA Ethernet adapter is unique and is in the same
network subnet as the home network.
Netmask This is only needed if the Static IP Address is selected above.
Enter the Netmask.
Gateway This is only needed if the Static IP Address is selected above.
Enter the IP address of your home router.
12

 

 
5.1.3 Security Settings
This page allows you to change the Administrator Security
and MoCA Network Security.
Administrator Security
The Administrator password is only used to log in to the
Web User Interface of the MoCA Ethernet Adapter. You can
nd the default password by scanning the QR code on the
product label in the back of the MoCA Ethernet Adapter. It is
recommended that you change the factory default password
to prevent the unauthorized access to the Web User Interface
of the device.
MoCA Network Security
The MoCA Network Security password allows you to control
which MoCA Ethernet Adapter can join your home MoCA
network. When it is enabled, all devices on your MoCA network
must use the password designated here to join the MoCA
network. By default, this setting is disabled. Note that all
devices on your MoCA network must have the same MoCA
Network Security setting.
Please ensure to click the Save button to save your settings
after making changes. After completing the conguration,
Reset the device for the settings to take effect (refer to
Section 5.3.2 on how to reset the device).
13

   
  
Web GUI Admin Security Setup
Old Password Enter the old administrator password of the MoCA Ethernet
Adapter in the old password textbox.
New Password Enter your new password in the new password textbox. The
password contains any combination of 4-64 characters.
Conrm Password Retype your new password to conrm the setting.
Note: If the new password is lost or forgotten, it cannot be
retrieved and the device will need to be reset to regain access.
MoCA Network Security Setup
Security Enabled The Network Security allows the user to enable or disable the
network encryption on the MoCA network.
New Password The Network security password must be between 12 to 17
numbers only. Do NOT include spaces, letters, or
special characters.
Conrm Password Retype your new password to conrm the setting.
14

5.2 Status
5.2.1 Device Status
This page displays the current status and conguration
settings of the MoCA Ethernet Adapter.
15

Device Status
Firmware Version
My MoCA Version
Network MoCA
IP Address
MAC Address
MoCA Link Status
Beacon Channel
Primary Channel
Secondary Channel
First Channel
Number of Channels
MoCA TX
MoCA RX
Display the current Firmware Version.
Display the MoCA Version of the device.
Display the current operating MoCA Network version.
Display the current IP Address setting of the MoCA
Ethernet Adapter.
Display the current MAC Address.
Display the current Link status of the MoCA network.
Display the Beacon Channel frequency.
Display the Primary Channel frequency.
Display the Secondary Channel frequency.
Display the First Channel frequency.
Display the number of MoCA Bonding Channels.
Display the total number of good, bad, and dropped MoCA
packets in the transmit direction of the MoCA interface on
the device.
Display the total number of good, bad, and dropped MoCA
packets in the receive direction of the MoCA interface on
the device.
16

5.2.2 PHY Rates
This page displays the transmit and receive MoCA PHY rates
(PHY rate in Mbps) between all the MoCA devices operating
in the MoCA network. This data rate is an average of the Tx
and Rx data rates between MoCA devices.
PHY Rates
Unicast NPER Display the NPER PHY rate
in Mbps. Default is NPER.
Unicast VLPER Display the VLPER PHY rate
in Mbps.
17

5.3 Advanced
5.3.1 Reset
You can reset the device or reset all the settings of the device
to factory defaults at this page. The buttons Reboot or Restore
Defaults will restart the system. You may need to look up the
IP address and use the default username and password if the
Restore Defaults is performed.
Reset
Reboot Click the Reboot button to
restart the system. It takes
around 10 seconds to reboot
the device.
Restore Defaults Click the Restore Defaults
button to restore the
settings of the device to
factory default values.
18
