Introduction
What’s in the box
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
4
What you’ll need
●A working internet connection
●A smartphone or laptop
●A #2 phillips head and power drill
●A level
Please note Two (2) person installation
recommended
Connect
Connect the AC62 to your network using the
Ethernet port located at the bottom of the
controller. Connect the AC62 power supply
into your power outlet.
Supports 110VAC to 240VAC (50-60Hz).
After connecting the AC62 to network and
power, visit: verkada.com/start
For detailed installation instructions, visit:
verkada.com/support
AC62 Door Controller Wall Mount GuideWall Mount
AC Cable 6x Plywood Screws 2x Keys
●AC62 Door Controller
●Wall Mount
●Wall Mount Guide
●AC Cable
●6x Plywood Screws
●2x Keys
Introduction
Overview 1/2
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
5
Lock
Status LED
LED Behavior
Solid Orange - Controller is on and booting up
Flashing Orange - Controller is updating firmware
Flashing Blue - Controller is managing doors, but cannot reach the server
Solid Blue - Controller is managing doors and connected to the server
Flashing Pink - Identify
AC inlet
Power supply
ACU diagram
Introduction
Overview 2/2
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
6
Panel highlights
1 Ports for: Doors 1 to 16. All door ports function the same.
2 Ports for: AUX, Fire Alarm Interface(FAI)
3 Ports for: AC, Ethernet, USB, UPS, Door Tamper
Status LED
AC Ethernet
1
2
3
Installation
Unboxing
Use the pull handle to lift and remove
AC62 from the box.
Please note Two (2) person installation
recommended
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
7
Lay AC62 on a flat surface, open the
door and remove the cardboard.
Keep cardboard intact for next step.
Installation
Mounting 1/4
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
8

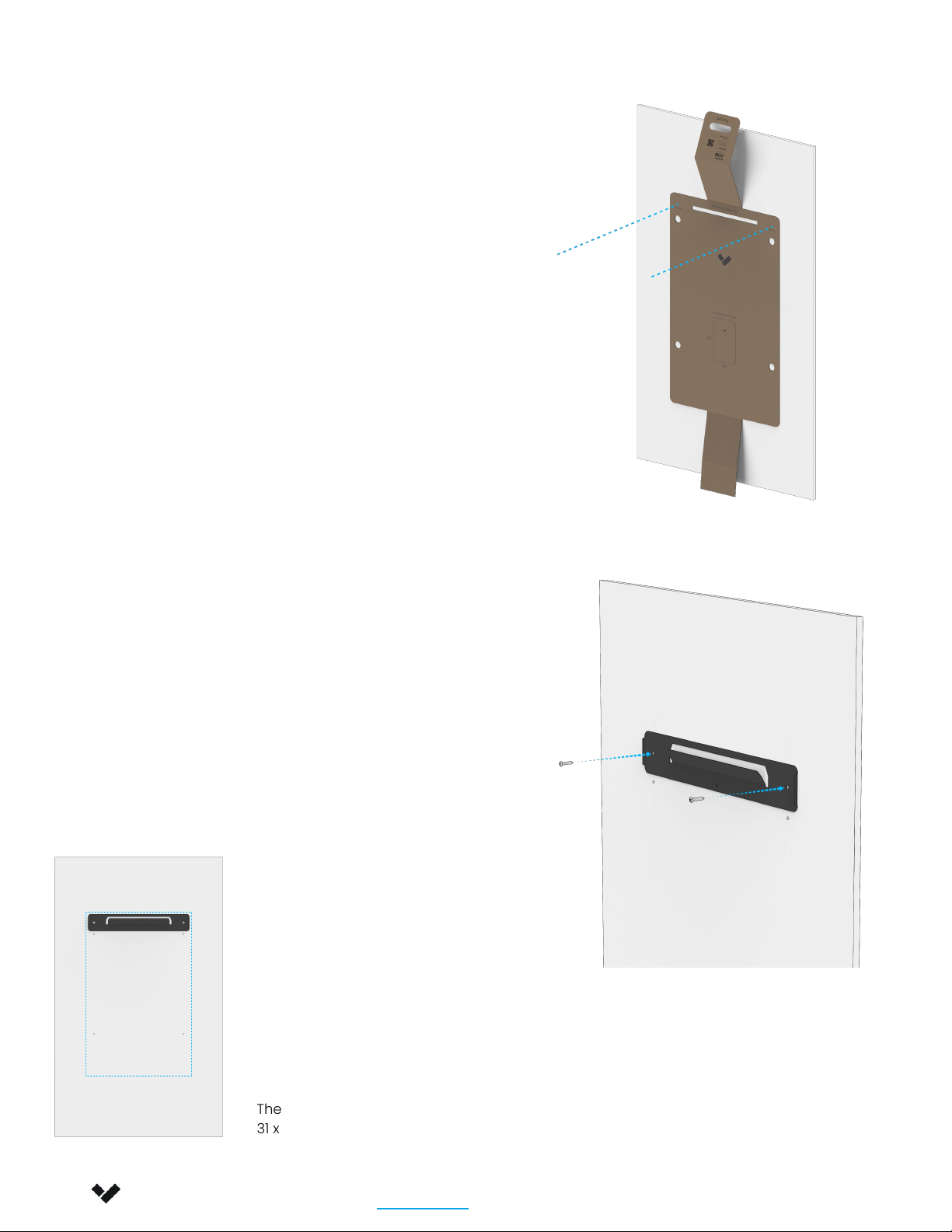

Use cardboard piece with the mounting
template, kept from the previous step, to
get a sense of the space AC62 will occupy
on the wall.
Use mounting template to drill pilot holes for
the mount plate.
Use the supplied screws to install the mount
plate onto the wall. Ensure that the Verkada
V is pointing towards the floor.
The enclosure will extend down roughly 31”
(~79cm), from the top of the mount plate.
Please Note that the supplied screws are intended for
plywood installations. For other wall materials, ensure
proper load-bearing fasteners are used
The size of the enclosure is:
31 x 20” (79 x 51 cm)
Carefully slot the enclosure onto
the mount plate.
Use the supplied screws to
secure the enclosure onto the
wall according to thru holes.
Installation
Mounting 3/4
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
10
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
Recommended Wiring
Wiring
Signal AWG Twisted Pair Conductor Shielded Max Length
Reader Option 1 (22 AWG) 22 Yes Yes 250 ft
Reader Option 2 (20 AWG) 20 Yes Yes 300 ft
Reader Option 3 (18 AWG) 18 Yes Yes 500 ft
Power (22 Gauge) 22 Yes Yes 600 ft
Power (18 Gauge) 18 Yes Yes 1500 ft
Request-to-Exit 22/18 Yes Yes 1500 ft
Door Contact 22 Yes Yes 1500 ft
Verkada AC62 is capable of supporting Verkada Readers over RS-485 and standard wiegand readers.
The following diagram shows the wire types that are recommended for use with the Verkada AC62.
We recommend using one twisted pair for GND and VIN (power) and one twisted pair for the data (D0/D1 or A/B).
Wiring methods shall be in accordance with National Electrical Code, ANSI/NFPA 70.
Required Network Settings
With the AC62, you must use shield wiring:
• Connect the drain (bare metal) wire from the reader to the drain (bare metal) wire in the shielded cabling.
Then, connect the drain wire in the cabling to Earth ground.
• The other end of the drain wire shouldn’t be connected to anything.
An Ethernet connection with DHCP must be used to connect the AC62 to the Local Area Network (LAN).
You also need to congure rewall settings to communicate with the AC62.
• TCP port 443
• UDP port 123 (NTP time synchronization)
Shield Wiring and Grounding
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
Connecting a Door
Installation
Ensure power is disconnected from the AC62 and locking hardware before wiring, removing or inserting
cassettes, readers, locks or any other peripherals.
Warning

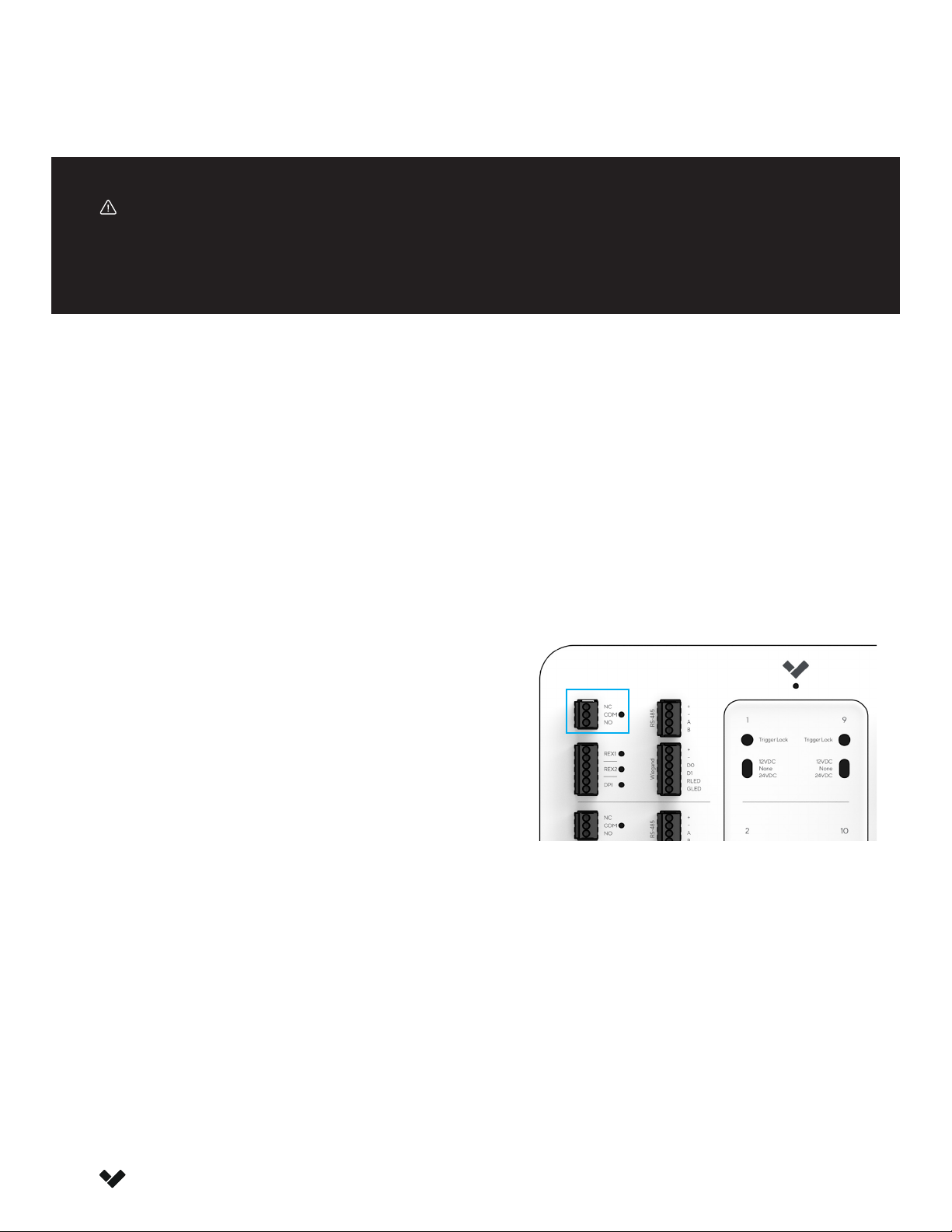

The AC62 comes equipped with a Form C relay that can be driven dry or wet. AC41 is rated to power 12V locks
up to 1A and 24V locks up to 500mA.
1. Wiring Fail Secure and Fail Safe Locking
Hardware
Fail secure and fail safe are ways of conguring
locking hardware:
• Fail secure hardware locks when power is
interrupted. Usually uses NO (Normally Open
Conguration)
• Fail safe hardware unlocks when power is
interrupted. Usually uses NC (Normally Closed
conguration)
None/Dry
The AC62 does not provide power to the locking hardware (typically used with external power supplies).
Wet
The AC62 provides 12V or 24V power to the locking hardware.
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
Connecting a Door
Installation
3a. Connect the Lock (Dry)
When using an extend power supply which uses a dry contact, ensure that “NONE” is selected on the door
power selection switch.
3b. Connect the Lock (Wet)
In a Wet conguration, ensure that power selection
for each door is set to the correct voltage as
outlined by the locking hardware specications.
• Set it to “12VDC” for 12 Volt locking hardware
• Set it to “24VDC” for 24 Volt locking hardware
The AC62 is rated to power 12V locks up to 1A and
24V locks up to 500mA.
Fail Safe
LOCK (+) positive goes into NC
LOCK (-) negative and ground wire goes into COM
Fail Secure
LOCK (+) positive goes into NO
LOCK (-) negative and ground wire goes into COM
When connecting the lock in the WET
conguration, ensure the negative of the
lock goes into the COM port as shown in the
diagrams below.
Warning
Fail Secure
Fail Safe
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
Connecting a Door
Installation

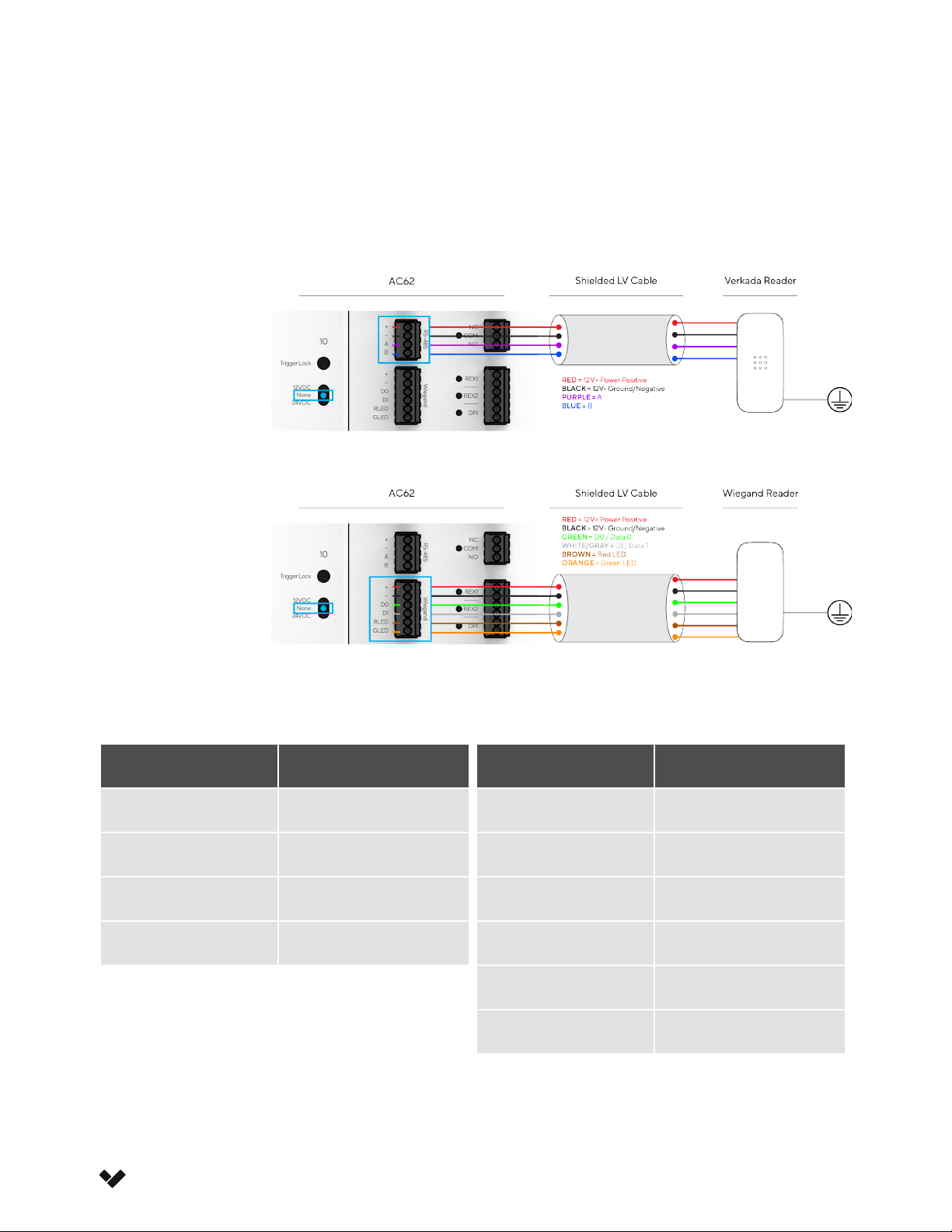

4. Connecting the Reader
The AC62 is rated to power readers at 12V up to 250mA via the + (VIN) and – (GND) connection. Verkada
readers use the top 4-port inputs while Standard Wiegand readers use the bottom 6-port inputs. The drain
wire of the shielded cable should be secure to the nearest AC62 chassis ground.
Verkada
Reader
Standard
Wiegand
Reader
Verkada Reader Wiegand Reader
Wire Color Signal
Red 12V Power +
Black 12V Power -
Purple A
Blue B
Wire Color Signal
Red 12V Power +
Black 12V Power -
Green Data 0
White/Gray Data 1
Brown Red LED
Orange Green LED
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
Connecting a Door
Installation
5. Connecting the Inputs
Both the DPI (Door Position Indicator) and the Request-to-Exit (REX) inputs are dry contacts. Installing these
inputs is optional. They can be congured in Verkada Command.
The REX can be congured to release the lock in Verkada command; most commonly seen in electromagnetic
locks. The REX unlock time can also be congured.
Door Position Indicator
Verkada AC62 expects the DPI to be
NORMALLY CLOSED (NC).
Request-to-Exit (REX)
Verkada AC62 expects the REX to be
NORMALLY OPEN (NO).
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
Connecting a Door
Installation
6a. Wiring the REX With the Door Strike
For safety-related applications, wire the REX in parallel with the Door Strike. You can wire additional REX
switches and sensors to the door cassette if needed.
6b. Wiring the REX With an Electromagnetic Lock
For safety-related applications, wire the REX directly to the mag lock. You can wire additional REX switches
and sensors to the door cassette if needed.
DRY
Conguration
DRY
Conguration
WET
Conguration
WET
Conguration
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
AUX Setup
Installation
AUX Inputs
The Verkada AC62 has two AUX
input. The AC62 expects both
AUX inputs to be NORMALLY
OPEN (NO).
AUX Outputs
Additionally, the AC62 has two
AUX Form C relays. These two
AUX relays can be programmed
to trigger during a lockdown. This
allows you to wire in a dialer, strobe
light, sounder, etc. to activate when
a lockdown is initiated.
With the AC62’s AUX inputs you can hook up devices such as intercoms and buttons. All associated events
will be logged in Command.
The AUX Inputs can be programmed in Command to initiate a lockdown or unlock a door (or a set of doors).
We will be expanding support for more auxiliary devices in the future.
Example AUX Intercom Wiring Diagram
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
FAI Set up
Installation
Normally Closed Input
A normally closed re alarm input from an FACP
should be wired across FAI- and FAI_P. A jumper
wire must be connected across FAI+ and FAI_P.
When the contact is open, this activates the FAI
in the AC62 which disables 12V/24V power to all
16 relay outputs.
Normally Open Input
A normally open re alarm input from an FACP
should be wired across FAI+ and FAI-. When the
contact is closed, this activates the FAI in the
AC62 which disables 12V/24V power to all 16
relay outputs.
Verkada Inc. 405 E 4th Ave, San Mateo, CA, 94401
All specications are subject to change without notice.
Copyright © Verkada Inc . All rights reserved.
FAI Set up
Installation
Latching
An optional latching input from the FACP may be connected in a normally closed conguration across L and L.
When latching is enabled, FAI is active; it will remain active until reset. A reset is achieved if FAI is deactivated
and the latching input is temporarily open.
Daisy Chaning
Two AC62 FAI may be daisy chained. The FAI and latching states from the
primary AC62 will be repeated in the secondary (daisy chained) unit.
Other manuals for AC62
1
Table of contents
Other Verkada Door Opening System manuals
