Verkada AC62 User manual
Document
Document Details
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
V1.1 (20221109)
(V1.0 first published 20220620)
Firmware
Firmware version can be verified on
Verkada Command command.verkada.com.
2
Levels of Access Control
●Attack Level/Grade: Level 1
●Endurance Level/Grade: Level 1
●Line Security Level/Grade: Level 1
●Standby Power Level/Grade: Level 1
Appendix
AC62 Compliance
FCC
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IC
Statement
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Note This equipment is for use in a restricted access area.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
3
Introduction
What’s in the box
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
4
What you’ll need
●A working internet connection
●A smartphone or laptop
●A #2 Phillips head and power drill
●A level
Please note Two (2) person installation
recommended
Connect
Connect the AC62 to your network using the
Ethernet port located at the bottom of the
controller. Connect the AC62 power supply
into your power outlet.
Supports 110VAC to 240VAC (50-60Hz).
After connecting the AC62 to network and
power, visit: verkada.com/start
For detailed installation instructions, visit:
verkada.com/support

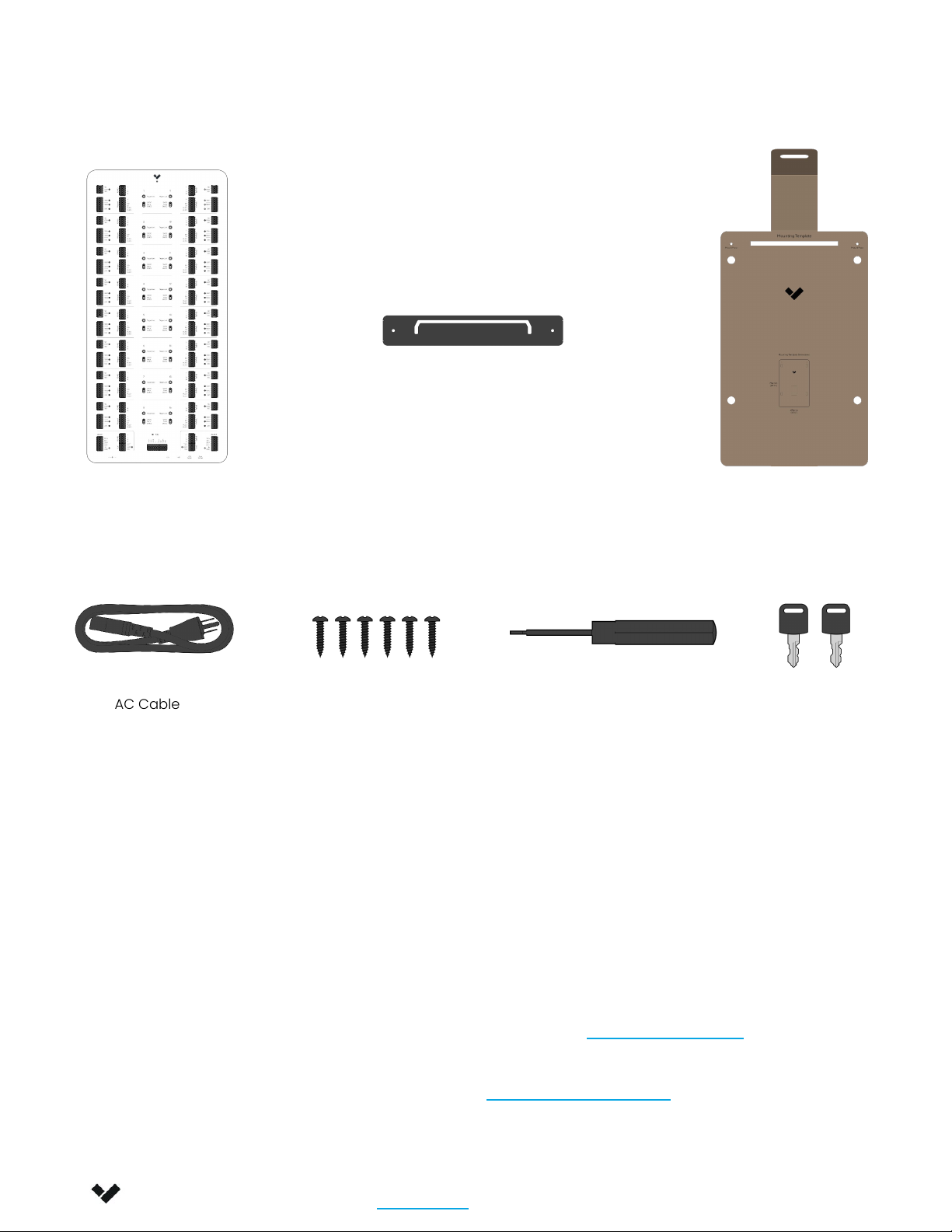

AC62 Door Controller Wall Mount GuideWall Mount
AC Cable 6x Plywood Screws
For materials other than plywood, ensure
proper load-bearing fasteners are used.
2x KeysScrewdriver
Introduction
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
5
Lock
Status LED
Status LED Behavior
Solid Orange
Controller is on and booting up
Flashing Orange
Controller is updating firmware
Flashing Blue
Controller is managing doors,
but cannot reach the server
Solid Blue
Controller is managing doors
and connected to the server
Flashing Pink
Identify
Power supply
Controller
diagram
Other LED Behavior
Door: On
Door unlocked
AUX Out: On
Relay in triggered state
REX / DPI / AUX In: On
Circuit closed
FAI: On
FAI in triggered state
AC inlet
Overview 1/2
Serial Number QR
code
Introduction
Overview 2/2
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
6
Controller highlights
1 Ports for: Doors 1 to 16. All door ports function the same.
2 Ports for: AUX, Fire Alarm Interface(FAI)
3 Ports for: AC, Ethernet, USB, UPS, Door Tamper
Status LED
AC Ethernet
1
2
3
USB USP Signal Door Tamper
Door 1 Ports
Same for all doors
AUX 1 Ports
FAI Port
AUX 2 Ports
1
2
3
Introduction
Recommended Testing
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
7
To ensure ongoing functionality of AC62, it is recommended to check the following
interfaces every 6 months:
●Short each input to its adjacent GND port and verify that LED illuminates.
●Use multimeter to confirm expected impedance across relay outputs.
○Closed across NC and COM
○Open across NO and COM
●Use multimeter to verify correct voltage is supplied at 12V AUX outputs, 24V AUX outputs,
and reader power outputs.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
8
Introduction
AC62 Technical Specifications
Power
Consumption 350W maximum
AC Power Input 110-240VAC
50-60Hz
Inputs 2x REX dry inputs per door
1x DPI dry input per door
2x auxiliary dry inputs
Readers
1x reader port (Verkada/RS-485 or Wiegand) per door
2x auxiliary reader ports (Verkada/RS-485)
Reader current consumption must be < 250mA per reader
Note: max of 16 readers can be powered simultaneously
Relay Outputs
1x wet or dry relay per door
Wet relay switch-selectable power:
●12V operation 1A max
●24V operation 0.5A max
Dry relay max pass-through power:
●24VDC @ 2A (resistive load)
2x auxiliary dry relays
AUX Power 2x 12V @ 1A output
2x 24V @ 0.5A output
Dimensions 773mm (L) x 499mm (W) x 186mm (H)
30in(L) x 20in (W) x 7in (H)
Weight 20kg / 44lb
Operating
Temperature 0°C - 50°C 5 - 90%
Humidity
Compliance FCC Part 15 Class B, ICES-3 Class B, CE, UKCA, RCM, VCCI, UL
294, CAN/ULC 60839-11-1, UL 62368-1, CSA C22.2 No. 62368-1,
IEC 62368-1, NDAA
Connectivity Ethernet: 100/1000Mbps RJ-45 for network connection
USB 2.0
Included
Accessories Lock key and flat head screwdriver
Mounting Options Mounting plate and 6 screws (#12x1")
Installation
Unboxing
Pull the handle to lift and remove
AC62 from the box.
Please note Two (2) person installation
recommended
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
9
Lay AC62 on a flat surface, open the
door and remove the cardboard.
Keep cardboard intact for next step.
Installation
Mounting 1/4
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
10

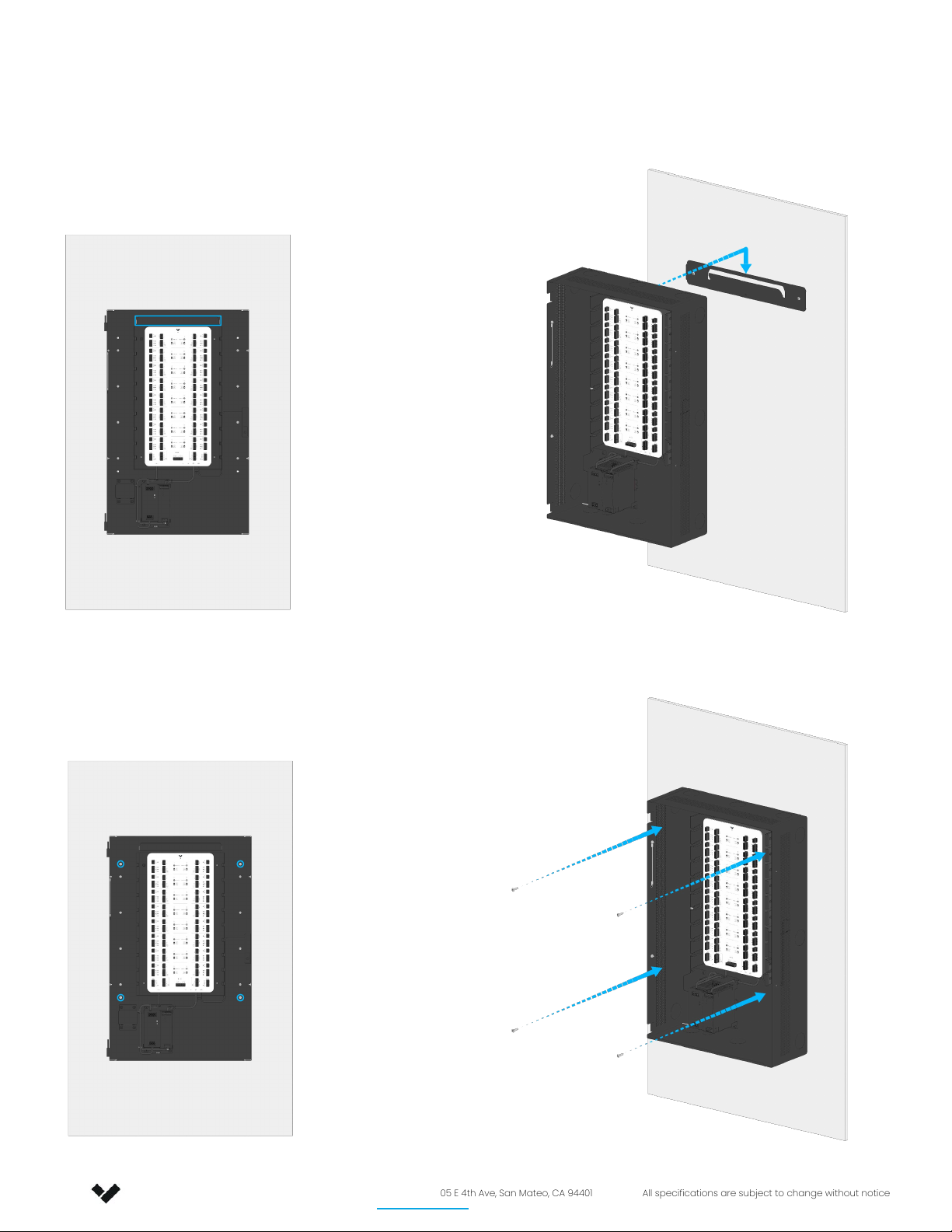

Use cardboard mounting template from the previous
step to get a sense of the wall space AC62 will occupy.
Use mounting template to drill pilot holes for the mount
plate.
Use the supplied screws to install the mount plate
onto the wall. Ensure that the Verkada V is pointing
towards the floor.
The enclosure will extend down roughly 31” (~79cm),
from the top of the mount plate.
The size of the enclosure is:
31” x 20” (79 x 51 cm)
Please Note Leave at
minimum 2” clearance on the
left side of the enclosure in
order for the door to open
and close without hindrance.
Please Note The supplied screws are
intended for plywood installations.
For other wall materials, ensure proper
load-bearing fasteners are used.
Carefully slot the enclosure
onto the mount plate.
Secure the enclosure onto the
wall using the thru holes on
the enclosure.
Installation
Mounting 3/4
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
12
Verkada AC62 is capable of supporting Verkada Readers over RS-485 and standard Wiegand readers.

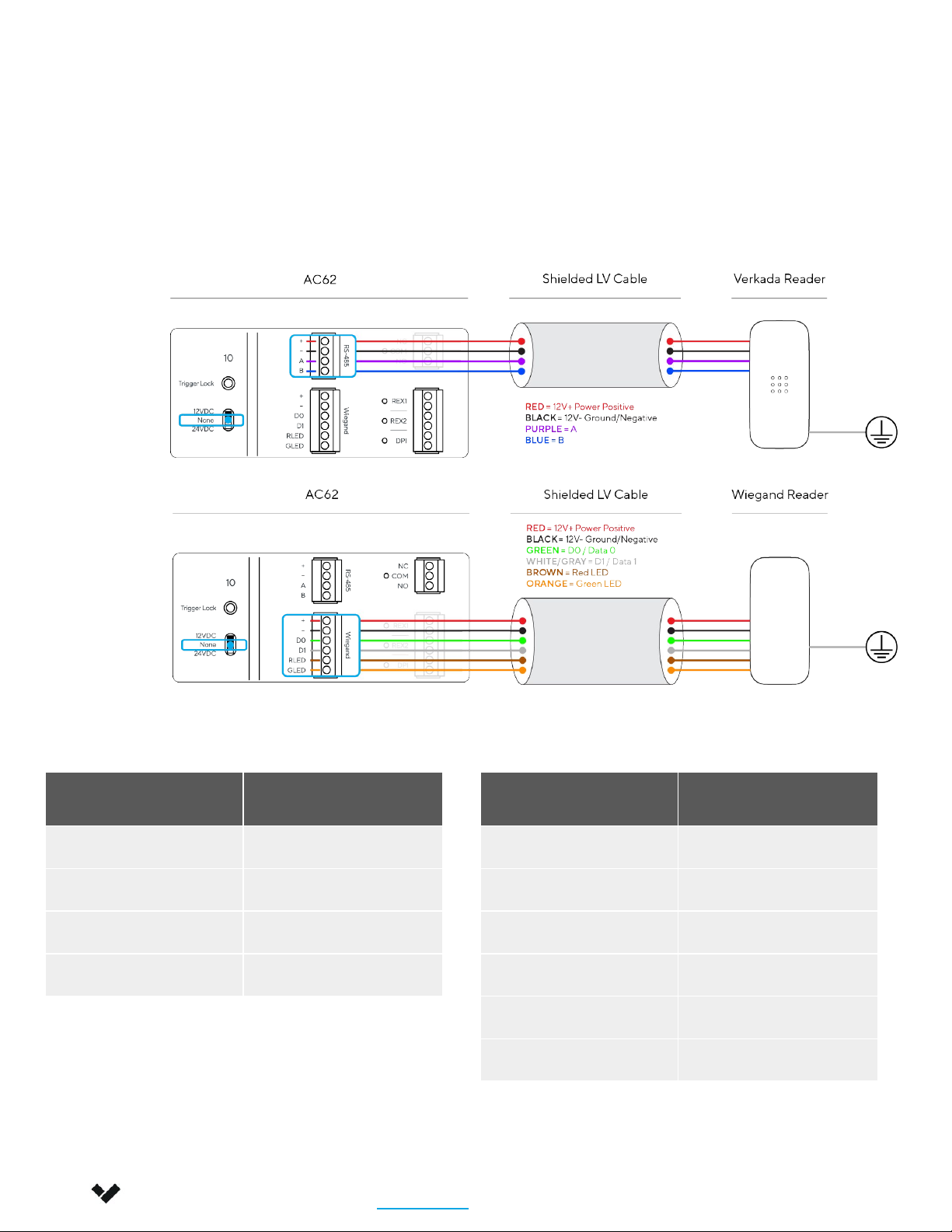

The following diagram shows the wire types that are recommended for use with the Verkada AC62.
We recommend using one twisted pair for GND and VIN (power) and one twisted pair for the data (D0/D1
or A/B).
Wiring methods shall be in accordance with National Electrical Code, ANSI/NFPA 70.
Required Network Settings
An Ethernet connection with DHCP must be used to connect the AC62 to the Local Area Network
(LAN). You also need to configure firewall settings to communicate with the AC62.
●TCP port 443
●UDP port 123 (NTP time synchronization)
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
14
Signal AWG Twisted
Pair Conductor Shielded Max Length
Reader Option 1 (22 AWG) 22 Yes Yes 250 ft
Reader Option 2 (20 AWG) 20 Yes Yes 300 ft
Reader Option 3 (18 AWG) 18 Yes Yes 500 ft
Power (22 Gauge) 22 Yes Yes 600 ft
Power (18 Gauge) 18 Yes Yes 1500 ft
Request-to-Exit 22/18 Yes Yes 1500 ft
Door Contact 22 Yes Yes 1500 ft
You must use shield wiring with the AC62, particularly for the card reader:
●Connect the drain wire (bare metal) from the reader cable bundle to the drain wire in the shielded
cabling. Then, connect the drain wire at the other end of the shielded cabling to Earth ground.
●Improper grounding and shielding may result in unintended product behavior.
Shield Wiring and Grounding
Installation
Recommended Wiring
The door ports’ Form C relays can be driven dry or wet.
AC62 is rated to power 12V locks up to 1A and 24V locks
up to 500mA.
None/Dry
The AC62 does not provide power to the locking
hardware (typically used with external power supplies).
Wet
The AC62 provides 12V or 24V power to the locking
hardware.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
15
1. Wiring Fail Secure and Fail Safe
Locking Hardware
Fail secure and fail safe are ways of
configuring locking hardware:
●Fail secure hardware locks when power is
interrupted. Usually uses NO (Normally Open
Configuration)
●Fail safe hardware unlocks when power is
interrupted. Usually uses NC (Normally
Closed configuration)
Installation
Connecting a Door 1/5

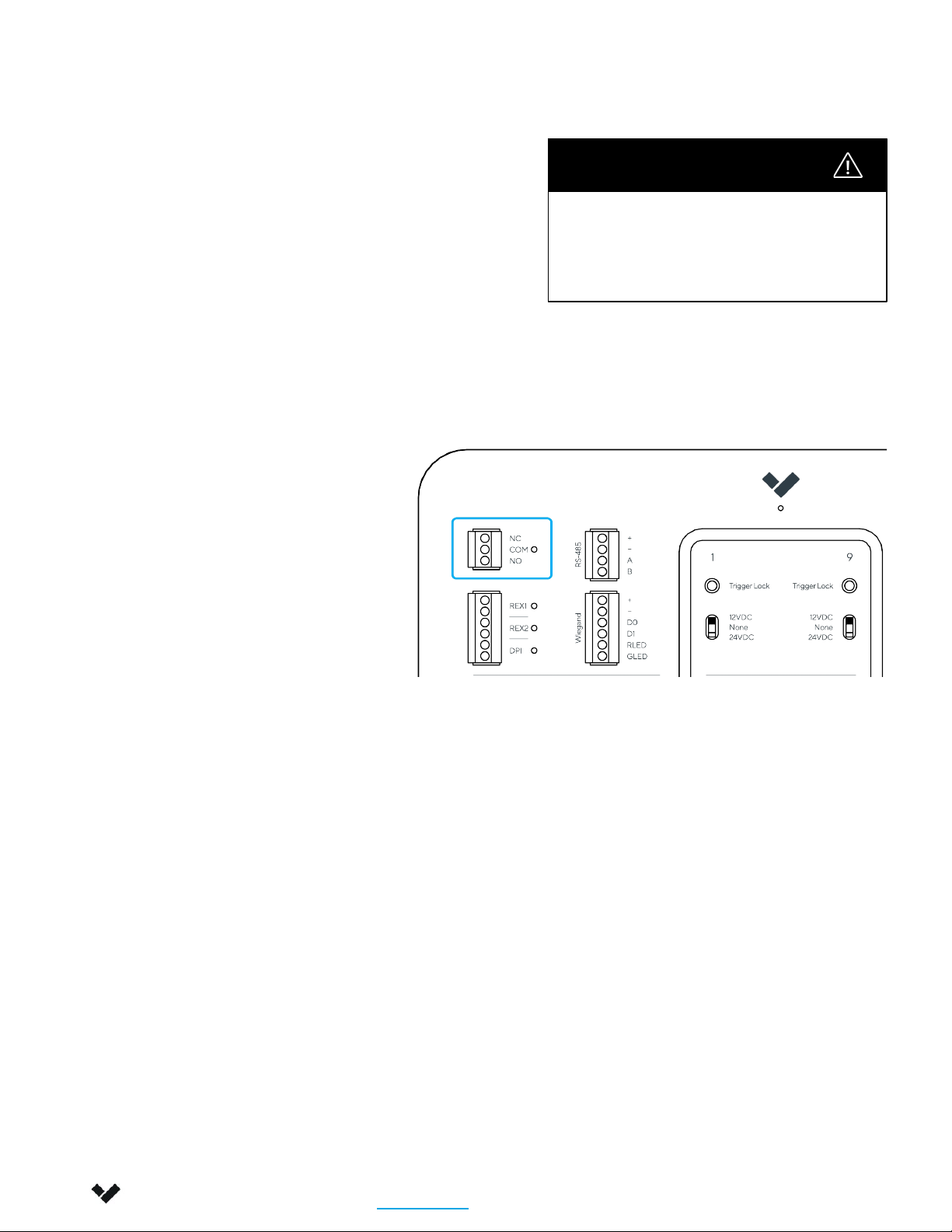

Ensure power is disconnected from the
AC62 and locking hardware before
wiring, removing or inserting readers,
locks or any other peripherals.
Warning
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
16
2a. Connect the Lock (Dry)
When using an extend power supply which uses a dry contact, ensure that
“NONE” is selected on the door power selection switch.
Fail Secure
Fail Safe
2b. Connect the Lock (Wet)
In a Wet configuration, ensure that power selection
for each door is set to the correct voltage as
outlined by the locking hardware specifications.
●Set it to “12VDC” for 12 volt locking hardware
●Set it to “24VDC” for 24 volt locking hardware
The AC62 is rated to power 12V locks up to 1A and
24V locks up to 500mA.

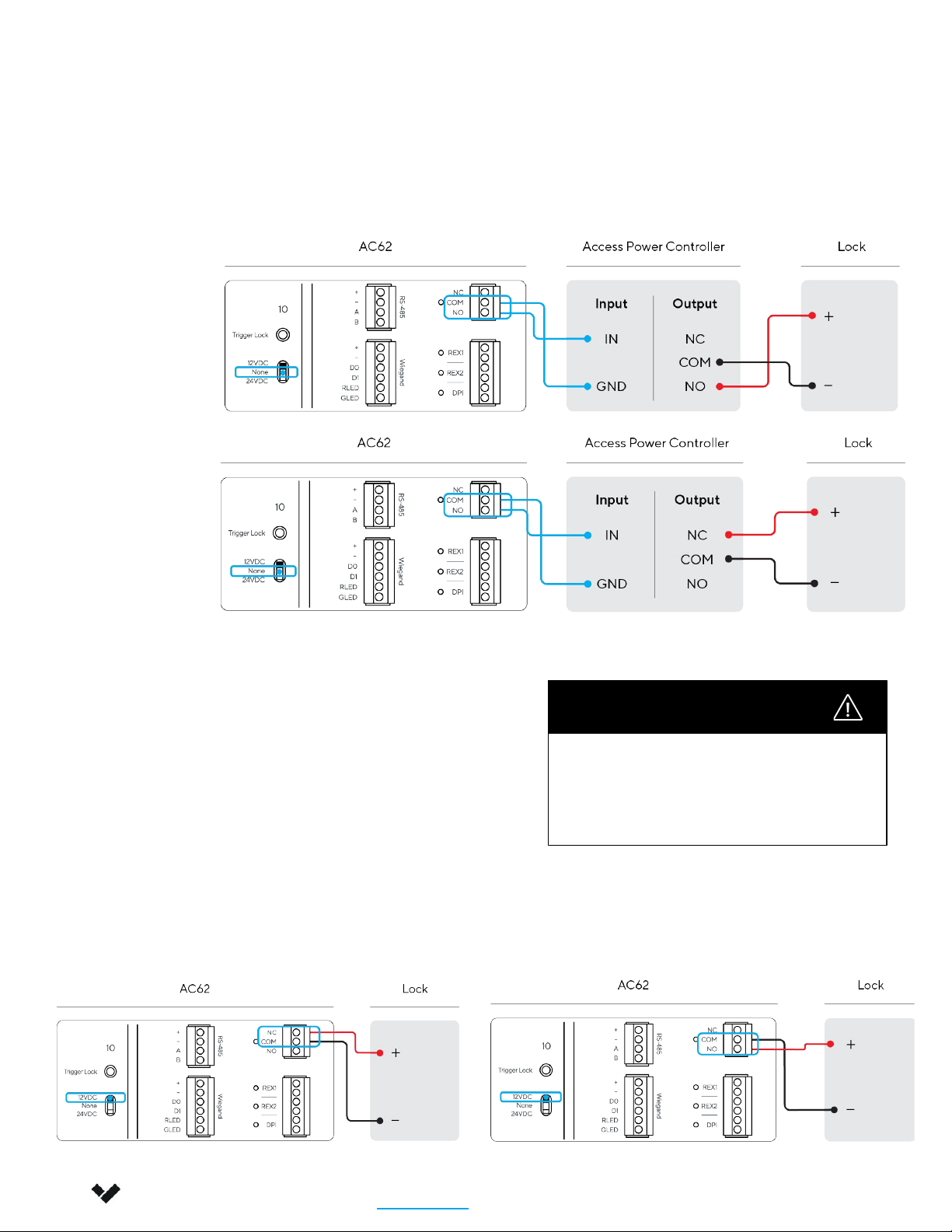

Fail Safe
LOCK (+) positive goes into NC
LOCK (-) negative and ground wire goes into COM
Fail Secure
LOCK (+) positive goes into NO
LOCK (-) negative and ground wire goes into COM
Installation
Connecting a Door 2/5
When connecting the lock in the WET
configuration, ensure the negative of
the lock goes into the COM port as
shown in the diagrams below.
Warning
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
17
Verkada/
RS-485
Reader
Standard
Wiegand
Reader
Verkada/RS-485 Reader Wiegand Reader
Wire Color Signal
Red 12V Power+
Black 12V Power-
Green Data 0
White/Gray Data 1
Brown Red LED
Orange Green LED
Wire Color Signal
Red 12V Power+
Black 12V Power-
Purple A
Blue B
3. Connecting the Reader
The AC62 is rated to power readers at 12V up to 250mA via the + (VIN) and – (GND) connection.
Verkada/RS-485 readers use the top 4-port inputs while Standard Wiegand readers use the bottom
6-port inputs. The drain wire of the shielded cable should be secured to the nearest AC62 chassis
ground.
Installation
Connecting a Door 3/5
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
18

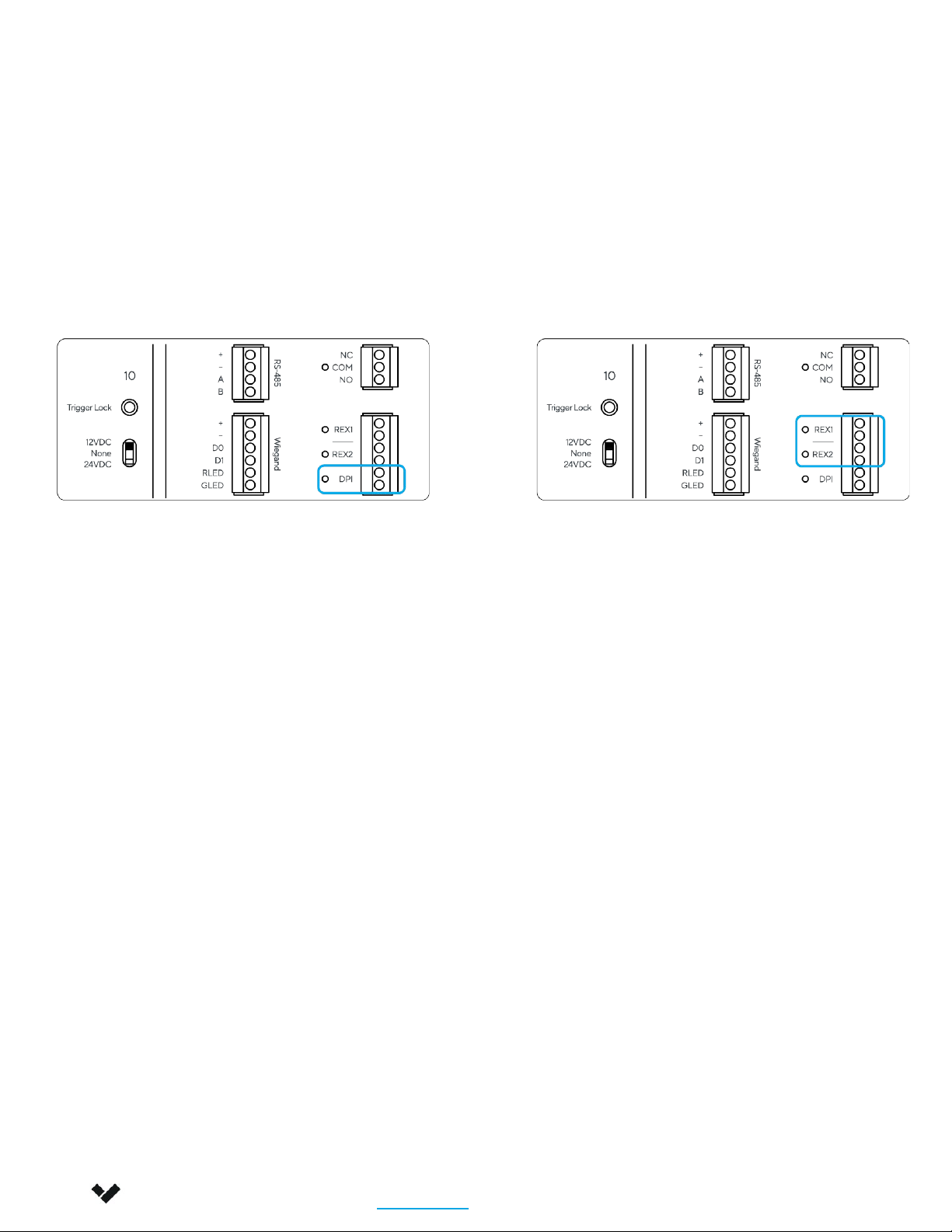

Door Position Indicator
Verkada AC62 expects the DPI to be
NORMALLY CLOSED (NC)
Request-to-Exit (REX)
Verkada AC62 expects the REX to be
NORMALLY CLOSED (NO)
The REX can be configured in Verkada Command to release the lock; this is most commonly seen in
electromagnetic locks. The REX unlock time can also be configured.
4. Connecting the Inputs
Both the DPI (Door Position Indicator) and the Request-to-Exit (REX) inputs are dry contacts.
Installing these inputs is optional. They can be configured in Verkada Command.
Installation
Connecting a Door 4/5
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
19
DRY
Configuration
WET
Configuration
DRY
Configuration
WET
Configuration
5a. Wiring the REX With the Door Strike
For safety-related applications, wire the REX in parallel with the Door Strike. You can wire additional
REX switches and sensors to the door cassette if needed.
5b. Wiring the REX With an Electromagnetic Lock
For safety-related applications, wire the REX directly to the mag lock. You can wire additional REX
switches and sensors to the door cassette if needed.
Installation
Connecting a Door 5/5
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
20
With the AC62’s AUX inputs you can hook up devices such as intercoms and panic
buttons. All associated events will be logged in Command.
The AUX Inputs can be programmed in Command to initiate a lockdown or unlock a door
(or a set of doors). We will be expanding support for more auxiliary devices in the future.
Example AUX Intercom Wiring Diagram
AUX Inputs
The Verkada AC62 has two AUX input.
The AC62 expects both AUX inputs to
be NORMALLY OPEN (NO).
AUX Outputs
Additionally, the AC62 has two AUX
Form C relays. These two AUX relays
can be programmed to trigger an
output during a lockdown. This allows
you to activate a dialer, strobe light,
sounder, etc. when a lockdown is
initiated.
Installation
AUX
Other manuals for AC62
1
Table of contents
Other Verkada Door Opening System manuals
