Stardance® Vent-Free Gas Heater
30005057
Important Safety Information ...............................................................................................3
Stove Dimensions ...............................................................................................................4
Clearance Requirements .....................................................................................................5
Hearth Requirements .......................................................................................................... 5
Gas Specications ...............................................................................................................6
Gas Inlet and Manifold Pressures ....................................................................................... 6
High Elevations ...................................................................................................................6
Odor During Operation ........................................................................................................6
Vent Free Features ..............................................................................................................7
Fresh Air Requirements ....................................................................................................... 7
Unpack the Firebox ............................................................................................................. 8
Install Optional Fan Kit ........................................................................................................ 8
Install ON/OFF Switch .........................................................................................................9
Thermostat Connections ..................................................................................................... 9
Glass & Catalyst Installation ................................................................................................9
Connect the Gas Supply LIne ........................................................................................... 11
Install Log Set .................................................................................................................... 11
Complete the Installation ...................................................................................................12
Your First Fire ....................................................................................................................14
Pilot and Burner Inspection ............................................................................................... 14
Flame & Temperature Adjustment .....................................................................................14
Flame Characteristics ........................................................................................................14
Lighting Instructions ..........................................................................................................15
Troubleshooting ................................................................................................................. 16
Firebox Cleaning and Inspection .......................................................................................18
Cleaning Procedure ...........................................................................................................18
Glass Replacement ...........................................................................................................18
Care of Cast Iron ...............................................................................................................18
Catalytic Combustor ..........................................................................................................19
......................................................................................................................20
Fan Kits 24
Glass / Catalyst Kit ............................................................................................................22
Remote Controls ...............................................................................................................22
Warming Shelf ...................................................................................................................22
.......................................................................................................................................23
Fuels used in gas, woodburn-
ing or oil red appliances, and the products of combus-
tion of such fuels, contain chemicals known to the State
of California to cause cancer, birth defects and other
reproductive harm.
California Health & Safety Code Sec. 25249.6
3
Stardance® Vent-Free Gas Heater
30005057
In order to ensure safe and effective installation, this unit must
be installed only by a qualied agency, individual, rm, corpora-
tion or company that is experienced in the installation, repair
and servicing of this type of appliance and is familiar with the
building codes and installation techniques appropriate in your
area. Contact your hearth products dealer or local gas supplier
for the name of a qualied service person.
In the Commonwealth of Massachusetts, all gas ttings and
installation of this heater shall only be done by a licensed gas
tter or licensed plumber.
•
•
•
•
•
•
If any of the original wire as supplied with the appli-
ance must be replaced, it must be replaced with a wire of
at least 105°F temperature rating.
Early signs of carbon
monoxide poisoning resemble the u, with headaches,
dizziness, or nausea. If you have these signs, the heater
may not be working properly. Get fresh air at once! Have
the heater serviced. Some people are more affected by
carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the inuence of alcohol, and those at high
altitudes.
4
Stardance® Vent-Free Gas Heater
30005057
Drawing Not to Scale
Stardance freestanding shell dimensions.
C
L
C
L
5004
UVS27
Freestanding specs
1/02
9"
(229 mm)
266M"
(680 mm)
3"
(76 mm)
Valve Inlet
1456O"
(368 mm)
Valve Inlet
156"
(379 mm)
2556O"
(648 mm)
5
Stardance® Vent-Free Gas Heater
30005057
The Stardancel must be installed on rigid ooring. If the
appliance is installed on any combustible surface other
than wood ooring, such as carpet or tile, a metal or
wood panel must be installed to extend the full length
and width of the unit.
Maintain clearance, (empty space), between combus-
tible materials and the heater as specied below for the
appropriate rebox shell being installed.
FP599a
stove mantel heights
9/27/99 djt
S
T
U
V
W
X
Y
Z
A
B
C
D
E
F
G
H
ST599a
A 13” (330mm) S 35” (889 mm)
B 11¹⁄₄” (286 mm) T 30” (762 mm)
C 9³⁄₈” (241 mm) U 25” (635 mm)
D 7¹⁄₂” (191 mm) V 20” (508 mm)
E 5³⁄₄” (146 mm) W 15” (381 mm)
F 4” (102 mm) X 10” (254 mm)
G 2¹⁄₄” (57 mm) Y 5” (127 mm)
H 1” (25 mm) Z 2” (51 mm)
BAC
D
ST101
Min. Clrnc
4/15/99 djt
Ceiling ............................................ 35” (889 mm)
B: Side Wall ............................................ 2” (51 mm)
C: Rear Wall ............................................. 0” (0 mm)
D: Max. Alcove Depth ......................... 13” (330 mm)
ST101
6
Stardance® Vent-Free Gas Heater
30005057
Firebox weight / shipping 110 lbs.
The installation of your Vermont Castings stove
must conform with local codes, or in the absence of
local codes, with the National Fuel Gas Code ANSI
Z223.1/NFPA 54 - latest edition. (EXCEPTION: Do
not derate this appliance for altitude up to 4,500 feet
(1,370m). Maintain the manifold pressure at 3.5” w.c.
for Natural Gas and 11.0” w.c. for LP Gas.
Neither natural gas nor propane gas give off an odor
when burned. The nature of a vent free combustion
system, however, is such that odors may occasional-
ly be produced during heater operation when impuri-
ties exist in the immediate area. Cleaning solutions,
paint, solvents, cigarette smoke, candles, adhesives,
new carpet or textiles, etc., all can create fumes.
These fumes may mix with combustion air and can
create odor. Such odors will disappear over time,
however the condition can be alleviated by opening a
window or otherwise providing additional ventilation
to the area.
Inlet Minimum 5.5” w.c. 11” w.c.
Inlet Maximum 14” w.c. 14” w.c.
Manifold Pressure 3.5” w.c. 10” w.c. (MP)
11” w.c. (RP)
Natural LP (Propane)
Failure to keep the primary air opening(s) of the
burner(s) clean may result in sooting and property
damage.
*Natural Gas units with Glass & Catalyst installed; air
shutter is fully closed and rotated with bend outside of
burner for less restriction. Propane units have no air
shutter.
4050 Nat Millivolt 28,000 19,500 Fully
Closed
4051 Prop Millivolt 28,000 19,500 n/a
7
Stardance® Vent-Free Gas Heater
30005057
The Stardance Vent Free gas stove is an unvented gas
heating appliance tested and listed to the ANSI stan-
dard Z21.11.2, Latest Edition. This appliance is speci-
cally congured to burn either Natural Gas or Propane
fuel, as indicated on the metal rating plate attached to
the rear shroud. The Stardance is not fuel convertible.
The stove is shipped fully assembled and ready for
installation.
The stove is equipped with an SIT control valve that
allows thermostatic control, on/off switch or a remote
switch (not supplied).
Both models incorporate variable regulators that al-
low you to adjust burner heat output between HIGH,
(28,000 Btu), and LOW, (19,500 Btu). See the Opera-
tion Section for details.
The standing pilot incorporates an Oxygen Depletion
System (ODS/pilot) designed to shut off the appliance if
enough fresh air is not available.
Modern construction standards have resulted in homes
that are highly energy-efcient and that allow little heat
loss. Your home needs to breathe, however, and all
fuel-burning appliances within it require fresh air in
order to function properly and safely. Exhaust fans,
clothes dryers, replaces, and other fuel burning appli-
ances all use the air inside the building. If the available
fresh air is insufcient to meet the demands of these
appliances, problems can result.
The Stardance Unvented heater has specic fresh air
requirements.
The following informa-
tion will help you insure that adequate fresh air is avail-
able for the heater to function properly.
National
Fuel Gas Code, ANSI Z223.1/NFPA 54
International Fuel Gas Code
8
Stardance® Vent-Free Gas Heater
30005057
Porcelain enamelled surfaces are fragile. Handle
porcelain enamelled castings tenderly. Familiarize
yourself with the assembly steps before you begin
and proceed with deliberation and care. If possible,
have assistance available.
Place enamelled castings on a soft, cushioned sur-
face until you are ready to assembly.
Avoid contact between the castings and other hard
surfaces or objects.
The Stardance is shipped fully assembled on its back.
Unpack the stove and carefully set it upright.

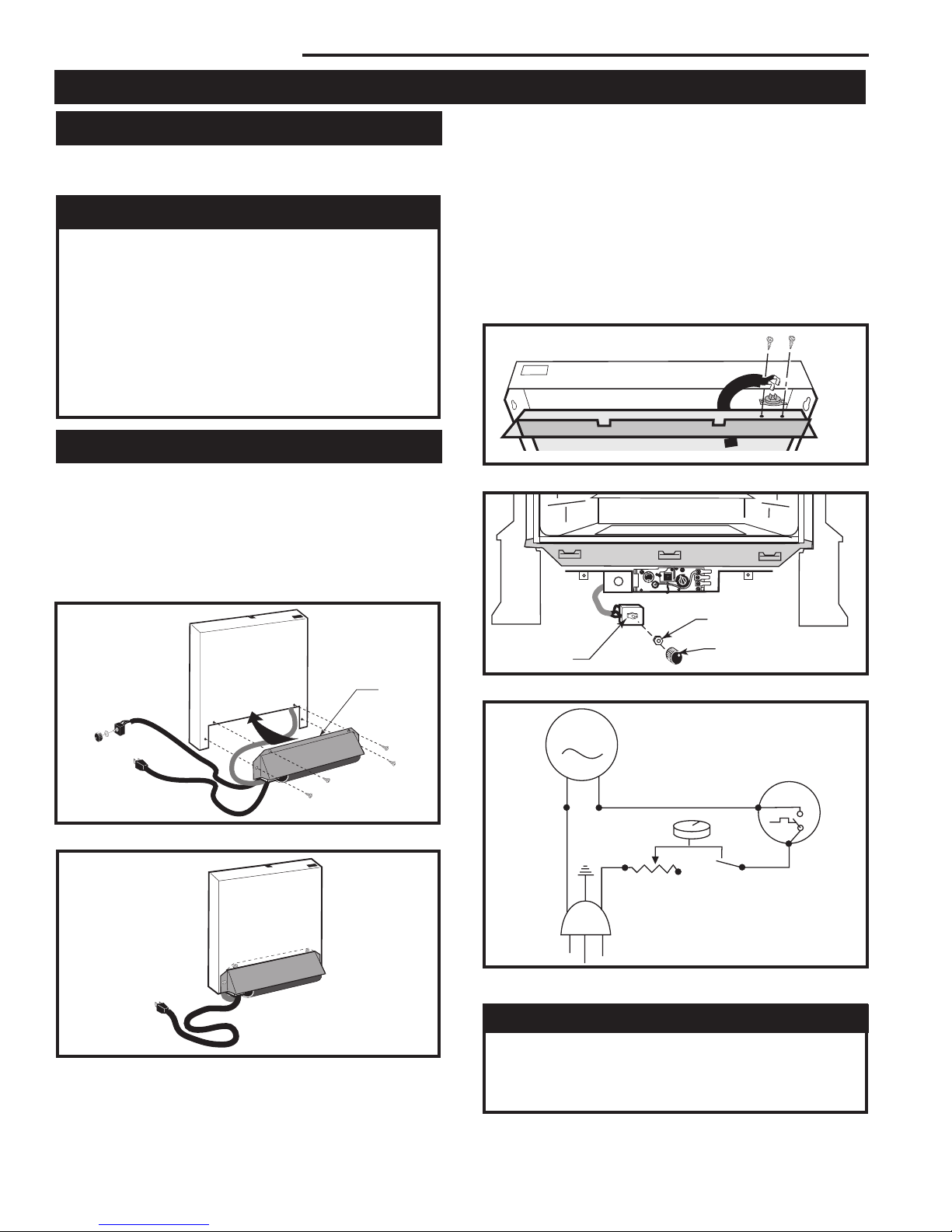

1. Remove shroud assembly by loosening two (2) hex
head bolts on lower inside of shroud. Lift shroud as-
sembly up and away from stove.
2. Attach the fan to the rear shroud by engaging the
upper ange of the fan skirt under the lower edge of
the shroud and secure the skirt with the four screws
and one star washer provided. (Figs. 2 & 3)
FK104
Install cover plate
Rheostat
Retaining Nut
Control Knob FK104
Attach rheostat to bracket.
MOTOR
SNAPSTAT
ON/OFF
RHEOSTAT
WHT
WHT
BLK
BLK
BLK
GRN
BLK
ST236

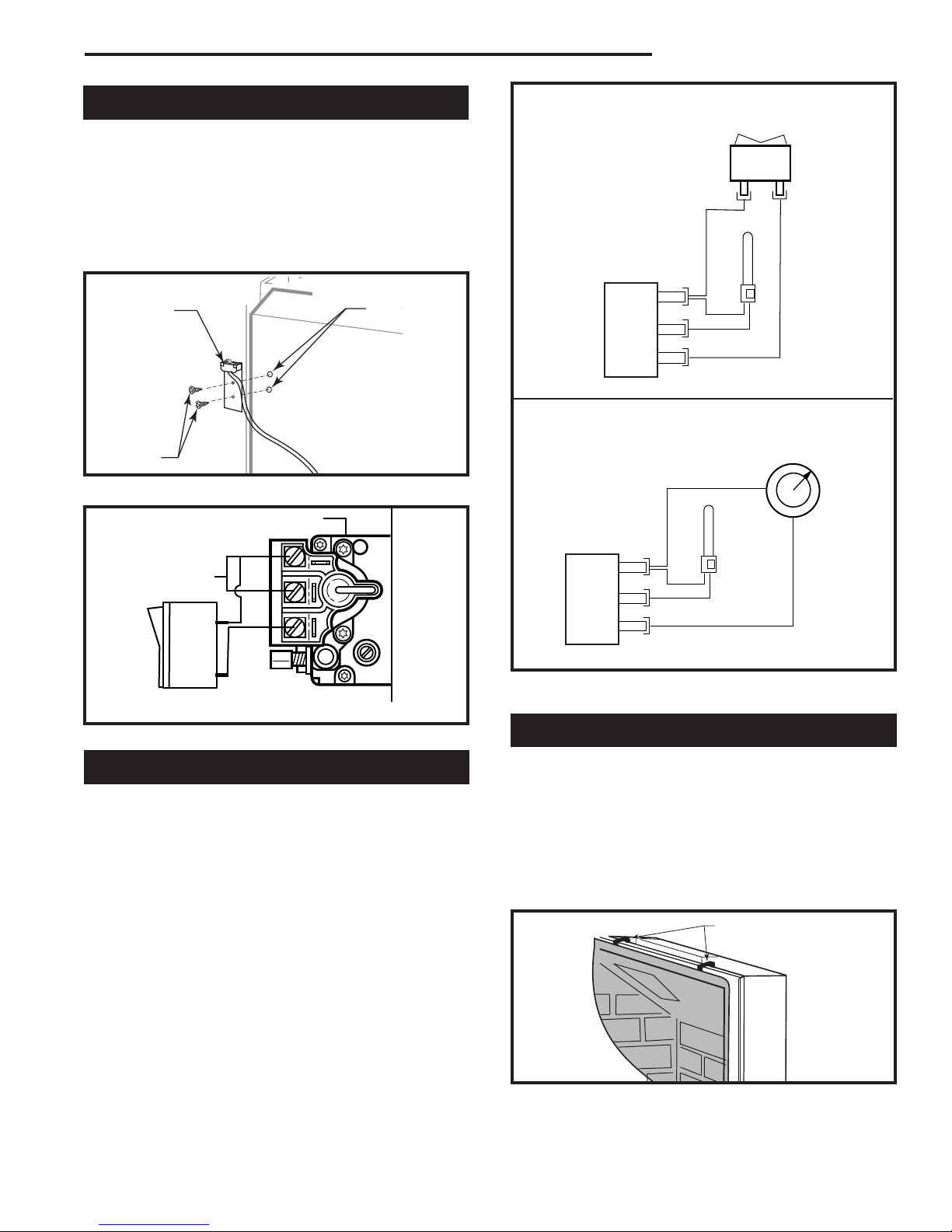

FK26 wiring diagram
12/99
ST236
Fan wiring diagram.
4. Secure the snapstat wire harness to the shroud
panel using the wire tie provided.
5. Replace shroud and tighten the two (2) hex head
nuts on lower inside of shroud.
6. Route the rheostat control switch and wire forward
under the stove. Use the wire tie to secure the fan
and rheostat wire harnesses together to the tubing
under the bottom heat shield.
7. Install the rheostat onto the bracket to the left of the
valve. (Fig. 5)
ST344a
pinnacle
install fan
2/4/00
Upper
Flange
ST344a
Place upper ange behind lower edge of shroud.
ST345a
Correct position of fan skirt installation.
ST345a
pinnacle
fan in place
12/18/03
ST346a
Attach snapstat to inner shroud.
ST346a
install FK28
snapstat
12/18/03
3.
Feed the snapstat wire lead up between the inner and
outer rear shroud panels and secure the snapstat to
the upper right side of the inner shroud. (Fig. 4)
Failure to position the parts in accordance with these
diagrams, or failure to use only parts specically ap-
proved with this heater may result in property dam-
age or personal injury.
9
Stardance® Vent-Free Gas Heater
30005057
1. Remove screen. (Fig. 10) Remove rear, left and right
log bracket assembly by unfastening the two screws
which hold the burner in place.
18 40 feet
20 25 feet
22 16 feet
Do not use low voltage (24V) thermostats.
Check the table below for the appropriate gauge ther-
mostat wire to use for the length of lead required in your
installation.
1. Install the wall thermostat in the desired location and
run the wires to the stove location. Terminate these
leads with 1/4” female connectors.
2. Connect the thermostat wires to the valve. (Fig. 9)
OFF ON
Thermostat
(Optional)
Thermopile
Black
Black
Millivolt
Gas Valve
St124b
on/off/switch
wiring
1/11/00 djt
TP/TH
TP
TH
ST124b
ST124c
ON/OFF switch and optional Thermostat/Remote wir-
ing.
Thermostat/Remote
(Optional)
Thermopile
Black
Black
Millivolt
Gas Valve
St124c
Thermostat
wiring
1/11/00 djt
TP/TH
TP
TH
ST713
UVS27
screen removal
1/02
ST713
Remove screen.
Screen Hooks
The switch assembly parts are found in the parts bag.
1. Attach switch assembly to left rear side of stove
shroud using two screws and existing holes in
shroud. (Fig. 7)
2. Run wires down back of stove, under bottom of rear
shroud to valve.
3. Attach wires to valve terminals. (Fig. 8)
ST315
attach switch assy
1/31/00 djt
Existing
Holes
Switch As-
sembly
Screws ST315
Attach switch assembly to rear shroud.
P
I
L
O
T
TPTH TP TH
FP1622
SIT valve w/switch
FP1622
Install wiring to switch before connecting to valve.
Valve
Thermopile
10
Stardance® Vent-Free Gas Heater
30005057
2. Hold the burner at the right hand side and lift to clear
the right burner leg. Then pull to the right to clear the
injectors on the left hand side.
3. Turn burner upside down and remove air shutter.
Turn air shutter upside down and replace on burner.
(Fig. 11)
4. Replace burner. Slide the burner in at an angle
with left side lower than the right side. Slide the left
side onto the injectors, making sure the burner leg
remains at a 90° angle to the base. (Fig. 12) Lower
the right hand side down in to place. Make sure
the burner is as far left as possible and the injector
shoulders are inside the burner.
ST667
RNVOD
air shutter
converting
from NG to Lp
6/4/01 djt
Air Shutter as Shipped from Factory
Bottom of Burner Pan
ST667
Remove air shutter, turn upside down and replace.
Air Shutter Turned Upside Down
ST353a
injector orifice
replace
3/21/00 djt
90°
Left Burner Leg
Injector Orices
ST353a
Be sure injector orices remain at 90° to the base.
6. Slide the catalyst through the grille opening. Set
catalyst on top of rebox. Secure with two (2) screws
and washers. (Fig. 13)
7. Shoulder bolts provided in catalyst kit must be in-
stalled on top of rebox. Use nut to secure in place.
(Fig. 13)
8. Install glass frame assembly by resting the bottom
edge of the frame on support brackets below the
front opening of the rebox. Rotate the top edge of
the assembly toward the rebox, and center it. Fas-
ten by “rotating” the cams over the top left and right
edges of the frame. (Fig. 14)
5. Replace rear, left and right log bracket assembly and
replace logs.
ST709
UVS pin
top install
1/29/02 djt
Shoulder
Bolts
ST709
Install shoulder bolts and set catalytic combustor in
place.
Catalytic Combustor
Shown with top
removed for clarication.
ST711
Rotate cams into place to hold glass frame assembly
in place.
Shown with top
removed for clarication.
ST709
UVS pin
top install
1/29/02 djt
11
Stardance® Vent-Free Gas Heater
30005057
Check the Rating Plate attached by a steel cable to the
rebox, to conrm that you have the appropriate rebox
for the type of fuel to be used.
The appliance should have a main gas valve provided
in an accessible location for turning on or shutting off
the gas to the main burner.
Gas connection should be made in accordance with
current National Fuel Gas Code, ANSI Z223.1/NFPA
54. Since some municipalities have additional local
codes, be sure to consult you local authority.
Connect the gas supply and test for leaks. Use a 50/50
solution of liquid soap and water to test for leaks at gas
ttings and joints. NEVER test with an open ame.
Light the pilot according to the directions on Page 16,
before going to the next step.
1. Remove the logs from their packaging, and inspect
each piece for damage.
2. Install the rear log by placing it on the sheet metal
shelf at the back of the rebox. (Fig. 15) The log
should touch the back wall of the rebox and be
centered.
12
Stardance® Vent-Free Gas Heater
30005057
LG224
UVS27
logs in place
1/30/02 djt
LG224
Stardance logs in place.
LG223
UVS27
log placement
1/30/02 djt
LG223

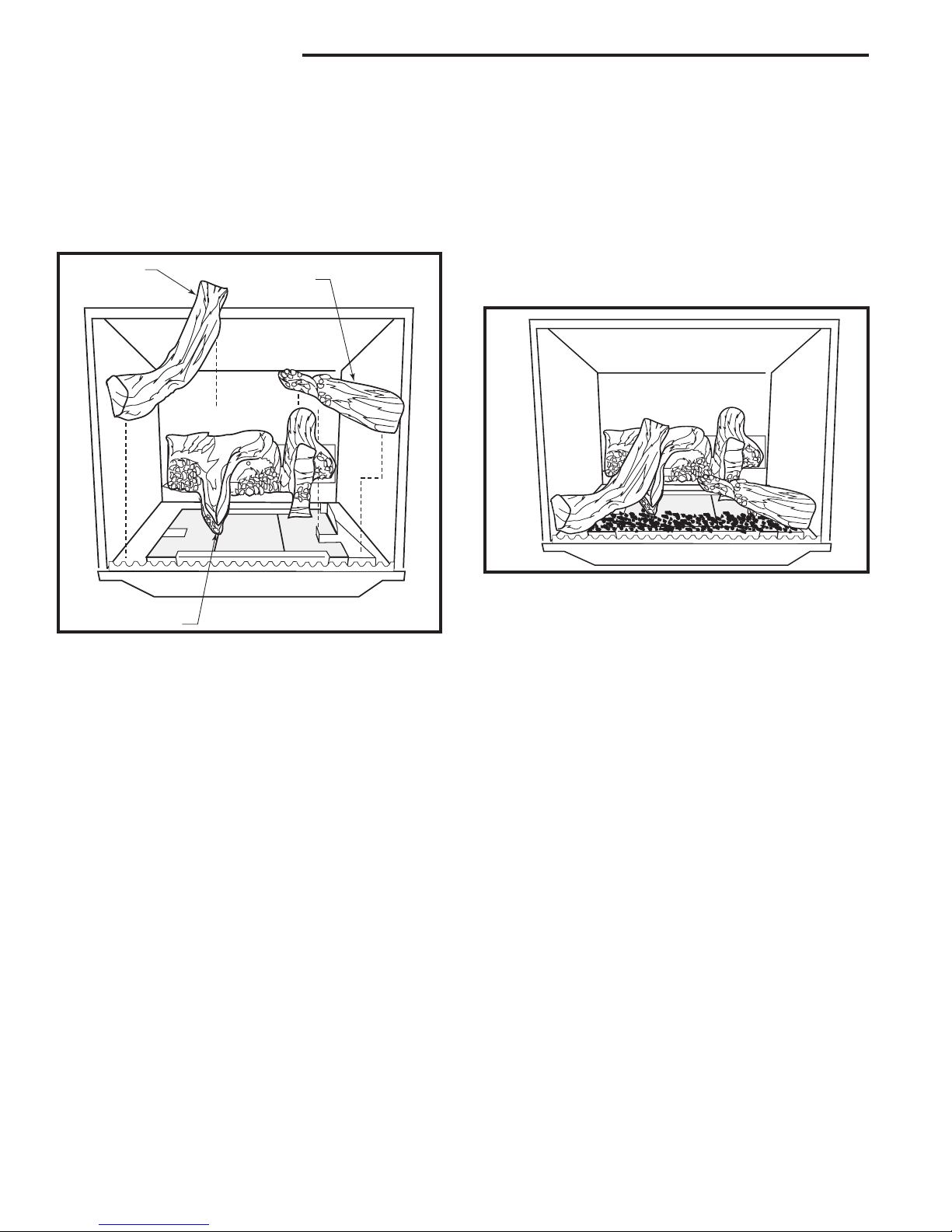

Install rear, left and right logs.
Left Log Right Log
Rear Log
3. Install the right log by placing it on the sheet metal
bracket behind the grate with the right end of the log,
“the thicker end”, touching the grate and the right
side the rebox. Swing the left end of the log “paint-
ed end”, backward until it comes in contact with the
branch on the rear log. Set the log down over the
bent tab on the right. When the log is in place it rests
on the tab mentioned earlier and the tip of it comes
in contact with the branch on the rear log. (Fig. 15)
4. Install the left log by placing it on the sheet metal
bracket behind the grate with the left end of the log,
“the thicker end” touching the grate and the left end
of the rebox. Lay the log into the recessed area
on the left branch of the rear log. When the log is
in place, it will rest on the left branch of the rear log
toward the left side of the branch.
5. Loosely sprinkle the lava rocks directly on top of the
burner just behind decorative grate. (Fig. 16) Do not
place lava rocks toward back of burner. The lava
rock is shipped inside the bag assembly.
13
Stardance® Vent-Free Gas Heater
30005057
ST114a
top install
12/18/03 djt
Grille
Levelling
Screws
ST114b
Install the Top Plate and Grille.
Screen
1. Install the screen frame by sliding the hooks over the
top front edge of the rebox and resting the bottom
on the support brackets. If the catalyst has been
installed, place the glass front on the stove by resting
the bottom edge of the frame on support brackets
below the front opening of the rebox. Rotate the top
edge of the assembly toward the rebox, and center
it. Rotate the right and left cams towards the back of
the rebox to secure glass frame in place.
2. Grasp the front plate by the window bars and lift
into position engaging the two steel tabs behind the
adjacent bosses in the side plates. (Fig. 17) Seat the
front against the sides so the tabs at the bottom lip
engage with the notches in the stove legs.
ST112a
front plate install
fully assembled
1/04
Engage steel tabs
behind the cast
iron bosses
Control Door
Bottom Tabs engage
notch in the leg.
ST112b
Install the Front Plate. Your Front may look different
from that shown.
When properly installed, the bottom of the front plate
cannot be pulled away form the sides without lifting it.
Be sure the control door can swing out. It
should close against the steel tab stop.
If installing the optional warming shelf, you may nd it
easiest to attach it to the top plate before placing the
top in position on the stove. Follow the instructions sup-
plied with the kit.
3. Lay the screen and top grille in place. (Fig. 18)
This completes assembly of the Stardance.
14
Stardance® Vent-Free Gas Heater
30005057
Read these instructions carefully and familiarize
yourself with the burner controls shown on Page 16.
Locate the pilot assembly, Figure 19. Follow the lighting
instructions on Page 15 exactly.
During the rst re, it is not unusual to smell some
odor associated with new logs, paint and metal being
heated. Odors should dissipate within the rst eight to
ten hours, however, you can open a window to provide
fresh air to alleviate the condition.
Each time you light your heater check that the pilot
ame and burner ame patterns are as shown in Fig-
ures 21 and 22. If ame patterns are incorrect, turn the
heater off. Contact your dealer or a qualied gas techni-
cian for assistance. Do not operate the heater until the
pilot ame is correct.
Follow regular maintenance procedures as described
on Page 18.
ST673
RUVSOD
Pilot assembly location
7/249/01 djt
Natural
Pilot
LP Pilot
ST673
Pilot assembly location.

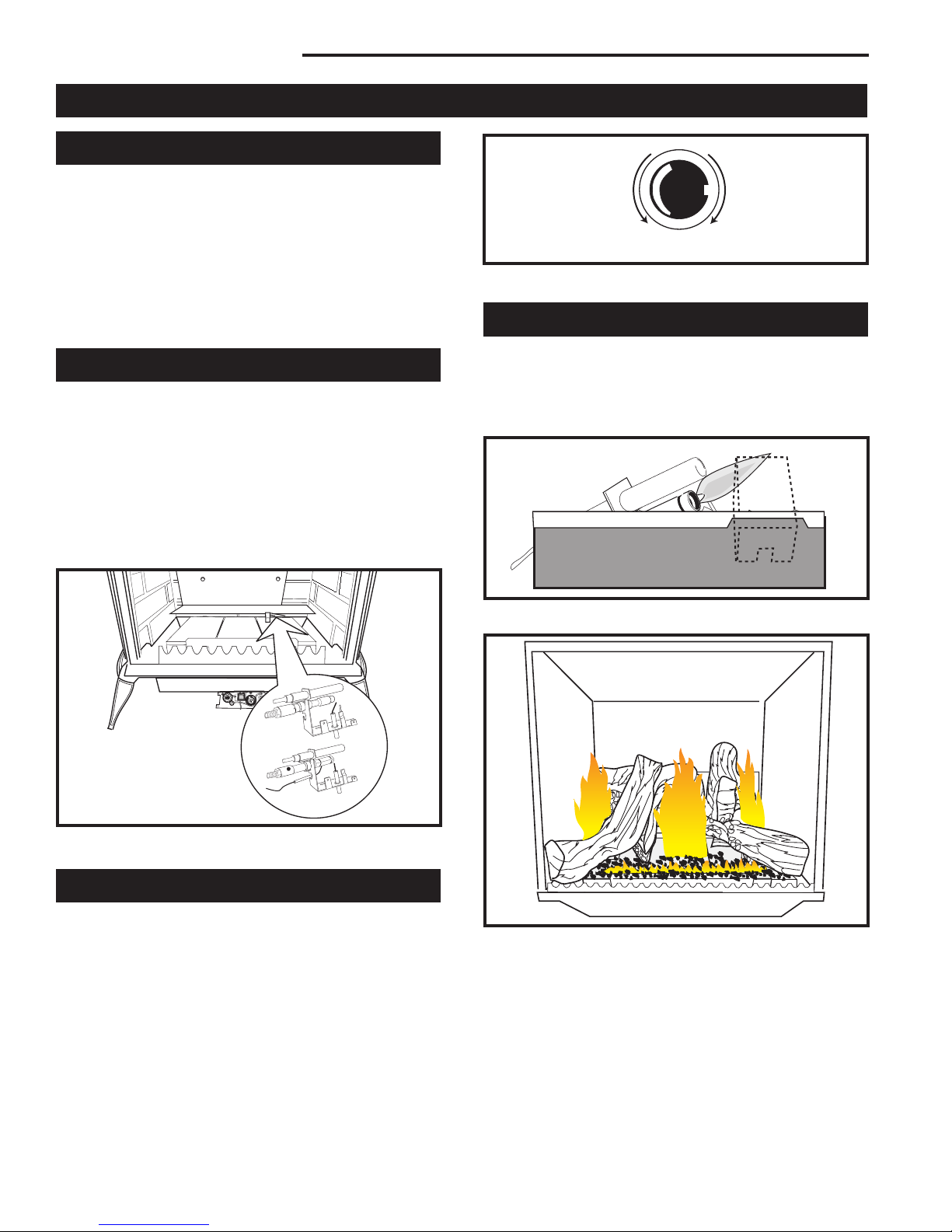

For units equipped with ‘HI/LO’ valves the ame adjust-
ment is accomplished by rotating the ‘HI/LO’ adjustment
knob located near the center of the gas control valve.
(Fig. 20)
It is important to periodically perform a visual check
of the pilot and burner ames. Compare them to the
pictorial illustrated below. (Figs. 21 & 22) If the ame
patterns appear abnormal contact a qualied service
provider for service and adjustment.
ST198
Correct pilot ame appearance.
ST198
pilot flame detail
11/99
LG224
UVS27
logs in place
1/30/02 djt
LG225
Correct burner ame pattern.
FP390
Flame adjustment knob for SIT Valve.
L
O
H
I
FP390
FLAME ADJUSTMENT KNOB
11/21/96
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
15
Stardance® Vent-Free Gas Heater
30005057
3. Open control access panel.
4. Push in gas control knob slightly and turn clock-
wise to “OFF”. Do not force.
5. Close control access panel.
1. Read the safety information above.
2. Turn off all electrical power to the replace.
3. Turn the On/Off switch to “OFF” position or set
thermostat to lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn clock-
wise to “OFF”.
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly depress-
ing the piezo spark ignitor until a ame appears.
Continue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes
out, repeat steps 5 through 8.
• If you cannot reach your gas supplier, call the
Fire Department
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call a
qualied service technician. Applying force or any
attempted repair may result in a re or explosion.
D. Do not use this replace if any part has been under
water. Immediately call a qualied service techni-
cian to inspect the heater and to replace any part of
the control system and any gas control which has
been under water.
A. This heater has a pilot which must be lit manu-
ally. When lighting the pilot follow these
instructions exactly.
B. BEFORE LIGHTING smell all around the heater
area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will
settle on the oor.
• Do not try to light any replace
• Do not touch any electric switch
• Do not use any phone in your building
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
1. Turn the On/Off switch to Off position or set the
thermostat to lowest setting. (R Models only)
2. Turn off all electric power to the replace if serv-
ice is to be performed.
6. Wait ve (5) minutes to clear out any gas. Then
smell for gas, including near the oor. If you
smell gas, STOP! Follow “B” in the safety infor-
mation above. If you do not smell gas, go to the
next step.
7. Remove glass door before lighting pilot. (See
Glass Frame Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to “PILOT”.
• If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to “OFF” and call your
service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. Turn the On/Off switch to “ON” position or set
thermostat to desired setting.
14. Turn on all electrical power to the replace.
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
FP1067
lighting instruction
knobs
3/9/01 djt
5
4
3
2
1
O
F
F
P
i
l
o
t
3/8" - 1/2"
FP1068
Lighting instructions
Pilots
16
Stardance® Vent-Free Gas Heater
30005057
Follow these procedures in the order presented.
1. Ignition Electrode is disconnected
from ignition wire, broken or incor-
rectly positioned.
2. Ignitor wire is broken.
3. Bad Piezo Ignitor.
1. Inspect and re-connect, replace
or repair as necessary.
2. Replace wire.
3. Replace Piezo Ignitor.
1. Gas supply is turned off or supply
line shut-off valve is closed.
2. Control Knob is not in PILOT posi-
tion.
3. Control Knob not pressed in while
in PILOT position.
4. Air present in gas lines.
5. Inlet supply pressure is not within
correct settings.
6. Other conditions that should be
identied only by a qualied gas
technician.
1. Turn on gas supply or open sup-
ply line shut-off valve.
2. Turn Control Knob to PILOT.
3. Press Control Knob in while in
the PILOT position.
4. Continue holding in Control Knob
and repeat ignition procedure
until air is bled from the lines.
5. Call local gas supplier. Adjust
inlet supply pressure to specica-
tion: NG; 5.5” w.c.-14.0”w.c. LP;
11.0” w.c.-14.0”w.c.
6. Call qualied gas technician.
17
Stardance® Vent-Free Gas Heater
30005057
1. Control Knob not fully depressed
or held in long enough.
2. Gas supply line shut-off valve is
not fully open.
3. Thermocouple connection is
loose at the Control Valve.
4. Pilot ame does not touch the
Thermocouple.
This can be caused by:
A) Incorrect gas pressure, and/or
B) other conditions that should
be identied only by a qualied
service technician.
5. Thermocouple is damaged.
6. Control Valve is damaged.
1. Depress Control Knob fully and
hold in for a full 30 seconds.
2. Fully open gas supply line shut-
off valve.
3. Inspect and tighten securely.
4. A) Call local gas supplier. Adjust
inlet supply pressure to specica-
tion: NG; 5.5” w.c.-14.0”w.c. LP;
11.0” w.c.-14.0”w.c.
B)Call local gas service techni-
cian.
5. Call local gas service technician.
6. Call local gas service technician.

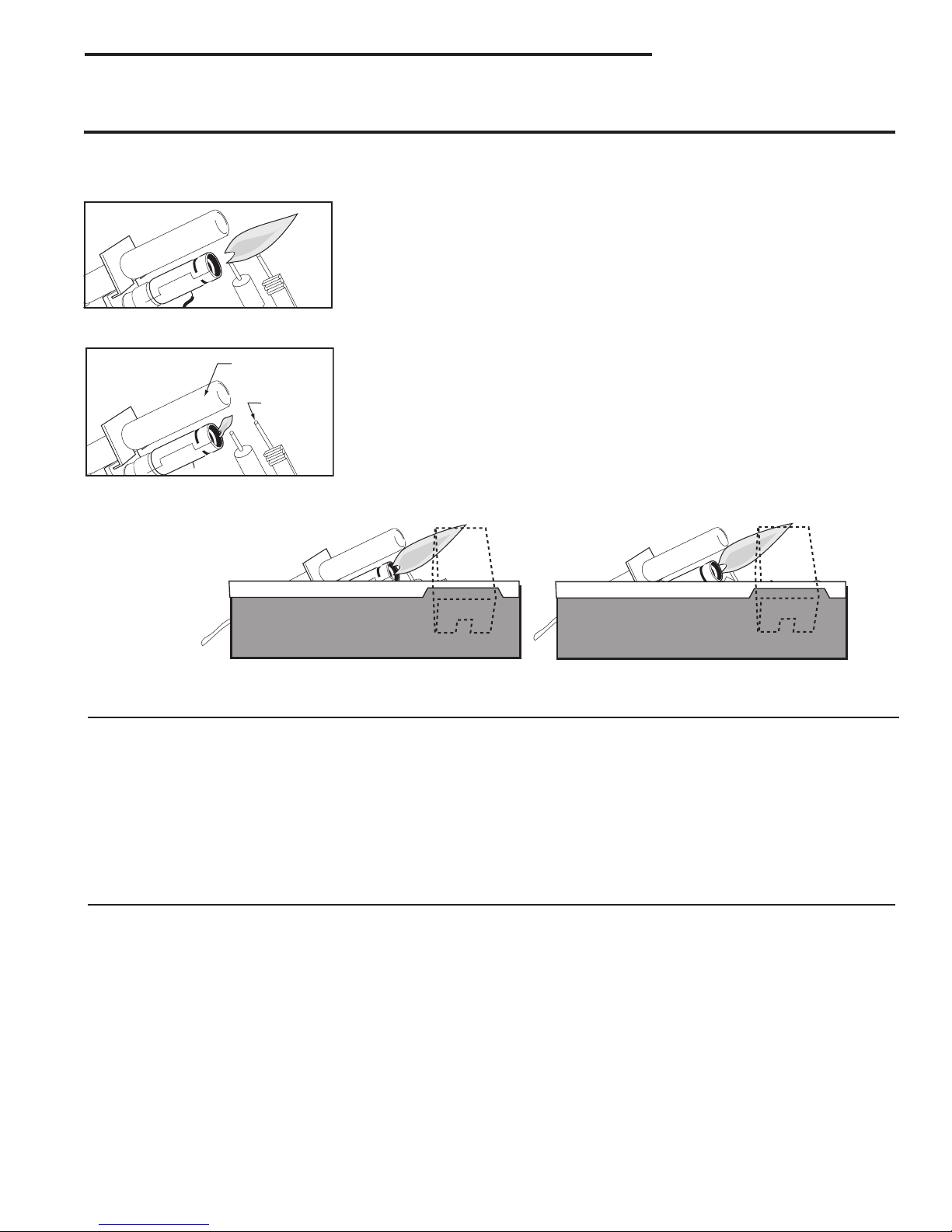

Correct LP Pilot Flame. Correct NG Pilot Flame.
1. Gas supply line shut-off valve is
not fully open.
2. Foreign material is blocking
Burner ports.
3. Main Burner orice is clogged.
4. Thermostat or remote switch not
activated on JUVS.
5. Bad Thermopile.
1. Fully open gas supply line shut-
off valve.
2. Insptect and clear debris away
from Burner ports.
3. Call local gas service technician.
4. Set thermostat to higher tem-
perature or check remote switch.
5. Call local gas service technician.
1. Insufcient fresh air.
2. Incorrect inlet supply pressure.
1. Determine that adequate ventila-
tion exists to provide sufcient
fresh air. Open a window or pro-
vide additional ventilation. (See
Fresh Air Requirements, Pages
6-7)
2. Call local gas supplier. Adjust
inlet supply pressure to specica-
tion: NG; 5.5” w.c.-14.0”w.c. LP;
11.0” w.c.-14.0”w.c.
ST121a
JUV
Pilot flame wrong 2
9/25/00 djt
Pilot ame is weak - does not touch
Thermocouple.
Pilot ame is lifting.
Thermopile
Thermo-
couple
ST121a
ST674
RUVSOD
Pilot flame 2
7/24/01 djt
18
Stardance® Vent-Free Gas Heater
30005057
The following procedures will help ensure that your
heater continues to perform safely and efciently.
Follow the simple procedure outlined below.
Frequent cleaning may be necessary in living environ-
ments subject to excessive carpet lint or pet hair. For
example, if you live with a dog that sheds continuously,
you will need to inspect the burner area frequently and
clean it as often as the accumulation requires.
Turn the burner OFF and let the heater cool com-
pletely before cleaning.
Lift the Front plate up and then swing the bottom out
to disengage it from the heater shell. (Page 13, Fig.
17)
Remove the screen by lifting up and away from the
unit. Or, if so equipped, remove the glass panel by
rotating the two cams toward the front of the rebox.
Lift the panel up and off of the rebox frame. (Fig.
23)
Carefully inspect the log set for damage. Contact
your local dealer if any damage is evident.
Use a soft-bristled brush vacuum cleaner attachment
to remove dust or debris from the log set, pilot and
burner. Use care as the log set is fragile.
Inspect the catalytic combustor at the top of the
rebox. Replace the combustor if any damage or
deterioration is evident.
Replace the screen or glass panel and the front
plate.
If so equipped, do not operate this appliance with the
glass panel cracked, broken, or removed. Replace
damaged glass only with an approved Vermont Cast-
ings Group ceramic glass panel. Follow the Cleaning
Procedure instructions regarding parts removal.
An occasional dusting with a dry rag will help keep the
painted surfaces looking new. Use high-temperature
stove paints, available through your local dealer, to
touch-up areas as needed. Clean areas to be painted
with a wire brush and be sure to cover the log set,
burner and valve assembly. Apply the paint sparingly;
two light coats of paint will give better results than a
single heavy coat.
Porcelain enamel surfaces should be cleaned
with a soft, damp cloth. Do not use abrasive cleaning
agents. If necessary, use only a cleaning agent formu-
lated specically for use on porcelain enamel surfaces.
ST712
UVS27
screen removal
1/02
Remove the screen or glass panel.
Screen Hooks
Glass Latch
ST712
19
Stardance® Vent-Free Gas Heater
30005057
The combustor should be cleaned annually to ensure
optimal performance. Follow the procedure below.
Be sure the heater is COLD.
Remove the screws and washers holding the com-
bustor in place. Lift combustor up and out.
1. Clean the outer surface of the lter with the brush
attachment of your vacuum cleaner to remove loose
dirt.
2. Submerge the lter in a mild soapy water solution.
Rinse thoroughly with
3. Replace in heater when dry.
Replace combustor on top of rebox.
Secure with screws and washers removed earlier.
Refer to Page 10, Figure 13.
20
Stardance® Vent-Free Gas Heater
30005057
1a
1b
1c
2a,b
6
8
5
21
19
20
4
11
12 13
7
15
9a,b
18
22
3
16a,b,c,d
10a
10b
14a,b
17
1d
23
24
25
27
28
5057

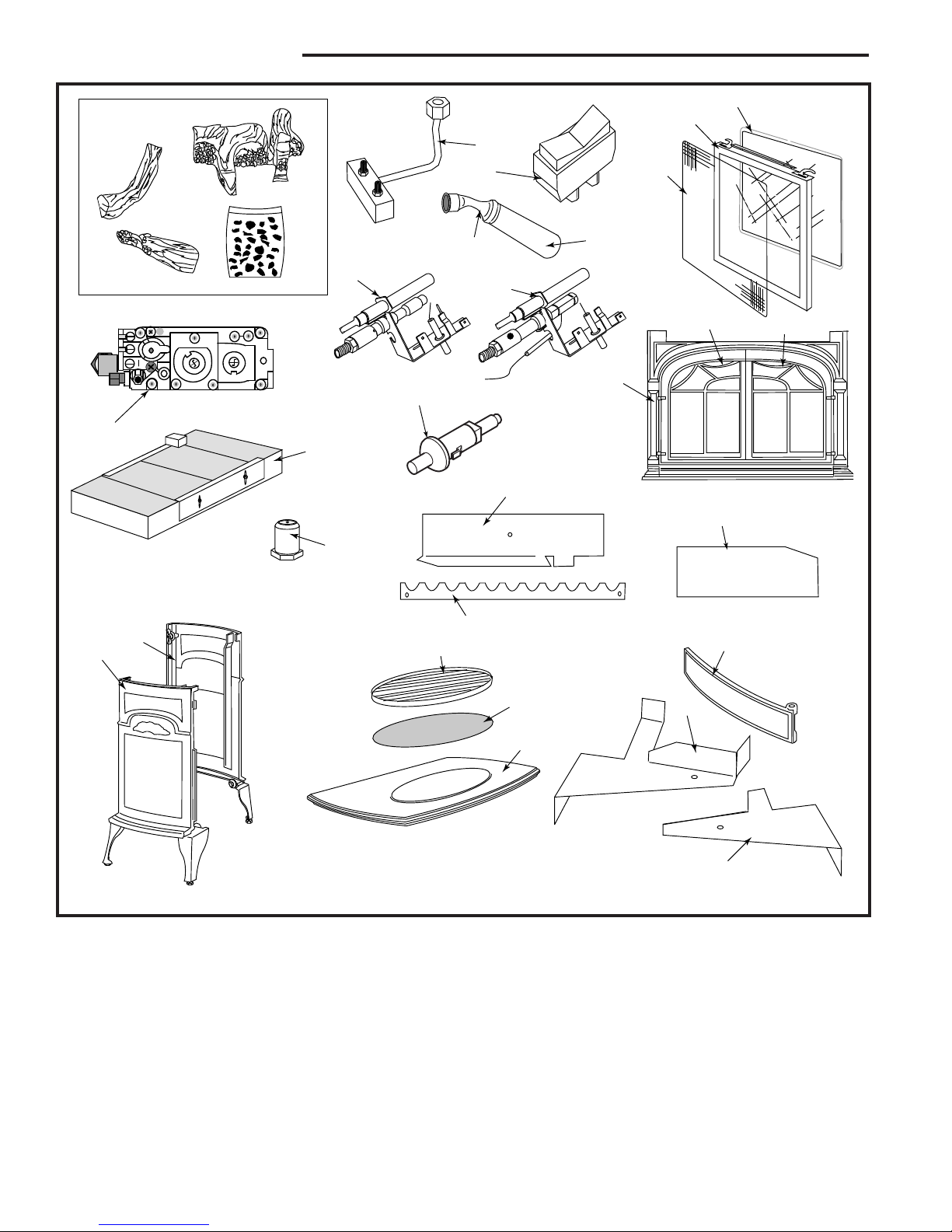

Stardance VF parts
Vermont Castings Group reserves the right to make changes in design, materials, specications, prices and discontinue colors and products at any
time, without notice.
Other manuals for 4050
2
This manual suits for next models
1
Table of contents
Other Vermont Castings Gas Heater manuals
Vermont Castings
Vermont Castings Stardance SDV30 User manual
Vermont Castings
Vermont Castings NBST27 User manual
Vermont Castings
Vermont Castings VCBV10 Specification sheet
Vermont Castings
Vermont Castings SDDVTCBSB Installation instructions
Vermont Castings
Vermont Castings PH24 User manual
Vermont Castings
Vermont Castings RAD- VTBB User manual
Vermont Castings
Vermont Castings 3980 Mounting instructions
Vermont Castings
Vermont Castings UVS27R User manual
Vermont Castings
Vermont Castings UVS27R Mounting instructions
Vermont Castings
Vermont Castings RADVTCB Mounting instructions
Vermont Castings
Vermont Castings 3380 User manual
Vermont Castings
Vermont Castings Intrepid INDVRBDSB Installation instructions
Vermont Castings
Vermont Castings Radiance RUVSOD 3370 Mounting instructions
Vermont Castings
Vermont Castings TPB18NV User manual
Vermont Castings
Vermont Castings RADVT(CS)CBSB User manual
Vermont Castings
Vermont Castings SDDVTBSSB User manual
Vermont Castings
Vermont Castings Radiance RADVT Series Installation instructions
Vermont Castings
Vermont Castings SDDVRBD, SDDVRC, SDDVRCCB User manual
Vermont Castings
Vermont Castings A18PHKSN User manual
Vermont Castings
Vermont Castings Radiance RADVTCB Mounting instructions
Popular Gas Heater manuals by other brands
Astria Fireplaces
Astria Fireplaces Triflame18EN Installation and operation instructions
Universal Blue
Universal Blue UELLABLACK4200-19 instruction manual
Focal Point
Focal Point MUSE P23 installation instructions
Vanguard
Vanguard VS24PR OWNER'S OPERATION AND INSTALLATION MANUAL
MrHeater
MrHeater MHBF10LP Installation instructions and owner's manual
MrHeater
MrHeater MHBF10LP Installation instructions and owner's manual
Vanguard
Vanguard VP10T OWNER'S OPERATION AND INSTALLATION MANUAL
Vanguard
Vanguard VGN30 OWNER'S OPERATION AND INSTALLATION MANUAL
Universal Blue
Universal Blue UCEF90101-20 user manual
Vanguard
Vanguard Flame-Max Vintage Oak Log Design OWNER'S OPERATION AND INSTALLATION MANUAL
Comfortflame
Comfortflame CCL3018PTA/NTA Owners manual and installation manual
MrHeater
MrHeater MH15T Operating instructions and owner's manual
Procom
Procom MN200EBC OWNER'S OPERATION AND INSTALLATION MANUAL
Astria
Astria Blaze&Glow18TN Installation and operation instructions
Desa
Desa 200 owner's manual
Orbegozo
Orbegozo HCE 73 instruction manual
Bryant
Bryant 585B Installation, operation and maintenance instructions
Carrier
Carrier PACKAGE ROOFTOP 48HC installation instructions
