Vermont Castings SA18SHKSN User manual

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
CFM Specialty Home Products
Certified to ANSI Z21.60
and CGA 2.26 Standards
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
3311882 12/04 Rev. 4
Installation and Operating In-
structions for Vented Gas Log
Sets- Hearth Kits
Models: SA18SHKSN, SA18SHKSP,
SA24SHKSN, SA24SHKSP,
SA30SHKSN, SA30SHKSP
CERTIFIED
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
ATTENTION
Installation, service, and repair of this appli-
ance must be performed by a qualified
installer, service agency, company or gas
supplier experienced with this type of gas
appliance.
INSTALLER:
Read these instructions completely and care-
fully prior to beginning installation. After instal-
lation, leave these instructions with the owner.
OWNER:
Read these instructions and follow the warn-
ings. Save this manual for future reference.
Check local codes before installing this log set.
In some areas of the country, gas log sets are
restricted.
The installation and the provisions for combus-
tion and ventilation air must conform with the
National Fuel Gas Code, ANSI Z223.1/NFPA54.
—Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
—WHAT TO DO IFYOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not
use any phone in your building.
•Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier, call
the fire department.
Decorative Gas Appliance For Installation in Solid Fuel Burning Fireplaces
Carbon Monoxide Poisoning May Lead to Death
When used without fresh air, gas logs may give off carbon monoxide, an odorless, poisonous gas. Some
people such as pregnant women, people with heart or lung disease, and persons at high altitudes are
more affected by carbon monoxide than others.
Early signs of carbon monoxide poisoning resemble the flu: Headache, dizziness, and/or nausea. If you
have these signs, the gas logs may not be installed or working properly. Get fresh air at once! Have the
gas log set and chimney serviced before using it again.
Please record your gas log’s model number for
future reference here:
Note: This model # can be found on the box or
the label attached to the back of the burner pan.

2
3311882
WARNING
Do not use this appliance or any part that has
been under water. Immediately call a qualified
service technician to inspect the appliance and to
replace any part of the control system and any
gas control which has been under water.
WARNING
Young children are not allowed to operate this
unit and must be supervised when they are in the
same room as the appliance.
Children and adults should be alerted to the
hazards of high surface temperature and should
stay away to avoid burns or clothing ignition.
Technical Information
The operation of a gas log set, and the provision for combustion and ventilation air must conform with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54 and applicable codes.
GAS PRESSURETESTING: This gas log set and its individual shut-off valve MUST be disconnected
from the gas supply piping system during any pressure testing of that system at test pressures in excess
of 1/2 psig (3.5 kPA). The gas log set must be isolated from the gas supply piping system by closing its
individual manual shut-off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa)
COMPONENT PARTS: Only factory authorized components listed in these instructions may be used in
accordance with the manufacturer’s instructions and all codes and requirements of the authority having
jurisdiction. Any modifications to this kit, or use of unauthorized components or accessory items will void
the manufacturer’s warranty, and may result in a hazardous condition.
WARNING
Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies. In addition, clothing or other flammable material should not be placed on or near the appli-
ance.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or property dam-
age. Read these directions thoroughly before installation. For assistance or additional information,
consult your gas log dealer, qualified installer, service agency or gas supplier.
WARNING
A properly sized, unobstructed chimney will normally vent all fumes and products of combustion. Any
odor or smoke detected in the room is an indication that the flue is not properly removing the combustion
products. Turn off the gas supply valve immediately! The cause of the venting problem must be discov-
ered and corrected before using this gas log set. Disregarding this warning can cause illness as well as
soot damage to your fireplace, room, and furnishings.

3 3311882
BeforeYou Begin -- Attention!
A. The appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It
is imperative that control compartments, burners and circulating air passageways of the appliance be
kept clean.
B. Your fireplace must include a chain mesh or similar screen. The screen must remain fully closed while
operating your log set. Any safety screen or guard removed for servicing this appliance must be
replaced prior to operation.
C. If your fireplace includes glass doors, they must remain fully open to allow for combustion air during
operation, and to prevent overheating of the gas valve.
D. Your log set must be installed in a solid fuel burning fireplace constructed of noncombustible material
with a working flue.
E. Solid fuels shall not be burned in the fireplace where your gas log set is installed.
F. If this log set is to be used with propane gas, your propane supply tank MUST include a high to low
gas pressure regulator, and must be located outside. DO NOT place supply tanks inside any structure
.
G.Never use sand or other dense pan material with propane gas: use vermiculite only.
H. Be sure to apply pipe joint compound to all non-flared, threaded connections involved in this installa-
tion to avoid possible gas leaks. Compounds used in liquid propane applications must be resistant to
the action of that gas.
I. Always test for leaks using a soapy solution. NEVER USE OPEN FLAME.
J. The manufacture and shipping of your log set involves compounds which may cause detectable yet
harmless odors during initial operation. Provide extra ventilation to the room for the initial 2-3 hour
break-in period.
K. This gas log set may be installed in the approved fireplace in an aftermarket* manufactured (mobile)
home where not prohibited by state or local codes.
*Aftermarket: Completion of sale, not for purpose
of resale, from the manufacturer.
L. The fireplace damper MUST be fully open when operating this log set.
Fireplace Specifications
Before installation, the chimney flue, venting system, and firebox must be cleaned of all soot, creosote,
ashes and loose paint, by a qualified chimney cleaner.
Your Fireplace Must Include:
•A working flue and venting system with the minimum openings indicated on page 8.
•A gas supply shut off valve. If your fireplace does not have such a valve, one must be installed

4
3311882
CAUTION: If you answered “NO” to any item, or have any questions regarding your installation, please con-
tact your dealer/distributor for assistance.
Is the gas supply inlet pressure correct?
NG: Min. 5.5” w.c./Max. 14.0” w.c. LP: Min. 11” w.c./Max. 14.0” w.c.
Does the firebox meet the minimum size dimensions below?
Is your fireplace plumbed with gas on the right side (facing) of the fireplace?
If not, refer to ee Page 5.
Is the gas supply line sized properly (Minimum 1/2” iron pipe)?
Do you have a solid fuel (wood burning) fireplace with a vented flue?
Do you have a manual gas supply valve installed at your fireplace? If not, a licensed
plumber, gas company technician or other qualified installer must install one.
Have you checked local building codes? (Check with your local building department)
Does your fireplace have a wire mesh screen in place?
Pre-Installation Checklist Yes No
Minimum Clearances & Specifications
Natural Gas Units
Propane Gas Units
Size Btu/hr Back Front Depth Height Size Minimum Maximum”
18” 50,000 16” 33” 15” 18” 51 sq.in. 5.5”w.c. 14.0”w.c. 3.5”w.c.
24” 75,000 20” 36” 15” 18” 51 sq.in. 5.5”w.c. 14.0”w.c. 3.5”w.c.
30” 90,000 27” 39” 15” 18” 51 sq.in. 5.5”w.c. 14.0”w.c. 3.5”w.c.
Minimum Firebox Dimensions Minimum Gas Fuel Line Manifold
Set Input Width Flue Pressure Pressure
Size Btu/hr Back Front Depth Height Size Minimum Maximum
18” 40,000 16” 33” 15” 18” 51 sq.in. 11.0”w.c. 14.0”w.c. 10.0”w.c.
24” 45,000 20” 36” 15” 18” 51 sq.in. 11.0”w.c. 14.0”w.c. 10.0”w.c.
30” 60,000 27” 39” 15” 18” 51 sq.in. 11.0”w.c. 14.0”w.c. 10.0”w.c.
Minimum Firebox Dimensions Minimum Gas Fuel Line Manifold
Set Input Width Flue Pressure Pressure
NOTE: All dimensions are minimums.
NOTE: All dimensions are minimums.

5 3311882
Damper Stop Installation:
For Use with BR, BC, SR, SC, TF and TL Series CFM Specialty Home Products Fireplaces
This Damper Stop is designed to work on all CFM
Specialty Home Products BR, BC, SR, SC, TF and
TL series fireplaces. For all other fireplaces, refer
to Page 6.
When installing a decorative gas appliance in a
fireplace, some local codes require this Damper
Stop to be used so the Damper will not close
completely. To install the Damper Stop:
The Damper Locking Bracket is already installed
on all BR, BC, SR, SC, TF and TL fireplaces.
Locate the Damper Locking Bracket on the left
side of the fireplace’s Combustion Dome. (Fig. 1)
With the Damper open, align the two slots on
either side of the cut-out on the Damper Stop with
the two small holes on the angled portion of the
Damper Locking Bracket. Attach the Damper Stop
with the Screws provided, as shown in Figure 2.
NOTE: Some of the early fireplace units may not
have the holes in the end of the Damper Locking
Bracket. If this is the case, use the Damper Stop
as a template to drill two (2) 1/8” holes in the
Damper Locking Bracket to mount the Damper
Stop.
NOTE: Your gas log set is assembled at the factory to be installed in a fireplace plumbed with the gas on
the right side (facing). If your fireplace is plumbed with the gas on the left side, you will need to run a
flexible connector (or as per local codes) along the back wall of the fireplace to bring your gas line to the
right hand side. You can then place the set in front of the flexible connector.
Gas Plumbed On Left Hand Side Of Fireplace
8” adjustable crescent wrench ; Pipe thread sealant compound or teflon tape ; 12” pipe wrench or channel
lock pliers.
Tools Required
Damper Plate
Damper Locking Bracket
Figure 1 DP100
Damper Locking
Bracket
Damper Stop Screw
Damper Stop
Figure 2 DP101

6
3311882
The Damper Clamp provided keeps your damper
from accidentally closing during operation of your
set. This Damper Clamp must be installed onto
your Damper at all times.
Install the Damper Clamp onto the edge of the
damper plate. Attach by securing the bolt provided
to the damper plate with an adjustable wrench.
(Fig. 3)
If the Damper Clamp does not fit, drill a 1/4” hole
into the damper plate and install an anchor bolt
with nut, at a 90 degree angle, so that the damper
plate will remain fully open.
The proper finished installation of the Damper
Clamp is shown in Figure 4. If the bolt fails to block
the damper in an open position, the damper
should be removed from the chimney.
To check your vent for proper drafting: Light a
tightly rolled newspaper on one end and place it at
the inside front edge of the fireplace. Observe the
smoke and be sure the vent is properly drawing it
up the chimney. If the smoke is drawn back into
the room, extinguish the flame and remove any
obstruction until proper venting is achieved. If that
fails, check with a qualified chimney sweep.
Damper Stop Installation:
For Use With All Other Fireplaces
Figure 3
Damper Plate
Damper Clamp
DP104
Figure 4
Damper
Chimney
Clamp
DP103

7 3311882
Connection To Gas Supply
Adding Pan Material
1. Open the bag of Vermiculite (for Propane Gas)
or Silica Sand (for Natural Gas) and spread it
evenly across the Burner Pan, to the top, as
shown in Figure 5. You may overflow the front
and sides of the pan to cover the entire pan and
connecting hardware.
2. Next, open the bag of Glowing Embers and
place them on top of the Vermiculite or Silica
Sand, evenly across the Burner Pan. Be sure to
separate the Glowing Embers into very small
pieces before placing them.
Grate Clip Installation
1. Hook the U-Shaped part of the Grate Clips over
the back horizontal bar of the Grate, as shown in
Figure 6. Repeat with the other Clip.
2. Slide the rear edge of the burner pan into the
three-pronged slot in the front edge of the grate
clip, as shown in Figure 6.
1. Center the burner pan from left to right in the
fireplace and with the back of the grate against
the back wall of the fireplace.
2. Attach the Gas Supply Fitting onto your
fireplace’s gas supply pipe. Remember to use
pipe thread sealant or teflon tape on this con-
nection.
3. Attach one end of the Flexible Gas Connector to
the brass fitting on the back of the pressure
regulator, as shown in Figure 7.
4. Attach the other end of the Gas Connector to the
flared side of the Gas Supply Fitting.
Vermiculite (for Propane) or Silica
Sand (for naural Gas)
Glowing Embers
Figure 5 LG216
Figure 6
Back Bar of
Grate
Grate Clip
LG217
Figure 7 LG221
Flexible Gas Connector

8
3311882
Optional Fettel Cast Front Grate Log Placement
Attach the fettel to the front of the grate as shown
in Figure 8.
Grate Clip
Fettel Cast
Front Grate
Grate
Figure 8
1. Place the larger bottom logs onto the grate,
leaving as much space between them as
possible. When burning, the flames should
come up directly between the logs.
2. Place the smaller top logs diagonally onto the
bottom logs. The top logs can be arranged to
achieve your desired flame pattern. Be sure
you leave as much open space between the
logs as possible to minimize flame impinge-
ment and sooting.
3. Open the bag of lava rock and spread the rocks
onto the fireplace floor around the burner pan
for decorative purposes.
Available Log Sets
LG330
18” Standard Round Log Set
24” Standard Round Log Set
LG331
30” Standard Round Log Set
LG332

9 3311882
18” Standard Split Log Set
LG333
24” Standard Split Log Set
LG334
30” Standard Split Log Set
LG335
18” Standard Combination Log Set
LG336
24” Standard Combination Log Set
LG337
30” Standard Combination Log Set
LG338

10
3311882
Before operating, smell all around the appliance area for gas odor. Be sure to smell near the floor because
some gases (propane) are heavier than air and will “pool” on the floor.
Use only your hand to push or turn the gas control dial. NEVER USE TOOLS. If the knob will not push in
or turn by hand, don’t try to repair it, call a qualified technician. Force or attempted repair may result in a
fire or explosion.
What To Do If You Smell Gas
•Do not try to light any appliance
•Do not touch any electrical switch, do not use any phone in
your building
•Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions
•If you cannot reach your gas supplier, call the fire department
ForYour Safety Read Before Lighting
WARNING: If you do not follow these directions exactly, a fire or explosion may result
causing property damage, personal injury, or loss of life.

11 3311882
The pilot will resist lighting on new installa-
tions due to air in the gas supply line. It may
take several minutes to bleed air completely
out of the gas plumbing system through the
pilot line.
This appliance has a pilot which is lit by a spark
ignition device (piezo). If the piezo fails, then light
the pilot using matches following the Match Light-
ing instructions below.
1. Push in the control dial slightly and turn
clockwise to OFF. NOTE: the control dial
cannot be turned from PILOT to OFF unless the
dial is pushed in slightly. Do not force.
2. Wait five (5) minutes to clear out any gas. If you
then smell gas STOP! Follow the safety infor-
mation above. If you don’t smell gas, go on to
the next step.
3. Turn the control dial counterclockwise
90o
to PILOT.
4. Push the control dial in all the way and hold.
When gas begins to flow to the pilot, press the
piezo button to light. You may need to press
(spark) the piezo a few times to light the pilot.
5. After the pilot is lit, continue to hold the control
dial in for about one (1) minute, then release.
Pilot should remain lit. If the pilot goes out,
repeat steps 1 thru 6.
6. If the dial does not pop out when released, stop
and immediately call your service technician or
gas supplier.
7. If the pilot will not stay lit after several tries, turn
the control dial OFF and call your service
technician or gas supplier.

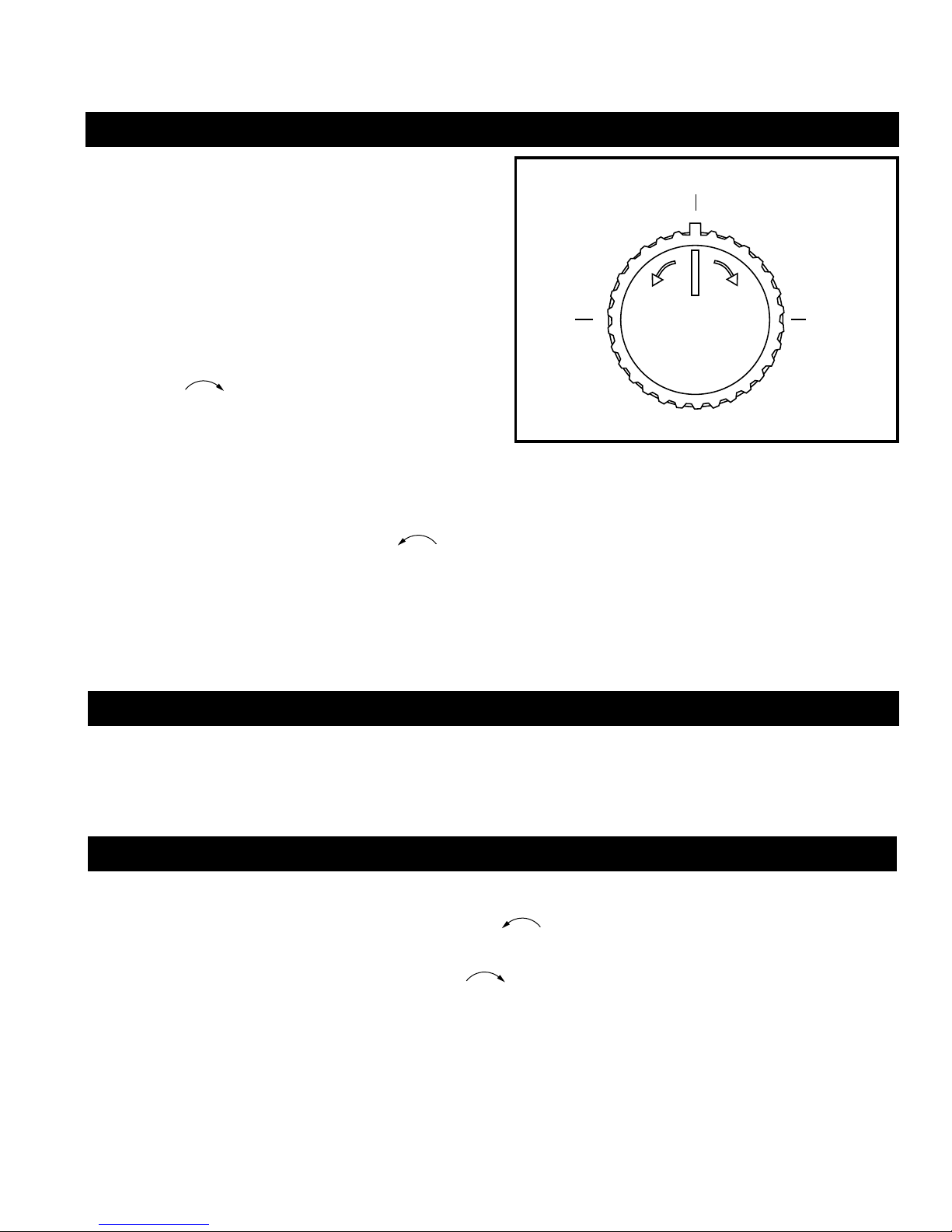

Lighting The Pilot
Match Lighting
To IgniteThe Appliance
With the pilot lit, turn the control dial counterclockwise to ON.
To Turn The Appliance Off
Push the control dial in slightly and turn clockwise to OFF. Do not force.
Igniting The Appliance
Figure 9
PILOT
ON OFF
FROM "PILOT" POSITION
SLIGHT PUSH TO
TURN OFF
FULL PUSH TO
LIGHT
ON OFF
LG208
1. Follow the “Lighting the Pilot” instructions steps 1 thru 4 above.
2. Push the control ideal in all the way and hold. Immediately light the pilot with a match. Continue to hold
the pilot for about one minute after the pilot is lit. Pilot should remain lit. If the pilot goes out, repeat
Lighting the Pilot steps 1 thru 4 and this Step 2.

12
3311882
Troubleshooting
Log Set Is Smoking/Sooting Excessively
It is natural and unavoidable for vented gas log sets (especially propane) to produce moderate levels of
carbon (soot) where flame contacts the logs. The logs can be cleaned using a soft-bristle brush. How-
ever, if soot is produced where there is no flame impingement, one of the following may be the cause:
Fireplace venting system not drafting properly: Make sure the damper is wide open at all times.
Preheat the flue in very cold weather by burning the log set at a very low level, then slowly increasing
the flame height over a matter of hours. Have the fireplace and the venting system professionally
cleaned.
Excessive flame impingement or blockage: Make sure there is proper spacing between the logs so
they are not smothering the flame. Rearrange the logs so they are touched less by the flames.
Excessive gas supply/pressure: Make sure the gas pressure coming into the fireplace does not
exceed the maximum pressure allowed with this gas set (refer to tables on Page 4).
Burner Is Excessively Noisy
Please note: The movement and combustion of gas will create low, unavoidable levels of noise.
Passage of air/gas across irregular surfaces: There may be burrs, paint, or other blockages on the
burner bar ports. Check these ports and remove any blockage.
Excessive gas pressure: Make sure the gas pressure coming into the fireplace does not exceed the
maximum pressure allowed with this gas set (refer to tables on Page 4).
Flexible Gas Connector: Relieve any tight bends or kinks in the Flexible Gas Connector. Switch to a
less flexible gas connector, which can be purchased at any hardware or home improvement store.
Pilot Flame Adjustment
The pilot flame should be steady and soft burning
blue surrounding 1/2” inch of the thermocouple tip .
If adjustment is necessary, the control has a pilot
adjustment screw located in the upper right of the
control face. Use a standard slotted screwdriver to
adjust clockwise to lower the flame, and
counterclockwise to raise it.
1/2"
Figure 10 LG209

13 3311882
Troubleshooting
Pilot Will Not Light
Upon initial installation, the pilot may be difficult to light, due to air in the gas line, valve, and pilot tubing.
If the pilot does not light for several minutes, try using a match to ignite it for the first few times. Initialing
lighting the pilot may take up to five minutes of bleeding the line.
Piezo Igniter Out of Position: First make sure that, when the igniter button is pushed in, the igniter
electrode at the Pilot Assembly is sparking. If it is, make sure the Igniter Electrode’s tip sits directly over
the pilot’s hood. If it doesn’t, adjust it carefully into position.
Piezo Igniter Not Sparking: If the electrode is not sparking, first make sure the wire which connects
the electrode to the Piezo Push Button is not loose on either side. If the Piezo wire is not loose, call our
customer service line.
Incorrect gas supply pressure: Make sure your gas line meets the specifications outlined on Page 4.
Pilot Will Not Stay Lit
After the pilot is lit, hold in the control knob for an additional thirty seconds to activate the thermocouple.
If the pilot still does not remain lit, check the following:
Pilot FlameToo Small: The pilot flame should be large enough to hit the Thermocouple as shown on
Page 13. If the Pilot Flame is too small to do this, adjust the pilot by using a small flathead screwdriver
to turn the pilot adjustment screw located on the front of the Control Valve. Also make sure your gas line
meets the pressure specifications outlined on Page 4.
Thermocouple Out of Position: The pilot flame should be hitting the Thermocouple as shown on Page
13. If the pilot flame is long enough to do this, but the Thermocouple isn’t directly in the Pilot flame’s
path, wait until the Pilot and Thermocouple cool down, then try adjusting the Thermocouple carefully into
position.
Burner Flame Is Too High (8”-12” Abover Top Logs) or Too Low:
Incorrect gas supply, pressure, or burner orifice used: Make sure the gas pressure coming into the
fireplace falls between the minimum pressures allowed with this gas set (refer to tables on Page 4)
Blocked ports (low flame only): Free the main burner orifice and burner bar ports of any burrs, paint,
or other blockage.
Flames at the Air Mixer (Flashback)--Propane Gas Only
Silica Sand used with Propane Gas: Do not use Silica Sand with Propane Gas! If you are using
Propane Gas, remove the SIlica Sand from your Burner Pan and replace with Vermiculite.
Incorrect gas supply pressure: Make sure your gas line meets the specifications outlined on Page 4.

14
3311882
1
2
345
4
6
7a,b
8
9
10
11 12
13
14
17 16a,b,c
15
18
19 20
21
22
23
24
25
26
27
28
29
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.
882
SA18/24/30SHK Series Vented Gas Logs - Hearth Kit
Ref. Description 18” 24” 30”
1. Log Grate 20000924 20000925 20000926
2. Burner Assembly 20007267 20007268 20007269
3. Cast Front Grate w/Clips CIGF 18” CIGF 24” CIGF 30”
4. Grate Clip - Fettel 3304311 3304311 3304311
5. Screw - Grate Clip 3309078 3309078 3309078
6. Bag of Lava Rock 4310010 4310010 4310010
7a. Bag of Silica Sand (Pan Material for Natural Gas ONLY) 4310006 4310006 4310006
7b. Bag of Vermiculite 4310007 4310007 4310007
8. Bag of Glowing Embers (Pan Material) 4310001 4310001 4310001
9. Damper Stop for use with CFM Specialty Home Products
fireplaces ONLY (BR/BC, SR/SC, TF/TL) 3030176 3030176 3030176
10. Damper Stop Screws 7521901 7521901 7521901
11. Damper Stop for all Other Fireplaces 4304045 4304045 4304045
12. Grate Clips 20000962 20000962 20000962
13. Gas Supply Fitting 3304145 3304145 3304145
14. Flexible Gas Connector 3304176 3304176 3304176
Optional
Cast Fettel

15 3311882
SA18/24/30SHK Series Vented Gas Logs - Hearth Kit (continued)
Ref. Description 18” 24” 30”
15. Pilot Bracket 2000912 2000912 2000912
16a. Natural Gas Pilot Assembly (No Ignitor) 3304233 3304233 3304233
16b. Propane Gas Pilot Assembly (No Ignitor) 3304234 3304234 3304234
16c. Pilot & Ignitor Assembly 20004076 20004076 20004076
17. Ignitor 20003717 20003717 20003717
18. Screws 3309077 3309077 3309077
19. Pressure Regulator 3304192 3304192 3304192
20. Control Valve 3304184 3304184 3304184
21. Piezo Ignitor 3304170 3304170 3304170
22. Valve Knob 3304213 3304213 3304213
23. Valve Knob Extender 3304198 3304198 3304198
24. 1Z\x” nipple 20006468 20006468 20006468
25. 3/8” x 3/8” NPT Elbow 7534252 7534252 7534252
26. Natural Gas Orifice Holder 20001278 20001278 20001278
27. Short Stem Orifice for Natural Gas (factory installed in #26 20000960 20000961 20000961
#28 drill; .1405 dia. #15drill; .180 dia. #15 drill; .180 dia.
28. Propane Air Mixer/Orifice Holder 20000012 20000012 20000012
29. Orifice (Propane) 20001281 20007346 20001279
#49 drill; .073 dia. #46 drill; .081 dia. #41 drill; .096 dia.
Ref. Description Log Sets
1. 18” Standard Round Log Set 20007854
1a. 24”/30” Round Right Front 20007833
1b. 18” Round Left Front 20007835
1c. 24”/30” Round Front Cross Log 20007834
1d. 18”/24”/30” Cross Log 20007837
1e. 18” Cross Log 20007836
1f. Top Log 20008335
2. 24” Standard Round Log Set 20007855
2a. 24”/30” Round Left Front 20007839
2b. 24”/30” Round Right Front 20007838
2c. 24”/30” Back Log 20007841
2d. 18”/24”/30” Cross Log 20007705
2e. 24”/30” Round Front Cross Log 20007704
2f. 24”/30” Cross Log 20007840
2g. Top Log (2 per set) 20008335
3. 30” Standard Round Log Set 20007856
3a. 24”/30” Round Left Front 20007839
3b. 24”/30” Round Right Front 20007842
3c. 30” Middle Front Log 20007706
3d. 24”/30” Back Log 20007841
3e. 18”/24”/30” Cross Log 20007705
3f. 24”/30” Round Front Cross Log 20007704
3h. Top Log 20008335
Log Set Replacement Parts

16
3311882
5a
5b
5c
5d
5e 5f
1a
1b
1c
1d
1e
1f
1
2a
2b
2c
2d 2e
2f
2g (2)
2
3a
3b
3c
3e
3f
3g
3d
3h
3
4a
4b 4c
4d
4e
4f
4
5
6a 6b
6c
6d
6e (2)
6f (2)
6
7a
7b
7c
7d
7e
7
8a
8b
8c 8d
8e
8f
8g
89a
9b
9c
9d
9e (2)
9f
9g
9h
9j
9
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.
SA18/24/30SHK Series Vented Gas Logs - Hearth Kit

17 3311882
SA18/24/30SHK Series Vented Gas Logs - Hearth Kit (continued)
4. 18” Standard Split Log Set 20007857
4a. 18”/24”/30” Back Log 20007820
4b. 18”/24”/30” Cross Log 20007699
4c. 18” Split Right Front 20007823
4d. 18” Split Left Front 20007825
4e. Top Log #3 (2 per set) 20008337
4f. Top Log 20008336
5. 24” Standard Split Log Set 20007858
5a. 18”/24”/30” Back Log 20007820
5b. 18”/24”/30” Cross Log 20007699
5c. 24” Split right Front 20007828
5d. 24” Split Left Front 20007830
5e. Top Log #3 (2 per set) 20008337
5f. Top Log (2 per set) 20008336
6. 30” Standard Split Log Set 20007859
6a. 18”/24”/30” Back Log 20007820
6b. 18”/24”/30” Cross Log 20007699
6c. 30” Split Right Front 20007831
6d. 30” Split Left Front 20007832
6e. Top Log #3 (2 per set) 20008337
6f. Top Log (2 per set) 20008336
7. 18” Standard Combination Log Set 20007860
7a. 18” Split Right Front 20007805
7b. 18”/24”/30” Back Log 20007804
7c. Top Log 20008336
7d. 24”/30” Round Front Cross Log 20007806
7e. 18”/24”/30” Cross Log 20007705
8. 24” Standard Combination Log Set 20007861
8a. 18”/24”/30” Back Log 20007807
8b. 24” Split Right Front 20007808
8c. Top Log #3 20008337
8d. Top Log 20008336
8e. Top Log 20008335
8f. 24”/30” Cross Log 20007810
8g. 24”/30” Round Front Cross Log 20007809
9. 30” Standard Combination Log Set 20007862
9a. 18”/24”/30” Back Log 20007818
9b. 30” Split Left Front 20007816
9c. 18”/24”/30” Cross Log 20007813
9d. Top Log 20007811
9e. Top Log (2 per set) 20008335
9f. 24”/30” Cross Log 20007812
9g. 24”/30” Round Front Cross Log 20007814
9h. 18”/24”/30” Cross Log 20007705
9j. 30” Middle Log 20007815
Ref. Description Log Sets

18
3311882

19 3311882
FITNESS FOR A PARTICULAR PURPOSE),ALL OF
WHICH ARE HEREBY EXPRESSLY INCLUDED. IN NO
EVENT SHALLANY IMPLIED WARRANTY PRESCRIBED
BY LAW (NOTWITHSTANDING THE FOREGOING EX-
PRESS EXCLUSION) REMAIN IN EFFECTAFTER EXPI-
RATIONS OF THE WARRANTIES SET FORTH IN PARA-
GRAPHS AAND B.
A. Gas Appliances, electrical and manual compo-
nents, glass panels, all sealants or adhesives and
optional accessories (exclusive of CFM Specialty Home
Products supplied decorative logs which are covered by a
separate warranty under paragraph B below):
Within two years from the date of manufacture of the gas
appliance, CFM Specialty Home Products will repair, or
replace (at our option) a defective part without charge.
B. Cement or ceramic fiber log components:
Within two years from the date of manufacture of the gas
appliance, CFM Specialty Home Products will replace a
defective part without charge. Within years three through
twenty from the date of manufacture of the gas appliance,
CFM Specialty Home Products will provide a replacement
for a defective part to the homeowner, but assumes no
liability for incurred labor cost.
The foregoing warranties gives you specific legal rights
and you may also have other rights which vary from state to
state. Some states do not allow limitations on how long an
implied warranty may last, so the limitation specified above
on the duration of any implied warranty prescribed by law
may not apply to you. Similarly, some states do not permit
the exclusion or limitation of incidental or consequential
damages, so the above exclusion of such damages may not
apply to you.
In order to obtain performance of any of the above
warranty obligations, write to CFM Specialty Home Products
at this address:
CFM Specialty Home Products
410 Admiral Blvd
Mississauga, Ontario Canada L5T 2N6
Attention: Manager of Warranty Services
Since local building requirements may vary greatly
throughout the country, users of CFM Specialty Home
Products products should determine in advance whether
there are any building code restrictions on the use of a
specified product.
CFM SPECIALTY HOME PRODUCTS MAKES NO REPRE-
SENTATION OR WARRANTY REGARDING, AND SHALL
NOT BE RESPONSIBLE FOR,ANY BUILDING CODE
COMPLIANCE. The foregoing warranties give you specific legal
rights and you may also have other rights which vary from state to
state.
CFM Specialty Home Products extends the warranties
specified in paragraphs A and B below with respect to its
Vermont Castings Decorative Gas Appliances (the “Gas
Appliance”), including CFM Specialty Home Products
supplied accessories and components referred to in those
paragraphs, subject to the following conditions and limita-
tions:
(1) These warranties are extended only to the Gas
Appliance installed in the continental United States, includ-
ing Alaska, and Canada; only if and so long as the accor-
dance with the installation and operating instructions
furnished therewith; and only if and so long as Gas Appli-
ance is not removed from its original installation.
(2). These warranties are limited to only the component
parts manufactured and supplied by CFM Specialty Home
Products. The use of components manufactured by others
with the Gas Appliance (except for a listed Type B venting
system as defined in the installation instructions) could
create serious safety hazard, may result in the denial of
certification by recognized national safety agencies, and
could be in violation of local building codes.
(3). The GasAppliance must be operated at all times in
accordance with the operating instruction furnished there-
with. The GasAppliance is designed to burn either natural or
propane gas only. Burning conventional fireplace fuels such
as wood, coal, or any other solid fuel will cause damage to
the Gas Appliance, will produce excessive temperatures and
will result in a fire hazard.
(4). These warranties are limited to repair, replacement or
furnishing a replacement for sale, as specified in Para-
graphs A and B, for a part found to CFM Specialty Home
Products satisfaction, after examination, to be defective in
materials or workmanship under normal conditions, use and
service.
(5). All obligations with respect to these warranties may
be fully discharged by CFM Specialty Home Products
refunding the wholesale price of a defective part.
(6) Except as otherwise expressly specified in Para-
graphs A and B. NONE OF THESE WARRANTIES COVER,
AND CFM SPECIALTY HOME PRODUCTS SHALL NOT BE
RESPONSIBLE FOR, ANY CONSTRUCTION, INSTALLA-
TION, LABOR, TRANSPORTATION OR OTHER COSTS
OR EXPENSES ARISING FROM A DEFECTIVE PART, ITS
REPAIR OR REPLACEMENT OR OTHERWISE, NOR
SHALL CFM SPECIALTY HOME PRODUCTS IN ANY
EVENT BE RESPONSIBLE FORANY INDIRECT, INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES. EXCEPT TO THE
EXTENT PROVIDED BY LAW, THERE ARE NO IMPLIED
WARRANTIES WITH RESPECT TO THE GAS APPLIANCE,
ITS COMPONENTS AND ACCESSORIES (INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY OR
LIMITED 2/20 YEAR WARRANTY
For VERMONT CASTINGS Decorative Gas Appliances

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.co
CFM Specialty Home Products
