Vermont Castings 380IDVNVSB User manual

IDV Series Direct Vent Gas Fireplace Insert
Installation and Operating Instructions
Models: 380IDVNVSB & 380IDVPVSB
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for
future reference.
• Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the re department.
• Installation and service must be performed
by a qualied installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is for use only with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER
20306756 12/14 Rev. 1
570215
380IDV cover
CERTIFIED
S
AFETYBARRIER

220306756
380IDV Fireplace Insert CONTENTS
Important Safety Information .....................................3
Code Approval ........................................................4
Pre-Installation Information........................................5
Product Specications ............................................5
High Elevations .......................................................5
Gas Pressures ........................................................5
Gas Specications & Orice Size ...........................5
Insert Dimensions ...................................................6
Minimum Operning Requirements ..........................6
Before You Start......................................................7
Installation Planning................................................7
Insert Applications...................................................7
Clearances..............................................................8
Insert Placement .....................................................9
Zero-Clearance Requirements..............................10
Venting Installation....................................................11
Installation Precautions.........................................11
Venting Requirements........................................... 11
Altitude Considerations .........................................12
Vent Congurations...............................................13
Manifold Removal and Installation ........................14
Insert Installation.......................................................15
Check Gas Type....................................................15
Installing Gas Piping .............................................15
Check Gas Pressure.............................................17
Electrical Wiring ....................................................18
Remote Wall Mounted Switch...............................18
Glass Frame Removal ..........................................19
Install Logs and Rock Wool...................................20
Surround Installation .............................................22
Install On/Off Switch..............................................23
Installing Filigree Panels .......................................23
Safety Barrier Installation......................................24
Operating Instructions .............................................25
What To Do If You Smell Gas................................25
Lighting Pilot for the First Time .............................25
Lighting Pilot ........................................................26
Lighting Burner .....................................................27
To Turn Off Gas ....................................................27
Adjust Blower Speed.............................................27
Air Shutter Adjustment - Natural Gas ONLY .........28
Cleaning and Maintenance .......................................29
Venting System .....................................................29
Cleaning Glass......................................................29
Pilot and Burner Flames .......................................29
Firebox Cleaning...................................................30
Maintaining Heater's Appearance .........................30
Yearly Service Procedure......................................31
Troubleshooting ........................................................32
Replacement Parts ....................................................33
Blower ...................................................................33
Firebox Components & Accessories .....................34
For Massachusetts Residents Only.........................36
Warranty .....................................................................37
Efciencies.................................................................40
Thank you and congratulations on your purchase of a
Vermont Castings Group Fireplace Insert.
PLEASE READ THE INSTALLATION AND OPERATION INSTRUCTIONS BEFORE USING THE APPLIANCE!
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible re hazard and will void the warranty.

20306756
380IDV Fireplace Insert
3
4. Never install the insert
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 36" from the front, top,
or sides of the insert
• in high trafc areas
•in windy or drafty areas
5. This insert reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Insert will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at risk individuals in the house. To
restrict access to a replace or stove, install an adjust-
able safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
7. Do not modify insert under any circumstances. Any
parts removed for servicing must be replaced prior to
operating insert.
8. Turn insert off and let cool before servicing, installing,
or repairing. Only a qualied service person should
install, service, or repair the insert. Have burner system
inspected annually by a qualied service person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning insert.
10. Have venting system inspected annually by a quali-
ed service person. If needed, have venting system
cleaned or repaired. Refer to Cleaning and Mainte-
nance, Page 29.
11. Keep the area around your insert clear of combustible
materials, gasoline, and other ammable vapor and liq-
uids. Do not run insert where these are used or stored.
Do not place items such as clothing or decorations on
or around insert.
IMPORTANT SAFETY INFORMATION
This insert is a vented product. This insert must be properly
installed by a qualied service person. The glass door must
be properly seated and sealed. If this unit is not properly
installed by a qualied service person with glass door
properly seated and sealed, combustion leakage can occur.
CARBON MONOXIDE POISONING: Early signs of carbon
monoxide poisoning are similar to the u with headaches,
dizziness and/or nausea. If you have these signs, the
insert may not have been installed properly. Get fresh air at
once! Have the insert inspected and serviced by a qualied
service person. Some people are more affected by carbon
monoxide than others. These include pregnant women,
people with heart or lung disease or anemia, those under
the inuence of alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this insert.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certied
kit is used.

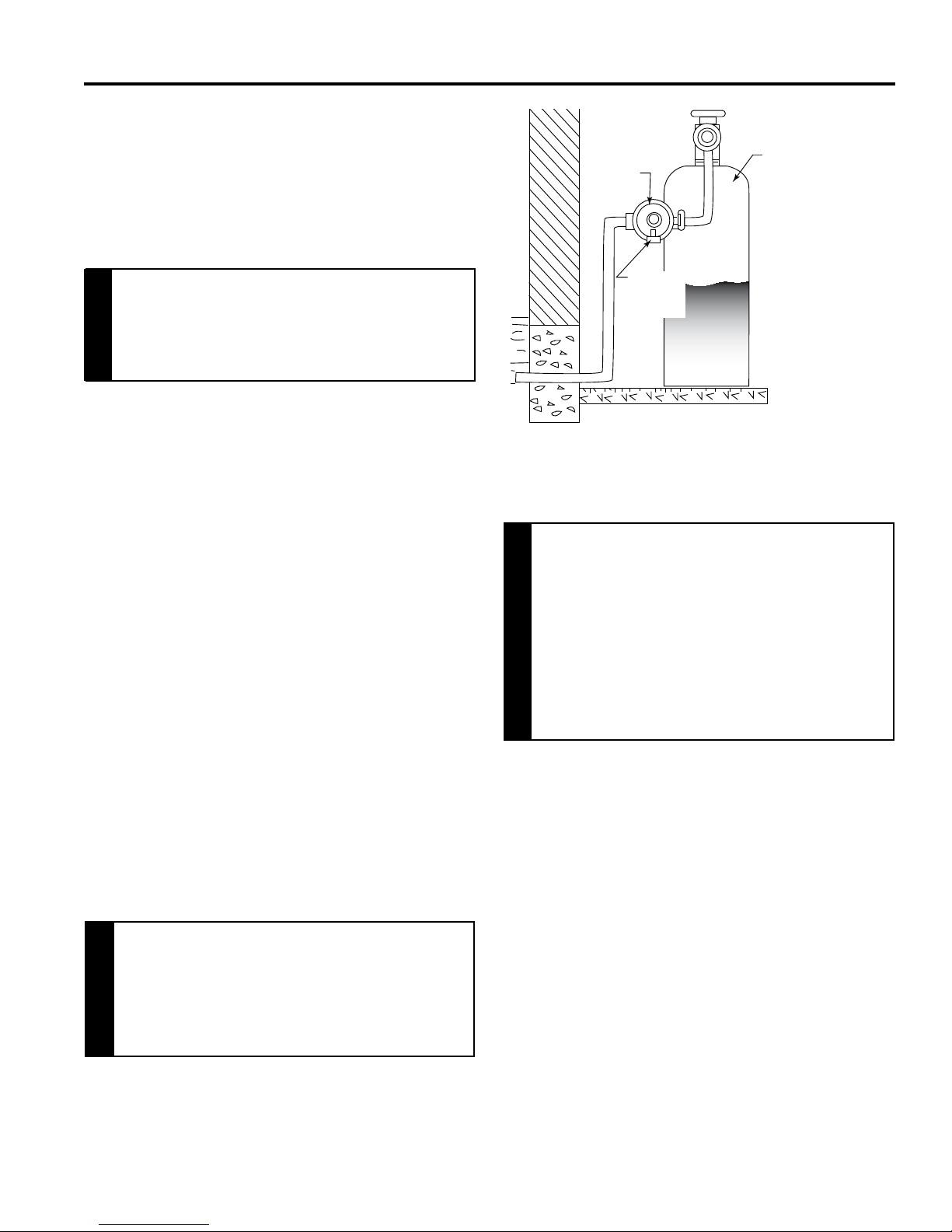

2. For propane/LP insert, do not place propane/LP supply
tank(s) inside any structure. Locate propane/LP supply
tank(s) outdoors. To prevent performance problems,
do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
•shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference .
WARNING
• Read this owner’s manual carefully and completely before trying to assemble, operate, or service this
replace.
• Any change to this replace or its controls can be dangerous.
• Improper installation or use of this replace can cause serious injury or death from re, burns, explosions,
electrical shock and carbon monoxide poisoning.

420306756
380IDV Fireplace Insert IMPORTANT SAFETY INFORMATION
12. Do not use this insert to cook food or burn paper or
other objects.
13. Never place anything on top of insert.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this insert. Use only the gas type indi-
cated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the ow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. Do not use insert if any part has been exposed to or has
been under water. Immediately call a qualied service
technician to inspect the appliance and replace any
part of the control system and any gas control which
as been submerged in water.
18. Do not operate insert if any log is broken.
20. Do not operate the insert with glass door removed,
cracked, or broken.
CODE APPROVAL
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO:
ANSI Z21.88-2014/CSA 2.33-2014 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/
NCSBCS A225.1, or Standard for Gas Equipped Recre-
ational Vehicles and Mobile Housing, CSA Z240.4.
Nous recommandons que nos
appareils de chauffage au gaz
soient installés et entretenus par
des professionnels qui ont été
accrédités aux È.U. par le National
Fireplace Institute ® (NFI) comme
étant des spécialistes du NFI en
matièred’appareils de chauffage
au gaz.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for replaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is not unusual for gas replaces to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your replace for
at least ten (10) hours the rst time you use it. Place
the fan switch in the “OFF” position during this time.
WARNING
Never connect unit to private (non-utility)
gas wells. This gas is commonly known as
wellhead gas.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER

20306756
380IDV Fireplace Insert
5
FP2621
IDV controls
PRE-INSTALLATION INFORMATION
PRODUCT SPECIFICATIONS
• This appliance has been certied for use with either
natural or propane gas. Refer to the appropriate
data plates.
•This appliance is not for use with solid fuels.
•The appliance is approved for bedroom or bedsit-
ting room installations.
•The appliance must be installed in accordance
with local codes if any. If none exist use the current
installation code. ANSI Z223.1/NFPA 54 in the USA,
CSA B149 in Canada.
•The appliance must be properly connected to a
venting system.
Piezo Igniter
Figure 1 -
IDV Series Fireplace Insert
Optional
Remote
Receiver
Blower Knob
ON/OFF Switch
OFF/Pilot/ON
Knob
HI/LO Knob Gas Shut-Off
Valve
On/Off
Remote
Switch
FP2621
WARNING
This appliance may be installed in an
aftermarket*, permanently located,
manufactured home, where not prohibited
by local codes
*Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
GAS PRESSURES
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
Max.Input Min. Input Orice
Model Fuel BTU/h BTU/h Size
380IDVNV Nat. 30,500 20,500 #35
380IDVPV LP 22,000 18,000 #53
GAS SPECIFICATIONS & ORIFICE SIZE
The IDV Series gas inserts are equipped with a variable
speed output gas control.
NOTE: IDV Series gas inserts operate without any elec-
trical supply. Blower must be attached to 110/120V AC.

620306756
380IDV Fireplace Insert PRE-INSTALLATION INFORMATION
Figure 2 -
IDV Fireplace Insert Dimensions
Ref. 380IDV
A 28" (711 mm)
B 21" (533 mm)
C 21" (533 mm)
D 21" (533 mm)
E 16" (406 mm)
Figure 3 -
IDV Fireplace Insert Opening Dimensions
C
A
D
B
FP2530
hearth dims
E
27⁵⁄₈” (702 mm)
17⁷⁄₁₆” (443 mm)
10³⁄₈”
(264 mm)
4⁴⁄₂”
(114 mm)
8²³⁄₃₂”
(221 mm)
15⁹⁄₁₆”
(395 mm)
29¹⁄₂” (749 mm)
30³⁄₁₆” (767 mm)
22³⁄₄”
(578 mm)
30³⁄₁₆” (767 mm)
22³⁄₄”
(578 mm) 20³⁄₄”
(527 mm)
16⁵⁄₁₆” (414 mm)
21⁵⁄₈”
(549 mm)
22³⁄₄”
(578 mm)
5686
380IDV dims
INSERT DIMENSIONS
MINIMUM OPENING REQUIREMENTS

20306756
380IDV Fireplace Insert
7
BEFORE YOU START
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that all
listed parts have been received.
INSTALLATION PLANNING
Plan for the installation of your insert. This includes deter-
mining the size of replace in which unit is to be installed,
length of venting to be used and nishing details, and
whether any optional accessories (i.e. wall switch, or
remote control) are desired. Consult your local building
code agency to ensure compliance with local codes,
including permits and inspections.
The following factors should be taken into consideration:
• This insert should have sufcient access for its safe
operation and maintenance.
•The ow of combustion and ventilation air must not be
obstructed.
•Minimum clearances to combustibles, such as mantels,
must be maintained. Refer to Pages 8 and 9, Figures 4
and 5.
•Never obstruct the front opening of the insert.
•Do not install in the vicinity where gasoline or other
ammable liquids may be stored.
•These units can be installed in a bedroom. Refer to
National Fuel Gas Code ANSI Z233.1/NFPA 54 (current
edition), the Uniform Mechanical Code (current edi-
tion), and Local Building Codes for specic installation
requirements.
IMPORTANT: Your direct vent insert was designed to
be installed in an existing wood burning replace. The
location and clearances are subject to local building
codes.
PRE-INSTALLATION INFORMATION
INSERT APPLICATIONS
Before installing the gas replace insert, consider the
functioning needs of the replace. Conrm the size of the
replace cavity, the design of the chimney, and the avail-
ability of the gas supply and electricity for the insert fan.
IMPORTANT: Your direct vent insert is designed to
be only vented vertically with a minimum height of
10 feet.
When the unit is installed into a wood burning replace,
the minimum distance the mantel can be placed above the
replace is governed by local building codes applicable to
wood burning replaces. Consult local authorities having
jurisdiction for these clearances. The underside of the
mantel will become warm. Use only nishes which are heat
resistant and do not discolor.

820306756
380IDV Fireplace Insert PRE-INSTALLATION INFORMATION
INSERT CLEARANCES
No combustibles (ie: drapes, doors) may be within, or swing
within 36" of the front of the insert.
MANTEL CLEARANCES
NOTE: The combustible area above the facing must
not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel
requirements listed in this manual.
HEARTH REQUIREMENTS
The insert must be installed on a noncombustible hearth
extending a minimum of 12" from the replace opening
(local codes may require a larger hearth). The hearth must
also extend to both sides of the face.
Figure 4 -
Mantel Clearances
FP2623
Minimum clearances
Max.
13”
Max.
3/4”
Min.
9”
Min.
11”
13” (330 mm)
Maximum Depth
Minimum
8” (203 mm)
22”
(559 mm)
Minimum
10” (254 mm)
Hearth Should be
Width of Face Minimum
Minimum
8” (203 mm)
Minimum
8” (203 mm)
32”
(813 mm)
Minimum
12” (305 mm)
Minimum
11” (279 mm)
3/4" Maximum
Depth
Combustible
Facing
FP2623
MINIMUM FIREPLACE SIZE/CLEARANCES TO
COMBUSTIBLES
WARNING
The dimensions shown on Pages 8 and 9,
Figures 4 and 5, are minimum clearances to
maintain when installing this heater. Follow
these instructions carefully to ensure safe
installation. Failure to follow instructions
exactly can create a re hazard.
Maintain the following minimum clearances for service and
maintenance.

20306756
380IDV Fireplace Insert
9
PRE-INSTALLATION INFORMATION
INSERT PLACEMENT
•The insert must be placed within a code-conforming
masonry replace or a tested and listed zero-clear-
ance (UL-127, solid fuel) replace. Repair any replace
damage prior to installation.
•Because the insert uses a circulation blower, clean the
replace, smoke shelf and chimney before installing.
•This heater may be placed in a bedroom. Please be
aware of the large amount of heat this appliance pro-
duces when determining a location.
FP2624
insert placement
Figure 5 -
Insert Placement
For tight ts you may remove the
manifold. Refer to "Remove the
Manifold" Section
The insert protrudes into
the replace. Refer to
Page 8 for dimensions.
The gas line should be
installed prior to insert
placement
Run the power cord
either side of the
insert along the face
Use the leveling bolts for
replaces with recessed
oors
Run the on/off
switch wires to the
right - behind the
surround panels
FP2624
For minimum
dimensions,
Refer to Page
8

10 20306756
380IDV Fireplace Insert PRE-INSTALLATION INFORMATION

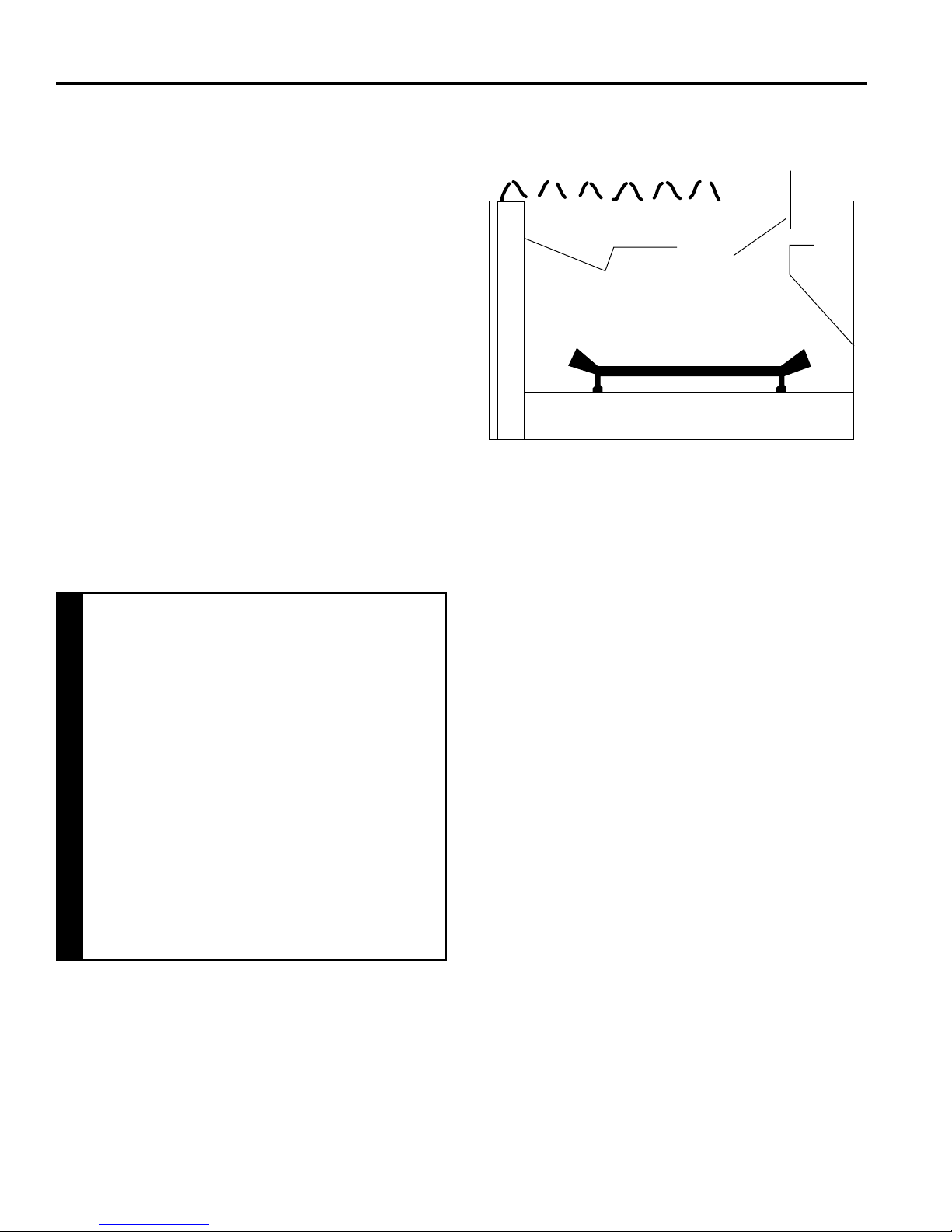

ZERO-CLEARANCE (METAL) FIREPLACE
REQUIREMENTS
•The damper and grate must be removed.
• The smoke shelf, internal bafes, screen, refractory and
metal or glass doors may be removed (if applicable) .
•Do not remove or alter the insulation or any structured
rigid frame members (metal sides, oor, door frames,
face of the replace, etc.).
IMPORTANT: Please review the following carefully.
It is normal for inserts fabricated of steel to give off some
expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your insert to give off some odor the
rst time it is burned. This is due to the curing of the paint
and any undetected oil from the manufacturing process.
Please ensure that your room is well ventilated. OPEN
ALL WINDOWS DURING INITIAL BURN OFF/CURING
PHASE.
Burn your insert for at least six (6) hours on "HIGH" the
rst time you use it. Place the fan in the "OFF" position
during this time.
Fp1921
zero clearance requirements
9/08
Insulation
Damper
Smoke
Shelf
Masonry Lining or Refractory
Screen
Metal or Glass Doors
Internal
Bafes
Masonry Lining or Refractory
Grate
Figure 6 -
Metal Fireplace Zero-Clearance Requirements
• Installer must attach red warning plate to
the inside of the rebox of replace with
screws supplied.
•Do not cut any sheet metal parts of the
fireplace in which this gas fireplace
insert is installed. THIS IS STRICTLY
PROHIBITED!
•If factory-built fireplace has no gas
access hole(s) provided, drill a 1.5"
(37.5 mm) or less through lower sides
or bottom of rebox. You must plug the
access hole with noncombustible insu-
lation after gas supply line has been
installed.
•If your factory-built replace has air pas-
sages on the face for zero capabilities,
DO NOT BLOCK THESE PASSAGES!
WARNING

20306756
380IDV Fireplace Insert
11
VENTING INSTALLATION
Read all instructions completely and
thoroughly before attempting installation.
Failure to do so could result in serious
injury, property damage or loss of life.
Operation of improperly installed and
maintained venting system could result in
serious injury, property damage or loss of
life.
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installa-
tion. The installer must make sure to select the proper vent
system for installation. Before installing vent kit, the installer
must read this insert manual and vent kit instructions.
Only a qualied installer/service person should install vent-
ing system. The installer must follow these safety rules:
•Wear gloves and safety glasses for protection.
•Use extreme caution when using ladders or when
on rooftops.
•Be aware of electrical wiring locations in walls and
ceiling.
The following actions will void the warranty on your vent-
ing system:
•Installation of any damaged venting component.
•Unauthorized modication of the venting system.
•Installation of any component part not manufactured
or approved by Vermont Castings Group.
•Installation other than permitted by these instruc-
tions.
This insert must be vented to the
outside. The venting system must
NEVER be attached to a chimney
serving a separate solid fuel burning
appliance. Each gas appliance must
use a separate vent system. Do not use
common vent systems.
WARNING
Failure to follow these instructions will
void the warranty.
NOTICE
WARNING
• Make sure the exhaust pipe on heater
connects to exhaust portion of cap. At-
tach ex liners. Figure 6
• Do not crimp or rupture liner when bend-
ing it into chimney offsets.
VENTING REQUIREMENTS
•The exhaust vent must reline the entire length of chim-
ney and terminate above chimney top.
•Vent must meet all vent manufacturer's requirements
when installed.
•Make sure you have the following before installing
unit:
380 Series:
•3" and 3" UL 1777 Listed gas liner for air inlet and
exhaust.
•Vertical termination kit (AI31TK33A)
WARNING
FP2625
typical venting
Exhaust
Inlet
Maximum 12"
(305 mm) Offset at
Base of Insert
Maximum
Height
40' (12.9 m)
Minimum
Height
10' (3 m)
FP2625
Figure 7 -
Venting Unit

12 20306756
380IDV Fireplace Insert VENTING INSTALLATION
ALTITUDE CONSIDERATIONS
This heater has been tested at altitudes ranging from sea
level to 4,500 feet (1,370 m). In this testing, heater with
standard orice burns correctly with just an air shutter
adjustment. If you need to resize orice for use at high
altitude, contact your dealer.
Failure to adjust air shutter properly may
lead to improper combustion which can
create a safety hazard. Consult your dealer
or installer if you suspect an improperly
adjusted air shutter.
WARNING
High-Temp
Silicone
High-Temp
Silicone
FP2626
connect exhaust pipe
3" and 3"
UL 1777 Gas Liner
Apply high-temperature silicone to
lines on both ends and secure with
two (2) screws
Figure 8 -
Connecting Vent Pipe to Heater
FP2626
Inlet
Exhaust
(Centered on unit)
Termination Kit
HEDV32T812, HEDVK35

20306756
380IDV Fireplace Insert
13
VENTING INSTALLATION
VENT CONFIGURATIONS
NOTE: You may use either reline conguration with a masonry
or zero-clearance replace.
FP2627
inlet exhaust reline
Exhaust
Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors from
chimney entering room.
UL 127 Solid
Fuel Z.C Fire-
box
Figure 9 -
Inlet and Exhaust Reline
FP2627
3" (76 mm) or 4" (102 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm) Inlet
Termination Kits:
HEDV32T812

14 20306756
380IDV Fireplace Insert VENTING INSTALLATION
MANIFOLD REMOVAL AND INSTALLATION
The manifold is shipped attached to insert. It may be
removed to allow tight installation. Manifold may be loos-
ened and rotated for desired
pipe location.
1. Remove brick liner and
bafe.
2. Remove manifold. Place
manifold in replace.
3. Route ex vent through chim-
ney from above. Figure 10.
Leave an extra 3" (76 mm)
at the top.
FP2629
flex vent
Flex
Vent
Chimney
Manifold
Bracket
Nut
FP2629
Figure 10 -
Place Manifold into Fireplace
FP2630
attach flex vent
Extra 3"
Chimney
Flex
Vent
Manifold
FP2630
Figure 11 -
Attach Flex Vent to Manifold
4. Attach ex vent to
manifold. Figure 11.
Seal with silicone
and attach with
screws.
FP2631
pull excess vent
Excess
Flex
Vent
Chimney
Slack in
Flex Vent
Manifold
FP2632
Figure 12 -
Pull on Excess Flex Vent
5.Place manifold in
an upright posi-
tion. Pull on excess
vent. Figure 12.
Temporarily attach
ex vent to top of
chimney. Leave
some extra slack
in ex vent.
FP2632
place insert
Vent
Termination
Chimney
Excess Slack
Take out of Flex
Vent
Manifold
Bracket
Nut
FP2632
Figure 13 -
Slide Insert into Place
Insert
6. Slide insert into place.
Guide the manifold
over the insert until it
is fully in place. Figure
13
7. Remove any slack from
ex vent. Attach mani-
fold to insert. Figure
13
8. Remove any excess
slack in ex line. Attach
vent termination.
Figure 13
9. Replace baffle and
brick liner.

20306756
380IDV Fireplace Insert
15
INSERT INSTALLATION
INSTALLATION ITEMS NEEDED
Make sure you have the items listed below before install-
ing appliance.
•External regulator (supplied by installer)
•Piping (check local codes)
•Test gauge connection*
•Sealant (resistant to propane/LP gas)
•Sediment trap (optional but recommended)
•Tee joint
•Pipe wrench
• Approved exible gas line with gas connector (if al-
lowed by local codes — not provided)
* A CSA design-certied equipment shutoff valve with 1/8"
NPT tap is an acceptable alternative to test gauge connec-
tion. Purchase the CSA design-certied equipment shutoff
valve from your dealer.
For propane/LP connections only, the installer must supply
an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas
pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regula-
tor damage could occur. Install external regulator with the
vent pointing down as shown in Figure 14. Pointing the
vent down protects it from freezing rain or sleet.
FP1930
external regulator
9/08
External
Regual-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 14 -
External Regulator with Vent Pointing Down
(Propane/LP Only)
CAUTION
Use only new black iron or steel pipe. Inter-
nally tinned copper or copper tubing can be
used per National Fuel Gas Code, Section
2.6.3, providing gas meets hydrogen sulde
limits, and where permitted by local codes.
Gas piping system must be sized to provide
minimum inlet pressure (listed on data plate)
at the maximum ow rate (BTU/hr). Undue
pressure loss will occur if the pipe is too
small.
CHECK GAS TYPE
Use proper gas type for the replace you are installing.
If you have conicting gas type, do not install replace.
See dealer where you purchased the replace for proper
replace according to your gas type.
INSTALLING GAS PIPING TO FIREPLACE
LOCATION
WARNING
A qualied installer or service person must
connect appliance to gas supply. Follow
all local codes.
CAUTION
For propane/LP units, never connect
replace directly to the propane/LP supply.
This burner system requires an external
regulator (not supplied). Install the external
regulator between the burner system and
propane/LP supply.
When using copper or ex connectors use only ttings
approved for gas connections. The gas control inlet is
3/8" NPT.

16 20306756
380IDV Fireplace Insert INSERT INSTALLATION
NOTE : The gas line connection may be made using
1/2" rigid tubing or an approved ex connector. Since
some municipalities have additional local codes it
is always best to consult your local authorities and
the current edition of the National Fuel Gas Code
ANSI.Z223.1, NFPA54. In Canada CSA-B149 (1 or 2)
Installation Code.
A listed manual shutoff is factory installed upstream of
appliance. Union tee and plugged 1/8" NPT pressure tap-
ping point should be installed upstream of the appliance.
Figure 15
IMPORTANT: The main gas valve is for turning on or
shutting off the gas to the insert.
Check your building codes for any special requirements
for locating equipment shutoff valve to inserts.
Apply pipe joint sealant lightly to threads. This will prevent
excess sealant from going into pipe. Excess sealant in pipe
could result in clogged burner system valves.
Natural Gas
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
Propane/LP
From External Regulator
(11" w.c. to 13" w.c. Pressure)
3" Minimum
FP1931
gas connection
9/08
Approved Flexible
Gas Line Supplied
with Appliance
Tee Joint
Pipe Nipple
Cap
Figure 15 -
Gas Connection
WARNING
Do not use open ame to check for gas
leaks.
Only persons licensed to work with gas
piping may make the necessary gas con-
nections to this appliance.
WARNING
A manual shut-off valve is factory installed
upstream of the appliance. Union tee and
plugged 1/8" NPT pressure tapping point
should be installed upstream of the appli-
ance. Figure 15
CAUTION
Use pipe joint sealant that is resistant to
liquid petroleum (LP) gas.
CAUTION
We recommend that you install a sediment trap/drip leg
in supply line as shown in Figure 15. Locate sediment
trap/drip leg where it is within reach for cleaning. Install
in piping system between fuel supply and burner system.
Locate sediment trap/drip leg where trapped matter is not
likely to freeze. A sediment trap traps moisture and contami-
nants. This keeps them from going into the burner system
gas controls. If sediment trap/drip leg is not installed or is
installed wrong, burner system may not run properly.

20306756
380IDV Fireplace Insert
17
INSERT INSTALLATION
CHECK GAS PRESSURE
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the replace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. Install and attach ex line provided on this appliance to
1/2" gas line.
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
replace for leaks. Use a soap and water solution or a
gas sniffer.
4. To adjust ame height, turn HI/LO knob to HI to get
maximum pressure to burner. Turn HI/LO knob to LO to
get minimum pressure.
5. To check gas pressures at valve, turn captured screw
counter clockwise 2 or 3 turns and then place tubing to
pressure gauge over test point. Turn unit to high. Fig-
ure 16. After taking pressure reading, be sure and turn
captured screw clockwise rmly to reseal. Do not over
torque. Check test points for gas leaks with a soap and
water solution or an electronic gas leak detector.
FP1932
valve regulator with knobs
Pressure
Test "IN"
Pressure
Test
"OUT"
HI/LO Knob
Pilot Adjustment Screw
Figure 16 -
Gas Pressure Check at Gas Valve

18 20306756
380IDV Fireplace Insert INSERT INSTALLATION
ELECTRICAL WIRING
This insert will work without any electrical supply. Electricity
is only needed to operate blower.
REMOTE WALL MOUNTED SWITCH
A remote wall switch and up to fteen (15) feet of 18 Ga.
wire may be used with this appliance. Attach the wall switch
in a junction box at the desired location on the wall. Figure
17 Verify proper operation after servicing.
NOTE: Extended lengths of wire may cause the
replace not to function properly. Longer length of
wire is permitted if the wire is made out of larger gauge
(diameter) wire. Always check with local code.
PILOT HI
LO
ON
OFF
FP1933
wall switch wiring
Figure 17 -
Wiring Diagram for Wall Switch
Sparker
Thermocouple
Piezo Igniter
Thermopile
Pilot Assembly
Switch
Millivolt
Valve
TH
TP
TH/TP
ON OFF
Optional 15'
Wall Switch
Optional
Remote Control
ON
OFF
ON
OFF
WARNING
Electrical connections should only be per-
formed by a qualied, licensed electrician.
Main power must be off when connecting to
main electrical power supply or performing
service. All wiring shall be in compliance
with all local, city and state codes. The ap-
pliance, when installed, must be electrically
grounded in accordance with local codes,
or in the absence of local codes, with the
National Electrical Code ANSI/NFPA 70 (lat-
est edition) and Canadian Electrical Code,
CSA C22.1.
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION

20306756
380IDV Fireplace Insert
19
Figure 18 -
Glass Frame Removal
INSERT INSTALLATION
GLASS FRAME REMOVAL
NOTE: If the safety barrier is in place, you must rst remove
it before you remove the glass frame. To remove the barrier,
simply lift up and pull out until the tabs are clear of their
corresponding slots on the rebox. Then proceed to remove
the glass frame by following the steps below.
1. Release two clamps on bottom of replace.
2. Tilt glass frame out and lift glass frame up until it clears
three tabs on top of replace.
3. Set glass frame aside.
WARNING
Make sure the glass panel edges do not
touch any metal parts during thermal ex-
pansion.
CAUTION
Always use gloves when handling broken
glass.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Un panneau vitré chaud peut
causer des brûlures.
Laissez refroidir le panneau
vitréavant d’y toucher.
Ne laisser jamais les enfants
toucher le panneau vitré.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
Une barrière visant à réduire le risque de brûlure
par le hublot chaude est fournie avec cet
appareil et doit être installé.
DANGER
Latches
Barrier Screen
Glass Frame

20 20306756
380IDV Fireplace Insert
5. Align holes in the bottom of the left base log #2 with
two (2) pins on the left side of insert. Install left base
log. Figure 20
LG766
rockwool
Left Front Log #2
Figure 20
INSERT INSTALLATION
4. Place rear log #1 against back of rebox. Figure 19
INSTALL LOGS AND ROCK WOOL (EMBER
MATERIAL) IN FIREBOX
Before you begin - This unit is supplied with seven (7)
ceramic ber logs. Do not handle these logs with your bare
hands. Always wear gloves to prevent skin irritation
from ceramic bers. After handling the logs, wash your
hands gently with soap and water to remove any traces
of bers.
1. Open front door of rebox.
2. Break up rock wool (ember material) into dime-sized
pieces. Place evenly as shown. Do not exceed 1" layer.
Figure 18
3. Carefully remove the seven (7) logs from wrapping.
LG765
place rockwool
Rockwool
Areas
LG766
rockwool
Figure 18 -
Rockwool Placement
WARNING
The positioning of the logs is critical to
the safe and clean operation of this heater.
Sooting and other problems may result if the
logs are not properly and rmly positioned
in the appliance. Never add additional logs
or embellishments such as pine cones or
vermiculite to the heater. Only use the logs
supplied with the unit.
Failure to position the parts in accordance
with diagrams below or to use only parts
specically approved for this heater may re-
sult in property damage or personal injury.
LG767
Rear log #1
Rear Log #1
Figure 19
