Vermont Castings SR18SHK User manual

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.co
CFM Specialty Home Products
Decorative Gas Appliance for Installation in Solid Fuel Burning Fireplace
ATTENTION
Installation, service and repair of this appli-
ance must be performed by a qualified in-
staller, service agency, company or gas
supplier experienced with this type of gas
appliance.
Installer:
Read this instructions completely and carefully
prior to beginning installation. After installation,
leave these instructions with the owner.
Owner:
Read these instructions and follow the warnings.
Save this manual for future reference.
Please record your gas log’s model number
for future reference here:
NOTE: This model # can be found on the box
or the label attached to the back of the burner
pan.
WARNING
When used without fresh air, this unit may give off carbon monoxide, an odorless, poisonous gas. You
must make adequate provision for accessibility and for combustion and ventilation of fresh air supply.
DANGER! CARBON MONOXIDE POISONING MAY LEAD TO DEATH
3311956 12/04 Rev. 5
Installation and Operating
Instructions for
Vented Gas Log Sets -
Standard Hearth Kits LISTED BY
LISTING NO. 1254
Models: SR18SHK, SR24SHK, SR30SHK
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
—Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
—WHAT TO DO IFYOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not
use any phone in your building.
•Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier, call
the fire department.
Check local codes before installing this log set. In
some areas of the country, gas log sets are
restricted.
The installation and the provisions for combustion
and ventilation air must conform with the National
Fuel Gas Code, ANSI Z223.1.

2 3311956
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Read these directions thoroughly before installation. For assistance or additional information,
consult your gas log dealer, qualified installer, service agency or gas supplier.
WARNING
Do not use this appliance or any part that has
been under water. Immediately call a qualified
service technician to inspect the appliance and
to replace any part of the control system and
any gas control which has been under water.
WARNING
If not installed, operated and maintained in
accordance with the manufacturer’s instruc-
tions, this product could expose you to sub-
stances in fuel or fuel combustion which are
known to the state of California to cause cancer,
birth defects or other reproductive harm.
WARNING
A properly sized, unobstructed chimney will normally vent all fumes and products of combustion. Any
odor or smoke detected in the room is an indication that the flue is not properly removing the combus-
tion products. Turn off the gas supply valve immediately! The cause of the venting problem must be
discovered and corrected before using this gas log set. Disregarding this warning can cause illness as
well as soot damage to your fireplace, room and furnishings.
WARNING
Young children are not allowed to operate this unit and must be supervised when they are in the same
room as the appliance.
Installation Precautions
Fireplace damper MUST be locked fully open when operating the gas log set.
If the fireplace has glass doors, operate gas log set only with doors fully opened. The fireplace screen
must be in place when the appliance is operating and, unless other provisions for combustion air are
provided, the screen shall have an opening(s) for introduction of combustion air.
The log set and its individual shut-off valve MUST be isolated from the gas supply piping system by
closing its individual shut-off valve during any pressure testing of gas supply at test pressures equal to
or less than 1/2 psig.
The log set and its individual shut-off valve MUST be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psig.
Keep the gas log set clear and free from combustible materials, gasoline and other flammable vapors
and liquids.

3 3311956
CAUTION: If you answered “NO” to any item, or have any questions regarding your installation, please
contact your dealer/distributor for assistance.
Are you burning Natural Gas? If you have Propane Gas, you need to purchase a factory
authorized safety pilot kit (see below).
Is the gas supply inlet pressure correct?
NG: Min. 5.5” w.c./Max. 14.0” w.c.
Does the firebox meet the minimum size dimensions below?
Is your fireplace plumbed with gas on the right side (facing) of the fireplace?
If not, see Page 4.
Is the gas supply line sized properly (Minimum 1/2” iron pipe)?
Do you have a solid fuel (wood burning) fireplace with a vented flue?
Do you have a manual gas supply valve installed at your fireplace? If not, a licensed
plumber, gas company technician or other qualified installer must install one.
Have you checked local building codes? (Check with your local building department)
Does your fireplace have a wire mesh screen in place?
Pre-Installation Checklist Yes No
NOTE: Use of a Pilot or LP Conversion Kit will add 3” to the minimum width requirements. Refer to the pilot
kit’s installation instructions.
Minimum Firebox Dimensions Minimum Gas Fuel Line
Set Input Width Flue Pressure
Minimum Clearances & Specifications
Natural Gas Units
Size Btu/hr Back Front Depth Height Size Minimum Maximum
18” 65,000 16” 33” 15” 18” 51 sq.in. 5.5” w.c. 14.0” w.c.
24” 90,000 20” 36” 15” 18” 51 sq.in. 5.5” w.c. 14.0” w.c.
30” 90,000 27” 39” 15” 18” 51 sq.in. 5.5” w.c. 14.0” w.c.
Propane (LP) Conversion
USE OF THIS SET WITH LP OR PROPANE FUEL REQUIRESTHE INSTALALTIN OF ONE OF OUR
FACTORY AUTHORIZED SAFETY PILOT KITS:
MODEL SPK P - Pilot Kit with Piezo Spark Ignition
MODEL RVKRP - Millivolt PIlot Kit with Remote Control Capabilities

4 3311956
Tools Required
8” adjustable crescent wrench; pipe thread sealant compound or teflon tape; 12” pipe wrench or chan-
nel lock pliers.
Gas Plumbed on Left Hand Side of Fireplace
NOTE: Your gas log set is assembled at the factory to be installed in a fireplace plumbed with the gas
on the right side (facing). If your fireplace is plumbed with the gas on the left side, you may remove the
u-burner tube from the burner pan by removing the 3/4” knockout at the left back of the burner pan and
reinstalling the u-burner tube 180 degrees from its original position. You may also run a flexible connec-
tor (or as per local codes) along the back wall of the fireplace to bring your gas line to the right hand
side. You can then place the set in front of the flexible connector.

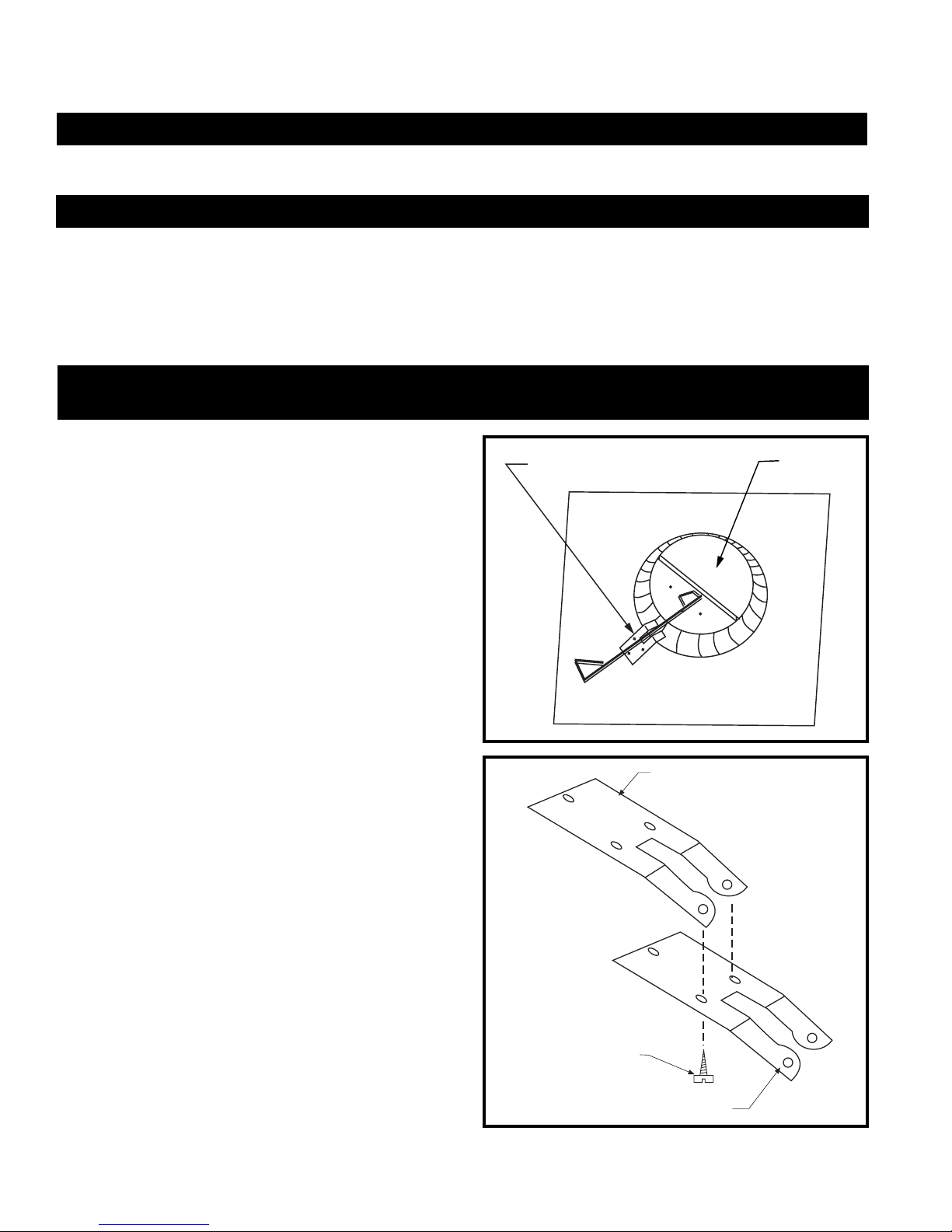

Damper Stop Installation:
For Use with BR, BC, SR, SC, TF and TL Series CFM Specialty Home Products Fireplaces
This Damper Stop is designed to work on all CFM
Specialty Home Products BR, BC, SR, SC, TF and
TL series fireplaces. For all other fireplaces, refer
to Page 6.
When installing a decorative gas appliance in a
fireplace, some local codes require this Damper
Stop to be used so the Damper will not close
completely. To install the Damper Stop:
The Damper Locking Bracket is already installed
on all BR, BC, SR, SC, TF and TL fireplaces.
Locate the Damper Locking Bracket on the left
side of the fireplace’s Combustion Dome. (Fig. 1)
With the Damper open, align the two slots on
either side of the cut-out on the Damper Stop with
the two small holes on the angled portion of the
Damper Locking Bracket. Attach the Damper Stop
with the Screws provided, as shown in Figure 2.
NOTE: Some of the early fireplace units may not
have the holes in the end of the Damper Locking
Bracket. If this is the case, use the Damper Stop
as a template to drill two (2) 1/8” holes in the
Damper Locking Bracket to mount the Damper
Stop.
Damper Locking Bracket Damper Plate
DP100
Figure 1
Damper Locking
Bracket
Damper Stop Screw
Damper Stop DP101
Figure 3

5 3311956
Damper Stop Installation:
For Use With All Other Fireplaces
The Damper Stop provided keeps your damper
from accidentally closing during operation of your
set. This Damper Stop must be installed onto
your Damper at all times. NOTE: The damper
clamp is designed to hold the damper plate
open 3 inches. However, the damper must be
fully open when the log set is in operation.
Install the Damper Stop onto the edge of the
damper plate. Attach by securing the bolt pro-
vided to the damper plate with an adjustable
wrench. (Fig. 3)
If the Damper Stop does not fit, drill a 1/4” hole
into the damper plate and install an
anchor bolt with nut, at a 90 degree angle, so that
the damper plate will remain fully open.
The proper finished installation of the Damper
Stop is shown in Figure 4. If the bolt fails to block
the damper in an open position, the damper
should be removed from the chimney.
To check your vent for proper drafting: Light a
tightly rolled newspaper on one end and place it at
the inside front edge of the fireplace. Observe the
smoke and be sure the vent is properly drawing it
up the chimney. If the smoke is drawn
Damper
Plate
Damper Stop
DP104
Figure 3
Chimney
Clamp
Damper
DP103
Figure 4

6 3311956
Connection to Gas Supply
1. Place the burner pan in the fireplace. The
burner pan should be located several inches
form the back wall, centered from left to right.
NOTE: This is for burner connection purposes
only. Exact burner placement will be covered on
page 8, after all connections have been made.
2. Attach the gas supply fitting onto your
fireplace’s gas supply pipe. (Fig. 5)
3. Attach one end of the flexible gas connector to
the brass burner inlet fitting which has been
factory installed into the burner.
4. Attach the other end of the gas connector to the
flared side of the gas supply fitting.
Remember to use pipe thread sealant or teflon tape only on the straight pipe threads. Do not use
any on flared ends.
Leak Test Procedures
Create a mixture of equal parts soap and water. Apply to all the joints of the pipe fittings from the gas
supply pipe to the burner. Turn on the gas supply valve for no longer than 3-5 seconds. If bubbles appear in
the soap solution applied to the joints, there is a leak. Turn off gas supply valve and tighten those fittings.
Repeat the above procedure until no bubbles appear in the soap solution. Remember to test all joints.
WARNING: DO NOT USE AN OPEN FLAMETO TEST FOR LEAKS!
NOTE: Always perform a leak test any time the appliance has been moved or disconnected from the gas
supply line.
Adding Pan Material
1. Open the bag of silica sand and spread it
evenly across the burner pan, to the top, as
shown in Figure 6. You may overflow the front
and sides of the pan to cover the entire pan and
connecting hardware. NOTE: Sand is for use
with Natural Gas ONLY! Vermiculite or lava
rock must be used in place of sand for propane
gas. See propane Conversion Kit manual for
details.
2. Next, open the bag of glowing embers and
place them on top of the silica sand evenly
across the burner pan. Be sure to separate
the glowing embers into very small pieces
before placing them onto the silica sand.
Figure 5 CFM149
Glowing Embers
Silica Sand
Figure 6 LG212

7 3311956

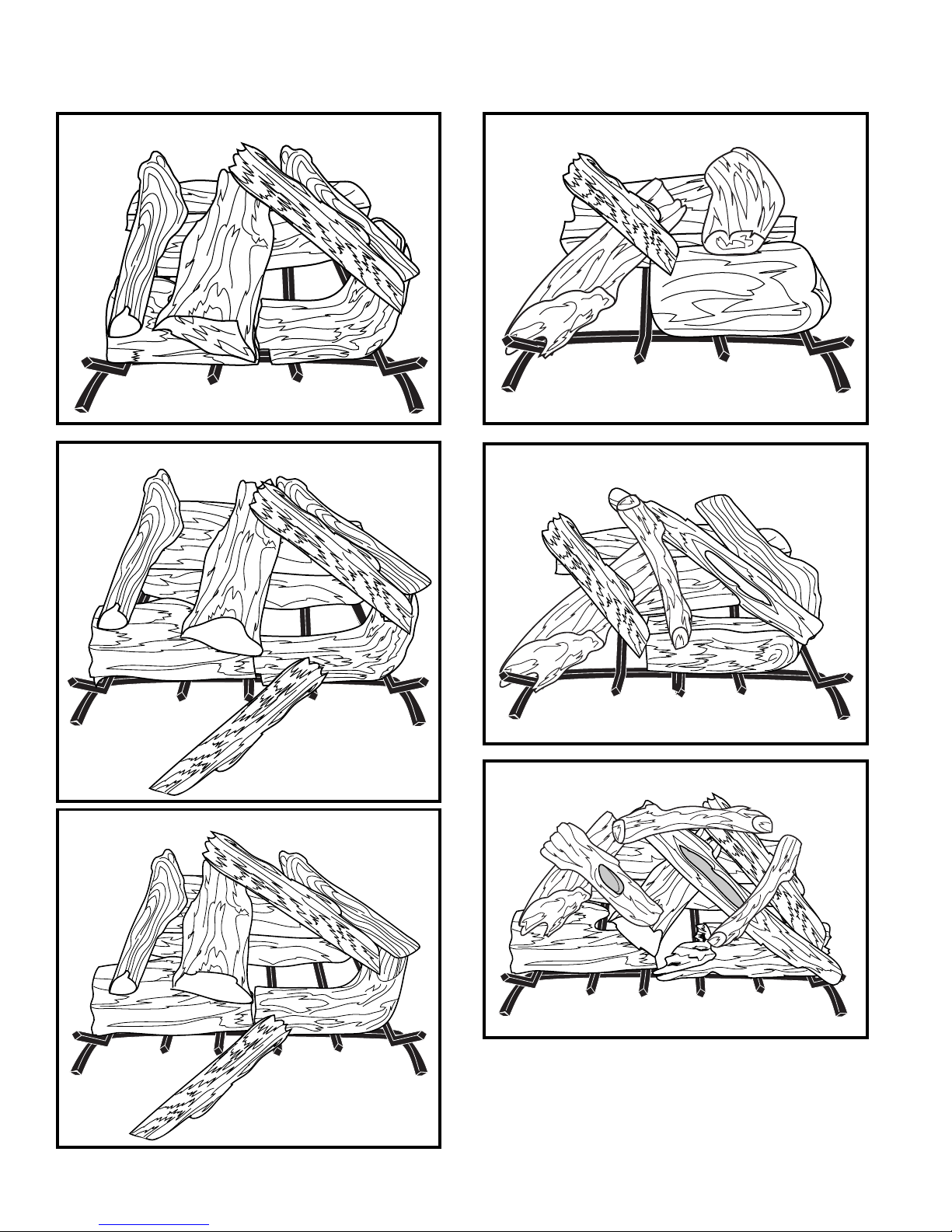

Grate and Log Placement
1. Place the grate over the burner pan so the front legs
of the grate are parallel to the front edge of the pan.
(Fig. 7)
2. Place the larger bottom logs onto the grate, leaving
as much space between them as possible. When
burning, the flames should come up directly between
the logs.
3. Place the smaller top logs diagonally onto the
bottom logs. The top logs can be arranged to
achieve your desired flame pattern. Be sure you
leave as much open space between the logs as
possible to minimize flame impingement and
sooting.
4. Open the bag of lava rock and spread the rocks onto
the fireplace floor around the burner pan for decora-
tive purposes.
Attach fettle to front of grate as shown in Figure 8.
Available Log Sets
LG330
18” Standard Round Log Set
24” Standard Round Log Set
LG331
30” Standard Round Log Set
LG332
Grate
Fettel Cast
Front Grate
Grate Clip
Figure 8
Figure 7
FP1149
Optional Fettle Cast Front Grate

8 3311956

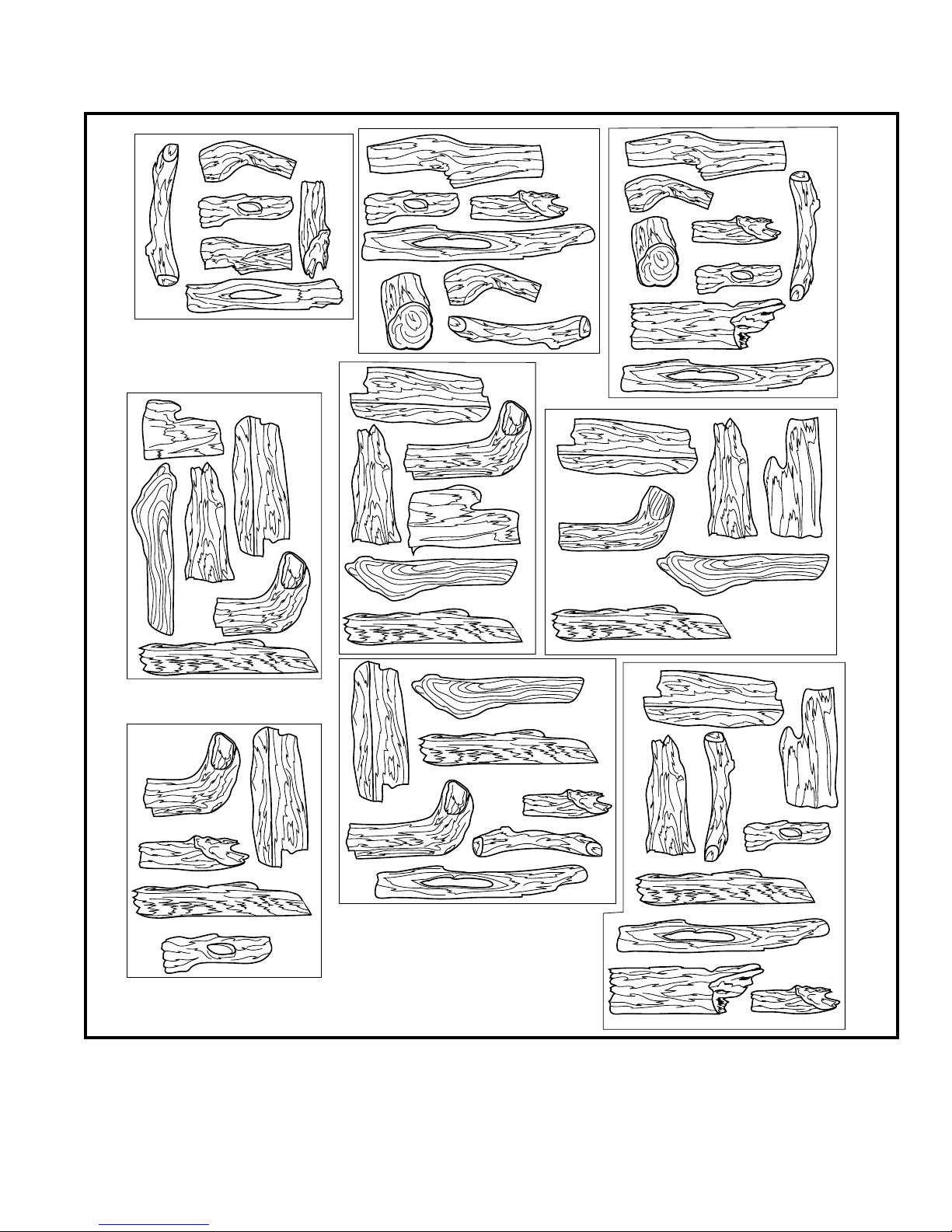

18” Standard Split Log Set
LG333
24” Standard Split Log Set
LG334
30” Standard Split Log Set
LG335
18” Standard Combination Log Set
LG336
24” Standard Combination Log Set
LG337
30” Standard Combination Log Set
LG338

9 3311956
FORYOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these directions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
WHAT TO DO IFYOU SMELL GAS
•Do not try to light any appliance
•Do not touch any electrical switch, do not use any phone in your building
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department
Lighting Instructions
1. Turn the gas shut-off valve to OFF.
2. Wait five (5) minutes to clear out any gas. If you
then smell gas STOP! Follow the safety information
on above. If you do not smell gas, go on to the next
step.
3. Light a match and lay it on top of the pan material,
about 2” from the end of the supply side of the pan.
(Fig. 8)
4. Slowly turn the gas shut-off valve ON until the
burner ignites. If the burner does not ignite within
ten (10) seconds with the match burning, turn the
shut-off valve OFF and repeat steps 1 through 4
again.
WARNING: Flame may flare up when ignited. Keep hands and face away from firebox.
Operation and Maintenance
To Adjust the Flame:
Adjust the flame to the desired level by rotating the gas
valve counterclockwise to open or clockwise
to close.
To Turn the Appliance OFF:
Rotate the gas shut-off valve clockwise to OFF.
Proper Maintenance:
Keep the area around the log set clean and clear of
debris.
Occasionally, you may use a soft bristle brush to clean
logs.
Once every year, a qualified agency or certified chim-
ney sweep should examine and clean the venting
system of the fireplace in which the log set is installed.
Appliance Break-In
During the 2-3 hour appliance break-in period, you may
detect an odor from the appliance as the various water-
based paints used in the manufacture of this log set
cure. This is a normal and temporary situation that is
not a cause for alarm. However, you may want to
provide extra ventilation to the room during this time.
To ensure proper curing of the logs:
1. Ignite a 2” flame and maintain it for 1/2 hour.
2. Burn the logs in consecutive 1/2 hour periods,
raising the flame an additional 2” to full flame height
for a total of three hours.
Match
Figure 9
LG176

10 3311956
Troubleshooting
Log Set is Smoking / Sooting Excessively
It is natural and unavoidable for vented gas log sets to produce moderate levels of carbon (soot) where
flame contacts the logs. The logs can be cleaned using a soft-bristle brush. However, if soot is pro-
duced where there is no flame impingement, one of the following may be the cause:
Fireplace venting system not drafting properly: Make sure the damper is wide open at all times.
Preheat the flue in very cold weather by burning the log set at a very low level, then slowly increasing
the flame height over a matter of hours. Have the fireplace and the venting system professionally
cleaned.
Excessive flame impingement or blockage: Make sure there is proper spacing between the logs so
they are not smothering the flame. Rearrange the logs so they are touched less by the flames.
Excessive gas supply/pressure: Make sure the gas pressure coming into the fireplace does not
exceed the maximum pressure allowed with this gas set (refer to Tables on page 4). If you are using the
gas logs with a safety pilot kit, make sure you installed the correct orifice into the set.
Burner is Excessively Noisy
Please Note: The movement and combustion of gas will create low, unavoidable levels of noise.
Excessive gas pressure: Make sure the gas pressure coming into the fireplace does not exceed the
maximum pressure allowed with this gas log set (refer to Table on Page 3). If you are using the gas
logs with a safety pilot kit, make sure you installed the correct orifice into the set.
Passage of air/gas across irregular surfaces: There may be burrs, paint or other blockages on the
burner bar ports. Check these ports and remove any blockage.
Gas Connector: Relieve any tight bends or kinks in the flexible gas connector. Switch to a smooth
aluminum gas connect, which can be purchased at any hardware or home improvement store.
Burner Flame is Too High (8-12” AboveTop Logs) or Too Low (BelowTop Logs)
Incorrect gas supply, pressure or burner orifice used: Make sure the gas pressure coming into the
fireplace falls between the minimum and maximum pressures allowed with this gas set (refer to Table
on Page 3). If you are using the gas logs with a safety pilot kit, make sure you installed the correct
orifice into the set.
Blocked ports (low flame only): Free the main burner orifice and burner bar ports of any burrs, paint
or other blockage.
