Designer Series Direct Vent Gas Fireplace
Installation and Operating Instructions
Models: STLDVP(N/P)SC, PFLDV(N/P)PSC, CRLDVP(N/P)SC, CLLDVP(N/P)SC
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for
future reference.
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electrical switch; do
not use any phone in your building.
– Leave the building immediately.
– Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
– If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this manual.
For assistance or additional information consult
a qualified installer, service agency or the
gas supplier.
Thisappliancemaybeinstalledinanaftermarket,*
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This applianceisfor use only withthe type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.
CERTIFIED
SAFETY BARRIER

220306750
Designer Series Direct Vent Gas Fireplace CONTENTS
Important Safety Information .....................................3
Code Approval..................................................................4
Installation Information...............................................5
Product Specifications......................................................5
High Elevations ................................................................5
Gas Pressures..................................................................5
Gas Specifications & Orifice Size.....................................5
Fireplace Dimensions.......................................................6
STLDV Framing................................................................8
CRLDV/CLLDV Framing ..................................................9
PFDV Framing................................................................10
Before You Start.............................................................11
Items Required for Installation........................................11 ..
Firebox Framing.............................................................11
Fireplace Location..........................................................12
Clearances.....................................................................13
Venting Installation....................................................14
Installation Precautions..................................................14
Optional Top Vent Applications.......................................14
Vent Pipe Clearances.....................................................16
Installation Planning.......................................................17
Horizontal & Vertical Termination ...................................17
Termination Location......................................................18
Vent Graph.....................................................................19
Rear Wall Vent Installation.............................................20
Horizontal w/Vertical Rise Applications..........................22
Below Grade Installation ................................................24
Vertical Through-the-Roof Applications..........................25
Installation for Vertical Termination.................................26
Flex Vent Installation......................................................28
Fireplace Installation.................................................31
Check Gas Type.............................................................31
Install Gas Piping ...........................................................32
Check Gas Pressure .....................................................33
Electrical Installation.......................................................33
Junction Box Wiring........................................................34
Command Center Wall Installation.................................34
Wall Switch Installation...................................................34
Signature Command Wiring Diagram.............................35
Optional Fan/Blower Systems .......................................36
Signature Command Single Blower BLOTSTSC ...........36
Automatic Dual Thermostat Blower BLOTBLDV............37
Automatic Single Thermostat Blower BLOTDL..............37
Glass Frame Removal....................................................38
Rockwool Placement......................................................39
Log Placement ...............................................................40
Safety Barrier Installation...............................................42
Operating Instructions..............................................43
Safety Information..........................................................43
Operating Instructions....................................................44
To Turn Off Gas to Appliance .........................................44
Signature Command System Operation..................45
Cleaning and Maintenance.......................................48
Burner, Pilot and Control Compartment .........................48
Pilot Flame .....................................................................48
Burner Flame..................................................................48
Venting System ..............................................................49
Glass Door .....................................................................49
Logs................................................................................49
Rock Wool .....................................................................49
Troubleshooting ........................................................50
Signature Command System .........................................50
Replacement Parts....................................................51
Firebox Components......................................................51
Signature Command System .........................................52
Logs................................................................................54
Brick ...............................................................................54
Venting Components......................................................56
Massachusetts Residents Only................................60
Warranty.....................................................................61
Efficiencies.................................................................64
Thank you and congratulations on your purchase of an
Vermont Castings Group Fireplace.
PLEASE READ THE INSTALLATION AND OPERATION INSTRUCTIONS BEFORE USING THE APPLIANCE!
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

20306750 3
Designer Series Direct Vent Gas Fireplace
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flam-
mable objects are less than 42" from the front, top,
or sides of the fireplace
• in high traffic areas
• in windy or drafty areas
5. Thisfireplacereacheshightemperatures. Keep children
and adults away from hot surfaces to avoid burns or
clothingignition.Fireplacewillremainhotforatimeafter
shutdown. Allow surfaces to cool before touching.
6. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to acci-
dentalcontactburns.Aphysicalbarrierisrecommended
if there are at risk individuals in the house. To restrict
access to a fireplace or stove, install an adjustable
safety gate to keep toddlers, young children and other
at risk individuals out of the room and away from hot
surfaces.
7. Do not modify fireplace under any circumstances.Any
parts removed for servicing must be replaced prior to
operating fireplace.
8. Turn fireplace off and let cool before servicing, install-
ing,or repairing. Onlya qualified serviceperson should
install, service, or repair the fireplace. Have burner
system inspected annually by a qualified service
person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent cleaning
may be needed due to excessive lint and dust. Turn off
the gas valve and pilot light before cleaning fireplace.
10. Have venting system inspected annually by a qualified
serviceperson.Ifneeded,haveventingsystem cleaned
or repaired. Refer to Cleaning and Maintenance, Page
48.
11. Keep the area around your fireplace clear of combus-
tiblematerials,gasoline,andotherflammablevapor and
liquids. Do not run fireplace where these are used or
stored. Do not place items such as clothing or decora-
tions on or around fireplace.
INSTALLER
Please leave these instructions with the appliance. OWNER Please retain these instructions for future reference .
IMPORTANT SAFETY INFORMATION
This fireplace is a vented product. This fireplace must be
properly installed by a qualified service person. The glass
door must be properly seated and sealed. If this unit is not
properly installed by a qualified service person with glass
door properly seated and sealed, combustion leakage can
occur.
CARBON MONOXIDE POISONING: Earlysigns of carbon
monoxide poisoning are similar to the flu with headaches,
dizziness and/or nausea. If you have these signs, the fire-
place may not have been installed properly. Get fresh air
at once! Have the fireplace inspected and serviced by a
qualified service person. Some people are more affected
by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or anemia,
those under the influence of alcohol, and those at high
altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor added
to these gases can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings. Keep
thismanualfor reference. Itis your guideto safe and proper
operation of this fireplace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certified
kit is used.
2. For propane/LP fireplace, do not place propane/LP
supplytank(s) inside any structure. Locatepropane/LP
supplytank(s) outdoors.To prevent performance prob-
lems, do not use propane/LP fuel tank of less than 100
lbs. capacity.
3. If you smell gas
•shut off gas supply.
•do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediatelycallyourgassupplierfrom a neighbor’s
phone. Follow the gas supplier’s instructions.
• Read this owner’s manual carefully and completely before trying to assemble, operate, or service this
fireplace.
• Any change to this fireplace or its controls can be dangerous.
• Improper installation or use of this fireplace can cause serious injury or death from fire, burns,
explosions, electrical shock and carbon monoxide poisoning.
WARNING

420306750
Designer Series Direct Vent Gas Fireplace IMPORTANT SAFETY INFORMATION
12. Do not use this fireplace to cook food or burn paper or
other objects.
13. Never place anything on top of fireplace.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this fireplace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code,ANSI/NFPA70, orthe Canadian ElectricalCode,
CSA C22.1.
16. Do not obstruct the flow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and
proper operation.
17. When the appliance is installed directly on carpeting,
tileor other combustible materialother than wood floor-
ing, you must set appliance on a metal or wood panel
or hearth pad extending the full width and depth of the
appliance.
18. Do not use fireplace if any part has been exposed to
or has been under water. Immediately call a qualified
servicetechnician to inspect the applianceand replace
anypartofthecontrolsystemandanygascontrolwhich
as been submerged in water.
19. Do not operate fireplace if any log is broken.
20. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this
fireplace.
21. Do not operate the fireplace with glass door removed,
cracked, or broken.
CODE APPROVAL
Direct Vent type appliances draw all combustion air from
outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to
comply with the established standards for DIRECT VENT
GAS FIREPLACE HEATERS in the USA and Canada as
follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO:
ANSI Z21.88-2014 / CSA 2.33-2014 STANDARDS
A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/
NCSBCS A225.1, or Standard for Gas Equipped Recre-
ational Vehicles and Mobile Housing, CSA Z240.4.
WARNING
Never connect unit to private (non-utility)
gas wells. This gas is commonly known
as wellhead gas.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for fireplaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noisesarefound with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is not unusual for gas fireplace to give off some
odor the first time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your fireplace for
atleastten (10) hours thefirst time you use it.Place
thefan switch in the“OFF” position duringthis time.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this
appliance and shall be installed.

20306750 5
Designer Series Direct Vent Gas Fireplace
INSTALLATION INFORMATION
PRODUCT SPECIFICATIONS
•This appliance has been certified for use with either
natural or propane gas. See appropriate data plates.
•This appliance is not for use with solid fuels.
•The appliance is approved for bedroom or bedsitting
room installations.
•Theappliancemustbeinstalledinaccordancewithlocal
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in
Canada.
•This appliance is mobile home approved.
•Theappliance must be properly connected to a venting
system.
•The appliance is not approved for closet or recessed
installations.
GAS PRESSURES
HIGH ELEVATIONS
Inputratingsareshown in BTU perhourand are certified
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1/NFPA 54 and/or local codes having juris-
diction.
InCanada,pleaseconsultprovincialand/orlocalauthori-
ties having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.5” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.

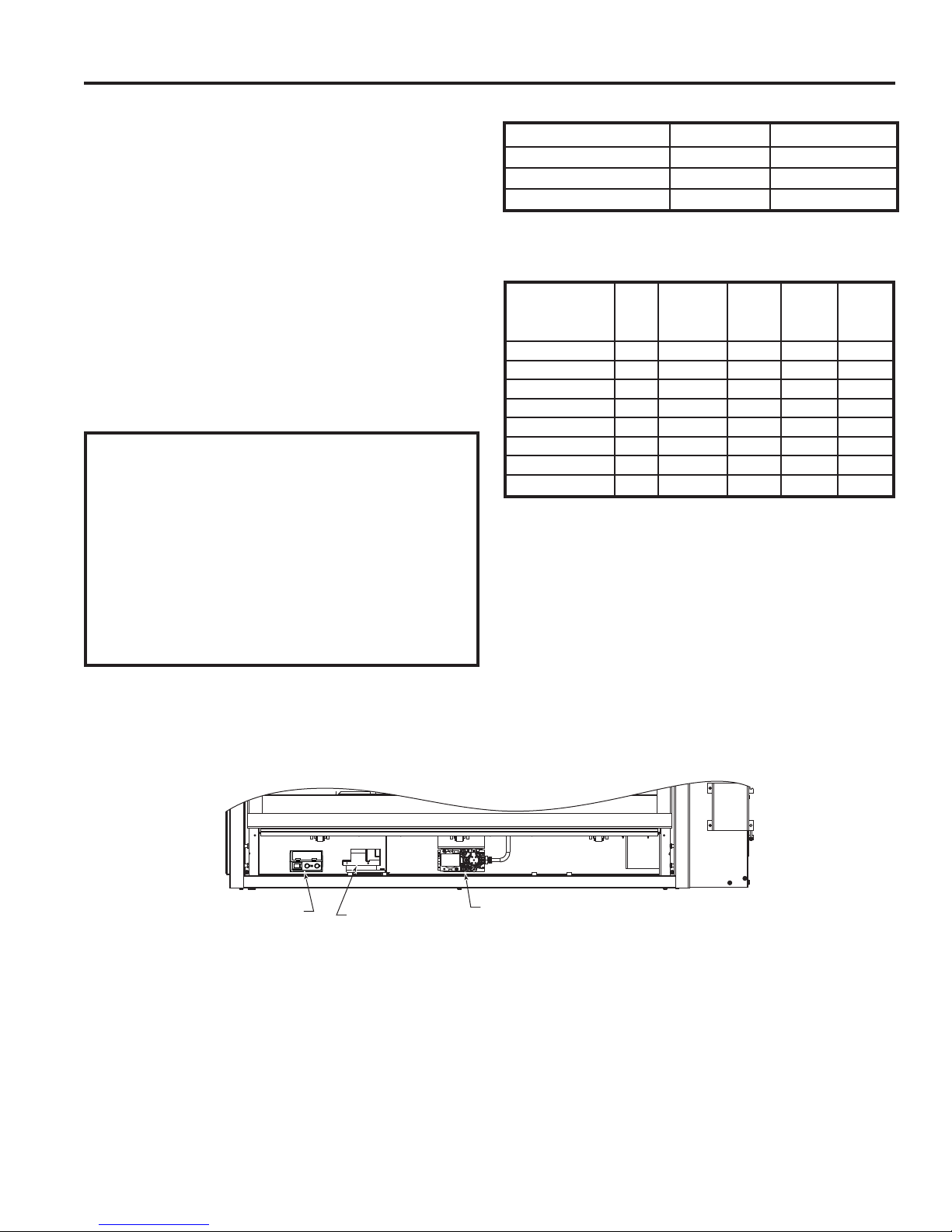

Figure 1 -
Designer Controls
FP2815
Control Box Gas Valve
Command
Center
GAS SPECIFICATIONS & ORIFICE SIZE
Max. Min.
Input Input Orifice
Model Fuel Controls BTU/h BTU/h Size
PFLDVPNS Nat. SCS 37,000 25,000 #31
PFLDVPPS LP SCS 35,000 27,000 1.8 mm
STLDVPNS Nat. SCS 37,000 25,000 #31
STLDVPPS LP SCS 35,000 27,000 1.8 mm
CLLDVPNS Nat. SCS 37,000 25,000 #31
CLLDVPPS LP SCS 35,000 27,000 1.8 mm
CRLDVPNS Nat. SCS 37,000 25,000 #31
CRLDVPPS LP SCS 35,000 27,000 1.8 mm

INSTALLATION INFORMATION

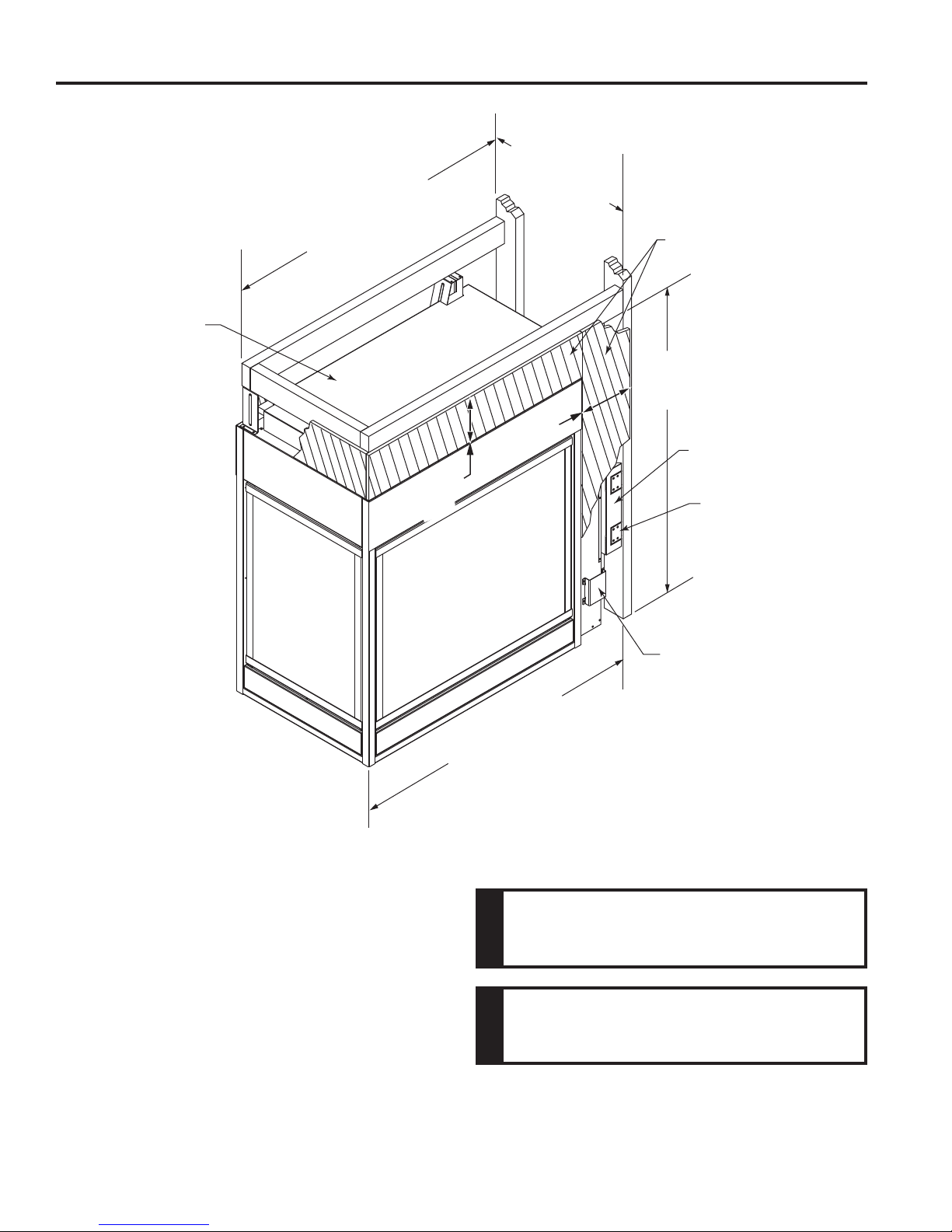

FIREPLACE DIMENSIONS
620306750
Designer Series Direct Vent Gas Fireplace
Figure 2 -
STLDV (See-thru) Fireplace Dimensions
36QE”
(81 mm) 386QE” (979 mm)
496QE” (1259 mm)
7(6”
(200 mm)
12"
(305 mm)
47(6”
(1216 mm)
41(6”
(1064 mm)
37(6”
(962 mm)
23" (584 mm)
356QE” (903 mm)
2856M”
(718 mm)
256M”
(654 mm)
3356QE” (840 mm)
156M"
(32 mm)
34”
(864 mm)
116M”
(298 mm)
36M”
(95 mm) 24” (610 mm)
276M” (705 mm) 466” (1178 mm)
386QE” (979 mm) 7(6”
(200 mm)
12"
(305 mm)
47(6”
(1216 mm)
41(6”
(1064 mm)
37(6”
(962 mm)
23" (584 mm)
156M"
(32 mm)
356QE” (903 mm)
2856M”
(718 mm)
256M”
(654 mm)
1856O" (470 mm)
21” (533 mm)
7(6”
(200 mm)
556”
(130 mm)
156”
(29 mm) 3356QE" (840 mm)
276M” (705 mm)
156M"
(32 mm)
34”
(864 mm)
116M”
(298 mm)
Figure 3 -
CLLDV/CRLDV (Corner) Fireplace Dimensions
FP2851
FP2852
Centerline of Flue
Outlet
Centerline of Flue
Outlet

INSTALLATION INFORMATION
FIREPLACE DIMENSIONS
20306750 7
Designer Series Direct Vent Gas Fireplace
21”
(533 mm)
1856O”
(470 mm)
2856M”
(718 mm)
256M”
(654 mm)
7(6”
(200 mm)
556”
(130 mm)
156”
(29 mm)
3356QE” (840 mm)
386QE” (979 mm)
466” (1178 mm) 7(6”
(200 mm)
12"
(305 mm)
47(6”
(1216 mm)
41(6”
(1064 mm)
37(6”
(962 mm)
23" (584 mm)
356QE” (903 mm)
2856M”
(718 mm)
156M"
(32 mm)
156M"
(32 mm)
34”
(864 mm)
116M”
(298 mm)
FP2853
Figure 4 -
PFLDV (Peninsula) Fireplace Dimensions
Centerline of Flue
Outlet

STLDV FRAMING
INSTALLATION INFORMATION
820306750
Designer Series Direct Vent Gas Fireplace
486QE”
(1224 mm)
C
L
276” (695 mm)
5056QE” (1272 mm)
23" (1/2" Drywall)
or Adjustable to
226M” (5/8” Drywall)
22556QE” (576 mm)
8556QE”
(221 mm)
Min.
7”
(178 mm)
Min.
4”
(102 mm)
Min.
Remove box and
Insulation for Top
Vent Configurations
Noncombustible
Material
Fold Outer Tabs
and Nail to Framing
Members
If using 5/8" drywall, remove
framing tabs and re-install
on 2nd set of holes
positioned slightly inwards
Figure 5 -
STLDV (See-thru) Framing
If using 5/8" drywall, remove
noncombustible supports,
rotate 180° and reinstall to
achieve 5/8" depth
Thefireplacemustbesecured to the floorand/ortoframing
studs as shown in Figure 5 . Use four (4) wood screws or
masonry/ concrete screws to secure fireplace to the floor.
Usefour (4) screws to attachfireplace to framing.Theside
brackets or nailing flanges are designed to accommodate
two wall boards thicknesses, 1/2" or 5/8".
NOTE
Never install combustible materials over
front face of fireplace.
NOTE
The area above and on the sides of the
fireplacemustbeanoncombustiblematerial.
Figures 5, 6, 7
NOTE: Glass cen-
terline is off center
from rought framing
dimensions.

CRLDV/CLLDV FRAMING
INSTALLATION INFORMATION
20306750 9
Designer Series Direct Vent Gas Fireplace
2756O” (699 mm)
(1/2” Drywall)
or
276” (696 mm)
(5/8” Drywall)
4656” (1172 mm)
(1/2” Drywall)
or
46” (1168 mm)
(5/8” Drywall)
27(6” (708 mm)
466” (1184 mm)
486QE
"
(1224 m
8556QE”
(221 mm) Min,
7”
(178 mm)
Min.
456O”
(114 mm)
Min.
Remove box and
Insulation for Top
Vent Configurations
Noncombustible
Material
Fold Outer Tabs
and Nail to Framing
Members
Figure 6 -
CRLDV and CLLDV (Corner) Framing
If using 5/8" drywall, remove
framing tabs and re-install
on 2nd set of holes
positioned slightly inwards
If using 5/8" drywall,
remove framing
tabs and re-install
on 2nd set of holes
positioned slightly
inwards
Thefireplacemustbesecured to the floorand/ortoframing
studs as shown in Figure 6 . Use four (4) wood screws or
masonry/ concrete screws to secure fireplace to the floor.
Usefour (4) screws to attachfireplace to framing.Theside
brackets or nailing flanges are designed to accommodate
two wall boards thicknesses, 1/2" or 5/8".
NOTE
Never install combustible materials over
front face of fireplace.
NOTE
The area above and on the sides of the
fireplacemustbeanoncombustiblematerial.
Figures 5, 6, 7
If using 5/8" drywall, remove
noncombustible supports, rotate
180° and reinstall to achieve
5/8" depth

4656” (1172 mm)
(1/2” Drywall)
or
46” (1168 mm)
(5/8” Drywall)
23” (584 mm)
(1/2” Drywall)
or Adjustable to
226M” (578 mm)
(5/8” Drywall)
486QE”
(1224 mm)
466” (1184 mm)
7”
(178 mm)
Min.
8556QE”
(221 mm) Min,
NOTE: The Vermont Castings Group Model BPWC500
mantel is specially designed to comply with all mantel
temperaturerequirements.Any custom-built mantels must
comply with the framing clearances and the use of non-
combustibles as shown in Figures 5, 6 and 7.
STLDV FRAMING
INSTALLATION INFORMATION
10 20306750
Designer Series Direct Vent Gas Fireplace
Remove box and
Insulation for Top
Vent Configurations
Noncombustible
Material
Fold Outer Tabs
and Nail to Framing
Members
Figure 7 -
PFDV (Peninsula) Framing
If using 5/8" drywall, remove
framing tabs and re-install
on 2nd set of holes
positioned slightly inwards
Thefireplacemustbesecured to the floorand/ortoframing
studs as shown in Figure 7 . Use four (4) wood screws or
masonry/ concrete screws to secure fireplace to the floor.
Usefour (4) screws to attachfireplace to framing.Theside
brackets or nailing flanges are designed to accommodate
two wall boards thicknesses, 1/2" or 5/8".
NOTE
Never install combustible materials over
front face of fireplace.
NOTE
The area above and on the sides of the
fireplacemustbeanoncombustiblematerial.
Figures 5, 6, 7
If using 5/8" drywall, remove
noncombustible supports,
rotate 180° and reinstall to
achieve 5/8" depth

INSTALLATION INFORMATION
20306750 11
Designer Series Direct Vent Gas Fireplace
BEFORE YOU START
Read this homeowner manual thoroughly and follow all
instructions carefully. Inspect all contents for shipping
damageandimmediately inform your dealerifany damage
is found. Do not install any unit with damaged, incomplete,
or substitute parts. Check your packing list to verify that
all listed parts have been received. You should have the
following:
•Fireplace (Firebox and Burner System)
•Log Set • Fasteners
• Rock Wool • Restrictor Plate/Disc (2)
• White Toggle Switch • Switch Cover Plate
ITEMS REQUIRED FOR INSTALLATION
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Level
• Measuring Tape • Pliers
• Electric Drill and Bits • Square
• Pipe Wrench • Tee Joint
• Noncombustible Panel
• Caulking Material (noncombustible)
• Fireplace Surround Material (noncombustible)
• Piping Complying with Local Codes
• Pipe Sealant Approved for use with Propane/LPG
(Resistant to sulfur compounds)
WARNING
Do not fill spaces around firebox with
insulation or other materials. This could
cause a fire.
FIREBOX FRAMING
Firebox framing can be built before or after the appliance
is set in place. Construct firebox framing following Figure
5, 6 or 7 for your specific installation requirements. The
framing headers may rest on the top of the firebox stand-
offs. Do not bring headers below top of standoffs. NOTE:
When planning your framing and installation, keep in mind
that the gas line and electric power come in on the same
end of the fireplace. Refer to Figures 2, 3 & 4 for fireplace
dimensions.
Thefireboxmay be installeddirectly on acombustible floor
or raised on a platform of an appropriate height. When
the firebox is installed directly on carpeting, tile, or other
combustiblematerial, other than wood flooring, the firebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.
COLD CLIMATE INSULATION
If you live in a cold climate, seal all cracks
aroundyourappliance,andwherevercoldair
could enter the room, with noncombustible
material. Itis especially important toinsulate
the outside chase cavity between the studs
and under the floor on which the appliance
rests, if the floor is above ground level.
NOTE
FINISHING MATERIAL
NOTE:Any remote wiring (i.e. remote control, wall switch,
and optional fan) must be done prior to final finishing to
avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel,
or other materials with a UL fire rating of Zero) may be
used to cover the black surface of the appliance. A 300°F
minimum adhesive may be used to attach facing materi-
als to the black surface. If joints between the finished wall
and the fireplace surround are sealed, a 300°F minimum
sealant material (General Electric RTV103 or equivalent)
must be used.
NOTE: Refer to cold climate pilot information on Page 46
for more information on standing pilot vs. intermittent pilot
options.

12 20306750
Designer Series Direct Vent Gas Fireplace
FIREPLACE LOCATION
Plan for the installation of your appliance. This includes
determining where the unit is to be installed, the vent con-
figuration to be used, framing and finishing details, and
whether any optional accessories (i.e. blower, wall switch,
or remote control) are desired. Consult your local building
codeagencytoensurecompliancewithlocalcodes, includ-
ing permits and inspections.
The following factors should be taken into consideration:
•Clearancetoside-wall,ceiling,woodwork,andwindows.
Minimum clearances to combustibles must be main-
tained.
•This fireplace may be installed along a wall, across a
corner, or use an exterior chase. Refer to Figure 8 for
suggested locations.
•Location should be out of high traffic areas and away
from furniture and draperies due to heat from appli-
ance.
Y
B
C
Y
X
DA
**Island (C) andRoom Divider (D)installation is possibleas long
as the horizontal portion of the vent system (X) does not exceed
20’ (610cm). See details in Venting Section.
* When you install your fireplace in (D) Room divider or (E) Flat
onwall corner positions (Y),a minimum of 6”(152mm) clearance
mustbe maintainedfrom theperpendicular walland thefront side
edge of the fireplace.
A Flat on wall
B **Island
C *Room divider
D *Flat on wall corner
Y 6” minimum
Figure 8 -
Locate Fireplace
•Never obstruct the front opening of the fireplace.
•Do not install in the vicinity where gasoline or other
flammable liquids may be stored.
•Vent pipe routing. See Venting section found in this
manual for allowable venting configurations.
•Theseunitscan be installed inabedroom. See National
Fuel Gas Code ANSI Z233.1/NFPA 54 — (current
edition), the Uniform Mechanical Code — (current edi-
tion), and Local Building Codes for specific installation
requirements.
•These units can be installed in a bathroom.
INSTALLATION INFORMATION

20306750 13
Designer Series Direct Vent Gas Fireplace
CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must
not protrude more than 1/2" from the facing. If it does,
it is considered a mantel and must meet the mantel
requirements listed in this manual.
NOTE: Vermont Castings Group Model BPWC500
Mantel is designed to comply with all mantel temperature
requirements.
Follow these instructions carefully to
ensure safe installation. Failure to follow
instructions exactly can create a fire
hazard.
The appliance cannot be installed on a
carpet, tile or other combustible material
other than wood flooring. If installed on
carpet or vinyl flooring, the appliance
shall be installed on a metal, wood or
noncombustible material panel extending
full width and depth of the appliance.
WARNING
16”
12”
10”
12”
6”
256O”
Side View
Noncombustible
Material to Top of
Standoffs
FP2817
Top of Fireplace
Opening
Never obstruct or modify the air inlet or
outlet grilles (louvers). This may create
a fire hazard.
WARNING
45°
1”
4”
5” 6”
”3”
Figure 10 -
Mantel Clearance
Stud
Combustible
Material Area
FP2818
Top View
Spacer
Side of Fireplace
Opening
72”
(1829 mm)
Min.
Ceiling
6”
(152 mm)
Min.
Figure 9 -
Ceiling and Side Wall Clearances FP2544
12"
(305 mm)
Max. Depth
16"
(406 mm)
Min.
Combustible Mantel
INSTALLATION INFORMATION

14 20306750
Designer Series Direct Vent Gas Fireplace
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the
installation. The installer must make sure to select the
proper vent system for installation. Before installing vent
kit, the installer must read this fireplace manual and vent
kit instructions.
Only a qualified installer/service person should install the
venting system. The installer must follow these safety
rules:
•Wear gloves and safety glasses for protection.
•Use extreme caution when using ladders or when on
rooftops.
• Be aware of electrical wiring locations in walls and ceil-
ings.
The following actions will void the warranty on your vent-
ing system:
• Installation of any damaged venting component.
• Unauthorized modification of the venting system.
• Installation of any component part not manufactured or
approved by Vermont Castings Group
• Installation other than permitted by these instructions.
Read all instructions completely and
thoroughly before attempting installation.
Failure todo so couldresult inserious injury,
property damage or loss of life. Operation
of improperly installed and maintained
venting systemcould result inserious injury,
property damage or loss of life.
WARNING
Failure to follow these instructions will
void the warranty.
NOTICE
OPTIONAL TOP VENT APPLICATION
The appliance is shipped as a rear vent unit. If the installa-
tion layout requires the unit to be a top vent configuration,
the appliance can be converted by following the steps
below.
When removing and refitting the plates and adapter, be
sure the associated gaskets are undamaged and refitted
as required.
1. Remove the eight (8) screws securing the flue pipe
adapter to the fireplace body. Figure 12
2. Set the flue pipe adapter aside, complete with the
gasket. Do not damage the gaskets as the adapter and
gasket must be refitted.
3. Removetheeight(8)screwssecuringthe fluepipecover
to the top of the intake box and remove the cover and
gasket. Figure 12
Remove for Top Vent
applications
FP2895
Figure 11
VENTING INSTALLATION

20306750 15
Designer Series Direct Vent Gas Fireplace
After conversion to top vent configuration,
the 5" (127 mm) flue pipe should be
concentric with the 8" (203 mm) outer collar
within 1/4".
WARNING
Screws
Flue Pipe
Cover
Flue Pipe
Adapter FP2833
Figure 12 -
Remove 16 screws from Flue Pipe Adapter and
Flue Pipe Cover
4. Remove six (6) screws securing the flue pipe to the
backof the intake box and remove thepipe and gasket.
Figure 13
5. Replacethefluepipetotopoffirebox.Ensure the gasket
is in place and undamaged. Secure with six (6) screws.
Figure 14
6. Place the flue pipe cover and gasket removed in Step
3 over the flue opening in bottom of the intake box.
7. Refit the flue pipe adapter and gasket to the top of fire-
place. Secure the adapter with six (6) screws removed
in Step 1.
Flue Cover
Screws
Flue Pipe
FP2834
Figure 13 -
Remove Flue Pipe
Screws
Flue Pipe
FP2835
Figure 14 -
Attach Flue Pipe to Top Vent Configuration
VENTING INSTALLATION

16 20306750
Designer Series Direct Vent Gas Fireplace
**1"
**1”
*3"
37(6”
(962 mm)
Flue Pipe
Centerline
to Floor
**1"
*3"
**1”
516”
(1305 mm)
Flue Pipe
Centerline
to Floor
This fireplace must be vented to the outside.
TheventingsystemmustNEVERbeattached
to a chimney serving a separate solid fuel
burning appliance. Eachgas appliance must
use a separate vent system. Do not use
common vent systems.
WARNING
Figure 15 -
Combustible Clearances for Vent Pipe with Minimum Rise
*Aminimum of3" clearanceto thetop isrequired alonghorizontal
length until flue pipe penetrates outside wall.
** A minimum 1" clearance to combustibles permitted all around
flue at outside wall
FP2819
WARNING
Horizontal sections of this vent system
require a minimum of 3" clearances to
combustibles at the top of the flue and 1"
clearance at the sides and bottom until the
flue penetrates the outside wall. Aminimum
1"clearance all around the flueis acceptable
at this point of penetration. Unless the
vertical run is 7
1
⁄
2
' or higher from floor of
fireplace, the clearance for horizontal run
is 1" on all sides.
Vertical sections of this vent system require
a minimum of 2" clearance to combustibles
at the top of the unit directly above the
stand-off. A minimum of 1" clearance all
around the flue is acceptable thereafter.
VENTING INSTALLATION

20306750 17
Designer Series Direct Vent Gas Fireplace
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
•Horizontal Termination
•Vertical Termination
It is important to select the proper length of vent pipe for
the type of termination you choose. It is also important to
note the wall thickness.
FOR HORIZONTAL TERMINATION
Selectthe amount ofvertical rise desired.All horizontal run
of venting must have 1/4" rise for every 12" of run towards
the termination below 7
1
⁄
2
' of vertical rise from floor of fire-
place. With 7
1
⁄
2
feet or more of vertical rise from the floor
of the fireplace, the horizontal run may be level. NEVER
run vent piping down.
You may use up to three 90° elbows in this vent configura-
tion.RefertoVertical/HorizontalTerminationConfigurations
on Page 21.
Horizontal venting which incorporates the twist lock pipe
must be installed on a level plane without an inclining or
declining slope.
FOR VERTICAL TERMINATION
Measure the distance from the fireplace floor to the ceil-
ing. Add the ceiling thickness, the vertical rise in an attic
or second story, and allow for sufficient vent height above
the roof line.
NOTE: You may use two 45° elbows in place of a 90°
elbow. You must follow rise to run ratios when using
45° elbows. The appliance is approved for use with
three 90° elbows maximum or a combination of 90°
and 45° elbows up to a maximum of 270°.
NOTICE
When installing in a chase, you should
insulate the chase as you would the outside
walls of your home. This is especially
important in cold climates. Insulation
should be considered a combustible
material. Maintain proper clearances to all
combustible materials.
WARNING
Alwaysmaintainminimumclearancesaround
vent systems. The minimum clearances to
combustibles for horizontal vent pipe are 3"
at the top* and 1" at the sides and bottom
of the vent system until the pipe penetrates
the nearest vertical wall (1" required). A 1"
minimum clearance all around the pipe must
be maintained at outside wall and on vertical
runs. Do not pack the open air spaces with
insulation or other materials. This could
cause high temperatures and may present
a fire hazard.
*Unless the vertical run is 7
1
⁄
2
feet or higher
from floor of fireplace, the clearance for the
horizontal run is 1" on all sides.
Treatment of firestops and construction of
the chase may vary from building type to
building type. These instructions are not
substitutes for the requirements of local
building codes. You must follow all local
building codes.
NOTICE
Never run the vent pipe down. This may
cause excessive temperatures which could
cause a fire.
WARNING
For two-story applications, firestops are required at each
floorlevel. If an offsetisneeded inthe attic, additional pipe
and elbows will be required.
You may usea chasewith a vent termination with exposed
pipe on the exterior of the house. See Installing Vent
System in a Chase below. If pipe is enclosed in chase, it
is not exposed.
Itis very importantthat the venting system maintainits bal-
ance between the combustion air intake and the flue gas
exhaust. Certain limitations apply to vent configurations
and must be strictly followed.
INSTALLING A VENT SYSTEM IN AN
OUTSIDE CHASE
A chase is a vertical boxlike structure built to enclose
venting that runs along the outside of a building. A chase
is required for such venting.
VENTING INSTALLATION

18 20306750
Designer Series Direct Vent Gas Fireplace VENTING INSTALLATION
V
X
X
X
D
E
B
B
B
C
B
M
B
A
J K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Operable
Operable Fixed
Closed
B
INSIDE
CORNER DETAIL
A
G
CFM145a
V
V
V
VV
VV
V
TERMINATION LOCATION
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel
Gas Codes
† A vent shall not terminate directly above a sidewalk or paved
driveway which is located between two single family dwellings and
serves both dwellings
‡ Only permitted if veranda, porch, deck or balcony is fully open on a
minimum 2 sides beneath the floor.
NOTE: 1. Local codes or regulations may require different
clearances.
2. The special venting system used on Direct Vent
Fireplaces are certified as part of the appliance, with
clearances tested and approved by the listing agency.
3. Vermont Castings Group assumes no responsibility for
the improper performance of the appliance when the venting
system does not meet these requirements.
Termination Locations
CANADIAN INSTALLATIONS1US INSTALLATIONS2
A = Clearance above grade, veranda, porch,
deck or balcony 12" (30cm) 12" (30cm)
B = Clearance to window or door that may be
opened 6" (15cm) for appliances <10,000 BTU/h (3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
C = Clearance to permanently closed window 12" (305mm) recommended to prevent
window condensation 12" (305mm) recommended to prevent win- dow condensation
D = Vertical clearance to ventilated soffit locat-
ed above the terminal within a horizontal
distance of 2' (610 mm) from the center
line of the terminal
18" (458mm) 18" (458mm)
E = Clearance to unventilated soffit 12" (305mm) 12" (305mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner see next page see next page
H = Clearance to each inside of center line
extended above meter/regulator assembly 3' (91cm) within a height of 15' (5m) above the meter/regulator assembly 3' (91cm) within a height of 15' (5m) above the meter/regulator assembly
I = Clearance to service regulator vent outlet 3' (91cm) 3' (91cm)
J = Clearance to non-mechanical air supply
inlet to building or the combustion air inlet
to any other appliance
6" (15cm) for appliances <10,000 BTU/h
(3kW)
12" (30cm) for appliances >10,000 BTU/h
(3kW) and <100,000 BTU/h (30kW)
36" (91cm) for appliances >100,000 BTU/h
(30kW)
6" (15cm) for appliances <10,000 BTU/h
(3kW)
9" (23cm) for appliances >10,000 BTU/h
(3kW) and <50,000 BTU/h (15kW)
12" (30cm) for appliances >50,000 BTU/h
(15kW)
K = Clearance to mechanical air supply inlet 6' (1.83m) 3' (91cm) above if within 10' (3m) horizontally
L = Clearance above paved sidewalk or
paved driveway located on public property 7' (2.13m)†7' (2.13m)†
M = Clearance under veranda, porch, deck or
balcony 12" (30cm)‡12" (30cm)‡

20306750 19
Designer Series Direct Vent Gas Fireplace
VENTING INSTALLATION
HOW TO USE THE VENT GRAPH
The Vent Graph should be read in conjunction with the
following vent installation instructions to determine the
relationshipbetweentheverticalandhorizontaldimensions
of the vent system.
1. Determinethe height of thecenter of thehorizontal vent
pipe exiting through the outer wall. Using this dimen-
sion on the Sidewall Vent Graph below, locate the point
intersecting with the slanted graph line.
2. From the point of this intersection, draw a vertical line
to the bottom of the graph.
3. Select the indicated dimension, and position the fire-
place in accordance with same.
Example: If the vertical dimension from the floor of the
fireplace is 11' (3.4 m) the horizontal run to the face of
the outer wall must not exceed 16' (4.9 m).

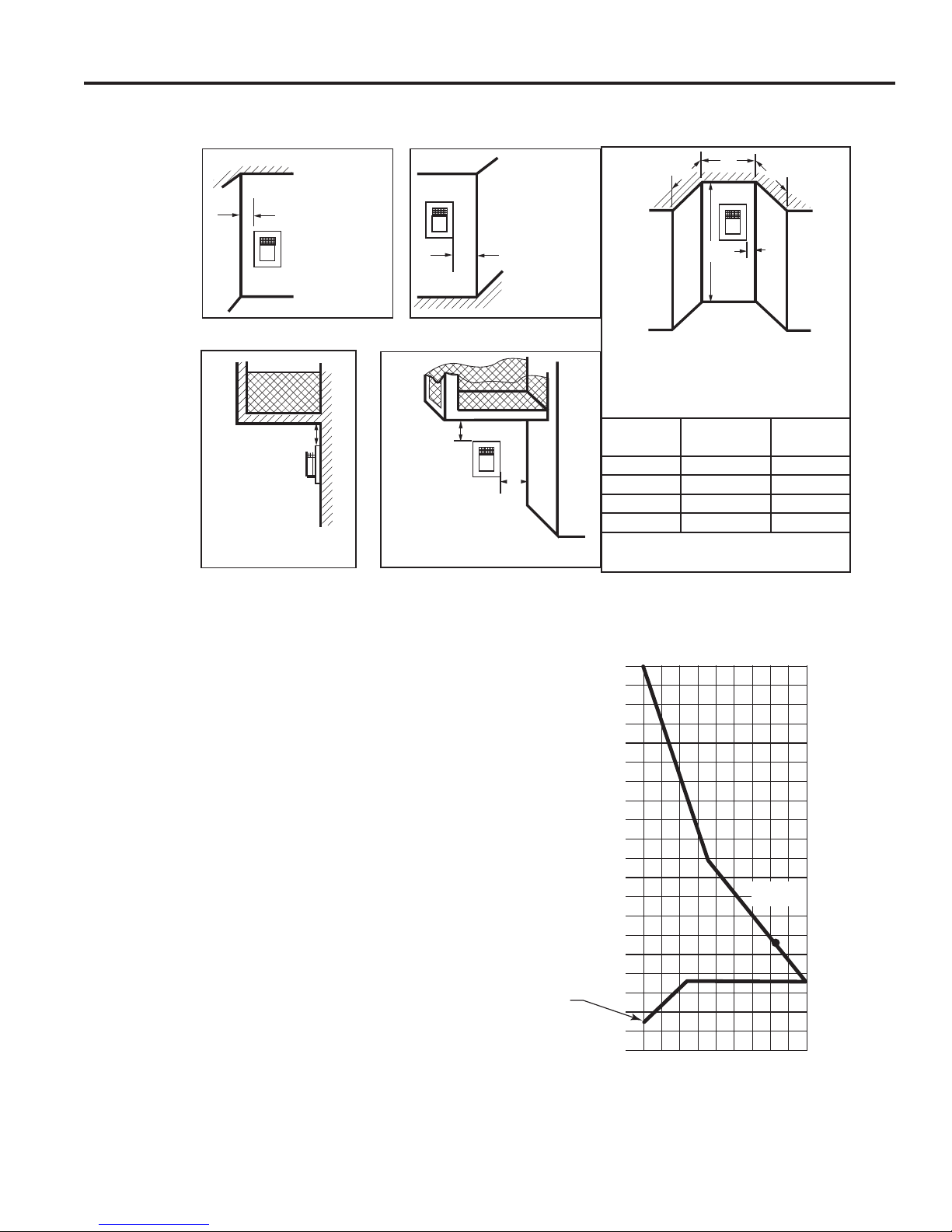

Sidewall Vent Graph showing the relationship between
vertical and horizontal dimensions for a Direct Vent flue
system.
Figure 18 -
Rear Wall Venting Graph
Horizontal dimension from the finished outside wall
to the center of the pipe on the fireplace
Vertical Dimension From the Floor of Unit to the Center of the
Horizontal Vent Pipe
Dimensions in
Feet
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10121416 1820
eg: A
32
3
⁄
4
" to Center
of Horizontal
Pipe
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 12" (305 mm)
P = 6” (152 mm)
M
F
Alcove Applications*
C D C
E
V
V
Combustible &
Noncombustible
E= Min. 2” (51 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O= 8’ (2.4 m) Min.
O
P
V
V
V
584-15
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions specified for vinyl or
non-vinyl siding and soffits. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All mechanical air intakes within 10’ (1 m) of a
termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All gravity air intakes within 3’ (914 mm) of a termination cap must
be a minimum of 1’ (305 mm) below the termination cap.
Figure 17 -
Termination
Clearances

20 20306750
Designer Series Direct Vent Gas Fireplace
REAR WALL VENT INSTALLATION (5" x 8"
VENTING ONLY)
When installed as a rear vent unit, this appliance may be
vented directly to a termination located on the rear wall
behind the appliance. Only an Vermont Castings Group
brand termination is allowed for this application.
•The maximum horizontal distance between the rear
of the appliance and the termination is 20" (508 mm).
Figure 19
Figure 19 -
Rear Vent Application Maximum
Horizontal Distance
Maximum
20"
(508 mm)
Top View Flat
Installation
• Only one 45 degree elbow is allowed in these installa-
tions.
1. Rigid vent pipes and fittings have special twist-lock
connections.Assemble the desiredcombination of pipe
and elbows to the appliance adapter.
Twist-Lock Procedure: The female ends of the pipes
and fittings have three (3) locking lugs (indentations).
These lugs will slide straight into matching slots on
the male end of adjacent pipes and fittings. Push the
pipe sections together and twist one section clockwise
approximately one-quarter turn until the sections are
fully locked. Figure 20
NOTE: Seal-
ant is not
required to
assemble
fireplace
venting. Do
not use sili-
cone sealant
at the inner
flue exhaust
connec-
tions.
Female Locking
Lugs
Male Slots
NOTE: Horizontal runs of
vent must be supported
every three feet (914
mm). Use wall straps for
this purpose.
Figure 20 -
Rigid Vent Pipe Con-
nections
2. Refer to venting and termination instructions for further
instructions.
3. Locate and cut the vent opening in the wall. For com-
bustible walls first frame in opening.
Combustible Interior Walls: Cut a 121/2" x 101/2" hole
through the interior wall.
Combustible Exterior Walls: Cut a 101/2" x 101/2"
square hole through the exterior wall frame. Figure 21
Noncombustible Walls: Hole opening should be 81/2"
(216 mm) in diameter.
4. The center of the hole should align with the center line
ofthehorizontal rigid vent pipeend.Allow 1/4" minimum
rise per foot. Figure 21
Vent Opening for Combustible Walls
10
1
⁄
2
”
(267 mm)
Min.
Fireplace Hearth Framing Detail
Opening for Noncombustible Wall
8
1
⁄
2
”
(216 mm)
Fireplace Hearth FP2293
Figure 21 -
Locate vent opening on wall
10
1
⁄
2
”
(267 mm) Min.
5. Apply a bead of non-hardening mastic around the
outside edge of vent cap. Position the vent cap in the
center of hole on the exterior wall with the word "UP"
on the vent cap facing up. Insure proper clearance of
1" to combustibles is maintained. Attach the vent cap
with four (4) wood screws supplied. Figure 22
NOTE: Replace the wood screws with appropriate
fasteners for stucco, brick, concrete or other types
of siding.
For vinyl siding, stucco or wood exterior, use vinyl
siding standoffs between vent cap and exterior wall for
Duravent or Selkirk Terminations only. The vinyl siding
standoff prevents excessive heat from melting the
vinyl siding material. NOTE: Vermont Castings Group
Termination does not require standoff. Bolt the vent
cap to the standoff or wall.Apply non-hardening mastic
around outside edge of the standoff instead of the vent
cap assembly. Use wood screws provided to attach the
standoff. Figure 23
VENTING INSTALLATION
