Vermont Castings Chateau DVT44 Assembly instructions

Installation Instructions and
Homeowner’s Manual
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch;
• Do not use any phone in your
building.
• Immediately call your gas supplier
from your neighbor’s phone. Follow
the gas suppliers instructions.
• If you cannot reach your gas
supplier call the fire department.
INSTALLER/CONSUMER
SAFETY INFORMATION
Chateau™
Direct Vent Gas
Fireplace
Model: DVT38, DVT44
CERTIFIED
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
20011956 6/07 Rev. 3
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.




2
Chateau™
20011956
Please read the installation & operating instructions before using this appliance.
Thank you and congratulations on your purchase of a CFM Corporation fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
Table of Contents
Installation & Important Curing/Burning Instructions ......................................................... 3
Operating Instructions Fireplace Dimensions .................................................................................. 4
Locating Your Fireplace ...............................................................................5
Clearance to Combustibles ..........................................................................5
Mantels ........................................................................................................ 5
Hearth ..........................................................................................................6
Framing & Finishing .....................................................................................6
Final Finishing ..............................................................................................6
Gas Specifications .......................................................................................7
Gas Inlet and Manifold Pressures ................................................................7
High Elevations ............................................................................................7
Gas Line Installation .................................................................................... 7
Electrical Junction Box .................................................................................8
Control System ............................................................................................ 8
Control System Installation ..........................................................................8
General Venting General Venting .........................................................................................10
Information General Venting Information - Termination Location .................................. 11
Quick Reference for Fresh Air Restrictor Plate / Flue Baffle ......................12
General Information Assembling Vent Pipes ............................................. 13
SK8 Venting Pipes .....................................................................................13
Horizontal Termination ............................................................................... 13
Vertical Termination ....................................................................................13
Sidewall Applications ................................................................................. 14
Use of the Restrictor Plates in Horizontal Venting Applications ................. 14
Sidewall Installation ................................................................................... 15
Vertical Through-the-Roof Applications ......................................................17
Use of Restrictor Plates for Vertical Venting Applications ..........................17
Vertical Through-the-Roof Installation ........................................................18
Chimney Components ............................................................................... 20
Operating Instructions Glass Information .......................................................................................21
Glass Frame Assembly Removal ...............................................................21
Glass Cleaning ...........................................................................................21
Restrictor Plate Installation ........................................................................ 21
Ceramic Refractory Installation ..................................................................22
Log, Lava Rock and Ember Placement ..................................................... 23
Flame Characteristics ................................................................................ 28
Trim Installation ..........................................................................................29
Lighting and Operating Instructions (Automatic Control System) .............. 30
Troubleshooting .........................................................................................31
Fuel Conversion .........................................................................................33
Maintenance Cleaning the Standing Pilot Control System ..............................................36
Cleaning Electronic Ignition System .......................................................... 36
Replacement Parts ...................................................................................................................37
Accessories ...................................................................................................................40
Warranty ...................................................................................................................43
Energuide ...................................................................................................................44

3
Chateau™
20011956
This gas fireplace must be installed by a qualified installer,
preferably NFI or WETT (Canada) certified, in accordance
with local building codes and with current CSA-B149.1
Installation codes for Gas Burning Appliances and
Equipment. For USA Installations follow local codes and/or
the current National Fuel Gas Code. ANSI Z223.1/NFPA 54.
In the Commonwealth of Massachusetts, all gas fittings
and installation of this appliance shall be done by a
licensed gas fitter or licensed plumber.
FOR SAFE INSTALLATION AND OPERATION PLEASE
NOTE THE FOLLOWING:
1 . This fireplace gives off high temperatures and should be
located out of high traffic areas and away from furniture
and draperies.
2. Children and adults should be alerted to the hazards of the
high surface temperatures of this fireplace and should stay
away to avoid burns or ignition of clothing.
3. CAUTION: Due to high glass surface temperature chil-
dren should be carefully supervised when in the same
room as fireplace.
Installation & Operating Instructions
This appliance may be installed in an aftermarket
permanently located, manufactured home or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
The DVT38/44 has been approved for mobile home
installations.
Proposition 65 Warning: Fuels used in gas, woodburning or
oil fired appliances, and the products of combustion of such
fuels, contain chemicals known to the State of California to
cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
IMPORTANT:
PLEASE REVIEW THE FOLLOWING CAREFULLY
Remove any plastic from parts before turning the fire-
place ON.
It is normal for fireplaces fabricated of steel to give off
some expansion and/or contraction noises during the
start up or cool down cycle. Similar noises are found
with your furnace heat exchanger or car engine.
It is not unusual for your gas fireplace to give off some
odor the first time it is burned. This is due to the curing
of the paint and any undetected oil from the manufac-
turing process.
Please ensure that your room is well ventilated-
open all windows.
It is recommended that you burn your fireplace for at
least ten (10) hours the first time you use it.
This appliance has been designed, certified and ap-
proved to be installed indoors only.
WARNING: Check with your electronics manufacturer
before installing a television or other electronic de-
vice above this fireplace.
12. This fireplace requires adequate ventilation and
combustion air to operate properly.
13. This fireplace must not be connected to a chimney flue
serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended that the
gas control valve be left in the “OFF” position.
15. For operation during power outages, the installation
of the optional battery back-up kit Model DVTBBK is
recommended at initial installation.
DVT38 / DVT44
Certified To
ANSI Z21.50b-2002/CSA 2.22b-2002
Vented Gas Fireplace

�






4. Under no circumstances should this fireplace be modified.
Parts removed for servicing should be replaced prior to
operating this fireplace again.
5. A professional service person should be contacted to
inspect the fireplace annually. More frequent cleaning may
be required due to excess lint and dust from carpeting,
bedding material, etc.
6. Control compartments, burners and air passages in this
fireplace should be kept clean and free of dust and lint.
Make sure that the gas valve and pilot light are turned off
before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace should be
checked at least once a year and if needed your venting
system should be cleaned.
8. Keep the area around your fireplace clear of combustible
materials, gasoline and other flammable vapor and liquids.
This fireplace should not be used as a drying rack for cloth-
ing, nor should Christmas stockings or decorations be hung
on or around the fireplace.
9. Under no circumstances should any solid fuels (wood, coal,
paper or cardboard etc.) be used in this fireplace.
10. The flow of combustion and ventilation air must not be
obstructed in any way.
11. When the fireplace is installed directly on carpeting,
vinyl tile or any combustible material other than wood,
this fireplace must be installed on a metal or wood panel
extending the full width and depth of the fireplace.

4
Chateau™
20011956
Rough Opening Width "
(1114 mm)
Rough
Opening
Height
Rough
Opening
Depth
37" (962 mm)
" (876 mm)
54" (1372 mm)
76" (1940 mm)
8" Dia.
(213 mm)
11" Dia.
(279 mm)
49"
(1257 mm)
33"
(848 mm)
2"
(60 mm)
29"
(746 mm)
1"
(41 mm)
1/2" (13 mm)
11"
(298mm)
28"
(724 mm)
25"
(648 mm)
17" (432mm)
3" (76 mm)
3/4" (19 mm)
11956
DVT38 specs
3/01
3" (76 mm)
54" (1372 mm)
12”
(319 mm)
17”
(440 mm)
7”
(186 mm)
7”
(195 mm)
38" (968 mm)
Fireplace Dimensions - DVT38
No drywall in this area, MUST use noncombustible
wallboard such as Dura Rock.
Fig. 1 Fireplace specifications and framing dimensions for DVT38.
Rough Opening Width "
(1267 mm)
Rough
Opening
Height
Rough
Opening
Depth
43" (1114 mm)
40" (1029 mm)
57" (1464 mm)
81" (2067 mm)
8" Dia.
(213 mm)
11" Dia.
(279 mm)
54"
(1394 mm)
38"
(978 mm)
2"
(60 mm)
34"
(875 mm)
1"
(41 mm)
1/2" (13 mm)
11"
(298 mm)
28"
(724 mm)
25"
(648 mm)
23" (587 mm)
3" (76 mm)
57" (1464 mm)
41" (1045 mm)
3/4" (19 mm)
3/4" (19 mm)
11956
DVT44 specs
3/07
3" (76 mm)
12”
(319 mm)
17”
(441 mm)
7”
(186 mm)
7”
(195 mm)
Fireplace Dimensions - DVT44
Fig. 2 Fireplace specifications and framing dimensions for the DVT44.
No drywall in this area, MUST use noncombustible
wallboard such as Dura Rock.
No combustible
material in this area
No combustible
material in this area

5
Chateau™
20011956

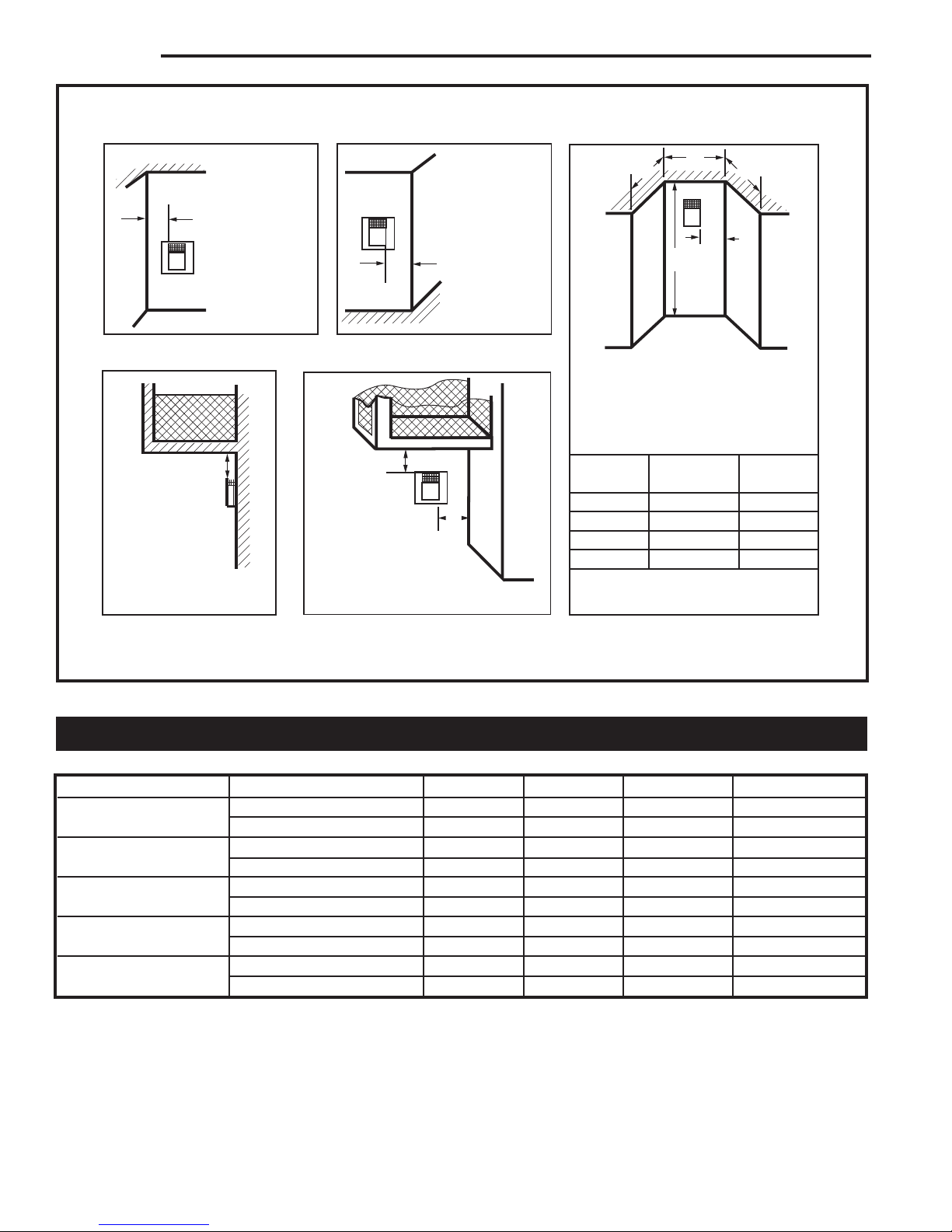

A) Flat on wall B) Cross corner C) **Island
D) *Room divider E) *Flat on wall corner F) Chase installation
Y) 6” minimum
NOTE (Fig. 3):
** Island (C) and Room Divider (D) installation is possible as long as
the horizontal portion of the vent system (X) does not exceed 20’ (6
m). See details in Venting Section.
* When you install your gas fireplace in (D) Room divider or (E) Flat
on wall corner positions (Y), a minimum of 6” (152 mm) clearance
must be maintained from the perpendicular wall and the front side
edge of the fireplace.
Appliance
Top Standoffs ............................................0” (0 mm)
Bottom .......................................................0” (0 mm)
Side Standoffs ...........................................0” (0 mm)
Back Standoffs ..........................................0” (0 mm)
Front ....................................................36” (914 mm)
Top of Unit to Ceiling ...........................36” (914 mm)
Venting
Horizontal Termination through-a-side wall:
Vertical Sections:
Sides ..............................................2¹⁄₂” (64 mm)
Horizontal Sections:
Top .................................................3¹⁄₂” (89 mm)
Bottom ...........................................1¹⁄₂” (38 mm)
Sides ..............................................2¹⁄₂” (64 mm)
Vertical Vent Application:
Sides .............................................1¹⁄₂” (38 mm)
Mantels
The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figs. 4a and 4b, the following Mantel Charts.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using paint or lacquer to finish the mantel, such
paint or lacquer must be heat resistant to prevent
discoloration.
Clearance to Combustibles
Y
EAB
C
D
F
YB
X
LU584-1
Locating unit
2/4/99 djt
Locating Your Fireplace
Fig. 3 Locate gas fireplace.
LU584-1
Fig. 4a Combustible mantel minimum installation.
A B C DE
V
W
X
Y
Z
CFM146c
DVT44
mantal chart
Mantel Chart
Mantel Shelf Mantel from Top
Ref. or Breast Plate Ref. of Comb. Chamber
Depth
V 10” (254 mm) A 10” (254 mm)
W 9” (229 mm) B 9” (229 mm)
X 8” (203 mm) C 8” (203 mm)
Y 7” (178 mm) D 7” (178 mm)
Z 6” (152 mm) E 6” (152 mm)
CFM146c
Combustible
Framing and Fin-
ish Wall Above
Standoffs
Standoff
Top of Sheet
Metal
Noncombustible Fin-
ish Material
(Such as Dura Rock)
Fireplace Front
May use combus-
tible facing mate-
rial in this area
J
F
G
H
I
CFM164b
Mantel Leg Char
DVT44
4/9/03 djt
Mantel
Leg
CFM164b
CFM170
DV Builder Front
View
O
N
M
L
K
CFM170a
Fig. 4b Combustible mantel leg minimum installation.
Mantel Mantel Leg from Side
Ref. Leg Depth Ref. of Comb. Opening
F 12” (305 mm) K 12” (305 mm)
G 9” (229 mm) L 9” (229 mm)
H 6” (152 mm) M 6” (152 mm)
I 4” (102 mm) N 4” (102 mm)
J 3” (76 mm) O 3” (76 mm)
Side of Fireplace
Noncombustible
Finish Material

6
Chateau™
20011956
A hearth is not mandatory but is recommended for
aesthetic purposes. We recommend a noncombustible
hearth which projects out 12” (305 mm) or more from
the front of the fireplace. The hearth cannot exceed 1¹⁄₂”
(38mm) in height from bottom of fireplace for ease of
door accessibility. (Fig. 5)
Cold climate installation recommendation:
When installing this unit against a non-
insulated exterior wall or chase, it is
mandatory the outer walls be insulated to
conform to applicable insulation codes.
If a vapor barrier is used it can not come into
contact with fireplace.
Hearth
Framing and Finishing
1. Choose the unit location.
2. The unit is shipped with four (4) nailing flanges
mounted to the sides near the front corners. (Fig. 5)
3. Frame the fireplace with a header across the top of
the standoff. (Fig. 6) It is very important to allow for
the finished wall face along with marble, tiles or any
other noncombustible face finish material desired
when setting the depth of the framing.
Final Finishing
Noncombustible materials such as brick or tile may be
brought to the edges of the face of the appliance.
Fig. 6 Fireplace framing.
FP1560
3"
(76mm)
3"
(76mm)
FP1560
DVT44
framing
3/05 djt
4. Attach the fireplace nailing flanges to the frame as
shown in Figure 5.
5. The gas components are located in the control panel
assembly attached to the right side of the unit. (Fig.
5)
6. The U-channel located on the top of the unit as well
as the nailing flanges on the sides that were men-
tioned in Step 1, are designed to accommodate non-
combustible board (recommended Dura-Rock). They
are positioned 1” (25mm) back from the face of the
unit. NOTE: The U-channel depth can be adjusted
by loosening the hex nut inside the channel.
If marble, tile or any other noncombustible decora-
tive face finish material is desired, a 3” (76 mm) wide
noncombustible board (recommended Dura-Rock)
is to be nailed to the nailing flanges on both sides
of the unit. Also, 12” (305 mm) of noncombustible
board is to be nailed to the front face of the U-chan-
nel and the top framing member above the standoff.
Combustible material can then be brought to the
outside edges of the noncombustible board installed
earlier. Any noncombustible decorative face finish
could be brought to the sides and top of the unit and
can cover the framing and sheet rock. If a decora-
tive facing is not desired, then the noncombustible
boards must be double thickness and brought flush
with the face of the unit.
FP1775
nailing flanges
3/07 djt
3"
(76 mm) Min.
3"
(76 mm) Min.
1"
(38 mm)
Max. Hearth Height
FP1775
Fig. 5 Nailing flanges.
Bend
Line
Valve Box
Assembly

7
Chateau™
20011956

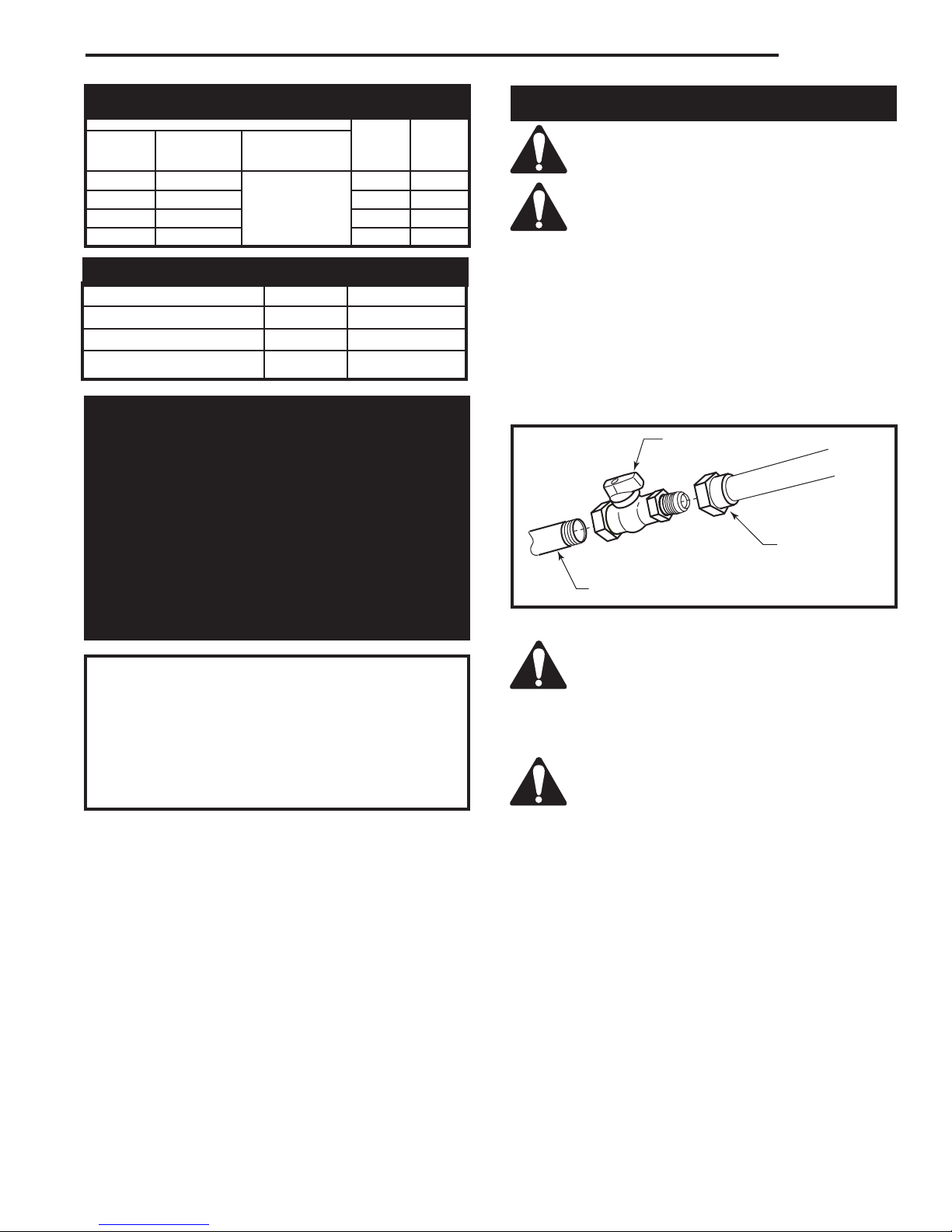

Gas Inlet and Manifold Pressures
Natural LP (Propane)
Minimum Inlet Pressure 5.5” w.c. 11.0” w.c.
Maximum Inlet Pressure 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the
current ANSI Z223.1/NFPA 54 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370 m).
WARNING: Improper installation, adjust-
ment, alteration, service or maintenance
can cause injury or property damage. Refer
to this manual for correct installation and
operational procedures. For assistance or
additional information consult a qualified
installer, service agency, or the gas supplier.
Gas Line Installation
FP297A
INSTA VENT FREE
UVHB26 GAS SUPPLY
7/1/98
FP297A 1/2” Gas Supply
1/2” NPT X 1/2” Flare
Shut-off Valve
1/2” Gas Tight or
Tinned Copper
(from valve)
(Not provided)
Fig. 7 Typical gas supply installation.
When purging gas line the front glass must
be removed.
A gas shut off valve must be installed on
the gas pipe line going into the appliance
within easy access. Refer to local codes.
The gas pipeline can be brought in through the top of
the valve box assembly.
The gas line connection can be made with properly
tinned 1/2” copper tubing or 1/2” gas tight. Some
municipalities have additional local codes, it is always
best to consult your local authority and the CSA-B149.1
installation codes.
For USA installations consult the current National Fuel
Gas Code, ANSI Z223.1/NFPA 54.
Always check for gas leaks with a mild
soap and water solution applied with a
brush no larger than 1” (25 mm). Never
apply soap and water solution with a spray
bottle. Do not use an open flame for leak
testing.
The fireplace valve must not be subjected
to any test pressures exceeding 1/2 psi.
Isolate or disconnect this or any other gas
appliance control from the gas line when
pressure testing.
The fireplace is equipped with an inlet and manifold
pressure test point, therefore it is not necessary to pro-
vide a 1/8” test point up stream of the control.
When using copper, use only approved fittings. Always
provide a union when using black iron pipe so the gas
line can be easily disconnected for burner servicing. A
union may not be behind a wall. Refer to the gas speci-
fications for pressure details and ratings.
Gas Specifications
Max. Min.
Gas Input Input
Model Fuel Control BTU/hr BTU/hr
DVT38IN Natural Gas American Flame 46,000 32,000
DVT38IP Propane AF-4034 46,000 36,000
DVT44IN Natural Gas with 60,000 37,000
DVT44IP Propane 7.5V DC Hi/Lo 60,000 45,000

8
Chateau™
20011956
The fireplace, when installed, must be elec-
trically connected and grounded in accord-
ance with local codes or, in the absence
of local codes, with the current CSA C22.1
Canadian Electrical Code or the national
electrical code ANSI/NFPA No. 70 in the
USA.
It is strongly suggested that the wiring of
the Electrical Junction Box be carried out
by a licensed electrician.
Ensure the power to the supply line has
been disconnected before commencing
this procedure.
Electrical Junction Box
Control System
The gas control system is located on the right hand side
of the firebox behind an access panel and the decora-
tive brick panel. The fireplace is operated using only
the hand held remote control unit. The system wiring
diagram is shown in Figure 11. NOTE: If you choose
to install the optional battery back-up, (Model DVT-
BBK), refer to Item #16 in the next section.
Control System Installation
1. Locate the fireplace in the desired location.
2. Remove the glass. Refer to Glass Frame Assembly
Removal section.
3. If installed, remove the lava rock, volcanic rock,
andirons, embers and logs, making note of each
log’s location.
4. If installed, remove the refractory brick panel right
side and rear pieces.
5. Using a back-up wrench, disconnect the gas supply
fitting near the right rear corner of the firebox. (Fig. 8)
6. Remove pilot assembly from burner assembly by
removing two (2) screws.
7. Carefully slide the burner assembly to the left out of
the way, taking care not to bend or break the pilot
tubes or wiring.
8. Remove 13 screws around the perimeter holding
large access panel on the right hand side of the
firebox.
9. Carefully pull back the panel just enough to gain
access to control box.
10. Connect the gas supply to the valve. (Fig. 9) Be
sure to use a back-up wrench when tightening sup-
ply fitting.




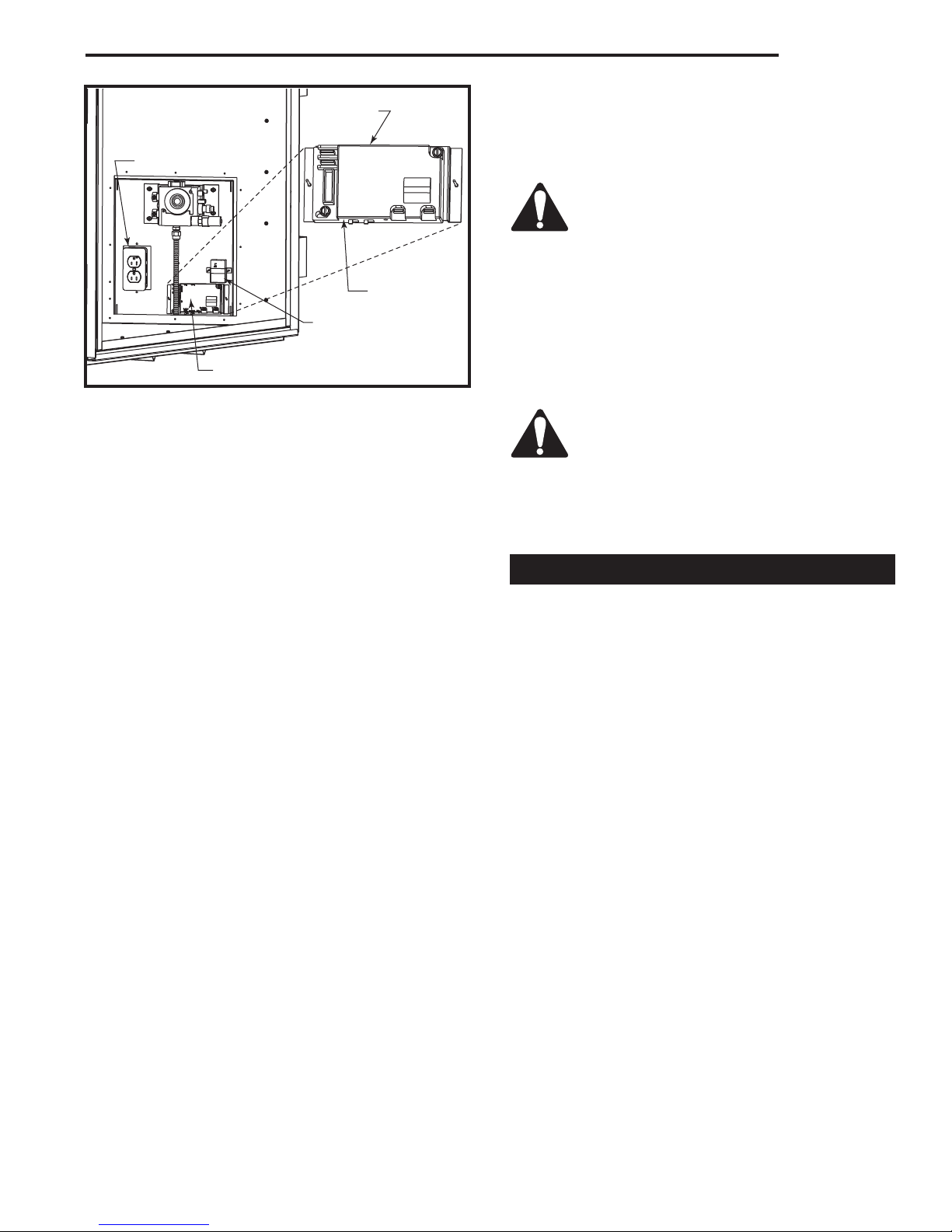

Gas Supply Fitting
FP1793
Fig. 8 Disconnect gas supply fitting and remove 13 screws
securing the cover plate.
Cover Plate



Gas Supply
Fitting
FP1794
Fig. 9 Connect gas supply to valve.
11. Connect a 120V AC electrical supply to the junc-
tion box duplex outlet. Use a Romex-type strain
relief connector when running wires out through the
box knockout. Replace the duplex outlet and cover
plate.
12. Plug the AC adaptor plug into the duplex outlet.
13. This control system must now be programmed to
the hand held remote control transmitter. To pro-
gram the remote control, make sure the 120V AC is
connected and powered to the fireplace.
14. Remove the battery door on the back of the hand
held remote control and install two (2) supplied
“AAA” batteries. Be sure to note correct polarity.
Replace battery door.
15. Locate the learn button on the main module. (Fig.
10) Press and release the learn button using a
pencil point. There will be a beep sound from the
module. Then press any key on the remote control
transmitter. Once the module’s internal receiver ac-
cepts the transmitter code, there will be a series of
confirming beeps.

9
Chateau™
20011956
NOTE: If you need to test the inlet pressure and/or
manifold pressure, there are two (2) test ports available
along the right side front edge between the firebox side
and outer casing. The upper test port is inlet pressure.
The lower test port is manifold pressure.
CAUTION: Turn off the gas supply before
removing test port plug.
23. Using a 7/16” nut driver, remove the threaded plug
from the test port.
24. Thread the supplied extension adaptor into the
open test port.
25. Attach a 1/4” diameter pressure gauge flexible hose
fully onto the barb of the adaptor.
26. Turn on gas supply and operate valve with remote
control as needed to indicate gas pressure.
CAUTION: Turn off the fireplace and gas
supply before removing test port adaptor
and replacing plug.
27. After test, remove extension adaptor and replace
plug securely.
28. Turn on gas supply and check that plugs are tight
and leak free.
Special Feature for Cold Climates
This gas control system has the option of a continu-
ous pilot feature. This allows the user to change from
a spark to pilot system to a standing pilot system for
direct vent appliances during cold climate conditions to
keep the firebox warm.
When the continuous pilot mode is activated and the
fireplace is turned ON, the pilot will spark and light.
When the fireplace is turned OFF, the pilot will stay ON
when the main burner shuts OFF.
The continuous pilot mode can be activated or de-acti-
vated by the hand held remote control transmitter.
16. If you chose to install the optional back-up battery
pack (No. DVTBBK), you must install a wall box
within 15 feet (4.6 m) of the fireplace. Assemble the
connectors on one end of the supplied extension
wire harness to the mating connectors on wire har-
ness within the control box. Make sure to connect
black coded wire to black and red coded wire to
red.
17. The other end of the extension wire harness should
be connected to the wiring of the back-up battery
holder located within a wall box.
18. Insert the supplied four (4) “AA” batteries into the
battery older. Be sure to note correct polarity for
each battery.
19. Mount electrical wall box containing back-up bat-
teries at a convenient location with 15 feet (4.6 m)
of the fireplace. Cover wall box using a blank wall
plate.
20. The fireplace remote system is ready for use.
21. Reassemble access panel, burner assembly, gas
supply connector, brick panels, logs, embers,
andirons and lava rock in reverse order of removal.
(Refer to Log, Lava Rock and Ember Placement
section.
22. Turn on gas supply and check that all connections
are tight and leak free.



ADJ.
S
Remote/Off
IPI
POWER
AUX
Learn
I
Continous
Pilot
Off/On
Junction Box
Main Module FP1792
Fig. 10 Connect 120V AC electrical supply.
Main Module
Learn
Button
Power Module

10
Chateau™
20011956
General Venting
Your fireplace is approved to be vented either through
the side wall, or vertical through the roof.
• Only CFM Corporation venting components spe-
cifically approved and labelled for this fireplace
may be used.
• Venting terminals shall not be recessed into a wall or
siding.
• Horizontal venting must be installed on a level plane
without an inclining or declining slope.
There must not be any obstruction such as bushes, gar-
den sheds, fences, decks or utility buildings within 24”
(610 mm) from the front of the termination hood.
Do not locate termination hood where excessive snow
or ice build up may occur. Be sure to check vent termi-
nation area after snow falls, and clear to prevent ac-
cidental blockage of venting system. When using snow
blowers, make sure snow is not directed towards vent
termination area.
Location of Vent Termination
It is imperative the vent termination be located observ-
ing the minimum clearances as shown on following
page.
Pilot
Main AF-4000
DC Motor
Red
Black
White or Green
Green or White
Orange or White
Black
Brown
Red
Orange
Main
Module
Black Gnd
Brown
Brown
Black
Red
(SWI)
(SWI)
Optional Extension Harness
FP1795
Chateau wiring diagram
3/07
White or Orange
S I
AC Adaptor
Power
Module
To Pilot Ignitor
To Pilot
Flame Sensor
Optional Remote
Battery Back-Up Pack
Red
Black
Extension
Wire Harness
Learn
Button
Remote/Off
Switch
Continuous
Pilot ON/OFF
Switch
(Leave
Disconnected)
Pulse/Continuous
Button
FP1795
Fig. 11 DVT38/44 wiring diagram.

11
Chateau™
20011956
V
V
V
V
V
V
V
X
X
X
D
E
B
B
B
C
B
M
B
A
J
K
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I





 

V
B
CFM145a
DV Termin Location
5/01/01 Rev. 12/05/01
sta
INSIDE
CORNER DETAIL
V
A
G
V
NN
V
V
G
G
A
CFM145a
General Venting Information - Termination Location
A = Clearance above grade, veranda, porch, 12” (30 cm) 12” (30 cm)
deck, or balcony
B = Clearance to window or door that may be 6” (15 cm) for appliances 6” (15 cm) for appliances
opened < 10,000Btuh (3kW), 12” (30 cm) < 10,000 Btuh (3kW), 9”
for appliances > 10,000 Btuh (3kW) and (23 cm) for appliances > 10,000
< 100,000 Btuh (30kW), 36” (91 cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for
appliances > 50,000 Btuh (15kW)
C = Clearance to permanently closed window 12” (305 mm) recommended to 12” (305 mm) recommended to
prevent window condensation prevent window condensation
D = Vertical clearance to ventilated soffit located
above the terminal within a horizontal 18” (458 mm) for non-vinyl soffits 18” (458 mm)
for non-vinyl soffits
distance of 2 feet (610mm) from the center 24” (610 mm) for vinyl soffits 24” (610 mm) for vinyl soffits
line of the terminal
E = Clearance to unventilated soffit 24” (610 mm) 24” (610 mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner (see next page) see next page see next page
H = Clearance to each inside of center line 3’ (91 cm) within a height of 15’ 3’ (91 cm) within a height of 15’
extended above meter/regulator assembly above the meter/regulator assembly above the meter/regulator assy
I = Clearance to service regulator vent outlet 3’ (91 cm) 3’ (91 cm)
J = Clearance to nonmechanical air supply inlet 6” (15 cm) for appliances < 10,000 6” (15 cm) for appliances
to building or the combustion air inlet to any Btuh (3kW), 12” (30cm) for < 10,000 Btuh (3kW), 9”
other appliances appliances > 10,000 Btuh (3kW) and < (23 cm) for appliances > 10,000
100,000 Btuh (30kW), 36” (91 cm) Btuh (3kW) and < 50,000 Btuh
for appliances > 100,000 Btuh (30kW) (15kW), 12” (30 cm) for
appliances > 50,000 Btuh (15kW)
K* = Clearance to a mechanical air supply inlet 6’ (1.83 m) 3’ (91 cm) above if within 10’
(3m) horizontally
L = Clearance above paved sidewalk or paved 7’ (2.13 m)† 7’ (2.13 m)†
driveway located on public property
M = Clearance under veranda, porch, deck or 12” (30 cm)‡ 12” (30 cm)‡
balcony
N = Clearance above a roof shall extend a minimum of 24” (610 mm) above the highest point when it passes through the roof
surface, and any other obstruction within a horizontal distance of 18” (450 mm).
1 In accordance with the current CSA-B149 Installation Codes
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes
* Clearance to a mechanical air supply refers to an HRV or other mechanical device that brings fresh air into the living space, not a fresh air for an
appliance combustion.
† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the floor:
NOTE: 1. Local codes or regulations may require different clearances.
2. The special venting system used on Direct Vent Fireplaces are certified as part of the appliance, with clearances tested and approved by the
listing agency.
3. CFM Corporation assumes no responsibility for the improper performance of the appliance when the venting system does not
meet these requirements.
Canadian Installations1 US Installations2
Fig. 12 Vent termination clearances.

12
Chateau™
20011956
Fig. 13 Termination clearances.
Quick Reference for Fresh Air Restrictor Plate / Flue Baffle
Application Item DVT38N DVT38P DVT44N DVT44P
SK8DVSK Flue Restrictor Plate 3” None None 4¹⁄₂”
Fresh Air Restrictor Plate None None None #1
Vertical Less than 12’ Flue Restrictor Plate None None None None
Fresh Air Restrictor Plate None None None None
Vertical 12’ to 20’ Flue Restrictor Plate 4¹⁄₂” 4¹⁄₂” 4¹⁄₂” 4¹⁄₂”
Fresh Air Restrictor Plate #3 #3 #3 #3
Vertical 20’ to 30’ Flue Restrictor Plate 4¹⁄₂” 4¹⁄₂” 4¹⁄₂” 4¹⁄₂”
Fresh Air Restrictor Plate #2 #2 #2 #2
Vertical 30’ to 40’ Flue Restrictor Plate 4¹⁄₂” 4¹⁄₂” 4¹⁄₂” or 6³⁄₄” 4¹⁄₂” or 6³⁄₄”
Fresh Air Restrictor Plate #1 #1 #1 #1
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
G =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
F =
Combustible
6" (152 mm)
Noncombustible
2" (51 mm)
G
Balcony -
with no side wall
M =
Combustible &
Noncombustible
12" (305 mm)
M
Balcony -
with perpendicular side wall
M = 24" (610 mm)
P = 20” (508 mm)
M
F
Alcove Applications*
C
D
C
E
V
V
Combustible &
Noncombustible
V
V
V
E = Min. 6” (152 mm) for
non-vinyl sidewalls
Min. 12” (305 mm) for
vinyl sidewalls
O = 8’ (2.4 m) Min.
O
P
584-15
No.
of Caps DMin. CMax.
1 3’ (914 mm) 2 x DActual
2 6’ (1.8 m) 1 x DActual
3 9’ (2.7 m) 2/3 x DActual
4 12’ (3.7 m) 1/2 x DActual
DMin. = # of Termination caps x 3
CMax. = (2 / # termination caps) x DActual
*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All
mechanical air intakes within 10’ (1 m) of a termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All
gravity air intakes within 3’ (914 mm) of a termination cap must be a minimum of 1’ (305 mm) below the termination cap.
NOTE: Refer to Page 22, Figure 35 for instructions to fabricate 3” and 4¹⁄₂” flue restrictor plates.

13
Chateau™
20011956

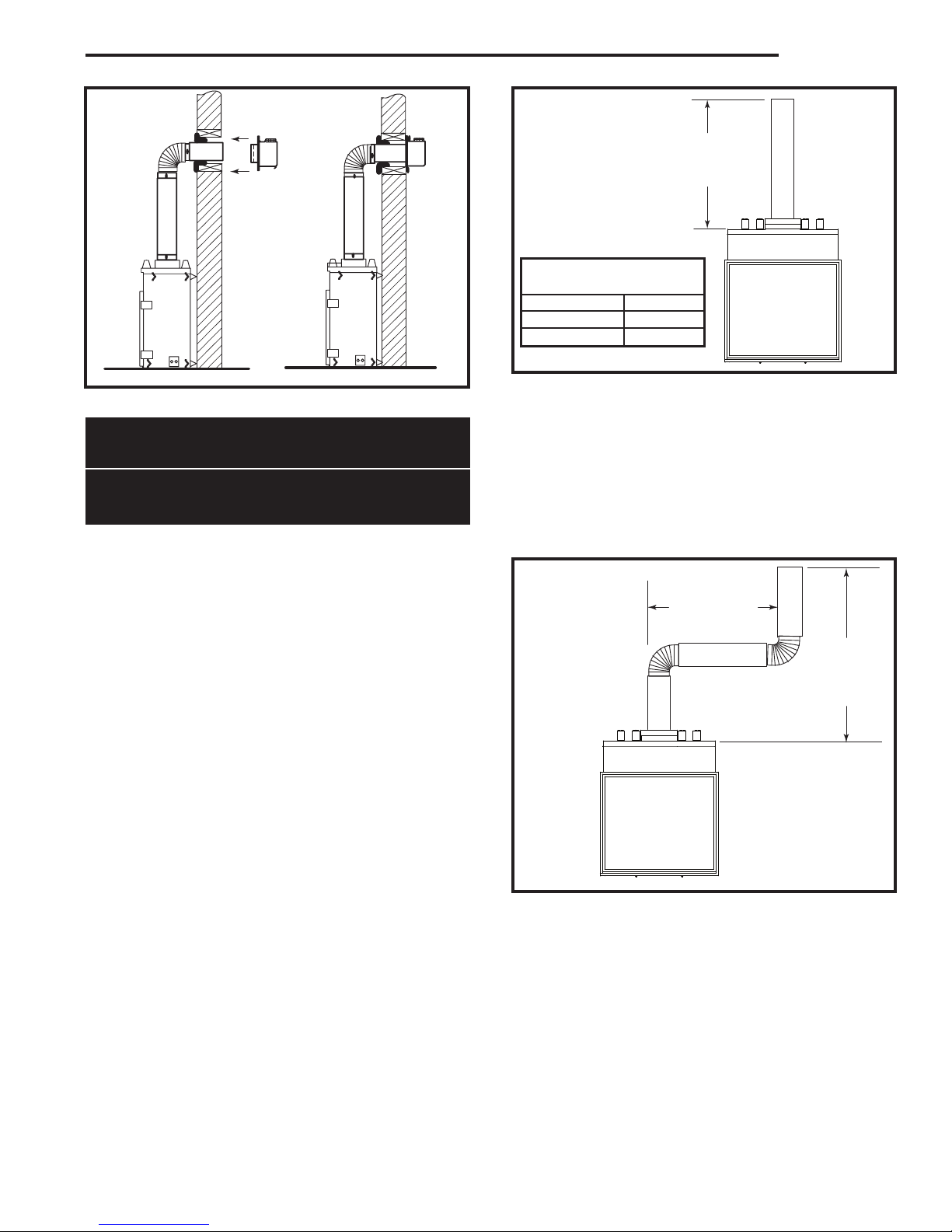

Horizontal Termination
The vent must rise vertically a minimum of 24” (610mm)
off the top of the unit, before the first elbow. The hori-
zontal run may extend up to 20’ (6 m) and include a ver-
tical rise of up to 40’ (12 m). (Fig. 15) Horizontal termi-
nation must also meet the criteria shown in Figures 12
& 13.
• Approved vent systems must terminate above and
including the heavy line in Figure 15.
• Two 45° elbows may be substituted for each single
90° elbow.
• With a rise between 2’ - 4’, one (1) 90° or two (2) 45°
elbows may be used.
UP
FP1368
DVT44
5/03
Pipe Section
Pipe
Rim
Pipe
Rim
Hem
Lance
FP1368
Fig. 14 Install pipe, listening for the snap-lock to fasten.
Vertical Termination
A vertical vent system must terminate no less than 12’
(3.66 m) and no more than 40’ (12 m) above the appli-
ance flue collar. A 2’ (610 mm) vertical section must be
installed before any offset. A maximum of 20’ (6.1 m)
horizontal and three (3) 90° elbows may be installed
with a minimum of 12’ (3.66 m) vertical section above
the flue collar of the unit. Refer to Page 16, Figure 26
for more information.
A vertically terminated vent system must also conform
to the following criteria:
• No more than three (3) 90° elbows may be used.
• Two (2) 45° elbows may be substituted for one (1)
90° elbow. No more than six (6) elbows may be
used.
• Vent must rise a minimum of 2’ (610 mm) before
offset is used.
• Termination height must conform to roof clearance
as specified in Figure 33.
General Information
Assembling Vent Pipes
SK8 Venting Pipes
Canadian Installations:
The venting system must be installed in accordance
with the current CSA-B149 .1 installation code.
USA Installations:
The venting system must conform with local codes and/
or the current National Fuel Gas code ANSI Z223.1/
NFPA 54.
Only venting components manufactured by CFM Cor-
poration can be used in Direct Vent systems.
NOTE: The joints of the inner pipe (flue pipe) must be
taped with 550°F or higher temperature metal adhesive
tape that meets the requirements of F.A.R. 25.853(a)
High temperature sealant milpack or stove cement
of 550°F or higher could be used instead. The joints
of The outer pipe (fresh air pipe) must be taped with
315°F or higher temperature metal adhesive tape or the
use of high temperature milpack or stove cement would
be applicable. When using the unitized 30°, 45° or 90°
elbows, apply 1/4” bead of high temperature, 550°F or
higher, sealant (milpack or stove cement) to the joint of
the inner pipe (flue pipe) and the straight section as it is
impossible to be taped. The outer pipe must be taped
with 315°F high temperature metal adhesive tape for
proper sealing.
Start by attaching the first vent pipe section to the collar
on top of the fireplace. In order to attach the first pipe
section, it may be necessary to remove the top shield.
Remove four (4) screws securing top shield, install first
pipe section and replace top shield.
Install the pipe as shown in Figure 14. When you get a
good lock, you will hear the pipe clearly snap together.
Once sections are snap-locked in place, it is extremely
difficult to get them apart. Make sure the pipe is firmly
snapped and locked together as each pipe section is
mounted. When using 45° or 90° elbows, it is accept-
able to use three (3) screws (not supplied) at the joint
between the vertical SK8 pipe and the elbow to ensure
no separation.
When installing elbows, follow the same procedure.
The joints of inner and outer elbow must be taped with
UL approved high temperature metal adhesive tape for
proper sealing. Be sure to always attach straps on up-
per elbow to a structural framing member.
For vertical installations, continue installing the pipe as
required until pipe is installed up through the ceiling. At
this point, you must install a firestop spacer.

14
Chateau™
20011956
Sidewall Applications




















                   
Vertical Run (in feet)
(Measured from the appliance flue collar to the top of the vent pipe.)
Horizontal Run (in feet)




















FP1359
DVT44
Horizontal
venting
graph
5/13/03 djt
May use up to
three (3) 90°
elbows, but must
not have two (2)
consecutive 90°
elbows in horizon-
tal plane
Unacceptable vent-
ing configuration
FP1359
Fig. 15 Horizontal vent termination window.
May use
one (1)
elbow
only
Since it is very important that the vent-
ing system maintain its balance between
the combustion air intake and the flue
gas exhaust, certain limitations as to vent
configurations apply and must be strictly
adhered to.
NOTE: The penetration to the outside of the build-
ing or structure shall be sealed air and weather
tight.
Use of the Restrictor Plates in
Horizontal Venting Applications
The primary purpose for the vent restrictor plate is to
regain flame height under certain venting conditions as
outlined below.
The DVT38 is shipped with the fresh air plate settings
at #4 (this applies to both natural gas and propane)
when using the horizontal starter vent kit SK8DVSK.
Minimum clearance between vent pipes
and combustible materials is 3¹⁄₂” (89 mm)
on top, 2¹⁄₂” (64 mm) on both sides and 1¹⁄₂”
(38 mm) on the bottom.
When the vent termination exits through foundations
less than 20” (508 mm) below siding outcrop, the vent
pipe must be flush with the siding.
It is always best to locate the fireplace in such a way
that minimizes the number of offsets and horizontal
vent length of vent pipe from the flue collar of the fire-
place to the face of the outer wall.
Horizontal plane means no vertical rise exists on this
portion of the vent assembly.
NOTE: Apply high temperature sealant or UL approved
high temperature metal adhesive tape as directed on Page
12.
FP1012
Top vent max run
1/25/00 djt
14’ (4.3m)
Pipe Straps
Every 3’ (914
mm) Firestop/Zero
Clearance Sleeve
Pipe
Straps
Every 3’
(914 mm)
20’ (6 m)
FP1012a
Fig. 16 Support straps for horizontal runs.
Minimum 2’ (610
mm) Section
Unitized Elbow
(SK890)
• The maximum number of 90° elbows per side wall
installation is three (3), but must not have two (2)
consecutive elbows in the horizontal plane.
• A minimum of 2’ (610 mm) vertical section off the top
of the unit is required, an elbow and a 1’ (305 mm)
maximum horizontal run to get through a wall. (Fig.
17)
2'
(610mm)
FP1237a
DVT44
horizontal plane
4/03
2'
(610mm)
C
L
X
FP1237a
Fig. 17 Minimum vertical run / maximum horizontal run.
Wall Opening
(DVT44) X = 7’3¹⁄₄” (2216 mm)
(DVT38) X = 6’9⁷⁄₈” (2080 mm)

15
Chateau™
20011956
• The maximum number of 45° elbows permitted per
side wall installation is two (2). These elbows can be
installed in either the vertical or horizontal run. (Fig.
18)
• For each 45° elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by
18” (45 cm). This does not apply if the 45° elbows
are installed on the vertical part of the vent system.
For each 90° elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by
36” (914 mm).
• The maximum number of elbow degrees in a system
is 270°. (Fig. 19)
10'
(3m)
AB
A + B = 17' (5.2m)
FP1238
Fig. 18 Maximum vent run with elbows.
1
2
3
4
FP1239a
Sidewall maximum
bends
DVT44
4/03
Example: In Figure 23
Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total angular variation = 270°
FP1239a
Fig. 19 Maximum number of elbow degrees.
VO584-100
Vent Opening
2/99 djt
Vent Opening for Combustible Wall
16¹⁄₄”
(413 mm)
Fireplace Hearth
Framing
Detail
Vent Opening for Noncombustible Wall
11¹⁄₄”
(286 mm)
VO584-100
Fig. 20 Locate vent opening on wall.
16¹⁄₄”
(413mm)
ZCS101
Zero Clearance Sleeve
3/11/99 djt
Adjustable Zero
Clearance Sleeve Max. Length
12” (305 mm)
#8 Screws (2)
#8 Screws (2)
ZCS101a
Fig. 21 Adjustable zero clearance sleeve.
STEP 1
Locate vent opening on the wall. It may be necessary
to first position the fireplace and measure to obtain hole
location. Depending on whether the wall is combustible
or noncombustible, cut opening to size. (Fig. 20)
For combustible walls first frame in opening.
Combustible Walls: Cut a 16¹⁄₄”h x 16¹⁄₄” w (413 mm x
413) hole through the exterior wall and frame as shown.
Noncombustible Walls: Hole opening must be 11¹⁄₄”
(286 mm) in diameter.
STEP 2
Sidewall Installation
Measure wall thickness and cut zero clearance sleeve
parts to proper length (MAXIMUM 12”/305 mm). As-
semble sleeve using #8 sheet metal screws (supplied).
(Fig. 21) Install firestop assembly. (Fig. 30)
Zero clearance sleeve is only required for
combustible walls.

16
Chateau™
20011956
STEP 3
Slide the zero clearance sleeve through the wall and
install the firestop on the inside surface of the wall.
Secure with four (4) #8 sheet metal screws.
STEP 4
Place fireplace into position. (Fig. 22) Measure the ver-
tical height (X) required from the base of the flue collars
to the center of the wall opening. NOTE: If using the
SK8DVSK Kit, the vertical section of pipe is telescopic
and could provide adjustment from 24” up to 40” (610
mm to 1016 mm).
X
FP1240a
Fig. 22 Vertical height requirement.
Firestop
Zero Clear-
ance Sleeve
STEP 5
Tape the inner and outer flue collars of the fireplace
using UL approved metal adhesive tape to ensure the
joints are sealed. Attach an appropriate length of vent
pipe to the fireplace. Follow with the installation of the
inner and outer elbow, tape elbow joints and secure
joints as described on Page 13.
STEP 6
Measure the horizontal length requirement including
a 2” (50 mm) overlap, ie from the elbow to the outside
wall face plus 2” (50 mm) (or the distance required if
installing a second 90° elbow). (Fig. 23)
Always install horizontal venting on a level
plane.
STEP 7
Use appropriate length of pipe sections and install the
horizontal vent sections. You may need to cut 1’ wall
section to size to be flush with the outside wall. The sec-
tions which go through the wall are packaged with the
X
FP1241a
Fig. 23 Horizontal length requirement.
FP1242a
Fig. 24 Through the wall.
starter kit, and can be cut to suit if necessary. (Fig. 24)
Sealing firestop gaps with high temperature sealant
will restrict cold air being drawn in around fireplace.
STEP 8
Guide the vent terminations 8” and 11” collars into their
respective vent pipes. Double check that the vent pipes
overlap the collars by 2” (50 mm). Secure the termina-
tion to the wall with screws provided and caulk around
the wall plate to weatherproof. (Fig. 25) As an alterna-
tive to screwing the termination directly to the wall you
may also use expanding plugs or an approved exterior
construction adhesive.
Support horizontal pipes every 3’ (91 cm)
with metal pipe straps.
Check fireplace to make sure it is levelled
and properly positioned.

17
Chateau™
20011956
FP1243a
Fig. 25 Secure termination to wall.
Use of Restrictor Plate
for Vertical Venting Applications
The primary purpose for the vent restrictor is to regain
flame height under certain venting conditions as
outlined below.
NOTE: The joints of the inner pipe (flue pipe) must be
taped with 550°F or higher temperature metal adhesive
tape that meets the requirements of F.A.R. 25.853(a)
High temperature sealant milpack or stove cement
of 550°F or higher could be used instead. The joints
of The outer pipe (fresh air pipe) must be taped with
315°F or higher temperature metal adhesive tape or the
use of high temperature milpack or stove cement would
be applicable. When using the unitized 30°, 45° or 90°
elbows, apply 1/4” bead of high temperature, 550°F or
higher, sealant (milpack or stove cement) to the joint of
the inner pipe (flue pipe) and the straight section as it is
impossible to be taped. The outer pipe must be taped
with 315°F high temperature metal adhesive tape for
proper sealing.
For vertically venting either propane or natural gas
units, with vertical vent heights of 12’ (3.7 m) or greater,
(measured from the top of the flue collar) the restrictor
plate as supplied with this unit should be used. (Fig.
26) Also, the fresh air restrictor plate could be adjusted
according to your vent height. (Fig. 26) Refer to Pages
20 & 21, Figures 35 & 37 for restrictor plate installation
and fresh air restrictor plate adjustment.
Vertical Through-the-Roof
Applications
12'
(3.7m)
Min. Rise
10' (3m) Max.
Natural or LP
Use 4"
FP1410
Restrictor plate
horizontal offset installation
8/26/03 djt
Fresh Air Restrictor Plate
Setting = None or #3 Only
FP1410
Fig. 27 Restrictor plate use with horizontal offset.
For vertical venting configurations that include a
minimum vertical rise of 12’ (3.7 m) and a maximum
horizontal offset of 10’ (3 m) the 4¹⁄₂” restrictor plate
supplied with this unit should be used. The fresh air
restrictor plate could be adjusted to the setting #3
(DVT44 Only). (Fig. 28) Refer to Pages 20 & 21,
Figures 35 & 37 for restrictor plate installation and fresh
air restrictor plate adjustment.
12'
(3.7m)
or Greater
'X'
FP1409
restrictor plate
straight up installation
8/26/03 djt
DVT44 - Natural or LP
Use 6"
DVT38 - Natural or LP
Use 5"
FP1409
Fig. 26 Restrictor plate use in straight up installation.
Fresh Air Restrictor Plate
X Setting
30’ to 40’ #1
20’ to 29’ #2
12’ to 19’ #3
This Gas Fireplace has been approved for,
• Vertical installations up to 40’ (12 m) in height. Up
to a 20’ (6 m) horizontal vent run can be installed
within the vent system using a maximum of three
(3) 90° elbows. (Fig. 28)
• A 2’ (610 mm) vertical section must be installed
before any offset. A maximum of 20’ (6.1 m) horizon-
tal and three (3) 90° elbows may be installed with a
minimum of 12’ (3.66 m) vertical section above the
flue collar of the unit. (Fig. 28)
Flue Restrictor Plate
(Refer to Page 12 and
Page 22, Figure 35)

18
Chateau™
20011956
Max. 20' (6 m)
Max. Height
40' (12 m)
Min. Height
20' (6 m)
FP1244a
through the roof
max/min dims
4/03
Pipe Straps Every 3’
(914mm)
FP1244a
Fig. 28 Support straps for horizontal runs.
• Up to two (2) 30° or 45° elbows may be used within
the horizontal run. For each 30° or 45° elbow used
on the horizontal level the maximum horizontal
length must be reduced by 18” (457 mm).
Example: Maximum horizontal length
0 x 30° or 45° elbows = 10’ (3 m)
1 x 30° or 45° elbows = 8’6” (2.6 m)
2 x 30° or 45° elbows = 7’ (2.1 m)
• A minimum of an 12’ (3.7 m) vertical rise.
• Two sets of 30° or 45° elbows offsets within these
vertical installations. From 0 to a maximum of 8’ (2.4
m) of vent pipe can be used between elbows. (Fig.
29)
• SKCS8 must be used to support offsets. (Fig. 32)
This application will require that you first determine
the roof pitch and use the appropriate starter kit.
(Refer to Venting Components List)
• The minimum height of the vent above the highest
point of penetration through the roof is 2’ (610 mm).
(Fig. 33)
Vertical Through-the-Roof Installation
12
3
4
Max. 8' (2.4m)
FP1245a
through the roof
90 & 45 degree
FP1245a
Fig. 29 Typical offset application.
1 + 2 + 3 + 4 = 270°
Minimum 2’ (610mm)
Before Any Elbow
1. Locate your fireplace.
2. Plumb to center of the (8”) flue collar from ceiling
above and mark position.
3. Cut opening equal to 14¹⁄₂” x 14¹⁄₂” (368 mm x 368
mm).
4. Proceed to plumb for additional openings through
the roof. In all cases, the opening must provide a
minimum of 1¹⁄₂” (38 mm) clearance to the vent pipe,
i.e., the hole must be at least 14¹⁄₂” x 14¹⁄₂” (368 mm
x 368 mm).
5. Place fireplace into position.
6. Place firestop(s) SKFS2A or Attic Insulation Shield
AIS-SK into position and secure. (Figs. 30, 31)
7. Install roof support (Fig. 32) and roof flashing making
sure upper flange of flashing is below the shingles.
8. Install appropriate pipe sections until the venting is
above the flashing.
9. Seal around the pipe.
10. Add additional vent lengths for proper height. (Fig.
33)

19
Chateau™
20011956

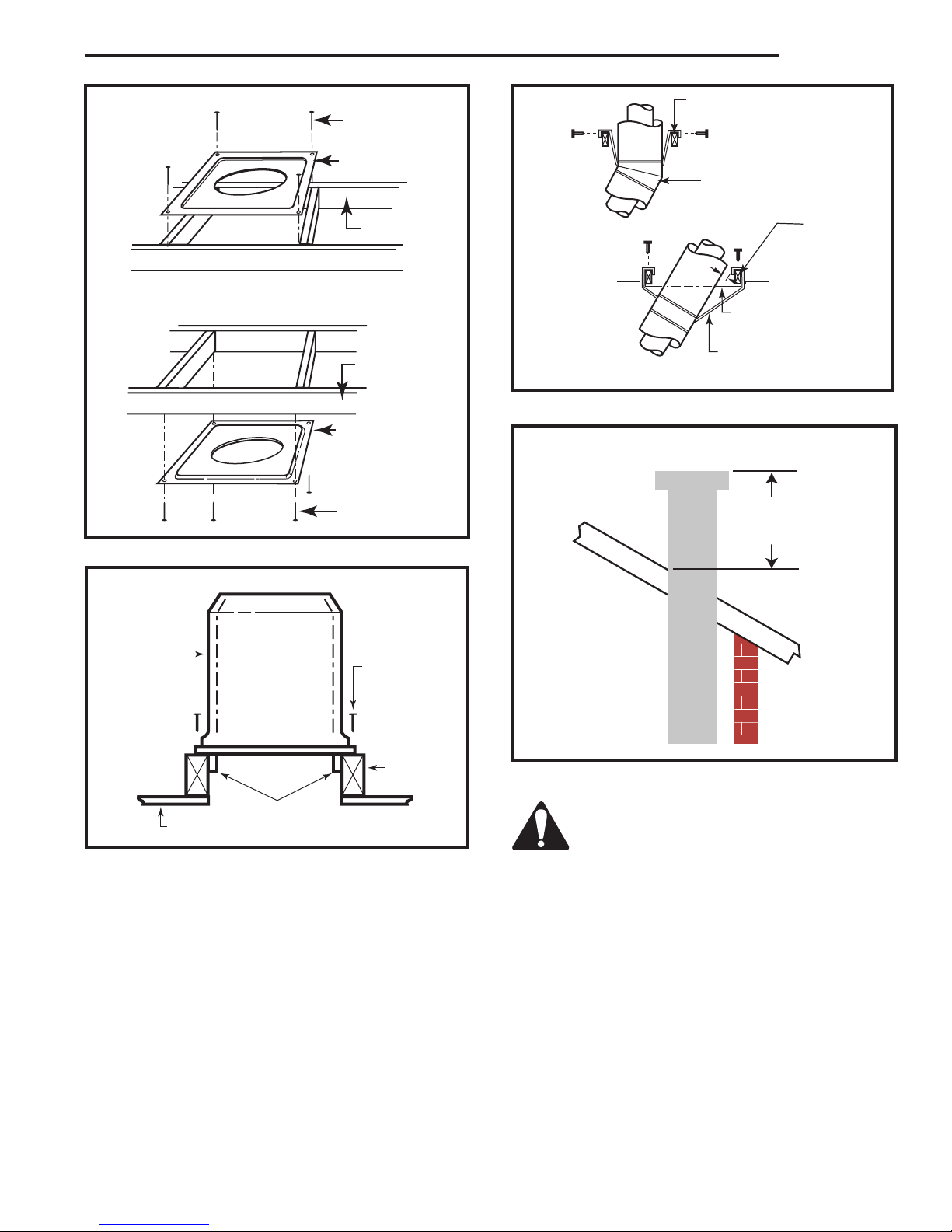

FP593
SR/C
11/20/97
Attic Installation
Ceiling Installation
Nails (4)
Firestop Spacer
Joist
Joist
Firestop Spacer
Nails (4) FP593
Fig. 30 Installing firestop spacer.
FP263
MBUF
5/9/96
Attic
Insulation
Shield
Ceiling
Base
Flanges
Nails (4 Re-
quired)
Attic Joist
FP263
Fig. 31 Attic shield installation.
If an attic is above ceiling level an AIS-SK
(Attic Insulation Shield) must be installed.
The enlarged ends of the vent section
always face downward.
Min.
2' (610mm)
CFM190
TTR Ternim. 2'
1/25/02 sta
CFM190
Fig. 33 Minimum termination to roof clearance.
FP270/271
CR Series
2/19/99 djt
Support Structure
Elbow Strap
(must be tight)
Ceiling Hole
Framing
Angled Firestop
Chimney Support Strap
(must be tight)
FP270/271
Elbow Strap
Angled Strap
Fig. 32 Attach straps to a structural framing member.

20
Chateau™
20011956
Chimney Components
Horizontal Starter Kit Contains 24”-40” telescopic pipe* for minimum vertical SK8DVSK
rise from collar pipe, 90° elbow, horizontal
through-wall starter pipe, zero clearance sleeve,
metal adhesive tape, stove cement tube, sidewall
termination and firestop.
SK8 Chimney Sections Pipe used to build 8” (SK8) flue systems. SK81 (1’ Long)
SK818 (1Z\x’ Long)
SK83 (3’ Long)
SK84 (4’ Long)
SK8 Chimney Elbows Elbow used to create an offset in an 8” SK830-2 30° Elbow*
chimney system. (2 per pkg.)
SK845 45° Elbow*
SK890 90° Elbow*
Firestop Required at each floor level of chimney SKFS2A —
installation. (Plus attic on multi-story installation.) (8” straight flue)
SK8DVFS
(Horizontal Firestop)
Zero Clearance Sleeve Used when horizontal pipe goes through an interior SK8ZCS
vertical wall.
Attic Insulation Shield Used to prevent insulation from coming in contact with AIS-SK
the chimney system.
Chimney Support Used to support chimney for each of: 30’ vertical SKCS8
height and 6’ of angled chimney run.
Round Top Termination Top used to terminate chimney at roof.
(Flashing not included.) RLTSK8
Round Top Termination - Top used to terminate chimney at chase.
Extended (Flashing not included.) RLTSK8L
Flashing Metal finishing required around termination 8-6-12 with 8” flue:
to prevent rain leakage. 0-6/12 pitch
8-12-12 with 8” flue:
6/12-12/12 pitch
Housing Extensions Extends Square Termination on steep 202036
pitched roofs.
Chase Top Housing Low profile pyramid-style chimney cap used to PTLSK8
terminate chimney through a chase. Includes
adapter. (Flashing not included.)
Chase Top Housing Square chimney cap used to terminate chimney SLTSK8
through a chase. Terra Cotta Masonry. Includes
adapter. (Flashing not included.)
Horizontal Termination Cap used to terminate venting through a sidewall. SK8DVRVT
Model NumberDescriptionComponent
NOTE: The 24”-40” telescopic pipe is only intended for use with the SK8DVSK.
* Factory unitized elbow
