Vermont Castings 085-3783-6 Use and care manual

GRILL PREP AND STORAGE CART
085-3783-6/A11001
ASSEMBLY AND USER MANUAL
YOUR FEEDBACK IS IMPORTANT TO US
SHARE YOUR EXPERIENCE BY WRITING A REVIEW AT
WWW.CANADIANTIRE.CA
LAST UPDATE: OCT 7, 2020
SERIAL NO./ N° DE SÉRIE

CONTACT US: 1-844-586-4660
WWW.VERMONTCASTINGSBBQ.COM
PLEASE KEEP THIS MANUAL WITH YOUR
UNIT FOR FUTURE REFERENCE
WELCOME TO VERMONT CASTINGS
Founded in 1975, Vermont Castings has always stood for
uncompromising commitment to quality craftsmanship and
meaningful design. Our wood stoves and hearth products deliver
more than heat – they create a warmth that unites.
Lit with purpose, our line of Vermont Castings outdoor cooking
products are designed to deliver your best grilling experience.
With a durable, robust construction built to last through the
years, and thoughtfully constructed components that stand up to
grilling in any season, Vermont Castings continues the promise
of unwavering quality and purposeful design that let you create
enduring connections around food and flame.

WARNING
• Do not allow children or pets to play in
or around the cart.
• To prevent personal injury or damage,
do not overload the foldable front
panel. The maximum load is
22.6 kgs/50 lbs.
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
CAUTION
Read and follow all safety statements,
assembly instructions, use and care
directions before attempting to
assemble and use.
CAUTION
Sharp edges. Wear gloves when
assembling your cart.
INSTALLER OR ASSEMBLER/
CONSUMER
This manual should be kept with the unit
at all times.
HEAVY ARTICLE NEEDS 2 TO LIFT
THIS GRILL PREP AND STORAGE CART IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING OR DAMAGED
1-844-586-4660
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapours in the
vicinity of this unit.
2. An LP tank shall not be stored in unit.
WARNING
IN DIRECT SUN, AND IN OPERATION,
YOUR CART’S STAINLESS-STEEL AND
PAINTED STEEL PARTS CAN BECOME
VERY HOT.
WARNING
• Pushing down on the front panel
could result in tipping the unit or
permanently damaging this part.
• Do not overload the bottom shelf.
Maximum load is 45.3 kg/100 lbs.
• The maximum load for the
side shelf table and top table is
15 kg/33 lbs.

4
MODEL No. 085-3783-6/A11001
BUILD IT
BUILD IT
GETTING STARTED
Make sure you know and understand the
basics of safe use and installation.
WELCOME 2
SAFETY WARNINGS 3
FEATURES 5
ASSEMBLY
TOOLS REQUIRED 6
HARDWARE PACK 6
PARTS 6–7
EXPLODED PARTS VIEW 8
BUILD IT 9–31
TAKING CARE OF YOUR GRILL PREP AND STORAGE CART
CARE AND MAINTENANCE 32
TIPS AND BEST PRACTICES 33
CUSTOMER SUPPORT
If you run into problems, this is your first stop
to getting the answers you need.
SERVICE 34
WARRANTY 35–36
TABLE OF CONTENTS

5
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
FEATURES
THE VC PROMISE
BUILT TO LAST
1
2
7
4
3
5
6
8
9
1. Premium-grade 304 stainless-steel lifting top table ideal
for grill prep and serving.
2. Two oversized, removable, multi-purpose storage
containers make prep work easy.
3. 6 convenient tool hooks for storage of utensils and
accessories.
4. Sturdy 304 stainless-steel side shelves further extend
your prep surface and easily fold down for extra space
as needed.
5. Fold down front panel oers additional space for
condiments and beverages with two cup holders.
6. Interior basket for added storage of go-to items.
7. Integrated bottle opener.
8. Convenient enclosed storage cart.
9. 4 casters for portability and convenience. Two locking
casters for added stability.
Thoughtfully designed and constructed, the VC Grilling Promise is our commitment to delivering an
exceptional grilling experience, every time.

BUILD IT
6
MODEL No. 085-3783-6/A11001
SYMBOLS: THESE SYMBOLS ARE USED THROUGHOUT THIS ASSEMBLY MANUAL TO EMPHASIZE CRITICAL
AND IMPORTANT PART INFORMATION.
PART NO. DESCRIPTION PHOTO QTY.
1NO.10-24UNC x 13 Screw 32
2NO.10-24UNC Socket Head Screw 2
31/4"-20 x 13 Machine Screw 16
41/4"-20 x 25 Machine Screw 2
5NO.10-24UNC x 23 Screw 2
6Spacer, Door Handle 2
71/4“ Screw 2
81/4"-20UNC x 18 Screw 8
9Tool Hook 6
10 Caster Pin 1
PARTS

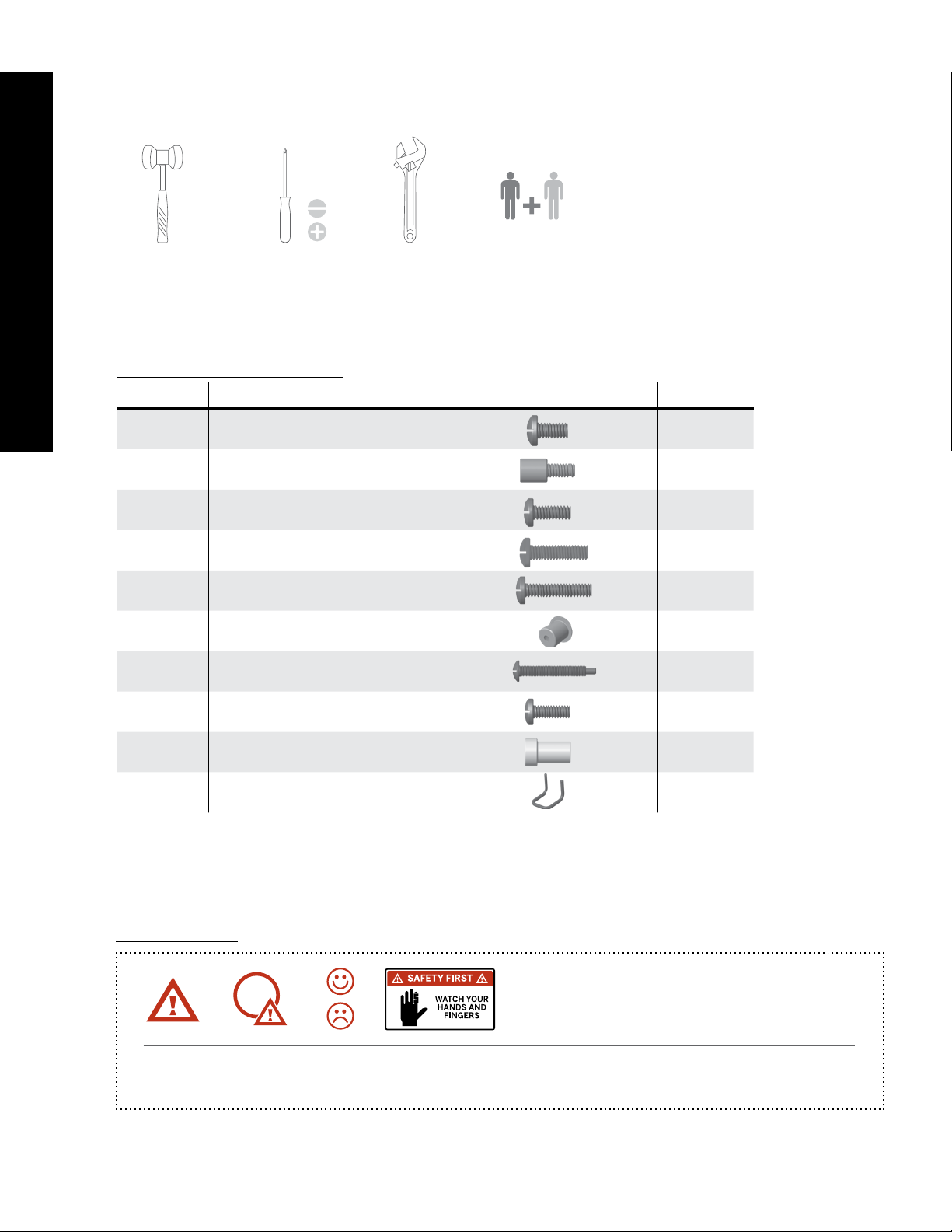

TOOLS REQUIRED
Mallet Screwdrivers Wrench 2 People
SYMBOLS
HARDWARE PACK

BUILD IT
7
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
PARTS
ITEM NO. QTY. DESCRIPTION PART NO.
AA 1 Top table A110-0013-01
AB 1 Storage Brace A A110-0007-01
AC 2 Storage Brace B A110-0008-01
BA 2Side Shelf Table A110-0018-01
BB 4 Side Shelf Support Brace G366-2600-01
BC 1 Folding Front Panel A110-6000-01
BD 2 Storage Container A110-0009-01
CA 1 Cart Side Panel, Left A110-2000-01
CB 1 Cart Side Panel, Right A110-3000-01
CC 1 Door A110-0014-01
CD 1 Back Panel A110-0006-02
CE 1 Door Brace A110-0004-01
CF 1 Wire Door Basket G401-0057-01
CG 1 Door Handle G366-0018-01
CH 1 Bottom Panel A110-0100-01
DA 2 Caster with Lock G350-0023-01
DB 2 Caster G350-0024-01
DC 1 Bottle Opener A110-0020-01
E1 1 Hardware Pack A110-B001-01
E2 1 Assembly and User Manual A110-M001-01
E3 1GIFT–Cart Cover A110-0022-01
PARTS

BUILD IT
8
MODEL No. 085-3783-6/A11001

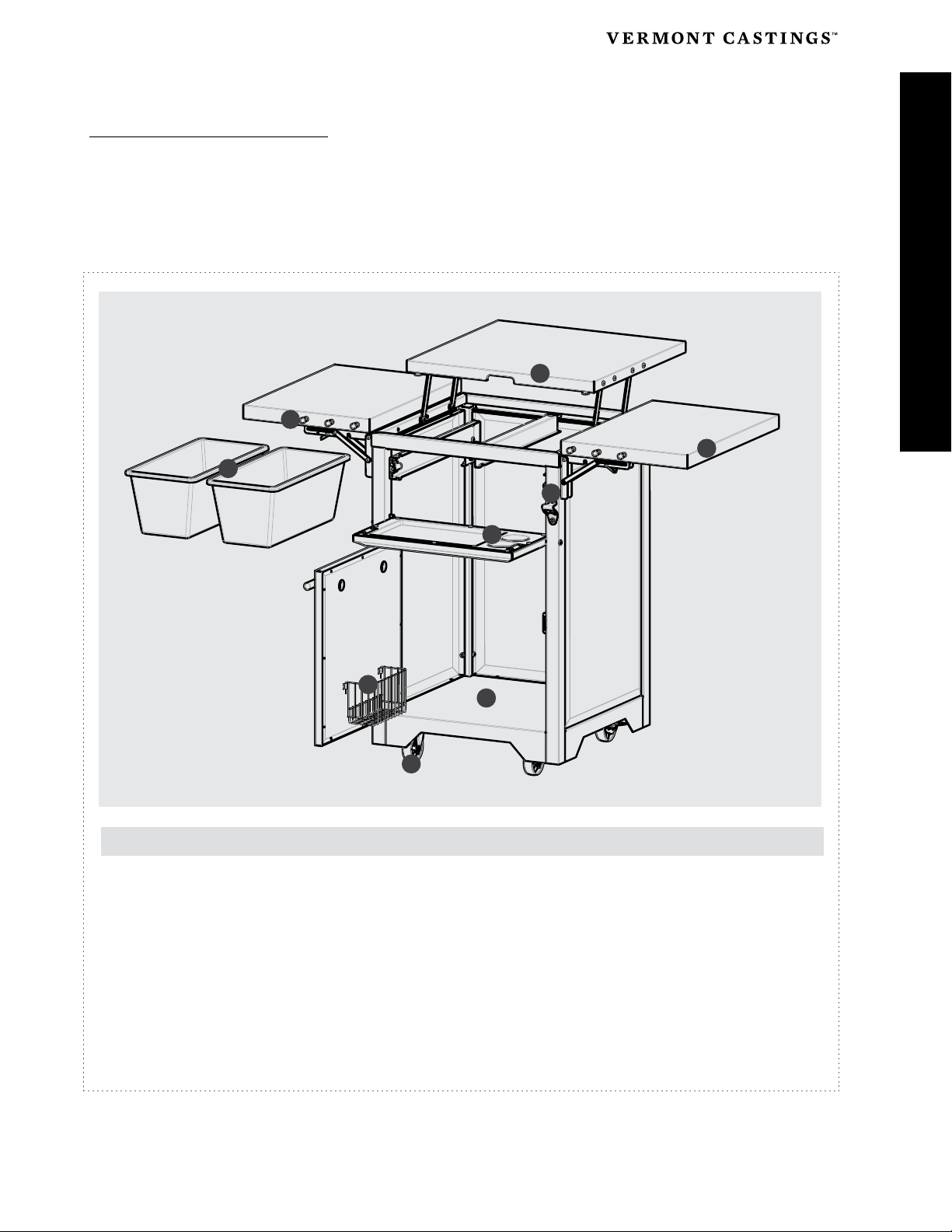

EXPLODED PARTS
PARTS
BA
CA
CB
DC
CC
DA
CH
AC
BD
DB
AB
AA
CD
BA
BC
BB
BB
CE
CF CG
E1 HARDWARE
PACK E3 CART COVER

Assemble on a FLAT and SOFT surface
to avoid damage.
9
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
BUILD IT

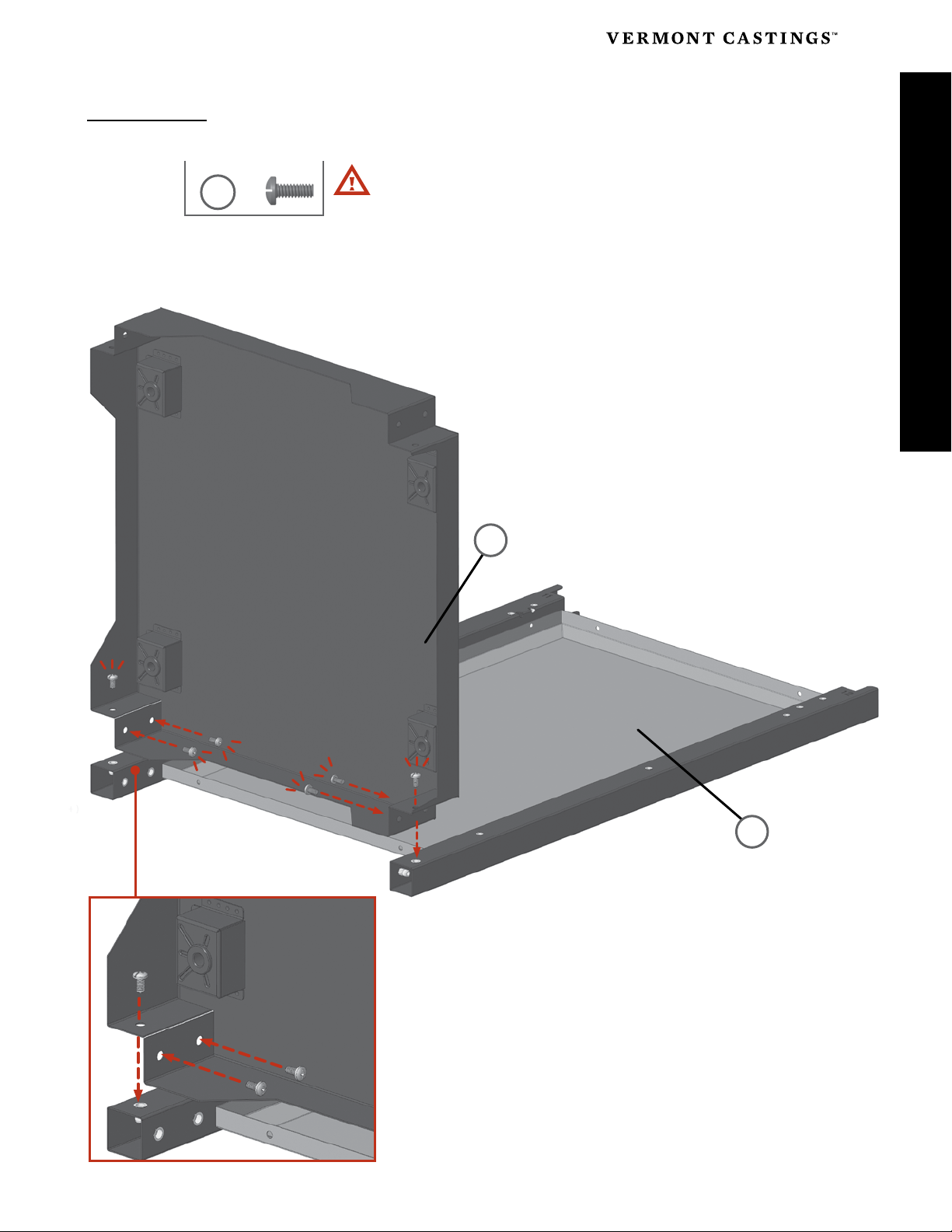

STEP 1 3x6
CH
CA
BUILD IT

STEP 2
10
MODEL No. 085-3783-6/A11001
BUILD IT
3x6
CA
CB
BUILD IT
CH

NOTE: Use this pin as a tool to lock
all 4casters during assembly.
Clockwise
11
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com

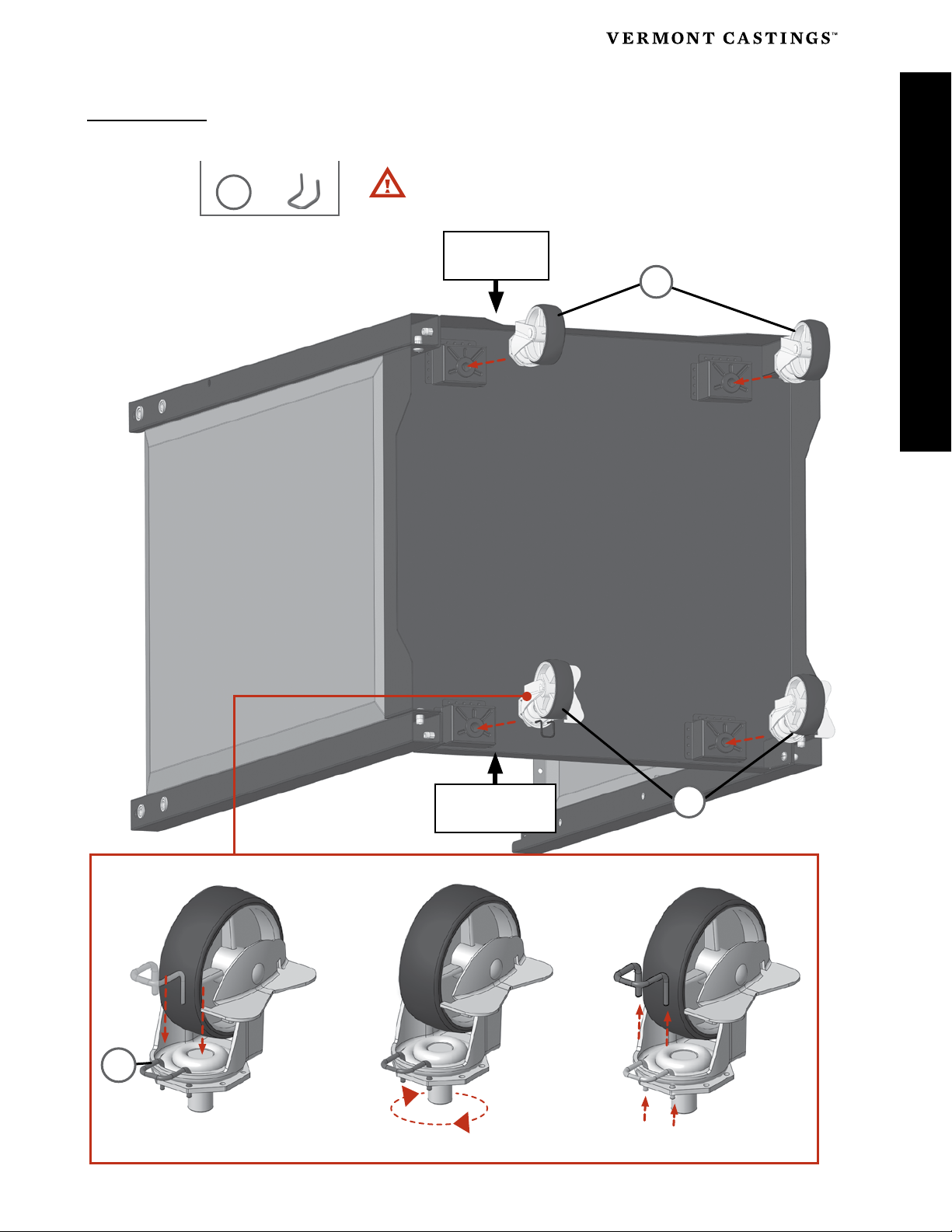

BUILD IT
10 x1
DA
DB
STEP 3
x 4
BUILD IT
FRONT
BACK
10

12
MODEL No. 085-3783-6/A11001
BUILD IT

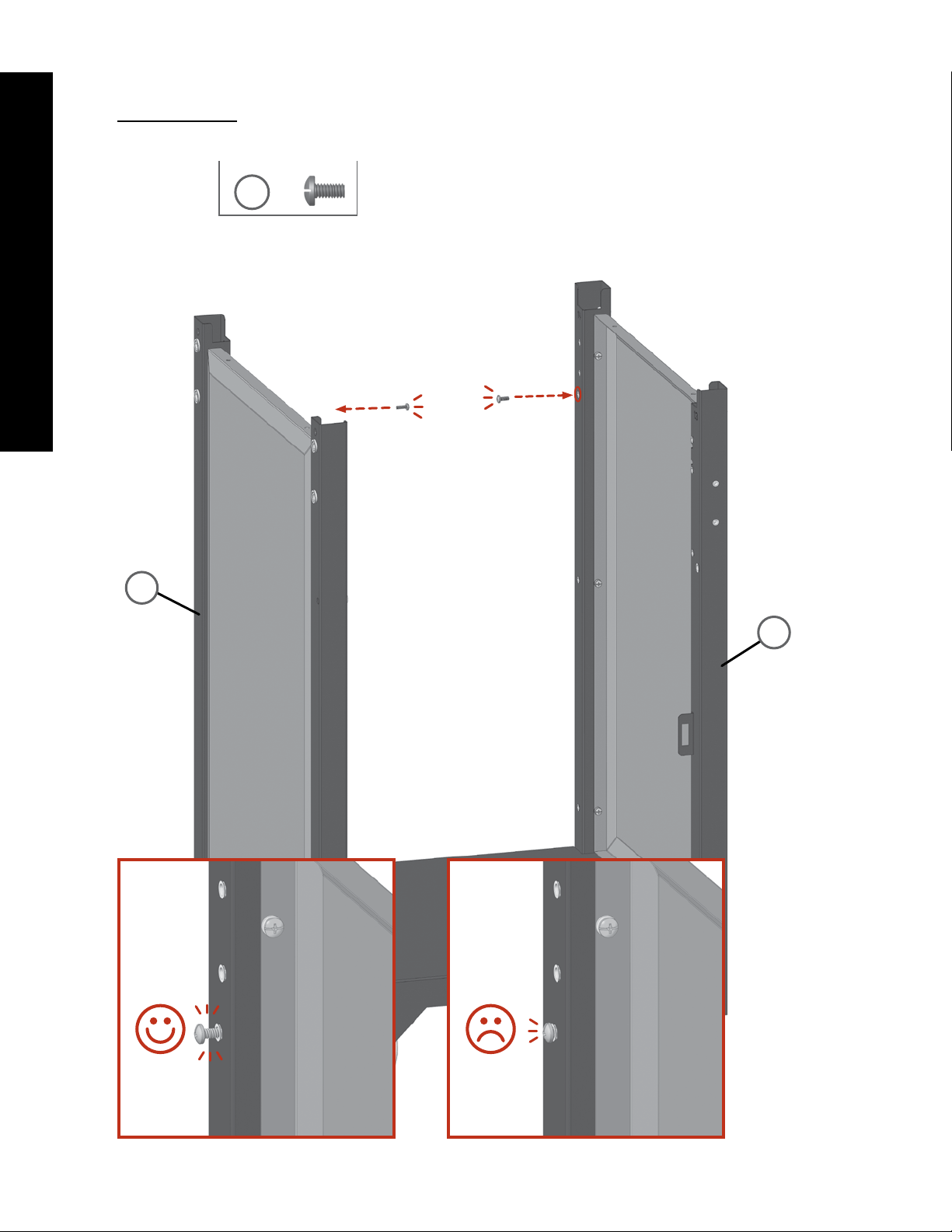

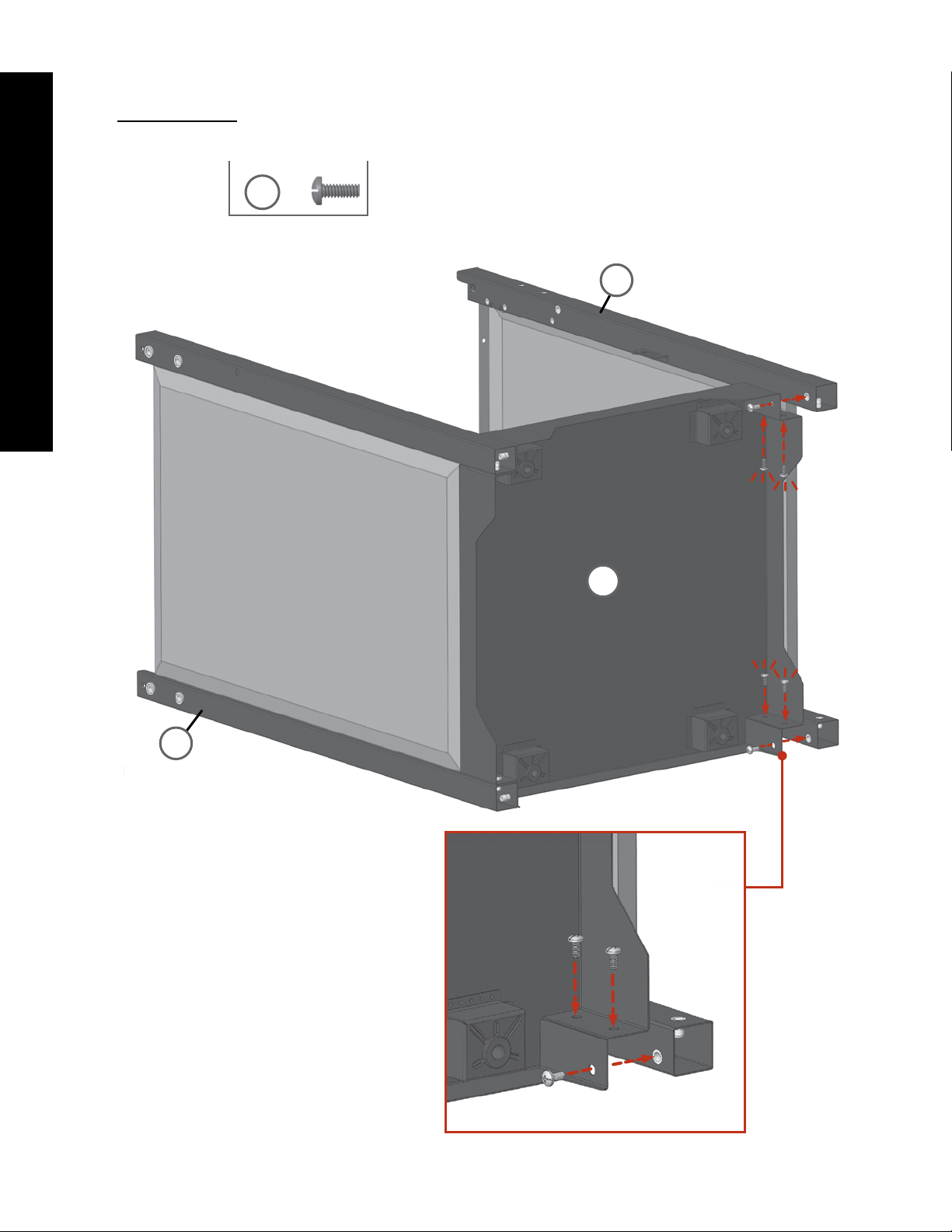

STEP 4A 1x2
CA
CB
BUILD IT

13
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
BUILD IT
CD
CA
CB
BUILD IT
STEP 4B
BACK PANEL ASSEMBLY

14
MODEL No. 085-3783-6/A11001
BUILD IT
1x4
CD
CA CB
BUILD IT
STEP 4C
BACK PANEL ASSEMBLY
Tighten all screws.
Tighten all screws.

15
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
BUILD IT
AC
AC
BUILD IT

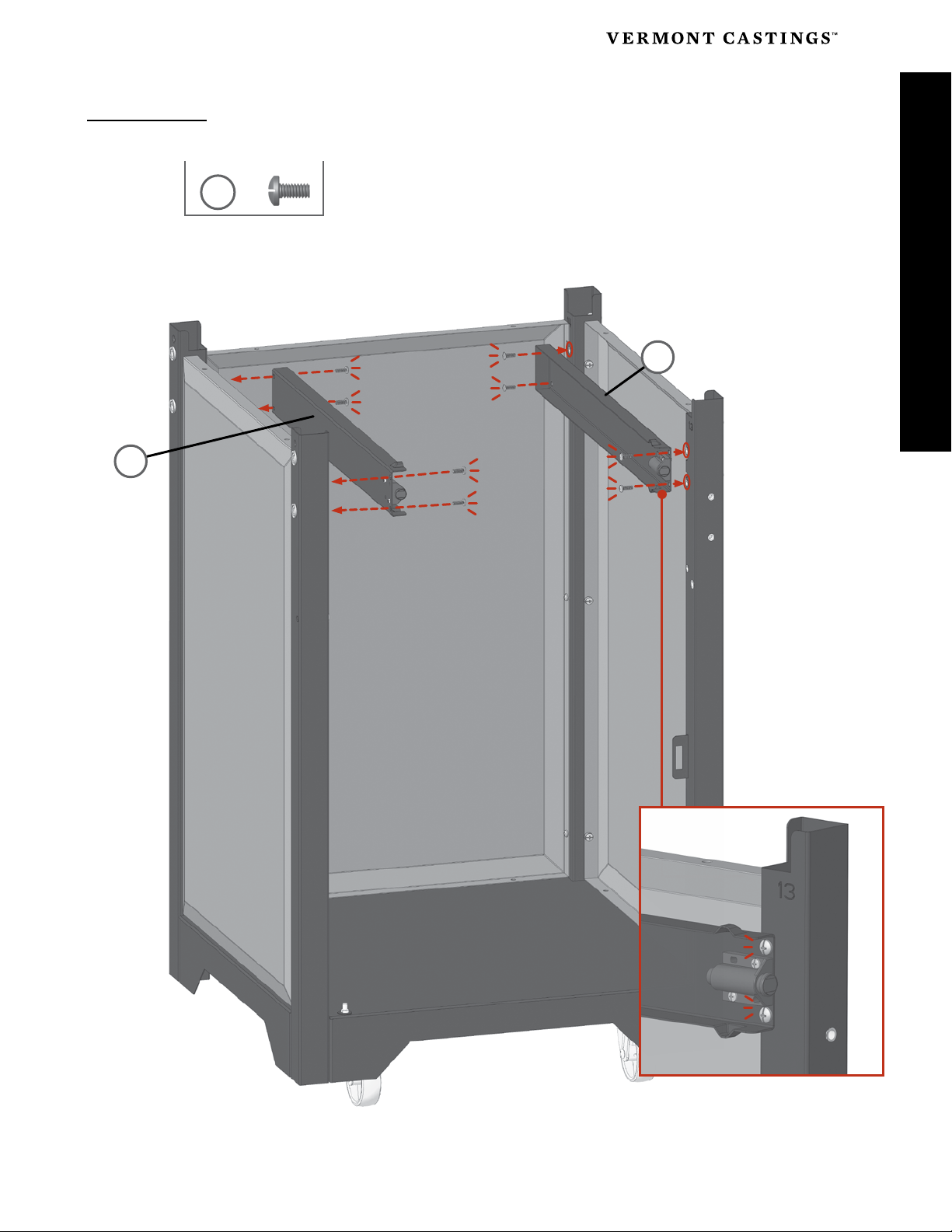

STEP 5 x8
1
Tighten all screws.

16
MODEL No. 085-3783-6/A11001
BUILD IT
BUILD IT
3x4
AA
STEP 6
Tighten all screws.
CB

17
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
BUILD IT
BUILD IT
AA
AB
4x2
STEP 7
AB AA

18
MODEL No. 085-3783-6/A11001
BUILD IT
BD
BUILD IT

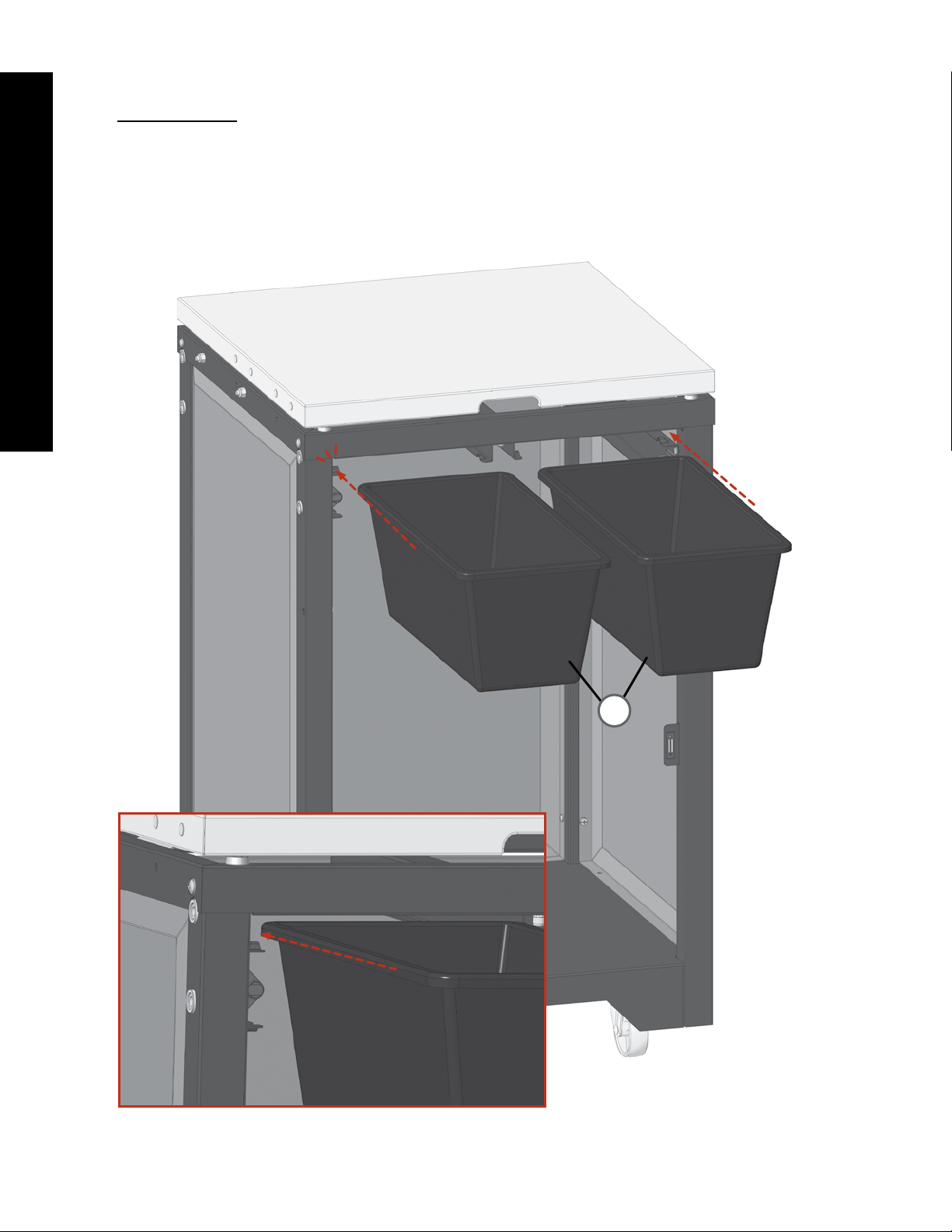

STEP 8

19
CONTACT US: 1-844-586-4660
www.vermontcastingsbbq.com
BUILD IT
CC
CG
BUILD IT

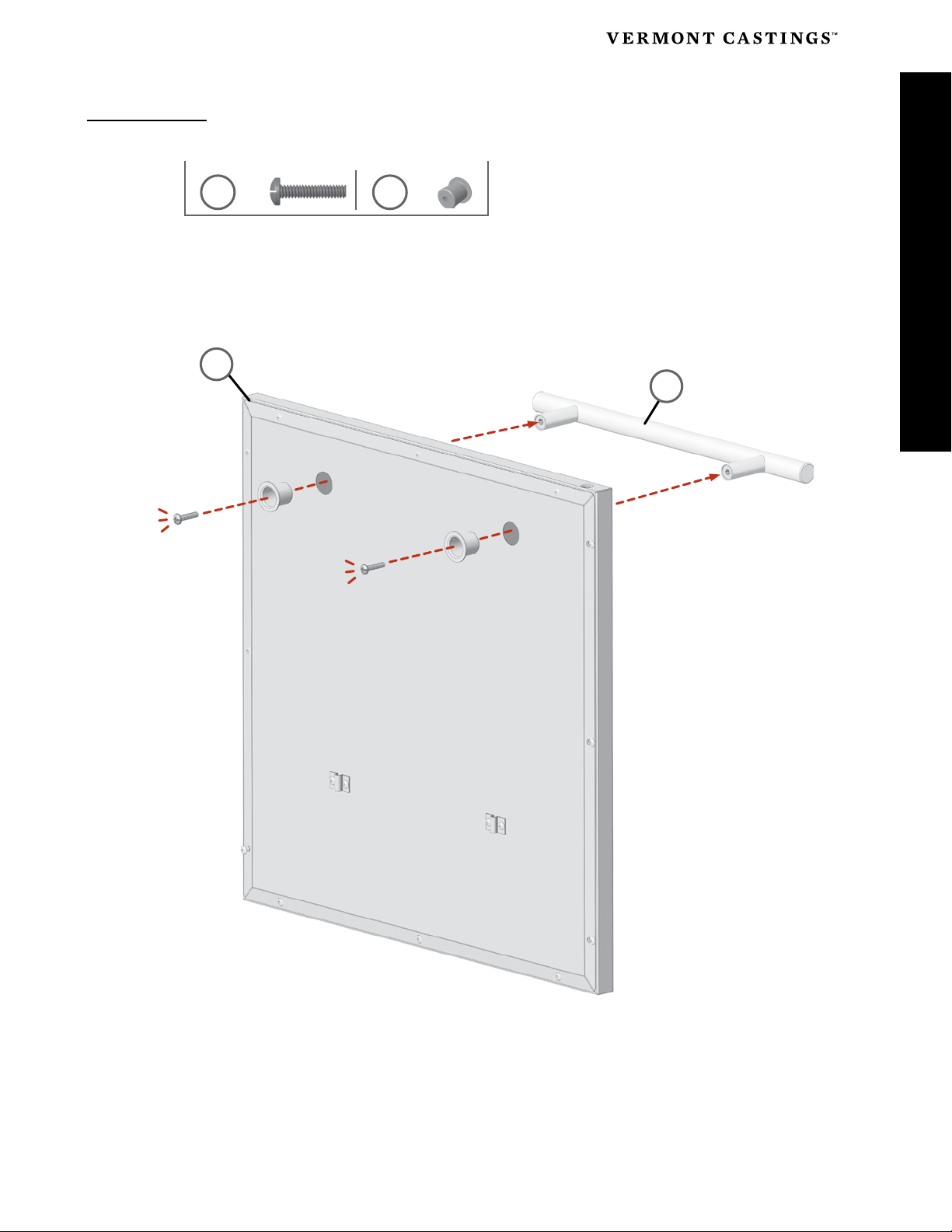

STEP 9 x2 x2
5 6

CB
20
MODEL No. 085-3783-6/A11001
BUILD IT

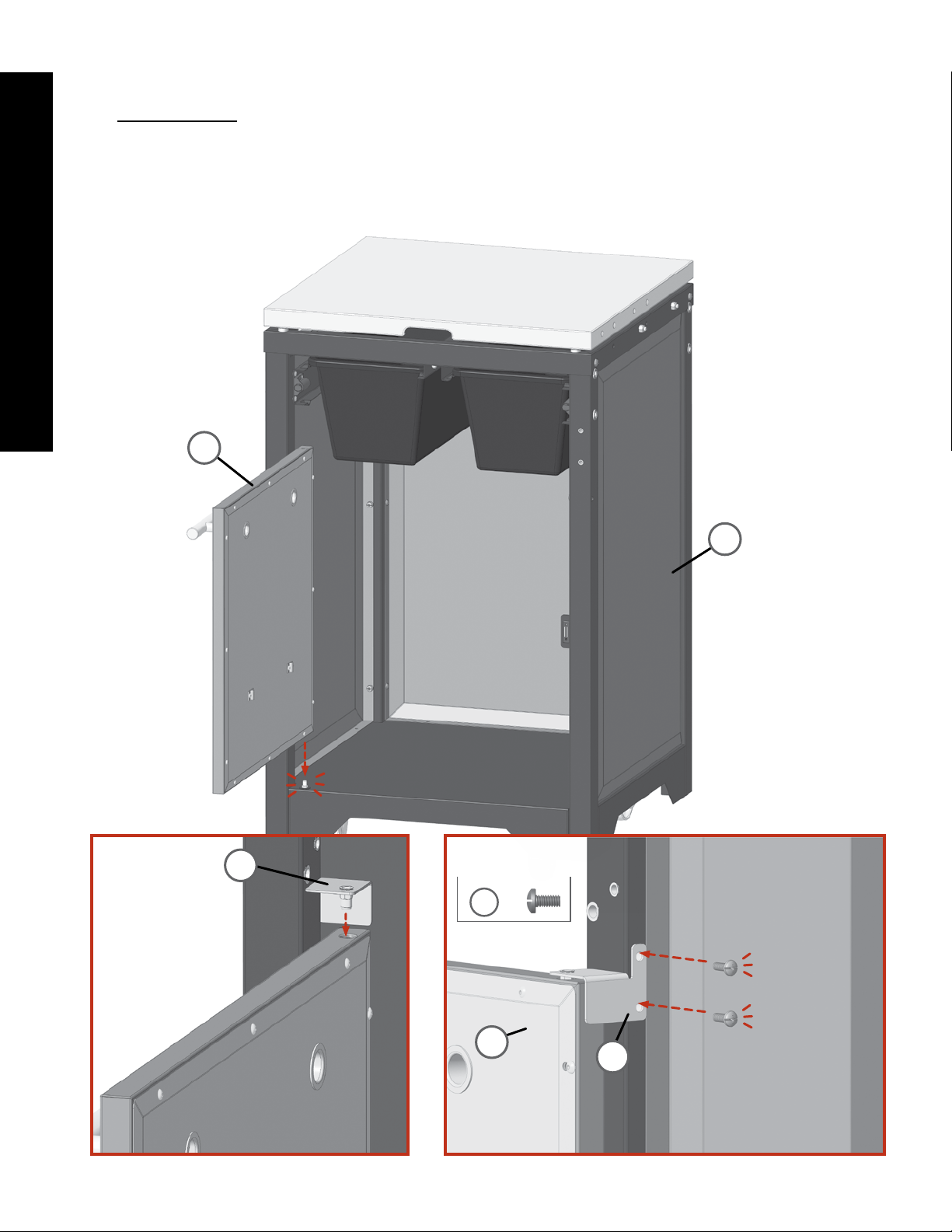

CC
CE
CE
CC
Inside View
1x2
BUILD IT
STEP 10A
STEP 10B STEP 10C
