PowerLift L-Shaped Standing Desk - Assembly and Use Instructions

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
Phillips head screwdriver
and/or hand drill
4mm Allen wrench
(included) Tape measure
Tools
Parts
Leg
Power cordM5x20 Wood Screw
x12
M6x14 Machine screw
DIN6 cableCable clipM5x16 Wood Screw
1/4-20 Phillips Bolt
x20
M6x10 Machine screw
Foot Side bracket
x10
x23x11
x2
x1
x2
x3 x3 x3 Top frames
+ control box
Cable TrayController 2-Piece Desktopx1Link Bracket x2x1

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
M6x14 Machine screw
M6x10 Machine screw
Slide control box (D) off the frame. Fully separate end frames
(A+C), you will find the center rails (B) inside.
NOTE: End frame C is placed on the side of the desk you plan to mount the control box and controller.
We recommend using the right side.
Place leg into one of the end frames ensuring brackets
are towards the top.
Align holes on leg with holes on end frame and insert
four (4) M6x10 machine screws through the holes in
the end frame and into the leg. Using the supplied
Allen wrench, rotate each screw just a few times.
After all four screws are inserted, tighten all.
Repeat this step for the other two pairs of leg and frame.
Slide the side bracket into the end frame.
Insert two (2) M6x14 Machine screws through the
hole on the bottom of the end frame and into the side
bracket. Using the supplied Allen wrench, rotate
each screw just a few times.
After both screws are inserted, tighten both.
Repeat this step for the other two leg/frame assembly.
Assembly
Step 1
Step 2
Step 3
x2
x4
BA C
D

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
Slide the two center rails into the two end frames ensuring:
a) Center rail slots face inward
b) Center rail slots are closer to the top edge
when the assembly is upside down
(as shown in inset)
Attach end frame with L-bracket (A) to end frame
with threaded-inserts (B) using (4) M6x10
machine screws.
Place desktop with pre-drilled holes and
pre-installed inserts facing up. (We
reccomend placing them on cardboard,
blanket, rug, etc. to protect surface)
Adjust the width of the desk base by
sliding the two end frames outward.
Align the holes on the desk base and the
underside of the desktop.
Attach the desk base to desktop with
twelve (12) 1/4-20 Phillips Bolts for the
side bracket holes going into the inserts.
Use five (5) M5x20 Wood Screws for the
end frame holes going into the desktop.
Assembly
Step 4
Step 6
Step 5
end frames
ensuring:
b) Center rail slots are closer to the top edge
ensuring:
B
A
M5x20 Wood Screw
x5
1/4-20 Phillips Bolt
x12
NOTE: Do NOT tighten all the way.
M6x10 Machine screw
x4

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
M6x10 Machine screw
x16
For each leg, attach a foot with
four (4) M6x14 Machine screws
and tighten in a cross pattern.
M6x14 Machine screw
x4
Locate pre-drilled holes toward the front of
the desktop. You can use the set of holes on
either side, but we recommend using the
right side.
Using two (2) M5x16 Wood Screws, attach
the controller to the desktop.
Lock the position of the center rails using
sixteen (16) M6x10 machine screws,
ensuring the screws come in contact with
the center rails by sliding them as needed.
Assembly
Step 7
Step 8
Step 9
M5x16 Wood Screw
x2

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
Ensure there is no gap between surfaces and that the
edges of all surfaces are flush with each other by
adjusting the end frame with L-bracket (Fig. D)
Attach (2) link brackets using (2) 1/4-20 Phillips
Bolts for each bracket
Then, tighten the (4) M6x10 machine screws (Fig D.)
going through end frame with L-bracket from Step 4
all the way.
Tighten x4 M6x10 Machine screw
Step 10
Assembly
Step 11
Slide the control box back onto the
corner end frame. There are two place-
ment options, we suggest placing it on
the side closest to your controller.
Ensure there is no gap between surfaces and that the
edges of both surfaces are flush with each other by
adjusting the end frame with L-bracket (Fig. D)
Attach (2) link brackets using (2) 1/4-20 Phillips
Bolts for each bracket.
Then, tighten the bolts going through end frame with
L-bracket from Step 4 all the way.
fig. D
(Fig. D)
1/4-20 Phillips
M6x10 machine screws
(Fig D.)
from Step 4
1/4-20 Phillips Bolt
x4

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
M1 M2 M3
AC
HS
Step 12
Assembly
Using the adhesive-back cable clips, secure the cables so they do not sag.
Double check to ensure you don’t have extra ‘add-on’ parts to install before proceeding.
With at least two people, grab the DESK BASE (NOT the desktop) and turn right-side up.
Adjust pre-installed glides on the feet as needed.
Plug the power cord into a 110V outlet.
Step 13
to outlet
BT
CB
PS
Using the adhesive back, stick the Power Strip (PS) and BlueTooth App Box (BT) onto the
underside of the desktop as shown below.
Connect cable exiting Leg (closest to control box) directly into the control box (CB). (M1 - red)
Connect 2 DIN6 cables to the other 2 leg cables and then to the control box. (M2&M3 - red+blue)
Connect controller cable and control box to the BlueTooth App Box. (HS - orange)
Connect the power cord to the control box and power strip,
as well as the BlueTooth App Box’s power cord to the power strip. (AC - green)
PS

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
fig. A
1/4-20 Phillips Bolt
x3
Insert three (3) 1/4-20 Phillips Bolts
into the threaded inserts shown (fig.A)
and hand tighten about halfway.
(DO NOT tighten all the way yet)
Tighten both bolts ensuring the tray is secured.
Ensure your tray is placed correctly (fig.c)
before tightening the bolts.
Pass the bolts through the widest portion of the
outter keyholes on the cable management tray by
lowering the tray onto the underside of the desktop.
Slide tray all the way in so bolts are over narrower
part of keyhole and back of the tray is flush against
back of the desktop. Use the lateral slots to adjust,
if necessary.
Step 14
a.
b.
c.
Assembly *NOTE: If you purchased the ‘Desktop Power Bar’ add-on, skip this
step and refer to the ‘Add-on: Power Supply’ instruction sheet.
fig. C
fig. B

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
1/4-20 Phillips Bolt
x4
1/4-20 Phillips Bolt
x4
Tools
Add-on: Sit to Stand Keyboard Arm and Tray
Parts
Assembly
Phillips head screwdriver
and/or hand drill 1/4-20 Phillips BoltKeyboard Tray BracketsDesk
x8
x2
x8
Locate the four pre-installed inserts and align them with
the holes in the brackets of the keyboard tray assembly.
Using four (4) 1/4-20 Phillips Bolts, attach the Keyboard
tray to the underside of the desktop.
Attach two (2) brackets to the keyboard tray assembly
using four (4) 1/4-20 Phillips Bolts.
Step 1
Step 2
x2

14105AvalonBoulevard,LosAngeles,CA90061|Tel310-353-7100|Fax310-353-7109
www.VersaTables.com
Tools

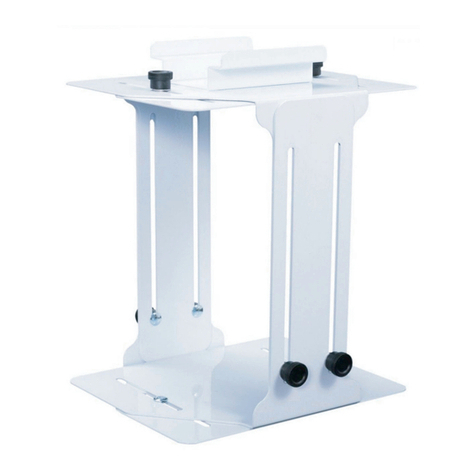

Add-on: CPU holder
Parts
Assembly
Phillips head driver
and/or hand drill 1/4-20 Phillips BoltCPU Holder Brackets
x8
x2
Lock Pin
x2
1/4-20 Phillips Bolt
x4
1/4-20 Phillips Bolt
x4
x8
Using four (4) 1/4-20 Phillips Bolts, attach
the slide bracket onto the two brackets
from the previous step.
Attach the two (2) brackets to underside of
the desktop with four (4) 1/4-20 Phillips
Bolts, on the side of the desk you would
like the CPU holder to be on.
Step 1
Step 2
x2
x2
Slide Bracket
