Versio VL 750 User manual

User Manual
VL 750 & VL 760

2
1. Introduction
Thank you for choosing a K.M.E. product!
VERSIO has been consequently developed to portable requirements. With these compact
and ergonomic loudspeaker systems you will be able to master your reinforcement
situations in a very flexible manner (main-PA, monitoring, fill-system, delay line).
In this User Manual you will find some hints and warning notes for your new product with
which a save use of the VL 750 / VL 760 is allowed. Please read this instructions before
you switch on the unit for the first time, to get in touch with particular features of your new
product. If you have questions about this product please contact the K.M.E. support.
Within our extensive production processes we only use exclusive materials and
components of best quality. Share with us the enthusiasm for good sound. The K.M.E.
team wishes you fun and success with your new PA-system!
2. Contents
1. Introduction
2. Contents .......................................................................................... 2
3. The completely digital audio system VL 750 / VL 760
4. The delivery status ………............................................................... 3
5. The control- and connection panel .................................…............. 4
6. Choose your factory preset - play! - 6.1 powering up / down ......… 5
6.2 preset overview ….........… 5-6
6.3 selecting presets .............. 6
7. Navigation structure on the hardware unit .............…….................. 7
8. Operation ........................................................................................ 8-10
9. The most important menu functions - 9.1 muting PA ...…............... 11
9.2 switching input between
analog or digital ............ 11
9.3 entering password ....... 12
9.4 locking your PA ............. 13
10. Specifications VL 750 / VL 760 ..................................................... 14-15
10.1 Rotate the horn of VL 750 / VL 760 …………..…………….... 16
10.2 Fitting the flying frame FRQ 12 / FRQ 15 …..…………..….... 17
11. PA-systems active: SD7 & SD8 - 11.1 Specifications .................. 18
11.2 Set-up PA systems …….. 19
11.3 Connection shemes ........ 20-24
11.4 System extension …........ 25-26
12. EC-declaration of conformity ........................................................ 27
13. Disposal of your old appliance ..................................................... 28

3
3. The completely digital audio system VL 750 / VL 760
The completely digital audio system VL 750 / VL 760 offers excellent sound performance
with an extremely high output power, compact dimensions, low-weight as well as an
absolutely versatility as top unit, monitor, full-range or delay line and fill system. The
VL 750 / VL 760 is also ideal combinable with VERSIO subwoofers. It has been
consequently developed and optimized to portable and installation requirements.
The integrated 12“ resp. 15“ + 1“ neodymium drivers and the integrated innovative digital
technology reduce the weight. The bass reflex housing provides a low-frequent radiation
starting from 50 Hz. The special tunnel geometry enables a high sound pressure with
extra low power compression and a low flow noise.
Inside work a digital 24 Bit signal processor and two powerful class D amplifiers with an
unsophisticated, crystal-clear sound quality (without conversion losses due to full digital
preamping). The analogue input signal is digitalized directly inside the input amplifier
using an intelligent 24 Bit AD-converter and remains consequently digital to the class D
amplifiers` output. The audio-DSP enables an optimal processing and controlling of the
audio signal through adjustable parameters like gain, digital low-cut filter, subsonic filter,
(parametric) EQs, peak/RMS-limiter and delays.
With the simple controlling of the system menu with only one navigation pad, you can
select, load and programme factory presets resp. user presets. Due to the audio-DSP
extensive solutions are available for various using possibilities (see page 25). All factory
presets can be set as user presets.
The high-quality scratch- and impact-resistant black polyurethane coating offers optimal
road suitability. An additional protection of the loudspeaker offers the comb-grid with
acoustic foam and the special impregnation of the loudspeaker membrane against
moisture impacts. As an option you can choose a protective cover, wall mount, flying
frame, M8 eyebolts.
4. The delivery status
The scope of delivery includes: 1x VL 750 / VL 760, 1x PowerCon-mains cable and
user manual
When you power up the VL 750 / VL 760 for the very first time the following default
parameters in the main menu are pre-set:
- preset 2 „ VL750 / VL760 Full “ is loaded
- power mode “Last State” is activated
- Sig. LED threshold is adjusted to -50 dB
- User LED threshold is adjusted to 0 dB (0 dB = deactivated)
- output levels are shown on the LCD display
- input switched to analogue
- a password is not entered
This User Manual corresponds to the software version V1.0 r7.
It is obvious in the menu item „Diagnostics“!

4
5. The control- and connection panel
1.
2.
3.
4.
5.
6.
7.
8.
9.
Operation and audio input
1. The LCD display is used as operation mode display of the VL 750 / VL 760. The arrows in the
LCD display show the directions to navigate through the submenus (see navigation structure).
All software parameters must be set on the unit itself. Press the ‘OK’ button to select a parameter
if you are asked by the unit.
2. Navigation pad - The navigation pad is to be used for accessing and changing parameters on
the display of the hardware unit. Press the OK button if you are asked by the software (see
navigation structure).
3. LINE in & link - XLR balanced, analogue/digital switchable (see navigation structure);
link out is only active when the VL 750 / VL 760 is powered on
4. Volume control (adjustable from -∞to +6 dB), Attention: please turn down volume control
before switching on the VL 750 / VL 760 to avoid an undesirable sound reproduction.
5. Multicolour LED signalising different parameters:
LED does not light up - there is no input signal
LED lights up green - there is an input signal
LED lights up blue - the adjusted user threshold value is exceeded
LED lights up orange - max. input level, the limiter is working
LED lights up red - there is a malfunction, you must power cycle the VL 750 / VL 760
Power
6. Mains connector PowerCon in (blue) + link (grey), Attention: use mains voltage of
90 - 250 V AC / 50 - 60 Hz
7. GROUND/FREE switch (disconnects the ground of the input channels from chassis to avoid
ground loops)
8. M8 eyebolt
9. mains fuse (replace fuse only by type 4A slow blowing fuse 5x20 mm)

5
6. Choose your factory preset - play!
To adapt the VL 750 / VL 760 to your reinforcement the unit includes pre-set factory
presets. That means you have to choose the current preset for your application
(e.g. if you use the VL 750 / VL 760 as monitor you have to choose preset no. 4
“VL 750 / VL 760 Mon”).
6.1 Powering up / down
To switch on / off your VL 750 / VL 760, please follow the instructions:
1. Apply power supply connection (90 - 250 Volt / 50 - 60 Hz) on VL 750 / VL 760 (if the
unit is switched to power mode „Always On“, it is switched on now)
2. Press for 1 second the OK-button – the unit is switched on now (if the power mode
“Last State” is activated, the unit is switched on and muted!)
3. To switch off the VL 750 / VL 760, press for 1 second the left arrow key – now the unit
is muted. After this you have to press for 1 second the OK-button to switch off the
VL 750 / VL 760. If the unit is switched to power mode „Always On“ or the unit is locked,
please disconnect the power supply connection to switch off the VL 750 / VL 760.
Note! Switch on the VL 750 / VL 760 when the volume pot is turned fully anti-clockwise /
left stop and all connected components are switched on and muted previously to avoid an
unwanted sound reproduction.
Because the VL 750 / VL 760 can be in „lock-function“ for rental purposes that means the
unit may not react on changes on the control panel (depending on adjustment before)
and this can cause an immediate reproduction when switching it on. Therefore it is
necessary to mute all connected devices previously.
After switching on the VL 750 / VL 760 the volume pot should be turned to 0 dB (center
click) with deactivated „lock-function“ to keep a defined signal level and an optimal
controlling (this adjustment is a recommendation).
During power on for the very first time Preset 2 „VL 750 / VL 760 Full“ is loaded! More
information about the initial state you can find on page 3.
6.2 Preset overview
The VL 750 / VL 760 includes four factory presets and four user presets. When switching
on for the first time preset 2 “VL 750 / VL 760 Full” is loaded (a factory preset). You can
load factory presets and change them. How it can be made you will find on page 8 - 10 in
this manual. The menu item „Userpresets“ appears only from preset no. 4 to 8, where you
can set and adjust the parameters like limiter, EQs, delays. The names of the presets
(listed below) refer to the menu navigation of the device.
Factorypresets - are not adjustable and erasable
Preset 01 „SD7 / SD8 Top“
Preset 02 „VL750 / VL760 Full”
Preset 03 „VL750 / VL760 Linear”
Preset 04 „VL750 / VL760 Mon”
Userpresets - are adjustable and programmable
Preset 05 „USER Delay“
Preset 06 „USER Fullrg.”
Preset 07 „USER Monitor”
Preset 08 „USER Top”

6
When should I choose which preset?
To adapt the VL 750 / VL 760 to your reinforcement, you have to choose and load the
correct preset of your setup. In this list you can read out the application of the presets.
Choose: preset 01 – to use the VL 750 / VL 760 as top unit in the PA system SD7 / SD8
preset 02 – to use the VL 750 / VL 760 as full-range without additional sub
preset 03 – to use the VL 750 / VL 760 as linear system
preset 04 – to use the VL 750 / VL 760 as monitor
preset 05 – to use the VL 750 / VL 760 as free configurable delay line
preset 06 – to use the VL 750 / VL 760 as free configurable full-range system
preset 07 – to use the VL 750 / VL 760 as free configurable monitor
preset 08 – to use the VL 750 / VL 760 as free configurable top unit
6.3 Selecting presets
To control the respective system optimally the valid preset has to be load. You have to
select it and load your latest PA-setup as preset on the control panel of the VL 750 /
VL 760. Follow the instructions (e.g. select „VL750 Mon“)!
Press to re- ←
Mute active
activate system!
2x
After power on the VL 750 / VL 760 for the very first time the left graphic appears on the LCD
display (depending on VL 750 or VL 760). You have to press the marked arrow key of the
navigation pad twice to select preset 4 „VL750 Mon“ and confirm with the OK-key.
If you control your PA system with an analogue audio signal, you can start now!

7
7. The navigation structure (menu navigation)
by means of the information of the menu list
Always On
Digi tal L+R
Audio Trig. Level XX Audio Trig. Time XX (1 ... 120 min.)
(-60 dB ... 0 dB)
Type
Low Shelf
Parametric
Equalizer 2 Frequency
Gain QXX
XX dB (-12 dB ... +12 dB)
(0,7 ... 12,5)
XXXXX Hz (25 ... 16000 Hz)
Equalizer 3
Main Menu Pot Lock Mode
Sig LED Threshold User Presets Display Mode Diagnostic Factory Reset System Menu User LED Threshold
Pot l ocked
Pot not locked XX dB
XX dB
DIAG Screen
Device Settings only
All (incl. Presets)
Input A/D
Password
LCD Bri ght ness LCD Contrast
XXX
XXXXXXXX
XX
Analog
Digi tal L Digi tal R
Equalizer 1
Output Level
Limiter
Frequency XXXX Hz
Frequency Gain
QXX
XX dB XXXXX Hz
XX dB
Attack Time Rel ease Time Threshold XX dB
4th Order (24 dB)
XXX ms XXXX ms
(25 ... 160 Hz)
(25 ... 16000 Hz)
(-12 dB ... +12 dB)
(0,7 ... 12,5)
(0 ... 127 ms)
(0 ... 1270 ms)
( ... )-99 dB 0 dB
(-99 dB ... +6 dB)
(-60 dB ... -10 dB)
(-50 dB... 0 dB)
(0 ... 127)
(6 ... 20)
LC/Crossover
Delay XXX X. m
Type Subsonic 12 dB, Q =1,2
(0 ... 400)
2nd Order (12 dB)
Power Mode Last State
Audio Trigger
Anal og Link Mode Direct Link
ADC out
Preset Name XXXXXXXXXXXX
Reset Preset Are you sure?
Output Levels Operation Parameters
Type
High Shelf
Parametric
Frequency Gain
QXX
XX dB XXXXX Hz (25 ... 16000 Hz)
(-12 dB ... +12 dB)
(0,7 ... 12,5)
Parts which marked by “ ” must resp. can be set with a value. The numbers of values of the letters and numerical value are limited. You canread out the quantityfromthissheet.
X

8
8. Operation
All these software parameters must be set directly on the hardware device. The sub
menu “User preset” where you can set parameters like gain, crossover frequency, limiter,
delays,…appears from preset no. 5 - 8.
The names of the menu points refer to the user navigation on the device.
Main Menu
• Pot Lock Mode [to be activated by using “lock function”, see page 13]
Pot locked [just lock volume pot]
Pot unlocked [just unlock volume pot]
In this menu item you can set a „lock - function“ for the volume pot of VL 750 / VL 760.
• Sig LED Threshold
Here you can set the threshold value where the LED starts to light green when the set value is
reached by the audio signal.
• User LED Threshold
Here you can set the threshold value where the LED starts to light blue when the set value is
reached by the audio signal. This function allows you to set an optical limit for the volume level
for your audience, e.g. -10 dB – you know your pre-set value is reached.
• Power Mode
Last State
Audio Trigger
Always On
In this menu item you can pre-set the operating status of the VL 750 / VL 760:
If you choose „Last State“- mode, the VL 750 / VL 760 will always start in the last state of
operating after power cycle the unit (after power cycle the unit is muted!).
To reduce the power consumption e.g. in installations you can choose „Audio Trigger“- mode.
In this mode you can set a threshold value and a time value where the system automatically
switched off when the threshold is not exceeded with an audio signal. After the pre-set time the
unit is switched off. If the pre-set threshold value is exceeded during the unit is still on, the time
value counts again - that means this function is a posttrigger-function. You can switch on the
unit again by pressing the OK-button or playing an audio signal which has a higher input level
as the pre-set threshold value.
If you choose „Always On“, the VL 750 / VL 760 is always on. That means after apply power
supply the unit is automatically on and ready to play (the “lock function” can be active!).
• Display Mode
Output Levels headroom display]
Operation Parameters [input level display and operation display]
You can chose between two layouts of the LCD graphic display. The first one shows the
headroom of both amplifier modules. The second one gives an overview about input level and
signal (analogue or digital) as well as temperature of the amplifiers and PSU
(PowerSupplyUnit). If the unit is muted, the operation parameter screen is displayed
automatically.
• Diagnostics
In this menu item you can read out the current software version.
• Factory Reset
Device Settings only [Restore all adjustable parameters in the main menu]
All (incl.Presets) [Reset all changes made, incl. all user presets]
To reset the unit to the programmed initial state there are two “levels”, just to restore only the
adjustable parameters in the main menu or all menu items (incl. all user presets). After resetting
all changed settings from the user are turned to the programmed initial state!

9
• System Menu
Input (see page 11)
Analog [switch input to „analogue”]
Digital L [switch input to „digital left“]
Digital R [switch input to „digital right“]
Digital L+R [switch input to „digital left + right“ (=mono signal)]
In this menu item you switch the input to „analogue“ or „Digital L“ or „Digital R“ or „Digital L+R“.
You can reproduce a analogue signal or a digital signal (left or right side) or a digital mono
signal on VL 750 / VL 760.
Analog Link Mode
Direkt Link [input signal = output signal]
ADC out [analogue input signal is digitalized on output]
Password (see page 12)
In this menu item you can enter a max. 8-digit password. If you have entered a password and
activate the “lock function” you must enter the password again to unlock the unit.
LCD Brightness [adjust brightness of the LCD graphic display]
LCD Contrast [adjust contrast of the LCD graphic display]
Audio Trig. Level [adjust threshold for the power mode „Audio Trigger”]
Here you set the threshold value, which the pre-set „Audio Trig. Time“ counts down after the
audio signal doesn`t exceed it. If the pre-set threshold is exceeded, the time value counts down
again - that means this function is a posttrigger-function.
Audio Trig. Time [adjust switch-off time for the Power Mode „Audio Trigger”]
• User Presets [appears only from preset no. 5 to 8]
Preset Name [enter preset name, max. 12 digits]
Delay [adjust delay from 0 – 400m, in 10 cm steps]
LC/Crossover (high pass) [crossover function]
Type (subsonic-filter 12 dB Q=1,2 or 12 dB/octave or 24 dB/octave)
Frequency
This digital filter (crossover) limits the frequency range. You can not deactivate this digital filter.
When you need a full-range audio signal on the output you have to set the frequency to 25 Hz
and choose a type of the low cut filter.
Equalizer 1 [adjust equalizer]
Frequency
Gain
Q (bandwidth)
Type
Parametric
Low Shelf
With this digital filter you can affect the frequency range by making adjustments of filter
frequency (center frequency), the gain (boost resp. cut) and the Q-factor (bandwidth). If you
adjust the sensitivity (gain) to 0 dB you deactivate this filter. If you choose the type “Low Shelf or
High Shelf” the bandwidth is not activated (you can enter a value for the Q-factor but it is
ignored)!
Equalizer 2 [adjust equalizer]
Frequency
Gain
Q (bandwidth)
With this digital filter you can affect the frequency range by making adjustments of filter
frequency (center frequency), the gain (boost resp. cut) and the Q-factor (bandwidth). If you
adjust the sensitivity (gain) to 0 dB you deactivate this filter.

10
Equalizer 3 [see equalizer1]
Frequency
Gain
Q (bandwidth)
Type
Parametric
High Shelf
Output Level [adjust output level, it is independent to the adjustment of the
volume pot]
Limiter [adjust limiter]
Attack Time
Release Time
Threshold
This dynamic processor is working when the audio signal exceeds the entered threshold-value.
The two time constants attack and release time draw the speed of the gain regulation
mechanism and are dependent to the program material.
Reset Preset
Are you sure?
Here you can reset the preset to the programmed initial state, that means you re-activate the
factory-made user preset on this memory cell and delete your preset. If you want to change one
or more menu items in a user preset, choose this topic and overwrite it with a new value and
press the OK button. Hence the new value is saved in the preset without entering all set
parameters again.

11
9. The most important menu functions
In this part of the user manual you will find a structured digest about the procedure for the
necessary settings in the main menu and its functions. If you pay attention to that a
riskless use of the VL 750 / VL 760 is ensured.
9.1 The „Mute- function”
This function enables to mute the PA system with just one touch of a button.
Press for 1 second the marked arrow key of the navigation pad to mute the PA system.
A repeated pressing of this arrow key causes the deactivation of the mute-function (see display).
If the unit is muted and you press for 1 second the OK-button, you switch off the VL 750 / VL 760.
If you have chosen the power mode „Always On“ (before switching off the unit) you have to pull
the mains plug to switch off the unit.
9.2 Switching input between „analog“ or „digital L“ resp. „digital R“ or
„digital L+R“
If you want to control your PA system with a digital signal you have to switch the input to
„digital L“ resp. „digital R” or „ digital L+R” (see page 9). In the programmed initial state all
inputs are switched to „analogue“.
1.
4.
7.
10.
2.
5.
8.
11.
3.
6.
9.
Press the marked arrow keys of the navigation-pad one after another (like shown in the scheme),
to switch the input of channel A to „analogue“ / „digital L“ resp. „digital R” or „digital L+R”
(the selection can be looked up from the LCD display from the respective direction of arrow). After
the correct selection of the input press the OK-button and leave the menu with the left arrow key.

12
9.3 Entering password
You can lock the VL 750 / VL 760 with or without a password. To lock the unit with
a password (max. 8 digits) you have to enter it first. This password can be changed
every time.
Note! Keep in mind resp. note down the entered password because if you want to
„unlock“ your VL 750 / VL 760 you have to enter the password again. Should you have
forgotten the password, you have no possibility to re-activate the unit. Please contact the
K.M.E. support! Should the entered password had been cleared, e.g. after a rental, you
have to assume a manipulation. Follow now the instructions to activate the menu point!
1.
4.
7.
10.
13.
2.
5.
8.
11.
3.
6.
9.
12.
Press the marked arrow keys of the navigation pad one after another (like shown in the scheme)
to open the sub menu „password“. Now you can enter your password with the arrow keys and
confirm with OK. You can leave the menu by pressing the left arrow key.

13

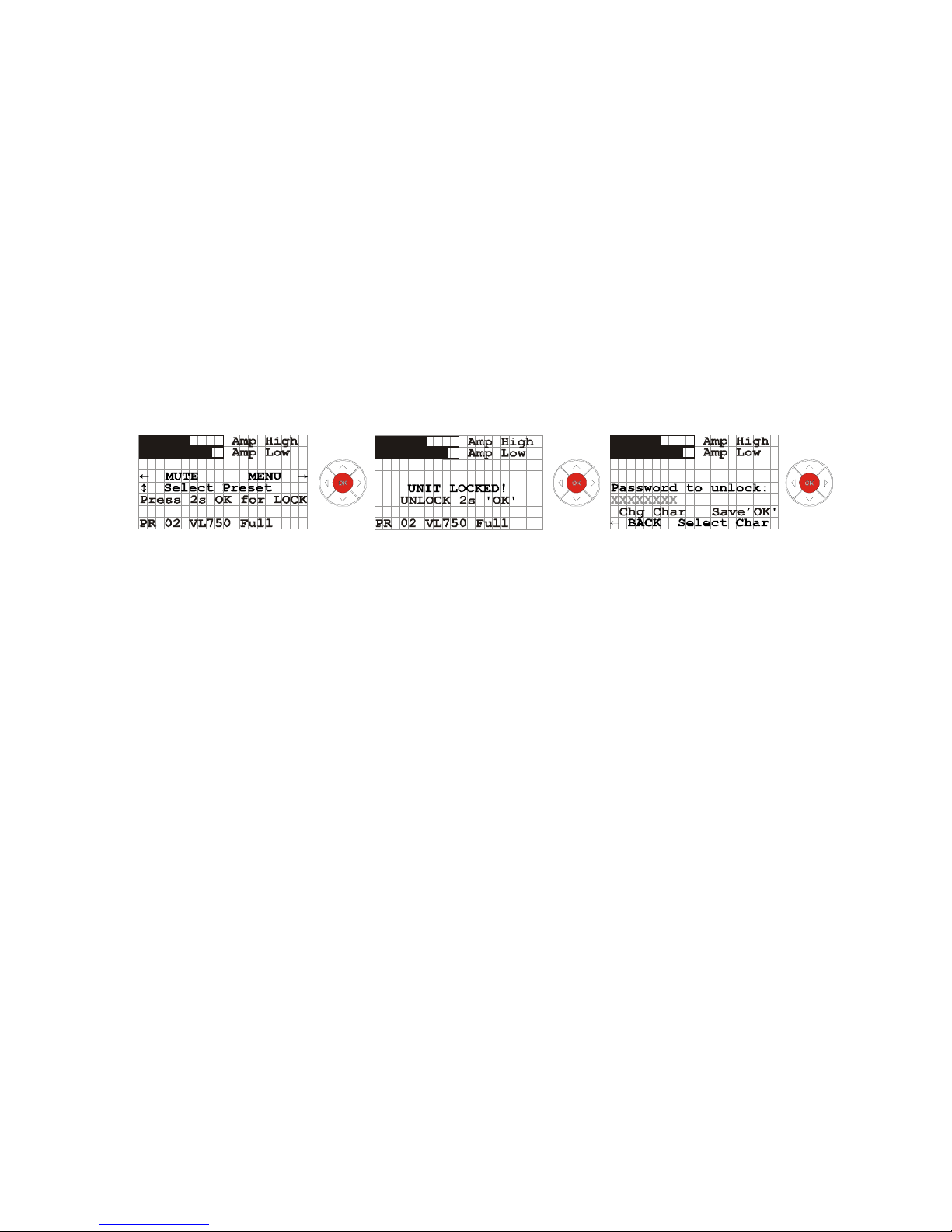

9.4 The „Lock- function“
To lock your VL 750 / VL 760 (with or without password) please do the following
instructions:
Set all required parameters (also the volume controls) and press, like shown in the
graphics, the OK-button for 2 seconds and your system is locked (now your unit is ready
for a rental, for example). After pressing the OK-button you have to disconnect the mains
plug to switch off the unit. When you connect the mains plug again the “lock-function” is
re-activated. That means you can not change any settings (depending on settings before)
while the “lock-function” is activated. To deactivate the “lock-function” you have to press
the OK button again for 2 seconds and, if entered before, enter your password by using
the arrow keys and confirm with OK.
Attention! If you have changed the position of the volume control during the VL 750 /
VL 760 was locked you will be informed on the LCD display. Now you have two
possibilities to unlock the unit: after entering your password (if entered before) you can
press the OK button for two times and the VL 750 / VL 760 is playing in the current
adjustment of the volume control or you press the OK button only once after entering your
password (if entered before) and turn the volume control to the previous position.
←
←

14
10. Specifications
VL 750 VL 760
Speaker:
Components 12“ + 1“ bi-radial Horn (neodymium) 15“ + 1“ bi-radial Horn (neodymium)
Dispersion (h x v) 80° x 60° (rotatable horn) 80° x 60° (rotatable horn)
Frequency range 55 Hz - 19 kHz, depending on preset 50 Hz - 19 kHz, depending on preset
SPL nom. / max. 100 / 128 dB 102 / 129 dB
Power output
RMS 600 W bass/mid + 150 W high 600 W bass/mid + 150 W high
Electronic:
Amplifier Two fully digtal amplifier with high
efficiency ≥90 %
Two fully digtal amplifier with high
efficiency ≥90 %
Features
Ground Free, navigation pad,
LCD-display;
adjustable gain, digital crossover,
subsonic-filter, parametrical EQs,
Peak / RMS- limiter, delay
Ground Free, navigation pad,
LCD-display;
adjustable gain, digital crossover,
subsonic-filter, parametrical EQs,
Peak / RMS- limiter, delay
Protective circuit short circuit, overload, temperature,
DC on output, under-/over voltage
short circuit, overload, temperature,
DC on output, under-/over voltage
Connectors line-in XLR, link-out XLR
(analogue or digital)
line-in XLR, link-out XLR
(analogue or digital)
Power
requiremnts
90 - 250 Volt / 50 - 60 Hz,
PowerCon in / link
90 - 250 Volt / 50 - 60 Hz,
PowerCon in / link
Power
consumption max. 850 W max. 850 W
Control panel Navigation pad, volume control,
ground free
Navigation pad, volume control,
ground free
Processor:
DSP 24 bit, 48 MHz clock 24 bit, 48 MHz clock
Unit delay < 1,5 ms < 1,5 ms
Sampling 24 bit 24 bit
Digitale input &
-link
AES/EBU / S/PDIF with format-/
sample rate converter
(max. 192 KHz)
AES/EBU / S/PDIF with format-/
sample rate converter
(max. 192 KHz)
Preset memory 4 factory presets, 4 user presets 4 factory presets, 4 user presets

15
VL 750 VL 760
Special features
2 side mounted handles, swivelling
flange with variable tilt angle +/- 20°,
4x M8 treads
2 side mounted handles, swivelling
flange with variable tilt angle +/- 20°,
4x M8 treads
Dimensions in mm
(W x H x D) 430 x 670 x 430 460 x 740 x 440
Weight 21,5 kg 25,5 kg
Recommended
Systems
subwoofer actively channelled:
VSS 15, VB 15, VSS 18, VB 18
subwoofer actively channelled:
VSS 18, VB 18
Optional
accessories
protective cover (no. 2-311-056),
M8 eyebolts (no. 5-350-000),
wall mount (no. 2-430-001),
swivel frame FRQ 12
(no. 2-512-001)
protective cover (no. 2-311-057),
M8 eyebolts (no. 5-350-000),
wall mount (no. 2-430-001),
swivel frame FRQ 15
(no. 2-512-017)

16
10.1 Rotate the horn of VL 750 / VL 760
For an optimal adaption of the VL 750 / VL 760, you can rotate the horn in this box. Normally the
horn is positioned that you have a dispersion of 80° in the horizontal position and 60° in the
vertical position. To rotate the horn, please follow the instructions:
• Attention! Remove all cables from the box, especially the power cable. Place the box on the
back side on solid underground!
• At first, please unscrew both screws on the front of the box. After this you have to do the same
with the screws on both sides of the protective grille.
• Remove the protective grille of the box carefully.
• Unscrew all eight screws of the horn.
• Lift up the horn a little bit and rotate it 90° to the right sight. Now you have a dispersion of 60°
in the horizontal position and 80° in the vertical position.
• Please screw on the horn again as well as the protective grille.
(see following photos)

17
10.2 Fitting the flying frame FRQ 12 / FRQ 15
For install the VL 750 / VL 760 with the flying frame FRQ 12 / FRQ 15, please follow the
instructions (see following photos):
• Attention! Remove all cables from the box, especially the power cable. Place the box on the
ground on solid underground! Please lay down also the flying frame with the three delivered
screws for fitting the box with the flying frame.
• At first remove the top (u-bracket) of the flying frame and put it aside.
• Unscrew now the four screws of the flying frame. After this you have to fix the VL 750 / VL 760
within a vertical position of 0° into the lower part of the flying frame.
• Unscrew the three plastic-screws on top of the VL 750 / VL 760. After this you have to fix the
top part of the flying frame on the box with the three delivered screws.
• Now you have to screw on the top part onto the lower part of the flying frame with two screws
on the left and right side to fix the VL 750 / VL 760.
• At last step you have to mount the top (u-bracket) of the flying frame again to finish the
installation. If you have some additional accessories for flying the VL 750 / VL 760, you can
mount it now. Attention! Please mind that the user is responsible for safely flying the
equipment (according to BGV_C1).

18
11. Active PA-systems SD7 & SD8
The active 3-way full-range PA-systems SD 7 and SD 8 are professional and powerful
PA-systems with extraordinarily compact design and a brilliant sound. The different
formats / combinations of the VERSIO PA systems are the functional answer to a
multiplicity of tasks in mobile use as well as in the area of installation. Simple speech
reproduction, fill or delay-systems, presentations, music reinforcement with or without
subwoofers as main PA, supported by a versatile accessory assortment enable an
accurately to the respective requirements adapted solution. Due to the audio-DSP
extensive solutions are available for various using possibilities. The extension of these
PA-systems is always possible.
11.1 Specifications
SD 7 SD 8
Components
2 x VL 750 (12“+1“),
2 x VSS 18 (18“),
2 x VB 18 (18”) 4 Ohm
2 x VL 760 (15“+1“),
2 x VSS 18 (18“),
4 x VB 18 (18”) 4 Ohm
Power output
total: 4000 W RMS
(2 x 500 W RMS @
4 Ohm free configurable)
total: 5000 W RMS
Frequency
range 38 Hz – 19 KHz 38 Hz – 19 KHz
Connectors
audio signal:
2x line-in XLR & line-out XLR
(analogue and / or digital),
power requirements:
PowerCon 90 - 250 Volt / 50 - 60 Hz,
speaker outputs on VSS 18:
each 2x Speakon NL 4 (1+/1-)
audio signal:
2x line-in XLR & line-out XLR
(analogue or digital),
power requirements:
PowerCon 90 - 250 Volt / 50 - 60 Hz,
speaker outputs on VSS 18:
each 2x Speakon NL 4 (1+/1-)
Weight of
components
top active: 2x 21,5 kg
bass active: 2x 34 kg
bass passive: 2x 27 kg
top active: 2x 25,5 kg
bass active: 2x 34 kg
bass passive: 2x 27 kg
Recommended
for professional bands, DJs, renters professional bands, DJs, renters
Optional
accessories
Plug & Play Pack
(no. 2-521-011),
Cover Pack
(no. 2-312-019)
Plug & Play Pack
(no.2-521-012),
Cover Pack
(no.2-312-020)

19
11.2 Set-up PA systems
Note!
Please note specific and useful set-up of a first-class loudspeaker system. A universal
statement about the correct (standard)-adjustment and set-up of PA systems is
impossible, because each reinforcement is bound to a different place and has always
different features.
When using high stands or distance rods for top parts the user has to guarantee the
stability. Please use just certified mounting material when installing the systems to
guarantee the safety. Depending on the features of the area/room to be reinforced the top
unit(s) can also be swiveled a bit horizontally and tilted vertically to reduce reflections (on
walls + ceilings) and interferences and therefore achieving a better utilization of the sound
energy.
If covers are opened or sections of casing are removed, except where this can be done
manually, live parts can become exposed. If it is necessary to open the unit this must be
insulated from all power sources.
Please mind that it is not coming to a ground loop during cabling of the system. If it
comes to deep-frequent hum switch the Ground-Free to „Free“. Always use balanced
signal cables if possible. Do not mask or detach the conducter connection on the mains
plug! Danger!
High loudspeaker levels can cause permanent hearing damage. You should therefore
avoid the direct vicinity of loudspeakers operating at high levels. Wear hearing protection
if continuously exposed to high levels.
When should I choose a directional or omnidirectional dispersion in the low-frequency
range?
Each direct radiating subwoofer has a omnidirectional dispersion in the low-frequency range.
Depending on local conditions it can come to spatial interferences. The cardioid dispersion
pattern resulting from this approach avoids unwanted energy behind the system that greatly
reduces the reverberant field at low frequencies and provides the greatest accuracy of low
frequency reproduction.
The directional (cardioid) dispersion offers a lot of significant advantages in the all-day
reinforcement work. The highest sound energy will be radiated just in the front very
homogeneously, on the side the damping increases and achieves on the rear side a very wide-
range excellent damping quality at all frequency range of more than 20 dB. For the first time the
whole frequency band from bass to mid/high can be adjusted to the audiences’ area. Especially in
an acoustical different location like marquees, glas buildings, open airs with level restriction or in
halls with large reverberation time the cardioid technology is an advantage. Even at very high
volume levels develop considerably less wall- and ceiling-reflection. The complete bass
reproduction explicitly gains in pressure and precision.

20
11.3 Connection shemes
SD7 OMNI (VSS 18 preset no. 1 & VL 750 preset no. 1)
Out B
audio input
right
audio input
left
dual
cable
dual
cable
Out A
for passive
sub
Out A
for passive
sub
Out B
SD 7 consists of: 2x VSS 18 + 2x VB 18 + 2x VL 750
1. Set-up PA: - place a VSS 18 to the left and right side in front of the audience
(on solid underground)
- place a VB 18 each on a VSS 18 or directly next to a VSS 18 (front in line)
- place the top units each on a distance rod on the VSS 18 or each on a high
stand (front in line)
2. Connection: - apply power supply connection always with the supplied PowerCon cable on
VSS 18 + VL 750 on one 16A fused electric circuit
- plug in the left + right audio signal (XLR cable) each on channel A on the
VSS 18, after this you have to link each audio signal with a XLR cable to the
top units (e.g. with a dual-cable from K.M.E., which includes the audio signal
and the power supply)
- connect the speaker output „Out A“ of VSS 18 each with a passive subwoofer
VB 18 with a Speakon cable (in this preset the speaker output „Out B“ is
configured for a passive top unit – crossover frequency 120 Hz)
- switch on the system components successively, Note! please turn down all
volume controls before switching on the system components to avoid an
undesirable sound reproduction, because the system components can start
in the “lock-function” (depending on adjustment), that means it may not react on
changes on the control panel
- after switching on the system components it is advisable to set the volume knobs
to „central click“ (=0dB) to have a defined volume level
- the volume controls for „Out A” and „Out B” are depending on the system volume
control (master), they are adjustable from -∞to +6 dB
