Versiton KGC-460 User manual

KGC-460
KGC-460-HP
Industrial Managed Multi-function
Gigabit Ethernet Media Converters
Firmware Rev1.0 up
User’s Manual
DOC.141231
-1-

(C) 2014 2015 KTI Networks Inc.
All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to
make any directive work (such as translation or transformation) without permission from KTI Networks Inc.
KTI Networks Inc. reserves the right to revise this documentation and to make changes in content from time to
time without obligation on the part of KTI Networks Inc. to provide notification of such revision or change.
For more information, contact:
United States KTI Networks Inc.
P.O. BOX 631008
Houston, Texas 77263-1008
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
URL: http://www.ktinet.com/
International Fax: [phone]
E-mail: [email protected]
URL: http://www.ktinet.com.tw/
-2-

The information contained in this document is subject to change without prior notice.
Copyright ©All Rights Reserved.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including the interference that may cause undesired operation.
CE NOTICE
Marking by the symbol indicates compliance of this equipment to the EMC directive of the European
Community. Such marking is indicative that this equipment meets or exceeds the following technical
standards:
EMC Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EN 61000-6-2
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
VCCI-A Notice
-3-

-4-
Table of Contents
1. Introduction......................................................................................................................................................6
1.1 Features.................................................................................................................................7
1.2 Product Panels.......................................................................................................................8
1.3 LED Indicators .......................................................................................................................9
1.4 Specifications.........................................................................................................................9
2. Installation......................................................................................................................................................12
2.1 Unpacking............................................................................................................................12
2.2 Safety Cautions....................................................................................................................12
2.3 DIN-Rail Mounting................................................................................................................13
2.4 Panel Mounting....................................................................................................................15
2.5 Applying Power....................................................................................................................17
2.6 Alarm Relay Output..............................................................................................................18
2.7 Reset Button ........................................................................................................................18
2.8 Making UTP Connections .................................................................................................... 20
2.9 Making Fiber Connection.....................................................................................................21
2.10 Making PoE PSE Connections (KGC-460-HP).................................................................. 23
2.11 LED Indication....................................................................................................................24
3. Manage the Device........................................................................................................................................26
3.1 IP Address & Password .......................................................................................................26
3.2 Configuring IP Address & Password via telnet.....................................................................26
3.3 Configuring IP Address via Web Interface........................................................................... 27
3.4 Reference Manuals for Web, Telnet Management .............................................................. 29
3.5 Configuration for SNMP Management................................................................................. 30
3.6 SNMP MIBs .........................................................................................................................31
4. Function Modes.............................................................................................................................................33
4.1 Operating Mode Configuration.............................................................................................33
4.2 2MC Mode ...........................................................................................................................36
4.3 F2F MC Mode......................................................................................................................37
4.4 2C1F Mode ..........................................................................................................................38
4.5 4P Switch Mode...................................................................................................................39

-5-
5. Redundant Ring Application........................................................................................................................40
5.1 Auto Multi-Ring Technology for 4-Port Switch Mode ........................................................... 40
5.2 Redundant Ring Applications with industrial standard RSTP protocol.................................41

1. Introduction
The KGS-460 series is an industrial managed Gigabit Ethernet device which is featured with the following
network ports:
Two 10/100/1000Mbps Gigabit copper ports
Two dual-speed SFP slots for 100Base-FX 1000Base-X
The device is featured the function modes:
Dual media converts mode
Dual media converters sharing redundant fiber uplink mode
Fiber to fiber media converter mode
4-port switch mode
Model Definitions
Model Copper
ports
SFP slots PoE PSE
function
Power via
DC input
Software
managed
KGS-460-HP 2 2 dual-speed 2 PSE ports 
KGS-460 2 2 dual-speed - 
-6-

-7-
1.1 Features
Provides 2 10/100/1Gbps copper ports and 2 dual-speed SFP fiber port slots
Supports 802.3x flow control for full-duplex and backpressure for half-duplex
All copper ports support auto-negotiation and auto-MDI/MDI-X detection
Dual-speed SFP slots support 100BASE-FX and 1000BASE-X SFP
SFP featured with Digital Diagnostic Monitoring (DDM) support
Link fault pass through (LFPT) featured for all media converter modes
Redundant ring function featured for 4-port switch mode
Supports Gigabit full wire speed bridging & forwarding performance
Jumbo frame support up to 9600 bytes
Alarm relay output for events of power failure and configured port link down
Green Ethernet power saving
802.3az Energy Efficient Ethernet (EEE) support
Optional high power PoE PSE function on copper ports
Management:
- HTTP/HTTPS/SSHv2/CLI telnet/CLI console/SNMP v1/v2c/v3/RMON
- DHCP/DHCPv6 client, DHCP relay, DNS client, NTPv4
- IPv6 support, System Syslog, Configuration down/upload, Software upload
Security:
- NAS, 802.1X, MAC-based/Web/CLI authentication
- IP MAC binding, TACACS+, IP source guard
Layer 2:
- QoS, 802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, Port Isolation
- Storm control for UC/MC/BC packets, Static MAC configuration
- IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
- Multiple Spanning Tree - MSTP. RSTP, STP
Auto Multi-Ring (KAMR) Technology:
- Fast failover response time, Auto recovery when failure is repaired
- Supports up to five redundant rings, Works with RSTP network

1.2 Product Panels
The following figure illustrates the front panel and rear panel of the device:
KGC-460-HP Front panel
KGC-460 Front panel
-8-

Up panel
1.3 LED Indicators
LED Function
POWER Power status
MNGT Management status
P1, P2 SPEED LEDs Speed status & PoE status
P1, P2 LINK LEDs Link & activity status
P3, P4 LEDs Speed & link & activity status of P3 & P4 SFP ports
1.4 Specifications
10/100/1000 Copper Ports (Port 1, Port 2)
Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation or software control
Transmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP
Dual-speed SFP Slots (Port 3, Port 4)
Compliance IEEE 802.3u 100Base-FX
IEEE 802.3z 1000Base-SX/LX (mini-GBIC)
Connectors SFP for optional SFP type fiber transceivers
Configuration Auto 1000Mbps, Full duplex
Forced 100Mbps, Full duplex
Transmission rate 100Mbps and 1000Mbps
Network cables MMF 50/125 60/125, SMF 9/125
Eye safety IEC 825 compliant -9-

-10-
Power over Ethernet PSE Function (KGC-460-HP)
PSE Ports Port 1, Port 2
Power output pins Positive of power voltage: pin 1,2
Negative of power voltage: pin 3,6
Standard IEEE 802.3at
Classification PD Class 0 ~ 4 detection
Power Delivery 35W max. (per port) at port output for Cat.5 distance up to 100 meters
Protection Under voltage protection
Over voltage protection
Over current detection
Switching Functions
MAC Addresses Table 8K entries
Forwarding & filtering Non-blocking, full wire speed
Switching technology Store and forward
Maximum packet length 9.6K bytes
IP Multicast groups 8192 supported
Flow control IEEE 802.3x pause frame base for full duplex operation
Back pressure for half duplex operation
Terminal Block Connector
DC power input Screwed euro terminal block: & contacts
OperatingInput Voltages +8 ~ +60VDC (General applications)
+45 ~ +57VDC (PoE applications)
* Warning: The -48VDC power supply is not supported.
Power consumption 5W max. @12VDC (Full load with no PoE support)
75W max. (Full load with 2 PoE max. output)
Alarm relay output 3 terminal contacts (30VDC/1A max. or 120VAC/0.5A max.)
NC contacts: normal – shored, alarm – open
NO contacts: normal – open, alarm – shored
Alarm events Power failure, Specific port link fault (software configured)
Mechanical
Dimension (base) 140 x 106 x 42 mm (HxDxW)
Housing Enclosed metal with no fan
Mounting Din-rail mounting, Panel mounting (optional)

-11-
Environmental
Operating Temperature Typical -30℃~ +75℃*
Storage Temperature -40℃~ +85℃
Relative Humidity 5% ~ 90% non-condensing
* +60
℃ ~ +75 ℃ with 1m/s air flow
Electrical Approvals
FCC Part 15 rule Class A
CE EMC Class A, EN 61000-6-4, EN 61000-6-2
Safety / LVD IEC 60950-1

-12-
2. Installation
2.1 Unpacking
The product package contains:
The device
One product CD-ROM
2.2 Safety Cautions
To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the
following precautions.
Do not service any product except as explained in your system documentation.
Opening or removing covers may expose you to electrical shock.
Only a trained service technician should service components inside these compartments.
If any of the following conditions occur, unplug the product from the electrical outlet and replace
the part or contact your trained service provider:
The power cable, extension cable, or plug is damaged.
An object has fallen into the product.
The product has been exposed to water.
The product has been dropped or damaged.
The product does not operate correctly when you follow the operating instructions.
Do not push any objects into the openings of your system. Doing so can cause fire or electric
shock by shorting out interior components.
Operate the product only from the type of external power source indicated on the electrical ratings
label. If you are not sure of the type of power source required, consult your service provider or
local power company.

2.3 DIN-Rail Mounting
In the product package, a DIN-rail bracket is provided for mounting the switch in a industrial DIN-rail
enclosure.
The steps to mount the switch onto a DIN rail are:
1. Install the mounting bracket onto the switch unit as shown below:
2. Attach bracket to the lower edge of the DIN rail and push the unit upward a little bit until the bracket can
clamp on the upper edge of the DIN rail.
3. Clamp the unit to the DIN rail and make sure it is mounted securely.
-13-

Dimensions:
-14-

2.4 Panel Mounting
The switches are provided with an optional panel mounting bracket. The bracket supports mounting the switch
on a plane surface securely. The mounting steps are:
1. Install the mounting bracket on the switch unit.
2. Screw the bracket on the switch unit.
3. Screw the switch unit on a panel. Three screw locations are shown below:
-15-

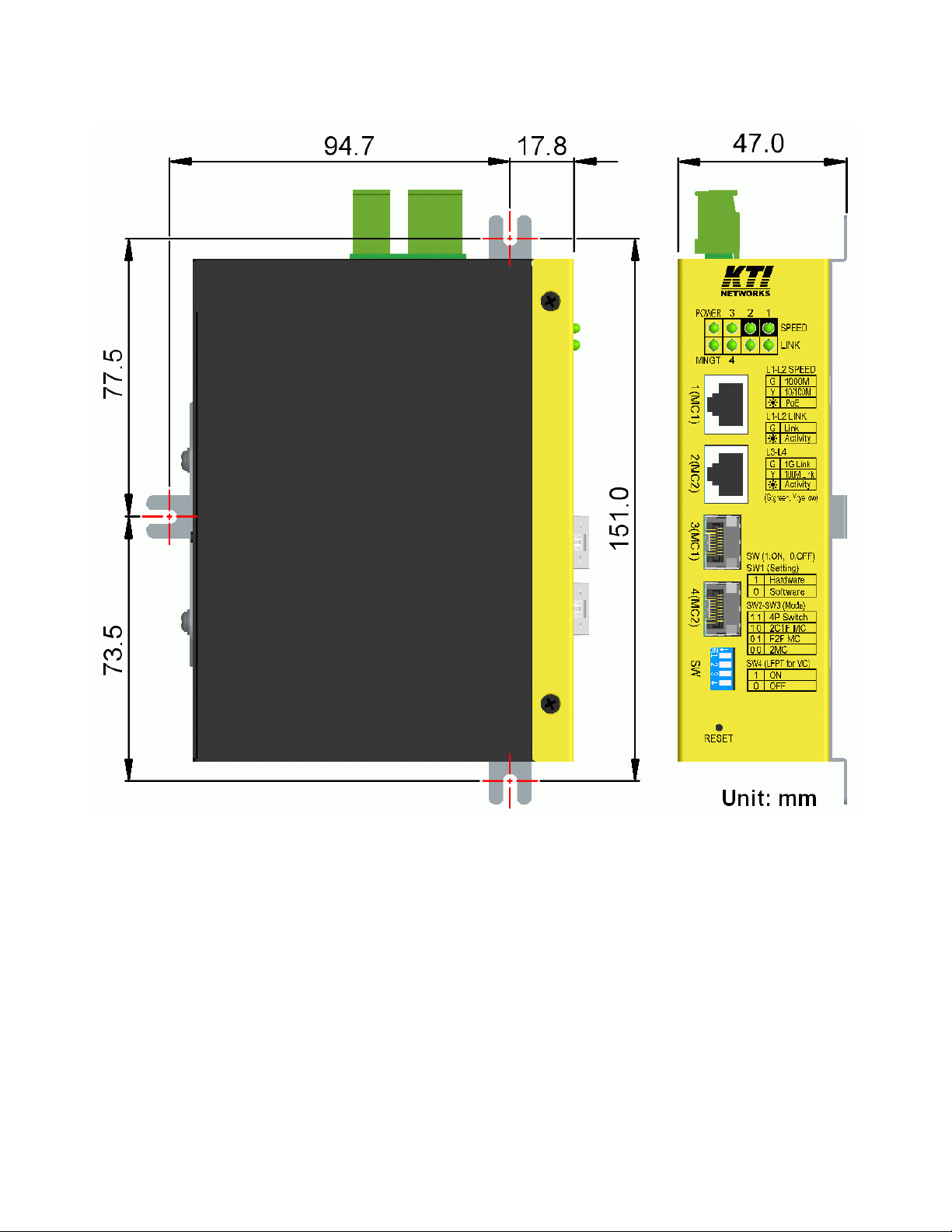

Dimensions:
-16-

2.5 Applying Power
Power pins of the terminal block connector
1 2
Pin 
Vdc Positive () input terminal
Vdc Negative () input terminal
Pin 3 NC, Reserved
Any of the Vdc+/Vdc- pairs can be used to receive DC power from an external power system. Or, one can be
used to deliver the power received on another to next switch in cascading way.
Vdc Input specifications
Applications Power per PSE port DC working voltage
General - +8V ~ +60VDC
PoE 15.4W max. +45V ~ +57VDC (Typical 48V)
High power PoE (PoE+) 35W max. +45V ~ +57VDC (+52V up for 35W)
WARNING: The -48VDC power supply is not supported.
A 2P terminal plugs are provided together with the switch as shown below:
Power wires : 24 ~ 12AWG (IEC 0.5~2.5mm2)
-17-
Install the power source wires with the plug properly. Then, plug in input contacts. If cascading the power to
next switch device is needed, install the power wires and plug for another switch. Then, use another Vdc
contacts.

Note:
1. Only up to four device units can be cascaded to receive power from one main power input source.
2. The maximal length of the power wire is 1 meter.
2.6 Alarm Relay Output
Alarm relay output is provided for reporting failure events to a remote alarm relay monitoring system. The
replay output is provided with three contacts (support two logic types) in the terminal block connector next
Vdc interfaces.
Alarm Relay output pins and logic:
4 5
Pin NO NO
Alarm relay output, NO (Normal Open) contacts
Open: normal, Shorted: Alarm
5 6
Pin NC NC
Alarm relay output, NC (Normal Closed) contacts
Shorted: normal, Open: Alarm
Either pair can be used depending on the logic requirement for the relay monitoring system.
Use the provided 3P terminal plug for signal wiring and plug into the contacts.
Alarm Events
Input power failure
Specific port link down (The specific ports can be configured by software.)
Note: Be sure the voltage applied on the contacts is within the specification of 30VDC/1A max. or
120VAC/0.5A max.
2.7 Reset Button
-18-

The reset button is used to perform a reset to the switch. It is not used in normal cases and can be used for
diagnostic purpose. If any network hanging problem is suspected, it is useful to push the button to reset the
switch without turning off the power. Check whether the network is recovered.
The button can also be used to restore the software configuration settings to factory default values.
The operations are:
Operation Function
Press the button and release during switch operation Reset & boot up the switch. The behavior is
same as power boot procedure.
Press the button until MNGT-LED steady ON Boot & restore all factory default settings
-19-

-20-
2.8 Making UTP Connections
The 10/100/1000 RJ-45 copper ports support the following connection types and distances:
Network Cables
10BASE-T: 2-pair UTP Cat. 3, 4, 5 , EIA/TIA-568B 100-ohm
100BASE-TX: 2-pair UTP Cat. 5, EIA/TIA-568B 100-ohm
1000BASE-T: 4-pair UTP Cat. 5 or higher (Cat.5e is recommended), EIA/TIA-568B 100-ohm
Link distance: Up to 100 meters for all above
Auto MDI/MDI-X Function
This function allows the port to auto-detect the twisted-pair signals and adapts itself to form a valid MDI to
MDI-X connection with the remote connected device automatically. No matter a straight through cable or
crossover cable is connected, the ports can sense the receiving pair automatically and configure itself to match
the rule for MDI to MDI-X connection. It simplifies the cable installation.
Auto-negotiation Function
The ports are featured with auto-negotiation function and full capability to support connection to any Ethernet
devices. The port performs a negotiation process for the speed and duplex configuration with the connected
device automatically when each time a link is being established. If the connected device is also
auto-negotiation capable, both devices will come out the best configuration after negotiation process. If the
connected device is incapable in auto-negotiation, the switch will sense the speed and use half duplex for the
connection.
Port Configuration Management
For making proper connection to an auto-negotiation incapable device, it is suggested to use port control
function via software management to set forced mode and specify speed and duplex mode which match the
configuration used by the connected device.
