Versitron VersiVision FVR1000M Series User manual

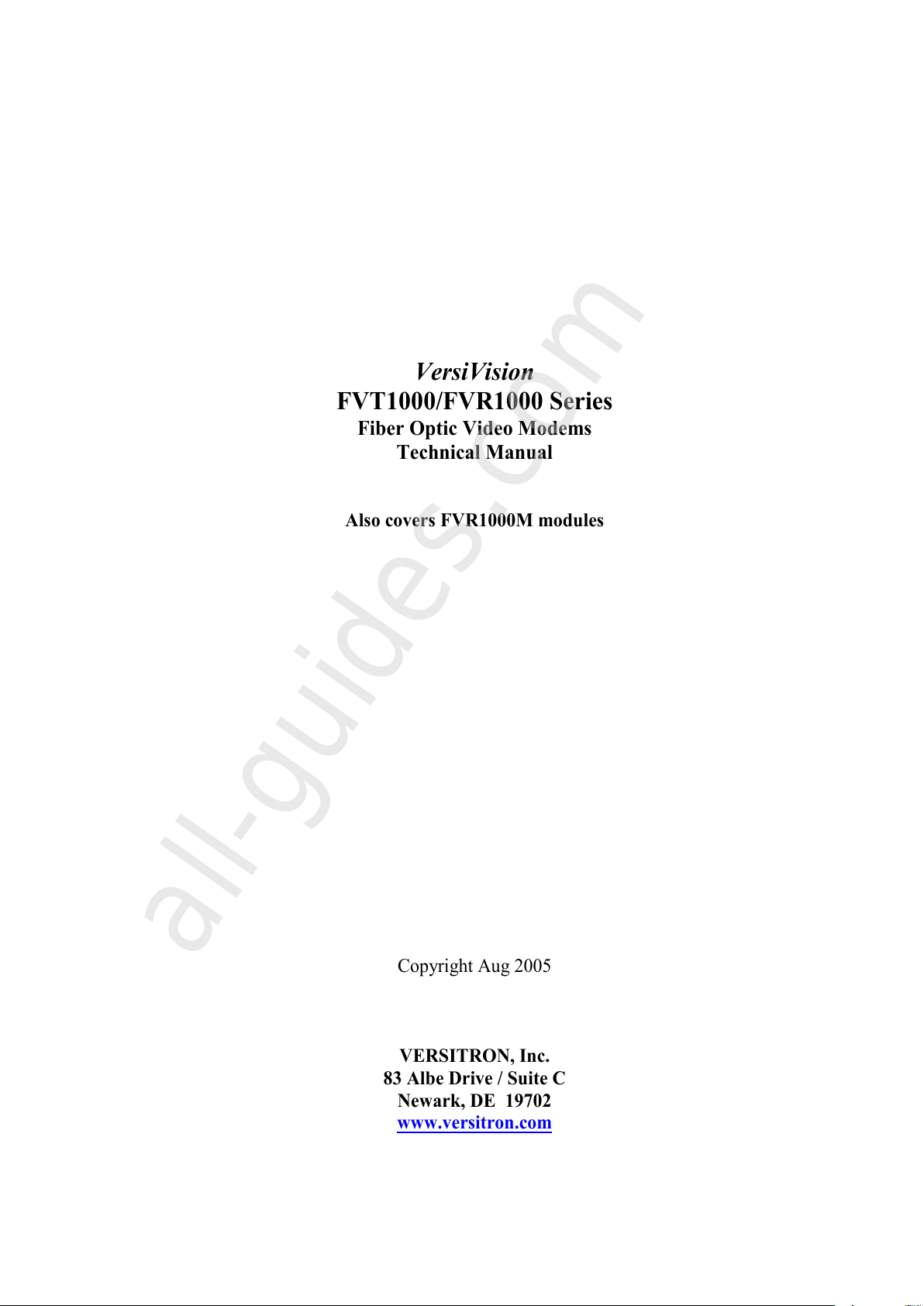

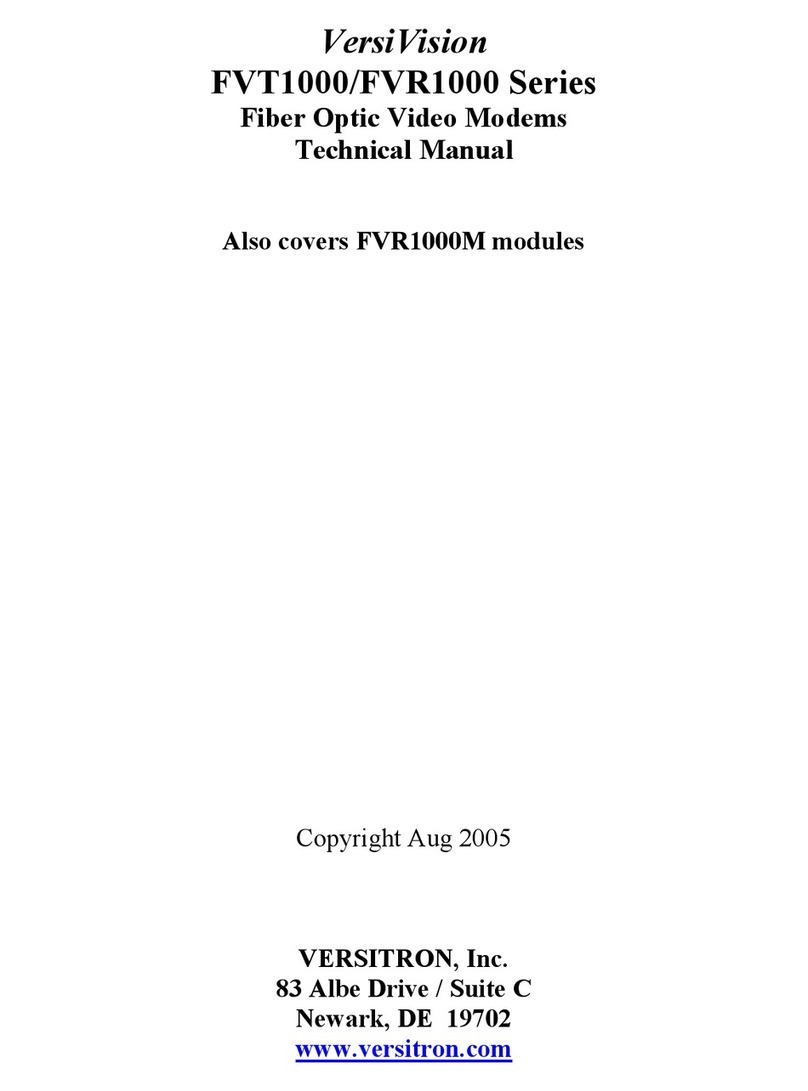

VersiVision
FVT1000/FVR1000 Series
Fiber Optic Video Modems
Technical Manual
Also covers FVR1000M modules
Copyright Aug 2005
VERSITRO , Inc.
83 Albe Drive / Suite C
ewark, DE 19702
www.versitron.com
All manuals and user guides at all-guides.com
all-guides.com

2

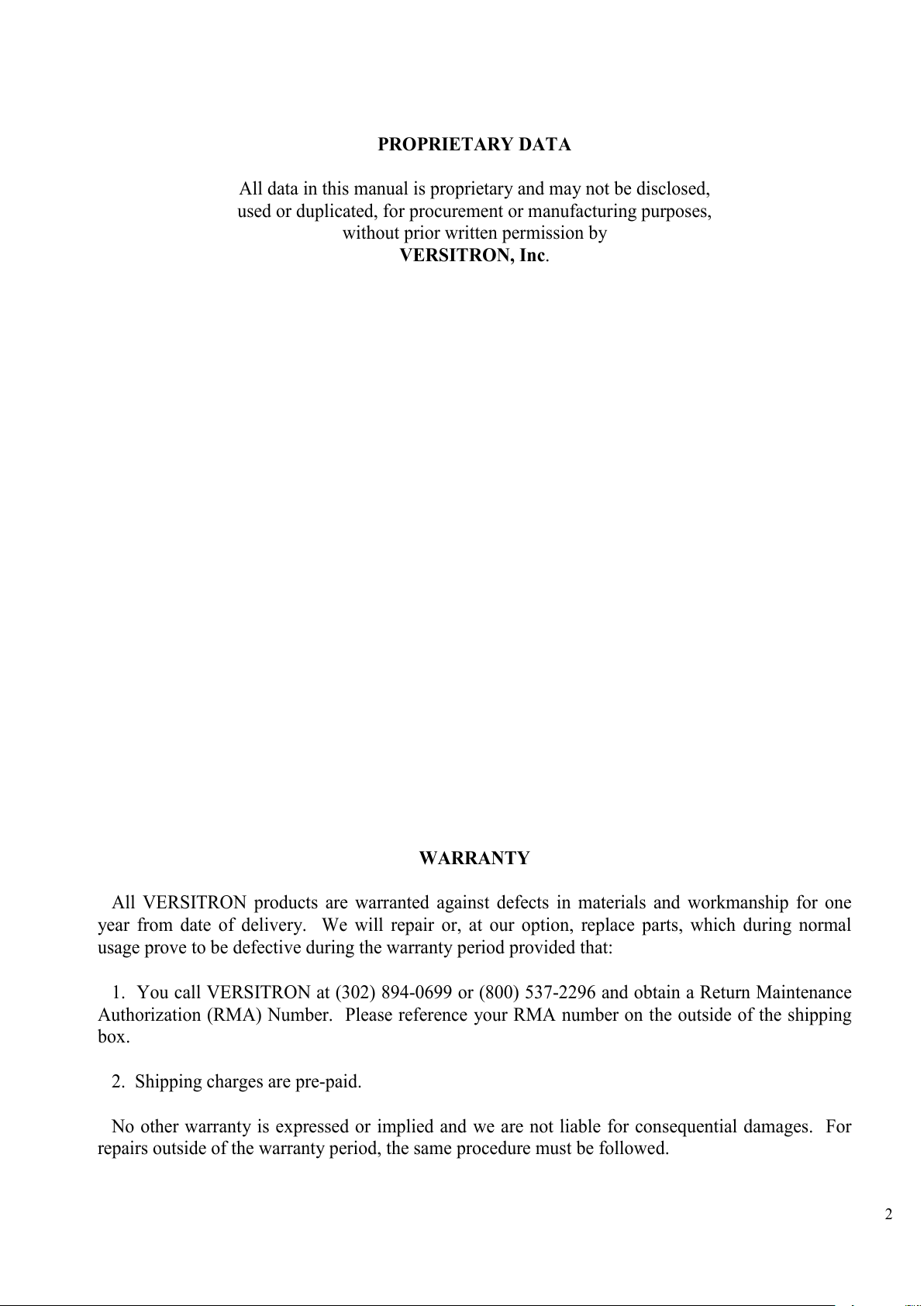

PROPRIETARY DATA
All data in this manual is proprietary and may not be disclosed,
used or duplicated, for procurement or manufacturing purposes,
without prior written permission by
VERSITRO , Inc.
WARRA TY
All VER ITRON products are warranted against defects in materials and workmanship for one
year from date of delivery. We will repair or, at our option, replace parts, which during normal
usage prove to be defective during the warranty period provided that:
1. You call VER ITRON at [phone] or [phone] and obtain a Return Maintenance
Authorization (RMA) Number. Please reference your RMA number on the outside of the shipping
box.
2. hipping charges are pre-paid.
No other warranty is expressed or implied and we are not liable for consequential damages. For
repairs outside of the warranty period, the same procedure must be followed.
All manuals and user guides at all-guides.com

3

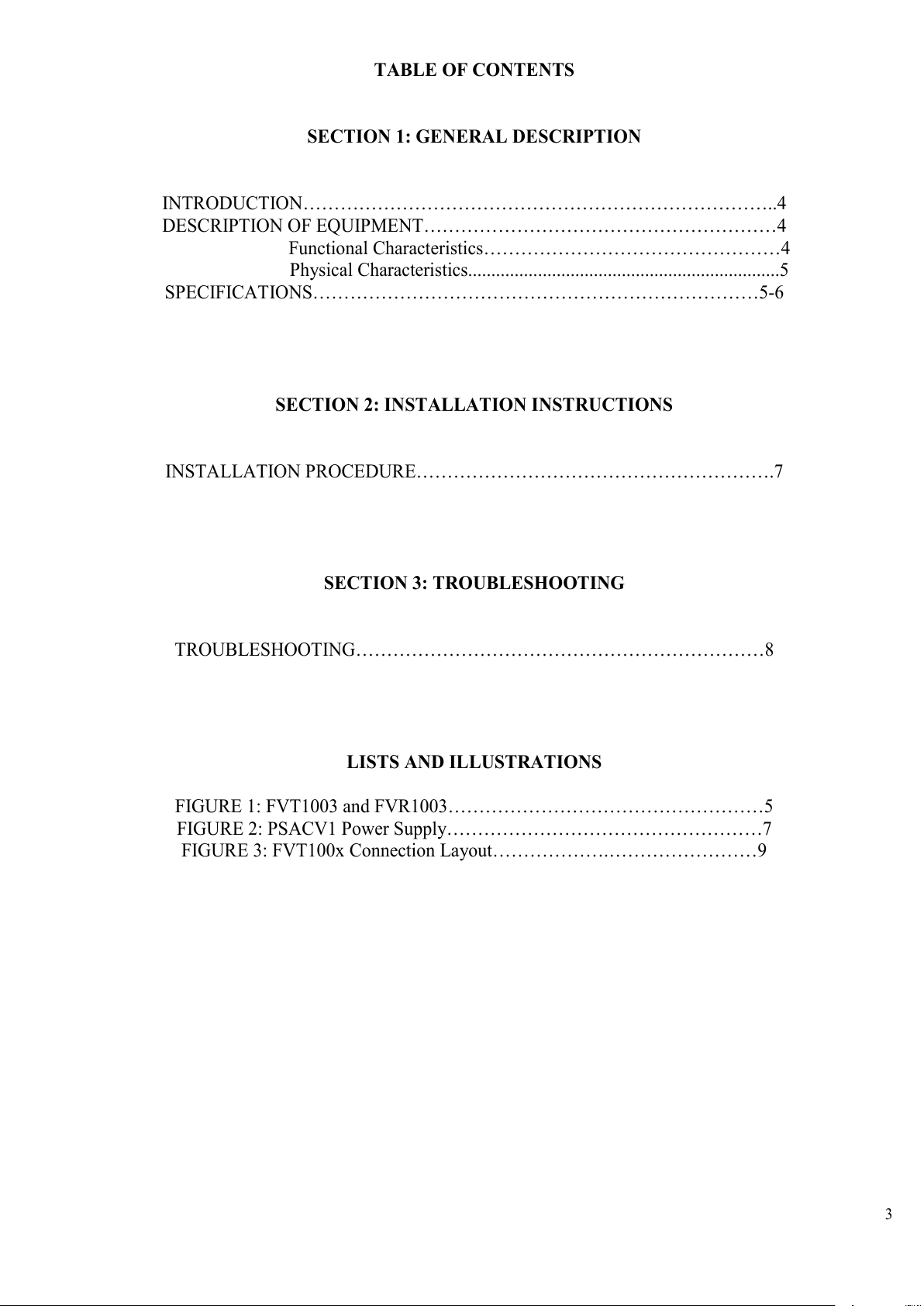

TABLE OF CO TE TS
SECTIO 1: GE ERAL DESCRIPTIO
INTRODUCTION…………………………………………………………………..4
DE CRIPTION OF EQUIPMENT…………………………………………………4
Functional Characteristics…………………………………………4
Physical Characteristics...................................................................5
PECIFICATION ………………………………………………………………5-6
SECTIO 2: I STALLATIO I STRUCTIO S
IN TALLATION PROCEDURE………………………………………………….7
SECTIO 3: TROUBLESHOOTI G
TROUBLE HOOTING…………………………………………………………8
LISTS A D ILLUSTRATIO S
FIGURE 1: FVT1003 and FVR1003……………………………………………5
FIGURE 2: P ACV1 Power upply……………………………………………7
FIGURE 3: FVT100x Connection Layout……………….……………………9
All manuals and user guides at all-guides.com

4
SECTIO 1
DESCRIPTIO OF EQUIPME T
I TRODUCTIO
This manual provides information on the installation and operation of the VersiVision
FVT1000/FVR1000 eries Fiber Optic Video Modems. ection 1 contains a general description of the
equipment. ection 2 contains installation instructions. ection 3 contains maintenance and
troubleshooting information.

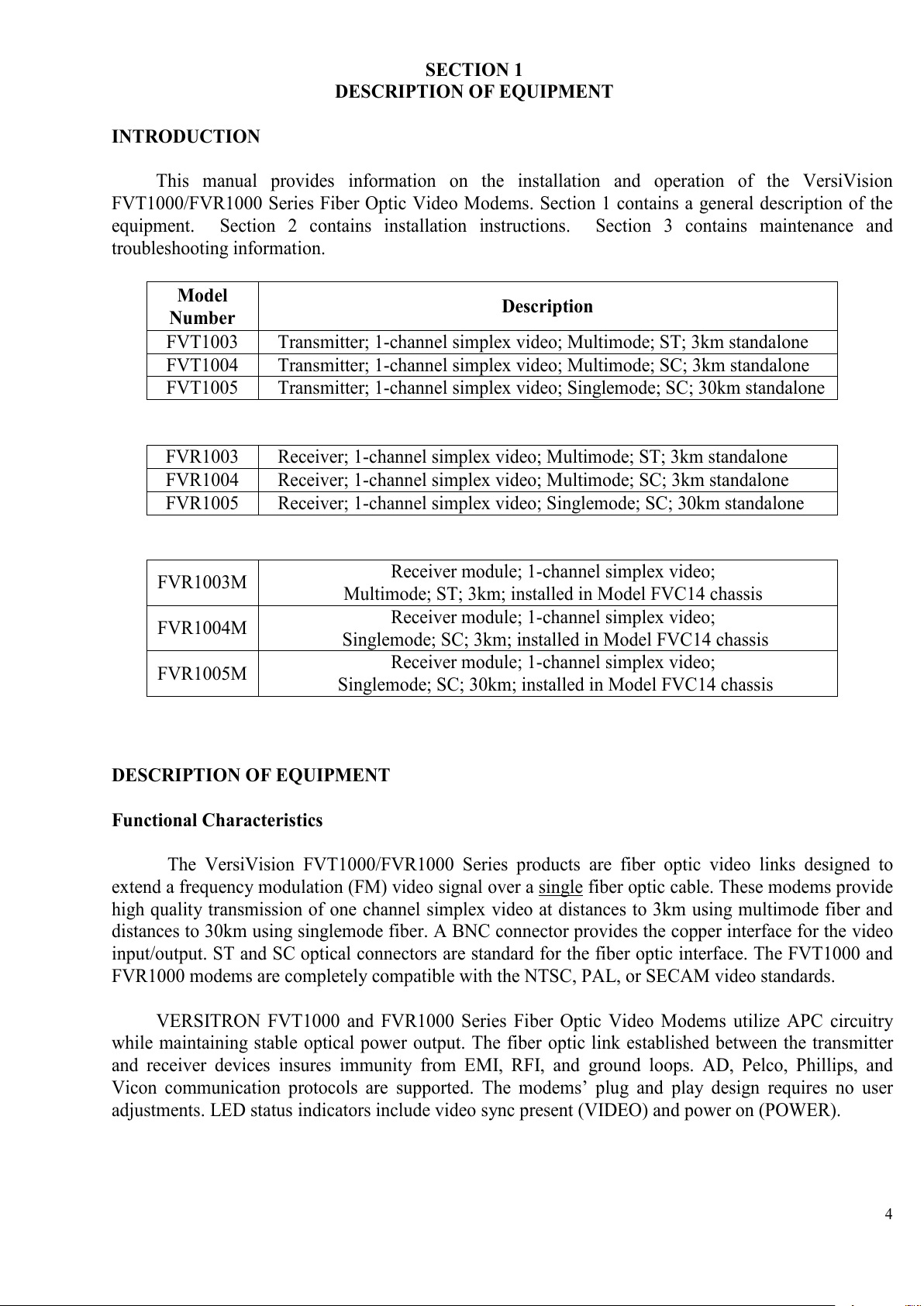

Model
umber Description
FVT1003 Transmitter; 1-channel simplex video; Multimode; T; 3km standalone
FVT1004 Transmitter; 1-channel simplex video; Multimode; C; 3km standalone
FVT1005 Transmitter; 1-channel simplex video; inglemode; C; 30km standalone
FVR1003 Receiver; 1-channel simplex video; Multimode; T; 3km standalone
FVR1004 Receiver; 1-channel simplex video; Multimode; C; 3km standalone
FVR1005 Receiver; 1-channel simplex video; inglemode; C; 30km standalone
FVR1003M Receiver module; 1-channel simplex video;
Multimode; T; 3km; installed in Model FVC14 chassis
FVR1004M Receiver module; 1-channel simplex video;
inglemode; C; 3km; installed in Model FVC14 chassis
FVR1005M Receiver module; 1-channel simplex video;
inglemode; C; 30km; installed in Model FVC14 chassis
DESCRIPTIO OF EQUIPME T
Functional Characteristics
The VersiVision FVT1000/FVR1000 eries products are fiber optic video links designed to
extend a frequency modulation (FM) video signal over a single fiber optic cable. These modems provide
high quality transmission of one channel simplex video at distances to 3km using multimode fiber and
distances to 30km using singlemode fiber. A BNC connector provides the copper interface for the video
input/output. T and C optical connectors are standard for the fiber optic interface. The FVT1000 and
FVR1000 modems are completely compatible with the NT C, PAL, or ECAM video standards.
VER ITRON FVT1000 and FVR1000 eries Fiber Optic Video Modems utilize APC circuitry
while maintaining stable optical power output. The fiber optic link established between the transmitter
and receiver devices insures immunity from EMI, RFI, and ground loops. AD, Pelco, Phillips, and
Vicon communication protocols are supported. The modems’ plug and play design requires no user
adjustments. LED status indicators include video sync present (VIDEO) and power on (POWER).
All manuals and user guides at all-guides.com

5
Physical Characteristics
The VersiVision FVT1000 transmitter and FVR1000 receiver modems are available as standalone
devices for easy plug and play installation. In addition, the FVR1000 receiver modems can be ordered as
circuit card modules ( ee Chart Above) for installation in the Model FVC14 rack-mount chassis. The
14-slot chassis fits in a standard 19” rack and is offered with either 110VAC or 220VAC power
supplies. The dimensions of the FVT1000 and FVR1000 standalone devices are 7.5in (L) x 6.3in (W) x
1.2in (H).

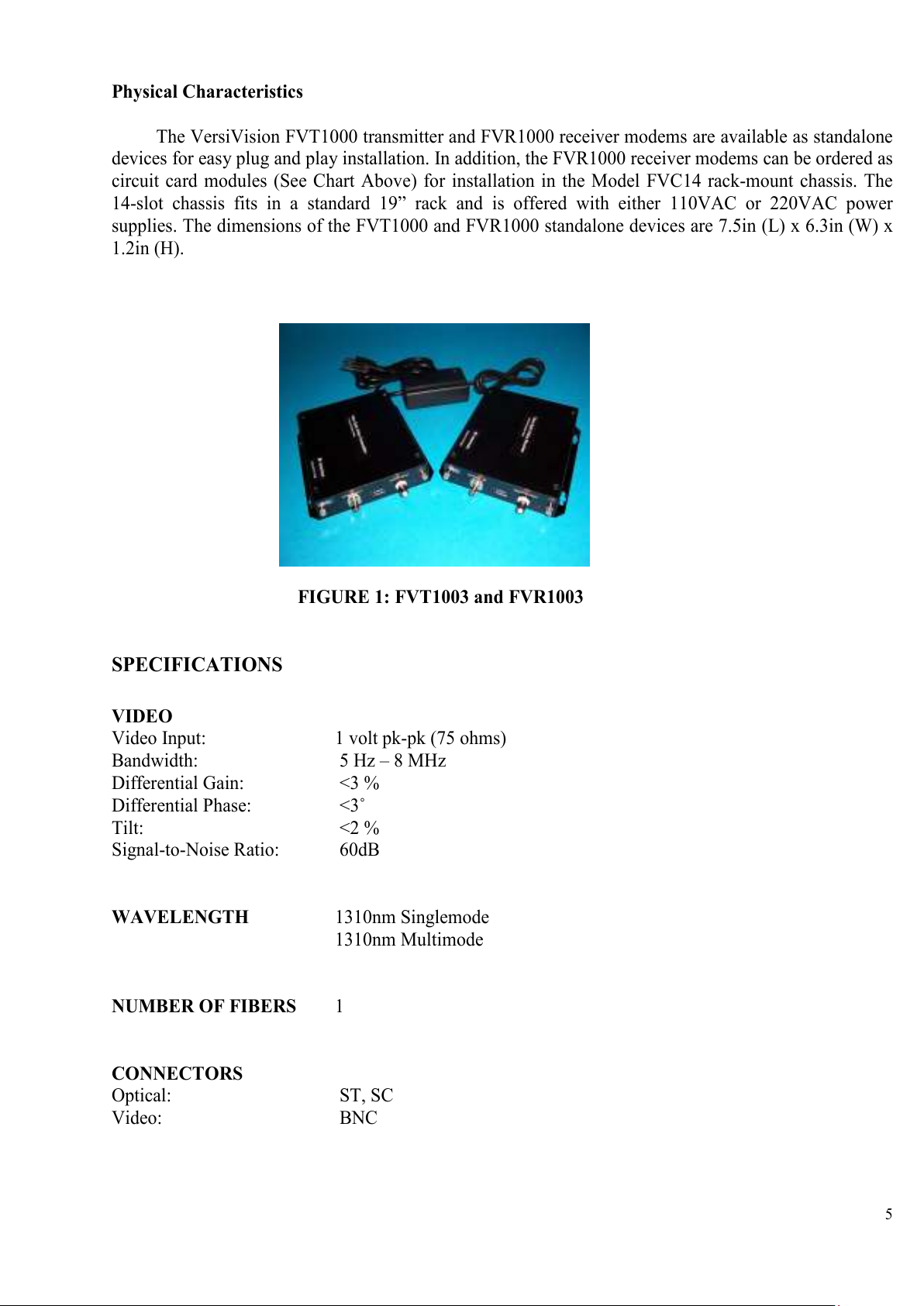

FIGURE 1: FVT1003 and FVR1003
SPECIFICATIO S
VIDEO
Video Input: 1 volt pk-pk (75 ohms)
Bandwidth: 5 Hz – 8 MHz
Differential Gain: <3 %
Differential Phase: <3˚
Tilt: <2 %
ignal-to-Noise Ratio: 60dB
WAVELE GTH 1310nm inglemode
1310nm Multimode
UMBER OF FIBERS 1
CO ECTORS
Optical: T, C
Video: BNC
All manuals and user guides at all-guides.com

6

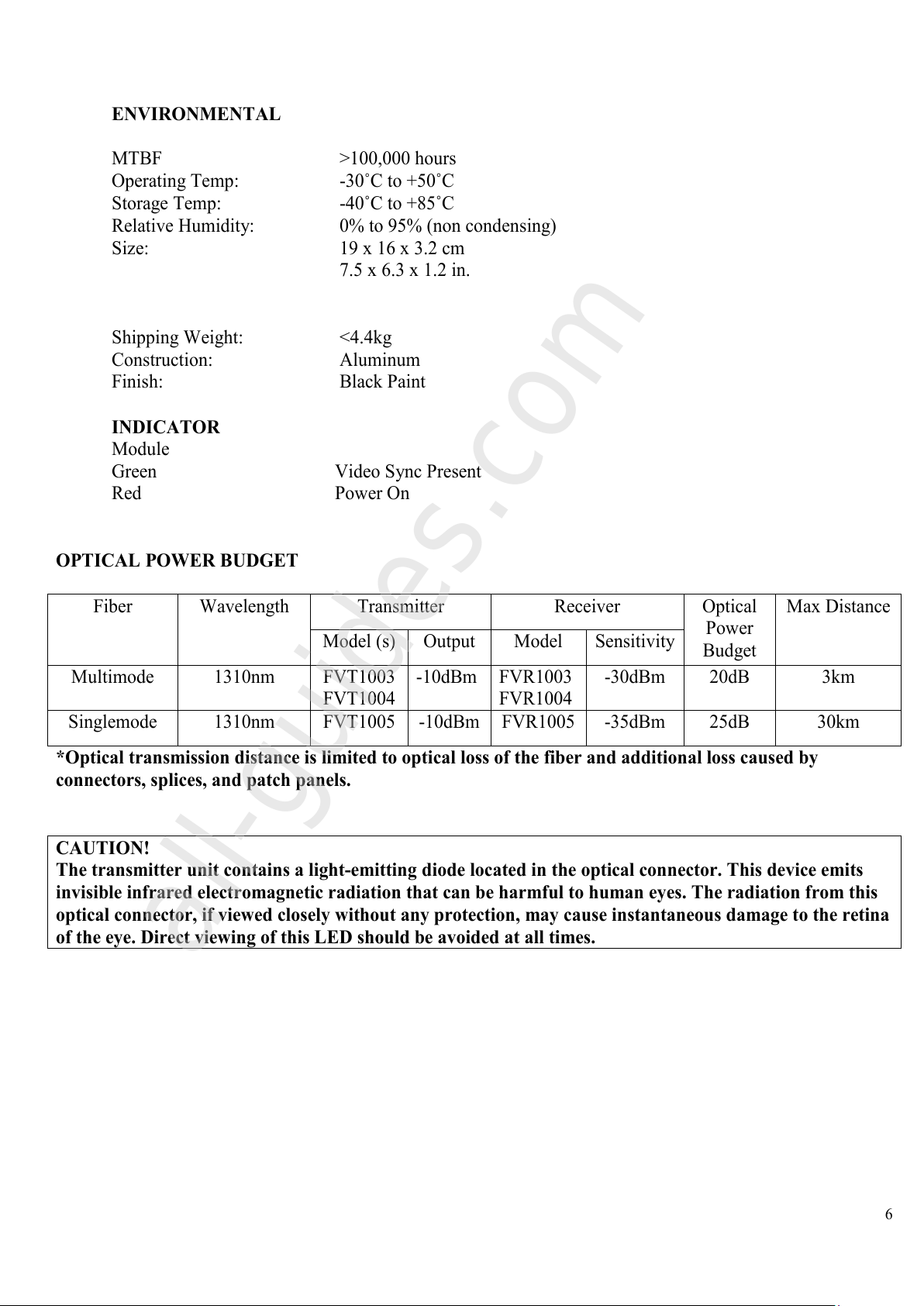

E VIRO ME TAL
MTBF >100,000 hours
Operating Temp: -30˚C to +50˚C
torage Temp: -40˚C to +85˚C
Relative Humidity: 0% to 95% (non condensing)
ize: 19 x 16 x 3.2 cm
7.5 x 6.3 x 1.2 in.
hipping Weight: <4.4kg
Construction: Aluminum
Finish: Black Paint
I DICATOR
Module
Green Video ync Present
Red Power On
OPTICAL POWER BUDGET
Transmitter Receiver
Fiber Wavelength
Model (s) Output Model ensitivity
Optical
Power
Budget
Max Distance
Multimode 1310nm FVT1003
FVT1004
-10dBm FVR1003
FVR1004
-30dBm 20dB 3km
inglemode 1310nm FVT1005 -10dBm FVR1005 -35dBm 25dB 30km
*Optical transmission distance is limited to optical loss of the fiber and additional loss caused by
connectors, splices, and patch panels.
CAUTIO !
The transmitter unit contains a light-emitting diode located in the optical connector. This device emits
invisible infrared electromagnetic radiation that can be harmful to human eyes. The radiation from this
optical connector, if viewed closely without any protection, may cause instantaneous damage to the retina
of the eye. Direct viewing of this LED should be avoided at all times.
All manuals and user guides at all-guides.com
all-guides.com

7
SECTIO 2
I STALLATIO I STRUCTIO S
I STALLATIO PROCEDURE

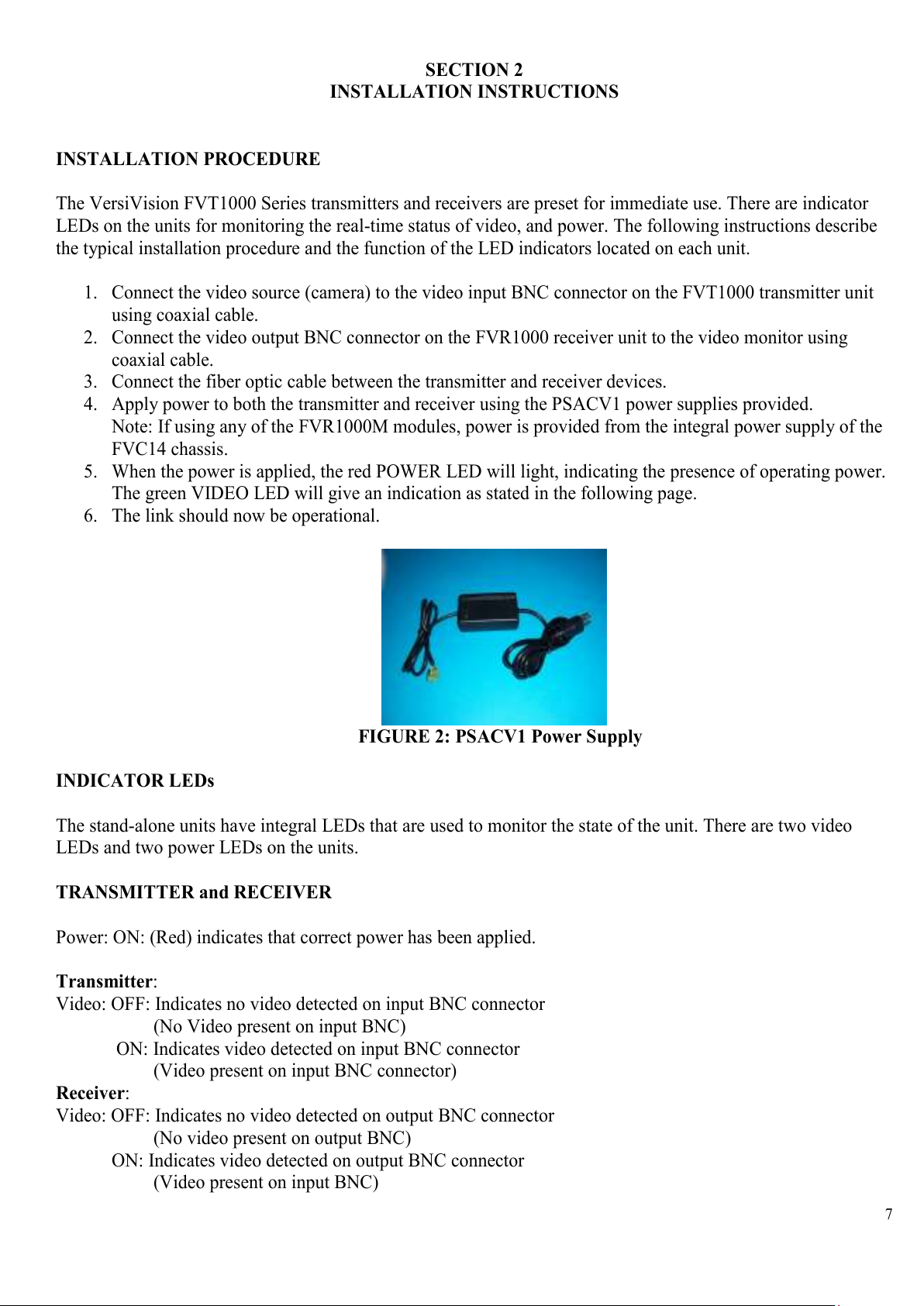

The VersiVision FVT1000 eries transmitters and receivers are preset for immediate use. There are indicator
LEDs on the units for monitoring the real-time status of video, and power. The following instructions describe
the typical installation procedure and the function of the LED indicators located on each unit.
1. Connect the video source (camera) to the video input BNC connector on the FVT1000 transmitter unit
using coaxial cable.
2. Connect the video output BNC connector on the FVR1000 receiver unit to the video monitor using
coaxial cable.
3. Connect the fiber optic cable between the transmitter and receiver devices.
4. Apply power to both the transmitter and receiver using the P ACV1 power supplies provided.
Note: If using any of the FVR1000M modules, power is provided from the integral power supply of the
FVC14 chassis.
5. When the power is applied, the red POWER LED will light, indicating the presence of operating power.
The green VIDEO LED will give an indication as stated in the following page.
6. The link should now be operational.
FIGURE 2: PSACV1 Power Supply
I DICATOR LEDs
The stand-alone units have integral LEDs that are used to monitor the state of the unit. There are two video
LEDs and two power LEDs on the units.
TRA SMITTER and RECEIVER
Power: ON: (Red) indicates that correct power has been applied.
Transmitter:
Video: OFF: Indicates no video detected on input BNC connector
(No Video present on input BNC)
ON: Indicates video detected on input BNC connector
(Video present on input BNC connector)
Receiver:
Video: OFF: Indicates no video detected on output BNC connector
(No video present on output BNC)
ON: Indicates video detected on output BNC connector
(Video present on input BNC)
All manuals and user guides at all-guides.com

8

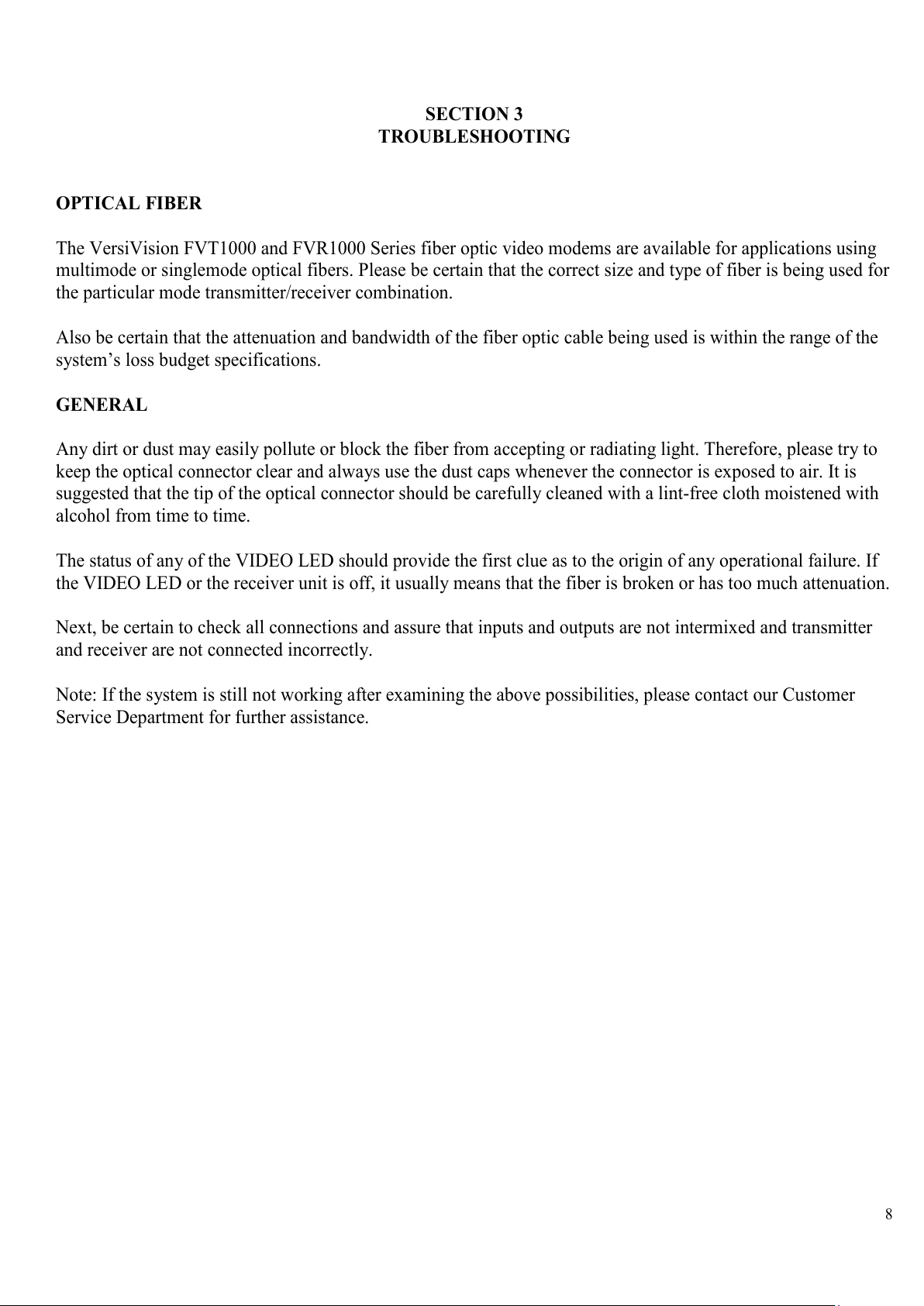

SECTIO 3
TROUBLESHOOTI G
OPTICAL FIBER
The VersiVision FVT1000 and FVR1000 eries fiber optic video modems are available for applications using
multimode or singlemode optical fibers. Please be certain that the correct size and type of fiber is being used for
the particular mode transmitter/receiver combination.
Also be certain that the attenuation and bandwidth of the fiber optic cable being used is within the range of the
system’s loss budget specifications.
GE ERAL
Any dirt or dust may easily pollute or block the fiber from accepting or radiating light. Therefore, please try to
keep the optical connector clear and always use the dust caps whenever the connector is exposed to air. It is
suggested that the tip of the optical connector should be carefully cleaned with a lint-free cloth moistened with
alcohol from time to time.
The status of any of the VIDEO LED should provide the first clue as to the origin of any operational failure. If
the VIDEO LED or the receiver unit is off, it usually means that the fiber is broken or has too much attenuation.
Next, be certain to check all connections and assure that inputs and outputs are not intermixed and transmitter
and receiver are not connected incorrectly.
Note: If the system is still not working after examining the above possibilities, please contact our Customer
ervice Department for further assistance.
All manuals and user guides at all-guides.com

9

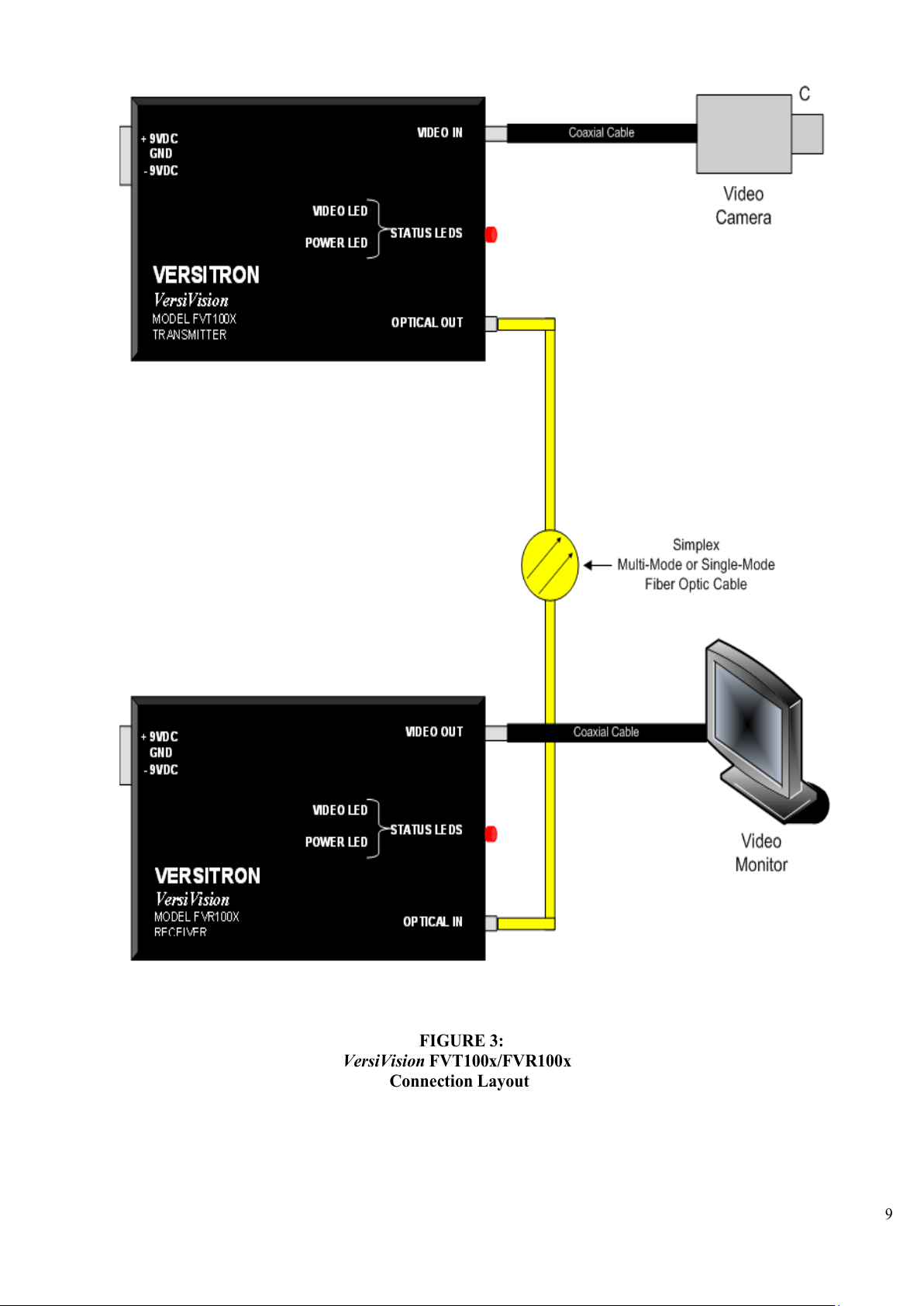

FIGURE 3:
VersiVision FVT100x/FVR100x
Connection Layout
All manuals and user guides at all-guides.com
