Vertex Effects Battery Supply User manual

PRODUCT
MANUAL
SPECS
Input
Outputs
Physical:
9VDC @ 100mA
5.5x2.1mm barrel connectors
center negative
(4) isolated 9VDC battery outputs
5.0” x 3.5” x 1.25”
14 oz. (without batteries)

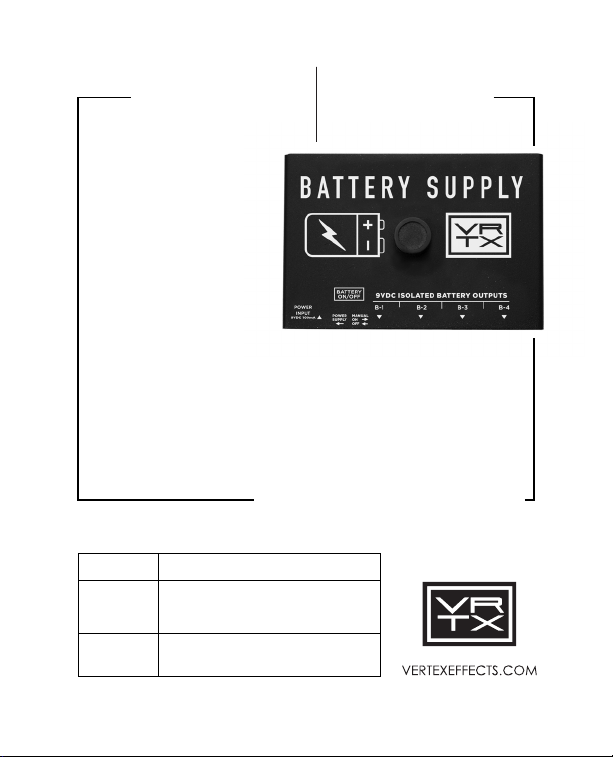

The Vertex Battery Supply
is an isolated 9vDC power
supply that allows you to
power 4 vintage/vintage-
style effects with 9v
batteries of your choice,
without the head ache
of having to open up or
unplug your pedals! With
the top mounted thumb-
screw, you can easily load
and unload 4 9vDC
batteries to give vintage
effects the liveliness and responsiveness that only occurs when
your battery's voltage and current output react to your pick
attack. But you won't be sacrificing reliability for tone-your
batteries will only be used when powered by the 9vDC in
(supply can also function w / o 9vDC in).
Find out why players like Eric Johnson, Scott Henderson, Michael
Landau, and Josh Smith (to name a few) prefer the sound and
feel of a 9v battery over a traditional 9vDC power supply with
the Vertex Battery Supply!
BATTERY
SUPPLY
Assembled in California
*Cables not included-requires 2.1 mm
barrel standard power cables.

9V DC IN 9V DC OUT 9V DC OUT 9V DC OUT 9V DC OUT
CB
1 2 3 4
A
Input from external
9VDC power supply
FEATURES
SCAN ME
Scan the QR code above
with your phone camera
to access our Battery
Supply Youtube Playlist!
A
B
C
9VDC l 00ma Input (power with a wallwart or an
output on your existing power supply).
The power switch toggles options:
LEFT: Batteries on, only when powered by 9vDC in.
RIGHT: Batteries always on.
*If nothing is plugged into the 9vDC in, LEFT=Global off.
Battery-powered 9vDC out (4).
*We suggest powering only your wah, overdrive, distortion, and fuzz pedals
with the BPSU - 9v Carbon batteries will give the best tonal results.
