VeryFit ID107Plus HR User manual

Heart Rate Fitness Tracker
Manual
Congratulations on your new fitness tracker and
thank you for choosing our device.Please read the
user guide carefully before using.

Settings
Supports Bluetooth 4.0 & above
IOS 7.1 & above Android 4.4 & above
1. App Downloading
-01-
Use the VeryFitPro app on iOS or Android smartphones to setup the
wristband as follows:
System requirements:
Option 1:
Search and download the “VeryFitPro” app from the App Store or
Google Play.
Option 2:
You can also use a QR-code scanner to scan the QR-code and
open the link. (We recommend you copy and paste the link into your
browser as some QR-code scanners may not directly open it).
EN

2. Activating the device
3. Screen Operation
①Please pull out the band from the strap gently. To do this, you
can pull down on the strap where it says ‘OPEN’ just below the
device on the inside of the band.
②Connect the device to a USB charging port (5V/500mAh) and
charge before initial use. Once connected, the current battery level
will be displayed on the screen for a short time. To view the current
battery level again, just gently tap the screen once.
-02-
Touch key
EN
Sliding up or down on
the screen switches
between modes and
wakes the screen up.
Single tapping the
touch key returns the
device to the main
interface or goes back
to the previous screen.
Single tap the screen to
check data.

Know your device
1. How to Wear It
Wear the device on your wrist horizontally, about 2 cm from the
carpal, the same way as you would wear a watch.
3. Operating Time
Continuously works for 7 days under normal conditions.
2. Heart Rate Monitoring
To monitor heart rate more accurately, please wear the device on
the upper portion of your wrist and a bit tighter than usual when you
are taking exercise.
Note: The heart rate monitoring function is set to ON by default. If
you do not want this function to continually monitor your heart rate,
you can switch off manually in the settings of the device.
Please make sure your smartphone’s
Bluetooth is ON, your band is active and the
Bluetooth of the device is ON. Open the
“VeryFitPro” app and go
to—“Device”---“Bind Device”. It will then
show a list of devices, select your device
(ID107Plus HR) and complete connecting
4. Device Connection
-03-
Add device
Select device
EN

Once the app and the device are
successfully paired, the app will
automatically sync with the device upon
opening the app. For further
synchronization within the app, pull
down the main page of the app.
-04-
Take a Breath
4. Various Interfaces
Screen protection
interface
Message Alert Weather Music Control Function Menu
Main Interface Multi-sport
Mode
5. App synchronization
EN

Essential Features

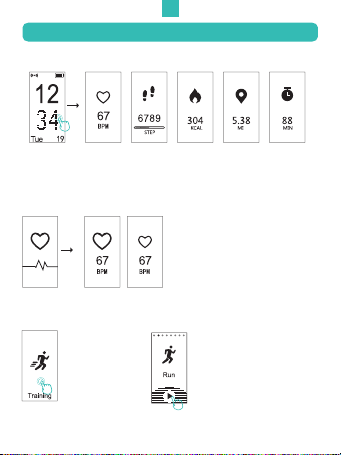

By tapping through on the main screen, the device will show you the
Heart rate, Steps, Calorie Consumption, Distance covered and
Workout duration.
Upon selecting the heart rate
monitoring screen, it will show a
‘data buffering’ screen. After a
few seconds it will show your
heart rate. The heart rate monitor
will update every 0.5 seconds.
①Swipe up from
the main screen to
Multi-sport mode,
tap the screen.
②You can then tap on the
screen to scroll through the
various sports modes. Long
press the start button for 3
seconds to enter that
particular sport mode. After
the countdown interface of
3-2-1-GO, the sports mode
is underway.
1. Activity Tracking
2. Multi-sport Mode
Heart Rate Monitoring
-05-
EN

④Single click the touch key to enter pause the sport
mode. There are options here; one is to continue the
sports mode, the other is to stop. To stop, long press the
‘stop’ icon for 3 seconds
⑤After stopping the sports mode, the collected data will
be displayed.
③Tap the screen to
enter the sub-mode of
the sport mode you are
in. By tapping on the
screen, you can view the
heart rate data, steps,
calories, duration and
distance (Not every
mode covers distance).
Note: When Music play
mode is ON, you cannot
enter this sub mode.
“On-going sport” mode
Sports data display mode
-06-
EN

Swipe up/down on the screen until you reach the
message mode screen. Tap the screen to enter the mode
to view any received messages.
In the information display page,
“Swipe up/down” to view the next message.
Press the message for 3~5s to delete it.
Swipe up/down on the screen to find Breathing mode and tap to
enter.
There will be a 3, 2, 1 countdown, followed by a 3 second ‘inhale’
count then a 2 second ‘hold’ count and finally a 3 second ‘exhale’
count. The device will vibrate slightly to prompt you to change
between ‘inhale’, ‘hold’ and ‘exhale’.
3. Message Alert
4. Breathing mode
-07-
3s
inhale
2s
Hold breath
exhale
3s
EN
Can you
do me a
favour?
1/1
Email
Can you
do me a
favour?
2/3
WeChat
Note: Only the 5 most recent messages will be stored

Tap the screen to view weather information. The screen
vibrates when there is no weather information, and the
device will not enter this mode.
On the music screen tap start/pause to play music, motor
will vibrate slightly.
Note: It will not be displayed on the device screen if music control
mode is ‘OFF’ in the app. Turn it on by doing to: Device – Music
control – ON – Confirm.
It will then be displayed on the device screen after connecting with
the app through Bluetooth
Note: No weather information will displayed on the device screen
when this is switched “OFF” in app. To open it in the app go to:
Device – More – Weather forecast. Further weather information will
only be updated when this switch is ‘ON’ .
5. Weather Display
6. Music Control
-08-
EN

Swipe up/down on the screen to find the settings menu.
Tap to enter “function settings mode”
7. More Functions and Settings
When set to OFF, messages and calls will not be received.
【】Stopwatch Mode.
【】”Shake wrist to display” ON setting.
Tap【】to enter DO NOT DISTURB mode.
【】Camera shooting mode, motor vibrates slightly.
【】Time Display mode, Slide up and down to choose between
the 5 different time displays, tap on the dial to confirm the current
display mode.
【】Details of time axis. Tap the screen to change.
【】Alarm clock. Display 10 alarms max (set and sync through
app)
-09-
【】Heart Rate Monitoring switch.
Specific Data categories are as follows:
Sleep Monitoring Mode: Deep Sleep, Light Sleep, Awake
Multi-sport Mode (8 default sport modes) Walking, Running,
Treadmill, Cycling, Hiking, Fitness, Basketball, Badminton
EN
OFF ON
